Toyota Land Cruiser Prado
2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General
Supported model
Data version 2010-10
Electronic Fuel Injection System
16 part groups · 6 illustrations

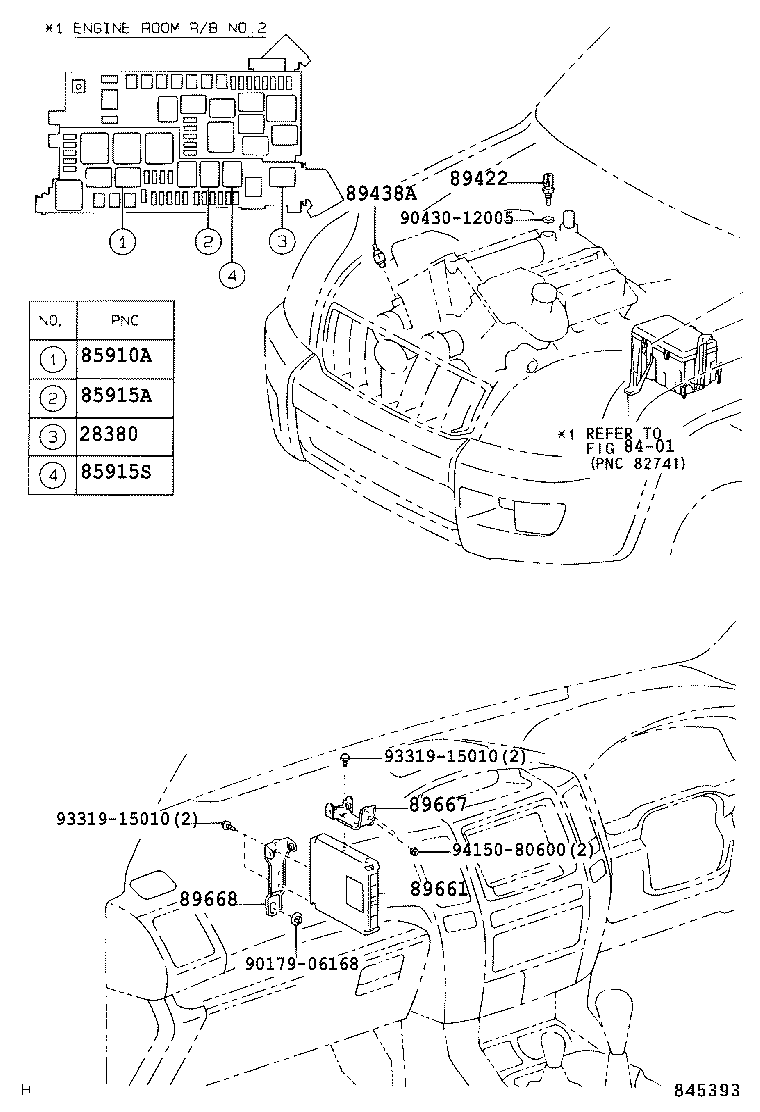

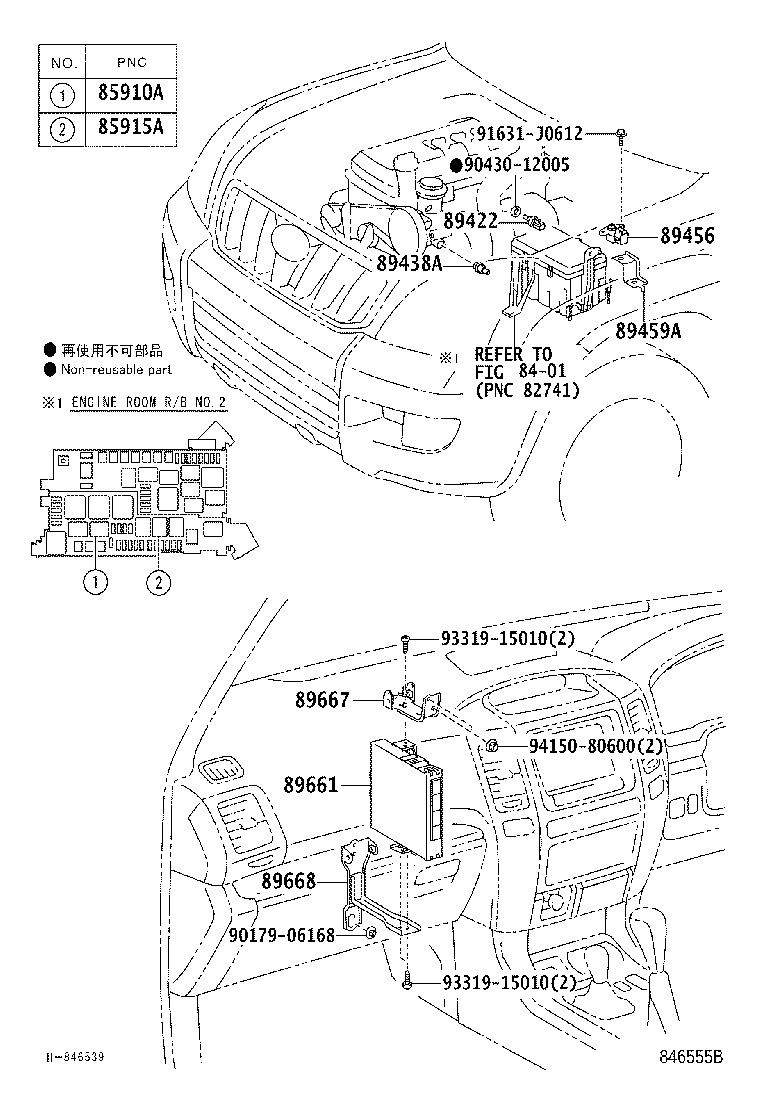

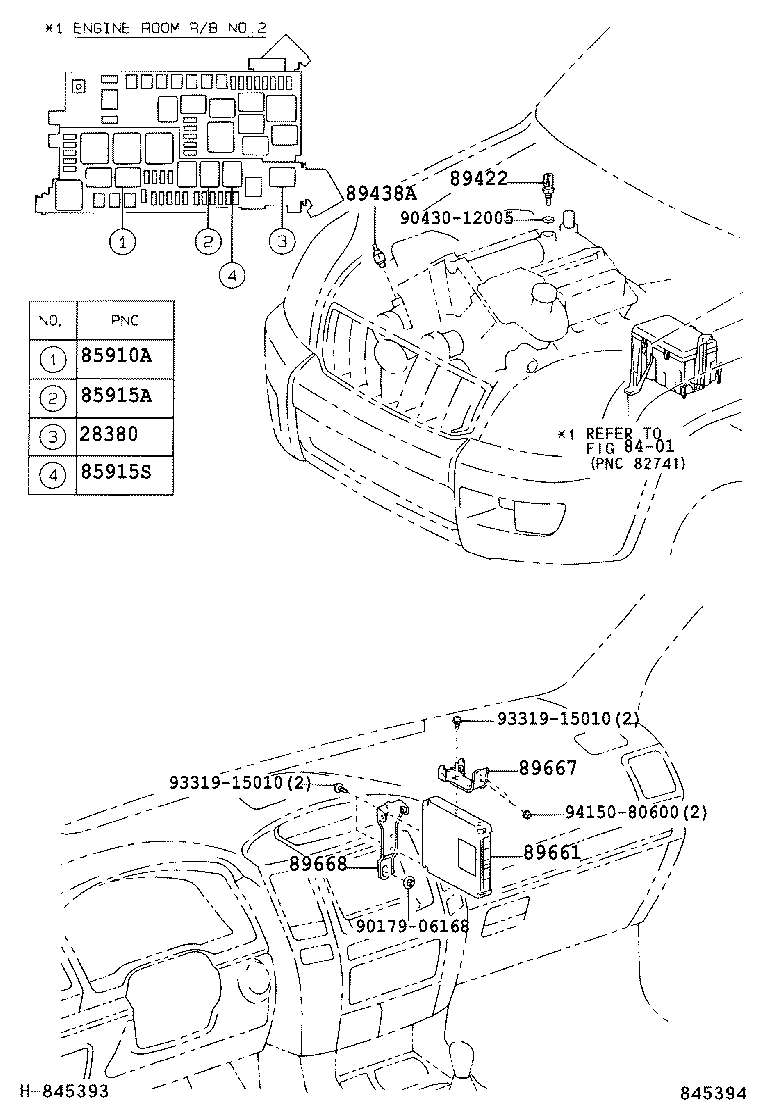

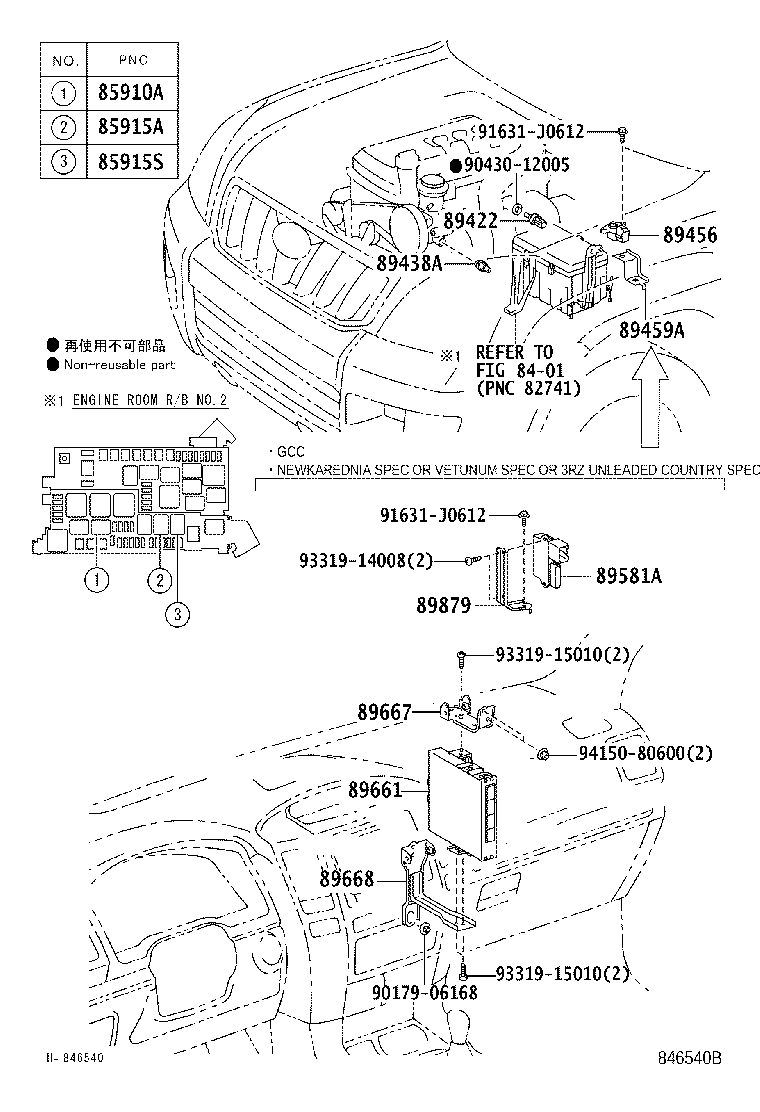

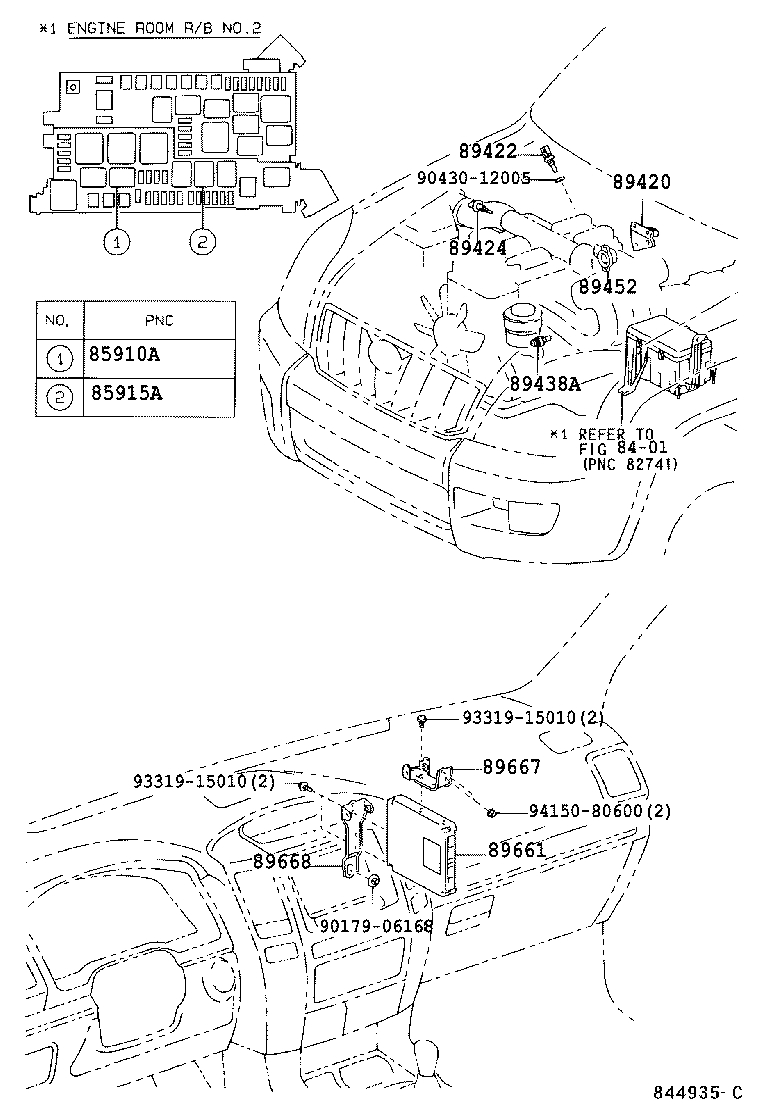

Part groups
| PNC | Description |
|---|---|
| 28380 | Relay Assy, Fuel Pump |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85915A | Relay, Main |
| 85915S | Relay, Heater (FOR AIR FUEL RATIO SENSOR) |
| 89420 | Sensor Assy, Vacuum |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89424 | Sensor, Inlet Air Temperature (FOR E.F.I.) |
| 89438A | Switch, Power Steering Oil Pressure |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89456 | Resistor, Variable |
| 89459A | Bracket, Variable Resistor |
| 89581A | Driver, Air Injection Control |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89879 | Bracket, Injector Driver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
