Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

64 part groups · 16 illustrations

Illustrations

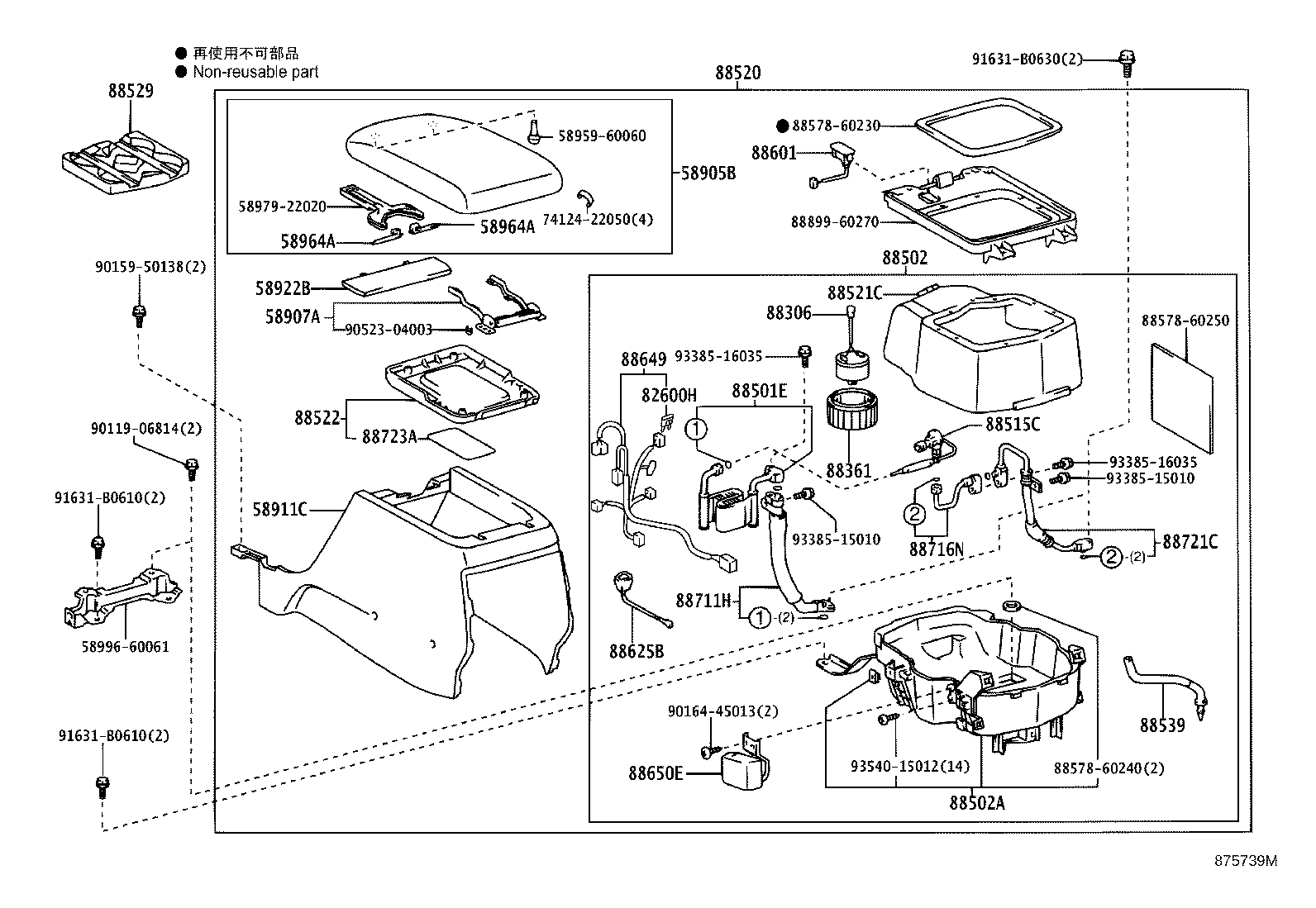

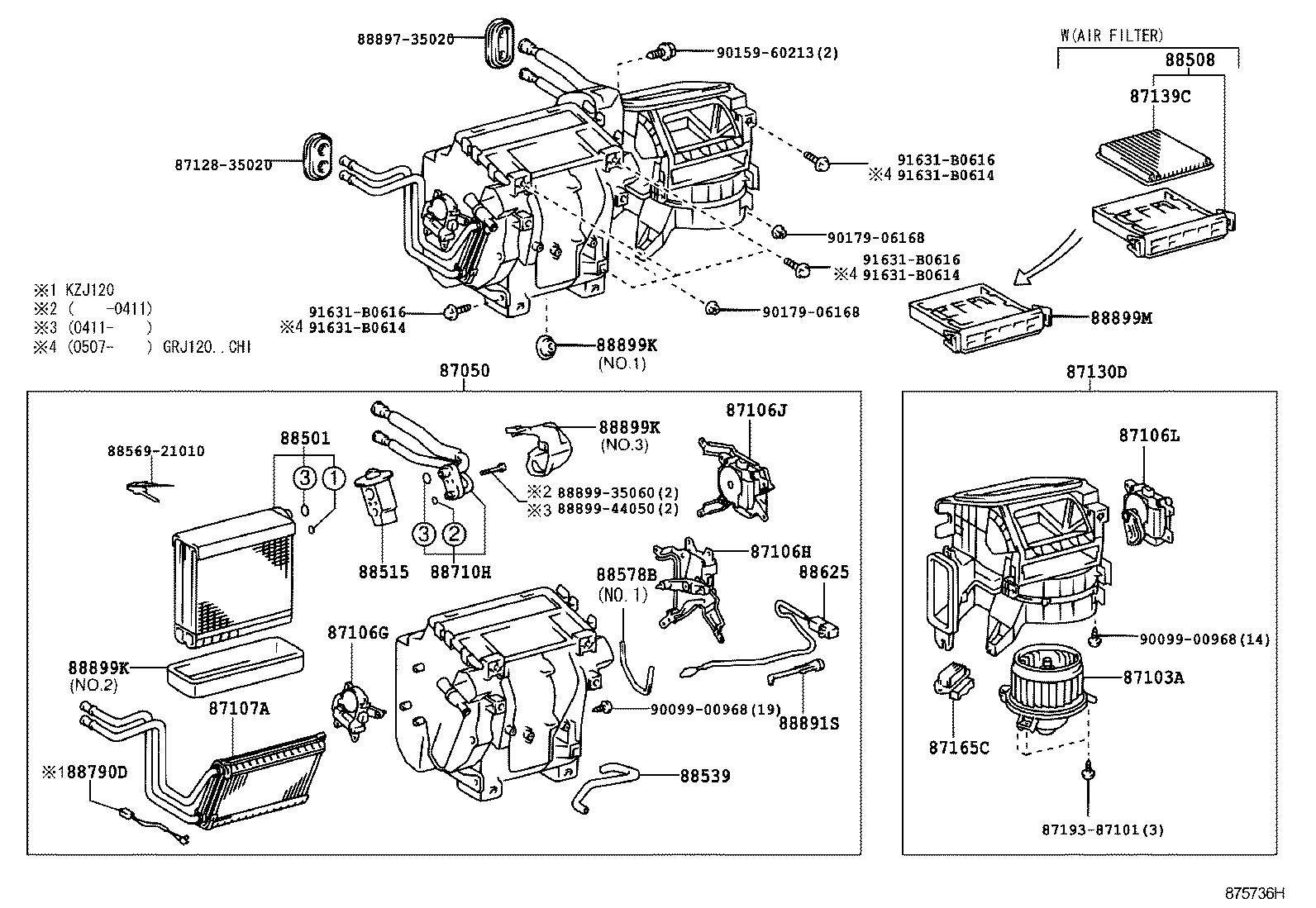

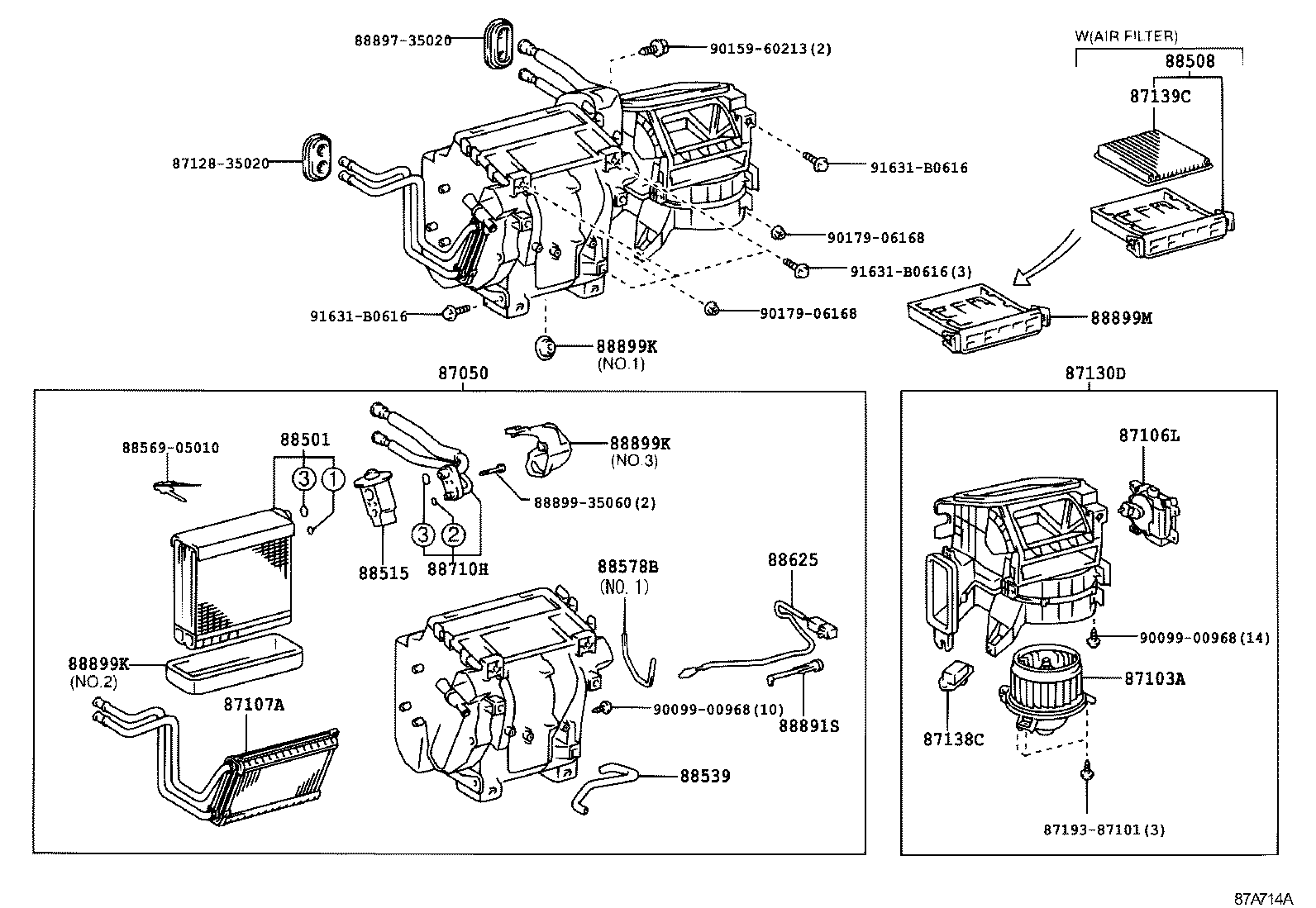

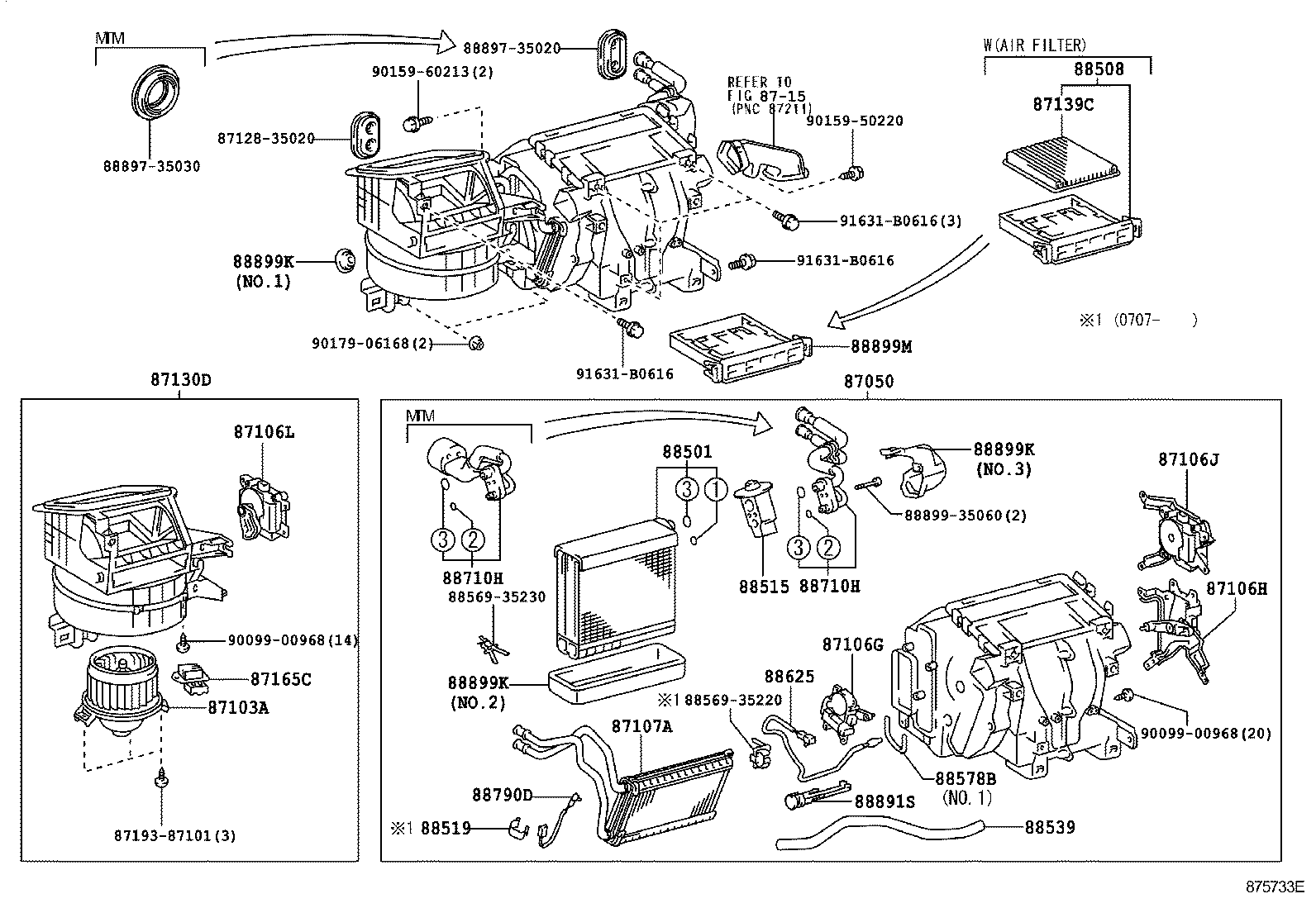

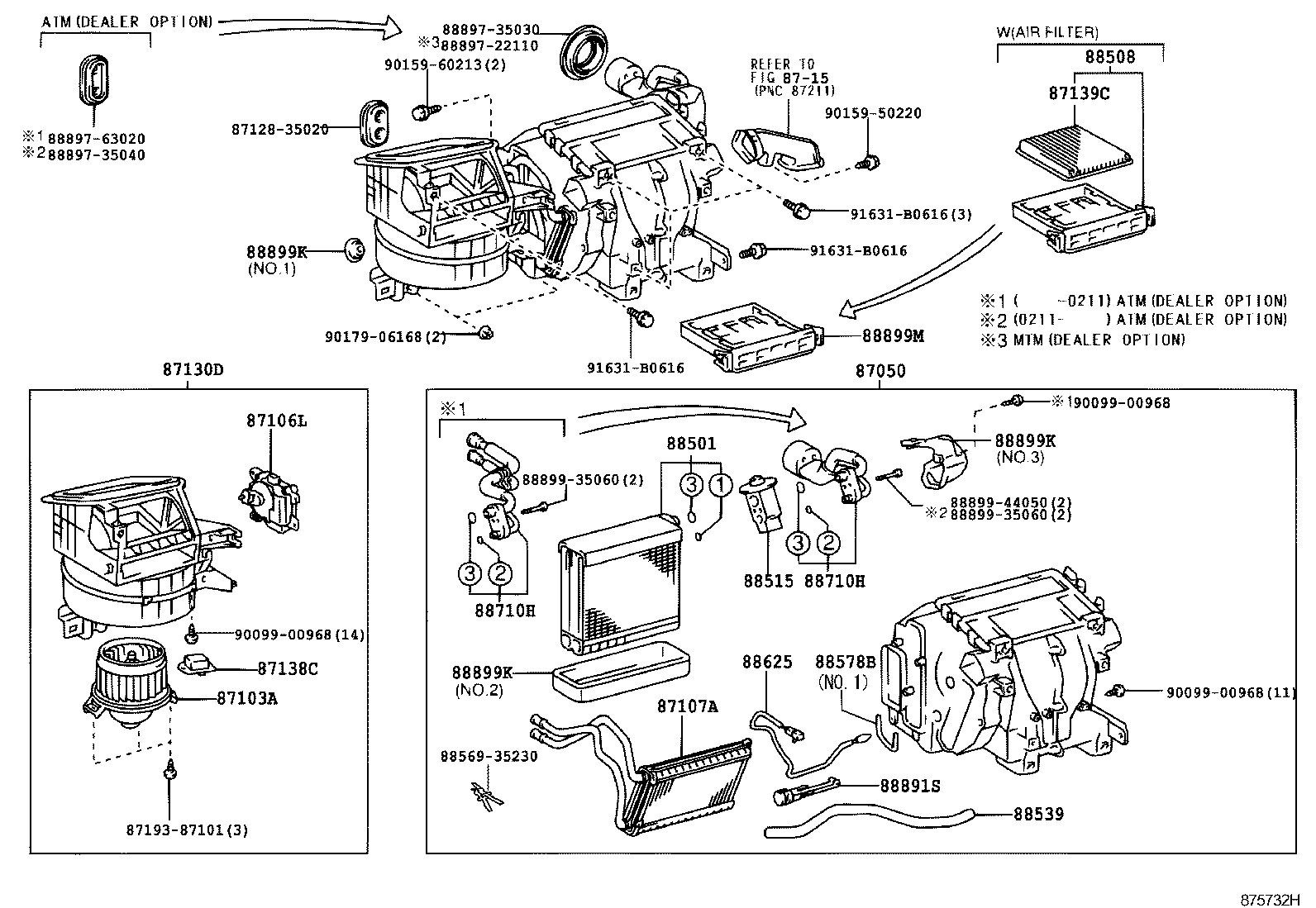

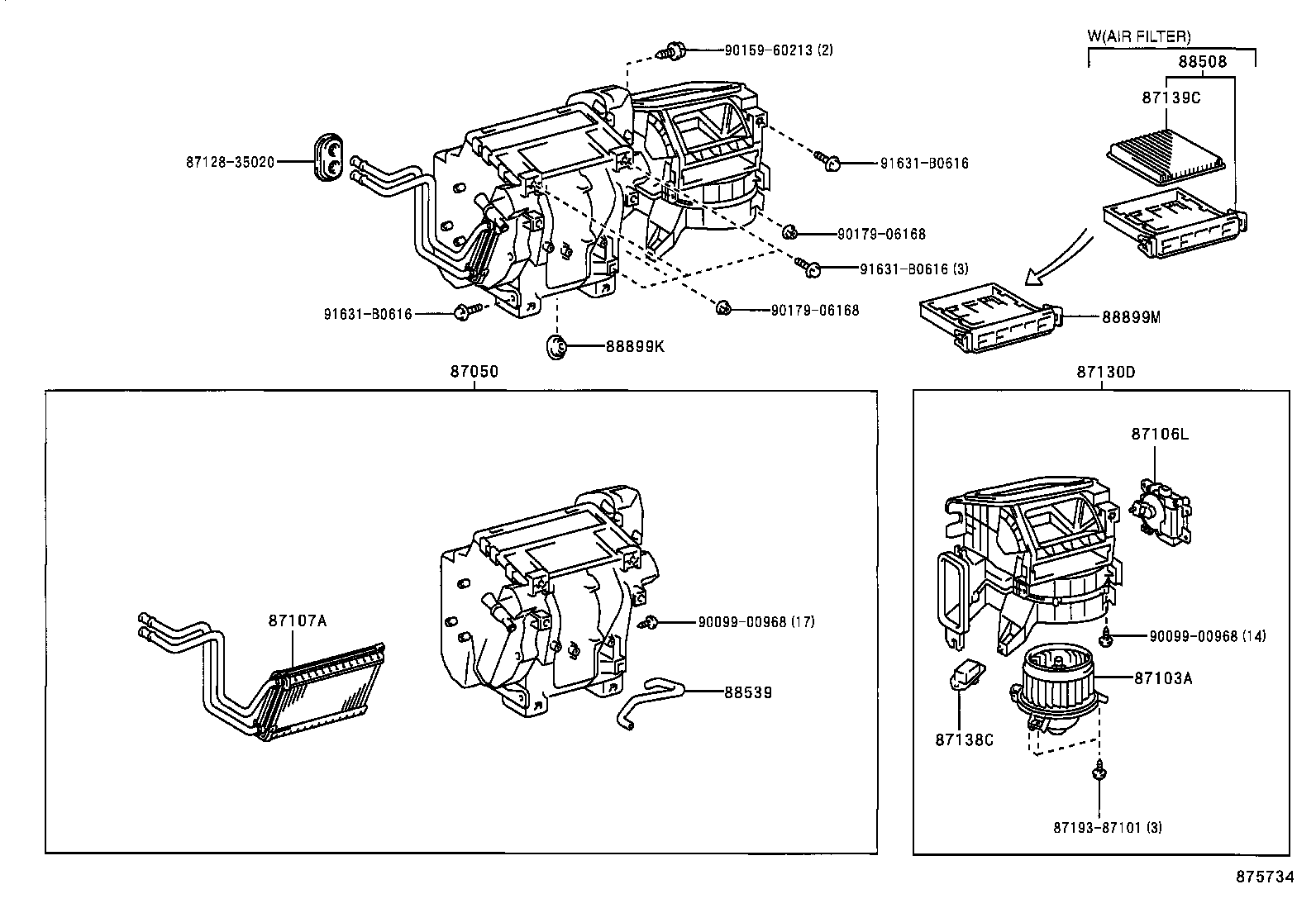

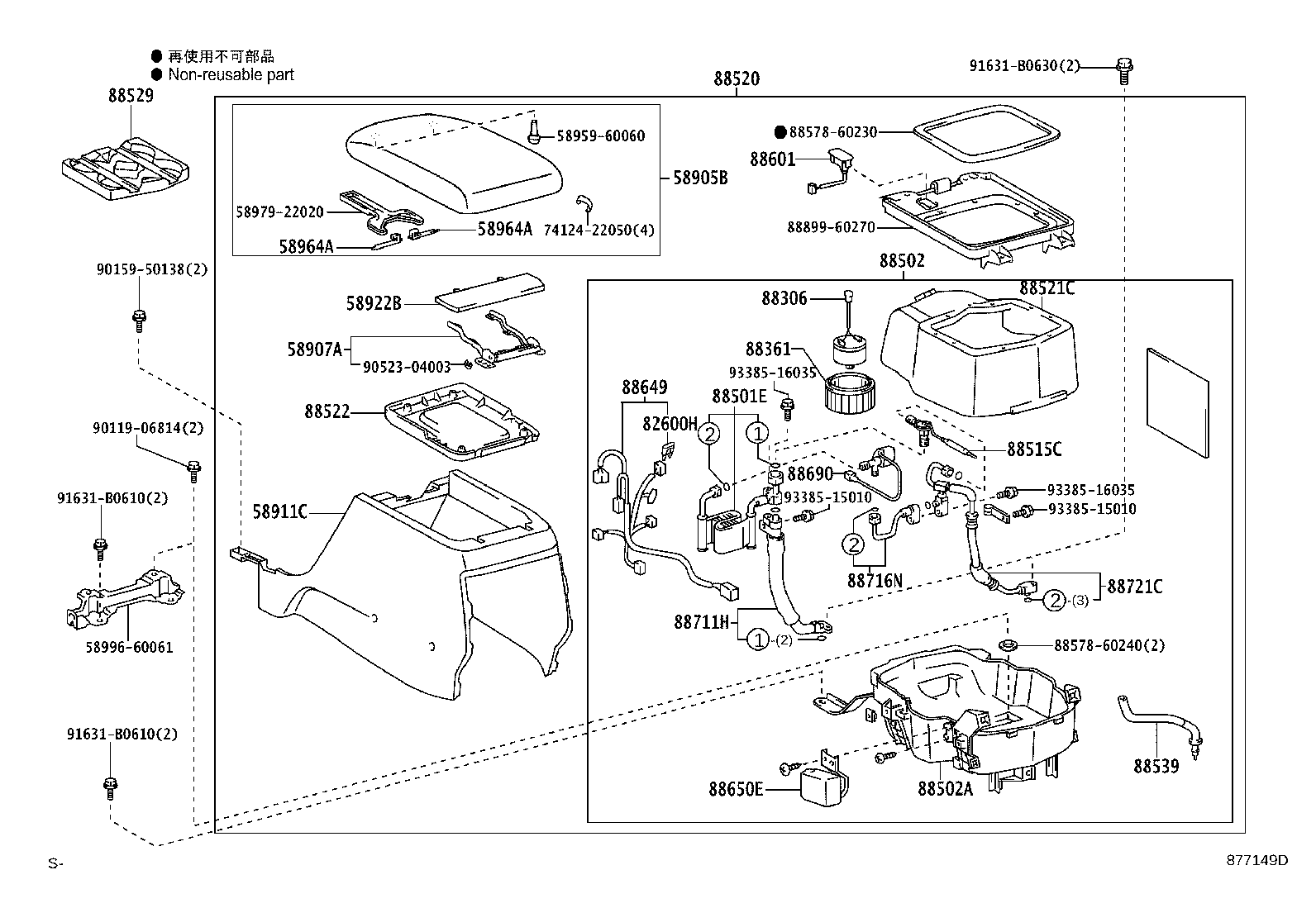

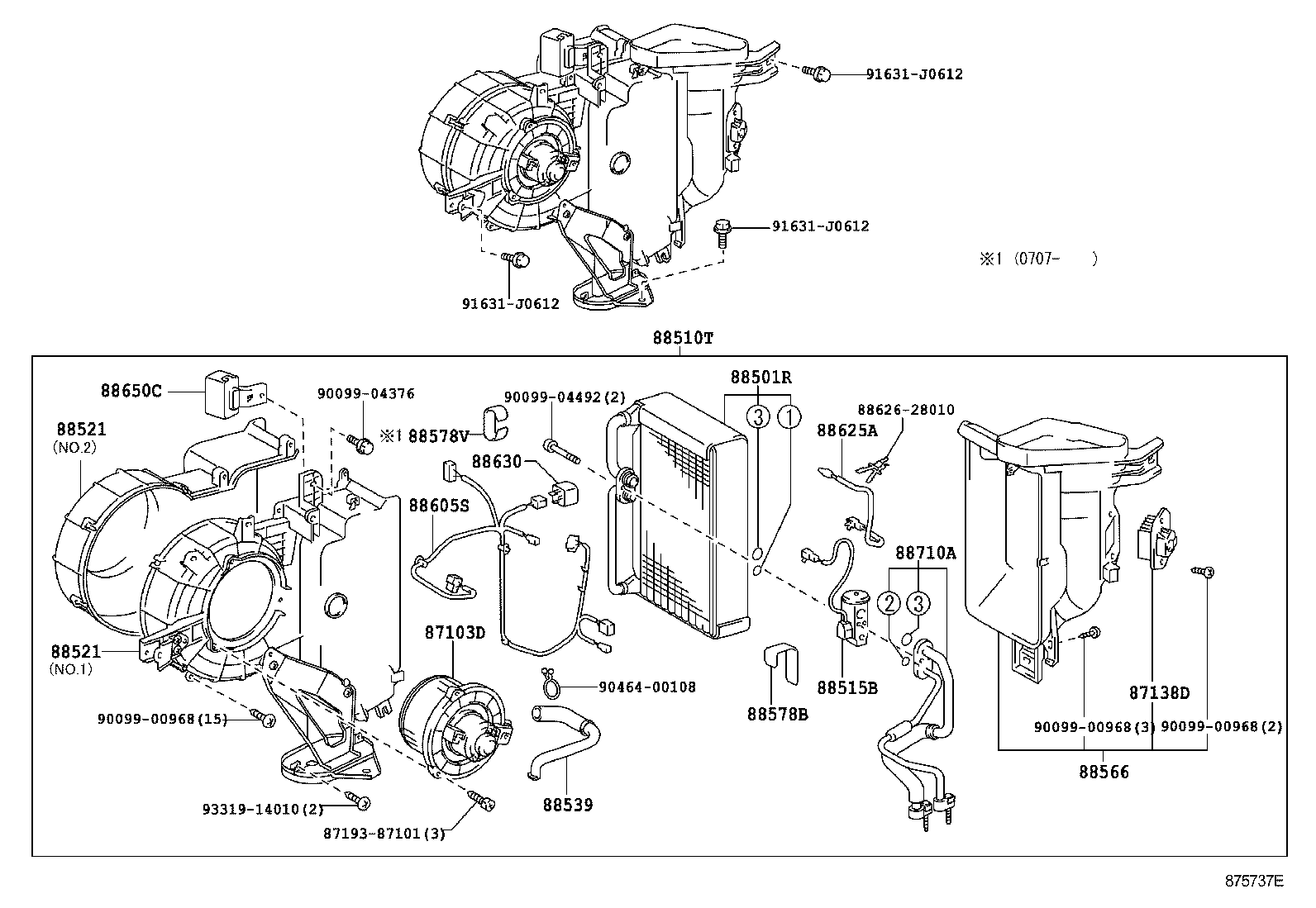

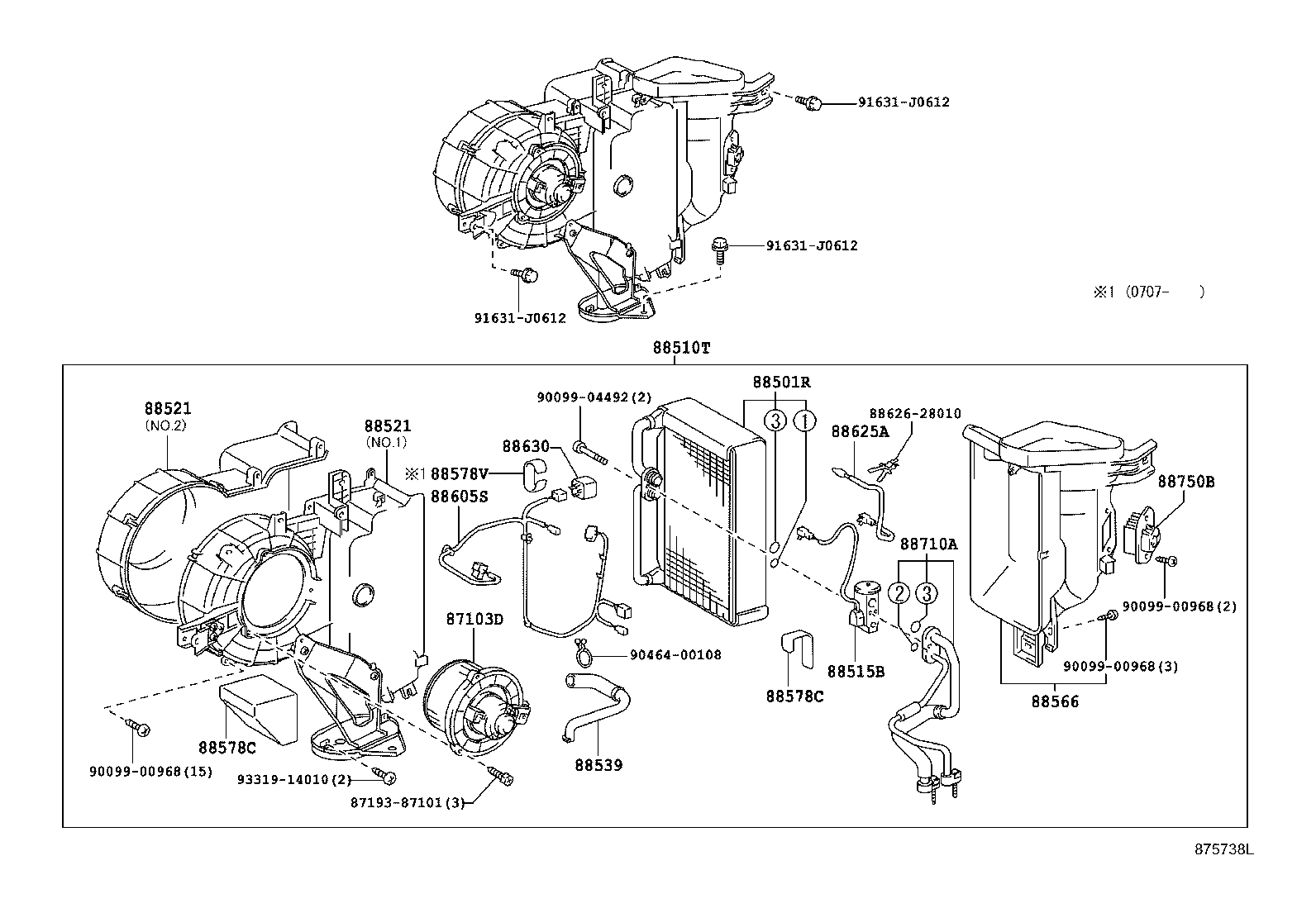

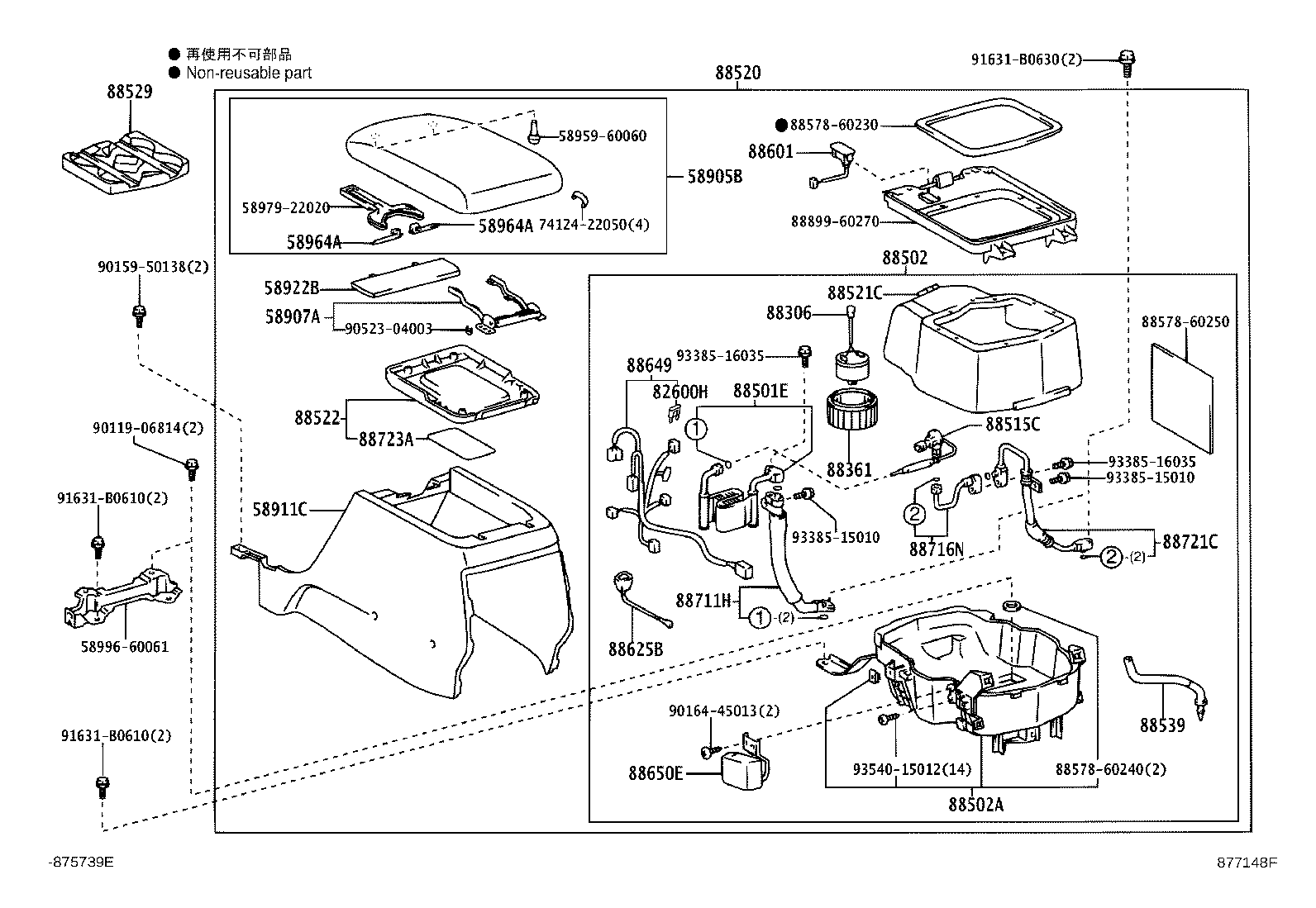

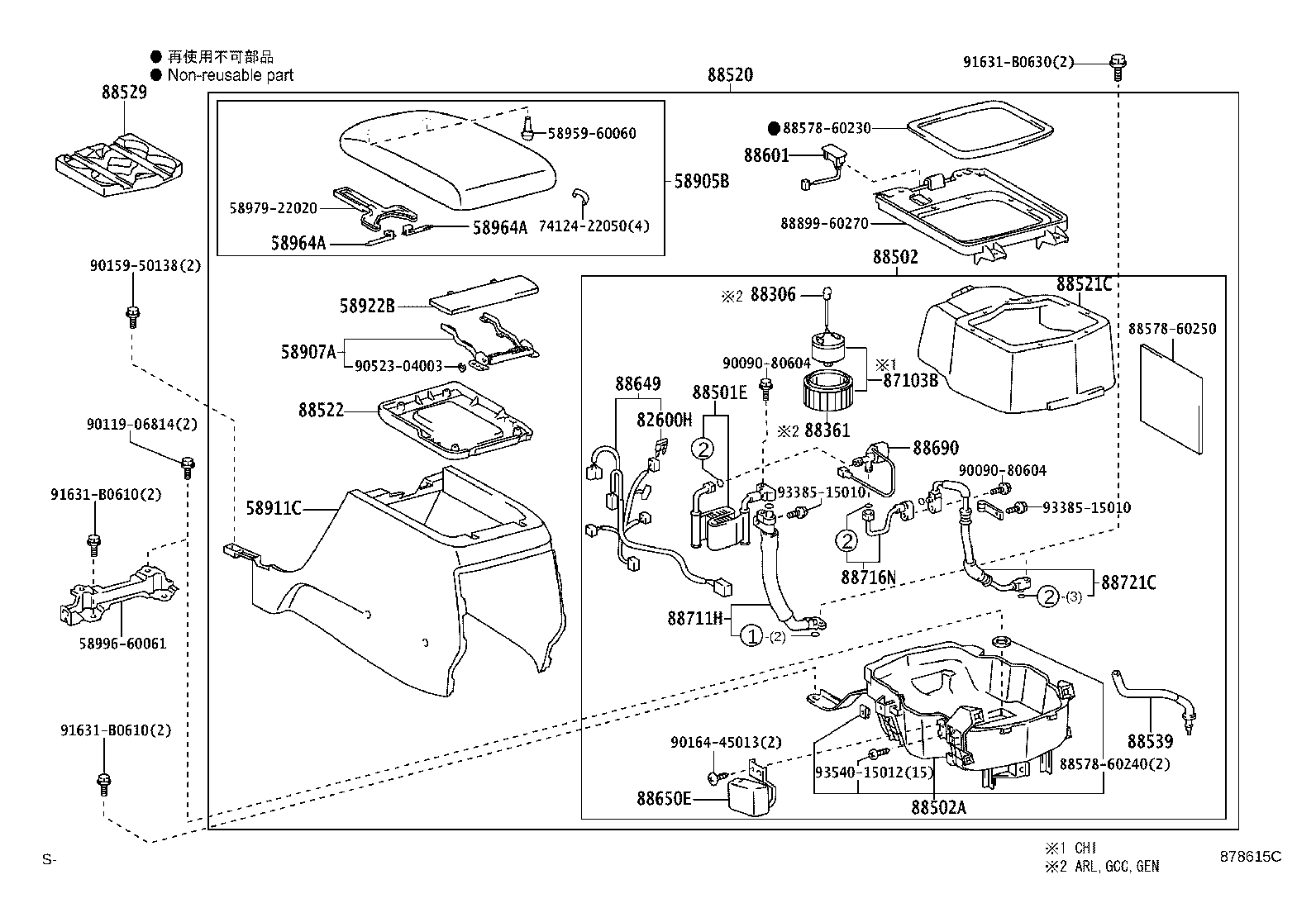

Figure 875731 875731 2002-09 → — Figure 875732H 875732H 2002-09 → — Figure 875733E 875733E 2002-09 → — Figure 875734 875734 2002-09 → — Figure 875735E 875735E 2002-09 → — Figure 875736H 875736H 2002-09 → — Figure 87A714A 87A714A 2003-09 → — Figure 875737E 875737E 2002-09 → — Figure 875738L 875738L 2002-09 → — Figure 875739M 875739M 2002-09 → 2003-11 Figure 875739M 875739M 2002-09 → 2005-08 Figure 877148F 877148F 2003-11 → 2005-08 Figure 877149D 877149D 2003-11 → 2005-08 Figure 878615C 878615C 2005-08 → — Figure 878615C 878615C 2006-06 → — Figure 875724B 875724B 2002-09 → —

Part groups

PNCDescription
58905B Door Sub-assy, Console Compartment(FOR COOL BOX)
58907A Hinge Sub-assy, Cooling Box Door
58911C Panel, Box, NO.1(FOR COOL BOX)
58922B Plate, Box, Upper NO.2
58964A Stopper, Cooling Box Door, NO.1
82600H Fuse, Fuse Block
87050 Radiator Assy, Air Conditioner
87103A Motor Sub-assy, Cooling Unit, W/Fan
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87106G Servo Sub-assy, Damper(FOR BLOWER)
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106L Servo Sub-assy, Damper
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87138C Resistor, Blower
87138D Resistor, Blower (REAR)
87139C Filter, Clean Air
87165C Control, Blower Motor
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88501E Evapolator Sub-assy, Cooler (COOL BOX)
88501R Evaporator Sub-assy (REAR)
88502 Case Sub-assy, Cooling Unit
88502A Case Sub-assy, Cooling Unit
88508 Filter Sub-assy, Clean Air
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515C Valve, Cooling Box Expansion
88519 Holder, Remote Bulb
88520 Box Assy, Cooling
88521 Case, Cooler Unit
88521C Case, Cooling Unit
88522 Door, Cooling Unit
88529 Tray, Cooling Box
88539 Hose, Cooler Unit Drain, NO.1
88566 Duct, Cooler Air, NO.1
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88601 Switch Sub-assy, Cooler Control
88605S Harness Sub-assy, Wiring Air Conditioner
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88625B Thermistor, Cooler NO.3
88630 Relay Assy, Cooler
88649 Wiring, Cooler, NO.2
88650C Amplifier Sub-assy, Airconditioner
88650E Amplifier Assy, Air Conditioner, NO.1
88690 Valve Assy, Cooler Magnet
88710A Tube Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88711H Hose, Discharge
88716N Pipe, Cooler Refrigerant Liquid, N
88721C Hose, Liquid
88723A Label, Cooler Service Caution
88750B Transistor Assy, Blower Resistor
88790D Thermistor Assy
88891S Cover, Cooler, NO.1
88899K Plate, Cover
88899M Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
