Heating & Air Conditioning - Water Piping

9 part groups · 8 illustrations

Illustrations

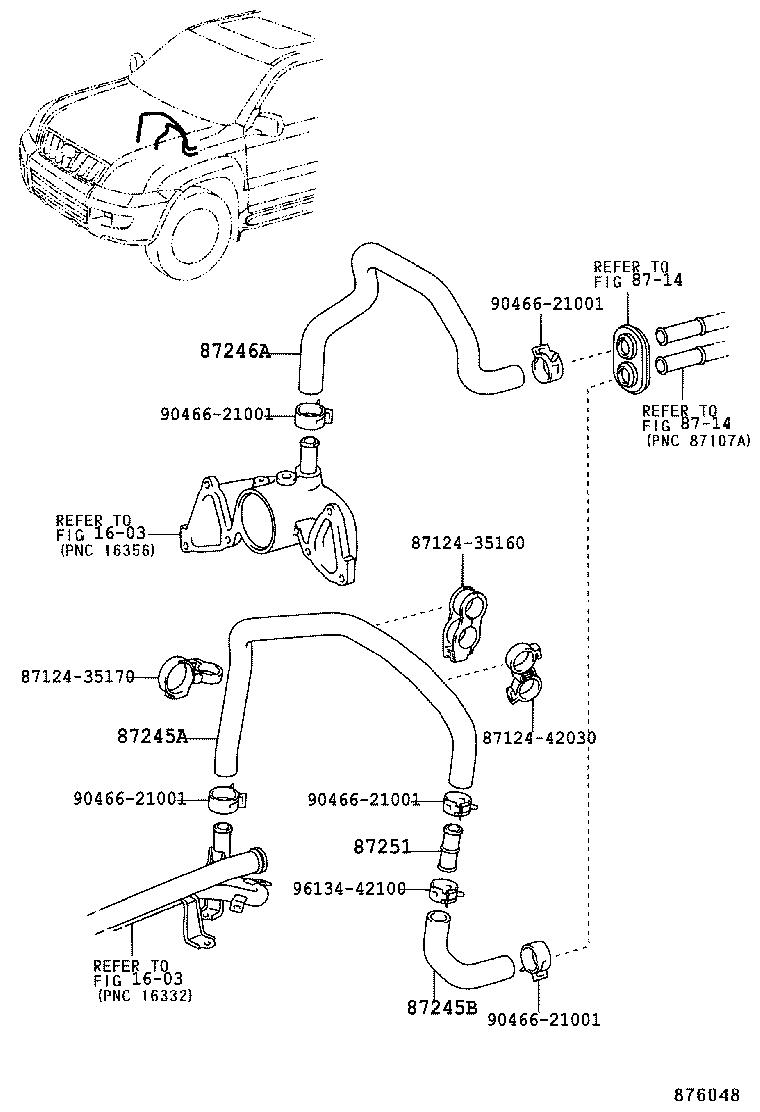

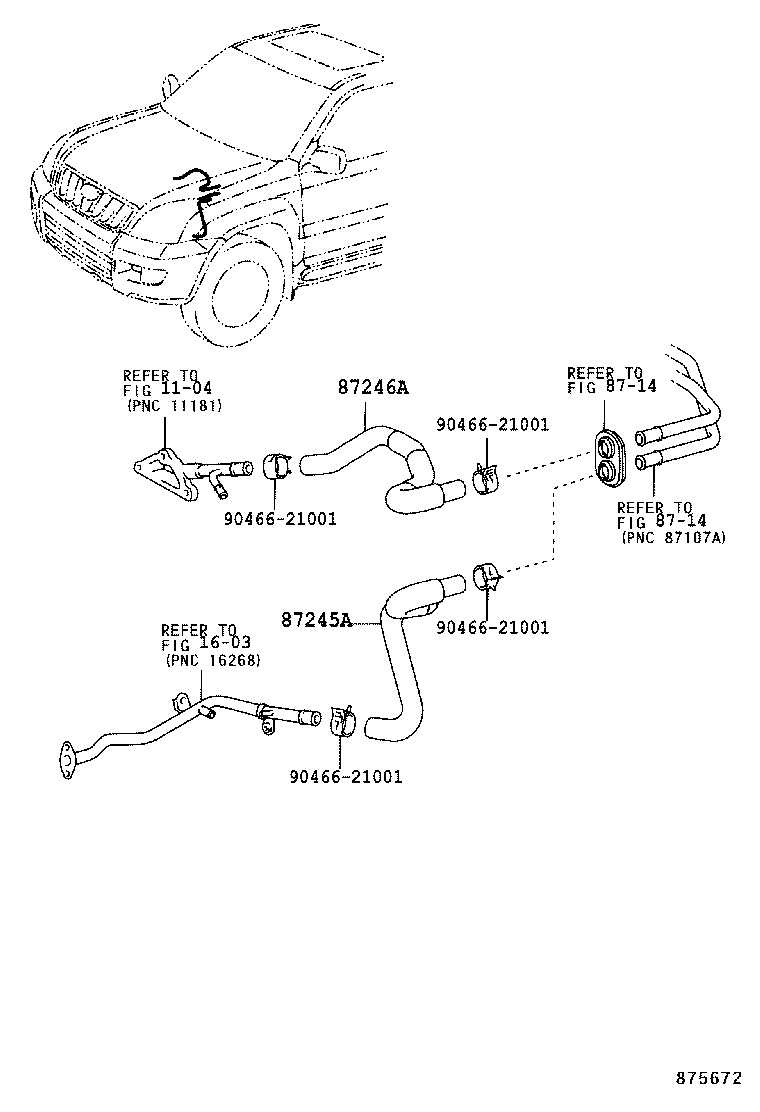

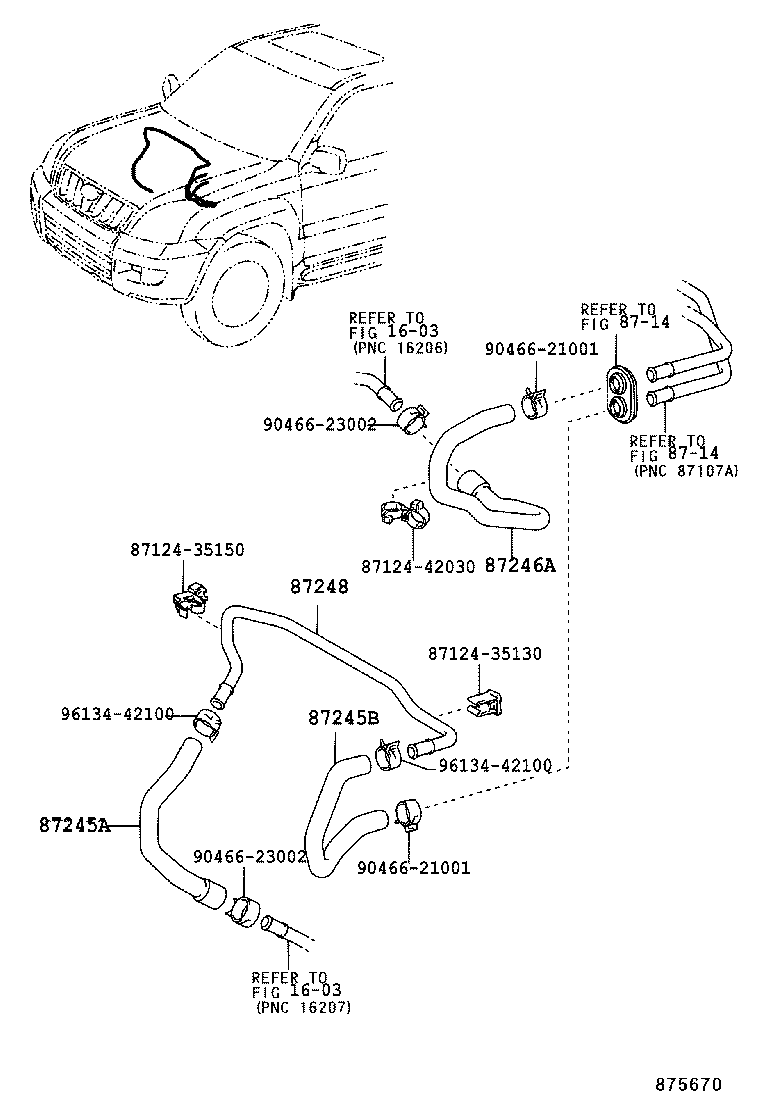

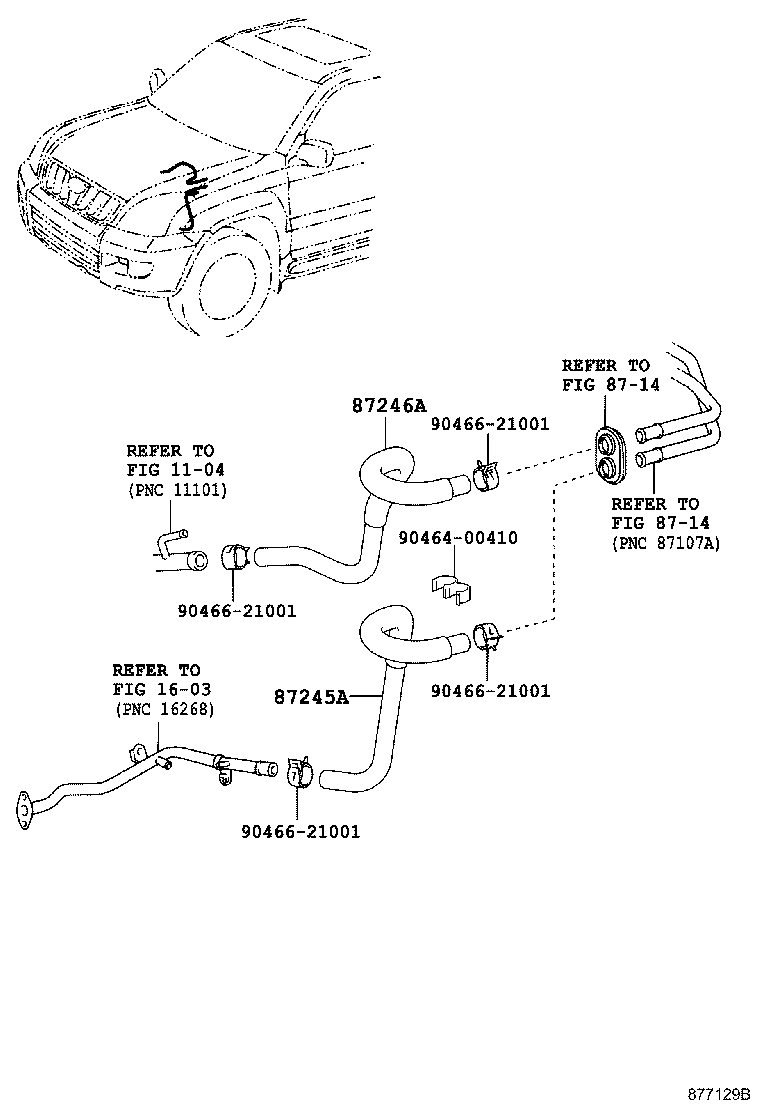

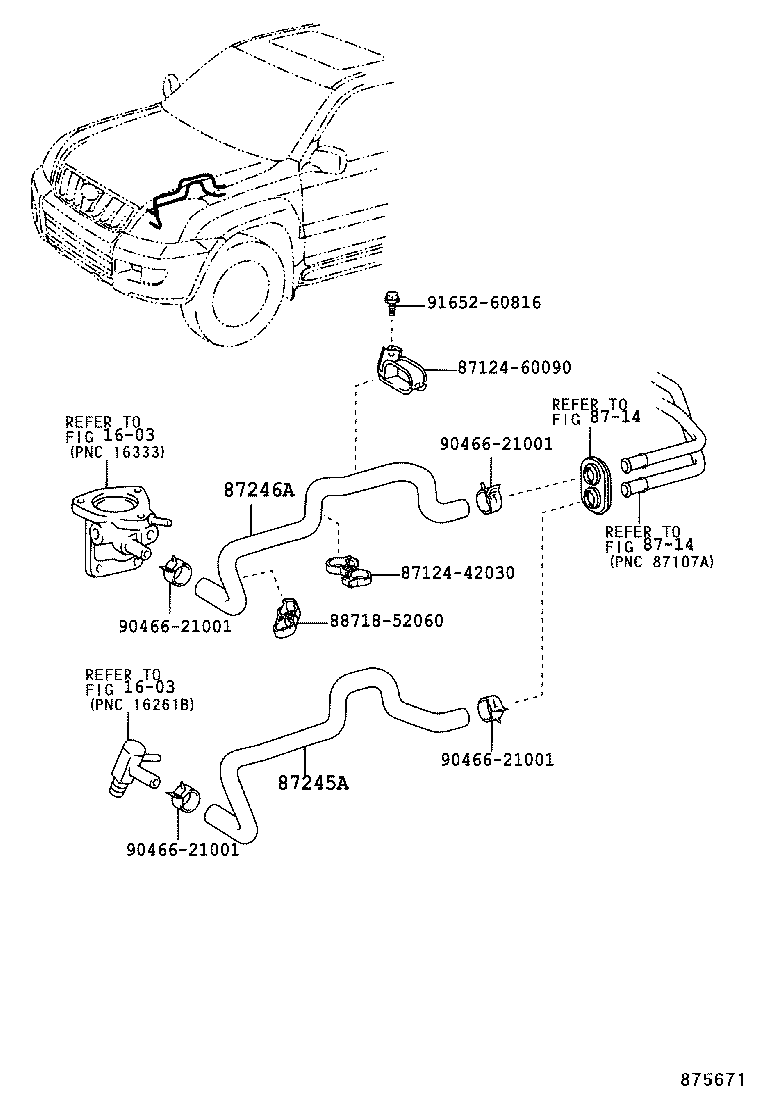

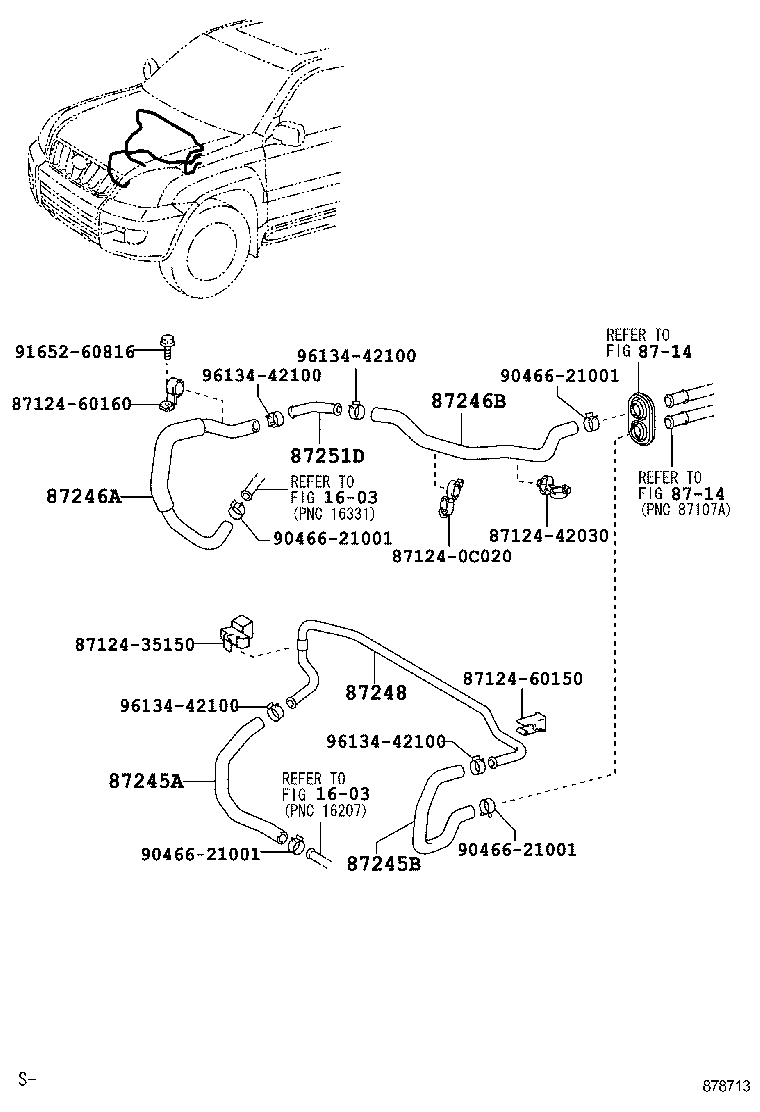

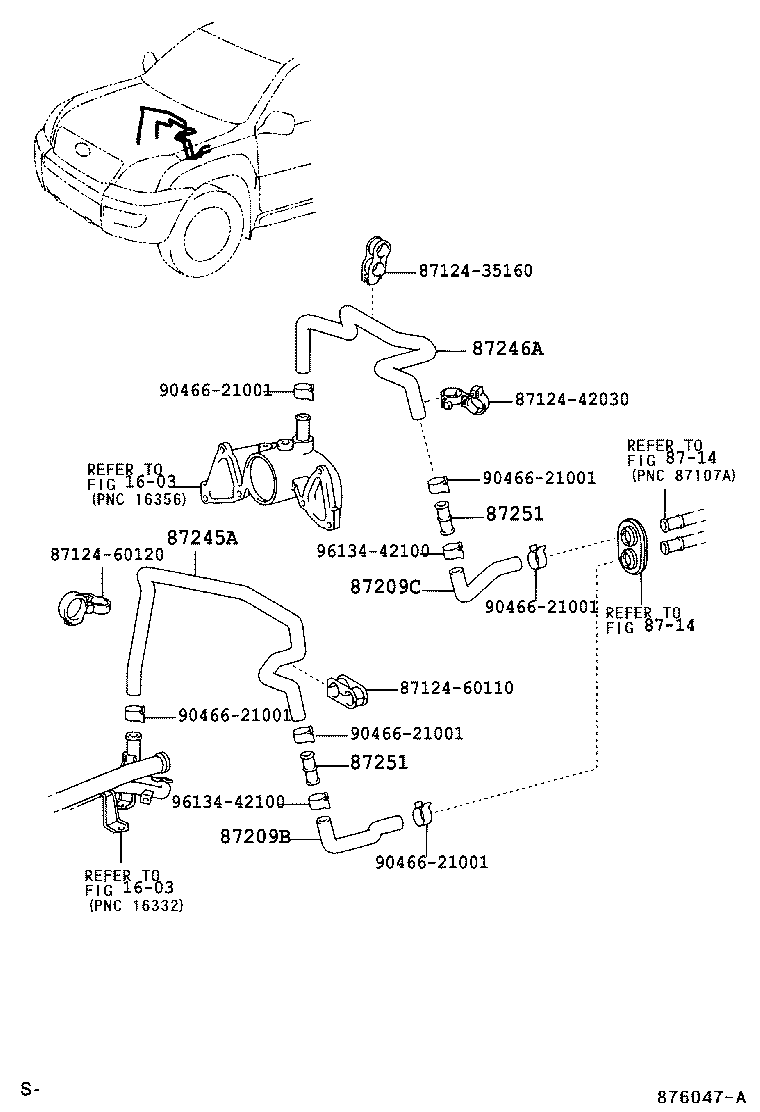

Figure 875669 875669 2002-09 → — Figure 875670 875670 2002-09 → — Figure 875671 875671 2002-09 → — Figure 875672 875672 2002-09 → — Figure 876047A 876047A 2003-01 → — Figure 876048 876048 2003-01 → — Figure 877129B 877129B 2004-08 → — Figure 878713 878713 2006-08 → —

Part groups

PNCDescription
87209B Hose Sub-assy, Water, B
87209C Hose Sub-assy, Water, C
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248 Pipe Sub-assy, Water
87251 Joint OR Union, Water Hose Through
87251D Joint, Water, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
