Toyota Land Cruiser Prado

2002-09 → 2010-03 · chassis GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# · catalogue 781350 · General

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

34 part groups · 31 illustrations

Illustrations

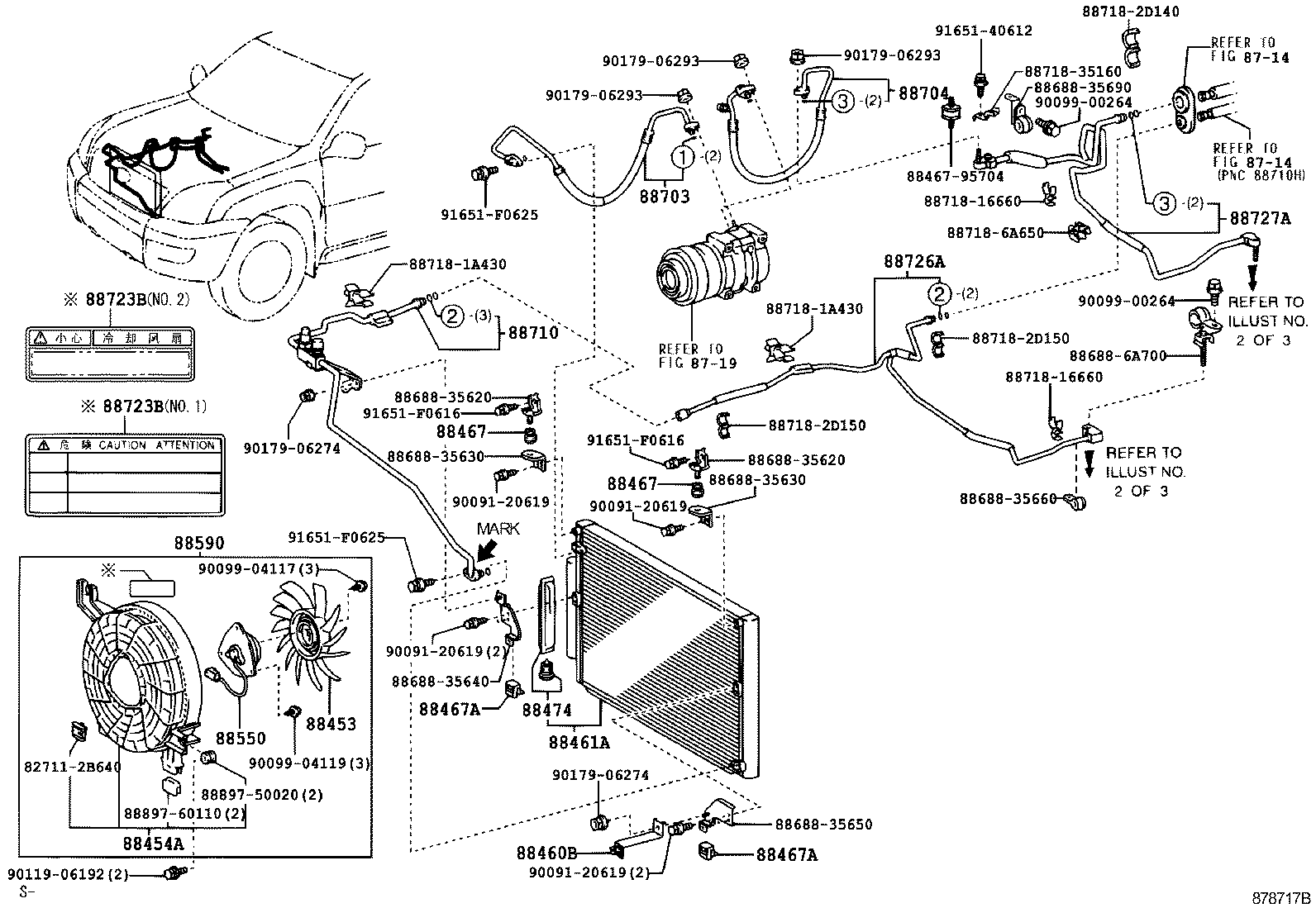

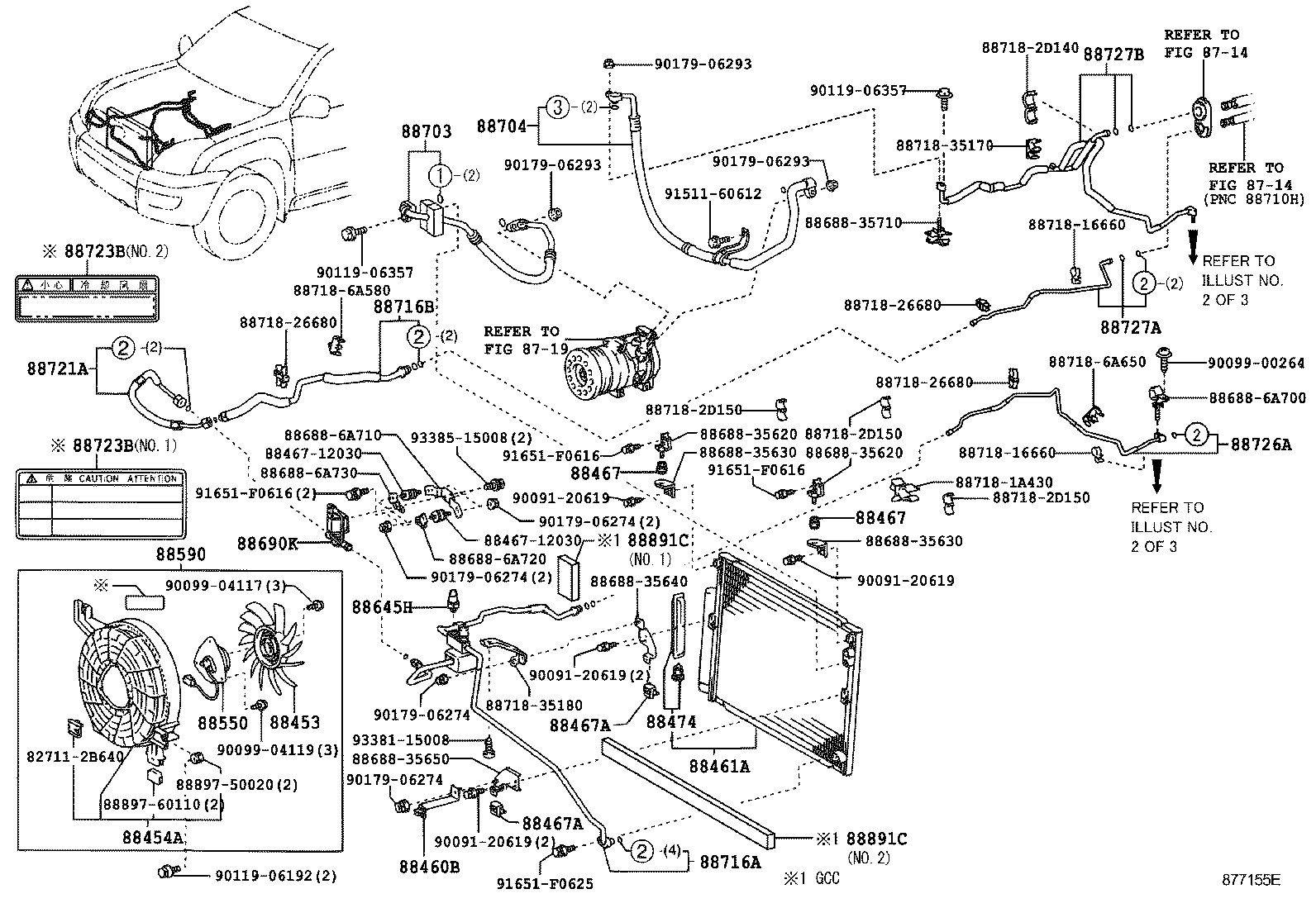

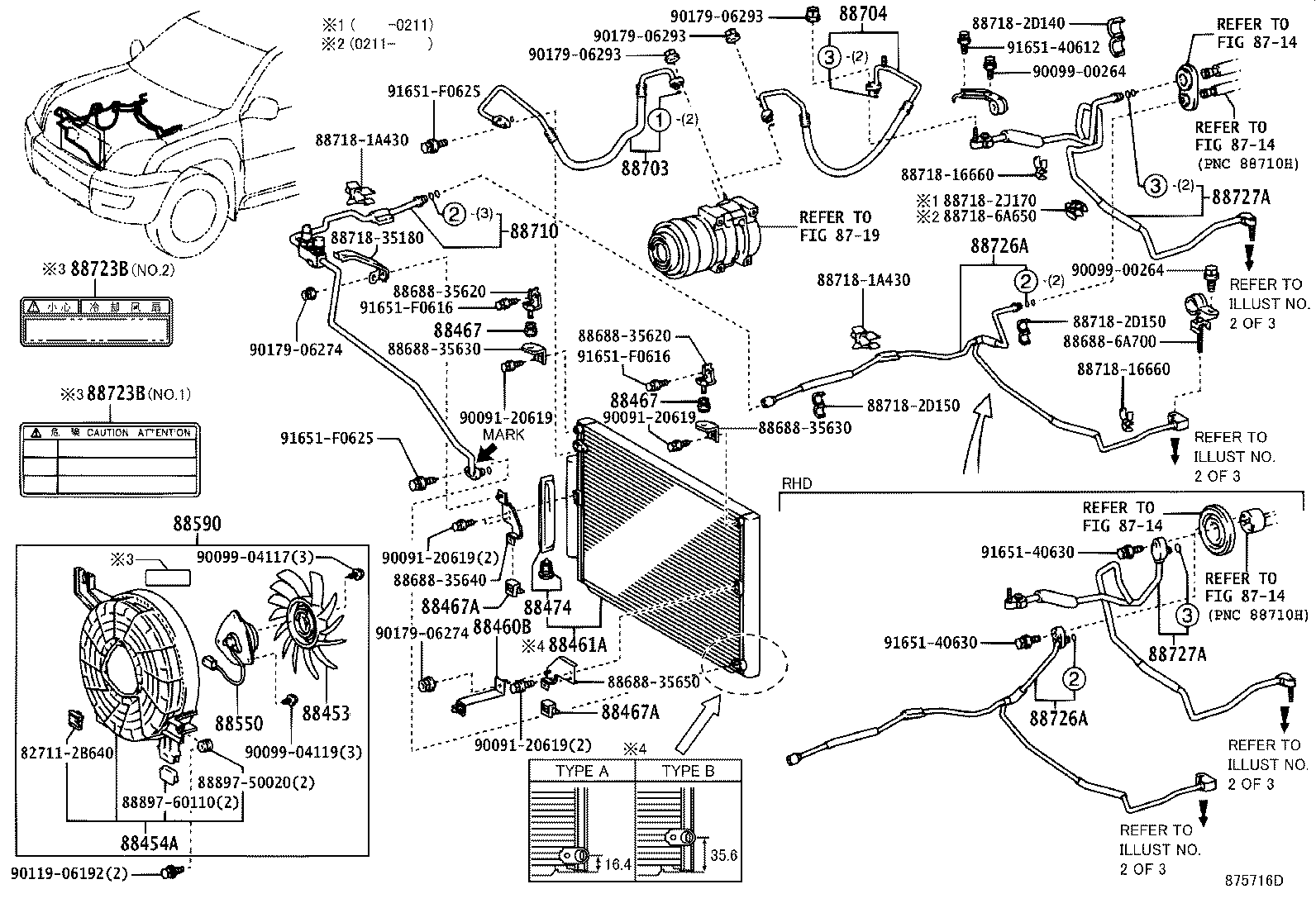

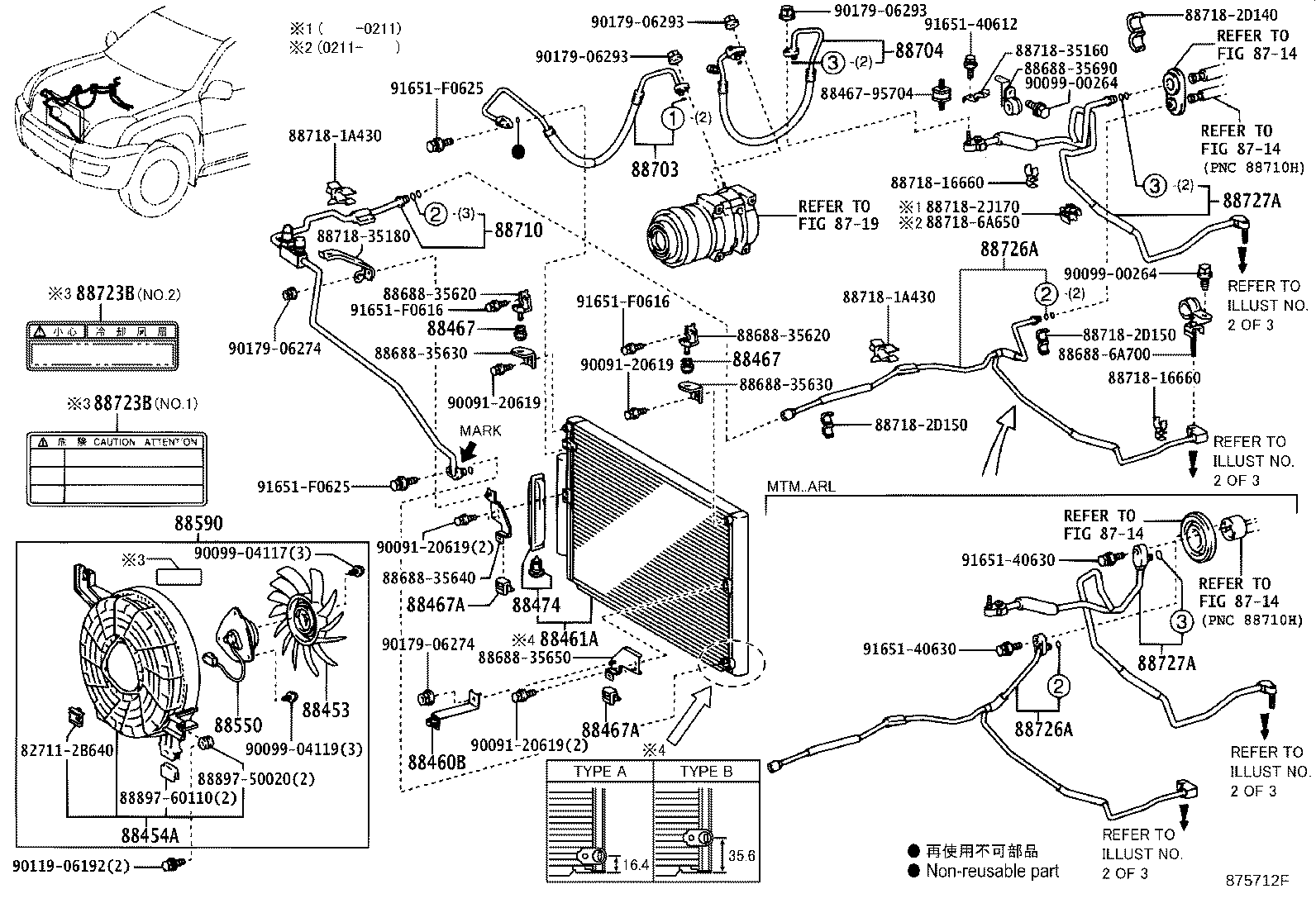

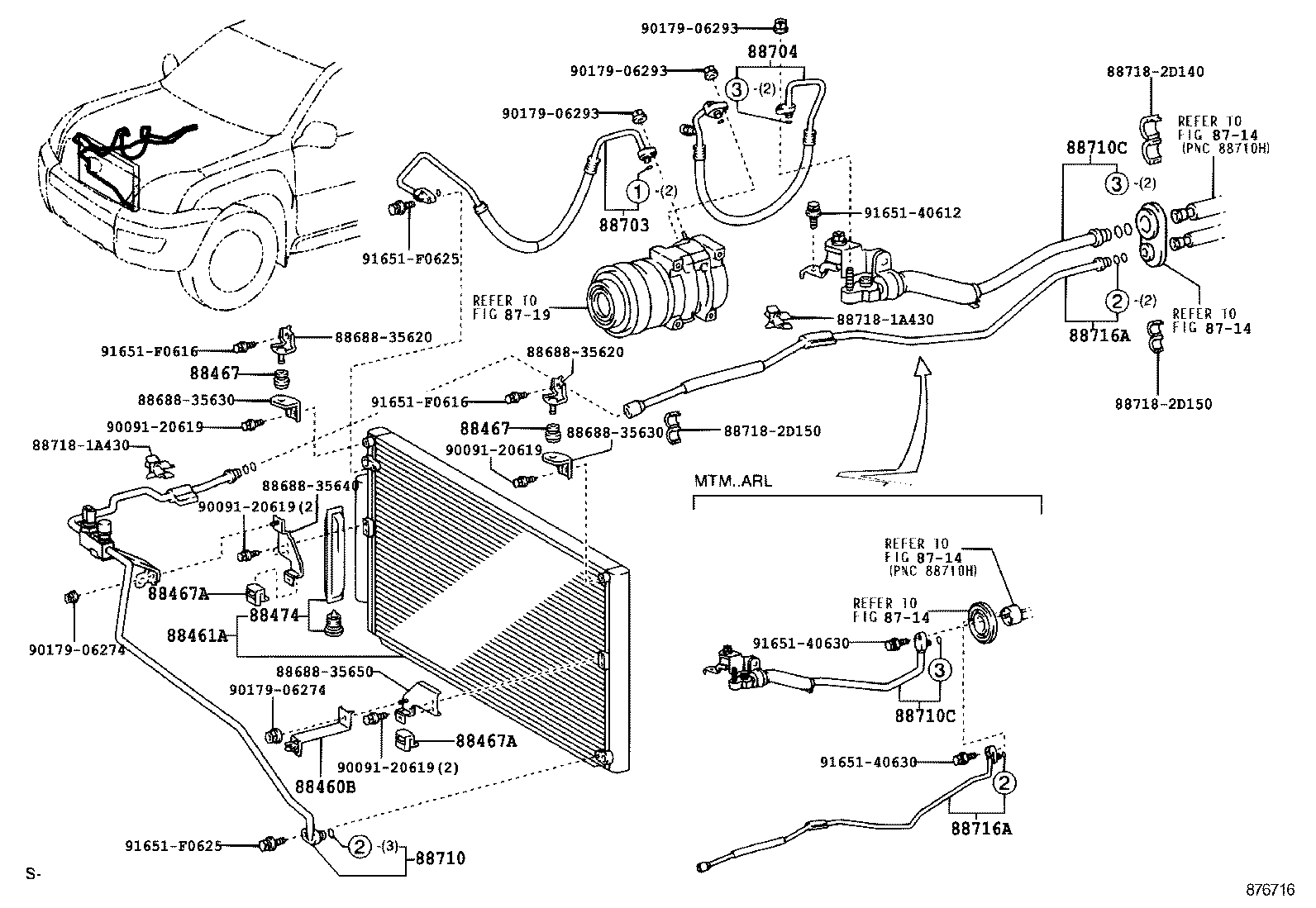

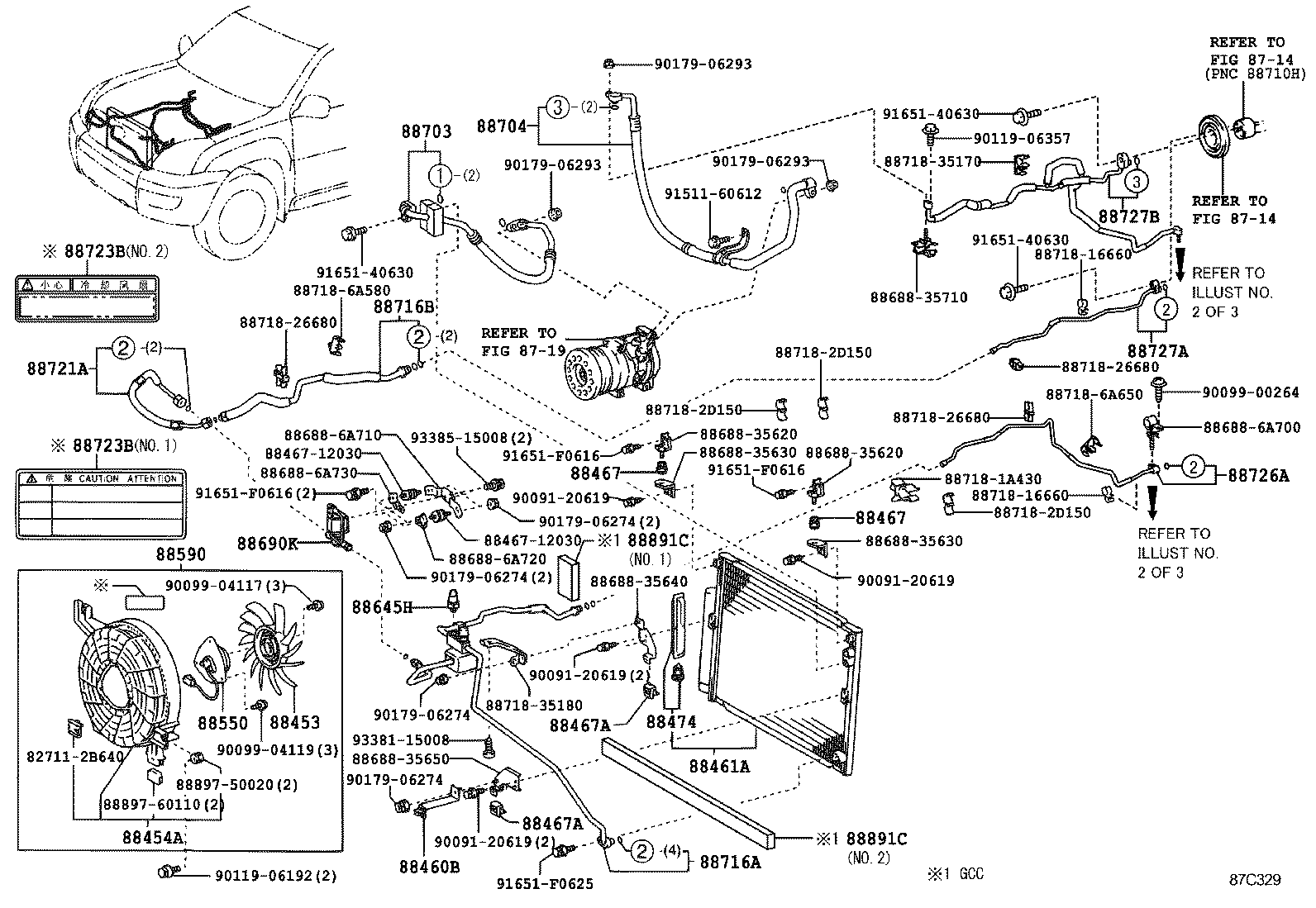

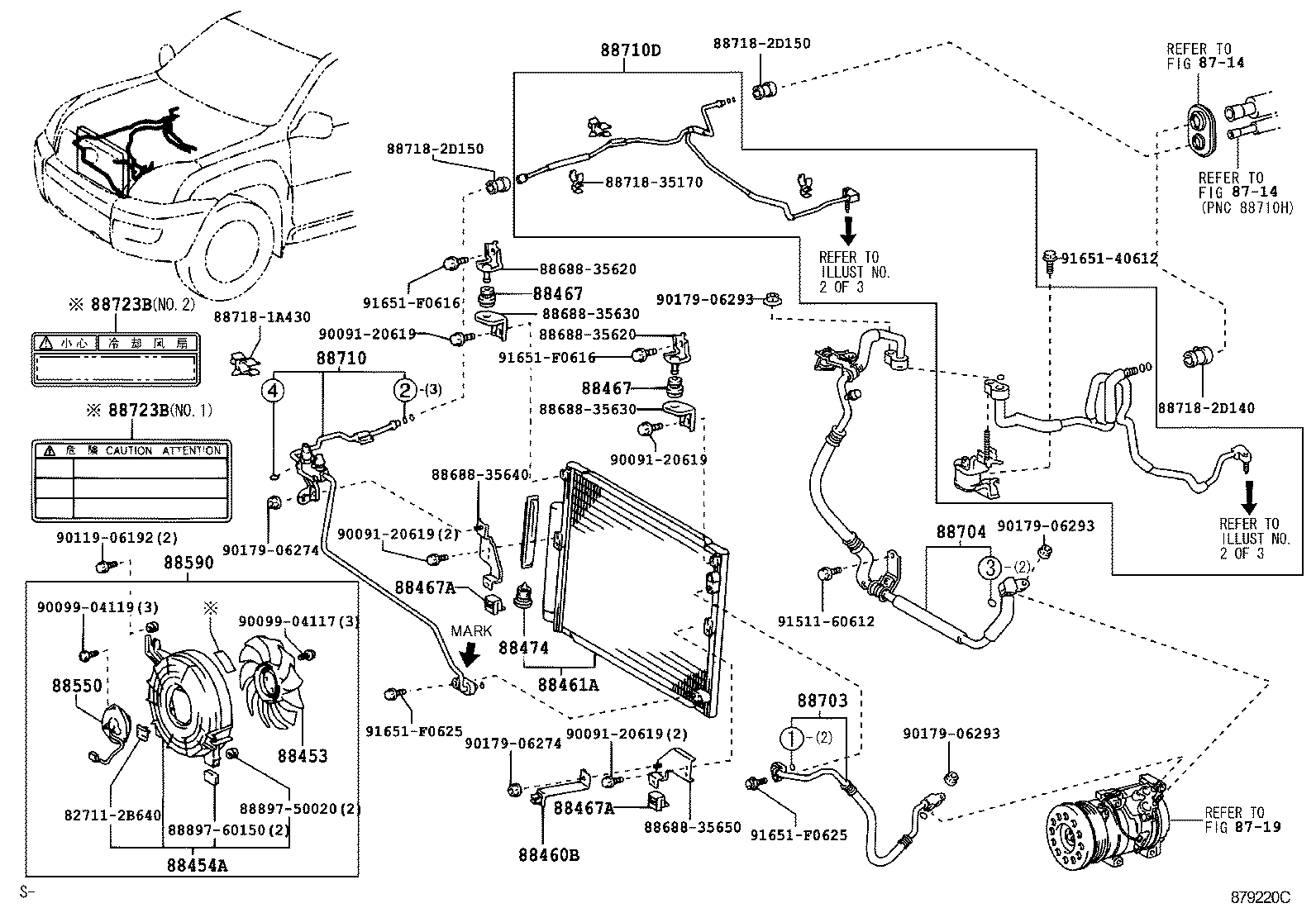

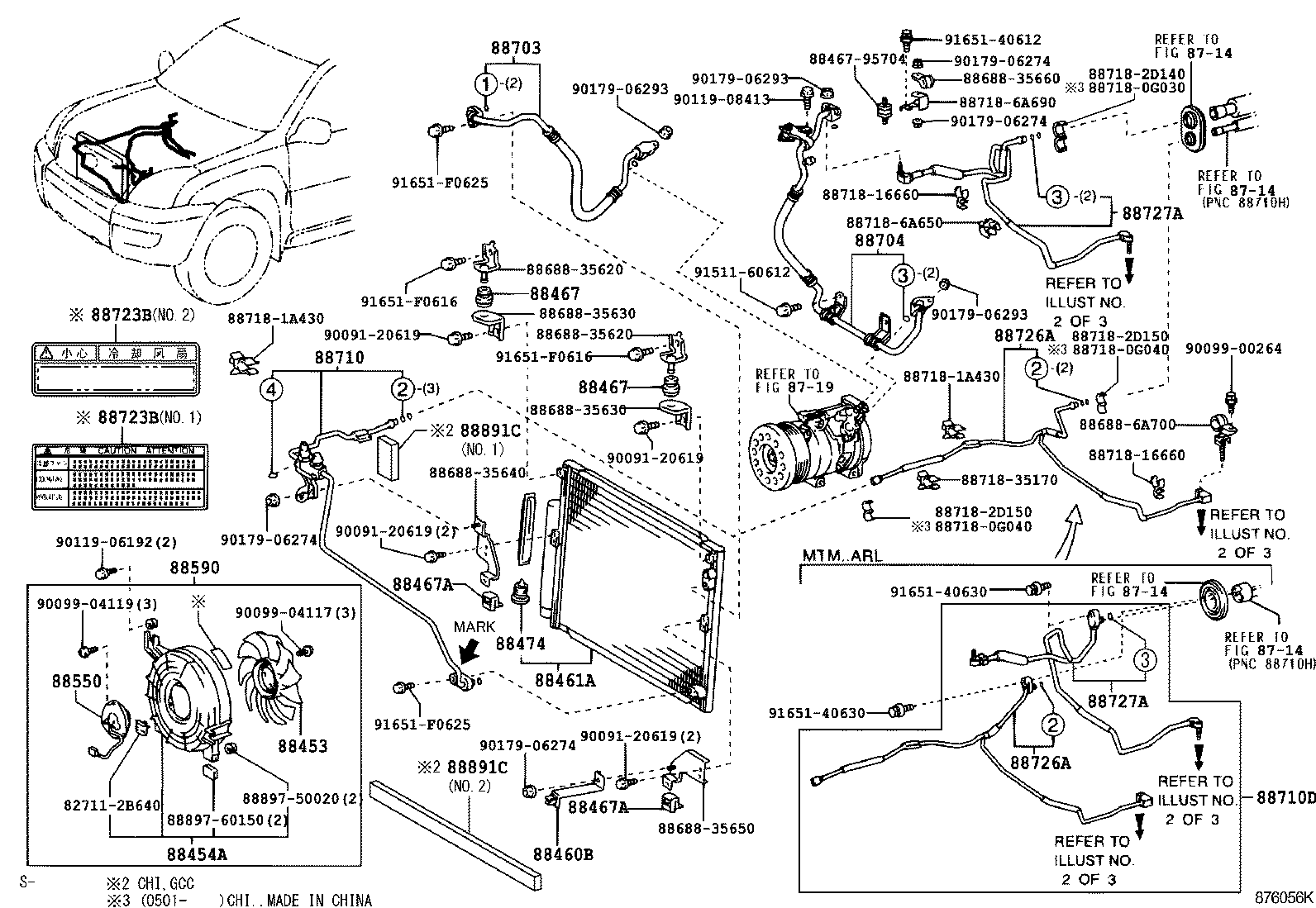

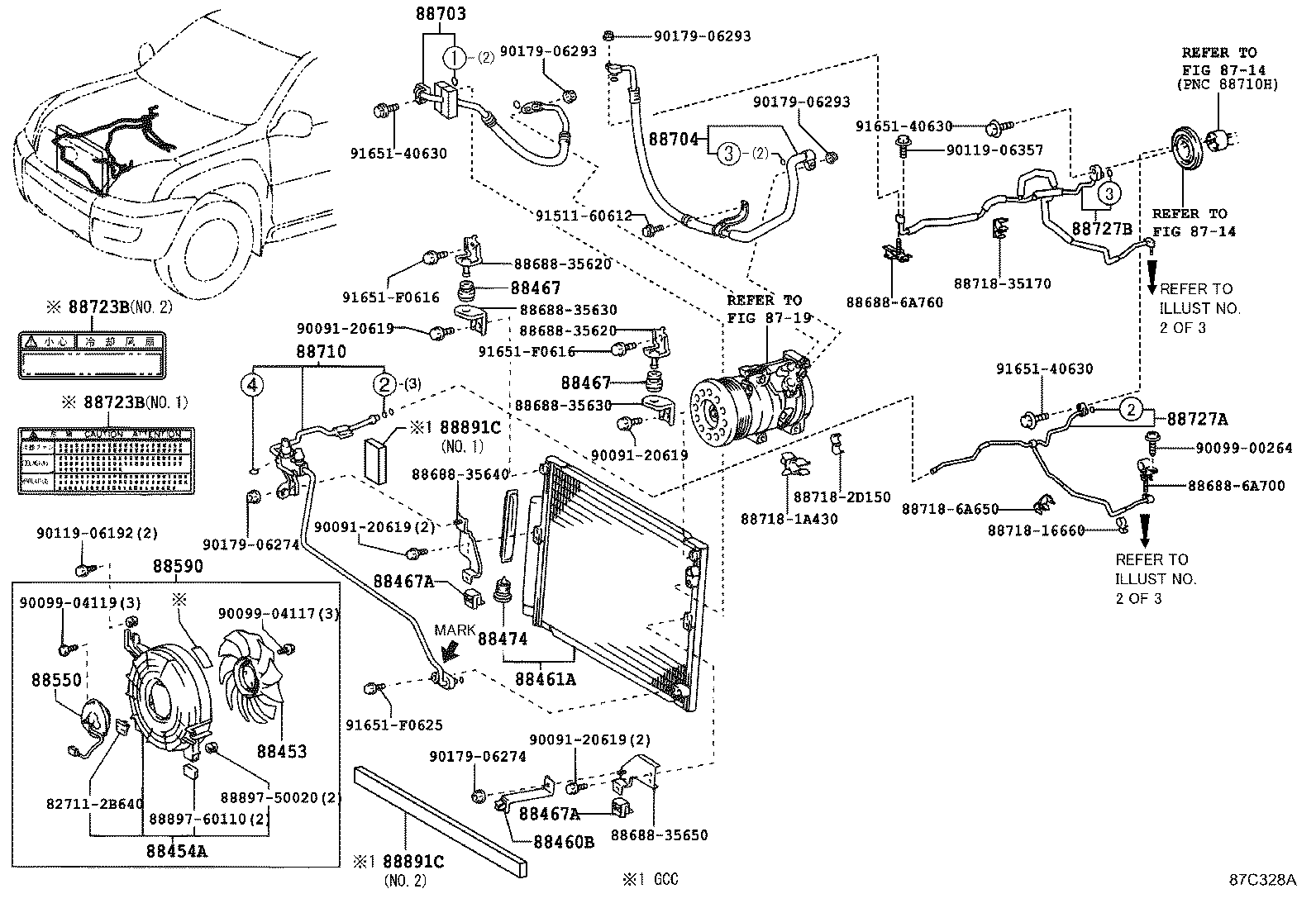

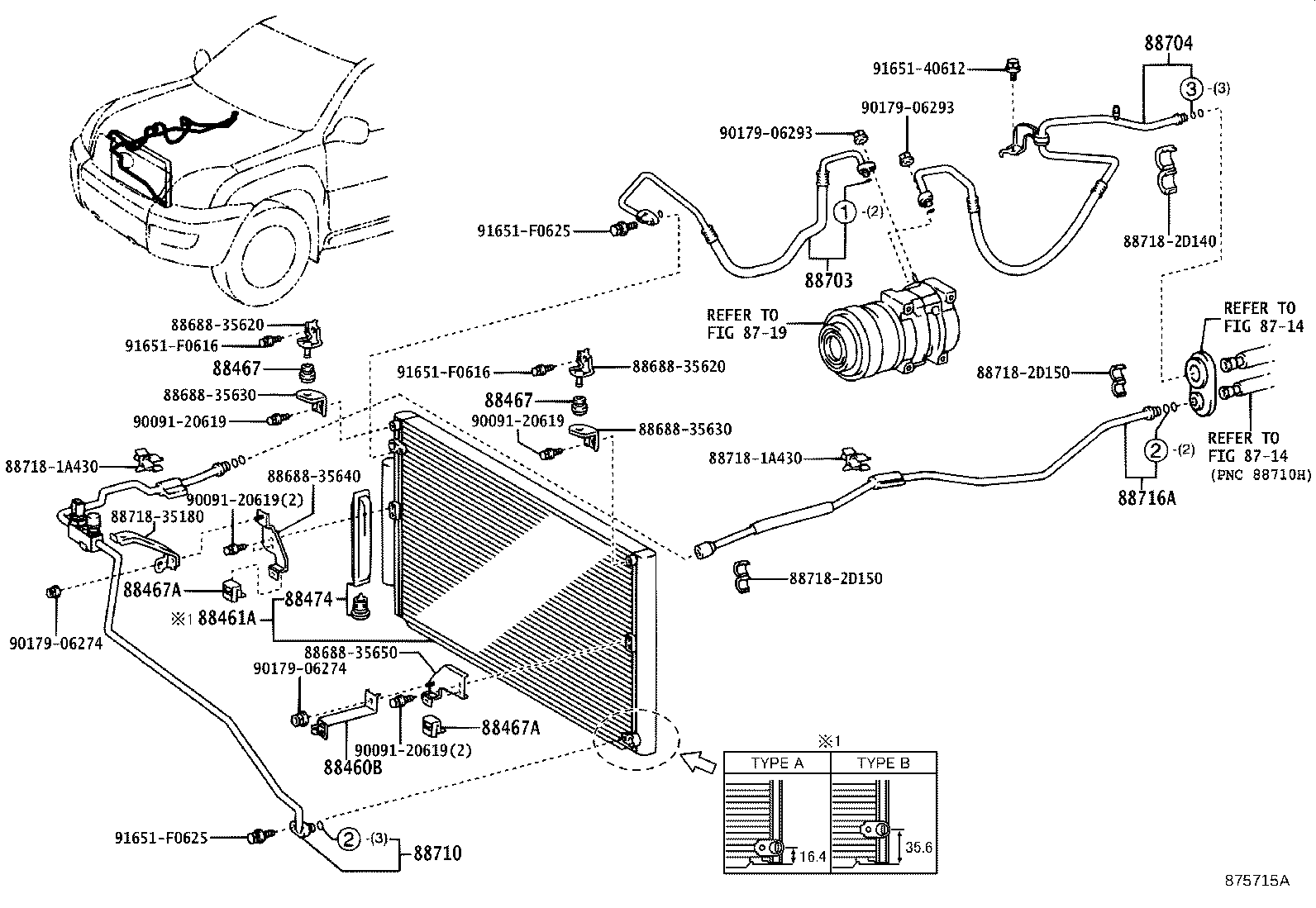

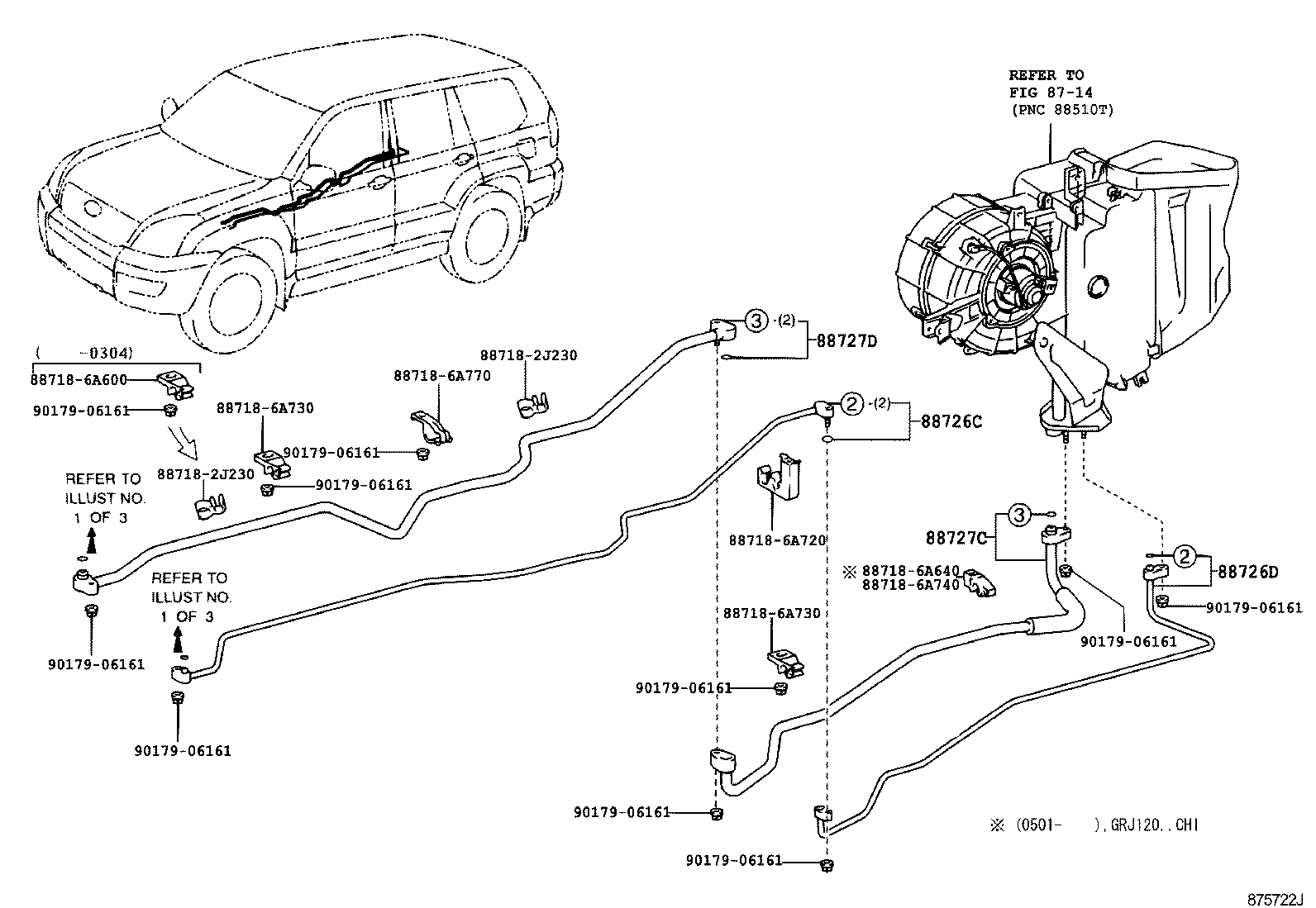

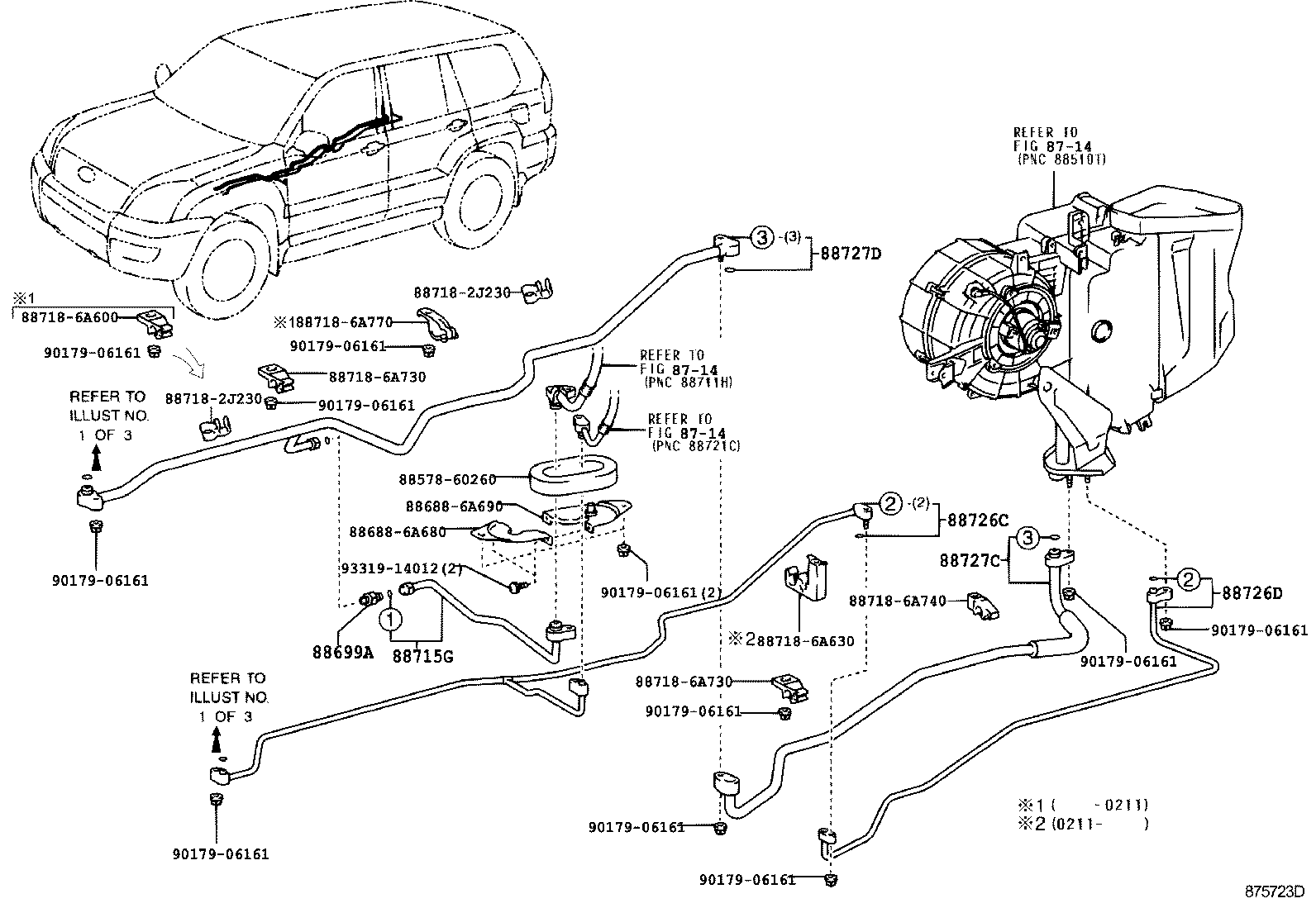

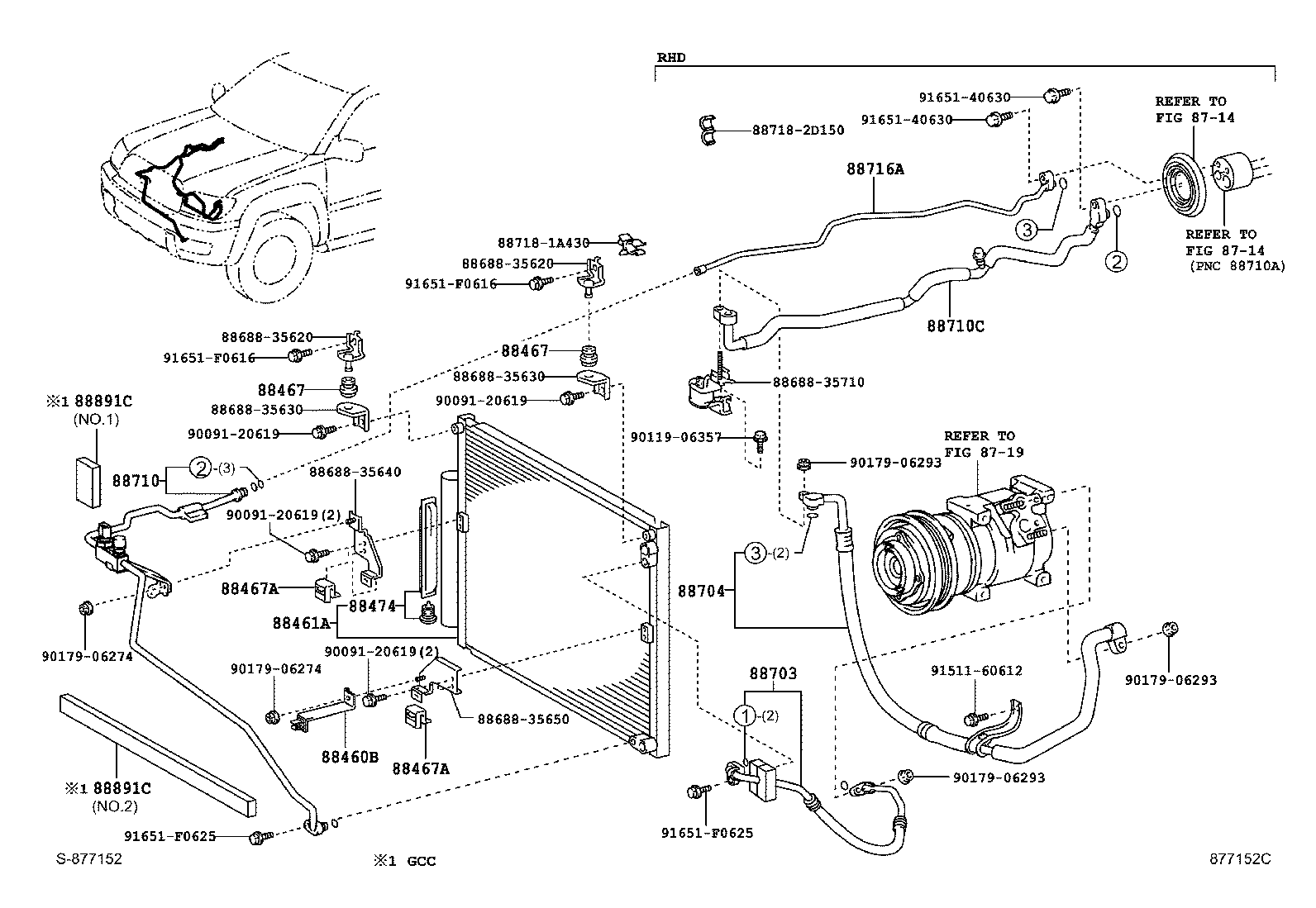

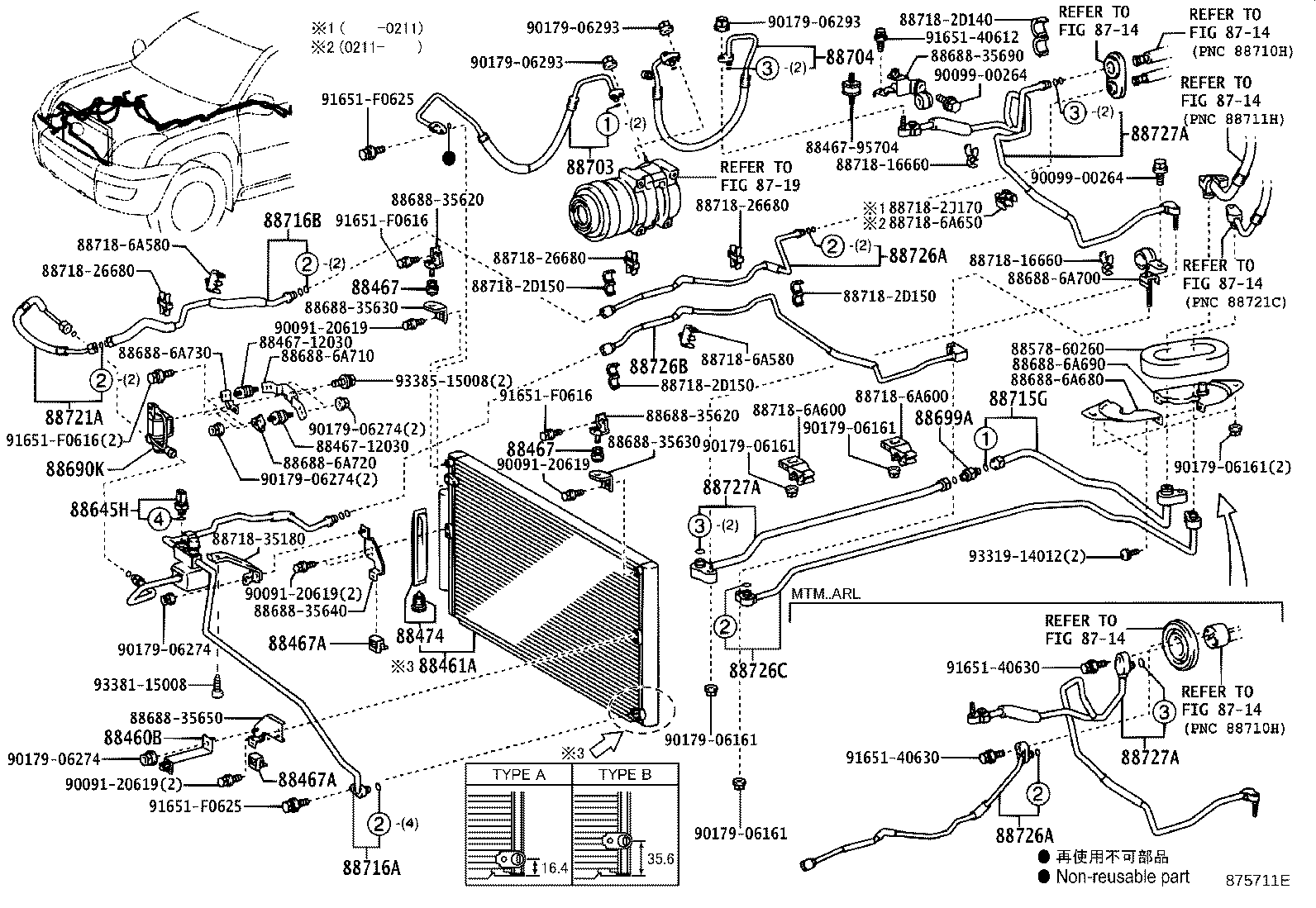

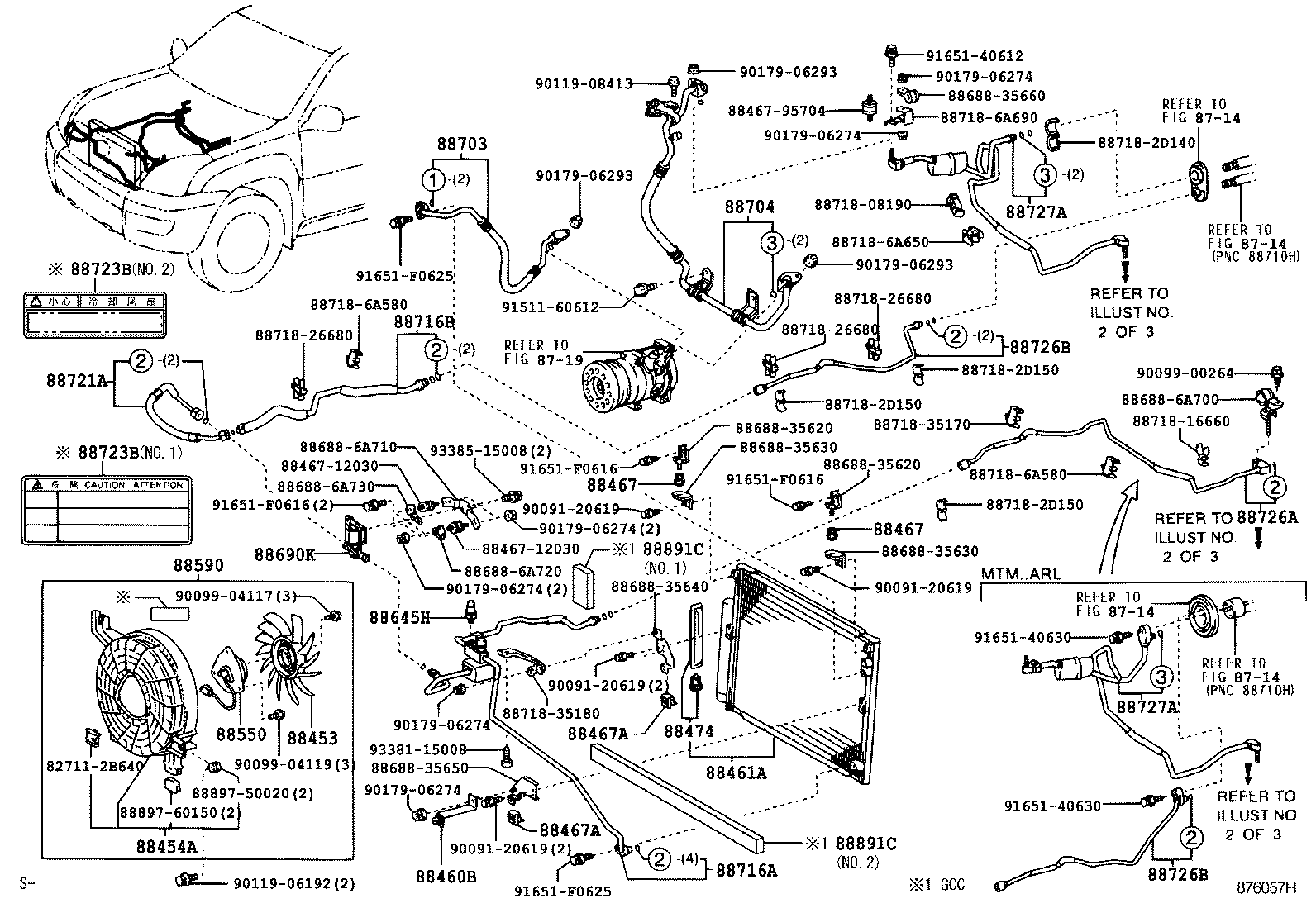

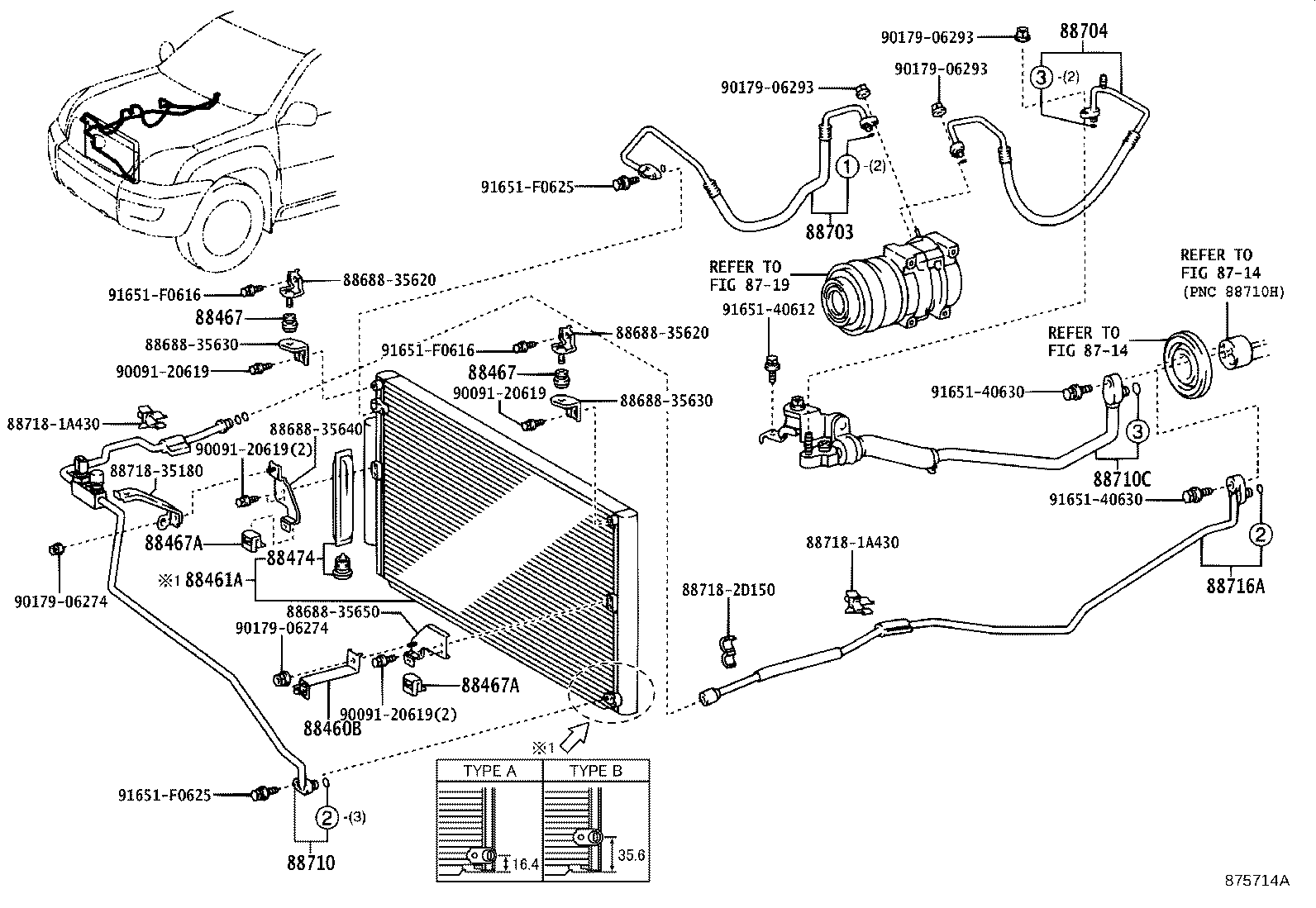

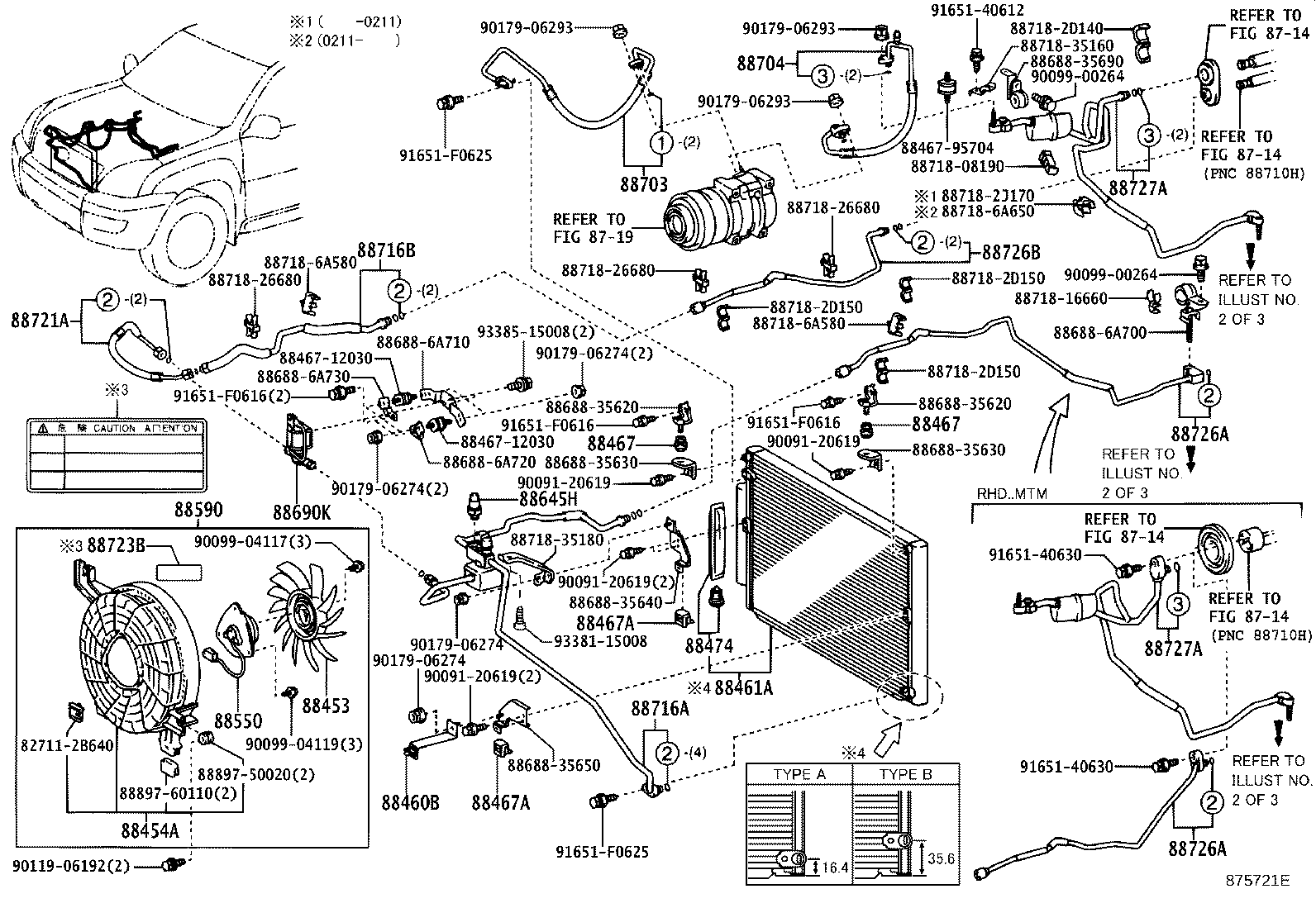

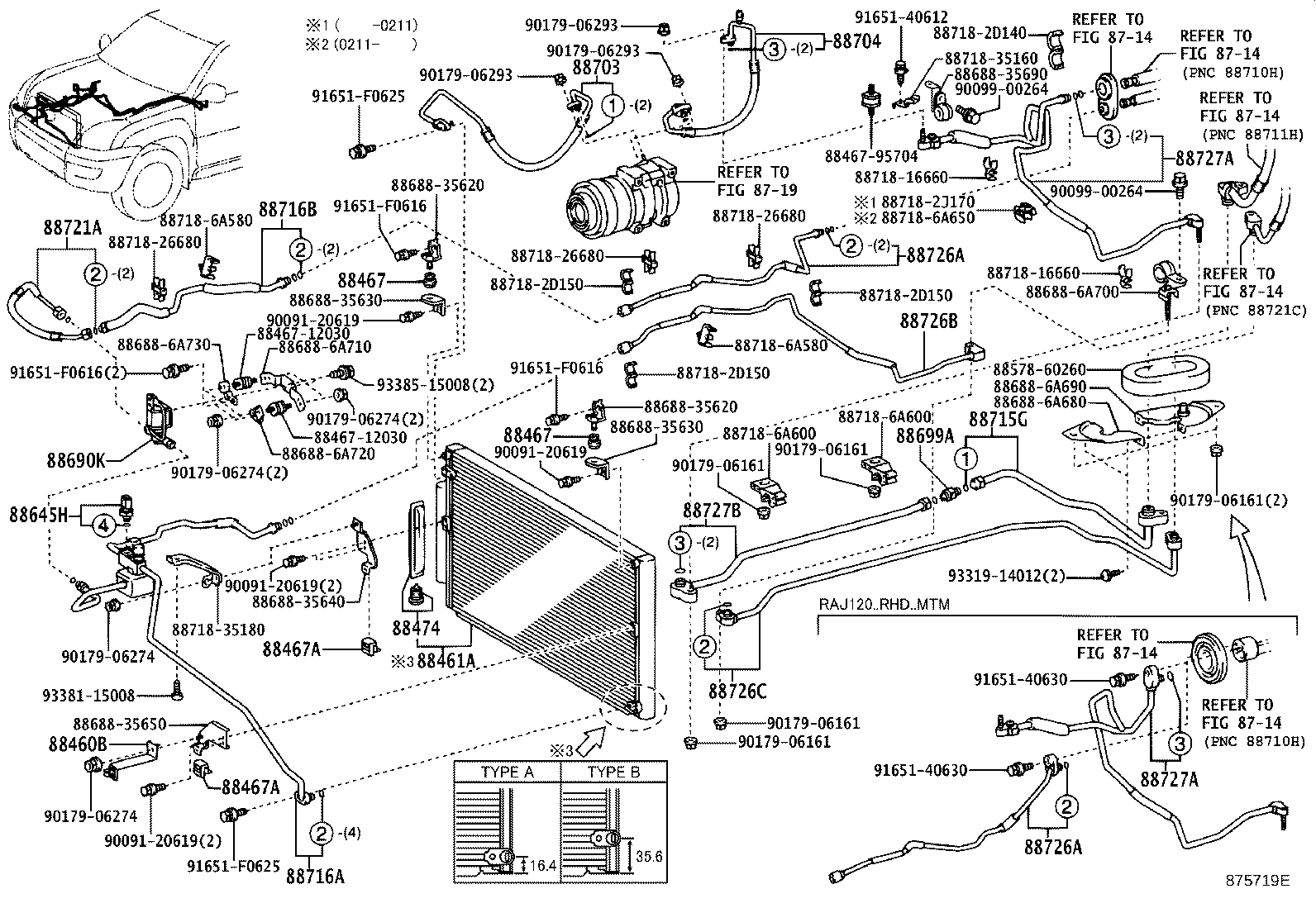

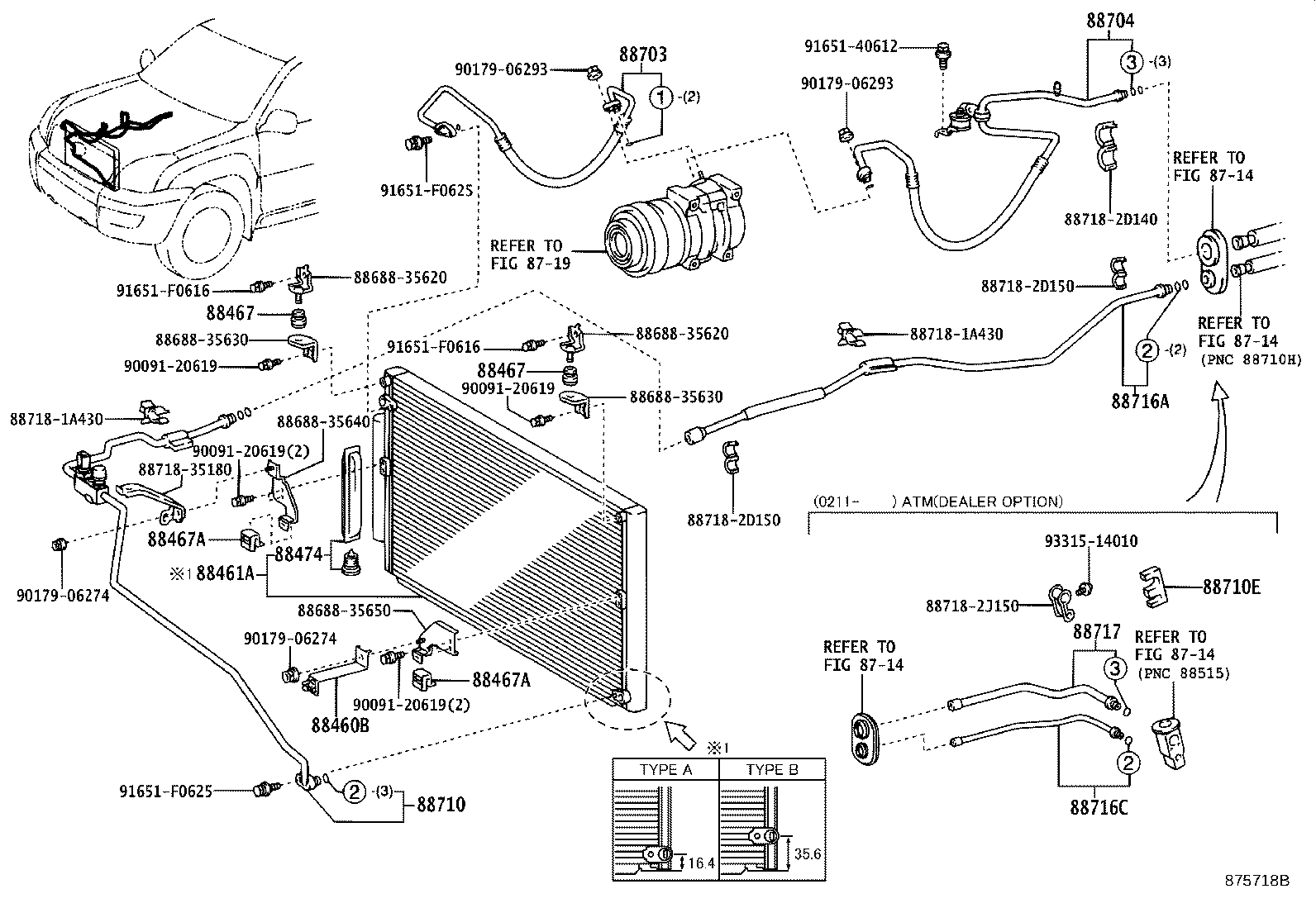

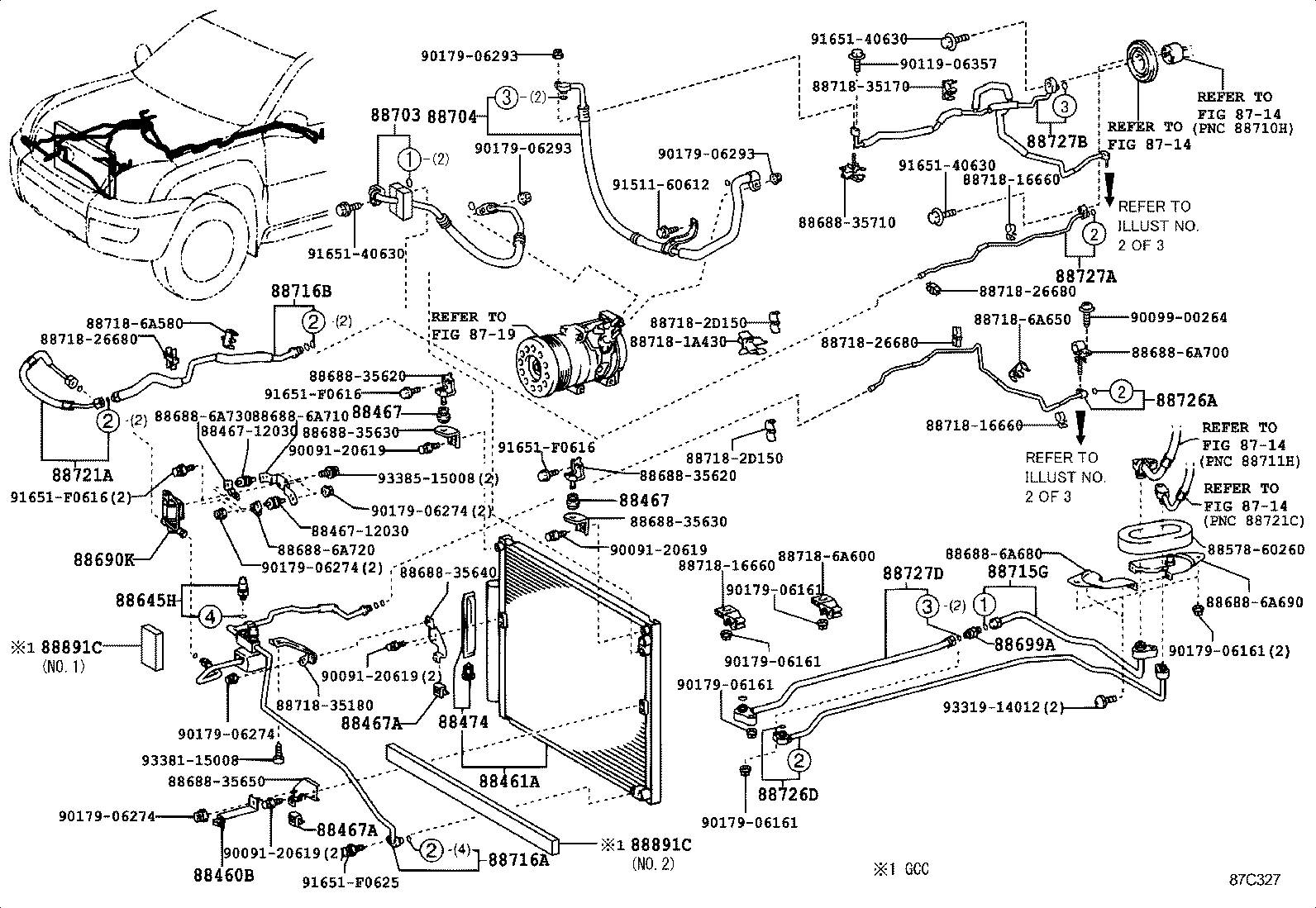

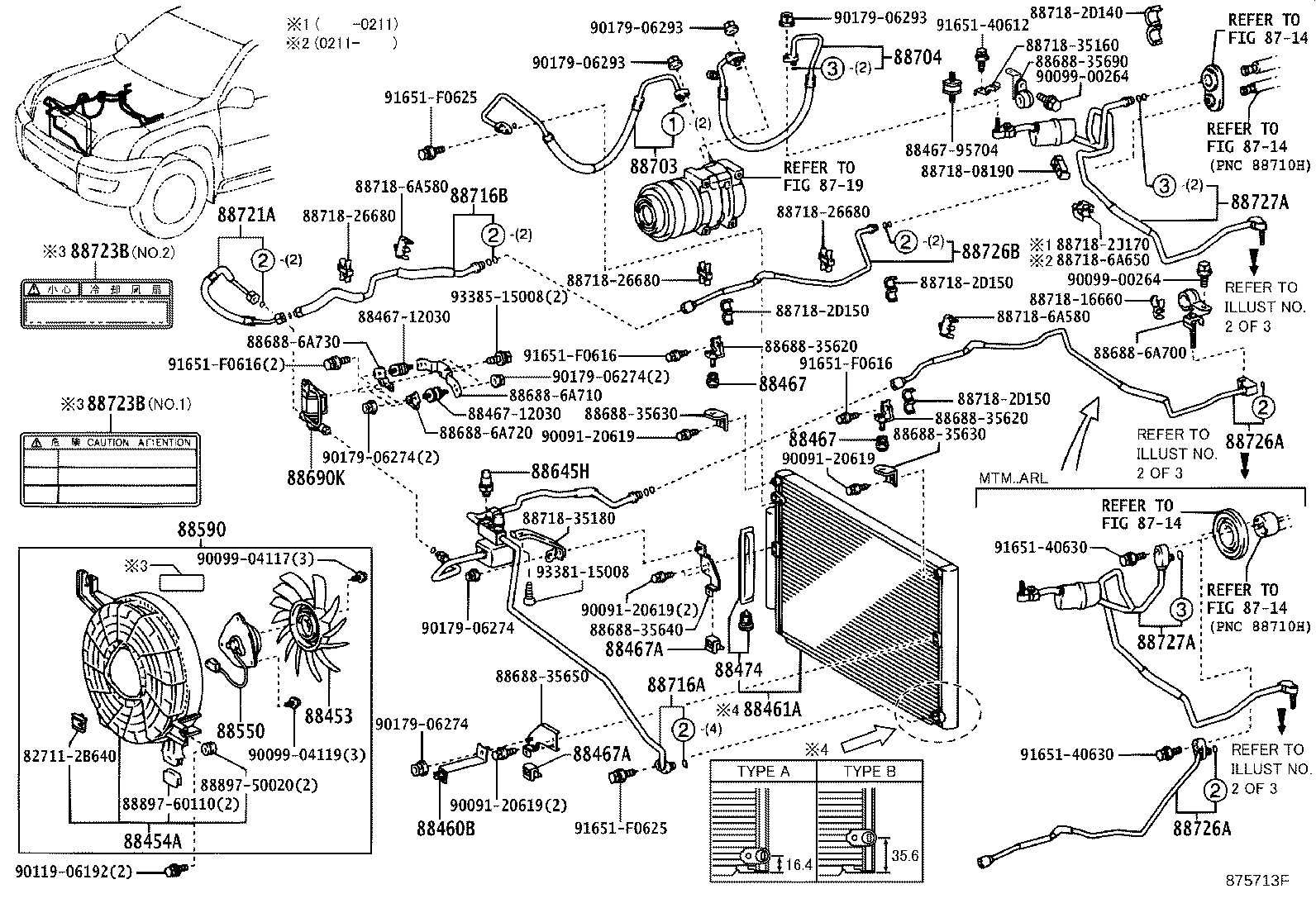

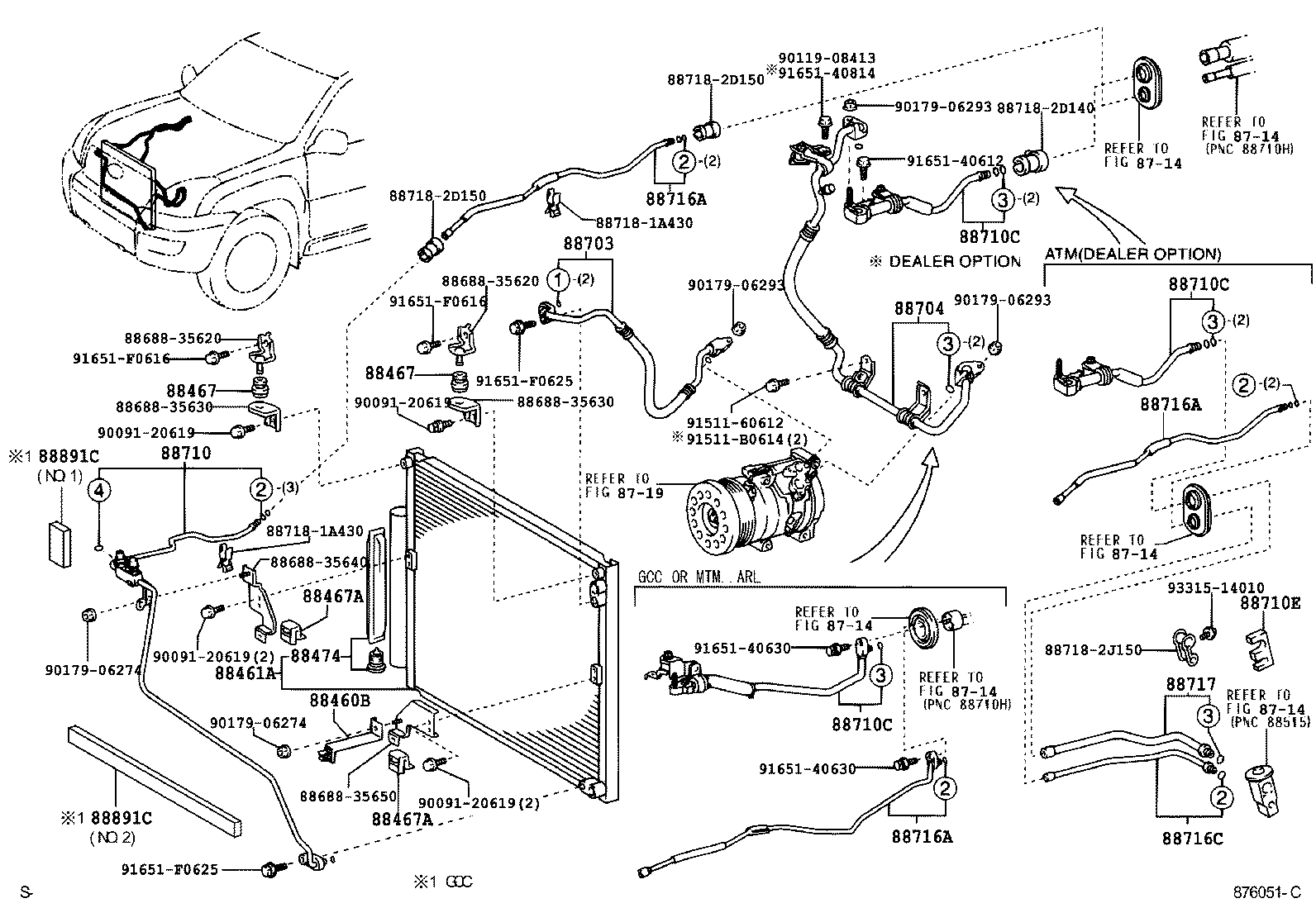

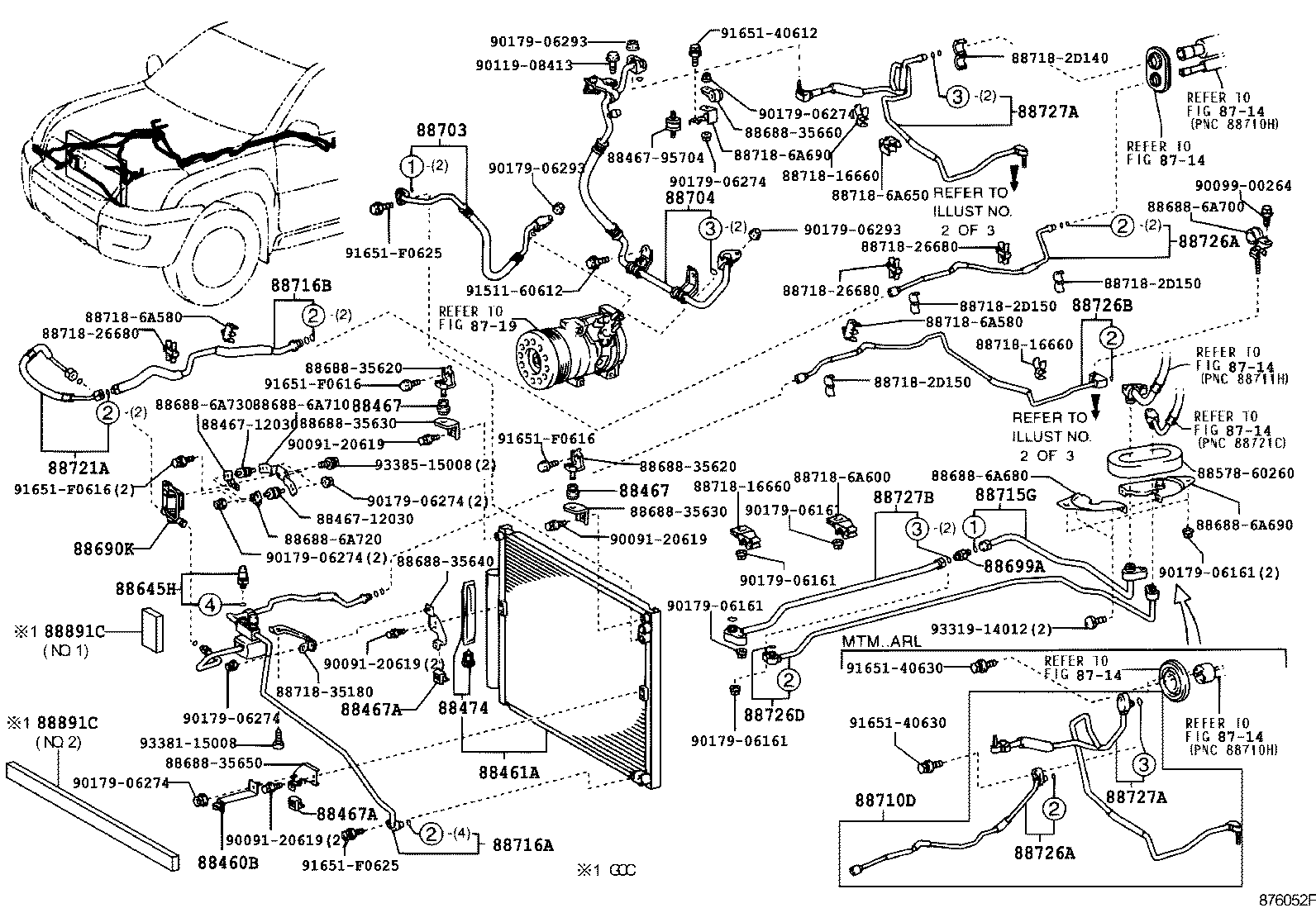

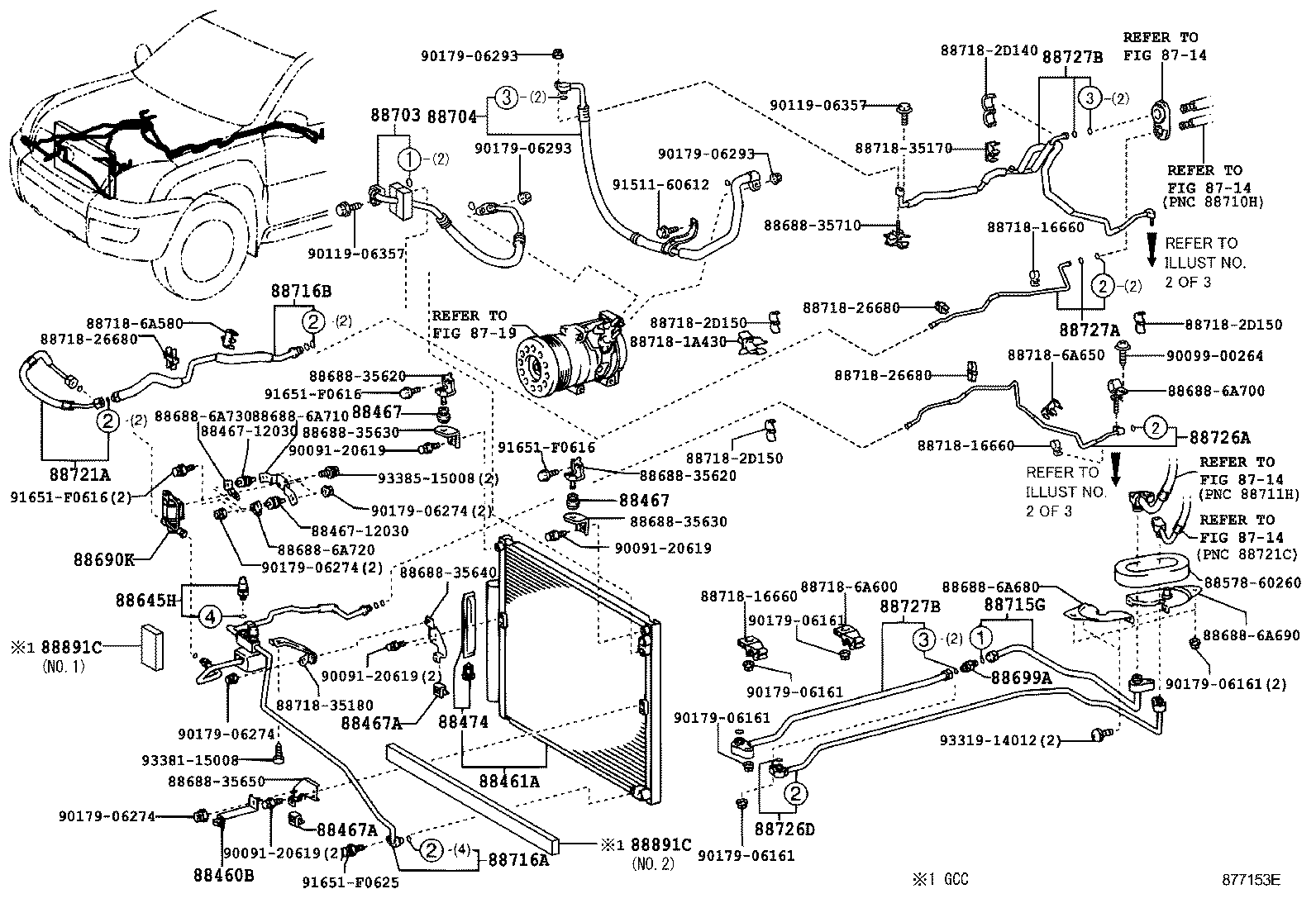

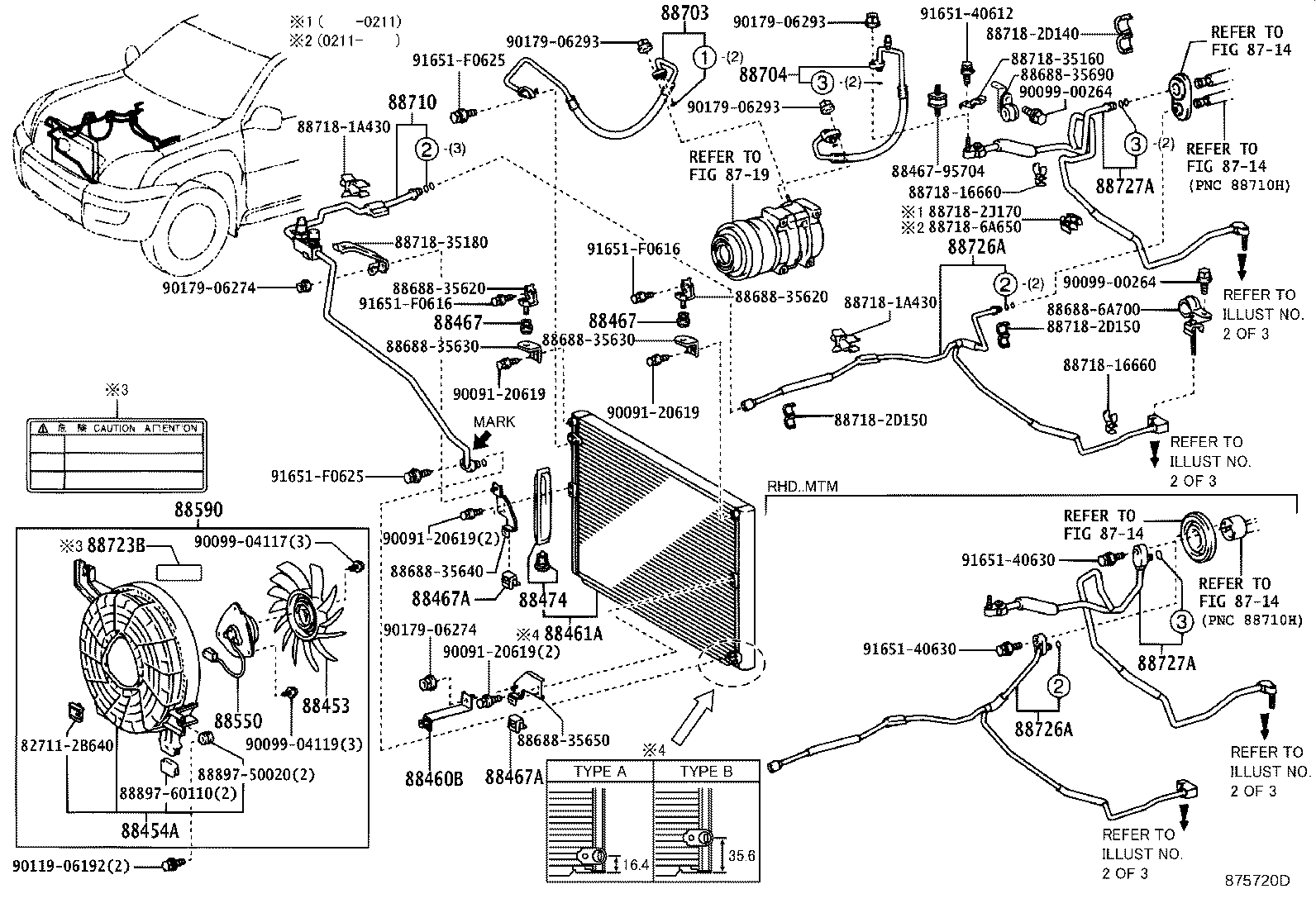

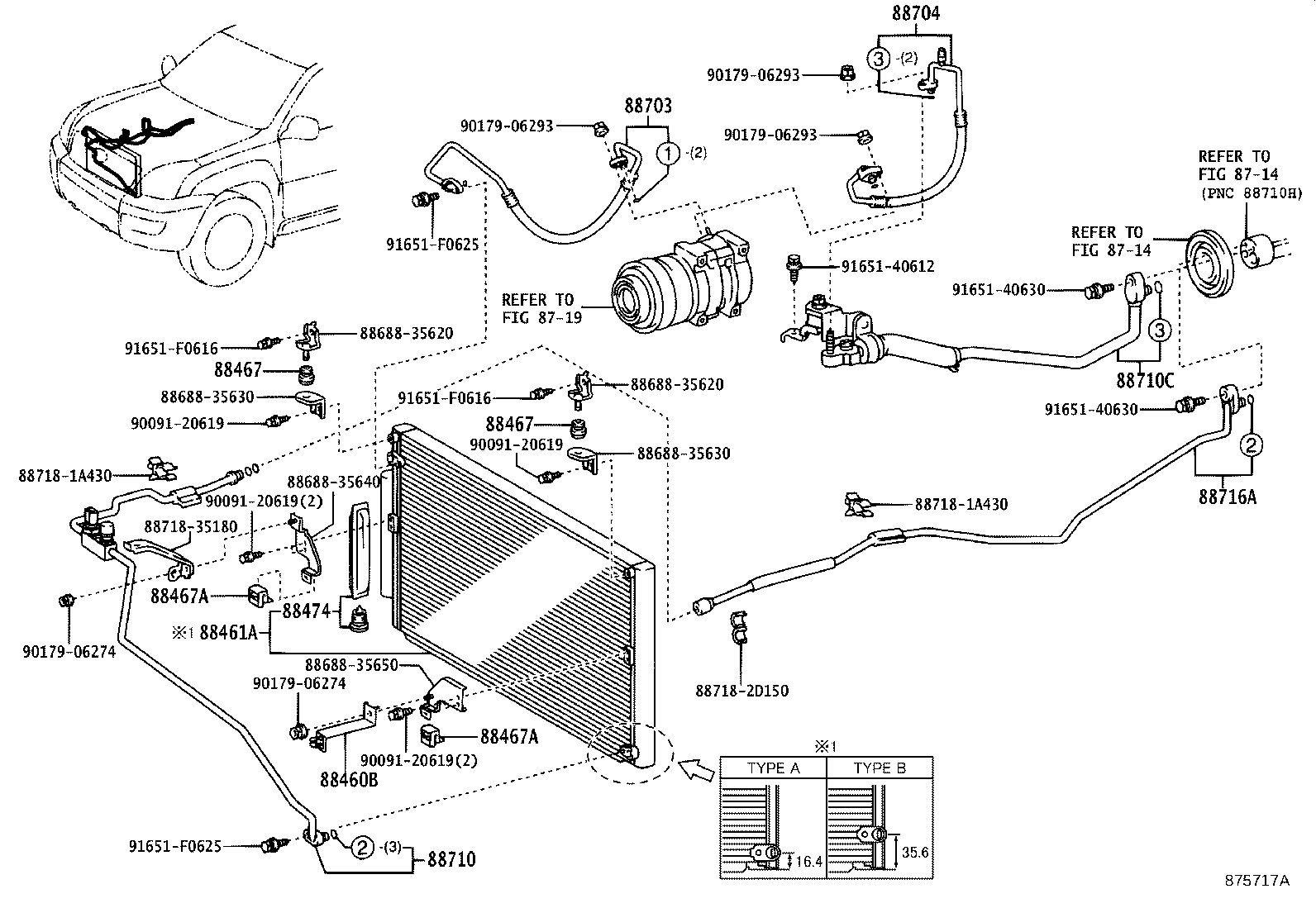

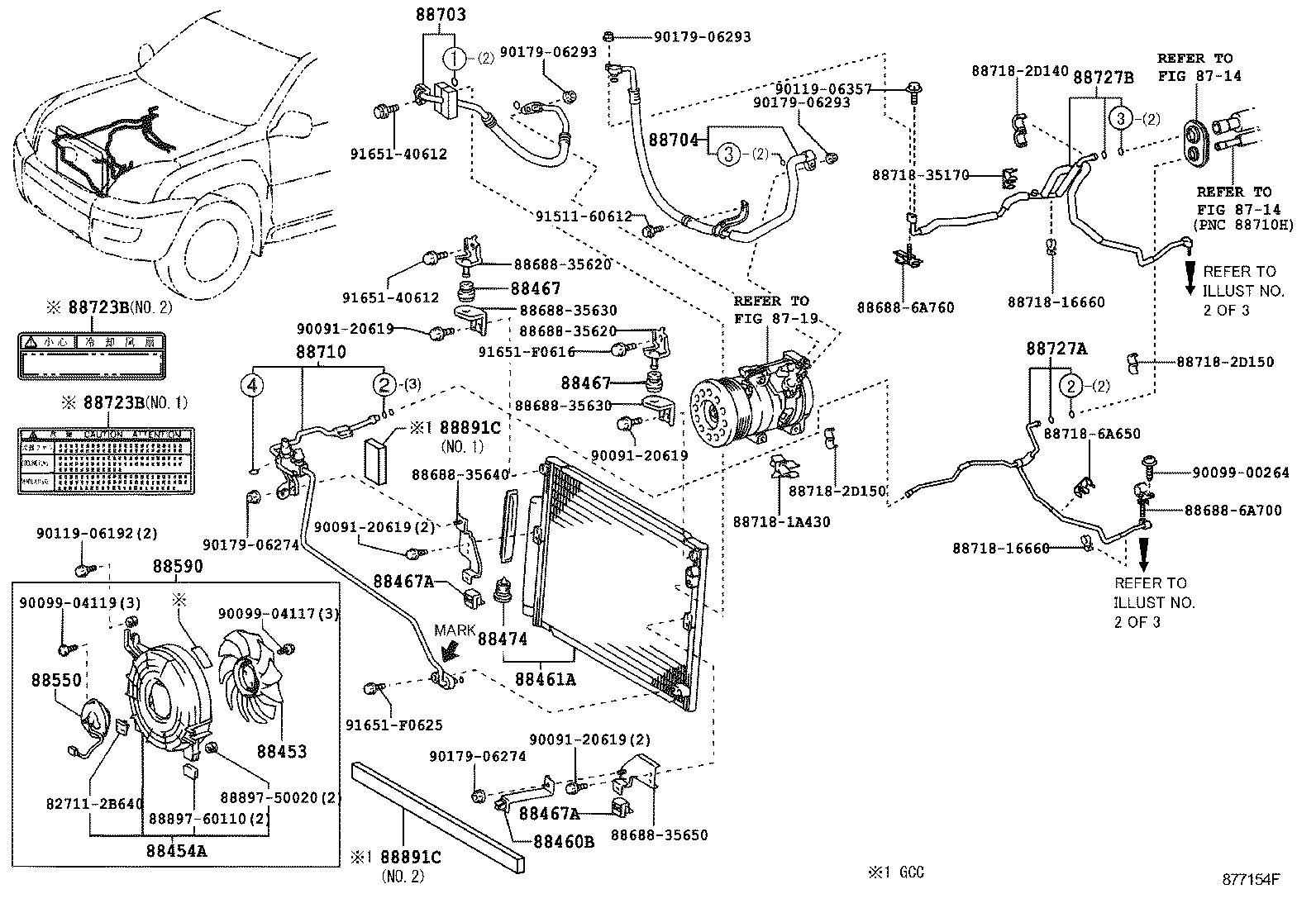

Figure 875710C 875710C 2002-09 → — Figure 875711E 875711E 2002-09 → — Figure 875712F 875712F 2002-09 → — Figure 875713F 875713F 2002-09 → — Figure 875714A 875714A 2002-09 → — Figure 875715A 875715A 2002-09 → — Figure 875716D 875716D 2002-09 → — Figure 875717A 875717A 2002-09 → — Figure 875718B 875718B 2002-09 → — Figure 875719E 875719E 2002-09 → — Figure 875720D 875720D 2002-09 → — Figure 875721E 875721E 2002-09 → — Figure 876051C 876051C 2003-01 → — Figure 876052F 876052F 2003-01 → — Figure 876056K 876056K 2003-01 → 2006-01 Figure 876056K 876056K 2003-01 → — Figure 876057H 876057H 2003-01 → 2006-01 Figure 876057H 876057H 2003-01 → — Figure 879220C 879220C 2006-01 → — Figure 877152C 877152C 2004-08 → — Figure 877153E 877153E 2004-08 → — Figure 87C327 87C327 2004-08 → — Figure 877154F 877154F 2004-08 → — Figure 87C328A 87C328A 2004-08 → — Figure 877155E 877155E 2004-08 → — Figure 87C329 87C329 2004-08 → — Figure 878716 878716 2006-08 → — Figure 878717B 878717B 2006-08 → — Figure 875722J 875722J 2002-09 → — Figure 875723D 875723D 2002-09 → — Figure 875724A 875724A 2002-09 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460B Bracket, Cooler Condenser, NO.1
88461A Core, Cooler Condenser
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88690K Valve Assy, Magnet
88699A Valve, Air
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88710D Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88721A Hose, Liquid, A
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88726D Pipe, Cooler Refrigerant Liquid, D
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
88727D Pipe, Cooler Refrigerant Suction, D
88891C Packing C (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
