Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781360 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

418 part groups · 38 illustrations

Illustrations

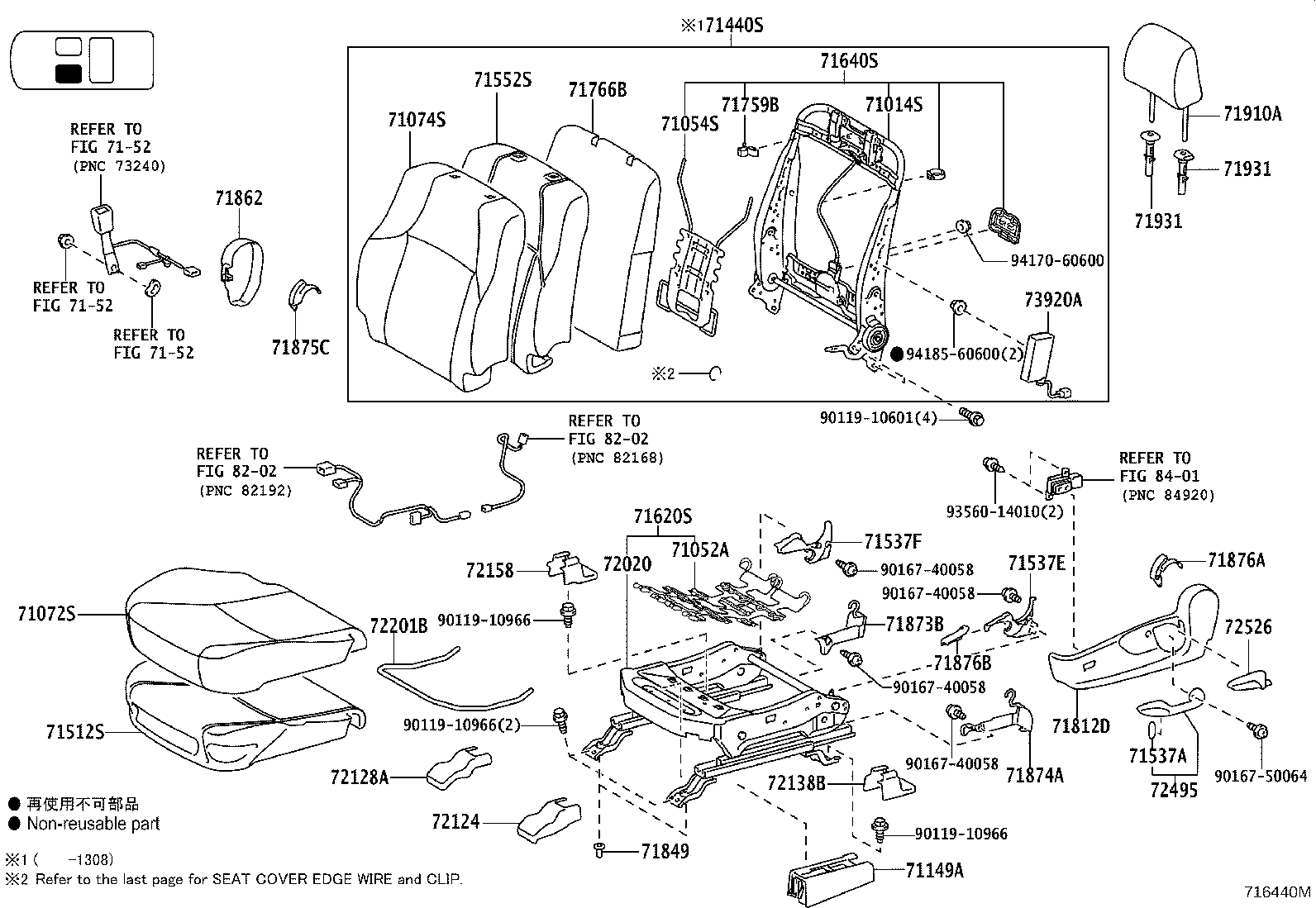

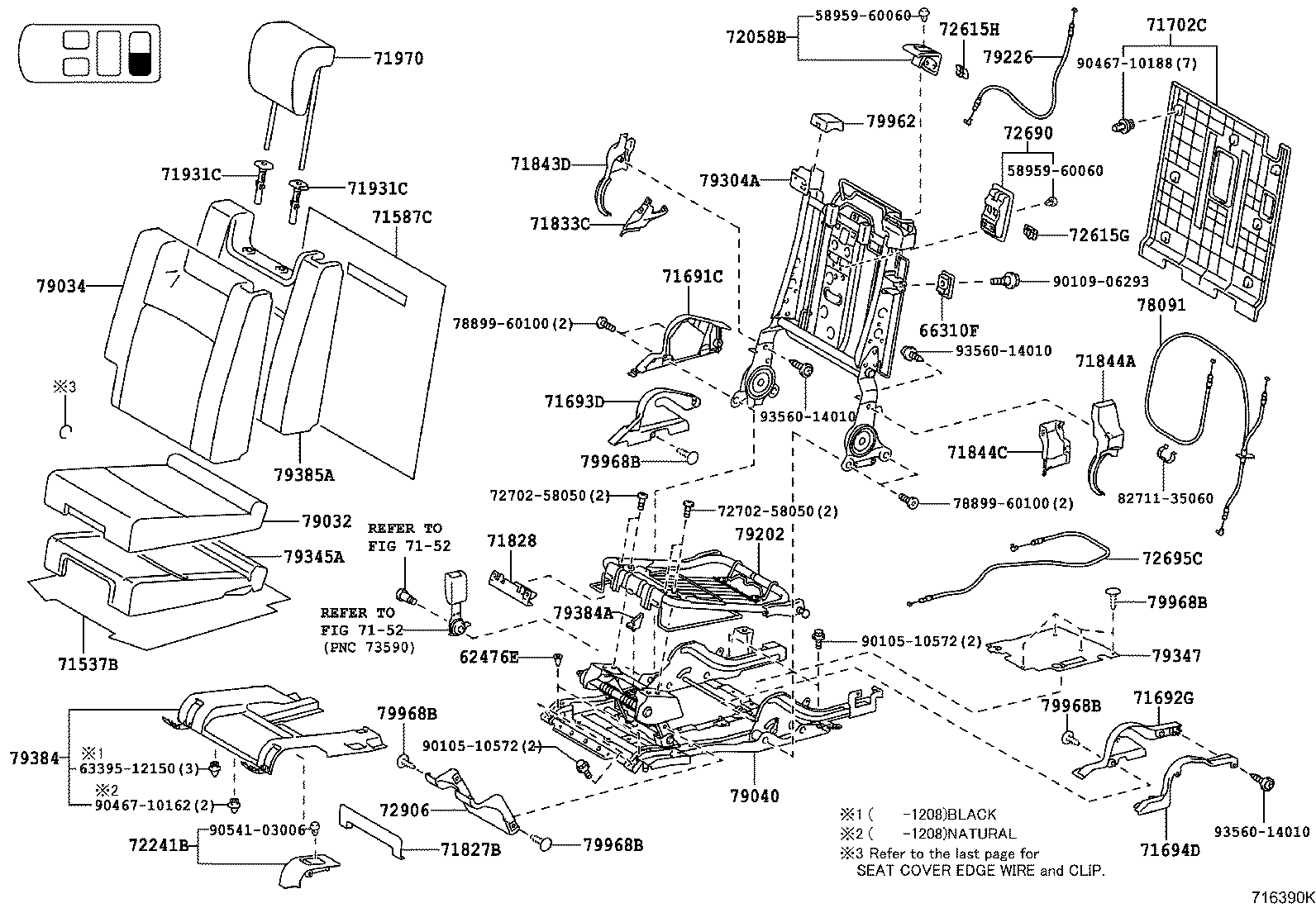

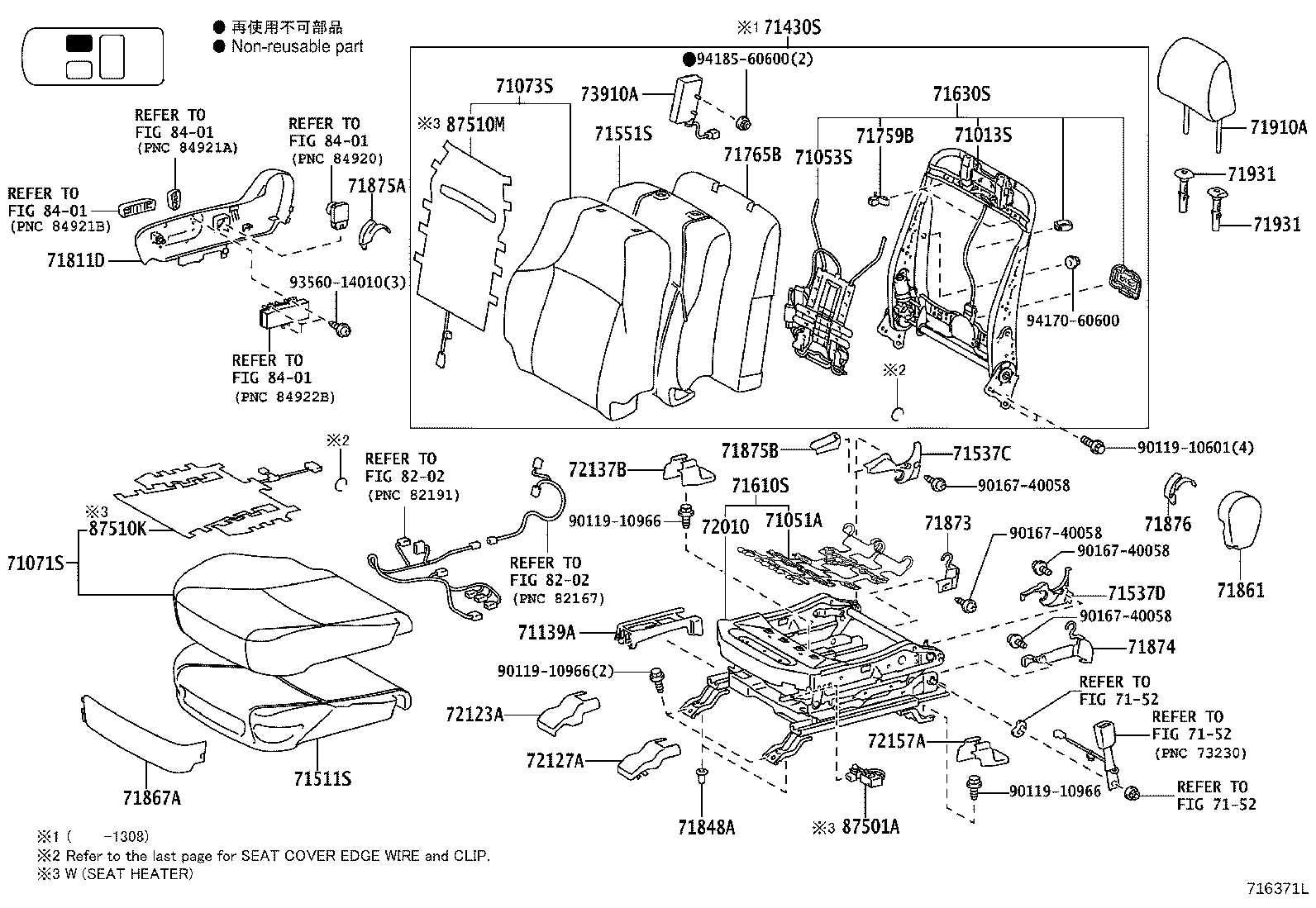

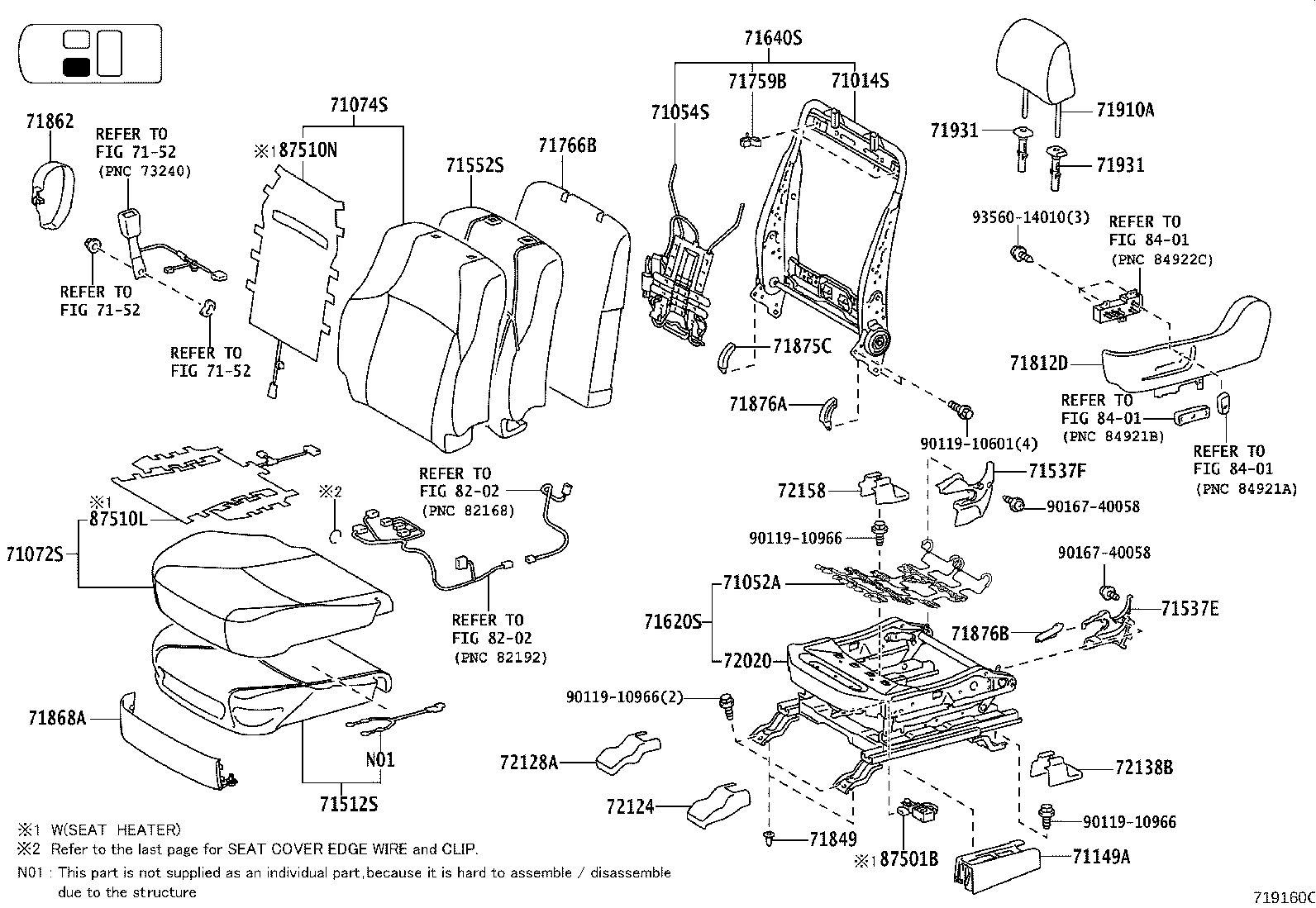

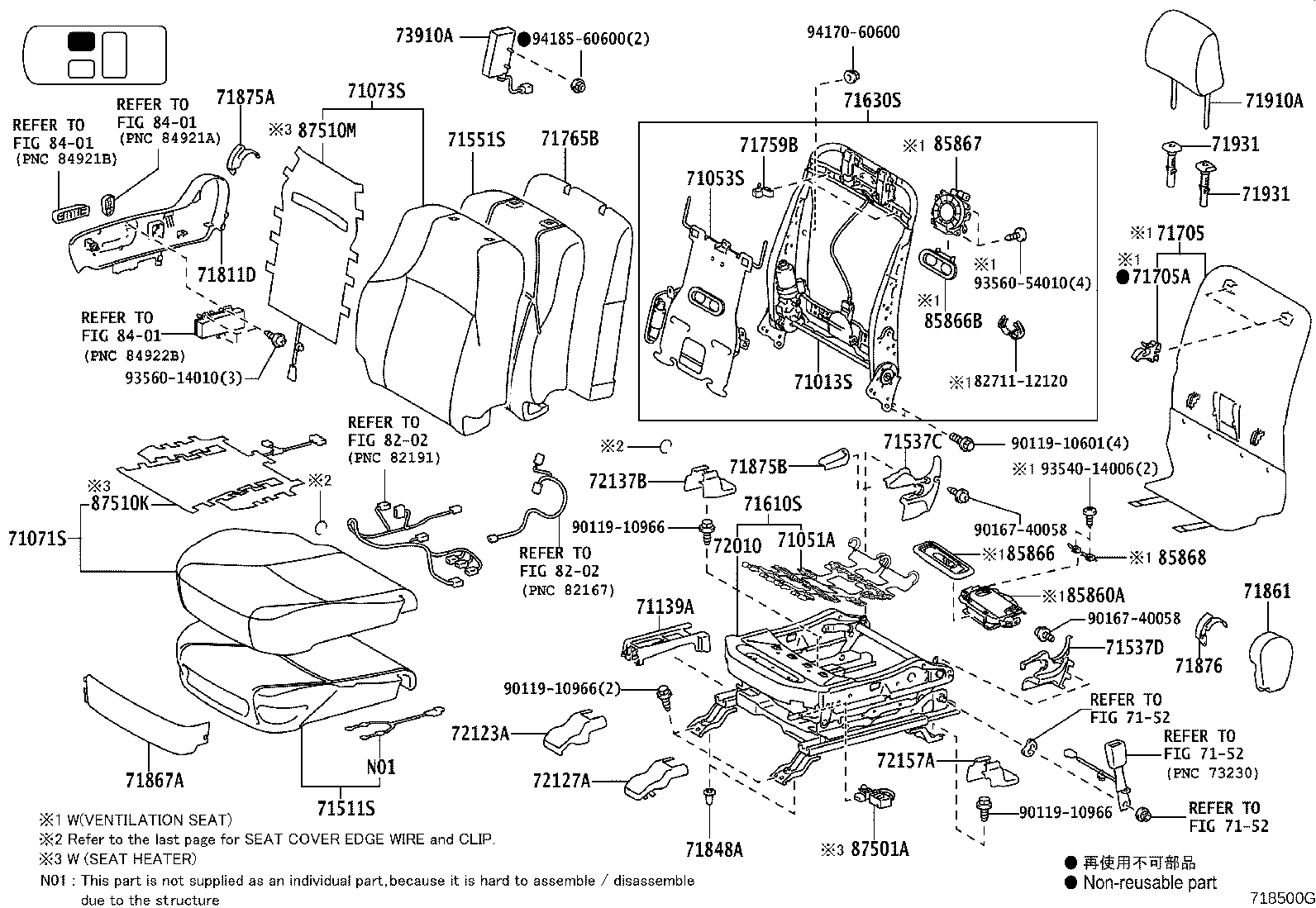

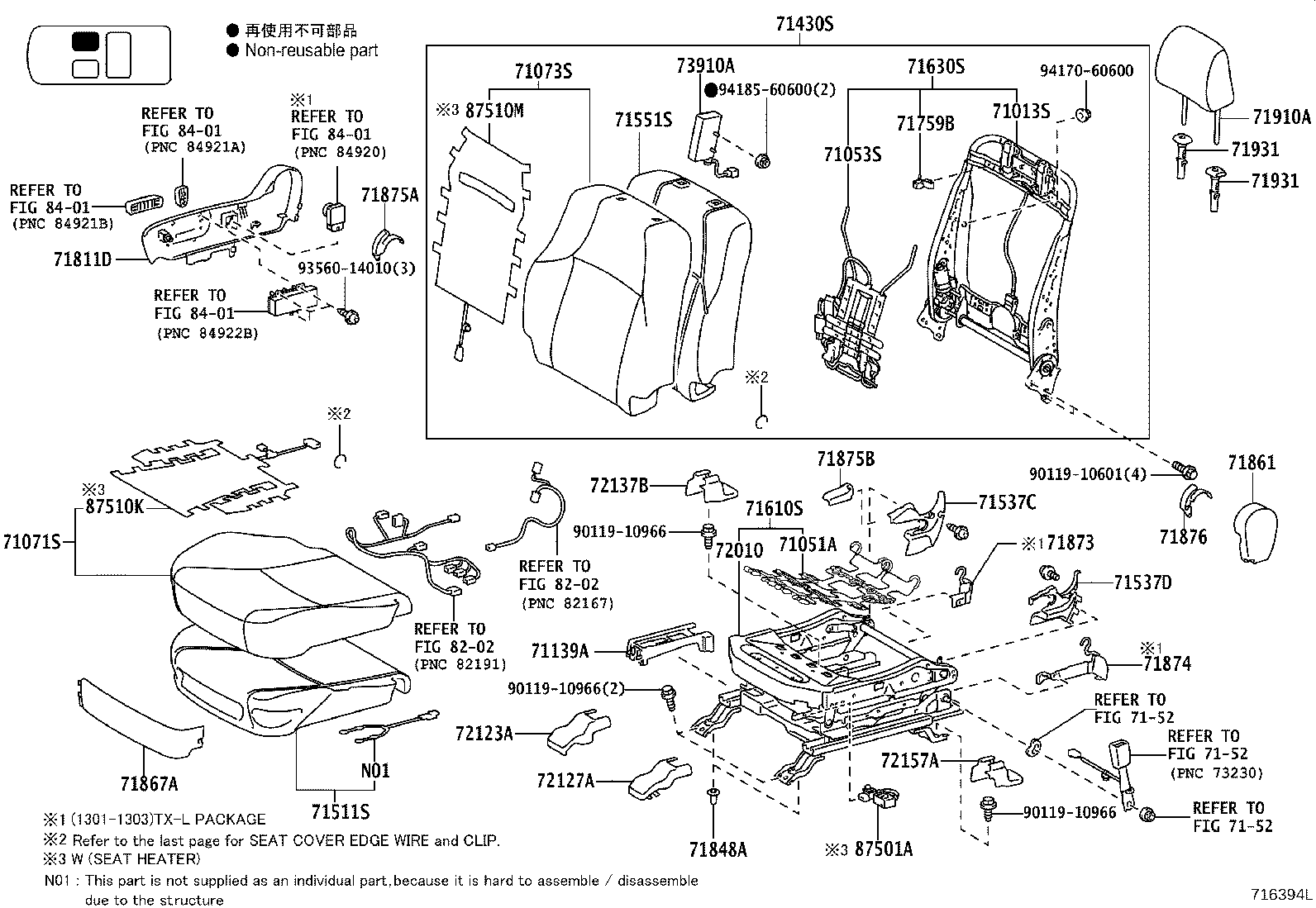

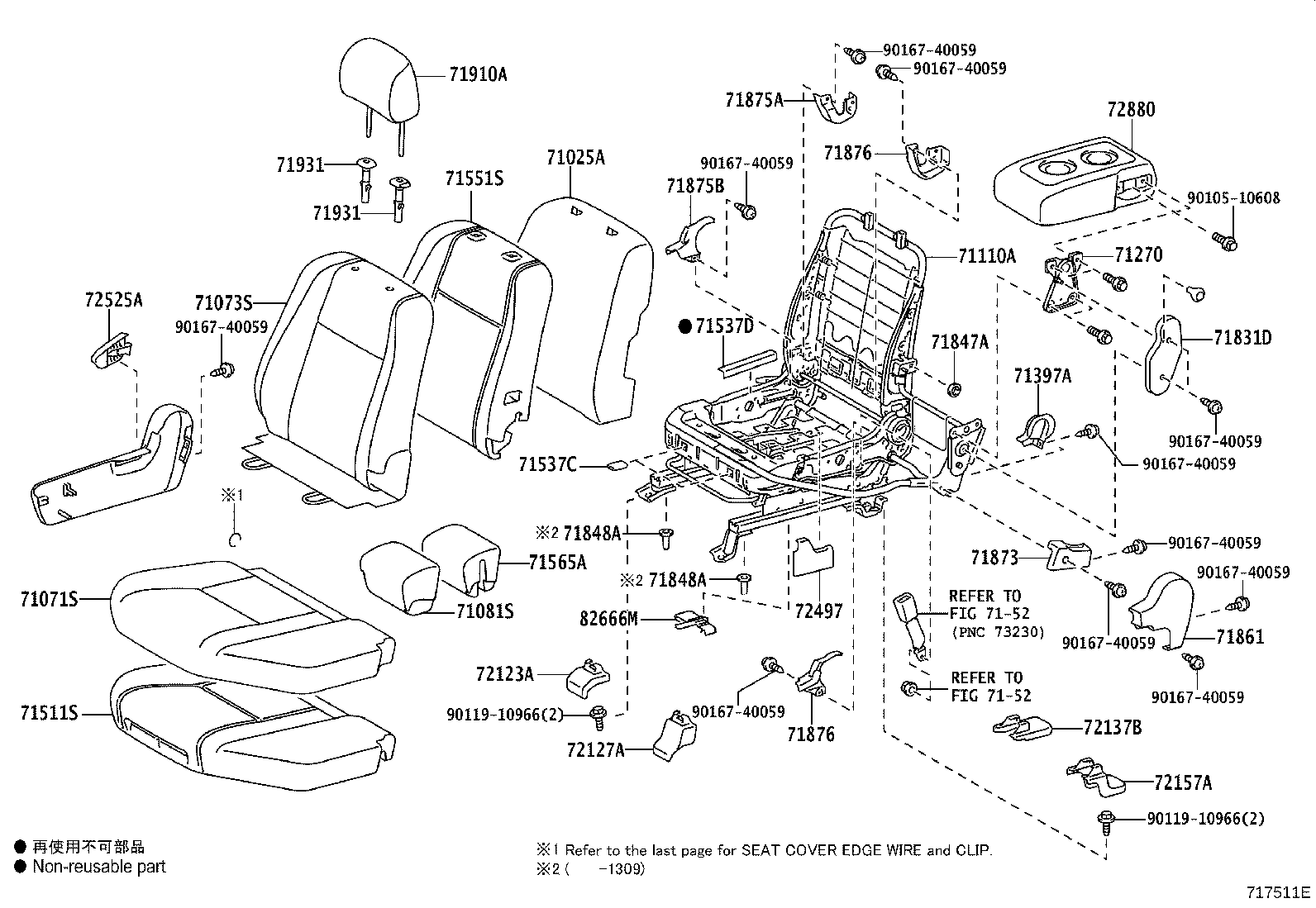

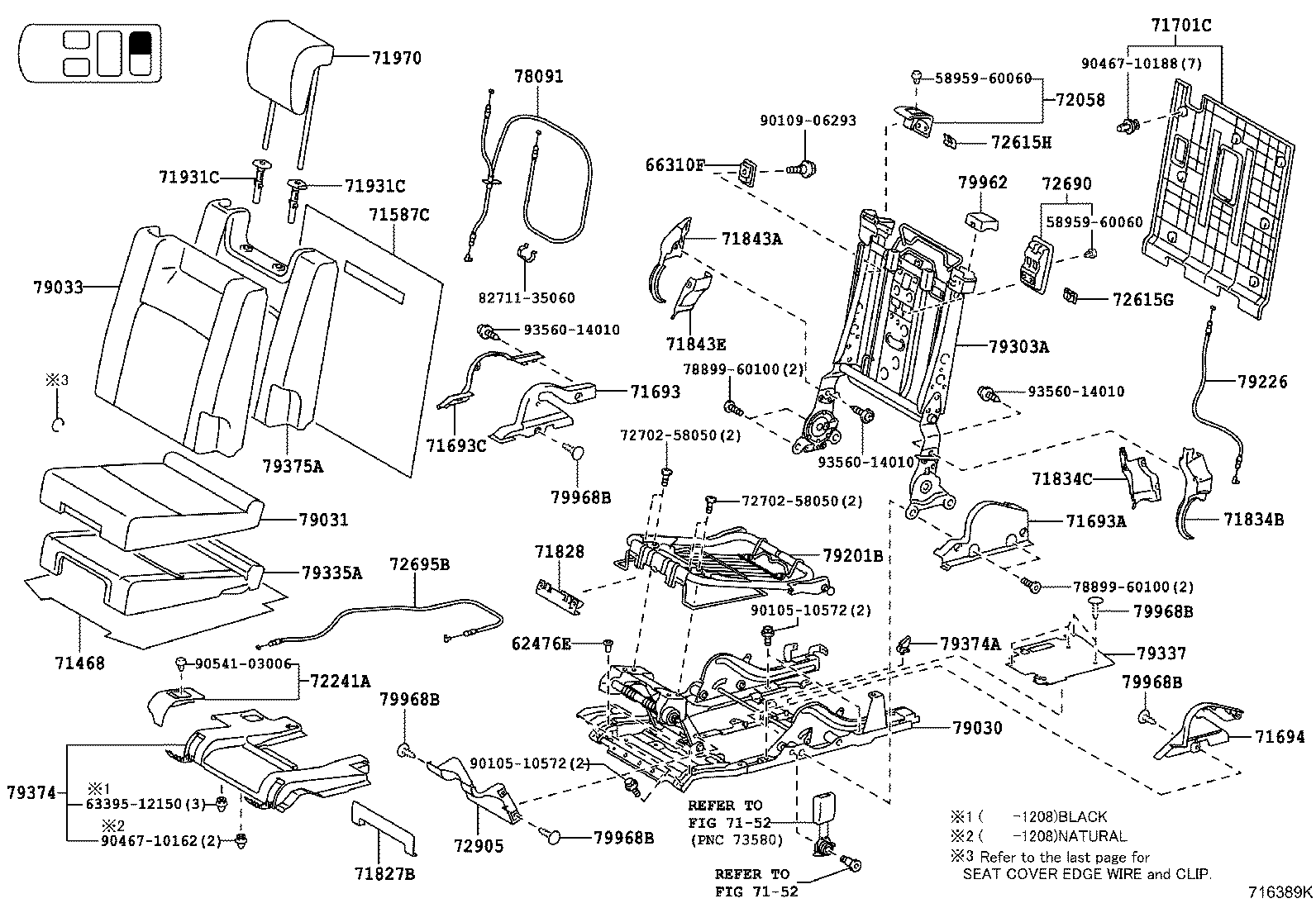

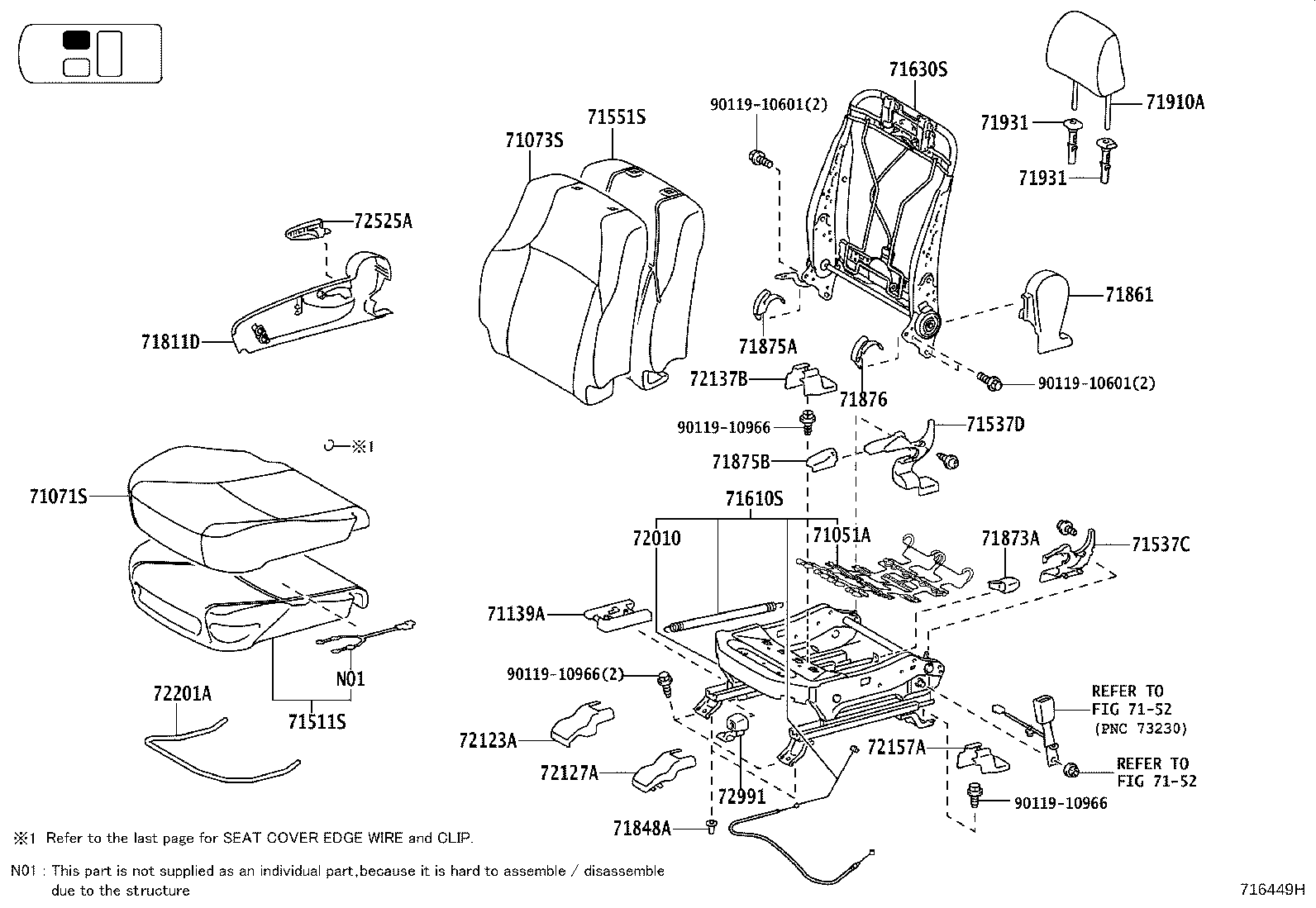

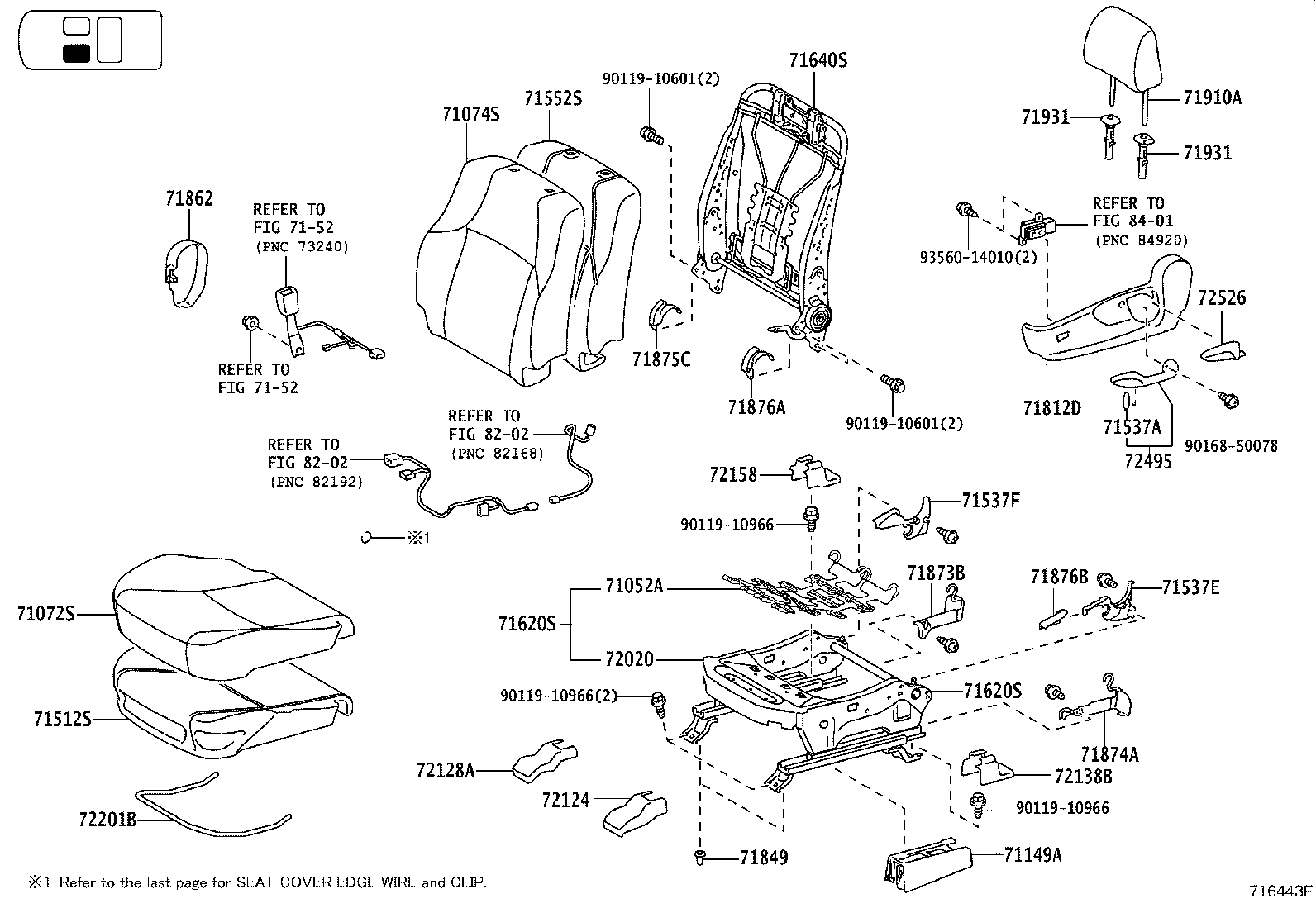

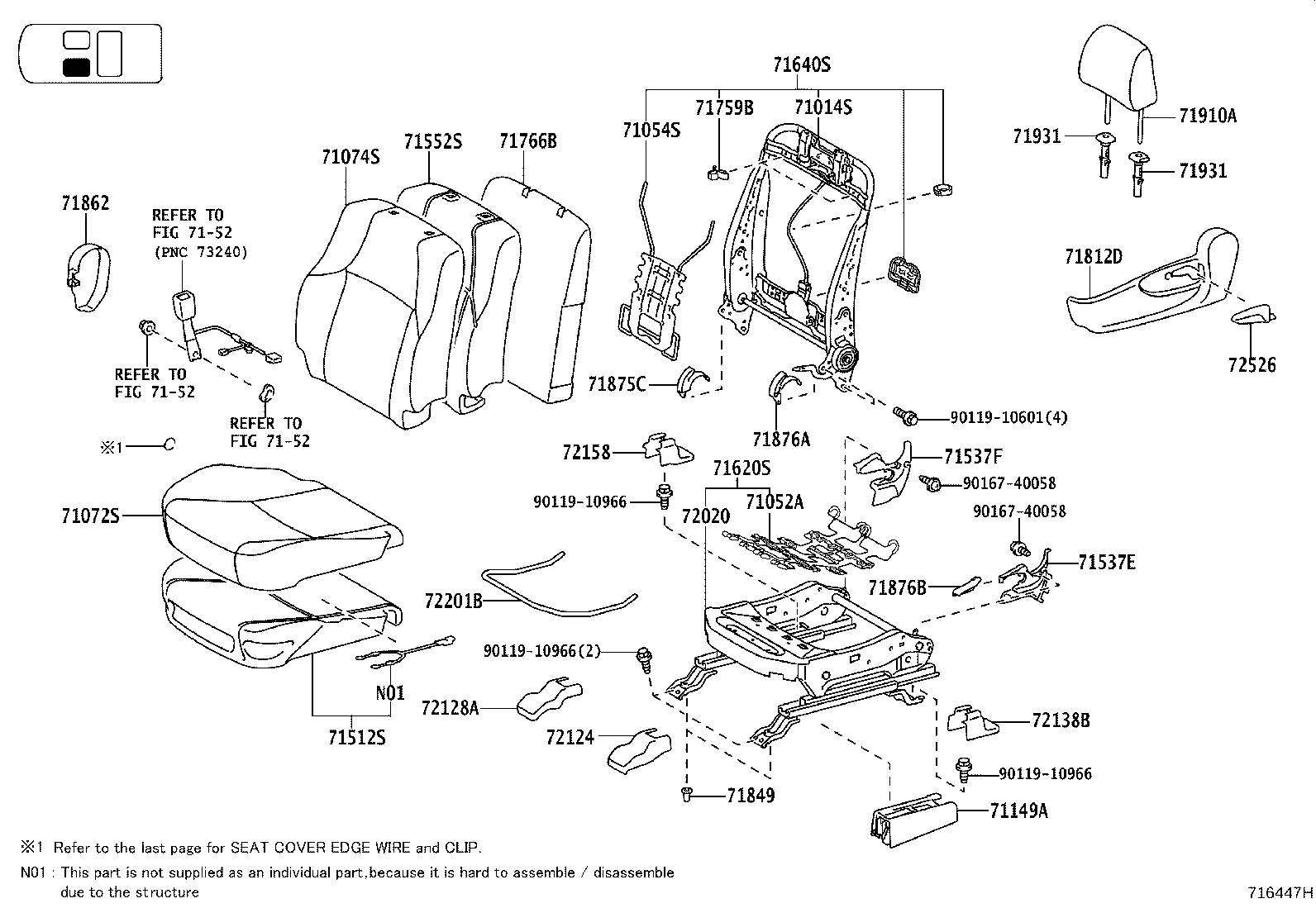

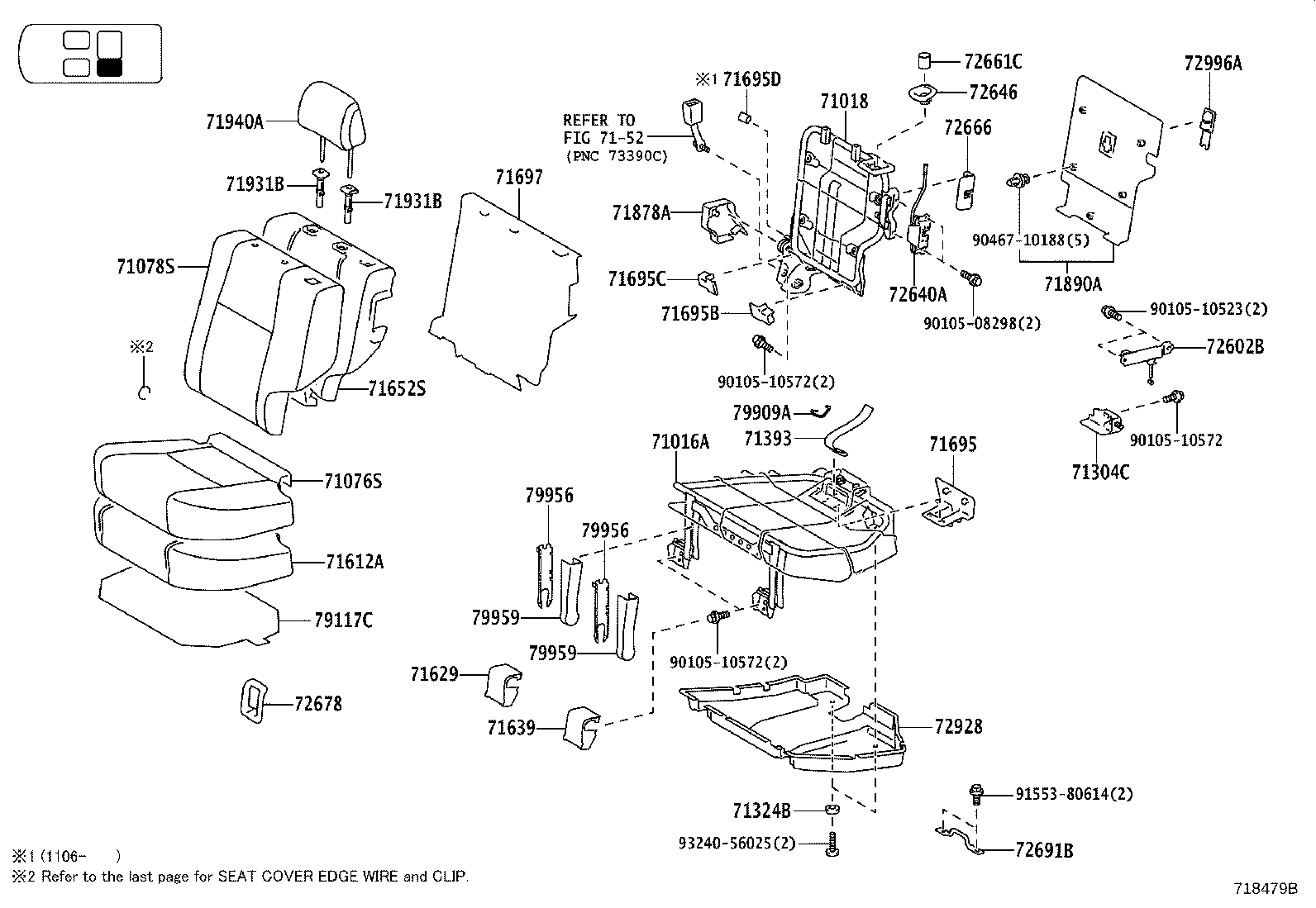

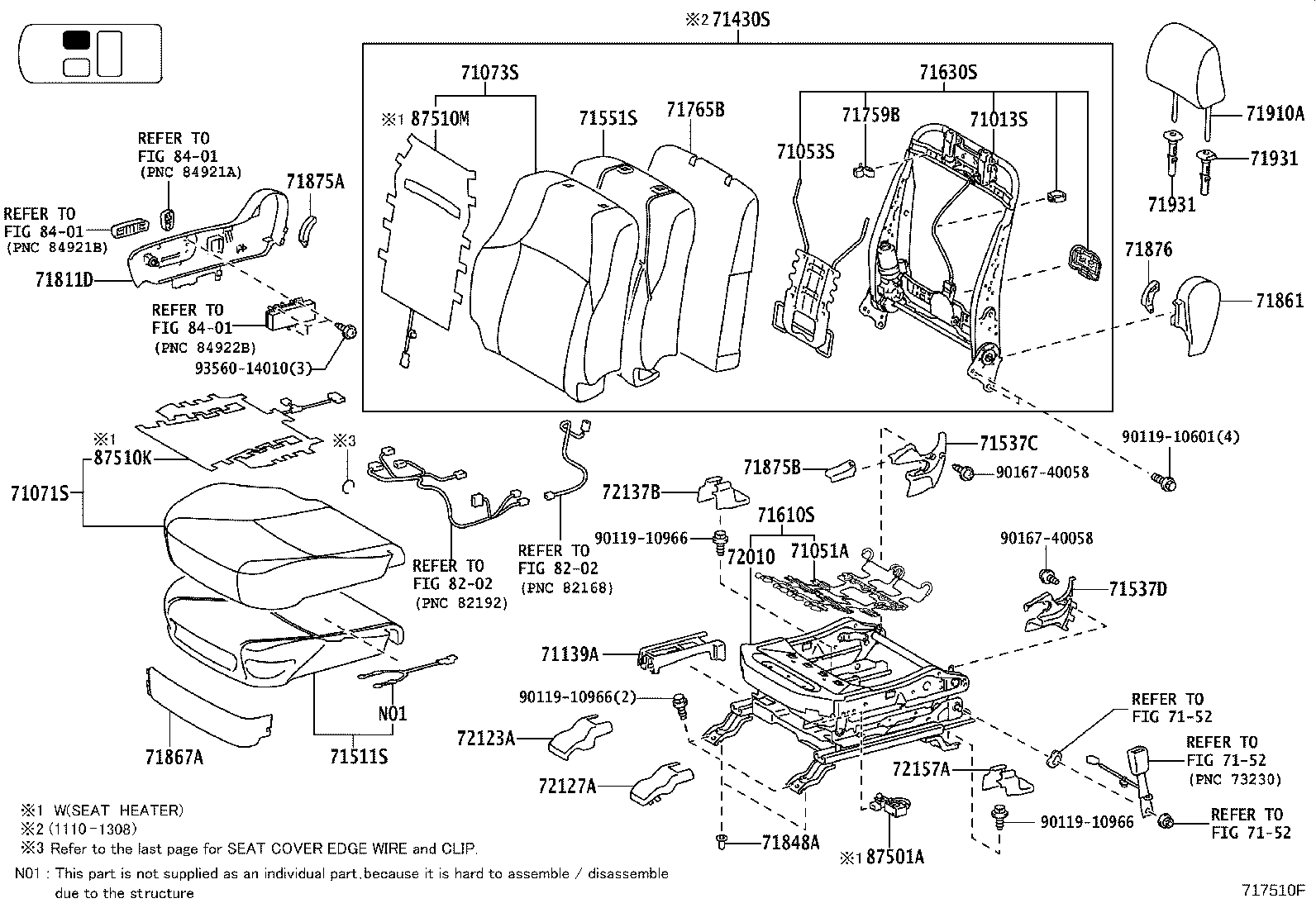

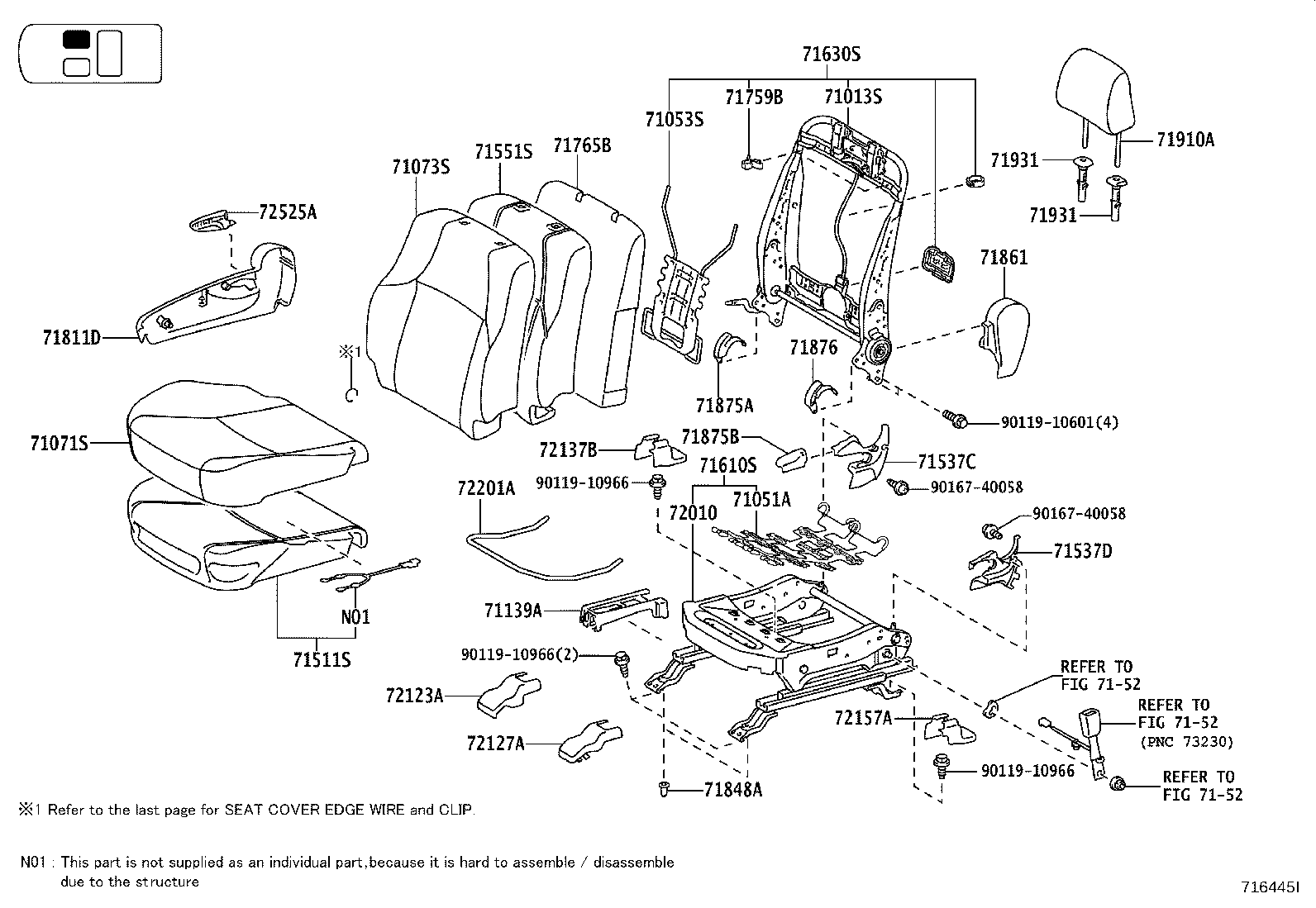

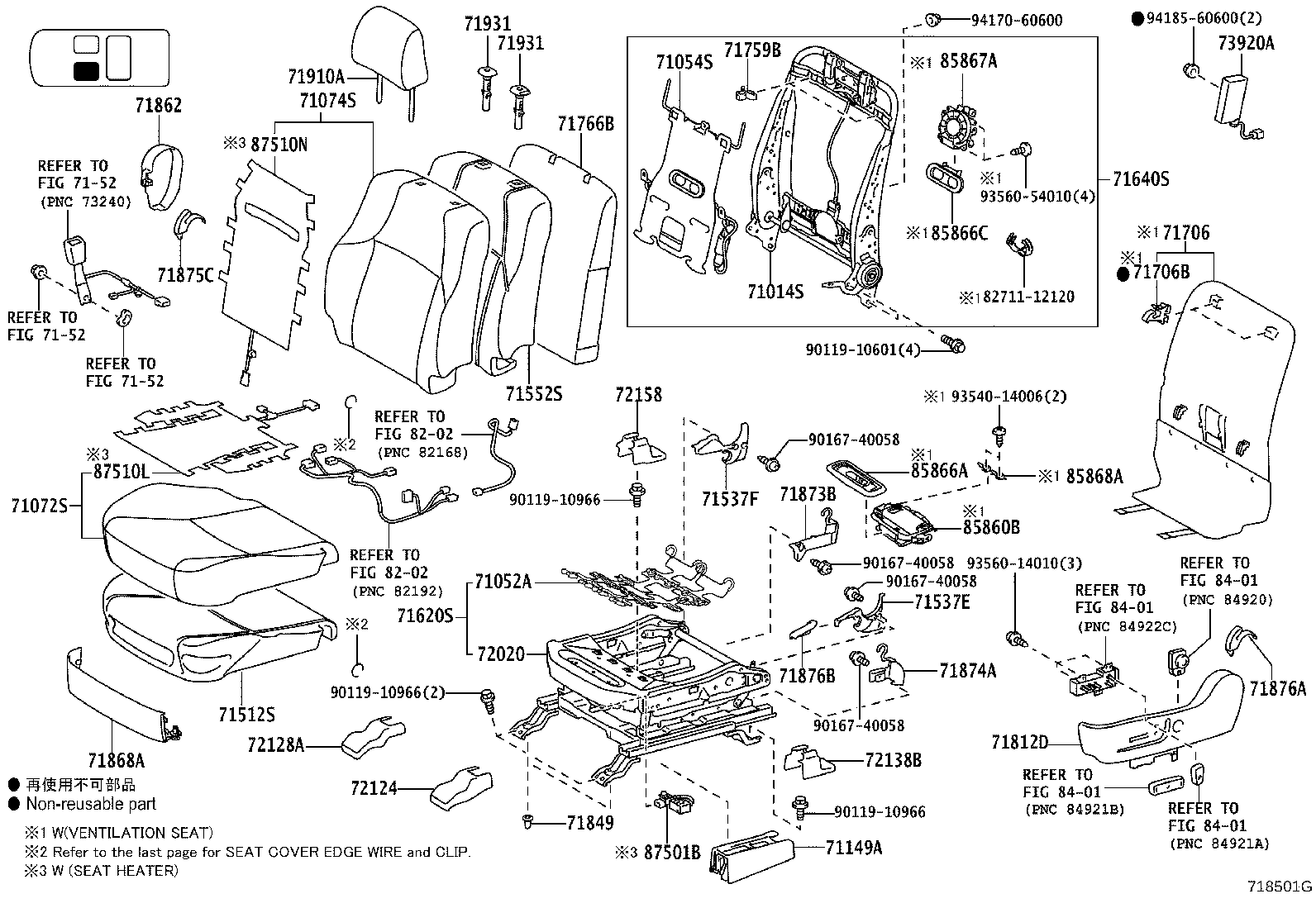

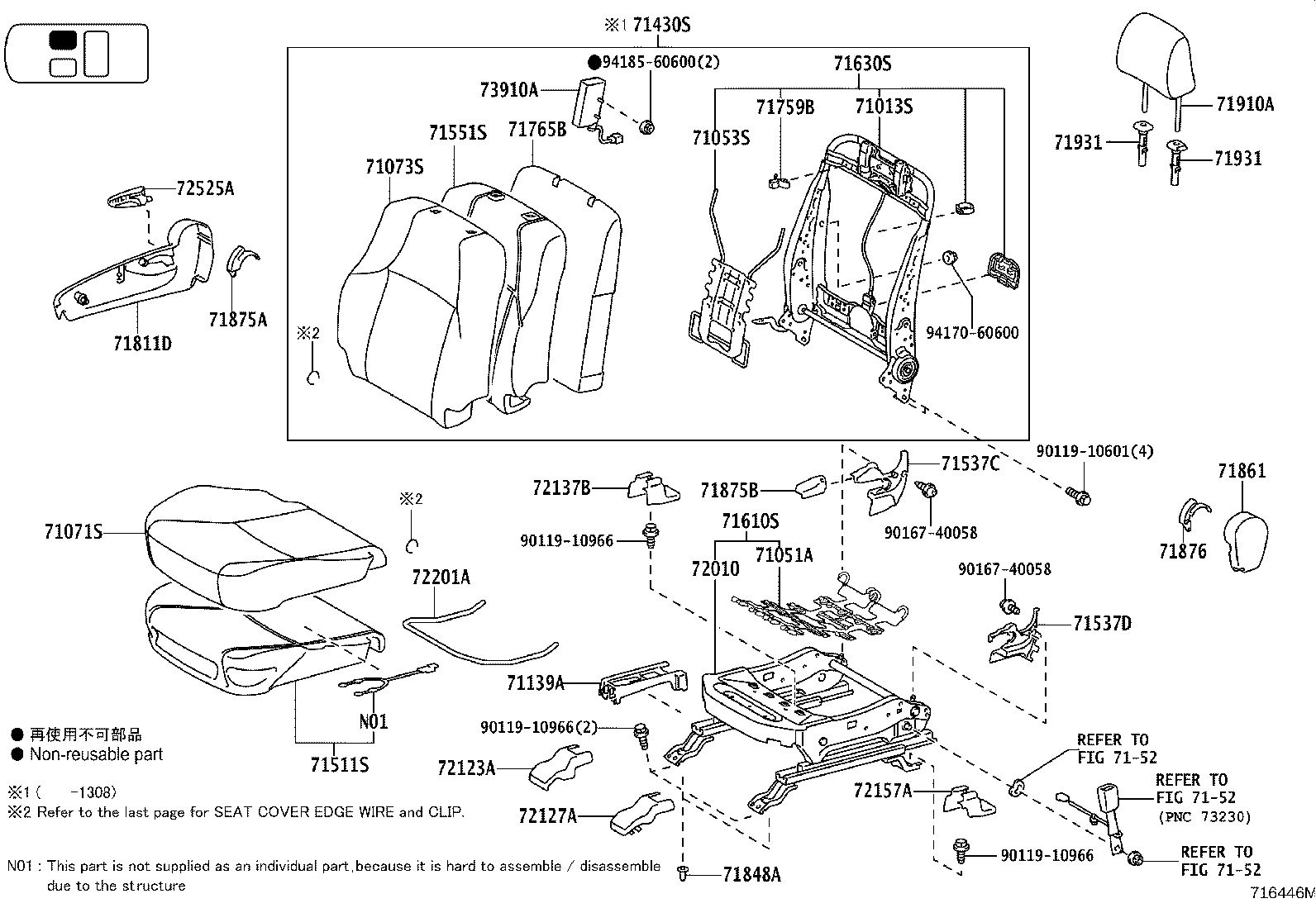

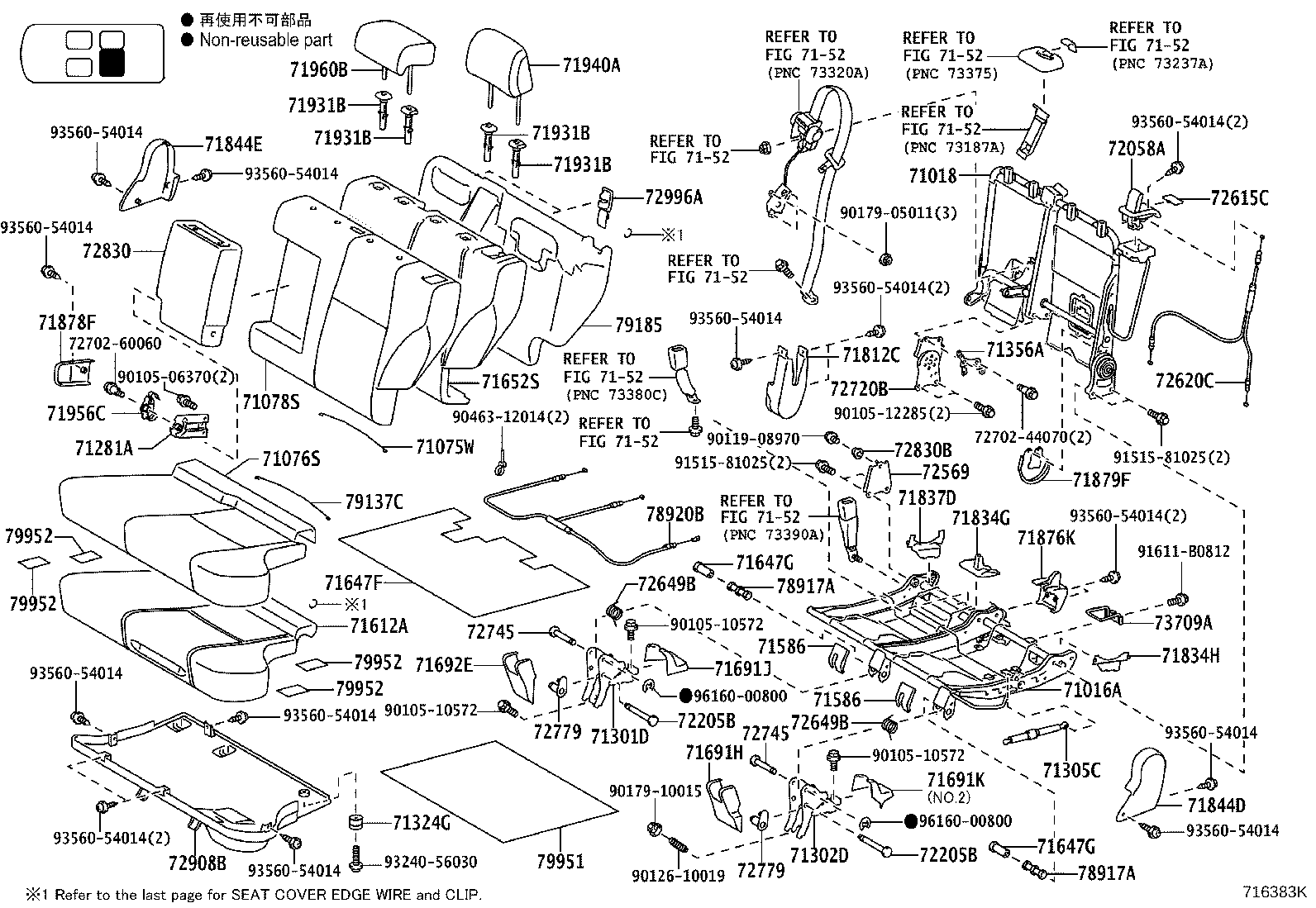

Figure 716439I 716439I 2009-08 → — Figure 716440M 716440M 2009-08 → — Figure 717509F 717509F 2009-08 → — Figure 716393K 716393K 2009-08 → 2013-08 Figure 718501G 718501G 2013-08 → — Figure 716441I 716441I 2009-08 → — Figure 716442M 716442M 2009-08 → — Figure 719159D 719159D 2009-08 → — Figure 716371L 716371L 2009-08 → — Figure 716443G 716443G 2009-08 → 2013-08 Figure 716444M 716444M 2009-08 → — Figure 716445I 716445I 2009-08 → — Figure 716446M 716446M 2009-08 → — Figure 717510F 717510F 2009-08 → — Figure 716394L 716394L 2009-08 → 2013-08 Figure 718500G 718500G 2013-08 → — Figure 717511E 717511E 2011-10 → — Figure 716447H 716447H 2009-08 → — Figure 716448L 716448L 2009-08 → — Figure 719160D 719160D 2009-08 → — Figure 716372L 716372L 2009-08 → — Figure 717512E 717512E 2011-10 → — Figure 716449H 716449H 2009-08 → 2013-08 Figure 716450M 716450M 2009-08 → — Figure 718478E 718478E 2009-08 → — Figure 718479B 718479B 2009-08 → — Figure 716416N 716416N 2009-08 → — Figure 716417L 716417L 2009-08 → — Figure 716412K 716412K 2009-08 → — Figure 716413M 716413M 2009-08 → — Figure 716382K 716382K 2009-08 → — Figure 716383K 716383K 2009-08 → — Figure 716389K 716389K 2009-08 → — Figure 716390K 716390K 2009-08 → — Figure 716378M 716378M 2009-08 → — Figure 716376M 716376M 2009-08 → — Figure 716375F 716375F 2009-08 → — Figure 719351A 719351A 2009-08 → —

Part groups

PNCDescription
62476E Cap, Rear Seat
66310F Hook Assy, Rope
66990B Holder Assy, Cup, NO.2 RH
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71025A Bracket Sub-assy, Front Seatback
71033 Leg Sub-assy, Rear Seat Cushion
71034A Leg Sub-assy, Rear Side Seat Cushion, NO.1 LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71065 Frame Sub-assy, Rear Side Seat Cushion, RH
71066 Frame Sub-assy, Rear Side Seat Cushion, LH
71067 Frame Sub-assy, Rear Side Seatback, RH
71068 Frame Sub-assy, Rear Side Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075E Clip(FOR REAR SEAT)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71075W Wire, Rear Seat Cushion Cover
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71081S Cover Sub-assy, Front Seatback Side, RH
71082S Cover Sub-assy, Front Seatback Side, LH
71085B Cover Sub-assy, Rear Side Seat Cushion, RH
71086B Cover Sub-assy, Rear Side Seat Cushion, LH
71087 Board Sub-assy, Rear Seatback
71088A Cover Sub-assy, Rear Side Seatback, RH
71089B Cover Sub-assy, Rear Side Seatback, LH
71095S Cover Sub-assy, Center Seatback
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71139A Cover, Front Seat Leg, NO.1
71149A Cover, Front Seat Leg, LH
71246A Plate, Rear Seat Cushion Set
71270 Bracket Assy, Seat, Inner RH
71280 Bracket Assy, Seat, Inner LH
71281A Hinge, Rear Seat Center Armrest
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71301D Hinge Sub-assy, Rear Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71302D Hinge Sub-assy, Rear Seat, LH
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305C Stay Sub-assy, Rear Seat
71305S Frame Sub-assy, Center Seatback
71324B Cushion, Rear Seat
71324G Cushion, Rear NO.2 Seat
71324J Cushion, Rear Seat
71324K Cushion, Rear Seat
71349B Cover, Rear Seatback Stay, RH
71356A Plate, Rear Seatback Hinge, Inner LH
71369B Cover, Rear Seatback Stay, LH
71389 Spacer, Center Seat Hinge
71393 Band, Rear Seat Cushion
71395B Cover, Center Seat Hinge, RH
71396B Cover, Center Seat Hinge, LH
71397A Cover, Center Seat Hinge
71413 Plate, NO.1 Rear Seat Side, NO.2
71430C Clip
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71461 Spring, Rear Seat Cushion
71468 Protector, Rear Seat, NO.1 (FOR SEAT CUSHION)
71499C Damper, Rear Seat Cushion Spring
71499D Damper, Rear Seatback Spring
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71523 Rail, Rear Seat
71537A Protector, Front Seat Cushion
71537B Protector, Rear Seat Cushion
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71537E Protector, Front Seat Cushion, NO.1
71537F Protector, Front Seat Cushion, NO.2
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71565A Pad, Front Seatback, Inside RH
71566 Pad, Front Seatback, Inside LH
71585 Cover, Rear NO.2 Seat Hinge, RH
71586 Cover, Rear NO.2 Seat Hinge, LH
71587A Protector, Rear Seatback Edge
71587C Protector, Rear Seatback Edge NO.2
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629 Cover, Rear Seat Cushion Hinge
71629A Cover, Rear Seat Cushion Hinge, RH
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71639 Cover, Rear Seat Cushion Hinge, LH
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647 Protector, Rear Seat Cushion Edge
71647B Protector, Rear Seat Cushion Edge
71647D Protector, Rear Seat Cushion Edge, Inner RH
71647F Protector, Rear Seat Cushion Edge, Inner LH
71647G Protector, Rear Seat Cushion Edge
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691C Cover, Rear Seat Lock, Inner RH
71691E Cover, Rear Seat Cushion Hinge, NO.1
71691H Cover, Rear Seat Cushion Hinge, NO.2
71691J Cover, Rear Seat Cushion Hinge, NO.3
71691K Cover, Rear Seat Cushion Hinge, NO.4
71692E Cover, Rear Seat Cushion Hinge, NO.2
71692G Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71693A Cover, Rear Seat Cushion Hinge, NO.3
71693C Cover, Rear Seat Cushion Hinge, Outer RH
71693D Cover, Rear Seat Cushion Hinge, Inner RH
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71694D Cover, Rear Seat Cushion Hinge, Outer LH
71695 Protector, Rear Seatback
71695A Protector, Rear Seat, NO.1 RH
71695B Protector, Rear Seat, NO.1 LH
71695C Protector, Rear Seat, NO.1
71695D Protector, Seat
71695F Protector, Rear Seat, NO.1
71696 Protector, Rear Seat, NO.2
71697 Protector, Rear Seatback Edge
71697A Protector, Rear Seat, NO.3 RH
71697B Protector, Rear Seat, NO.3 LH
71701C Board Sub-assy, Rear Seatback, RH
71702C Board Sub-assy, Rear Seatback, LH
71704 Band Sub-assy, Rear Side Seat
71704B Band Sub-assy, Rear Side Seat, NO.2
71705 Board Sub-assy, Front Seatback, RH
71705A Clip(FOR FRONT SEATBACK BOARD)
71706 Board Sub-assy, Front Seatback, LH
71706B Clip, Front Seatback Board
71717 Plate, Front Side Seat Leg
71721 Pad, Rear Side Seat Cushion, RH
71722 Pad, Rear Side Seat Cushion, LH
71759B Hook, Front Seatback
71761A Pad, Rear Side Seatback, RH
71761B Pad, Rear Side Seatback, LH
71765B Protector, Front Seatback, RH
71766B Protector, Front Seatback, LH
71811D Shield, Front Seat Cushion, RH
71812C Cover, Reclining Adjuster, LH
71812D Shield, Front Seat Cushion, LH
71825B Moulding, Rear Seat Cushion, RH
71826B Moulding, Rear Seat Cushion, LH
71827B Moulding, Rear Seat Cushion, Front
71828 Moulding,Rear Seatback, Center
71828B Moulding, Rear Seat Cushion, Rear RH
71829B Moulding, Rear Seat Cushion, Rear LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833C Cover, Rear Seat Reclining, NO.2 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71834C Cover, Rear Seat Reclining, NO.3 LH
71834G Cover, Rear Seat Reclining, NO.1 LH
71834H Cover, Rear Seat Reclining, NO.1 LH
71837D Cover, Rear Seat Reclining, Inner RH
71843A Cover, Rear Seat Reclining, NO.2 RH
71843D Cover, Rear Seat Reclining, NO.2 RH
71843E Cover, Rear Seat Reclining, RH (FOR RH SEAT)
71844A Cover, Rear Seat Reclining, NO.2 LH
71844C Cover, Rear Seat Reclining, NO.2 LH
71844D Cover, Rear Seat Reclining, LH (FOR LH SEAT)
71844E Cover, Rear Seat Reclining, RH (FOR LH SEAT)
71845A Cover, Rear Seat Reclining, Upper RH
71845C Cap, Rear Seat Cover
71846A Cover, Rear Seat Reclining, Upper LH
71847A Cover, Front Seat Armrest Hole Board
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71865 Bezel, Rear Seat Cover, NO.1
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71873B Shield, Front Seat Cushion, Lower RH, NO.1
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875C Cover, Reclining Adjuster Inside, RH
71875E Cover, Reclining Adjuster Inside, RH
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875J Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876B Cover, Reclining Adjuster Inside, LH
71876C Cover, Reclining Adjuster Inside, LH
71876E Cover, Reclining Adjuster Inside, LH
71876J Cover, Reclining Adjuster Inside, LH
71876K Cover, Reclining Adjuster Inside, LH
71878A Cover, Rear Seat Reclining, Inner RH
71878B Cover, Rear Seat Reclining, Inner RH
71878C Cover, Rear Seat Reclining, Inner RH
71878D Cover, Rear Seat Reclining, Inner RH
71878E Cover, Rear Seat Reclining, Inner RH
71878F Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71879B Cover, Rear Seat Reclining, Inner LH
71879C Cover, Rear Seat Reclining, Inner LH
71879D Cover, Rear Seat Reclining, Inner LH
71879E Cover, Rear Seat Reclining, Inner LH
71879F Cover, Rear Seat Reclining, Inner LH
71880A Carpet Assy, Rear Seatback Board, RH
71890A Carpet Assy, Rear Seatback Board, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71956C Support, Rear Seat Armrest
71960B Headrest Assy, Rear Seat, Center
71970 Headrest Assy, Rear Seat
71970A Cover, Rear Seat Headrest
71987A Cable, Rear Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058 Lever Sub-assy, Rear Seat Lock Control
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72058B Lever Sub-assy, Rear Seat Lock Control, LH
72067 Lever Sub-assy, Rear Back Lock Control, RH
72067A Lever, Rear Back Lock Control, Center
72068 Lever Sub-assy, Rear Back Lock Control, LH
72111 Rail, Seat Track Upper
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137B Cover, Seat Track, RH
72137D Cover, Rear Seat Track, RH
72138A Cover, Rear Seat Track, LH
72138B Cover, Seat Track, LH
72151 Rail, Seat Track, Lower RH
72152 Rail, Seat Track, Lower LH
72152A Cover, Rear Seat Track Bracket, Inner
72157A Cover, Seat Track Bracket, Inner RH
72157B Cover, Rear Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72158A Cover, Rear Seat Track Bracket, Inner LH
72159A Cover, Rear Seat Track Bracket
72159B Cover, Rear Seat Track Bracket, Outer
72165 Rail, Rear Outer Seat Track, Lower RH
72165A Rail, Rear Outer Seat Track, Lower LH
72173A Handle, Rear Seat Track Adjusting, RH
72173B Handle, Rear Seat Track Adjusting, LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72205B Pin Sub-assy, Seat Track Open Lever
72241A Lever, Seat Track Lock
72241B Lever, Seat Track Lock
72455A Bracket, Seat Frame Set, NO.1
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72497 Cover, Vertical Adjuster Bracket, Outer
72498B Cover, Vertical Adjuster Bracket, Outer
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72569 Plate, Seatback Stopper
72572B Cap, Reclining Adjuster Knob, RH
72572C Cap, Reclining Adjuster Knob, LH
72601 Striker Sub-assy, Rear Seat Lock
72602B Striker Sub-assy, Rear Seatback Lock, NO.2 LH
72613B Striker, Rear Seat Lock
72615A Cover, Rear Seatback Lock Striker, RH
72615C Cover, Rear Seatback Lock Striker
72615G Cover, Front Seatback Lock Striker,NO.2
72615H Cover, Rear Seatback Lock Striker, NO.1
72616A Cover, Rear Seatback Lock Striker, LH
72618 Protector, Rear Seatback Lock Striker
72620B Cable Assy, Rear NO.1 Seat Lock
72620C Cable Assy, Rear NO.1 Seat Lock
72630C Lock Assy, Rear Seatback, RH
72631 Plate, Rear Seatback Lock, RH
72632 Plate, Rear Seatback Lock, LH
72635B Hook, Rear Seatback Lock(MALE)
72635C Hook, Rear Seatback Lock(FEMALE)
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72649 Spring, Rear Seat Cushion Support
72649B Spring, Rear Seat Cushion Support
72650A Lock Assy, Rear Seat, RH
72660F Lock Assy, Rear Seat, LH
72661C Button, Rear Seatback Lock Release
72663 Lever, Rear Seat Lock Control, NO.1
72665 Cover, Rear Seatback Lock, RH
72665B Cover, Rear Seatback Lock
72666 Cover, Rear Seatback Lock, LH
72677A Base, Rear Seatback Lock Control Lever, RH
72678 Base, Rear Seatback Lock Control Lever, LH
72690 Lever Assy, Seat Cushion Lock Release
72690A Strap Assy, Rear Seat Lock Release
72691B Striker, Rear Seat Cushion Lock
72695B Cable, Rear Seat Lock Control, RH
72695C Cable, Rear Seat Lock Control, LH
72704A Cable, Rear Seat Reclining Control
72704B Cable, Rear Seat Reclining Control, NO.2
72704F Cable, Rear Seat Reclining Control, NO.3
72704G Cable, Rear Seat Reclining Control, NO.4
72720B Adjuster Assy, Rear Seatback, Inner LH
72728 Protector, Rear Seat Reclining, Inner RH
72731 Bracket, Rear Seat Reclining, RH
72732 Bracket, Rear Seat Reclining, LH
72745 Pin, Rear Seat Reclining Hinge
72749 Spacer, Rear Seat Reclining
72749A Spacer, Rear Seat Reclining
72749B Spacer, Rear Seat Reclining, NO.1
72749C Spacer, Rear Seat Reclining, NO.2
72749D Spacer, Rear Seat Reclining, NO.3
72779 Guide, Rear Seat Hinge Pawl
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72849 Cap, Seat Armrest, NO.2
72877C Cover, Seat Armrest
72880 Armrest Assy, Seat, C RH
72890 Armrest Assy, Seat, C LH
72905 Link Sub-assy, 3RD Seat, RH
72906 Link Sub-assy, 3RD Seat, LH
72907B Cover Sub-assy, Rear Seat Cushion Under, RH
72908B Cover Sub-assy, Rear Seat Cush Under, LH
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72978 Cover, NO.2 Center Seatback
72987 Cover, Rear Seat Center Armrest
72991 Cover, Front Seat Cushion, RH
72995A Cover, Rear Seat
72996A Cover, Rear Seatback
73709A Bracket Sub-assy, Tether Anchor
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
73949 Cap
74633A Cap, Coat Hook
78091 Cable Sub-assy, Fold Seat Lock Control
78910B Cable Assy, Fold Seat Lock Control, NO.1 RH
78917 Cushion, Fold Seat Leg Lock
78917A Cushion, Fold Seat Leg Lock
78920B Cable Assy, Fold Seat Lock Control, NO.1 LH
79007 Frame, Seat Cushion Side, RH Outer NO.1
79008 Frame, Seat Cushion Side, LH Outer NO.2
79029A Stay Sub-assy, NO.2 Seat
79030 Leg Assy, NO.3 Seat, RH
79031 Cover Sub-assy, NO.3 Seat Cushion, RH
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033 Cover Sub-assy, NO.3 Seatback, RH
79034 Cover Sub-assy, NO.3 Seatback, LH
79040 Leg Assy, NO.3 Seat, LH
79109 Board Sub-assy, NO.1 Seatback
79117B Cover, NO.1 Seat Cushion, RH
79117C Cover, NO.1 Seat Cushion, LH
79137C Wire, NO.1 Seat Cushion
79148 Pad, NO.1 Seat Cushion, Center
79157 Cover, NO.1 Seatback
79175 Pad, NO.1 Seatback
79184 Plate, NO.1 Seat Leg
79185 Pad, NO.1 Seatback, LH
79201B Frame Sub-assy, NO.2 Seat Cushion, RH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79226 Cable, NO.2 Seat Lock
79303A Frame Sub-assy, NO.3 Seatback, RH
79304A Frame Sub-assy, NO.3 Seatback, LH
79335A Pad, NO.3 Seat Cushion, RH
79337 Carpet, NO.2 Seat Cushion Under, RH
79345A Pad, NO.3 Seat Cushion, LH
79347 Carpet, NO.2 Seat Cushion Under, LH
79374 Cover, NO.3 Seat Leg, Rear RH
79374A Cover, NO.3 Seat Leg, Rear RH
79375A Pad, NO.3 Seatback, RH
79384 Cover, NO.3 Seat Leg, Rear LH
79384A Cover, NO.3 Seat Leg, Rear LH
79385A Pad, NO.3 Seatback, LH
79495 Spring, Rear Side Seatback, NO.1
79873 Wire, Fold Seatback
79909A Wire Sub-assy, Seat Cushion
79951 Cover, NO.1 Seat Cushion
79952 Cover, NO.2 Seat Cushion
79955 Cover, Rear Seat Front Bracket, Front
79956 Cover, Rear Seat Leg Bracket
79956D Cover, Rear Seat Front Bracket, LH
79957 Cover, Rear Seat Rear Bracket, Rear
79958A Cover, Rear Seat Rear Bracket, LH
79959 Cover, RR Seat Leg
79962 Cover, NO.2 Seatback
79968B Clip
79977A Felt, Seatback
82666M Holder, Connector
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85866 Duct, Seat Cushion Climate Control, RH
85866A Duct, Seat Cushion Climate Control, LH
85866B Duct, Seatback Climate Control, RH
85866C Duct, Seatback Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
85868 Bracket, Seat Cushion Climate Control, RH
85868A Bracket, Seat Cushion Climate Control, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87501D Control Sub-assy, Seat Heater
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
87510P Heater Assy, Seat
87510Q Heater Assy, Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
