Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781360 · General

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

39 part groups · 54 illustrations

Illustrations

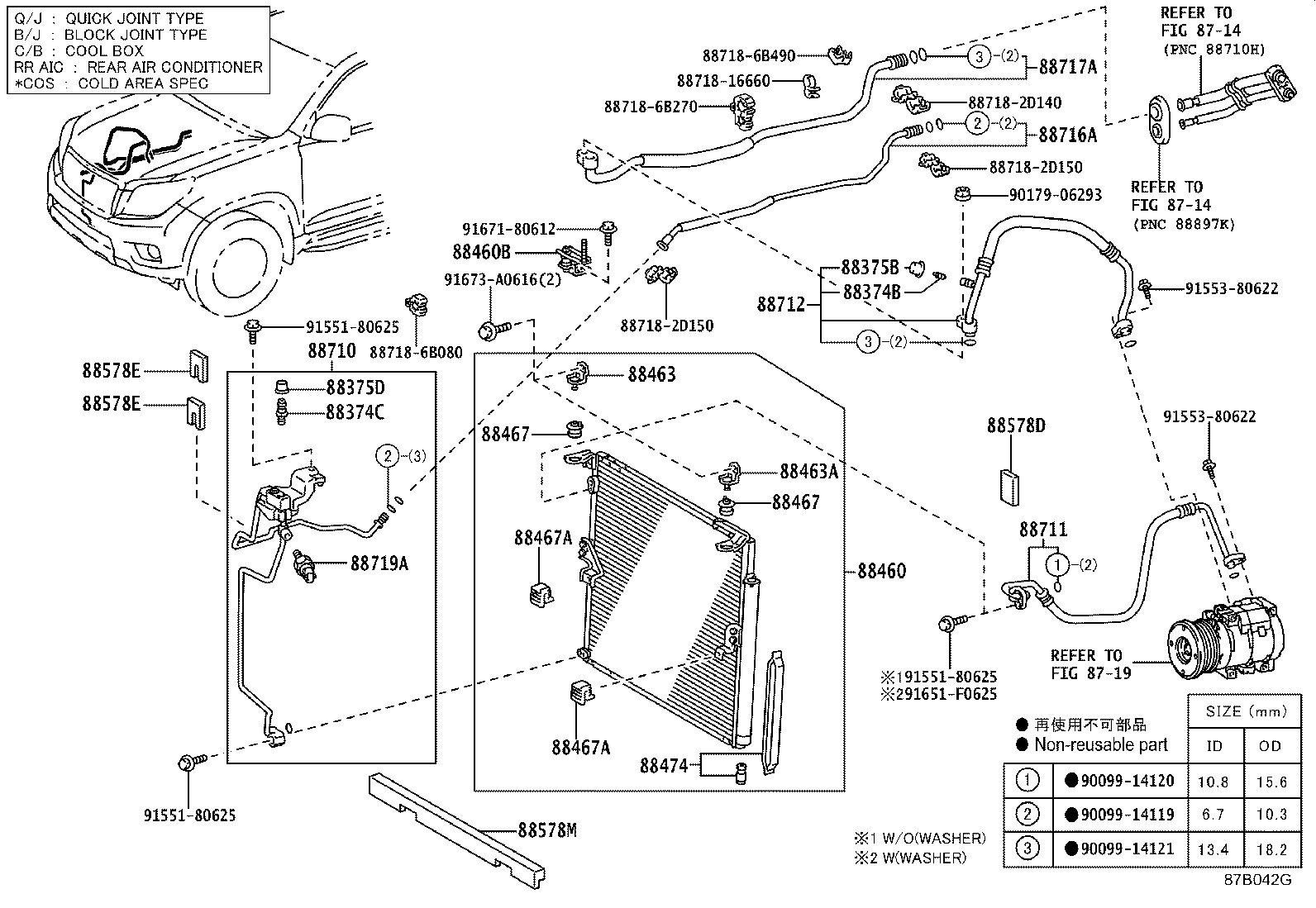

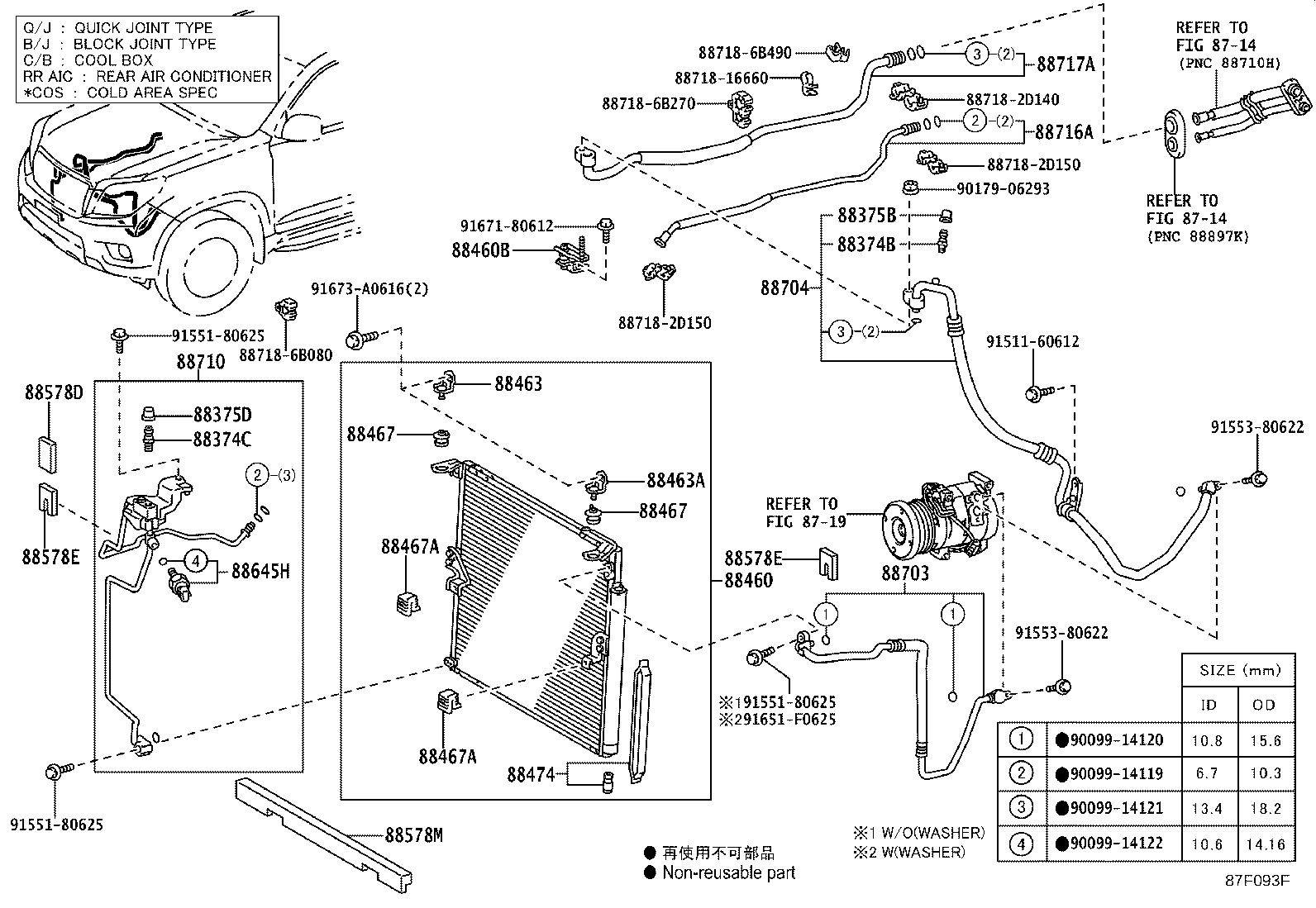

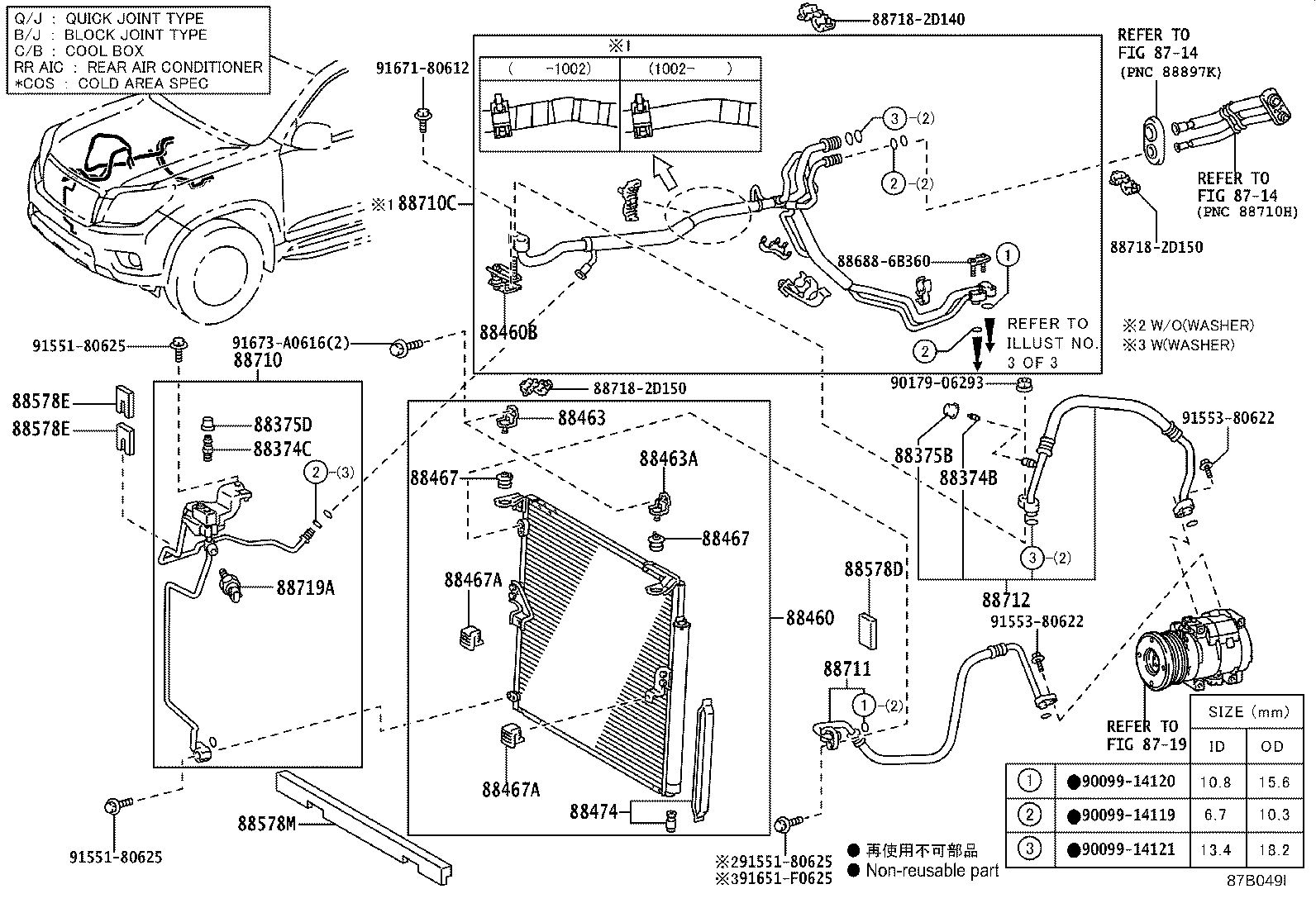

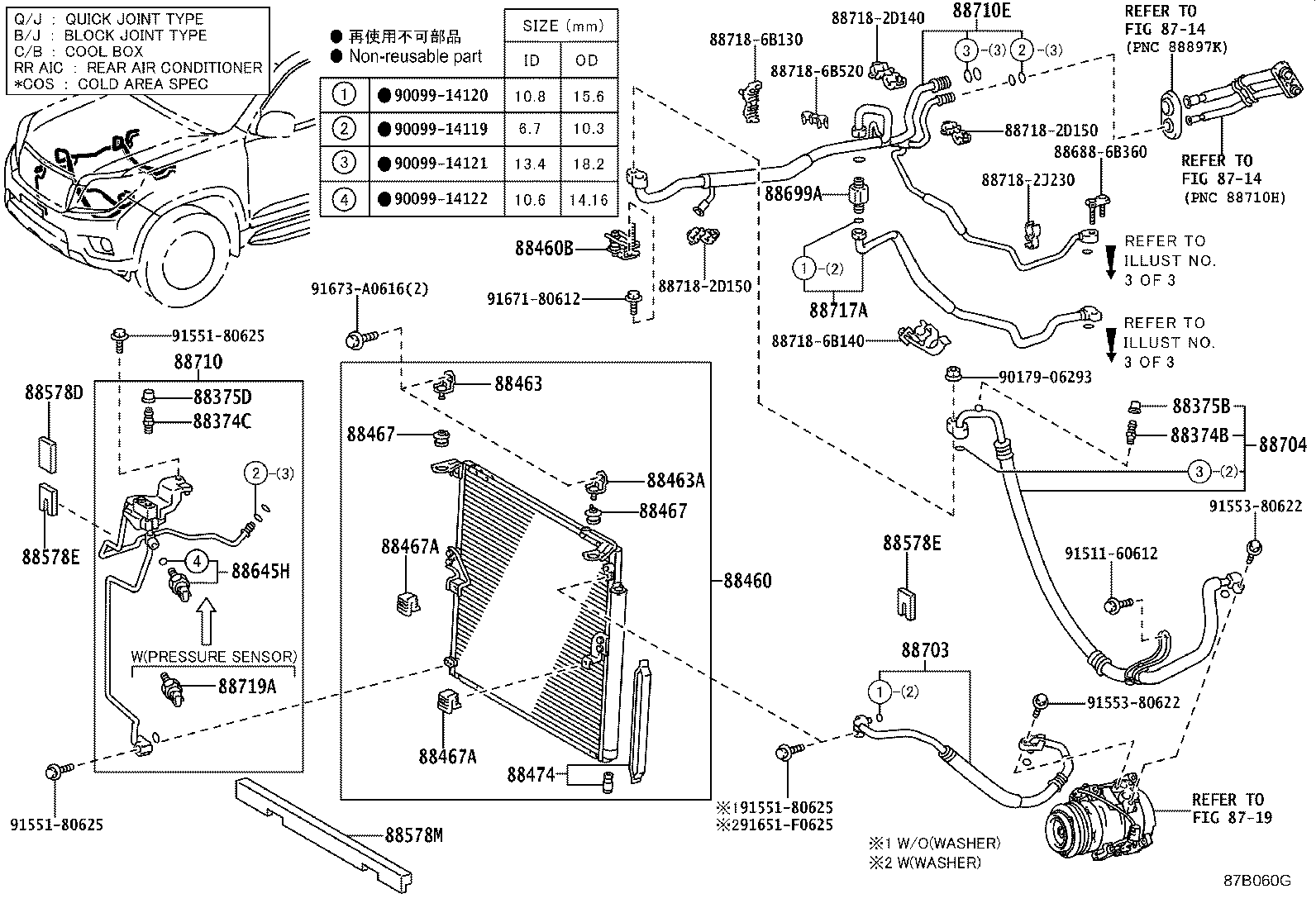

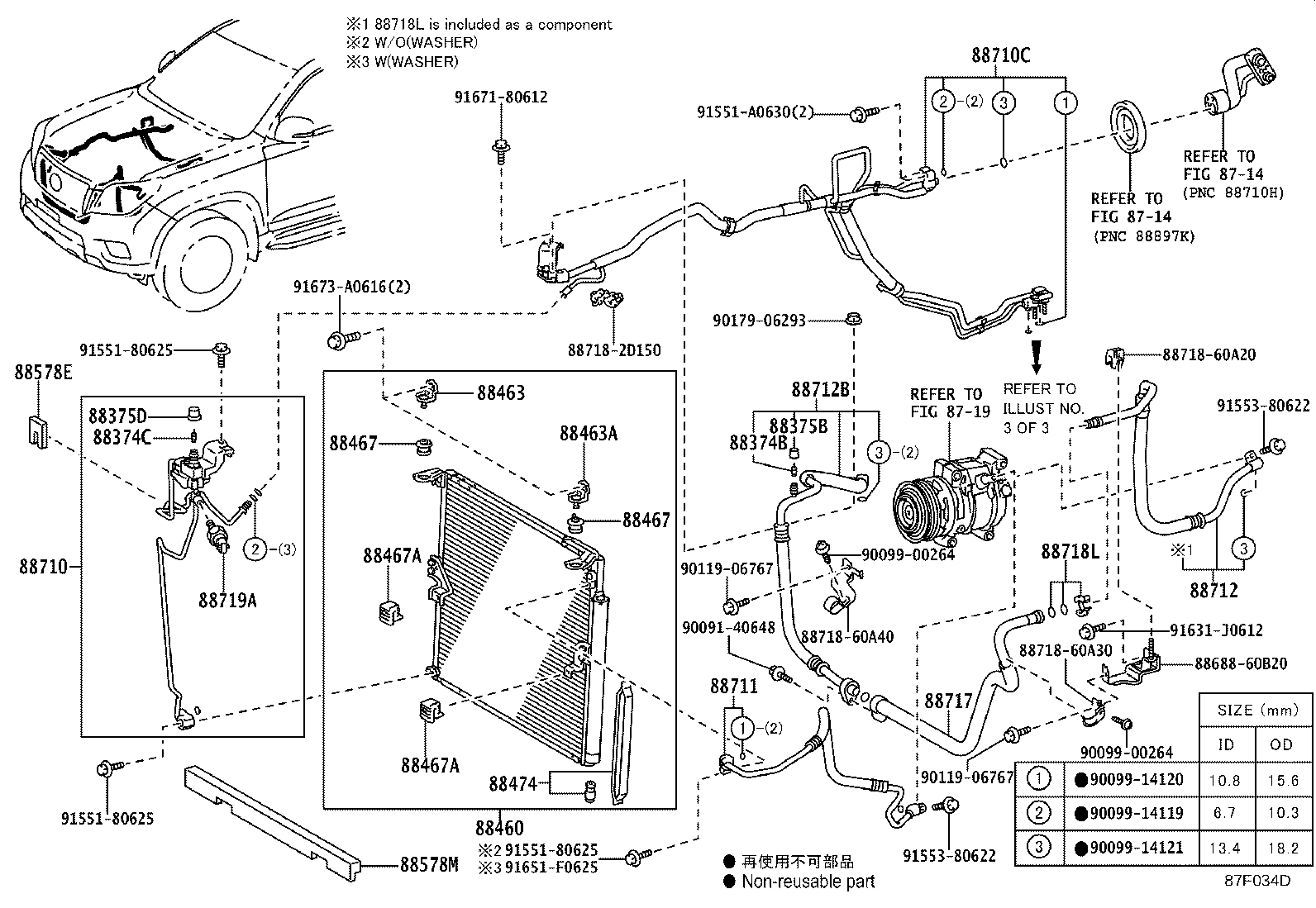

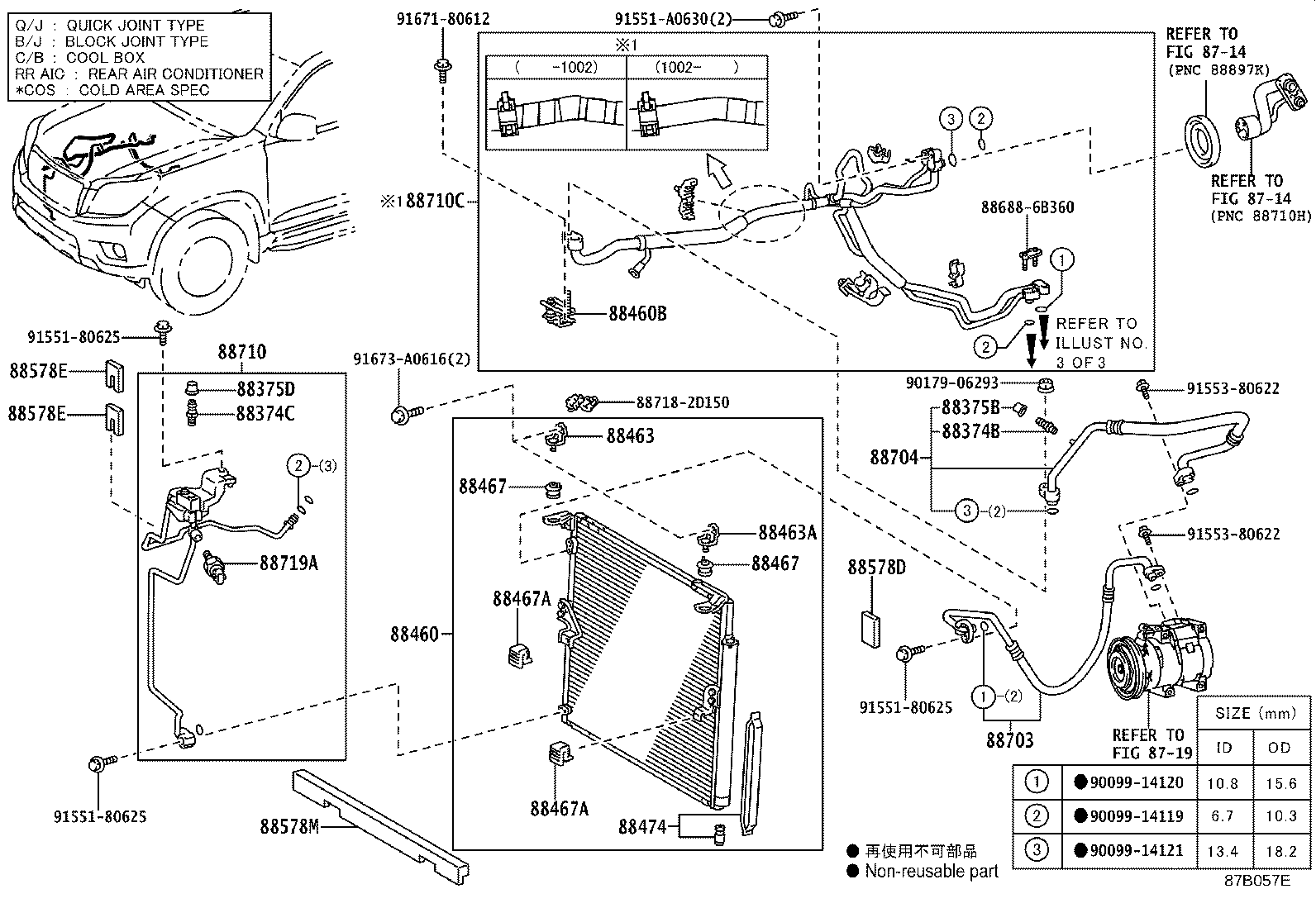

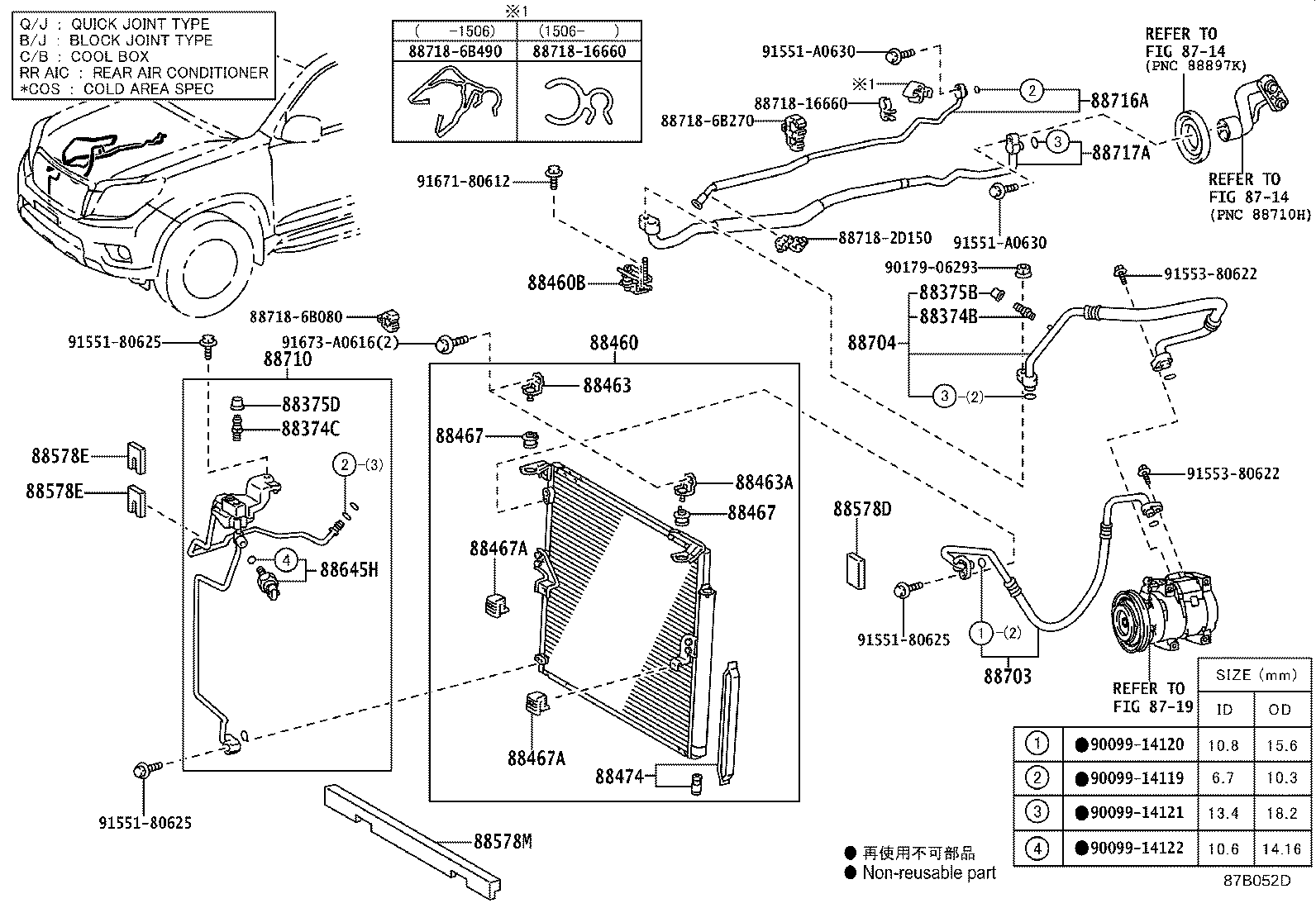

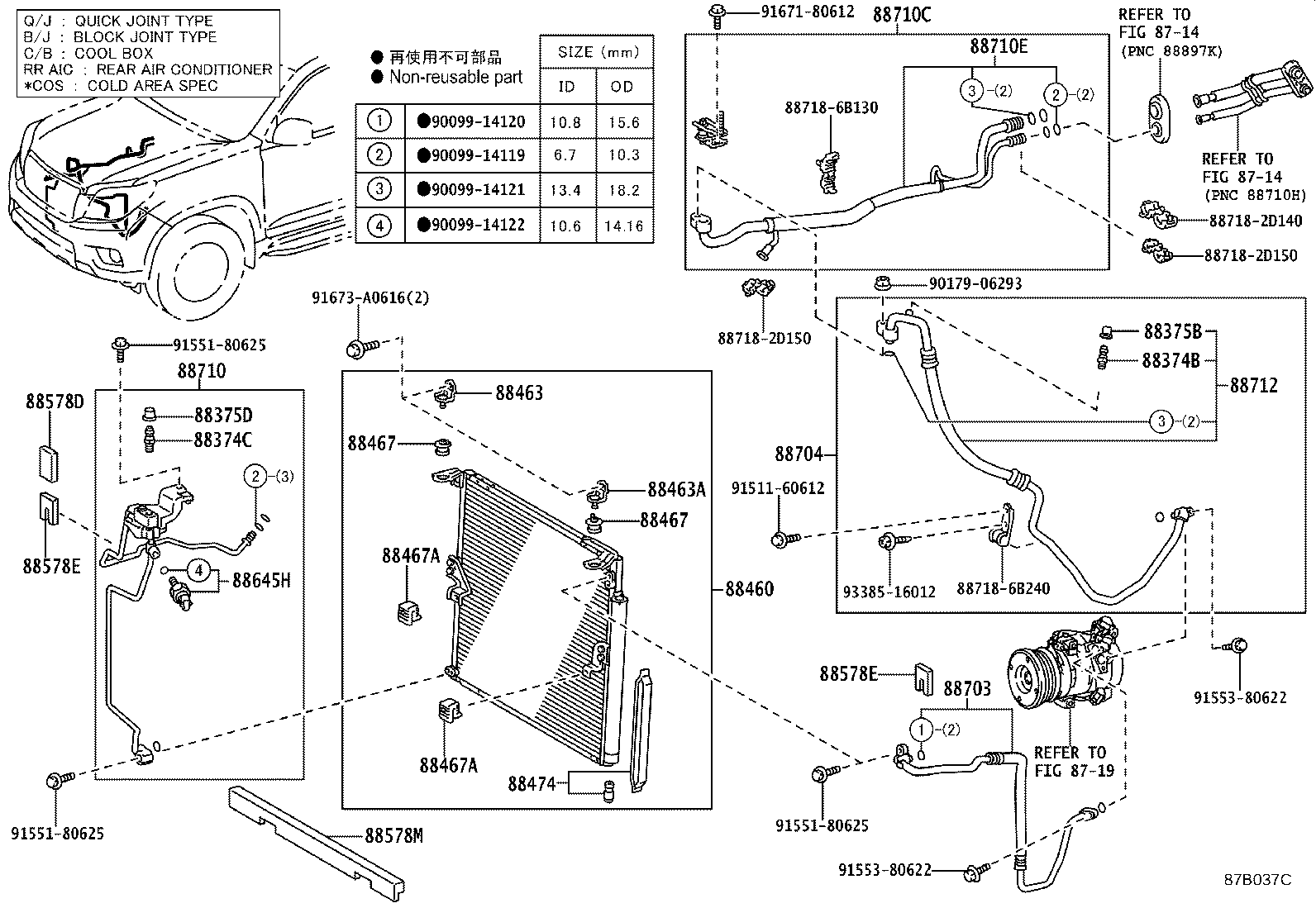

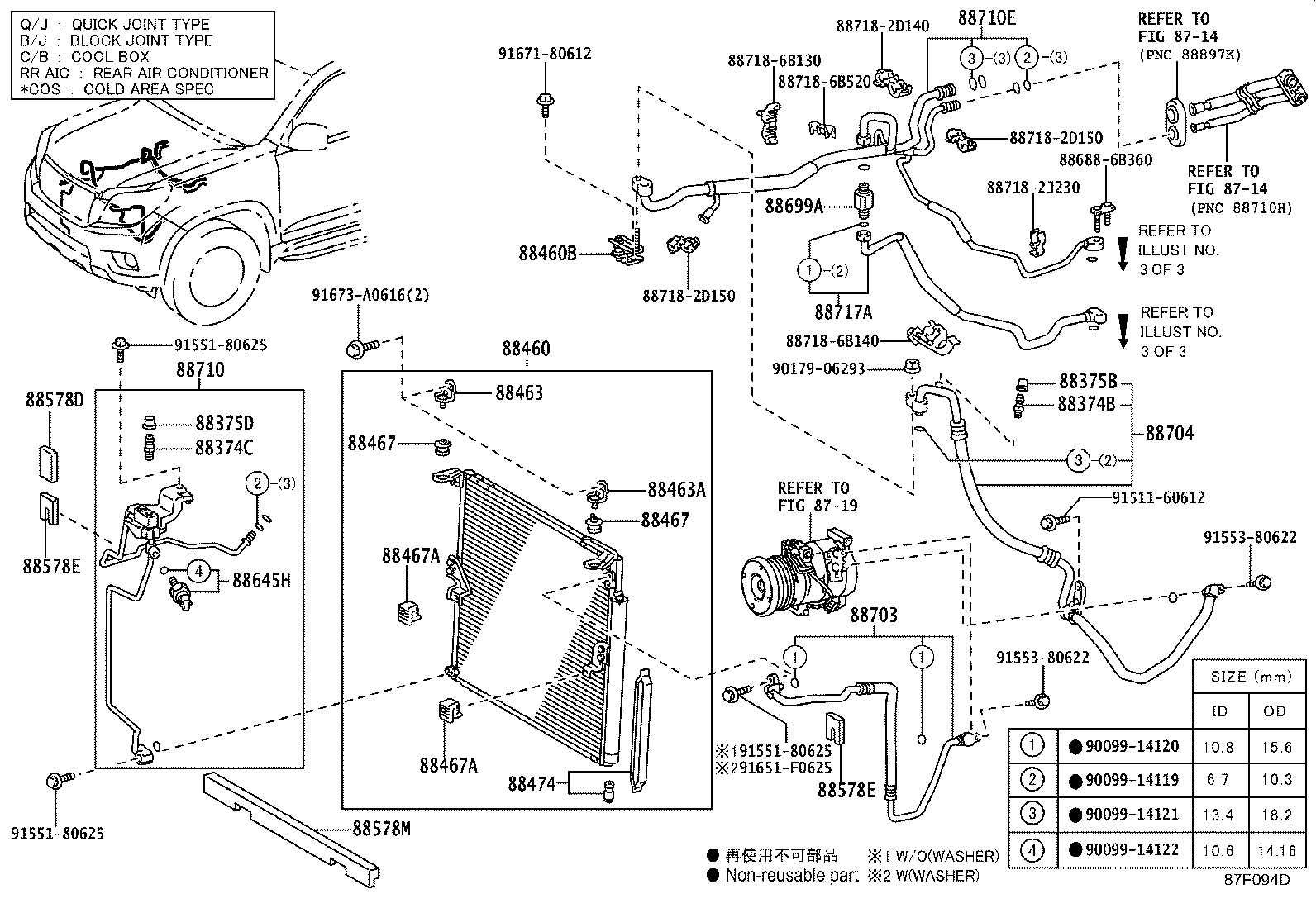

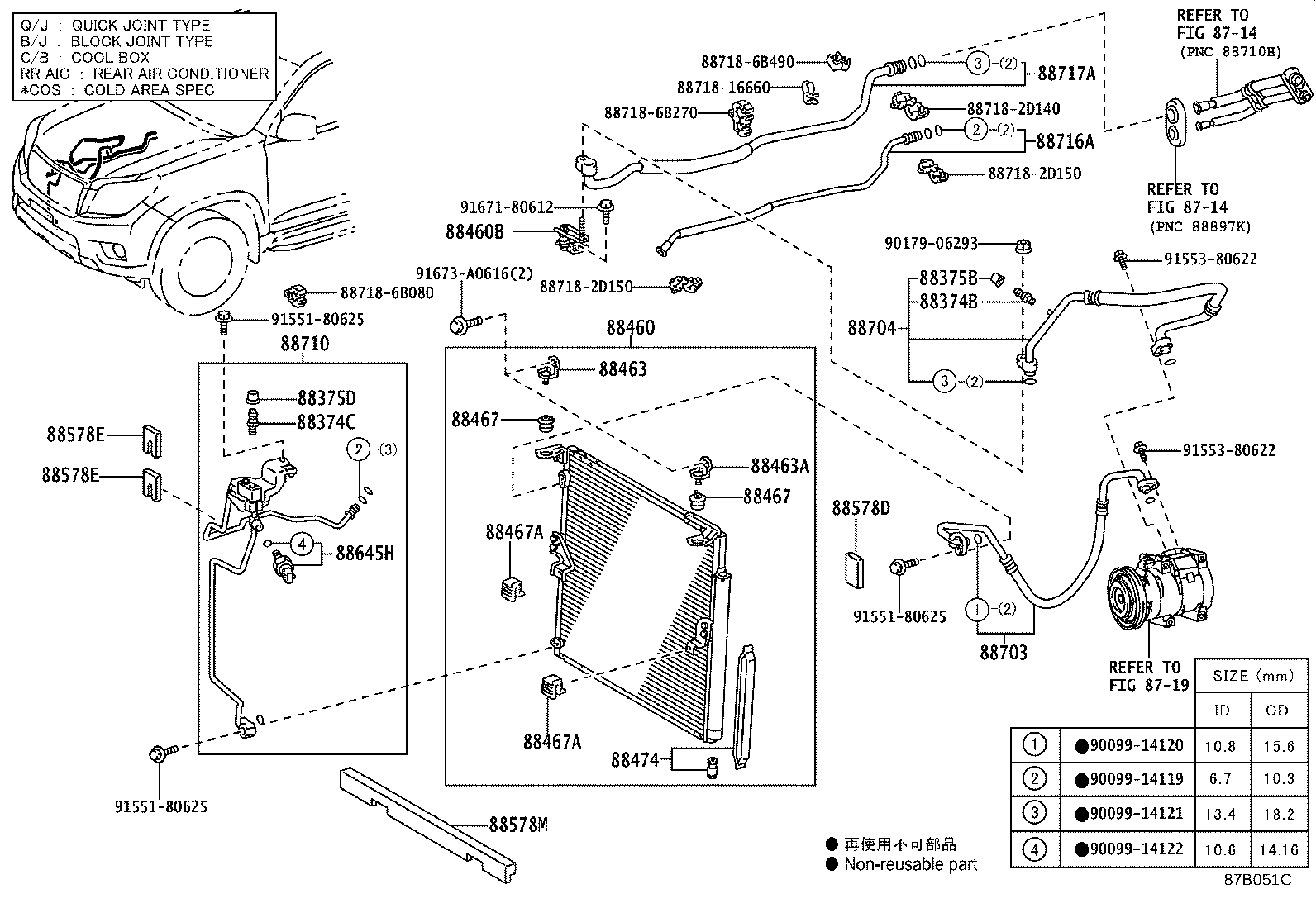

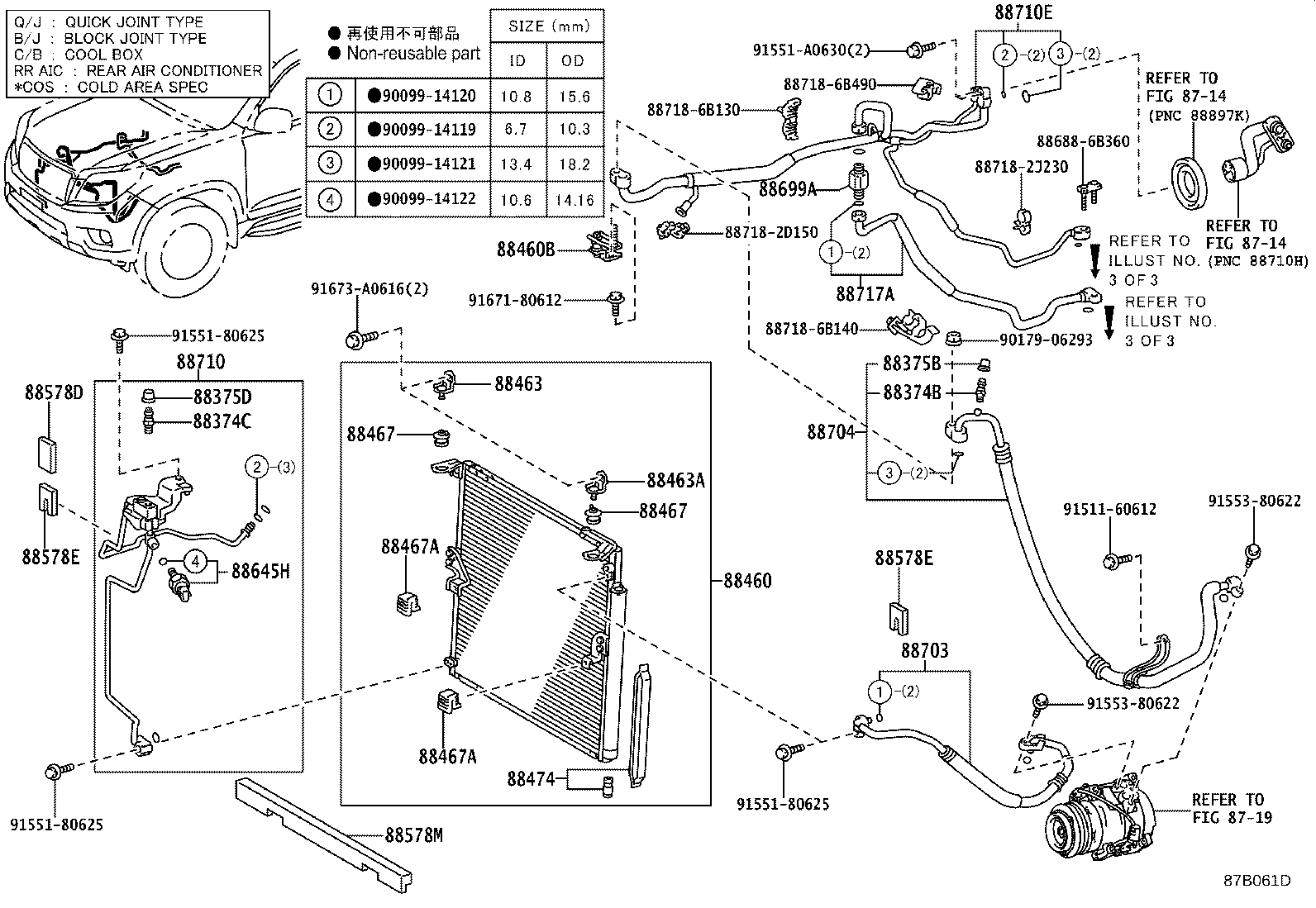

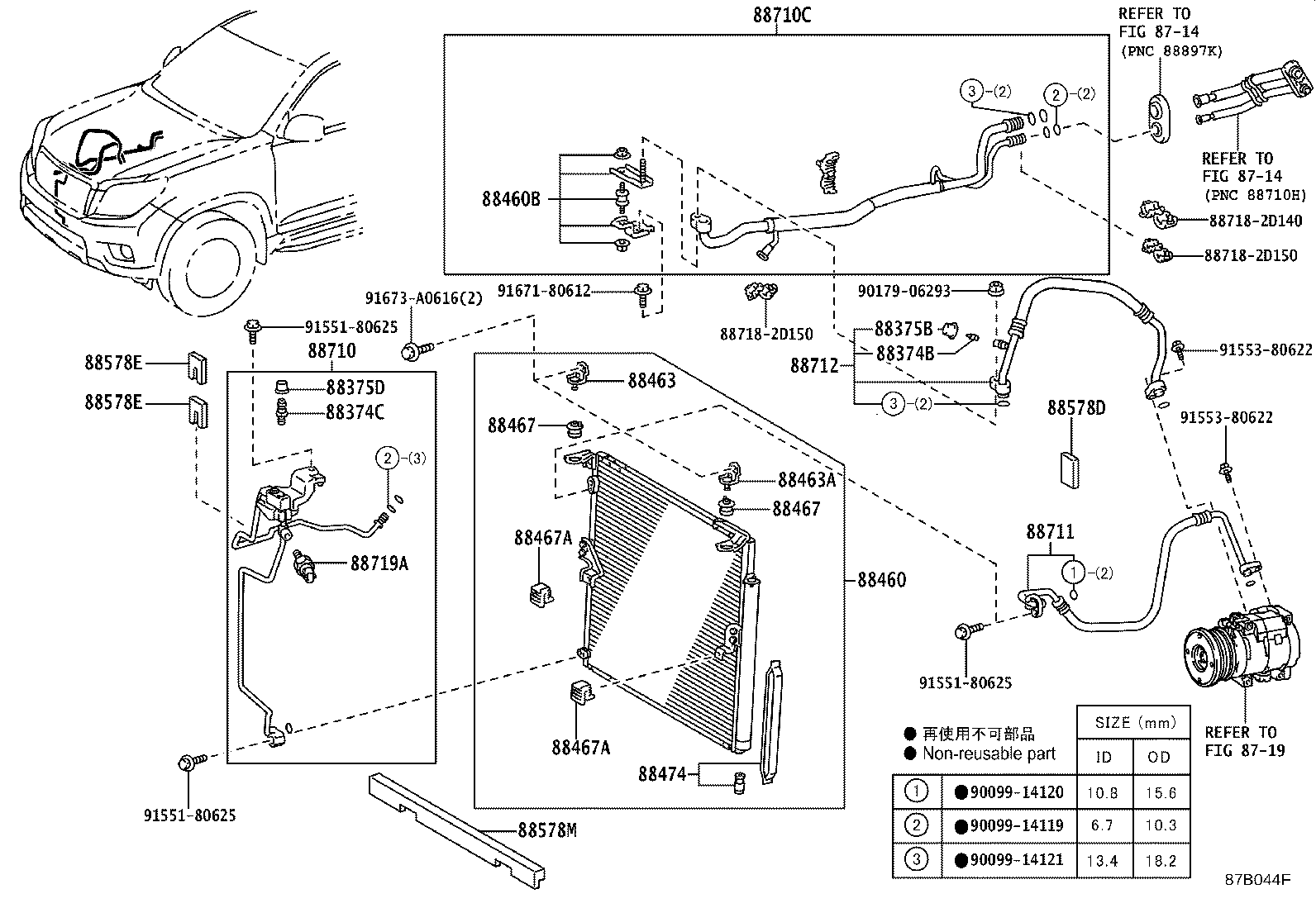

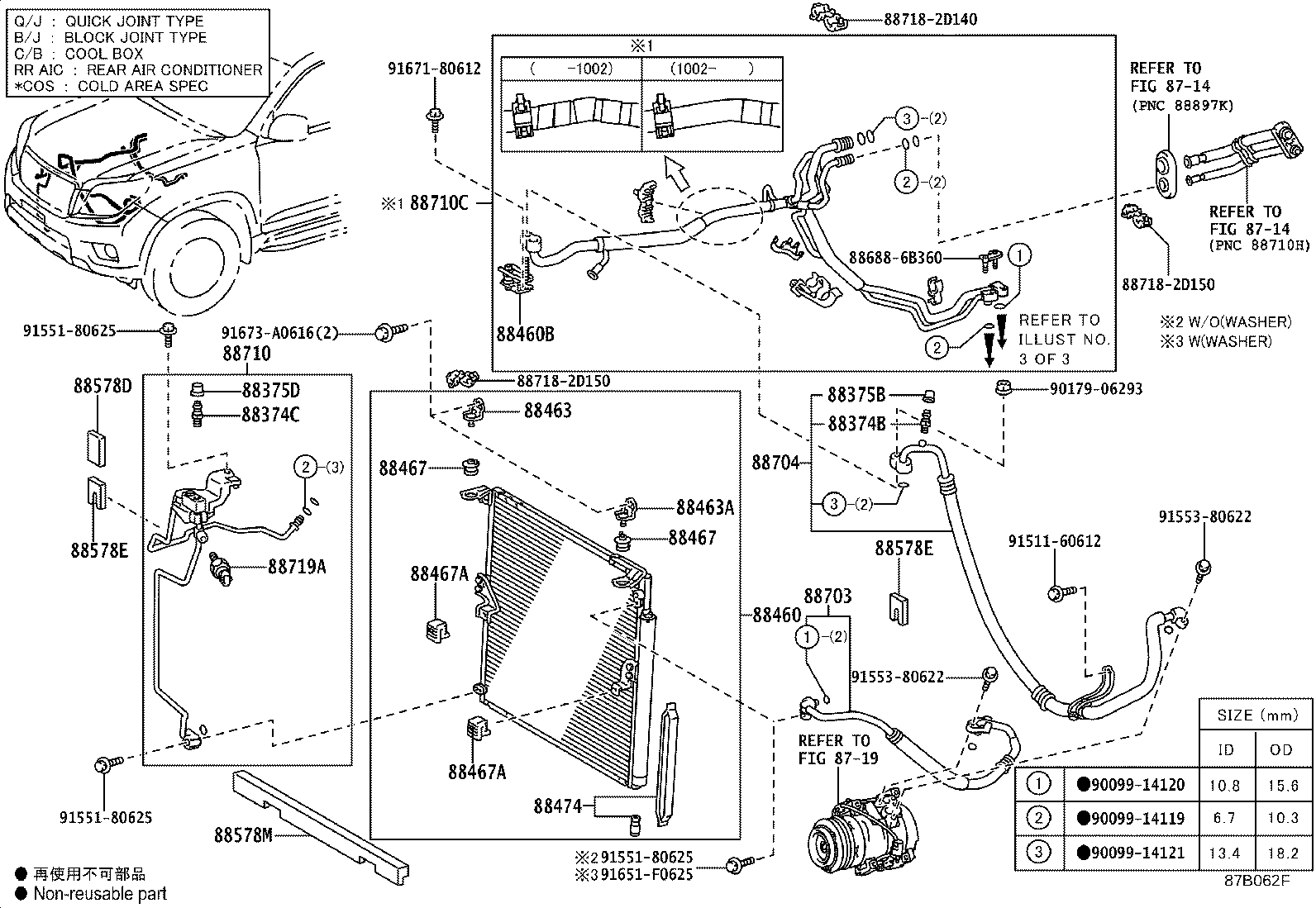

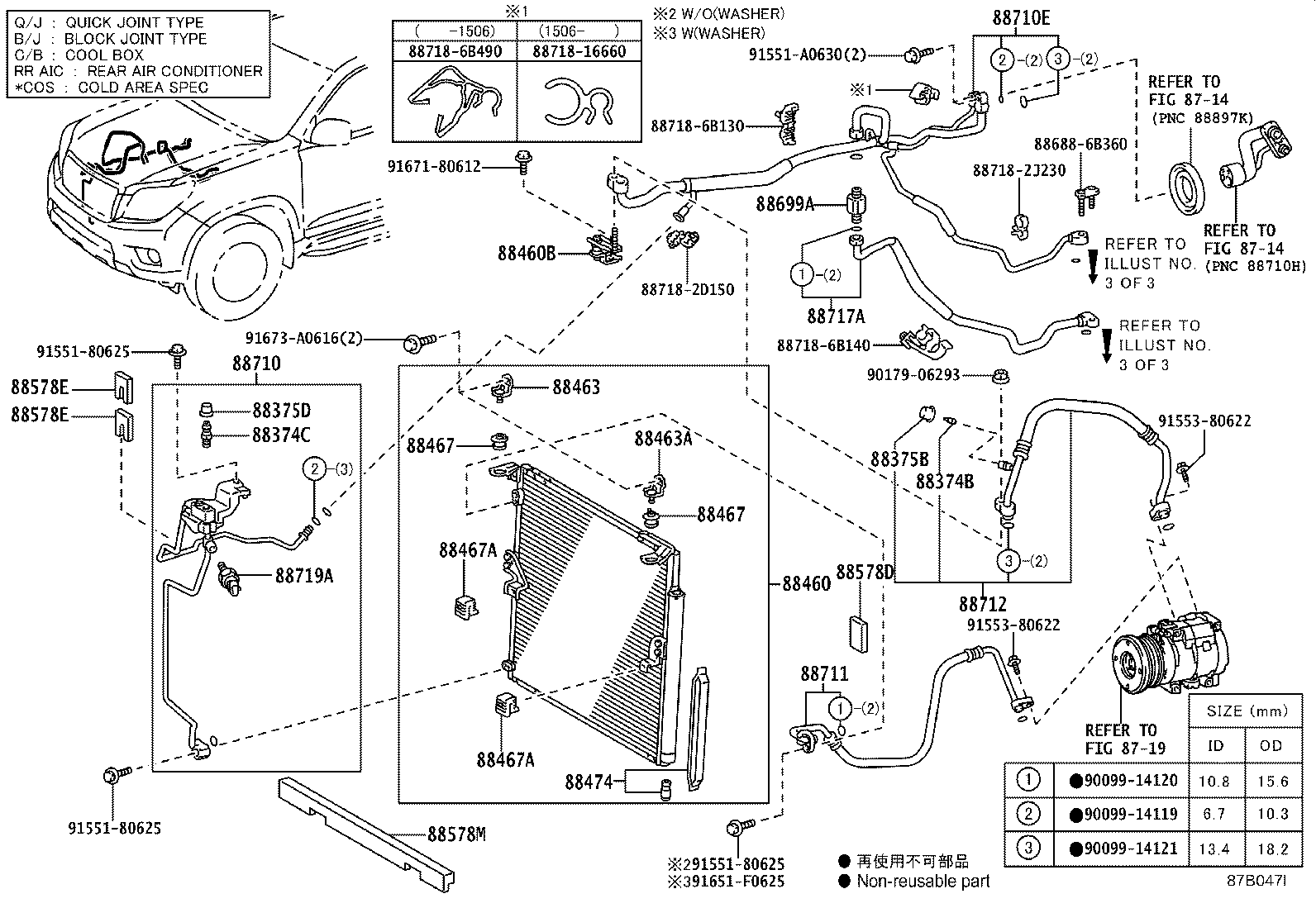

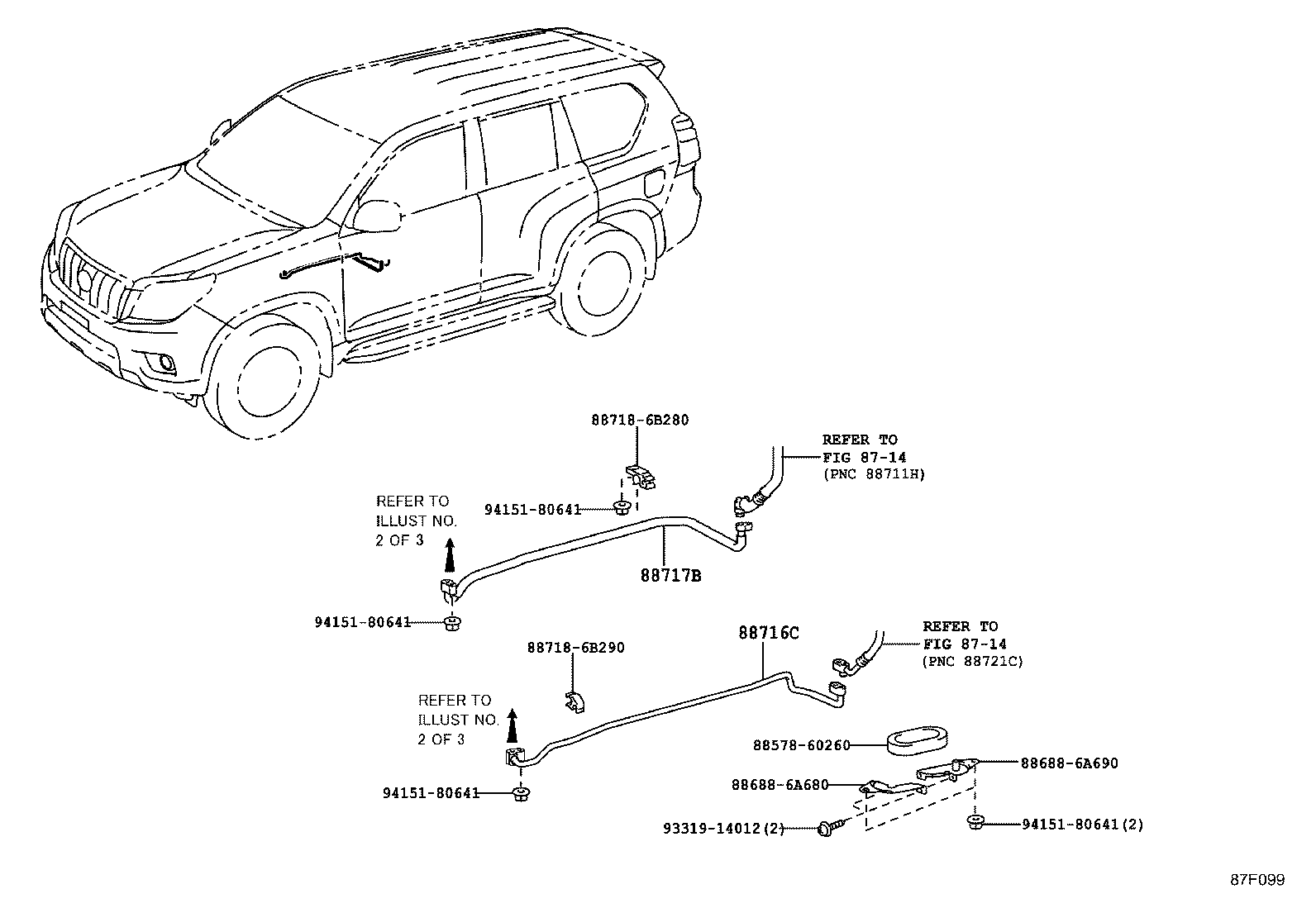

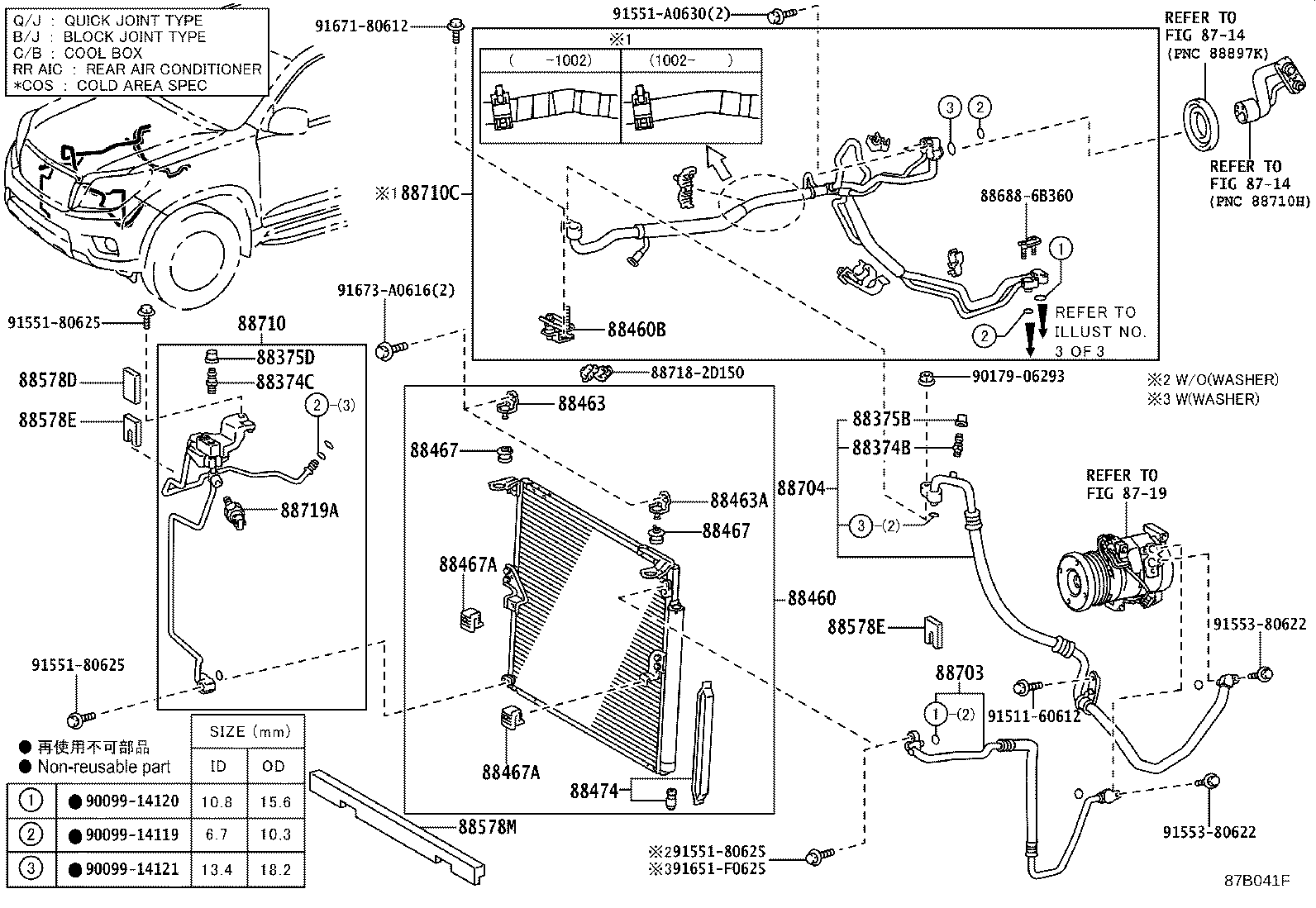

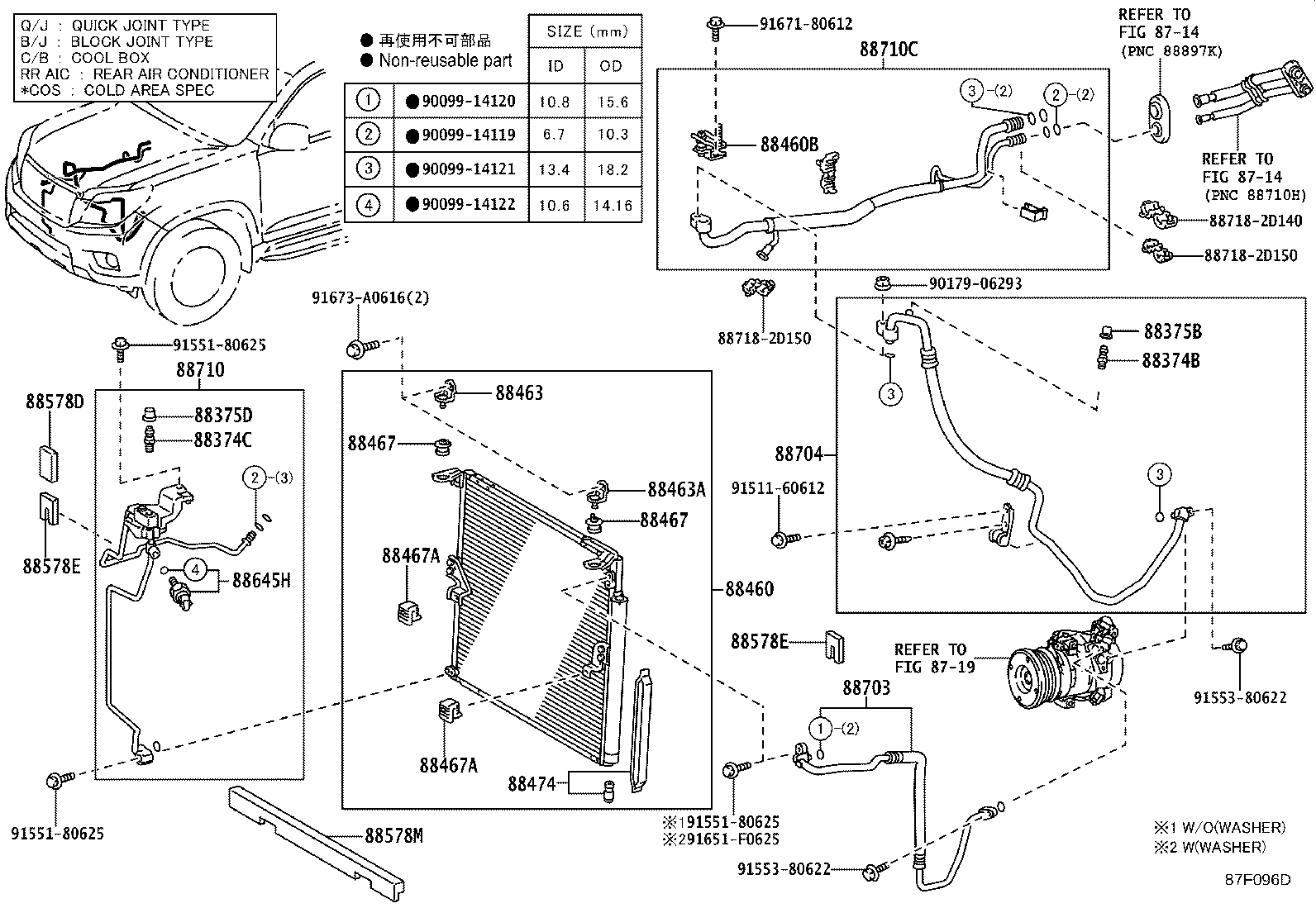

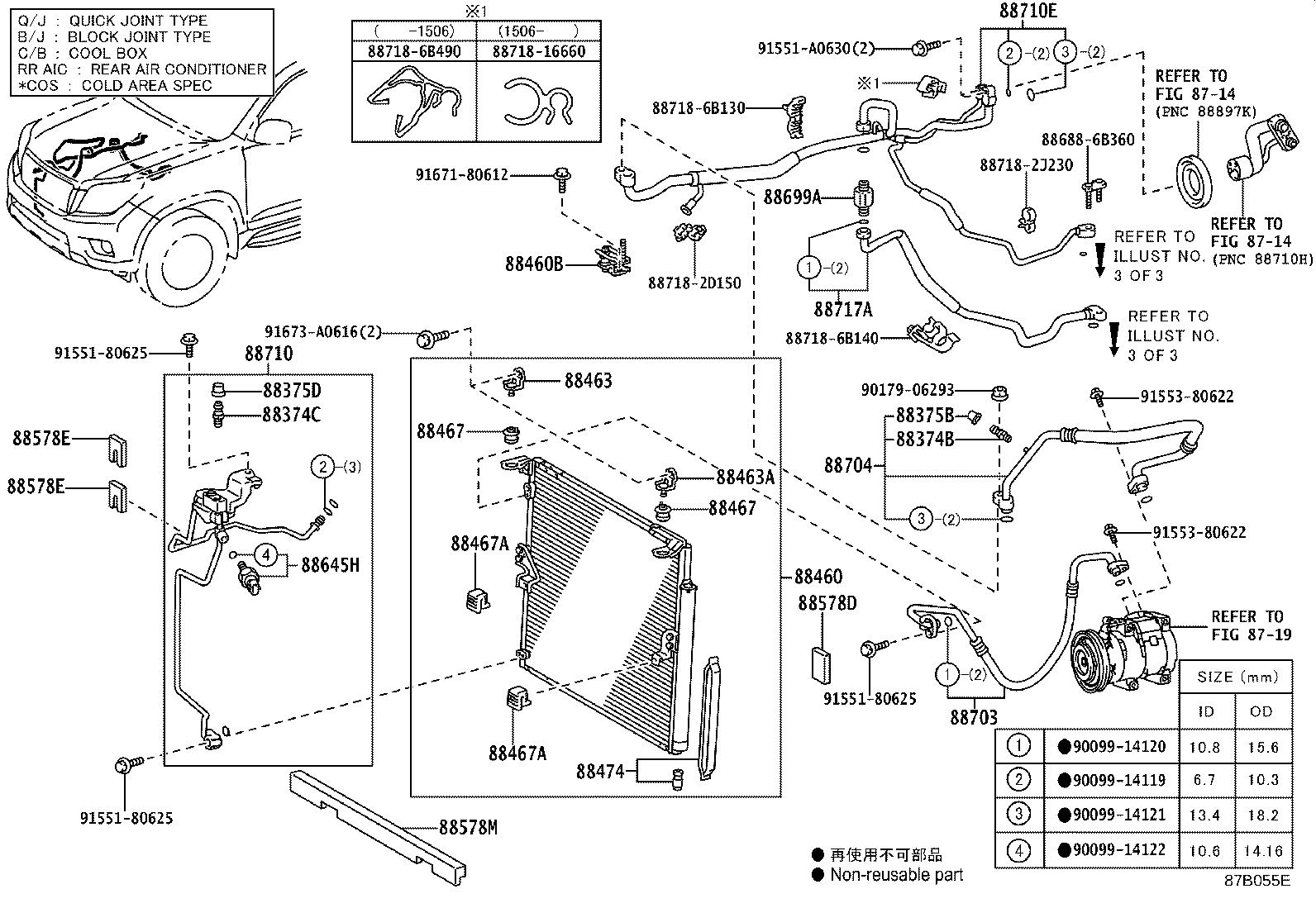

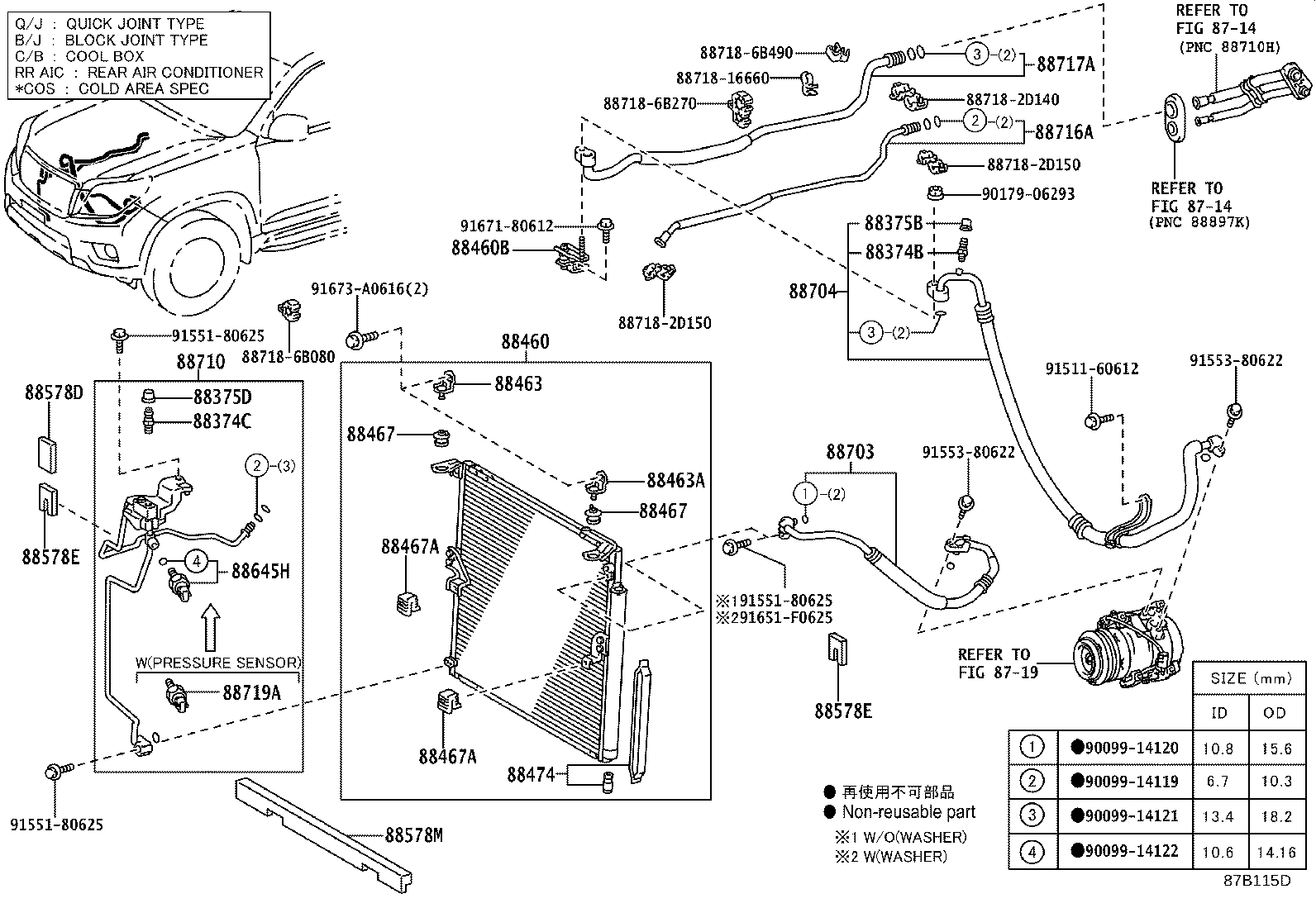

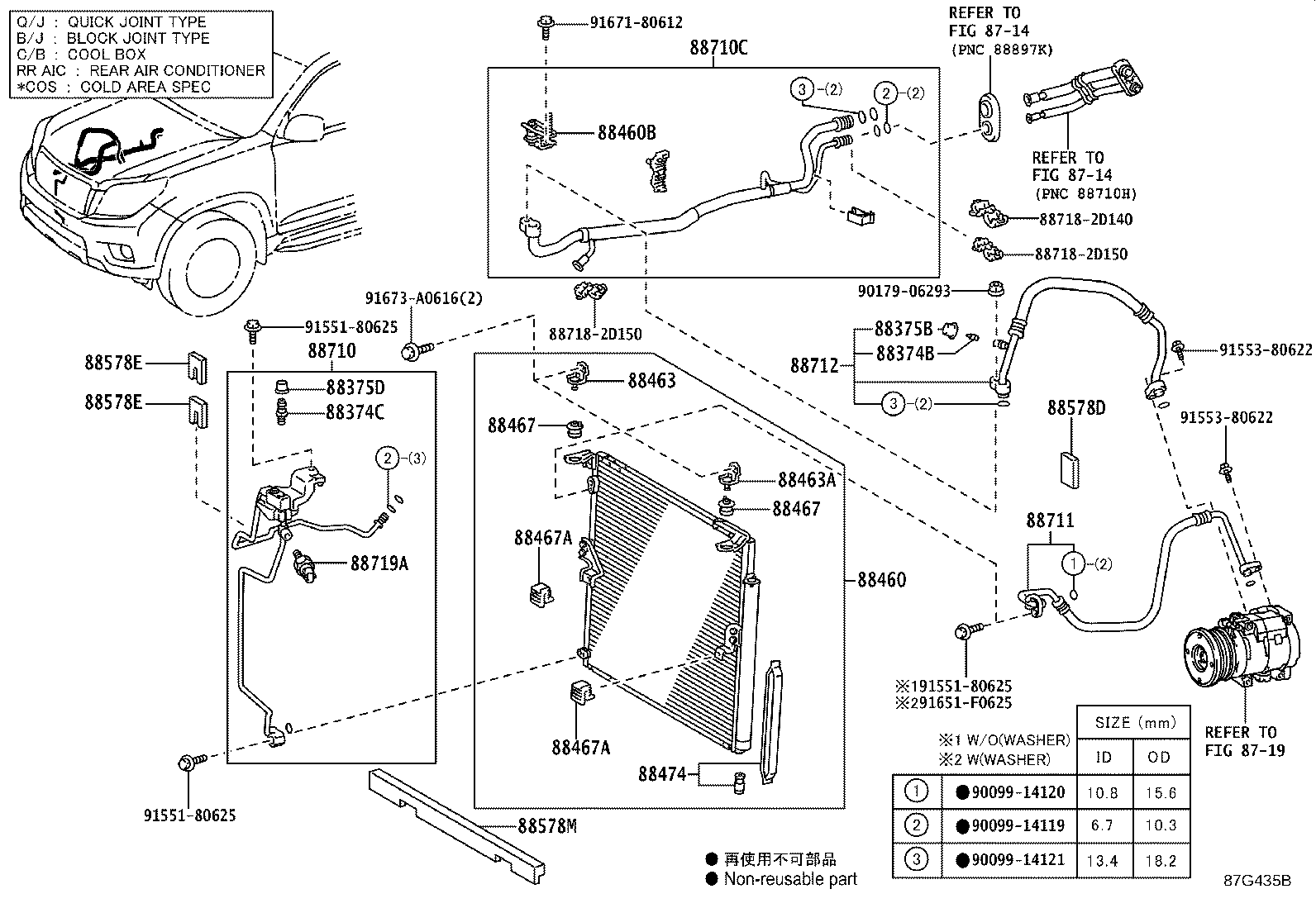

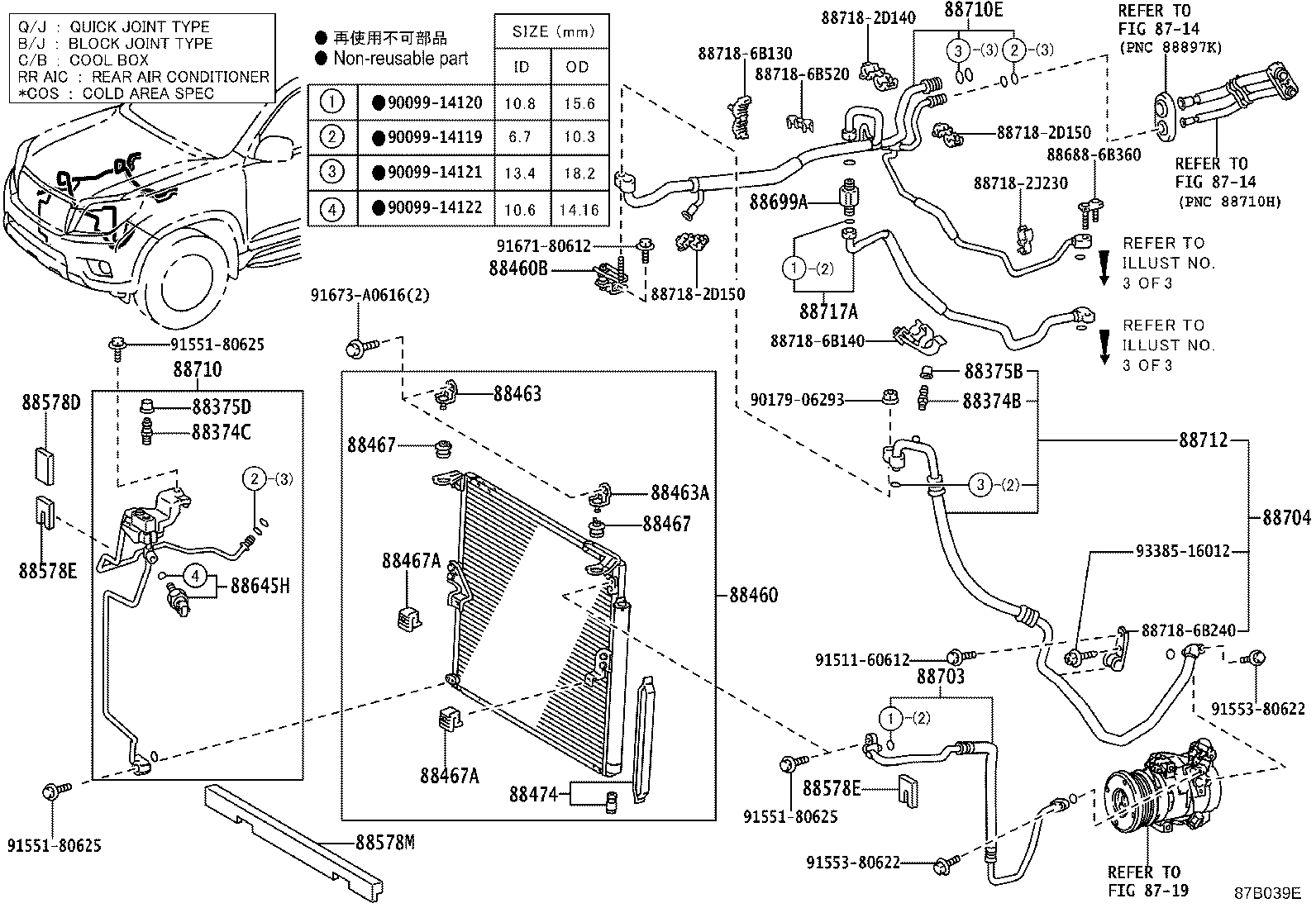

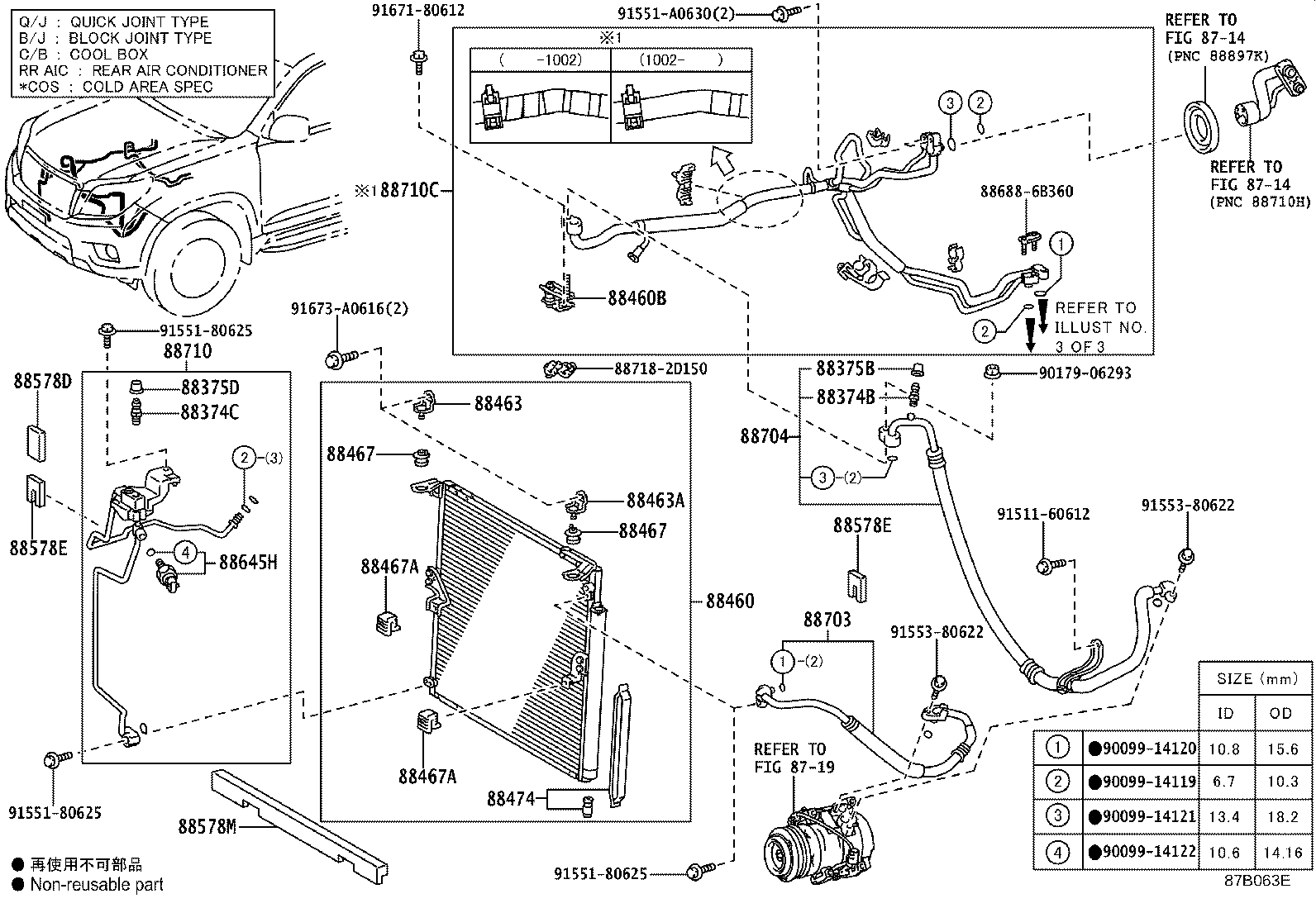

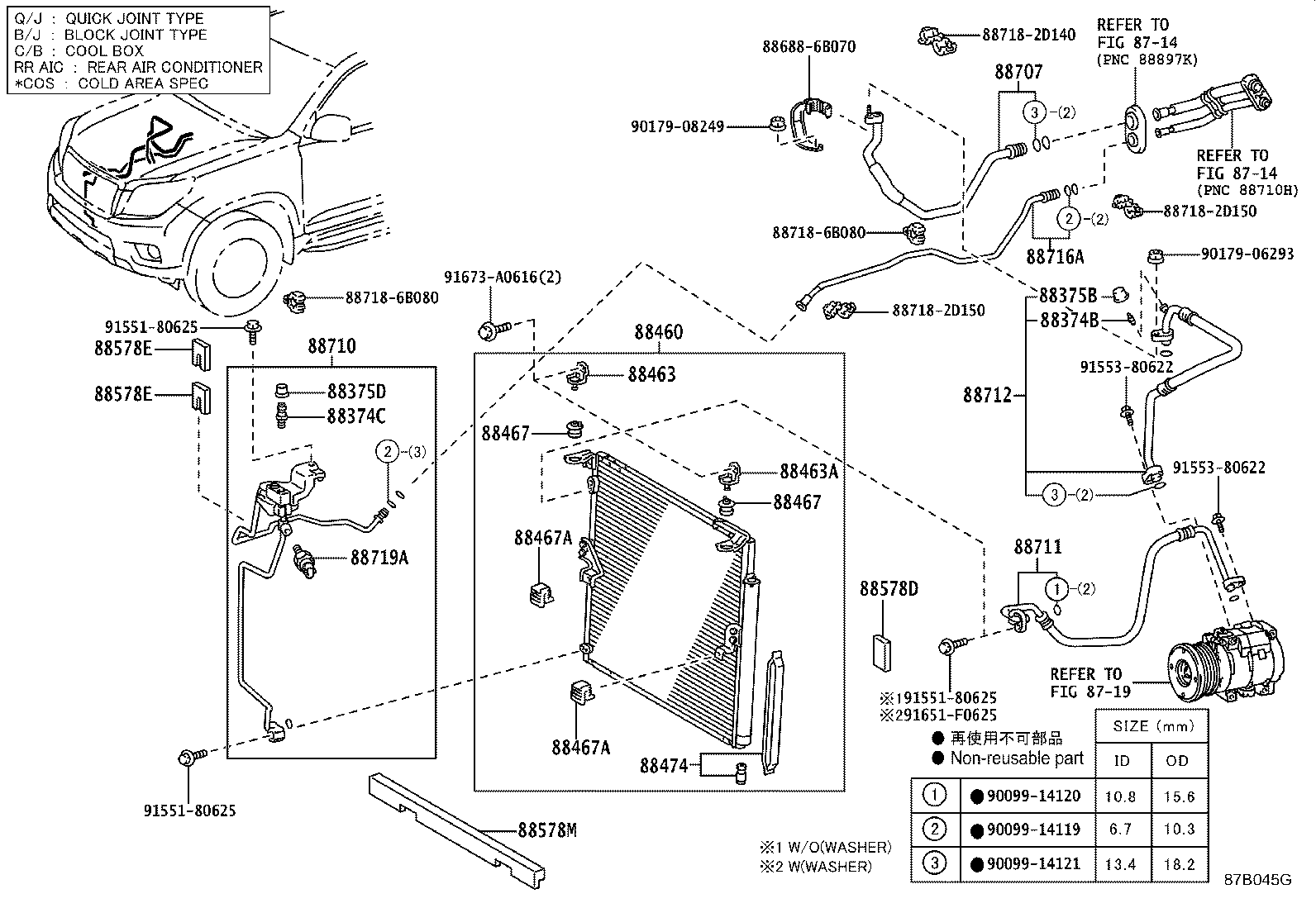

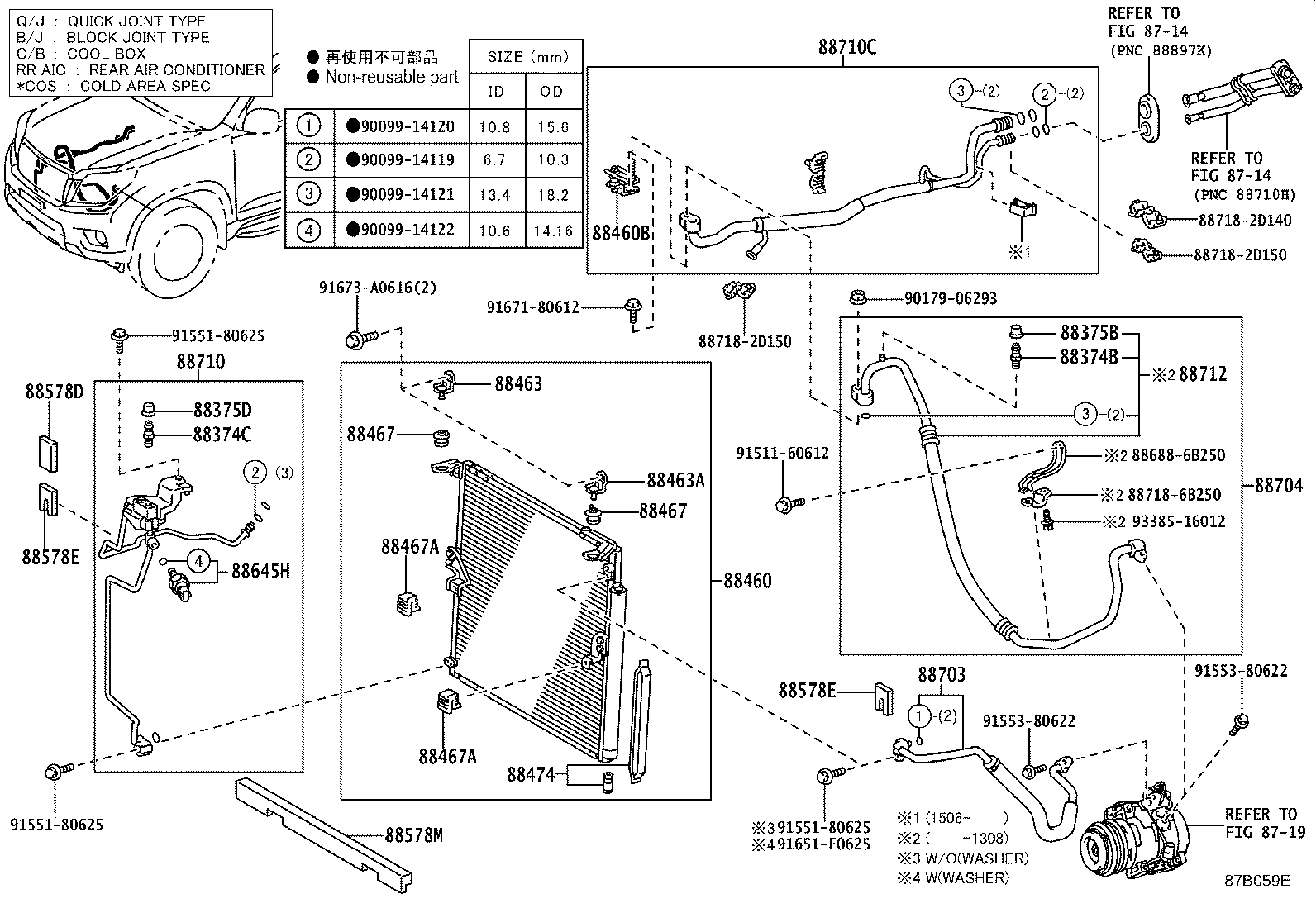

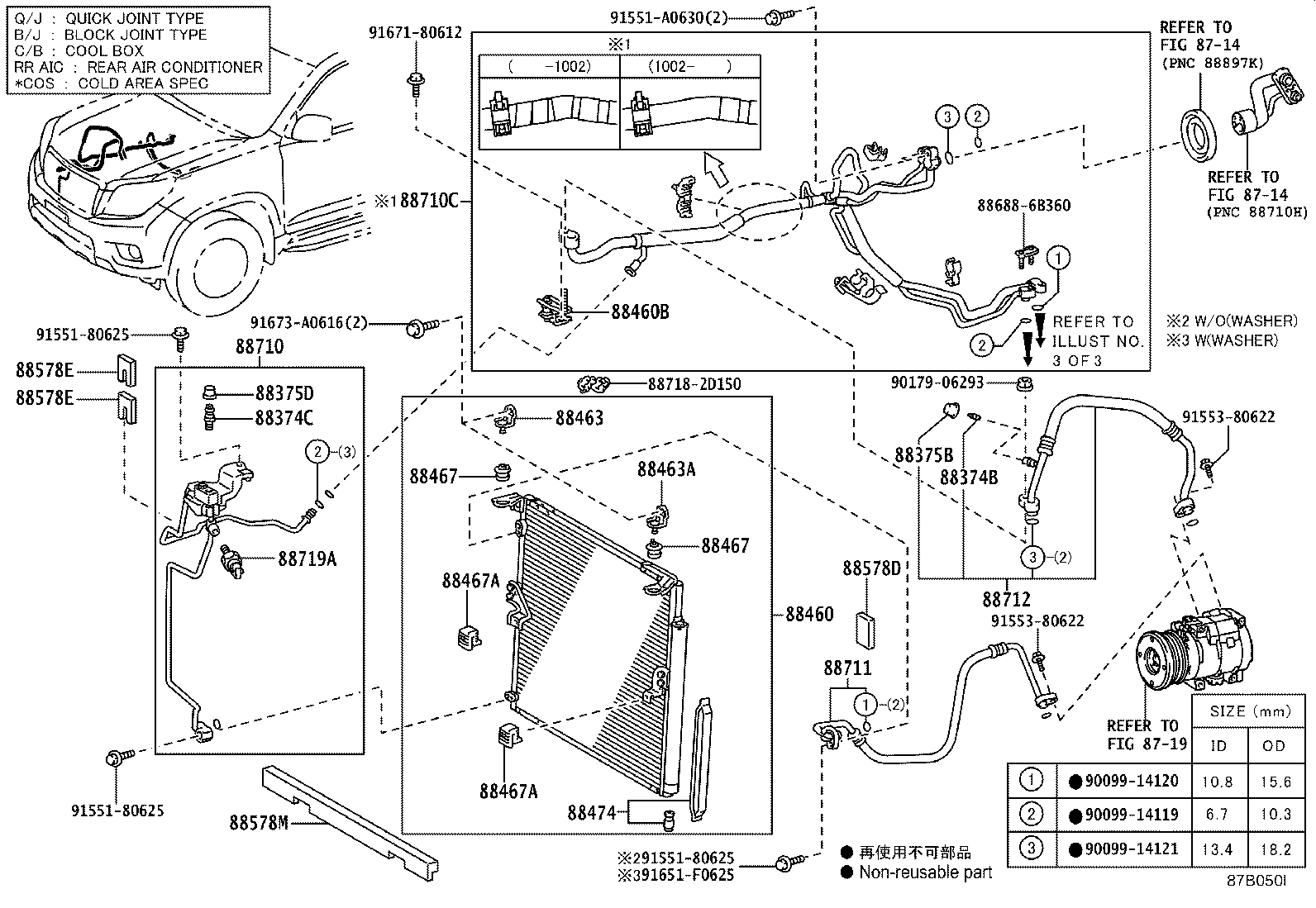

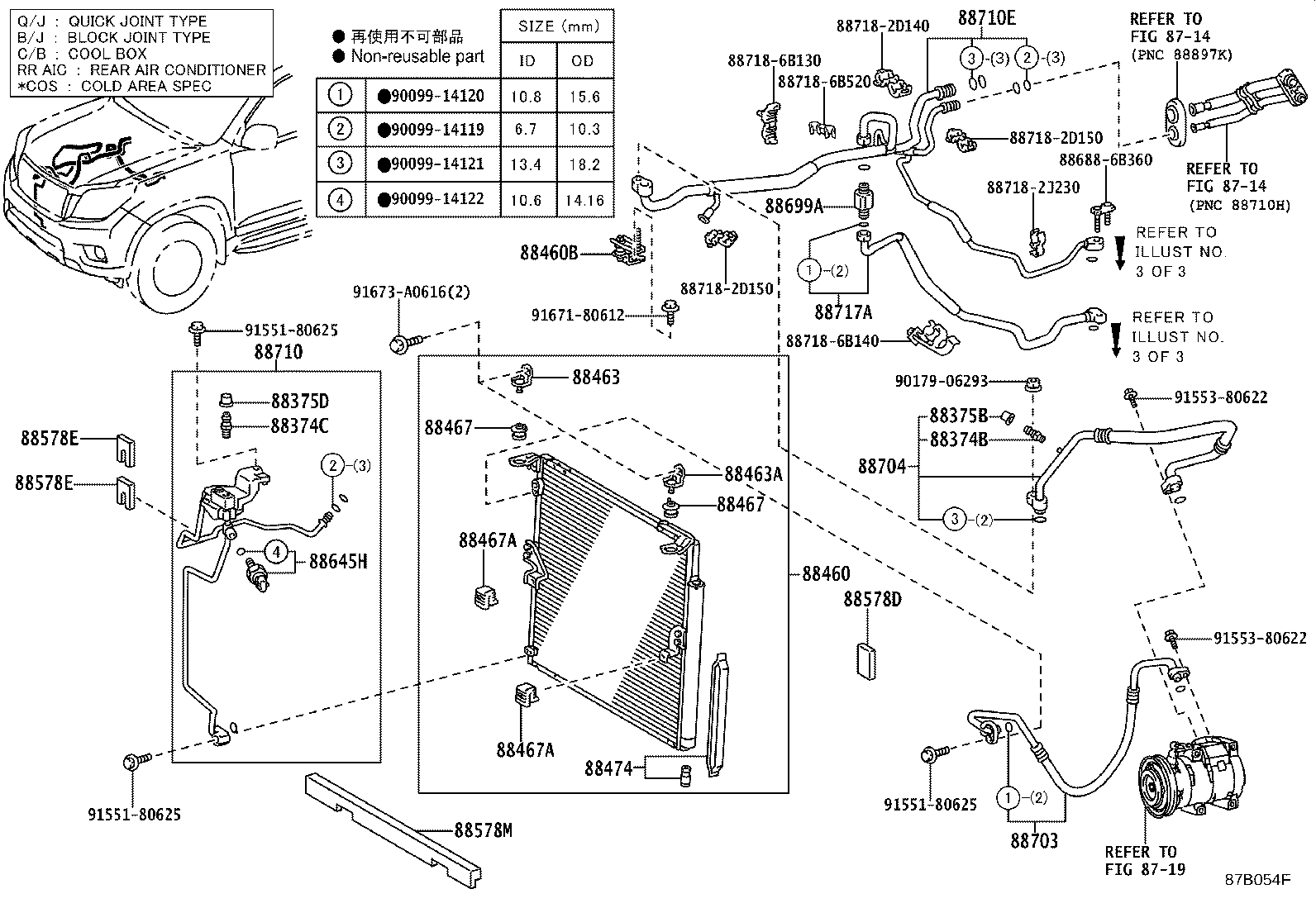

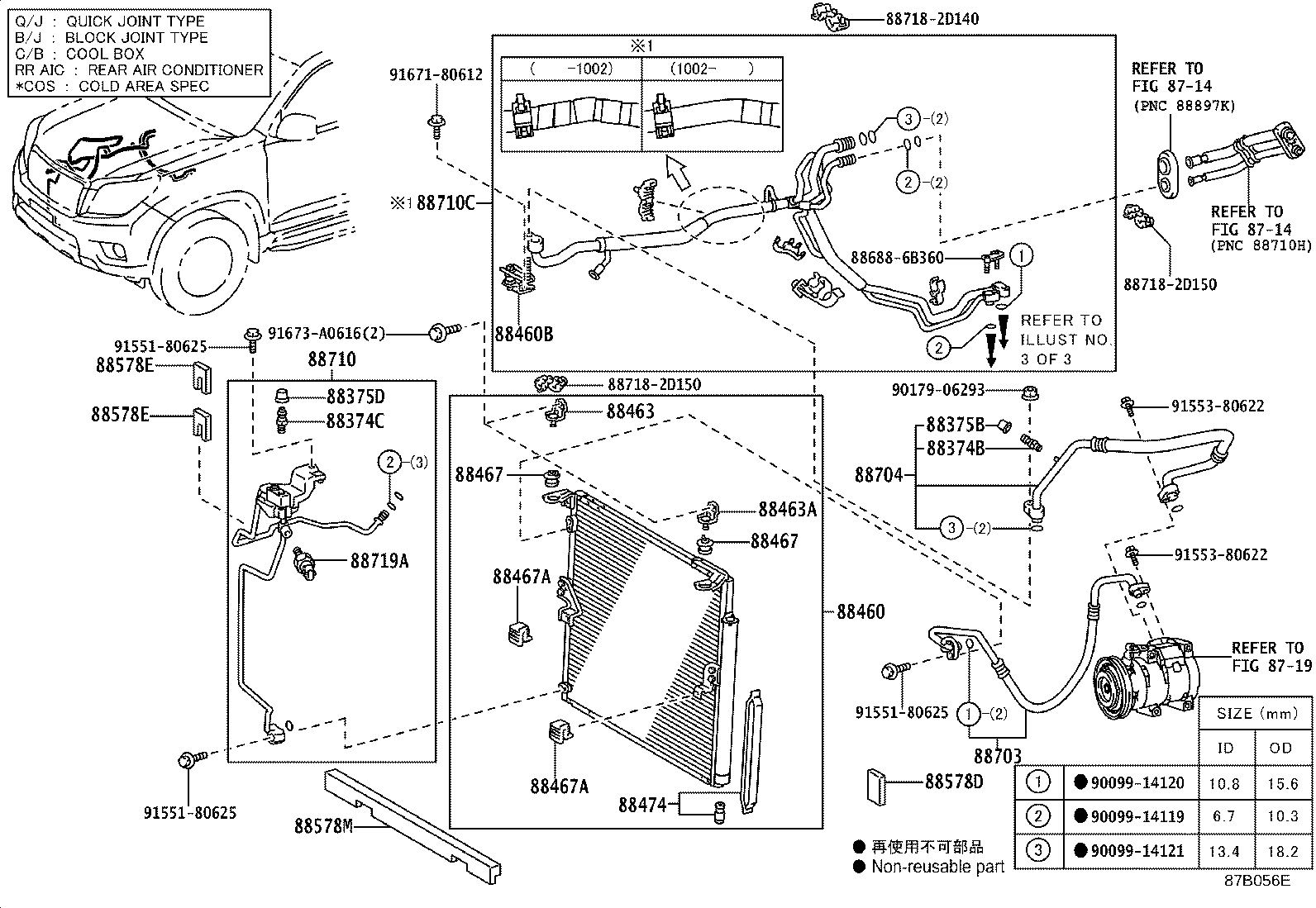

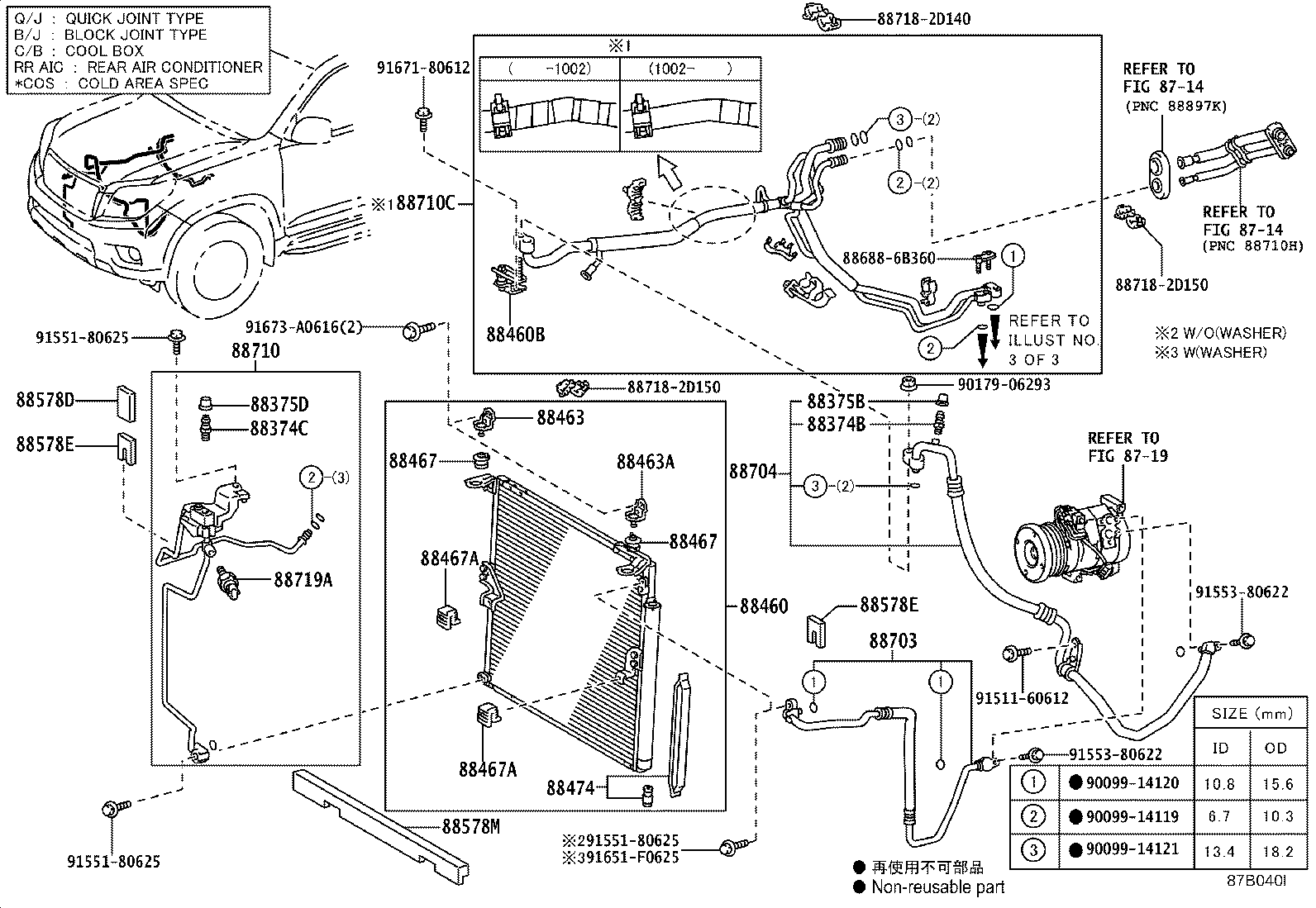

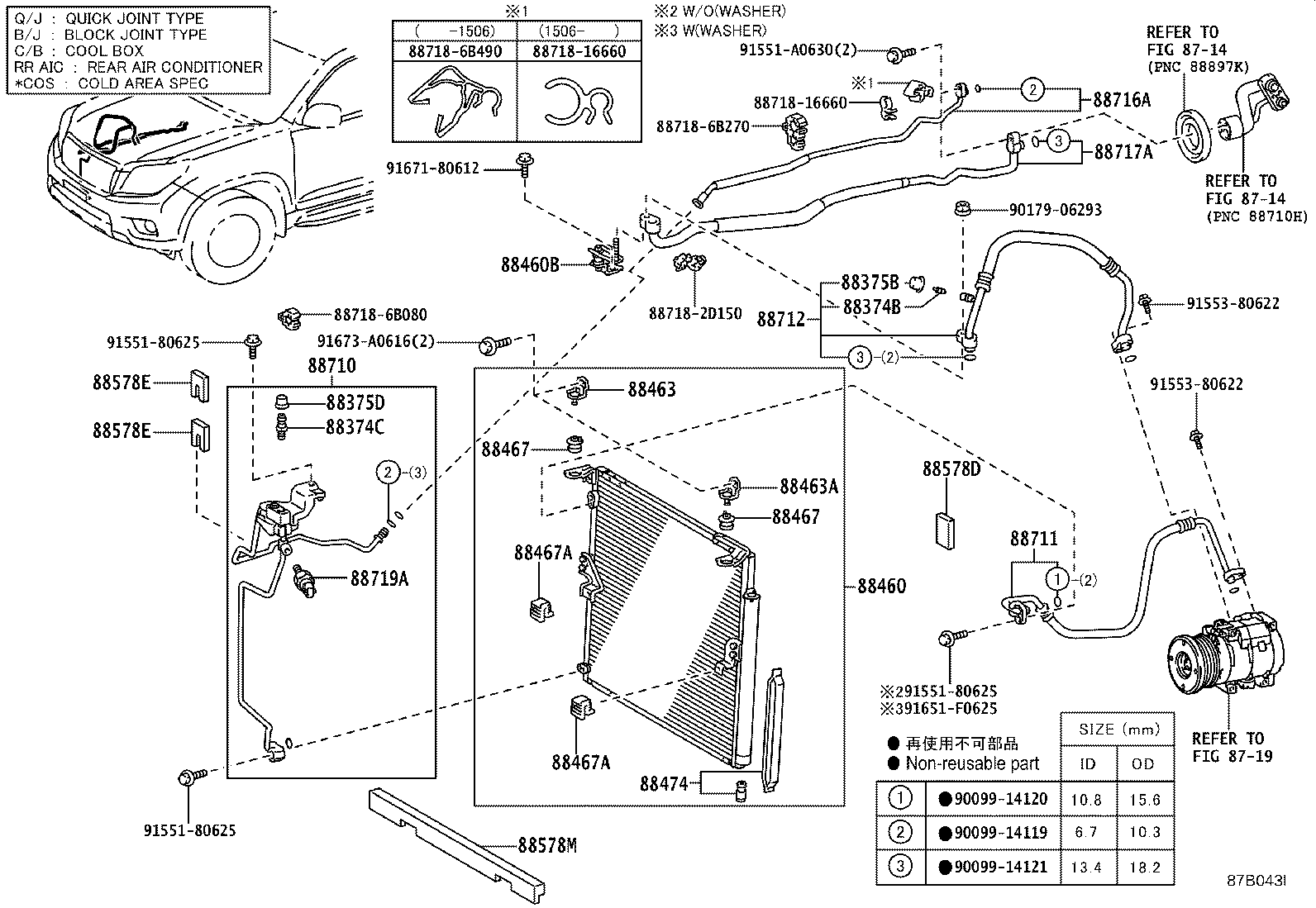

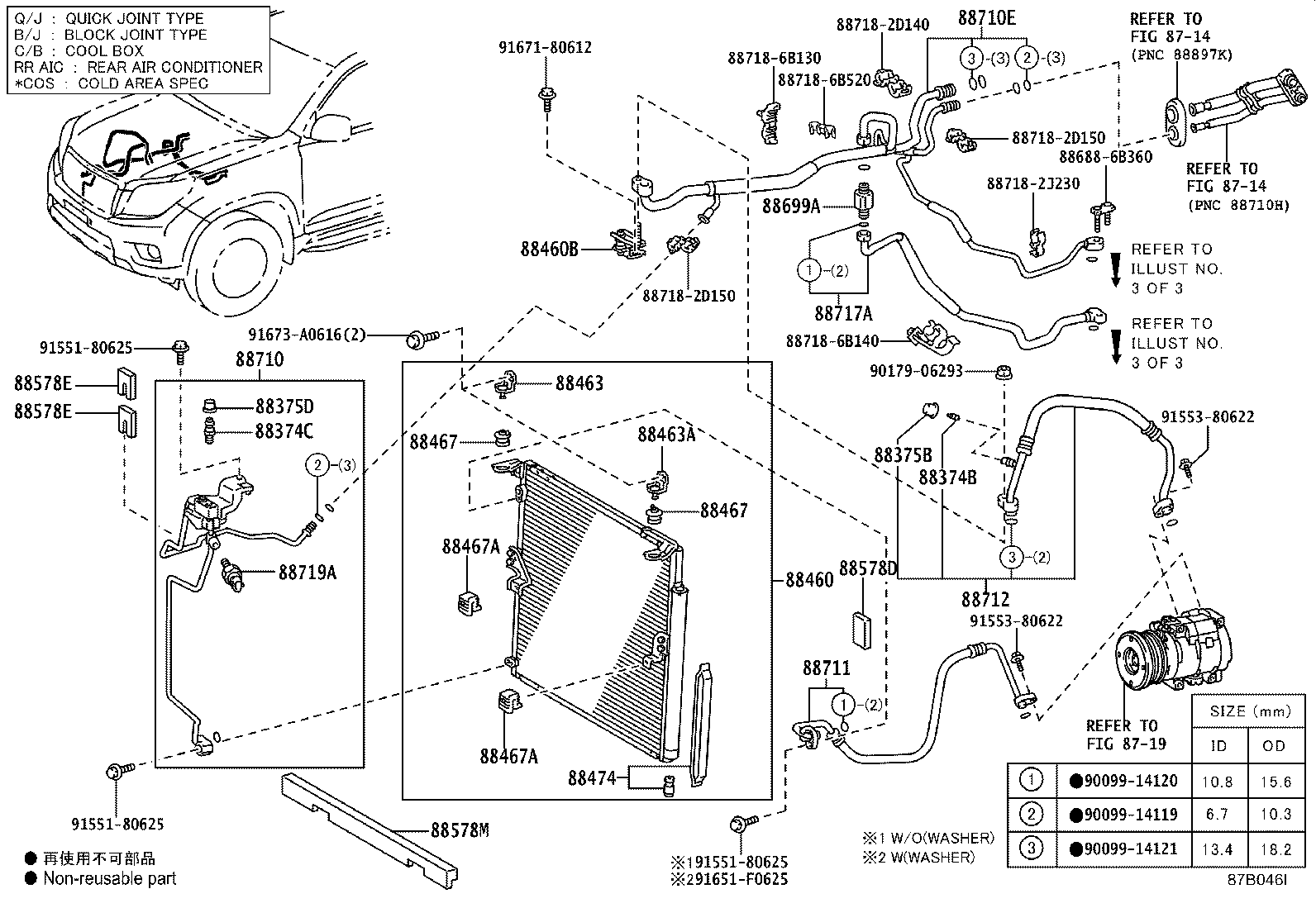

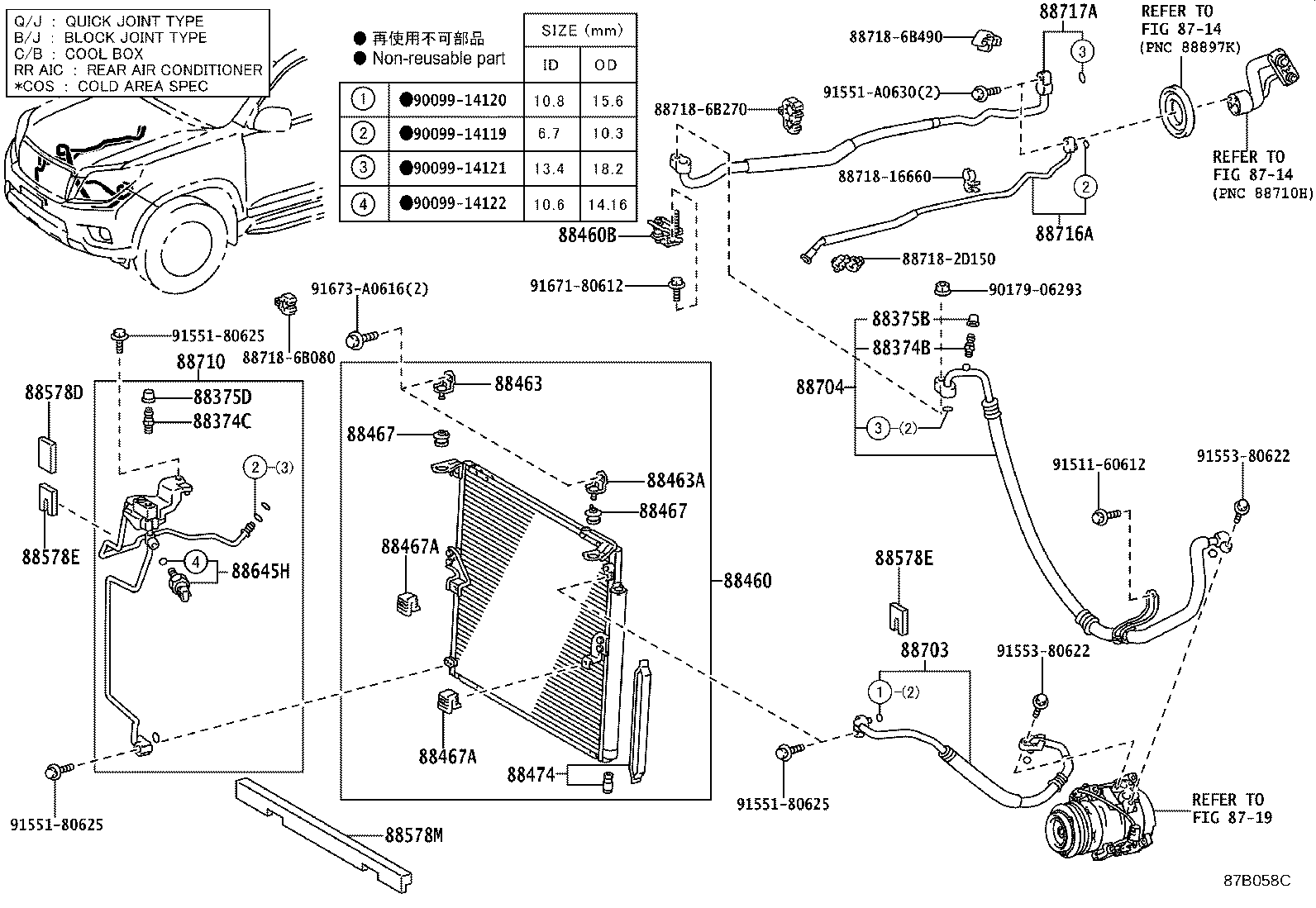

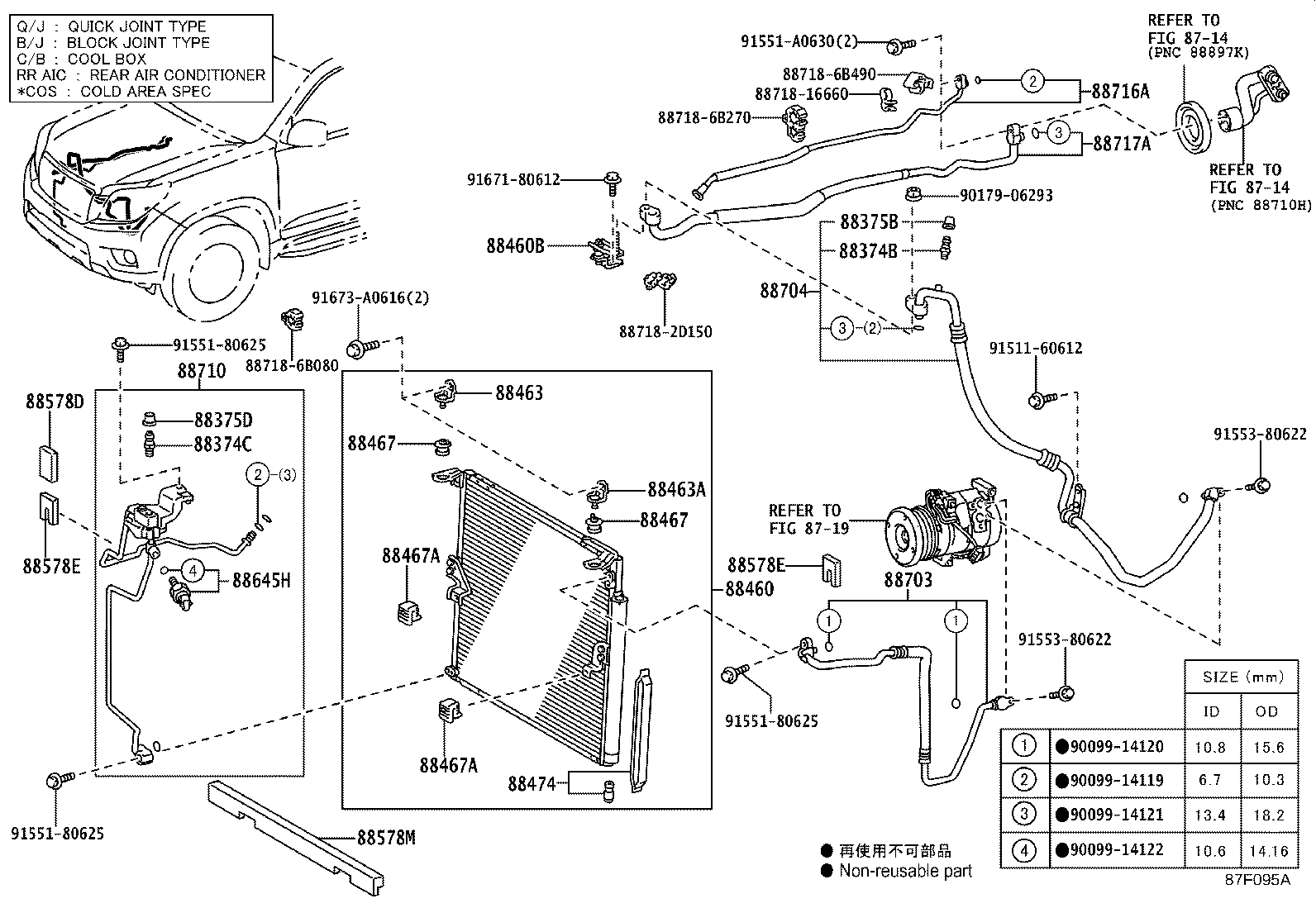

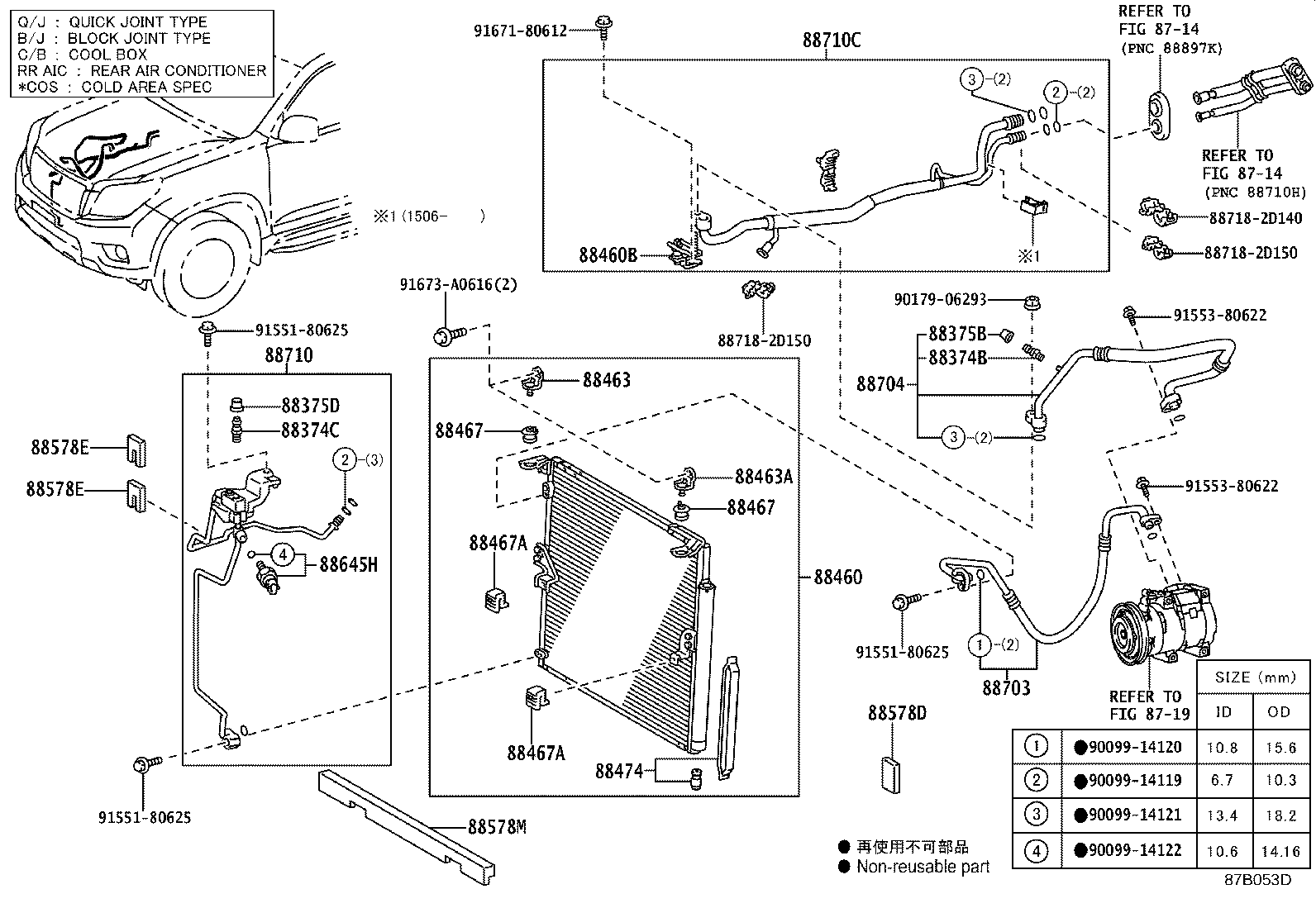

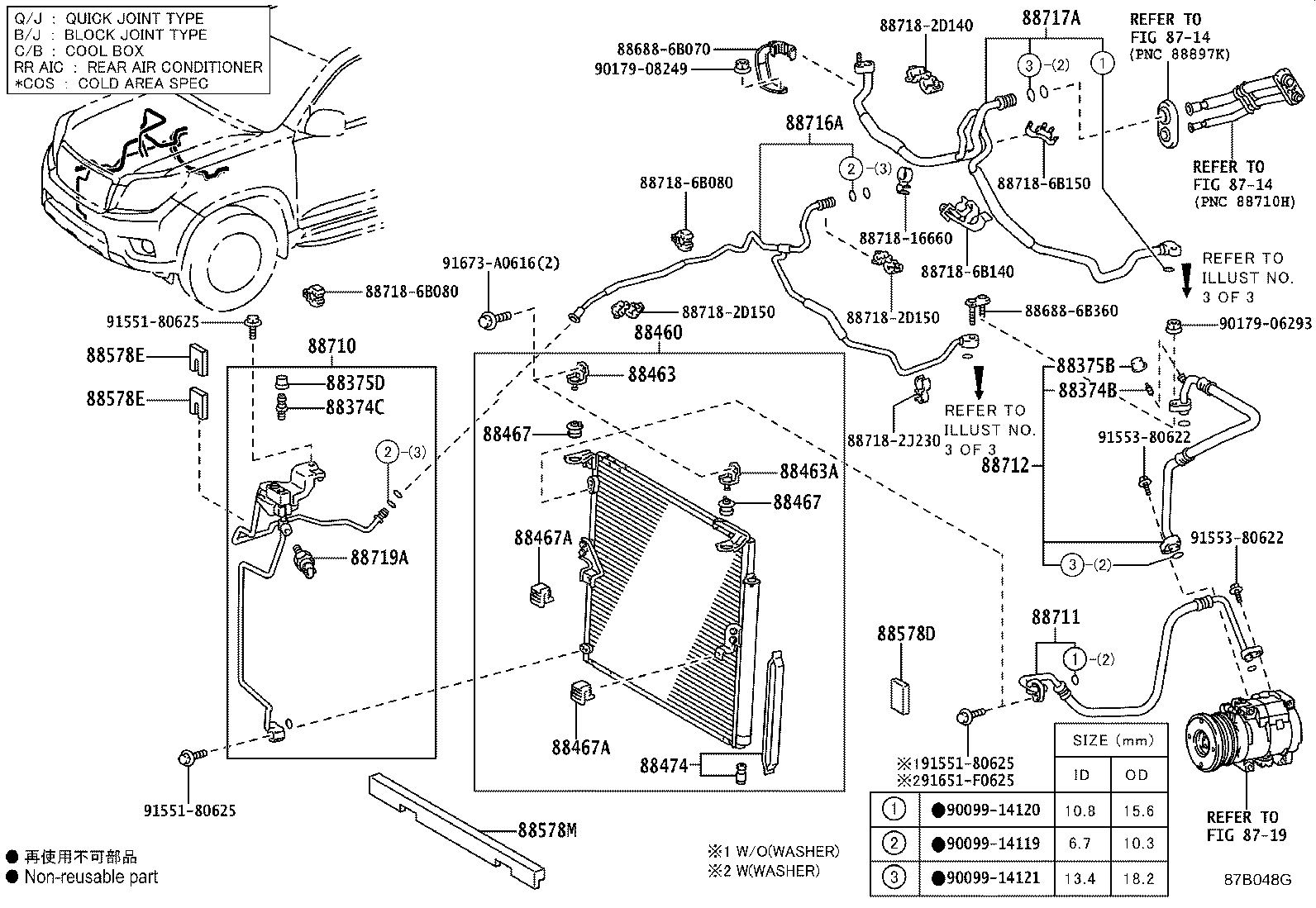

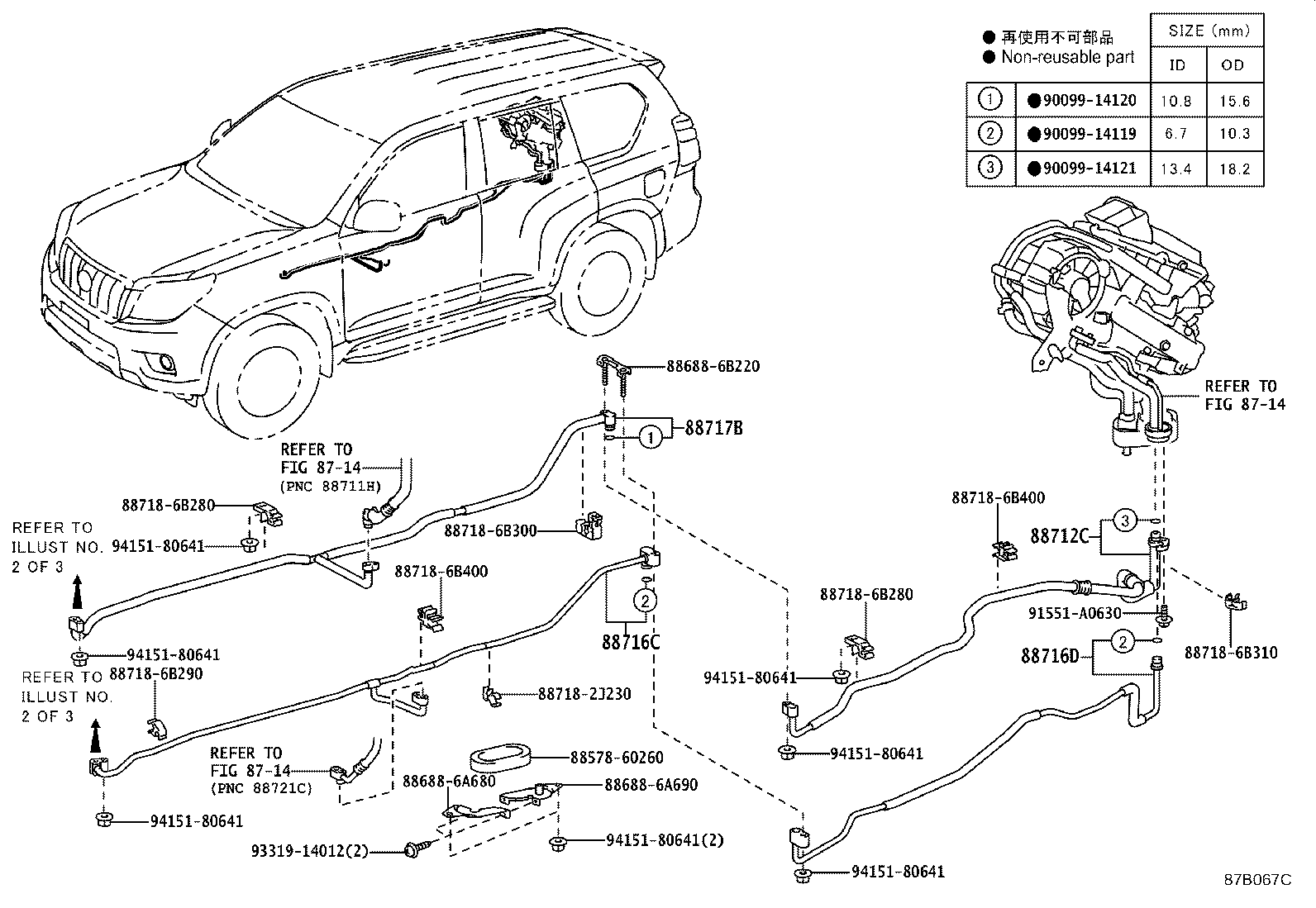

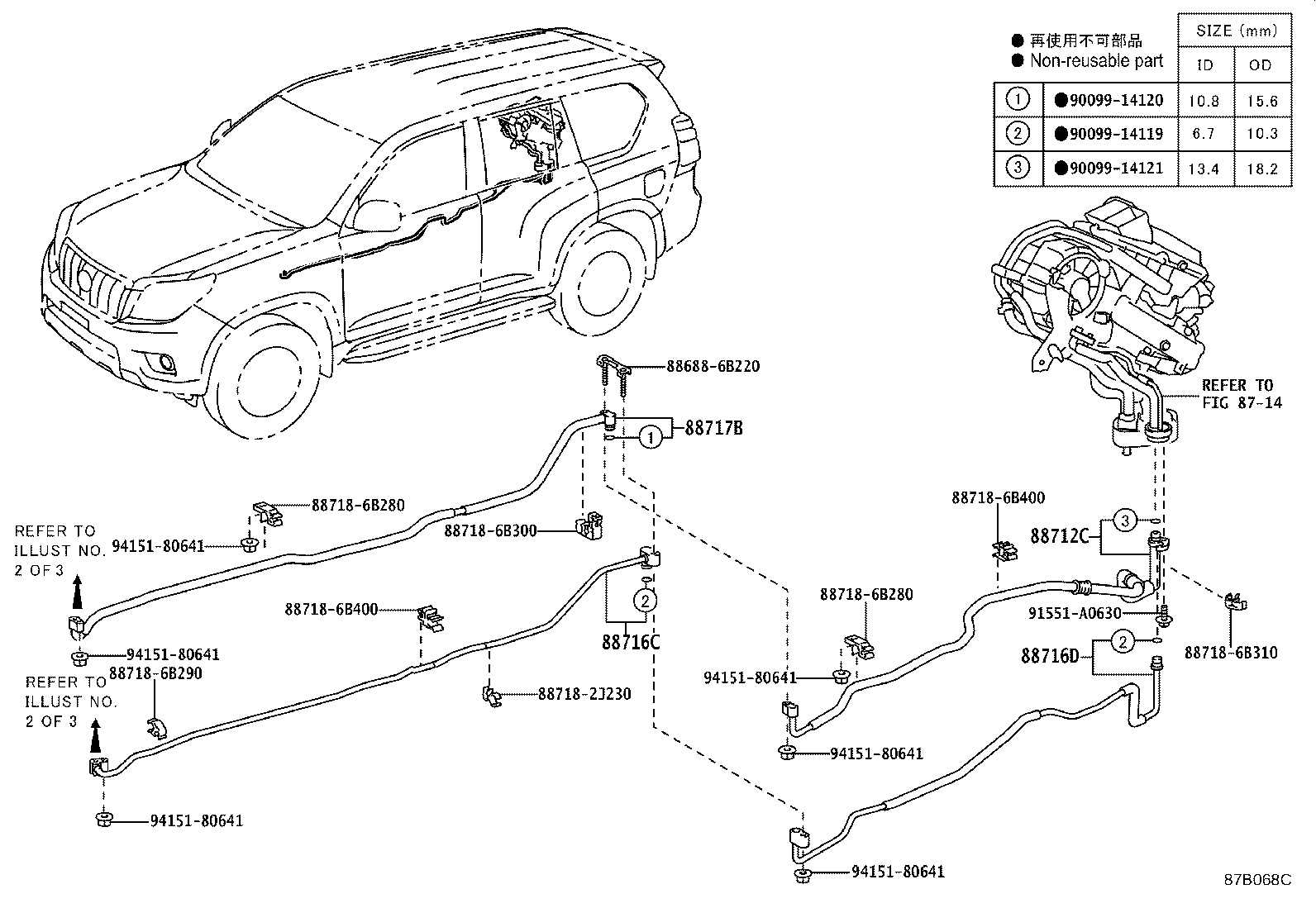

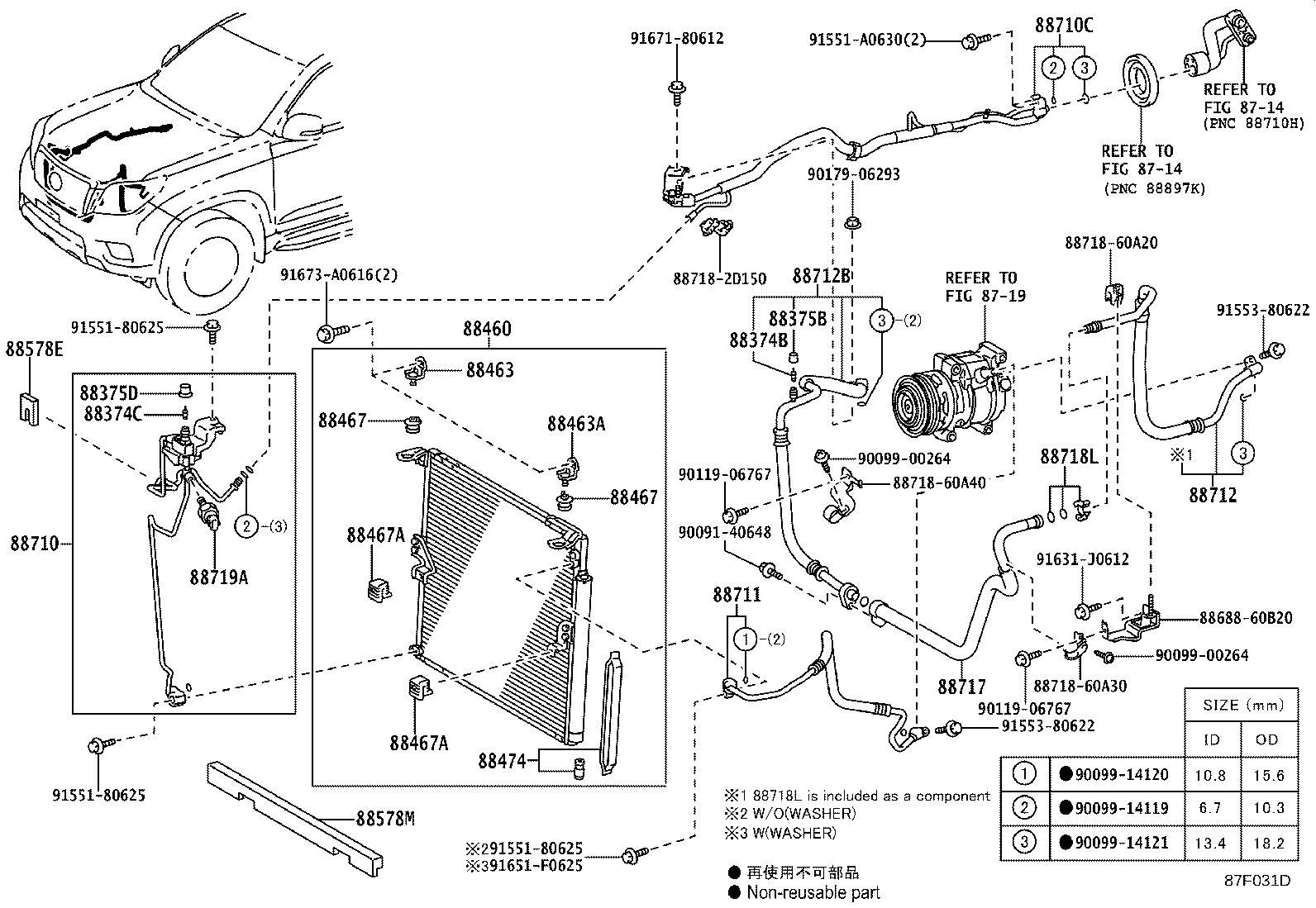

Figure 87D123B 87D123B 2009-08 → — Figure 87F093F 87F093F 2009-08 → 2015-06 Figure 87F093F 87F093F 2015-06 → — Figure 87F095A 87F095A 2009-08 → 2015-06 Figure 87B037C 87B037C 2009-08 → 2015-06 Figure 87B040I 87B040I 2009-08 → 2015-06 Figure 87B040I 87B040I 2015-06 → — Figure 87B041F 87B041F 2009-08 → 2015-06 Figure 87B041F 87B041F 2015-06 → — Figure 87F094D 87F094D 2009-08 → 2015-06 Figure 87F094D 87F094D 2015-06 → — Figure 87B039E 87B039E 2009-08 → 2015-06 Figure 87F096D 87F096D 2015-06 → — Figure 87B042G 87B042G 2009-08 → 2015-06 Figure 87B042G 87B042G 2015-06 → — Figure 87B043I 87B043I 2009-08 → 2015-06 Figure 87B043I 87B043I 2015-06 → — Figure 87B044F 87B044F 2009-08 → 2015-06 Figure 87B045G 87B045G 2009-08 → — Figure 87B049I 87B049I 2009-08 → 2015-06 Figure 87B049I 87B049I 2015-06 → — Figure 87B050I 87B050I 2009-08 → 2015-06 Figure 87B050I 87B050I 2015-06 → — Figure 87B046I 87B046I 2009-08 → 2015-06 Figure 87B046I 87B046I 2015-06 → — Figure 87B047I 87B047I 2009-08 → 2015-06 Figure 87B047I 87B047I 2015-06 → — Figure 87B048G 87B048G 2009-08 → — Figure 87G435B 87G435B 2015-06 → — Figure 87B051C 87B051C 2009-08 → 2015-06 Figure 87B051C 87B051C 2015-06 → — Figure 87B052D 87B052D 2009-08 → 2015-06 Figure 87B052D 87B052D 2015-06 → — Figure 87B053D 87B053D 2009-08 → — Figure 87B056E 87B056E 2009-08 → 2015-06 Figure 87B056E 87B056E 2015-06 → — Figure 87B057E 87B057E 2009-08 → 2015-06 Figure 87B057E 87B057E 2015-06 → — Figure 87B054F 87B054F 2009-08 → 2015-06 Figure 87B054F 87B054F 2015-06 → — Figure 87B055E 87B055E 2009-08 → 2015-06 Figure 87B055E 87B055E 2015-06 → — Figure 87B115D 87B115D 2009-08 → — Figure 87B058C 87B058C 2009-08 → 2015-06 Figure 87B059E 87B059E 2009-08 → — Figure 87B062F 87B062F 2009-08 → — Figure 87B063E 87B063E 2009-08 → 2015-06 Figure 87B060G 87B060G 2009-08 → — Figure 87B061D 87B061D 2009-08 → 2015-06 Figure 87F031D 87F031D 2015-06 → — Figure 87F034D 87F034D 2015-06 → — Figure 87F099 87F099 2009-08 → — Figure 87B067C 87B067C 2009-08 → — Figure 87B068C 87B068C 2009-08 → —

Part groups

PNCDescription
16793C Label, Cooling Fan Caution
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88578M Packing, Cooling Pipe, NO.3
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88699A Valve, Air
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
