Heating & Air Conditioning - Compressor

12 part groups · 7 illustrations

Illustrations

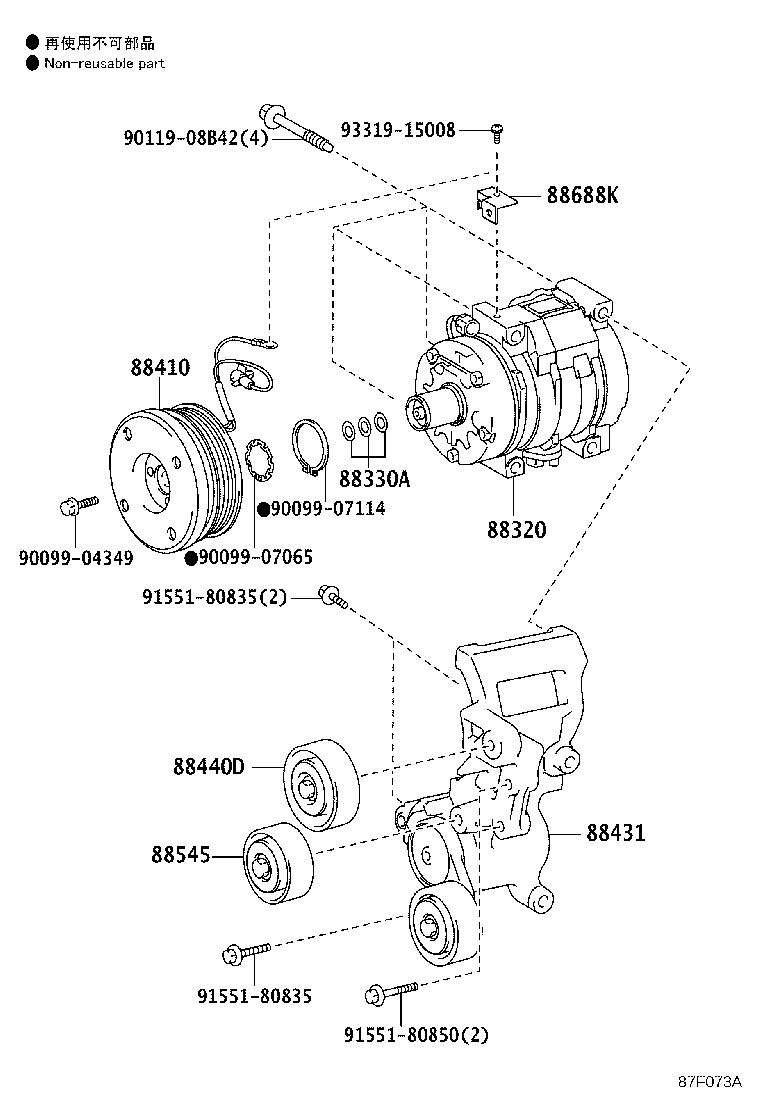

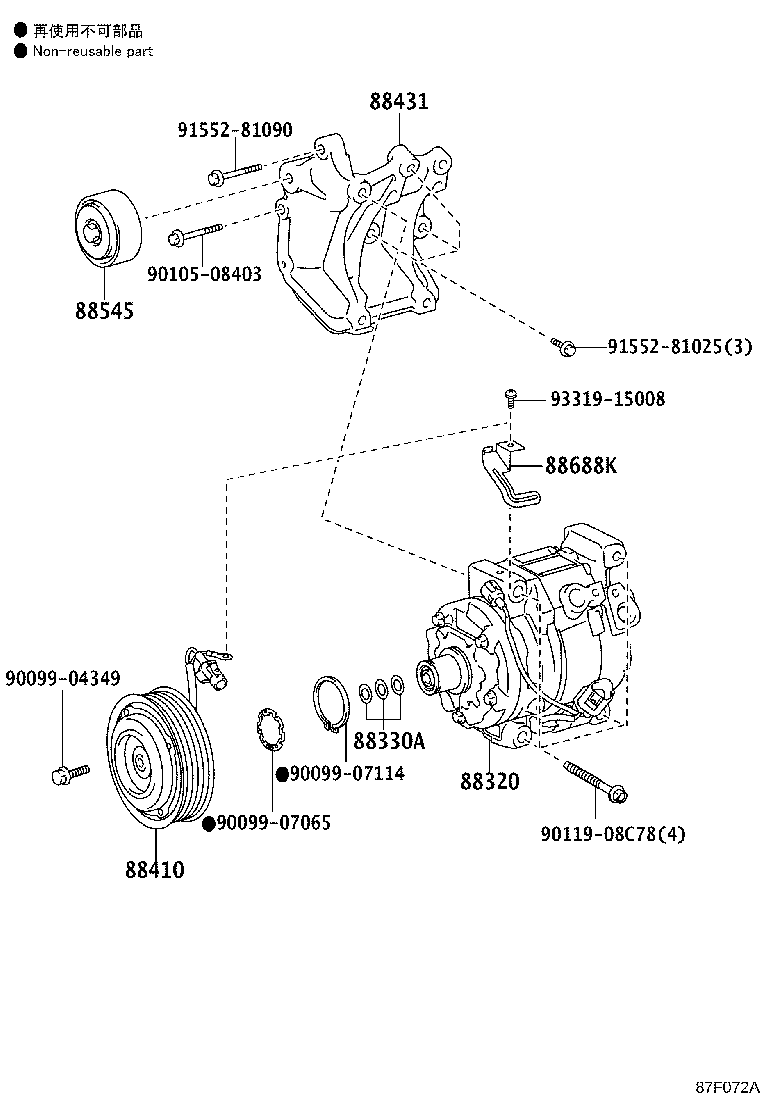

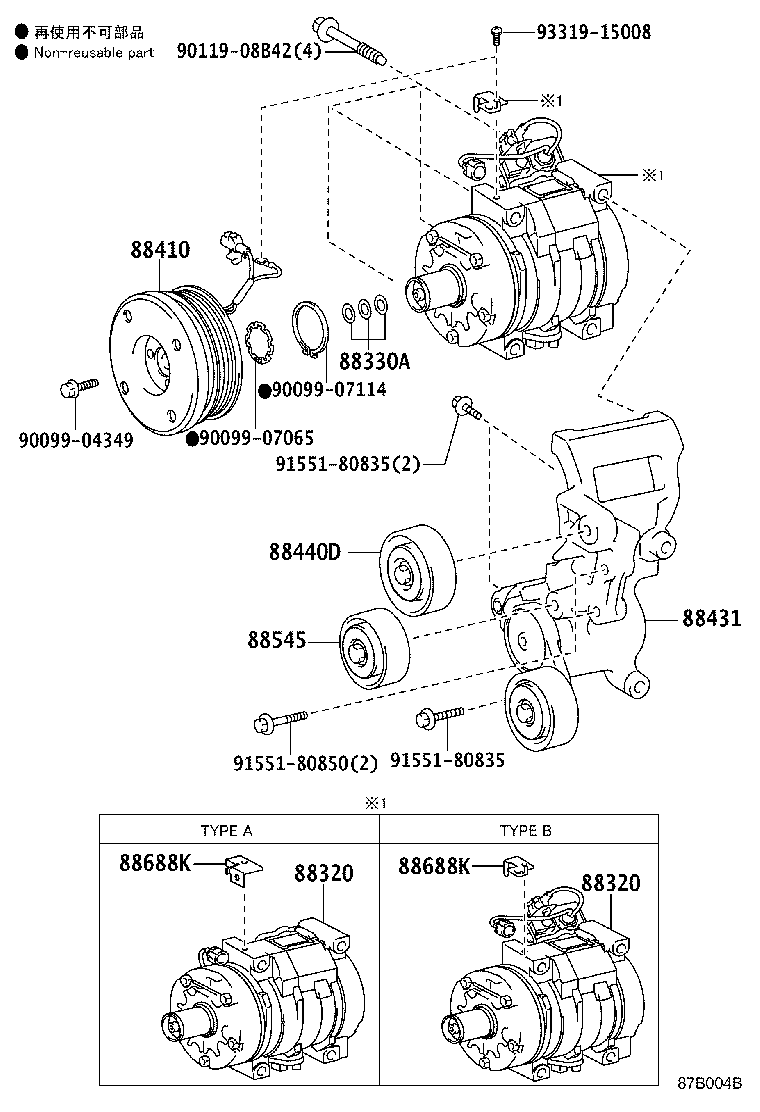

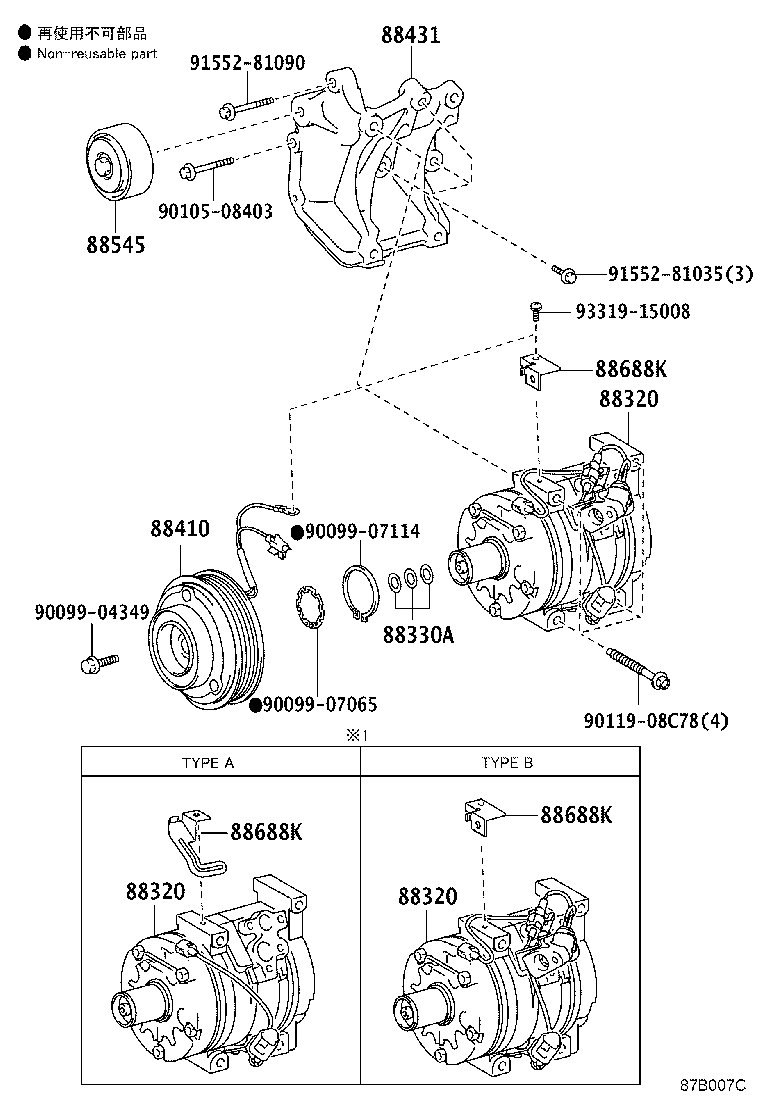

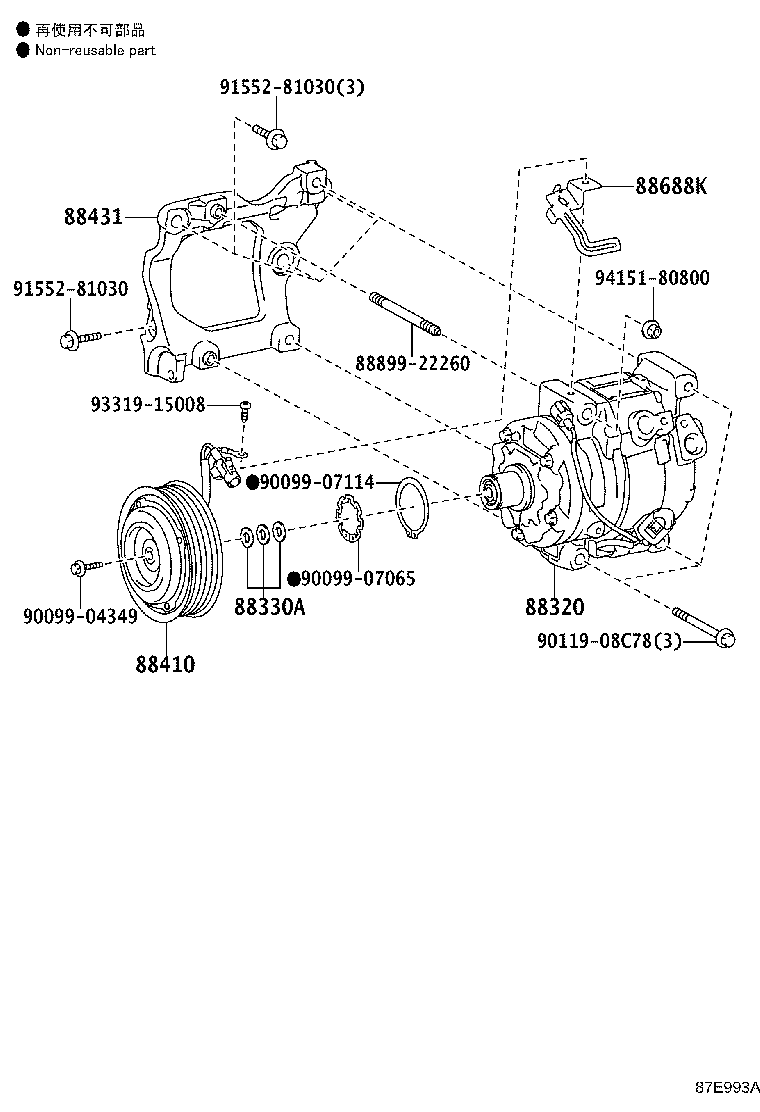

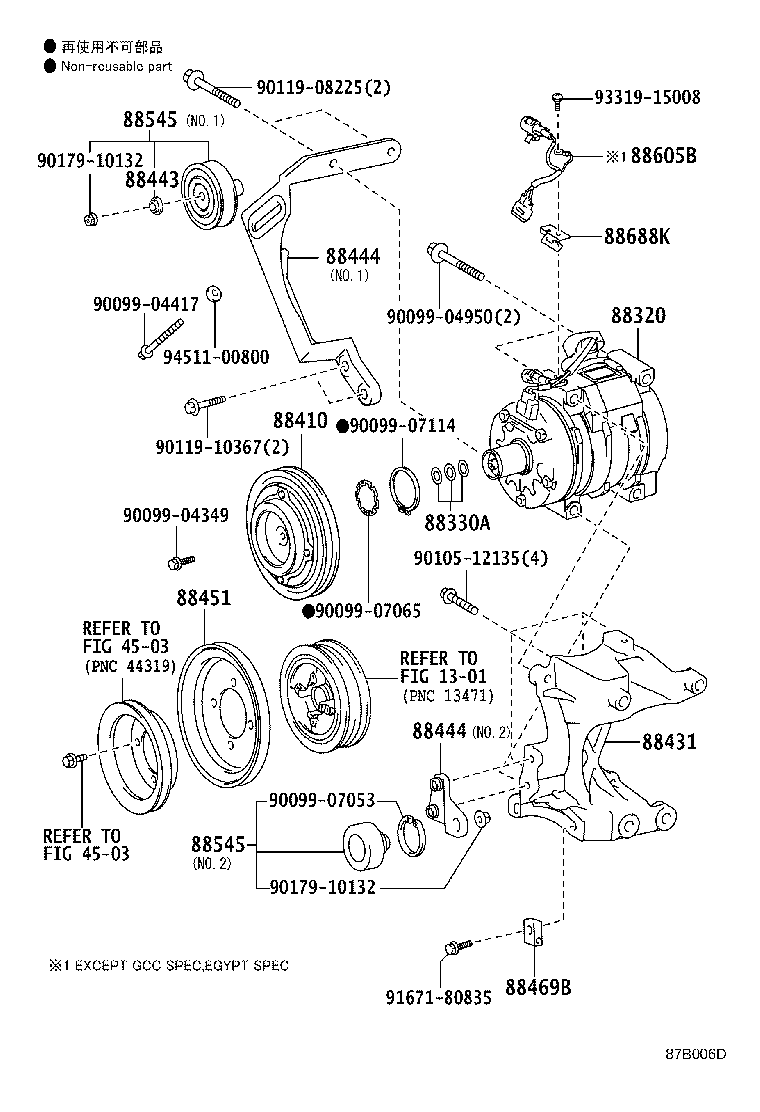

Figure 87B002B 87B002B 2009-08 → — Figure 87F073A 87F073A 2009-08 → — Figure 87B004B 87B004B 2009-08 → — Figure 87B006D 87B006D 2009-08 → — Figure 87B007C 87B007C 2009-08 → 2015-06 Figure 87E993A 87E993A 2015-06 → — Figure 87F072A 87F072A 2015-06 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440D Pulley Assy, Idle NO.2
88443 Collar, Idle Pulley
88444 Bracket, Idle Pulley
88451 Pulley, Crankshaft
88469B Collar
88545 Pulley Assy, Idle
88605B Harness Sub-assy, Air Conditioner Wiring
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
