Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

65 part groups · 9 illustrations

Illustrations

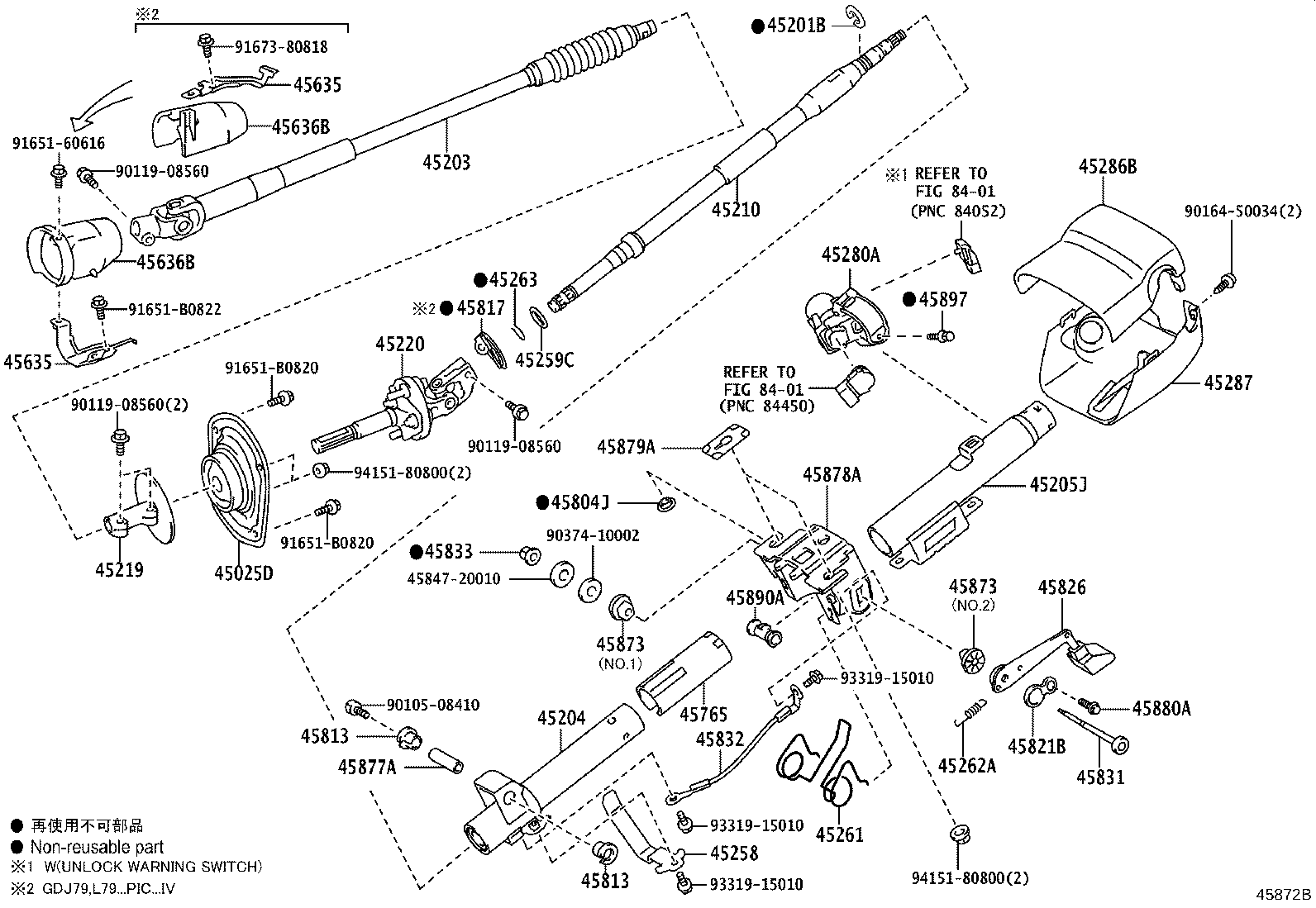

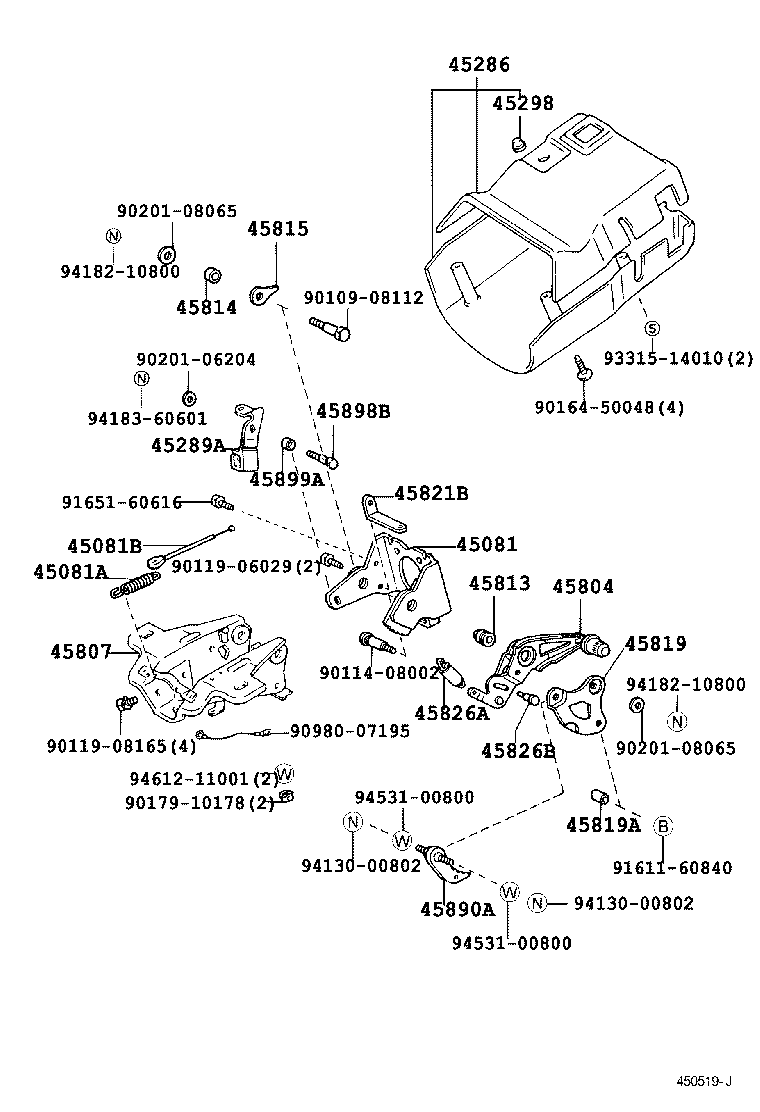

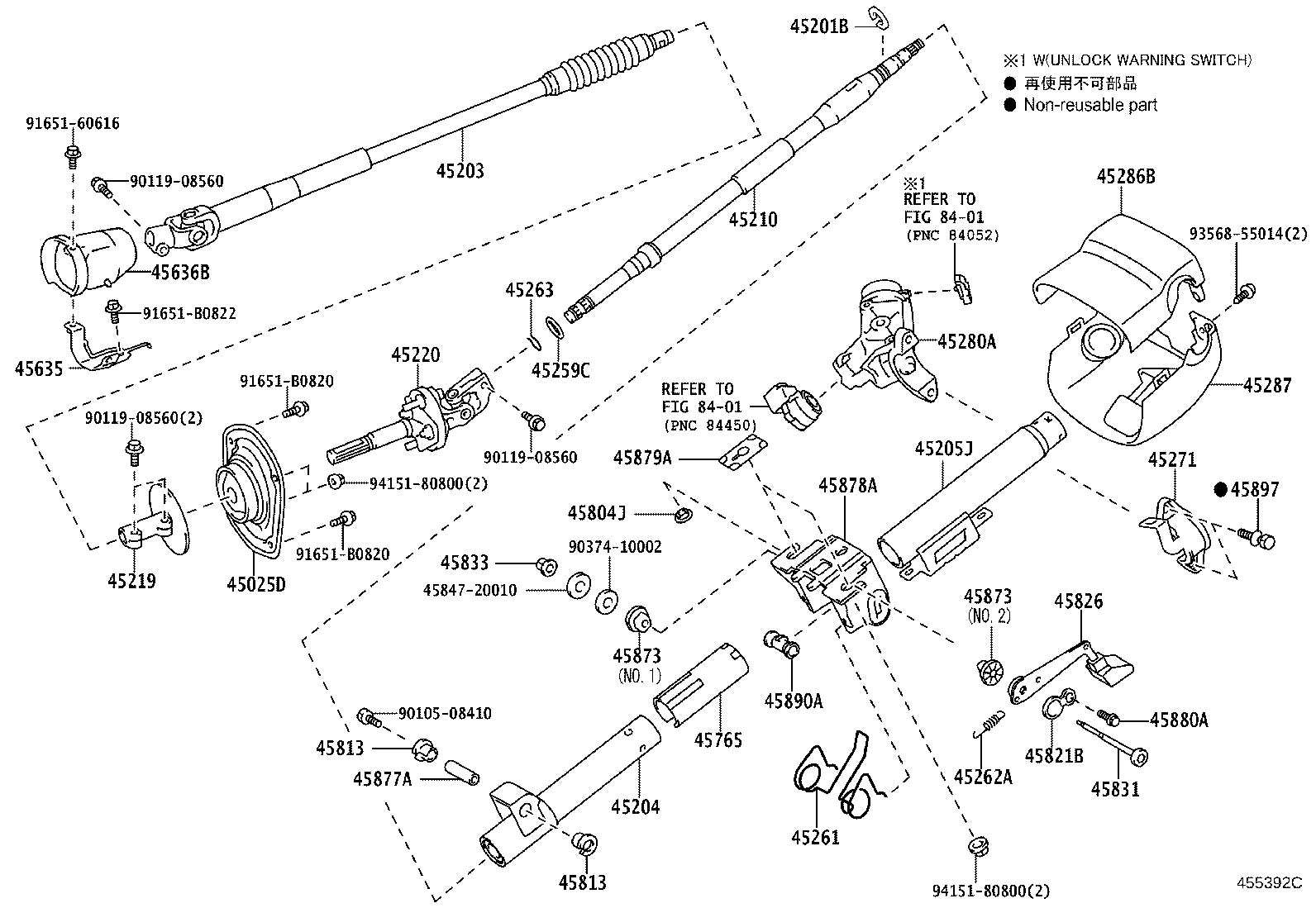

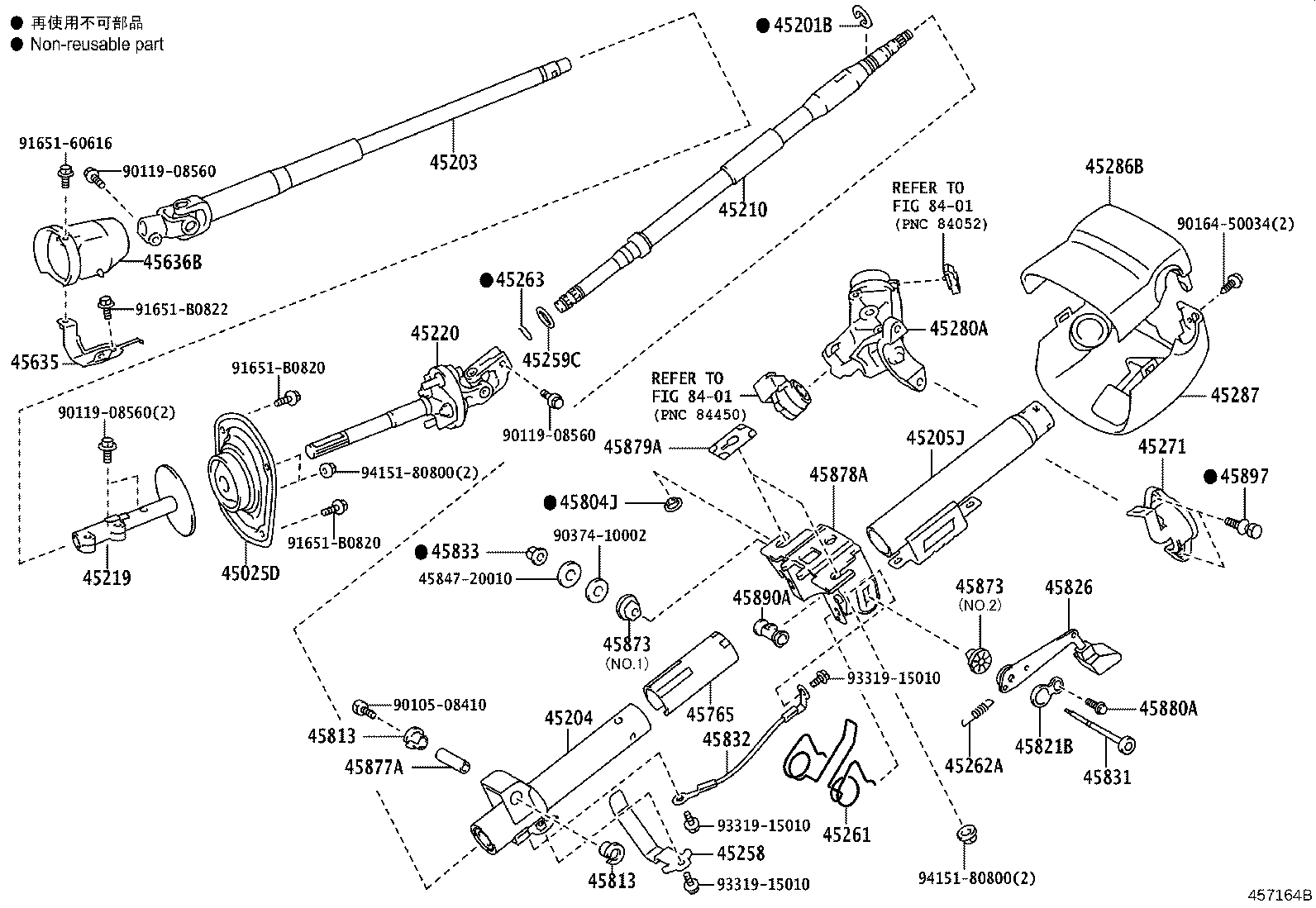

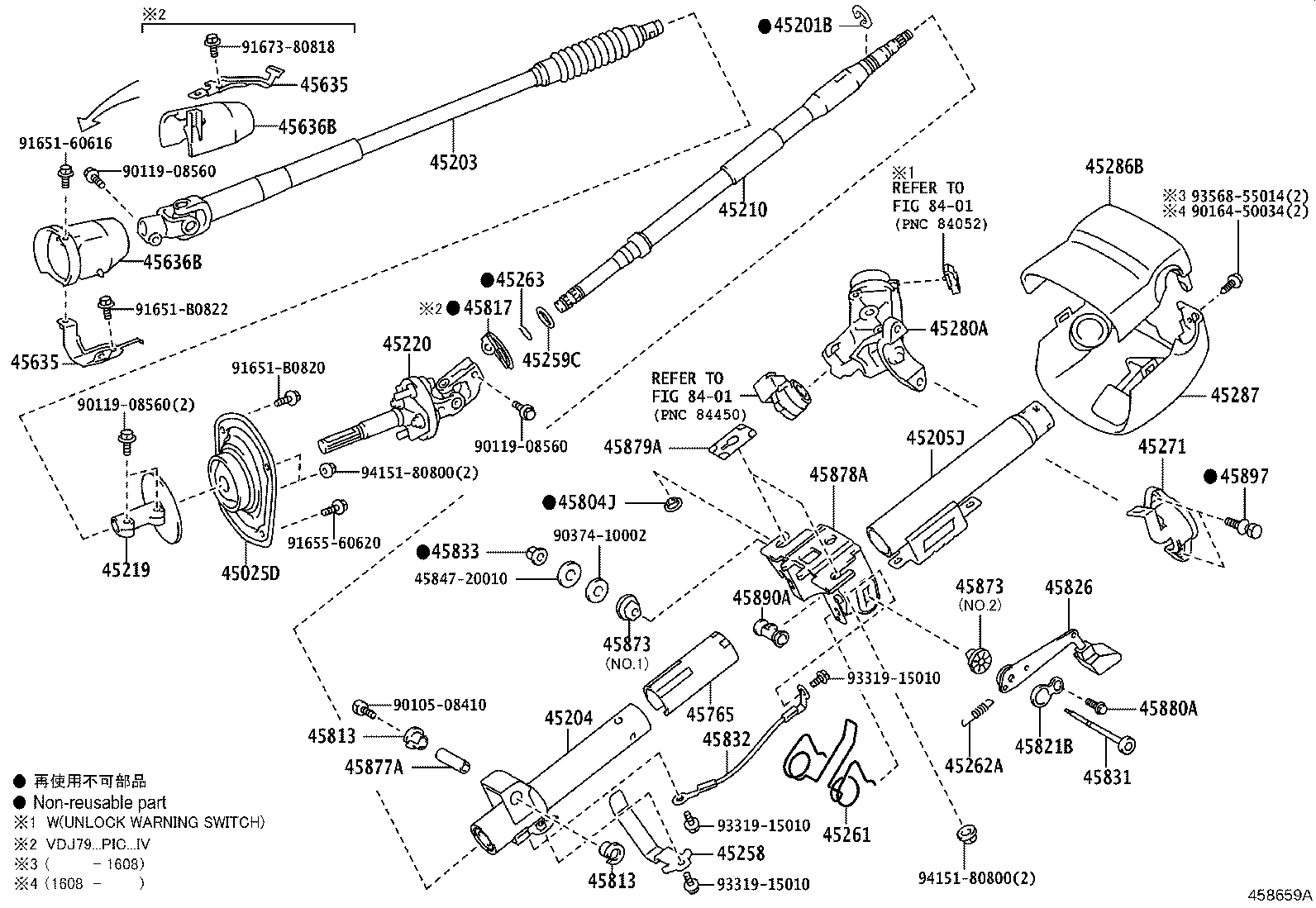

Figure 456616 456616 2007-01 → 2009-07 Figure 450519J 450519J 2007-01 → 2009-07 Figure 455392C 455392C 2009-07 → 2012-08 Figure 458659A 458659A 2012-08 → — Figure 458659A 458659A 2012-08 → — Figure 458659A 458659A 2012-08 → — Figure 457164B 457164B 2017-01 → — Figure 457164B 457164B 2017-01 → — Figure 45872B 45872B 2023-09 → —

Part groups

PNCDescription
45025 Cover, Steering Intermediate Shaft
45025D Cover Sub-assy, Steering Column Hole, NO.1
45081 Support Sub-assy, Tilt Steering
45081A Spring, Tension(FOR TILT STEERING)
45081B Cord(FOR TILT STEERING)
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45204 Tube Assy, Steering Column, Lower
45205E Ring, Snap(FOR STEERING COLUMN TUBE)
45205J Tube Sub-assy, Steering Column, Upper
45210 Shaft Assy, Steering Main
45215 Collar, Main Shaft Bearing Thrust
45219 Yoke, Steering Sliding
45220 Shaft Assy, Steering Intermediate
45222F Cover, Dust
45225 Block, Bearing
45225A Ring, O(FOR BEARING BLOCK)
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45258 Bracket, Steering Column Tube
45259C Sheet, Steering Main Shaft Bearing
45260 Shaft Assy, Steering Intermediate, NO.2
45261 Spring, Tilt Steering Jump UP
45262A Spring, Tilt Lever Return
45263 Ring, Steering Column, NO.1
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45289A Support, Steering Column Cover
45291 Seal, Main Shaft Upper Dust
45291B Ring, O(FOR STEERING COLUMN TUBE SUPPORT)
45298 Plug, Steering Column Cover
45635 Support, Intermediate Link Joint Protector
45636B Protector, Intermediate Link Joint
45765 Guide, Telescopic Steering
45804 Lever Sub-assy, Steering Tilt
45804J Collar Sub-assy, Break Away
45807 Bracket Sub-assy, Steering Column Upper Support
45813 Collar, Tilt Steering Support, NO.1
45814 Collar, Tilt Steering Support, NO.2
45815 Shim, Tilt Steering Support
45817 Stopper, Steering Shaft Thrust
45819 Retainer, Tilt Lever
45819A Collar(FOR TILT LEVER RETAINER)
45821B Reinforce, Tilt Steering Support, NO.1
45826 Lever, Steering Tilt
45826A Spring, Tension(FOR STEERING TILT LEVER)
45826B Pin(FOR STEERING TILT LEVER)
45831 Bolt, Tilt Lever Lock, NO.1
45832 Cable, Tilt Steering Support Bond
45833 Nut, Tilt Steering Adjusting, NO.1
45873 Stopper, Steering Column Tube
45877A Spacer, Steering Column Bracket
45878A Bracket, Break Away
45879A Capsule, Break Away
45880A Bolt(FOR STEERING TILT LEVER)
45890A Pawl Assy, Tilt Steering
45897 Bolt, Steering Lock Set
45898B Bolt, Tilt Steering Support Stopper
45899A Cover, Tilt Steering Support Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
