Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

13 part groups · 5 illustrations

Illustrations

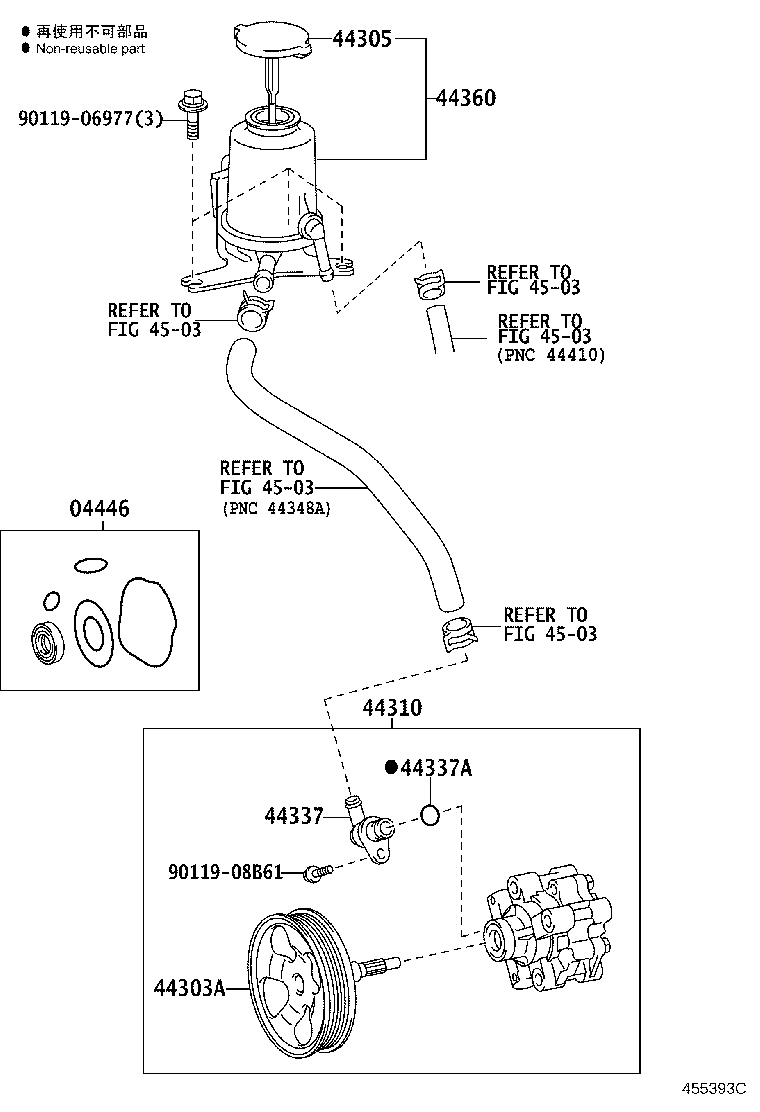

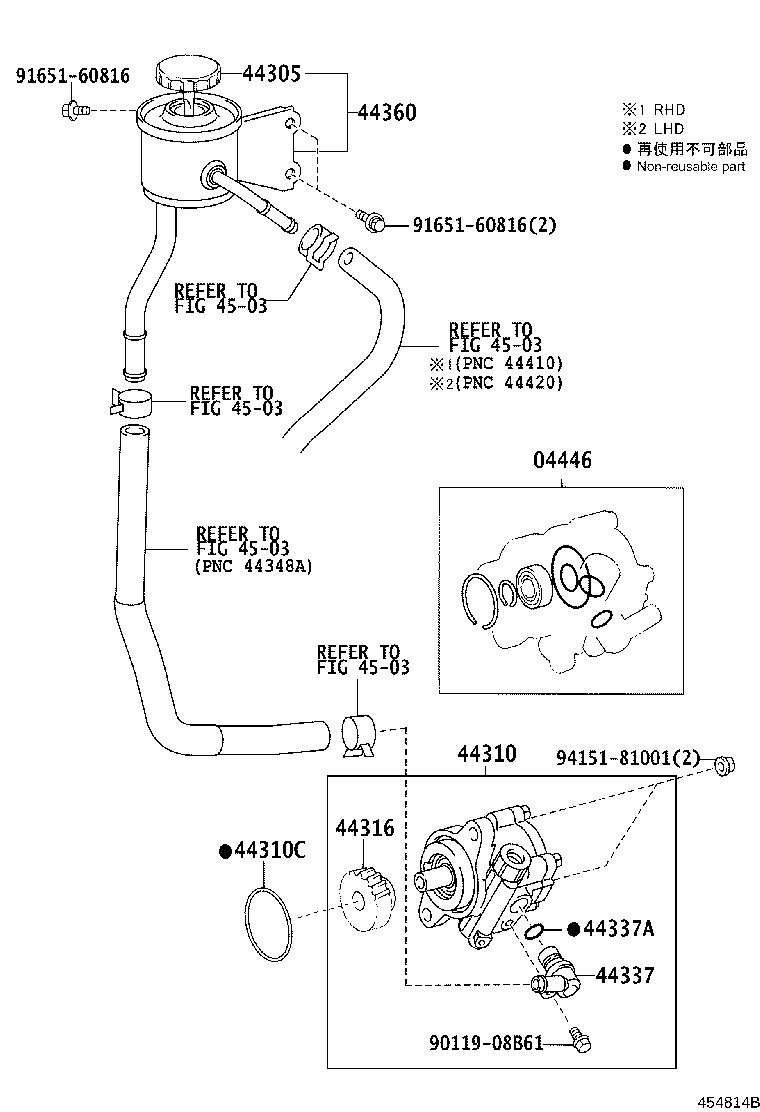

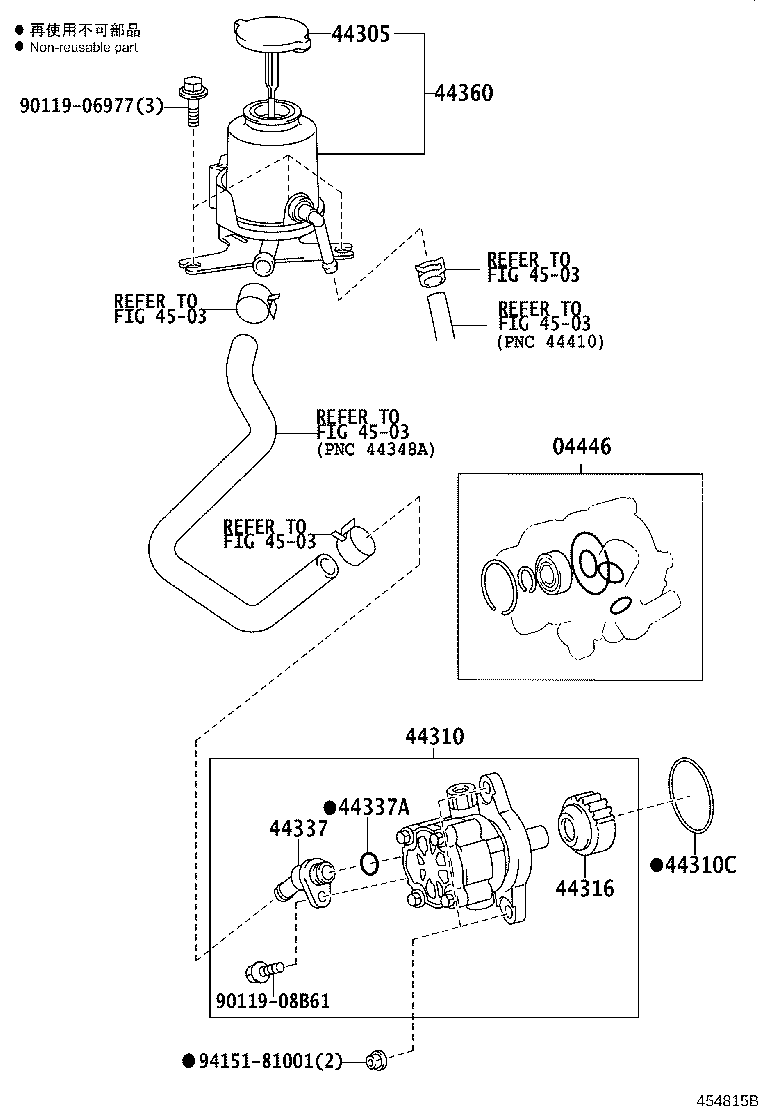

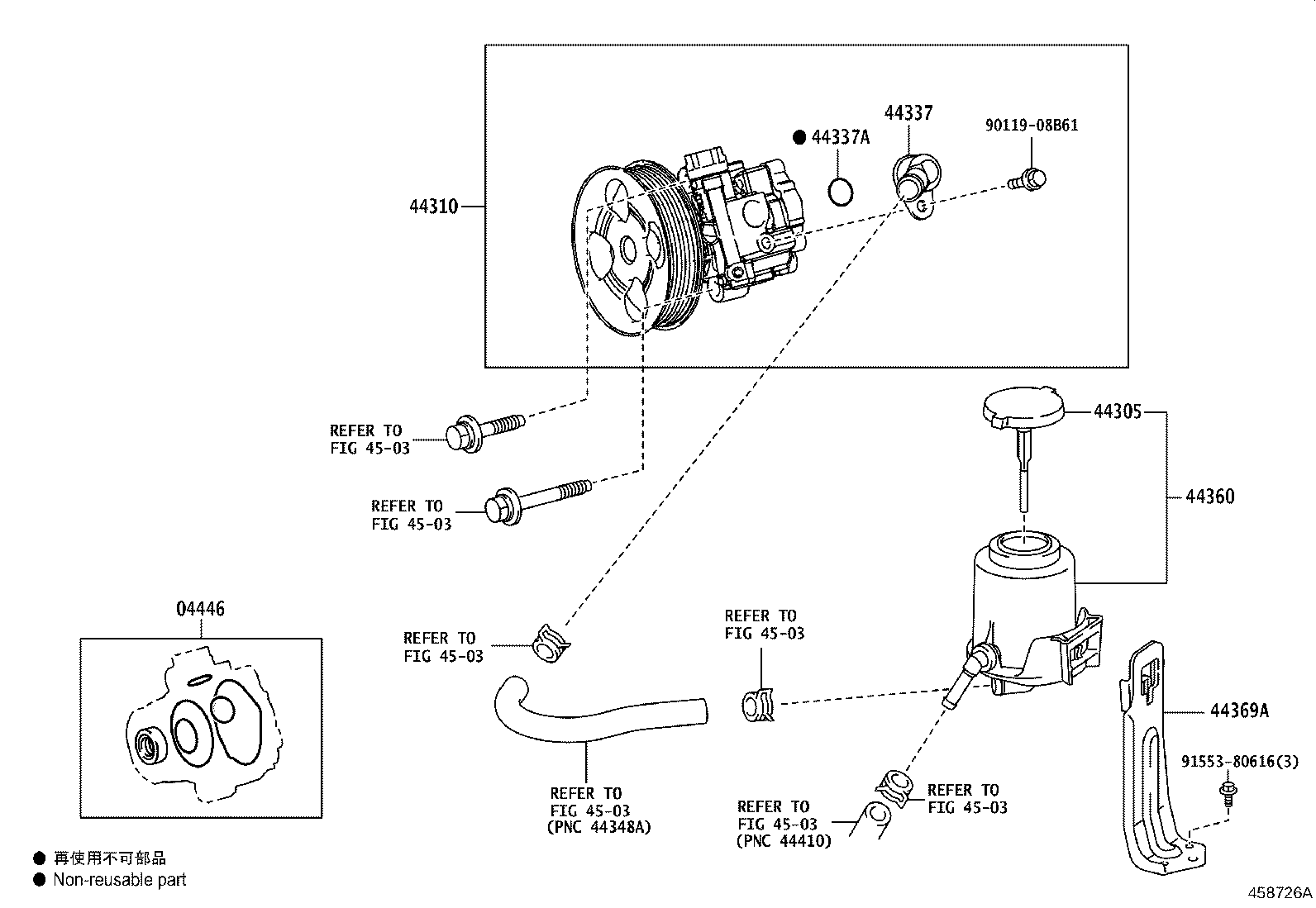

Figure 454813B 454813B 2007-01 → — Figure 454814B 454814B 2007-01 → — Figure 455393C 455393C 2007-01 → — Figure 454815B 454815B 2007-01 → — Figure 458726A 458726A 2023-09 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44310 Pump Assy, Vane
44310C Ring, O(FOR VANE PUMP)
44311A Key, Vane Pump Pulley
44311B Nut(FOR VANE PUMP PULLEY)
44316 Gear, Vane Pump
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44369A Bracket, Oil Reservoir, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
