Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

19 part groups · 8 illustrations

Illustrations

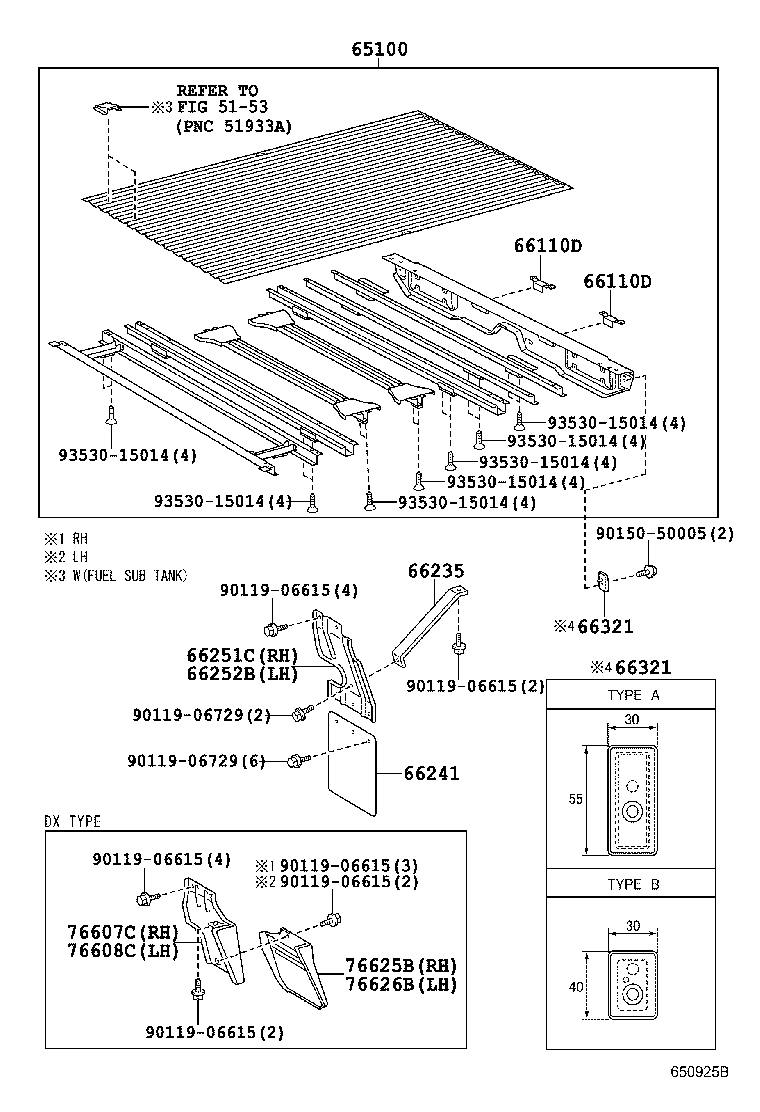

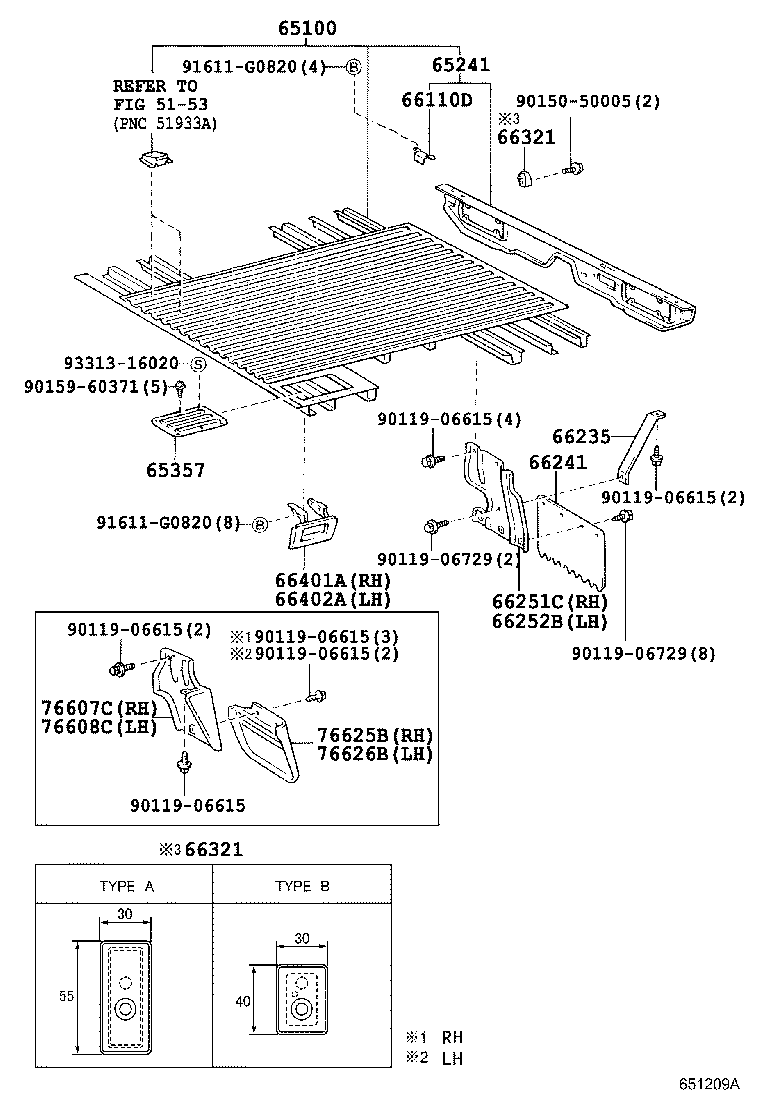

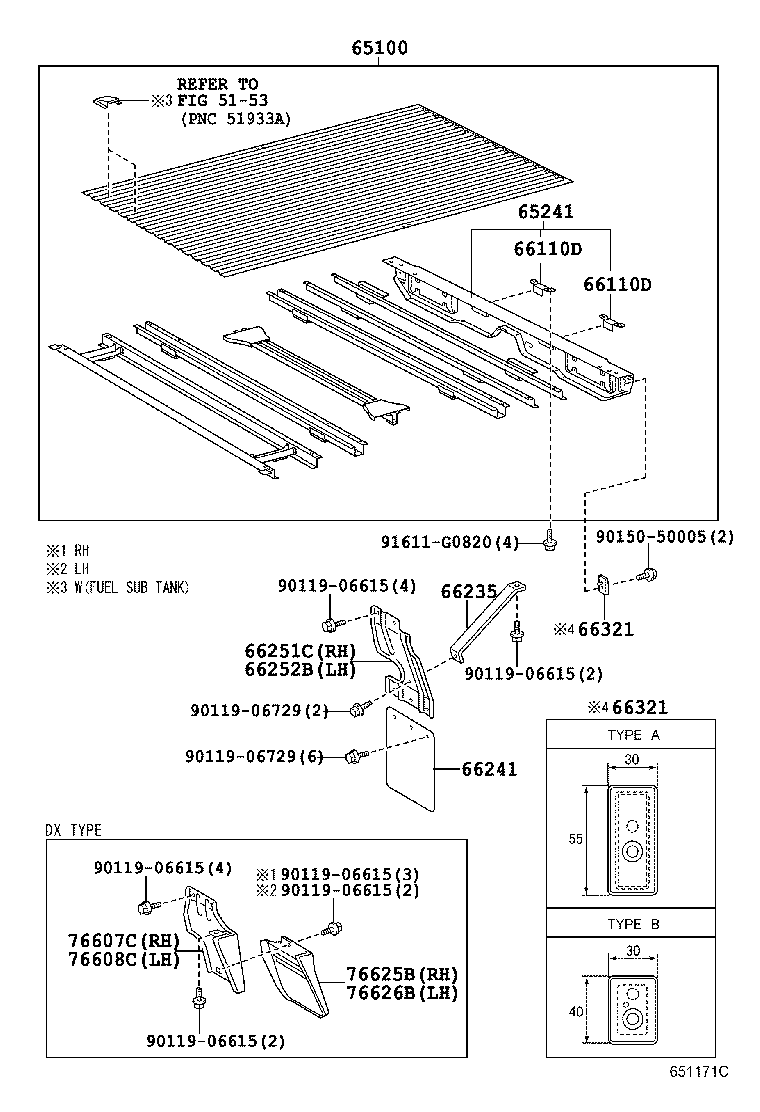

Figure 651331 651331 2017-02 → 2017-04 Figure 651331 651331 2018-02 → 2018-03 Figure 651331 651331 2019-02 → 2019-03 Figure 651171C 651171C 2012-08 → 2023-09 Figure 651171C 651171C 2023-09 → — Figure 651209A 651209A 2007-01 → 2023-09 Figure 651209A 651209A 2023-09 → — Figure 650925B 650925B 2007-01 → —

Part groups

PNCDescription
65100 Floor Assy, Rear Body
65241 Sill, Rear Cross
65322A Frame, Floor, Front Lower
65333B Frame, Floor Side, RH
65334B Frame, Floor Side, LH
65356A Bracket, Battery Hole Cover
65357 Cover, Front Floor Corner
66110D Hinge Assy, Tail Gate
66235 Stay, Rear Fender, NO.1
66241 Mudguard, Rear
66251C Support, Mudguard Rear, RH
66252B Support, Mudguard, Rear LH
66321 Bumper, Gate Rubber
66401A Panel Sub-assy, Deck Side Step, RH
66402A Panel Sub-assy, Deck Side Step, LH
76607C Mudguard Sub-assy, Rear Body, RH
76608C Mudguard Sub-assy, Rear Body, LH
76625B Mudguard, Rear Body, RH
76626B Mudguard, Rear Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
