Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 6 illustrations

Illustrations

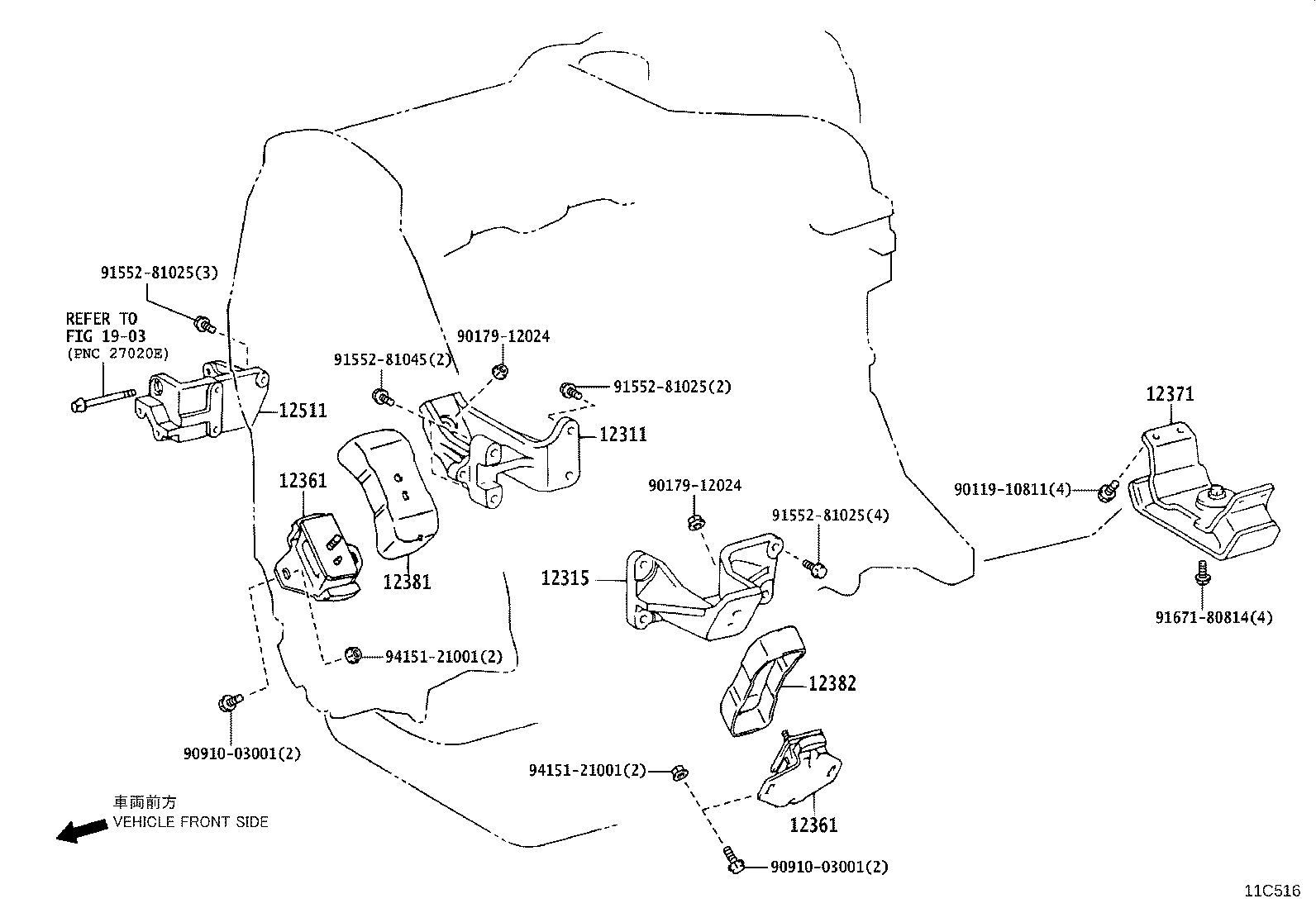

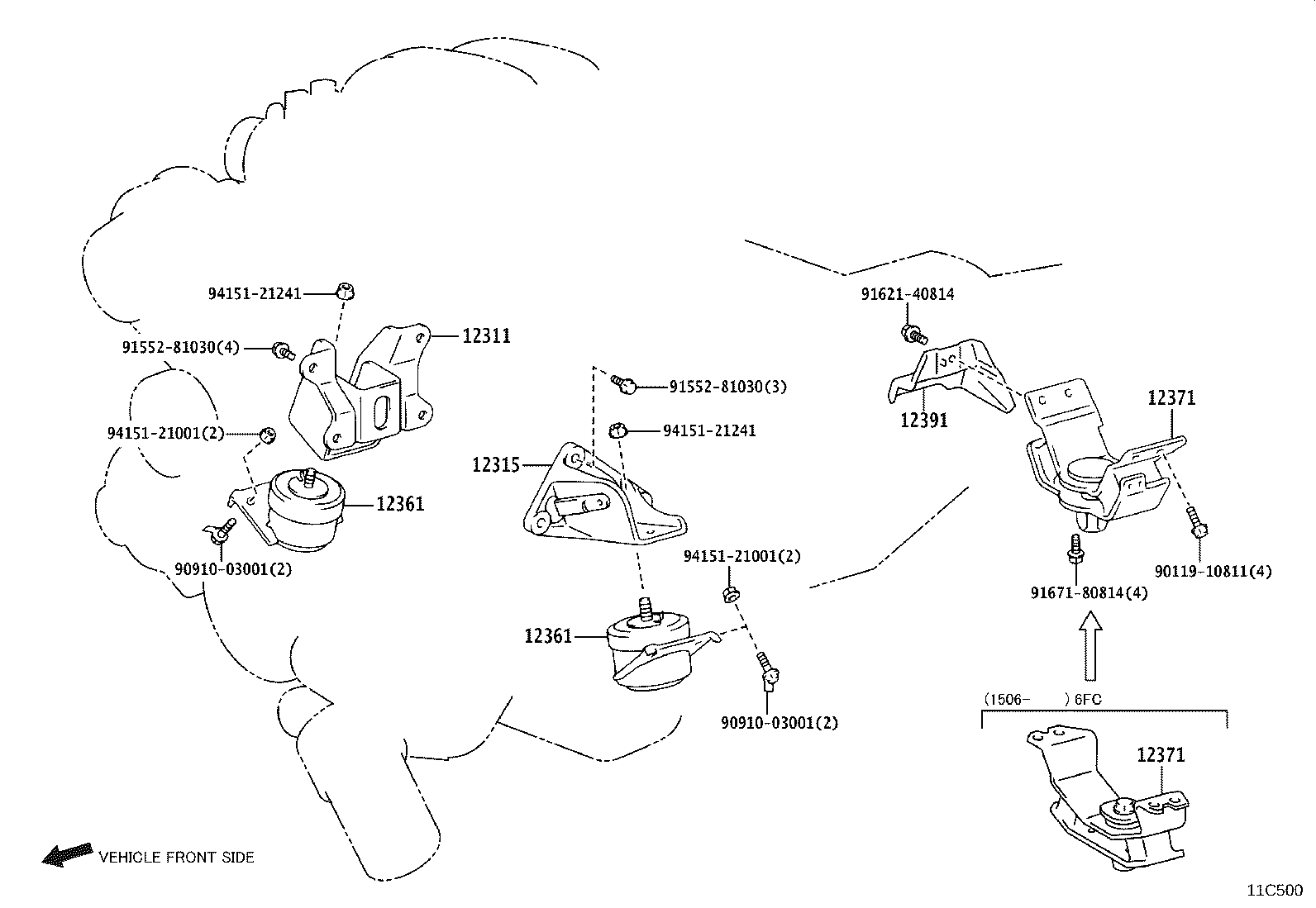

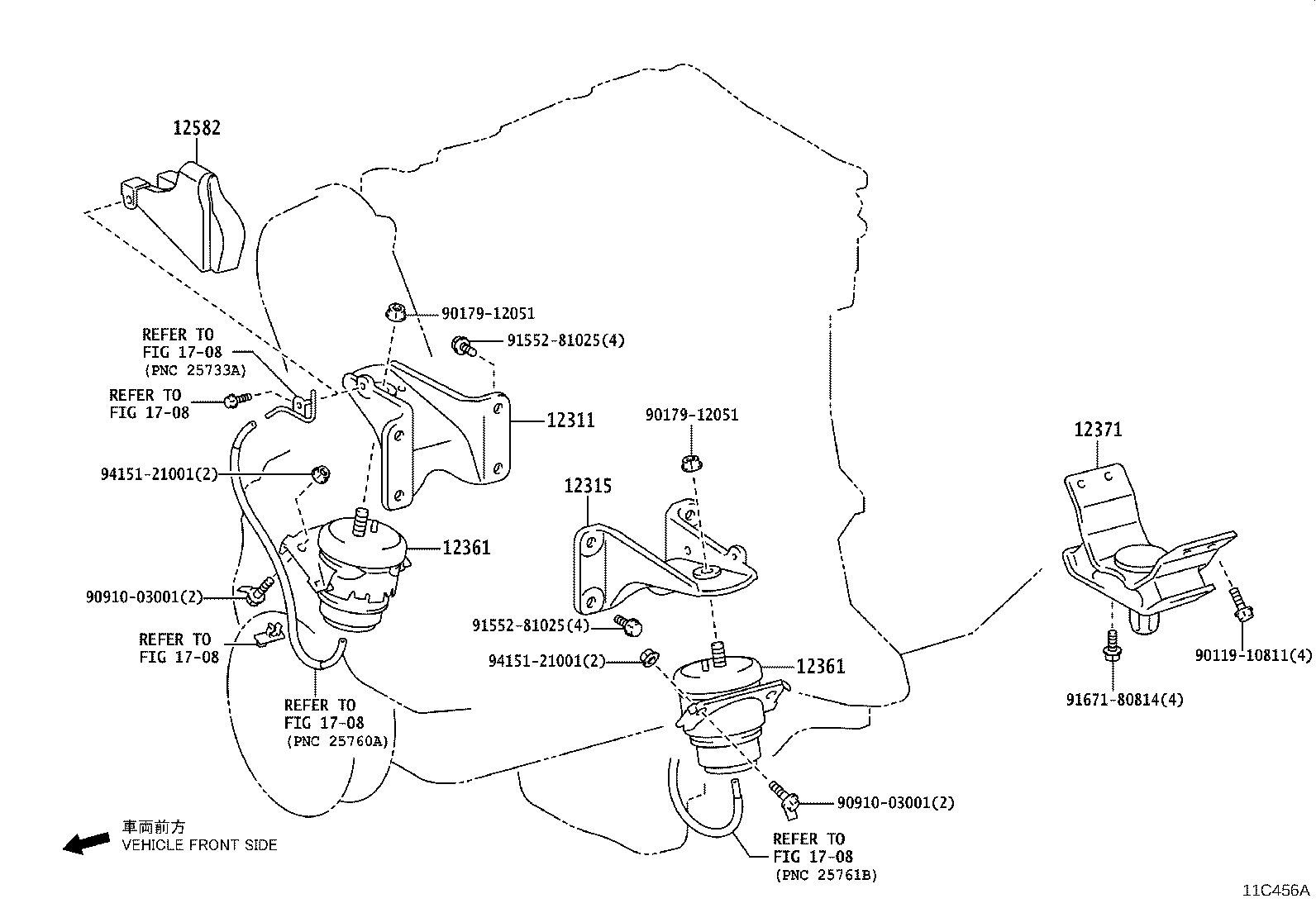

Figure 11C499 11C499 2017-08 → — Figure 11C500 11C500 2017-08 → — Figure 11C456A 11C456A 2017-08 → — Figure 11C516 11C516 2017-08 → — Figure 11C528 11C528 2017-08 → — Figure 11C529 11C529 2017-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12391 Insulator, Engine Mounting Front, Heat, RH
12501 Bracket Sub-assy, Alternator
12511 Bracket, Alternator, NO.1
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
