Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

15 part groups · 6 illustrations

Illustrations

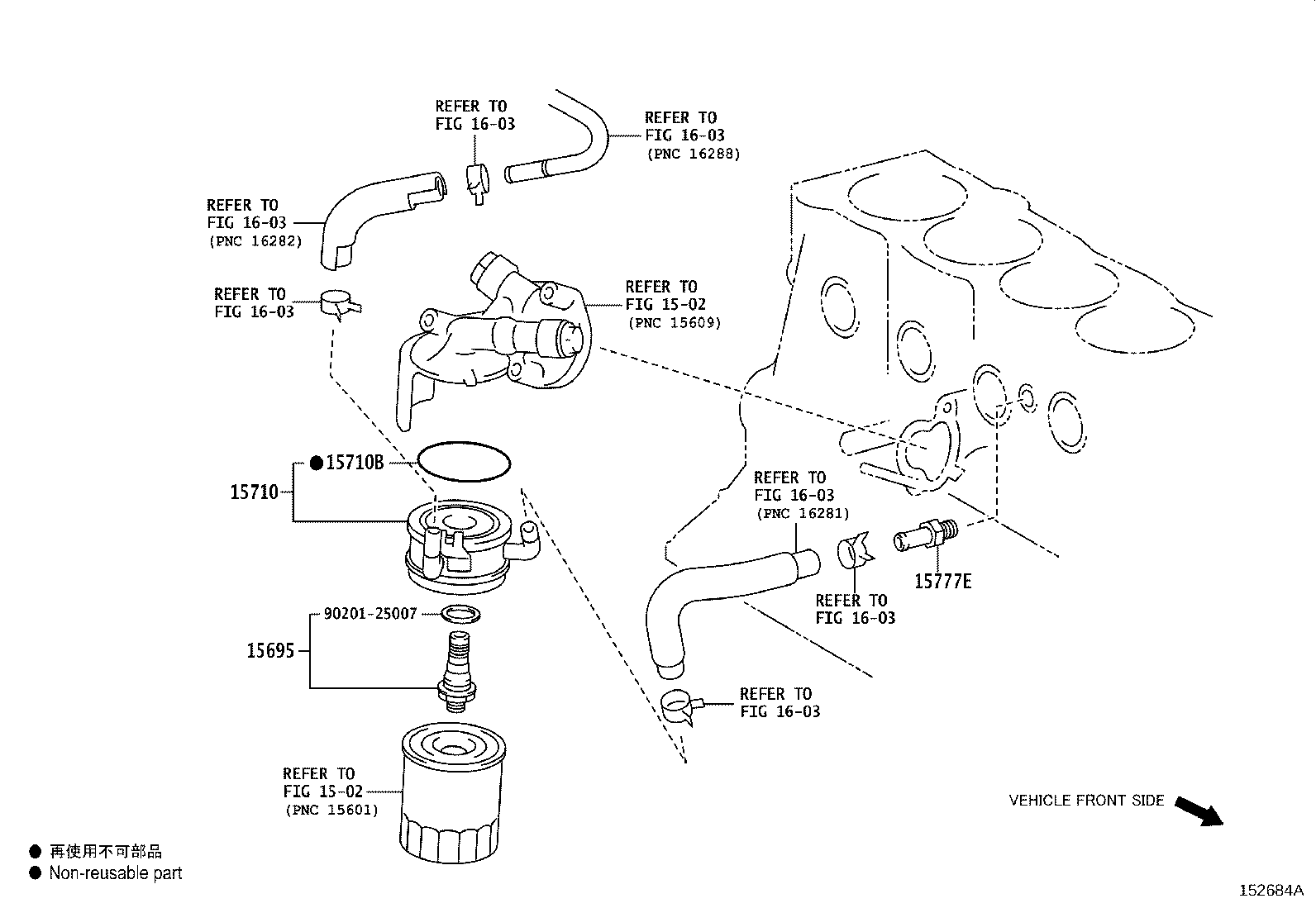

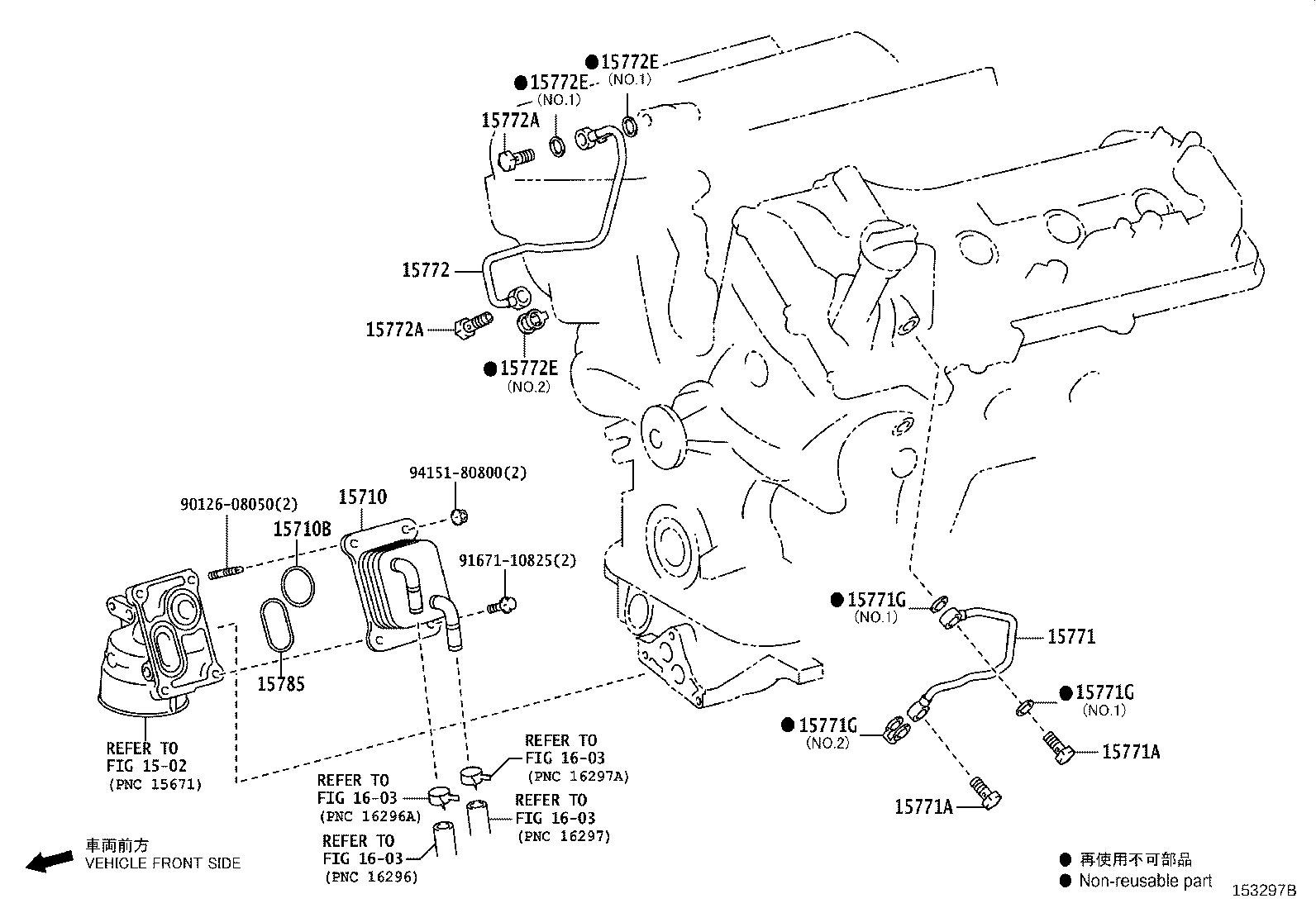

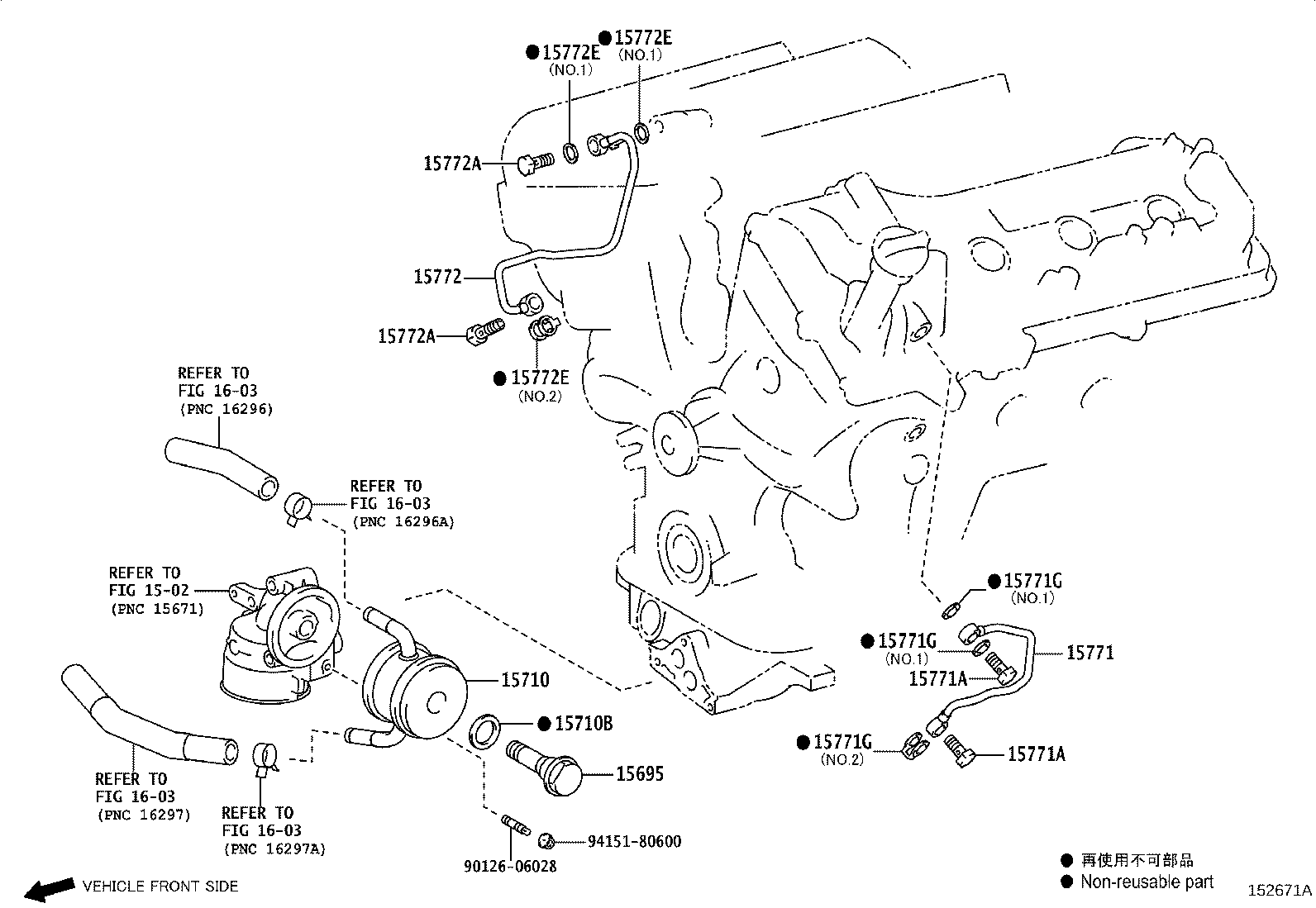

Figure 152672A 152672A 2017-08 → — Figure 152671A 152671A 2017-08 → 2020-11 Figure 153297B 153297B 2020-11 → — Figure 152660B 152660B 2017-08 → — Figure 152665B 152665B 2017-08 → — Figure 152684A 152684A 2017-08 → —

Part groups

PNCDescription
15071 Cooler Set, Engine Oil
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15723 Ring, O
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772A Union(FOR OIL PIPE)
15772E Gasket(FOR OIL PIPE)
15777E Union
15785 Gasket, Oil Cooler
16345A Gasket, Water Outlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
