Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

12 part groups · 8 illustrations

Illustrations

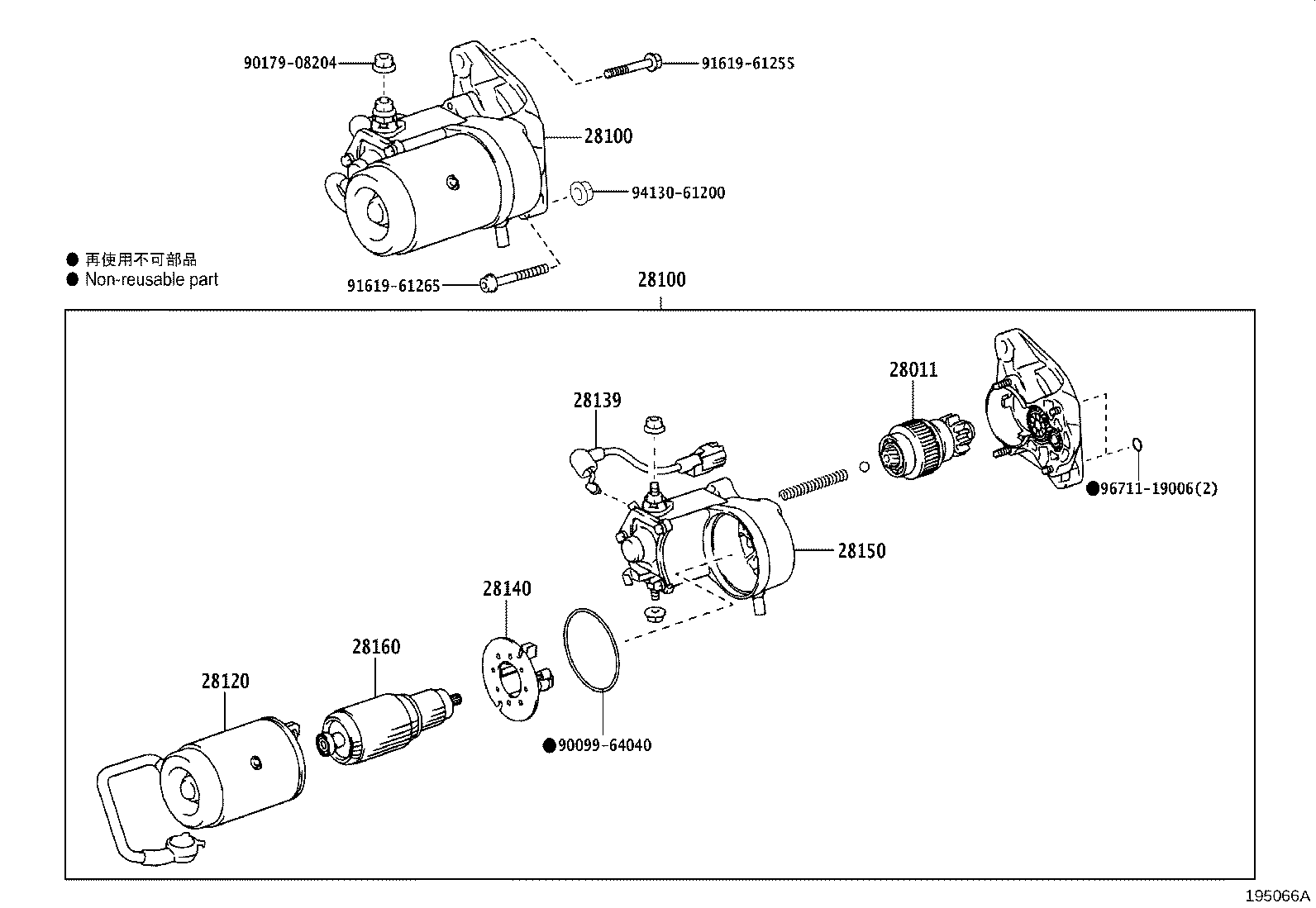

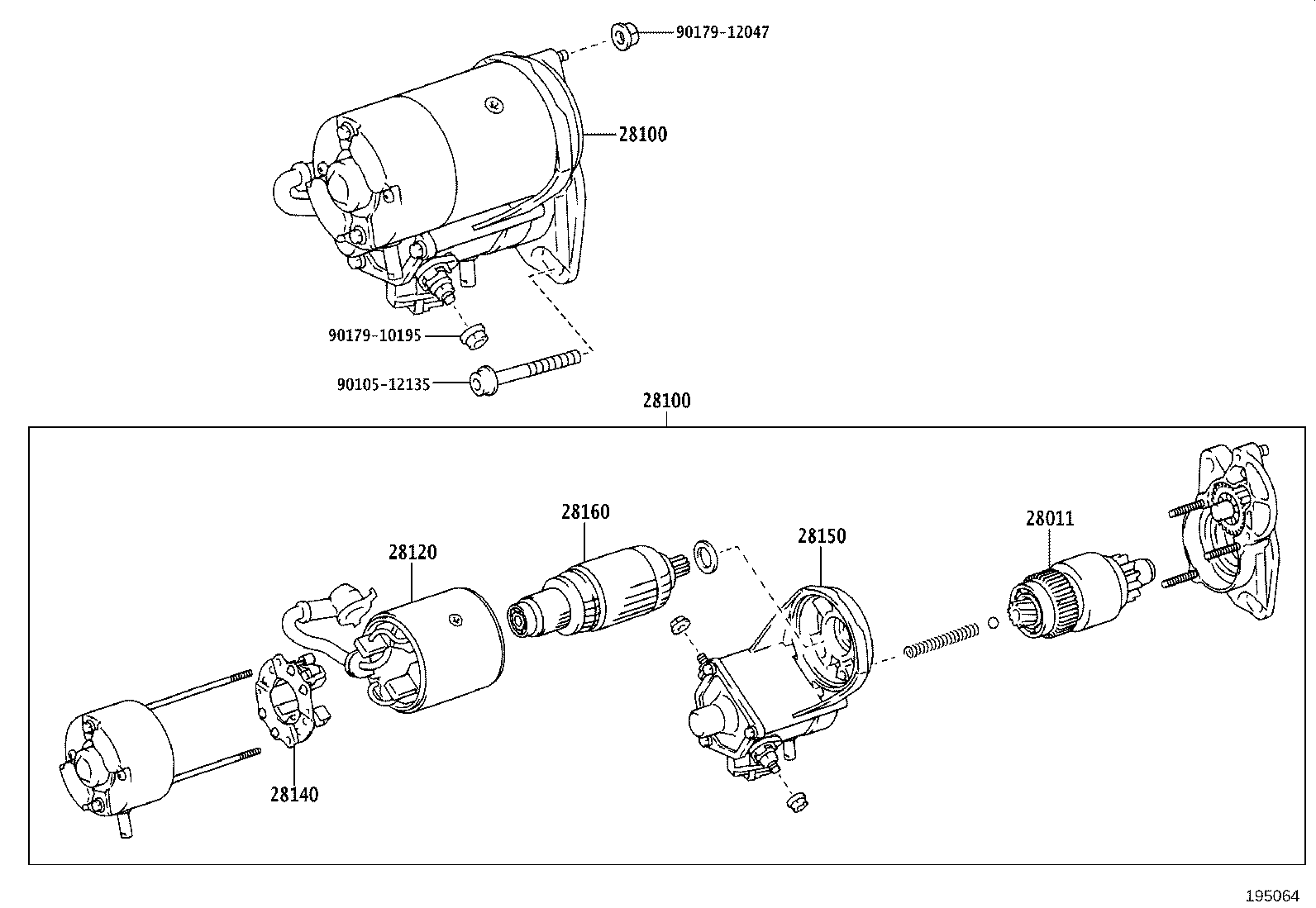

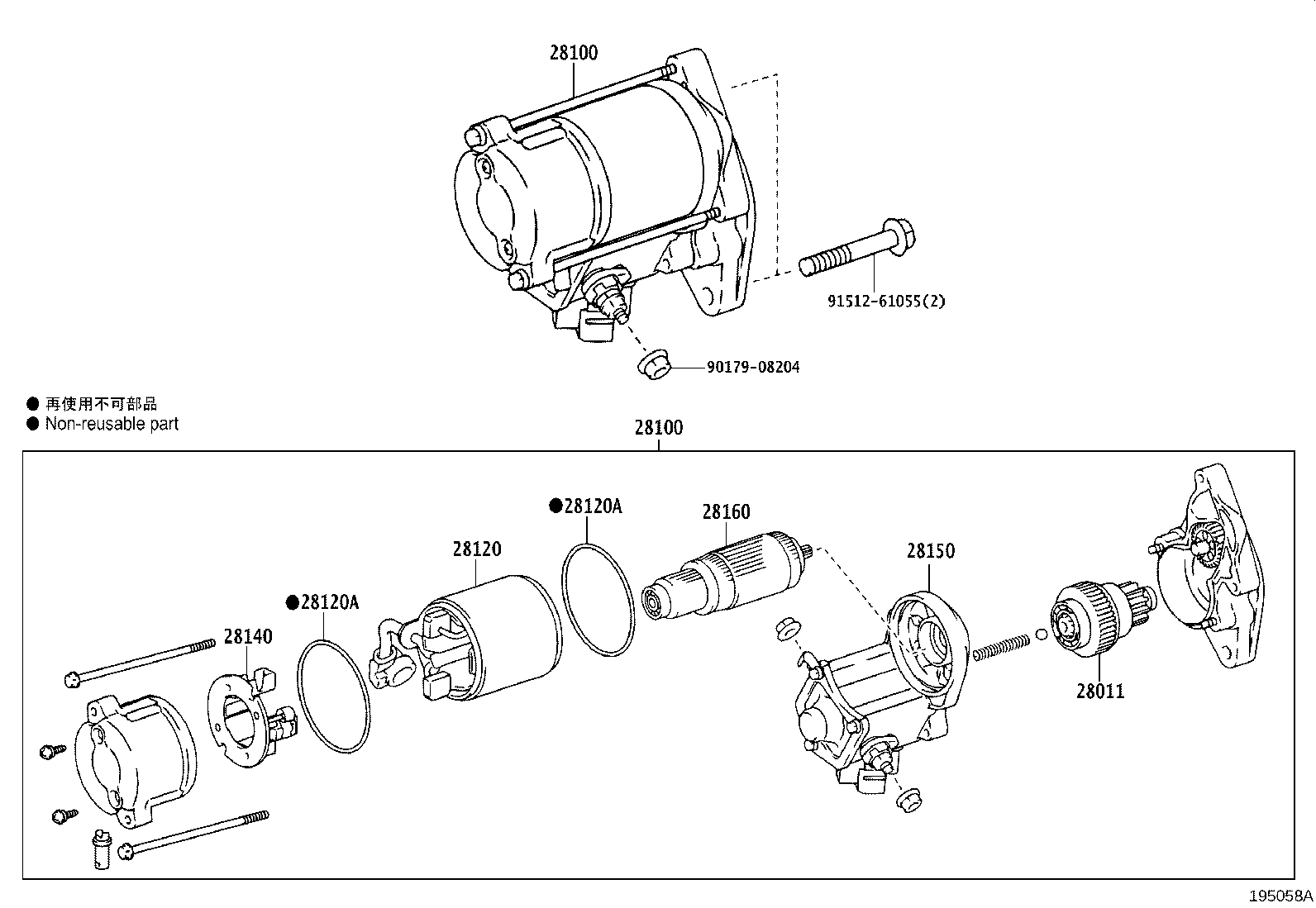

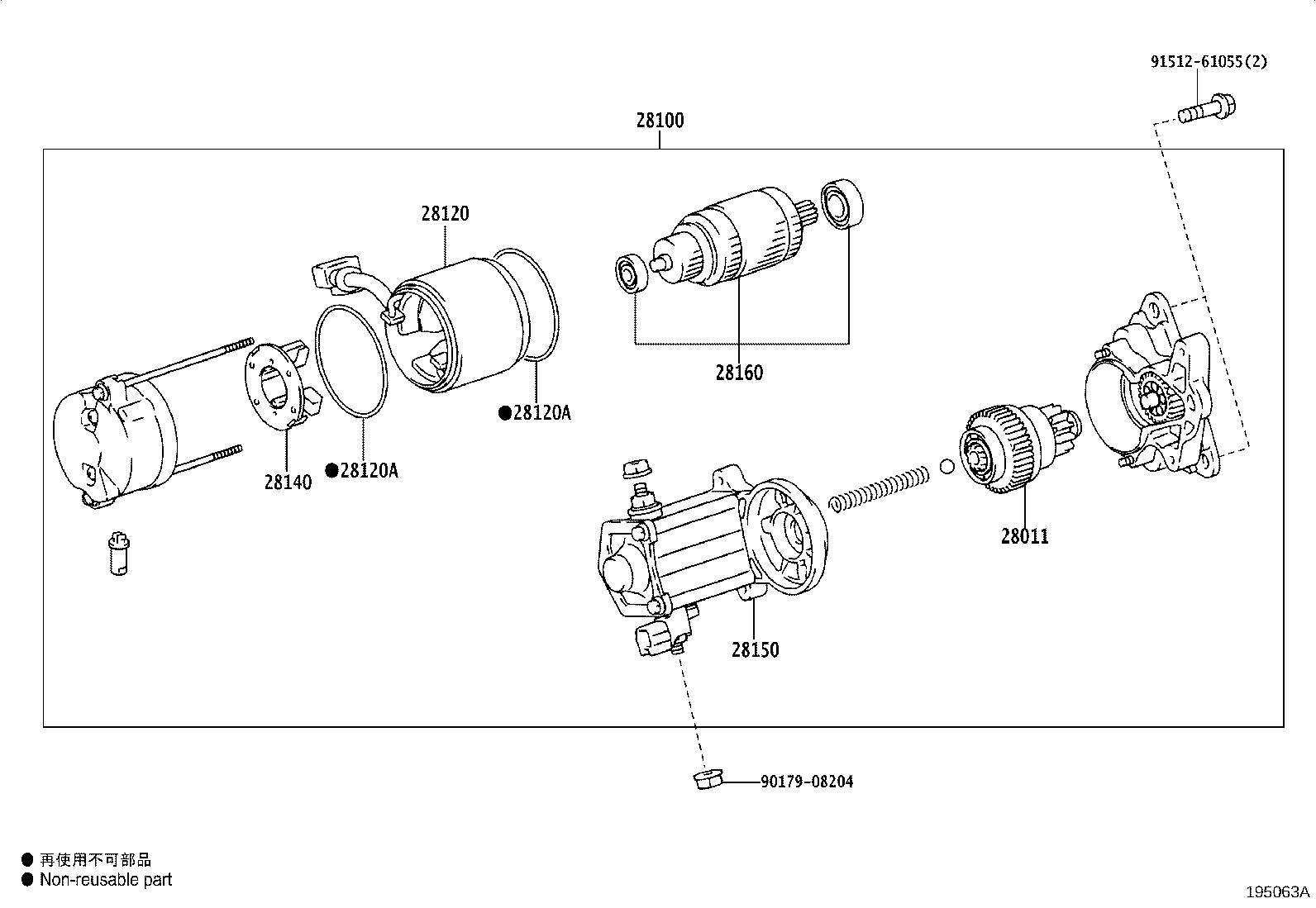

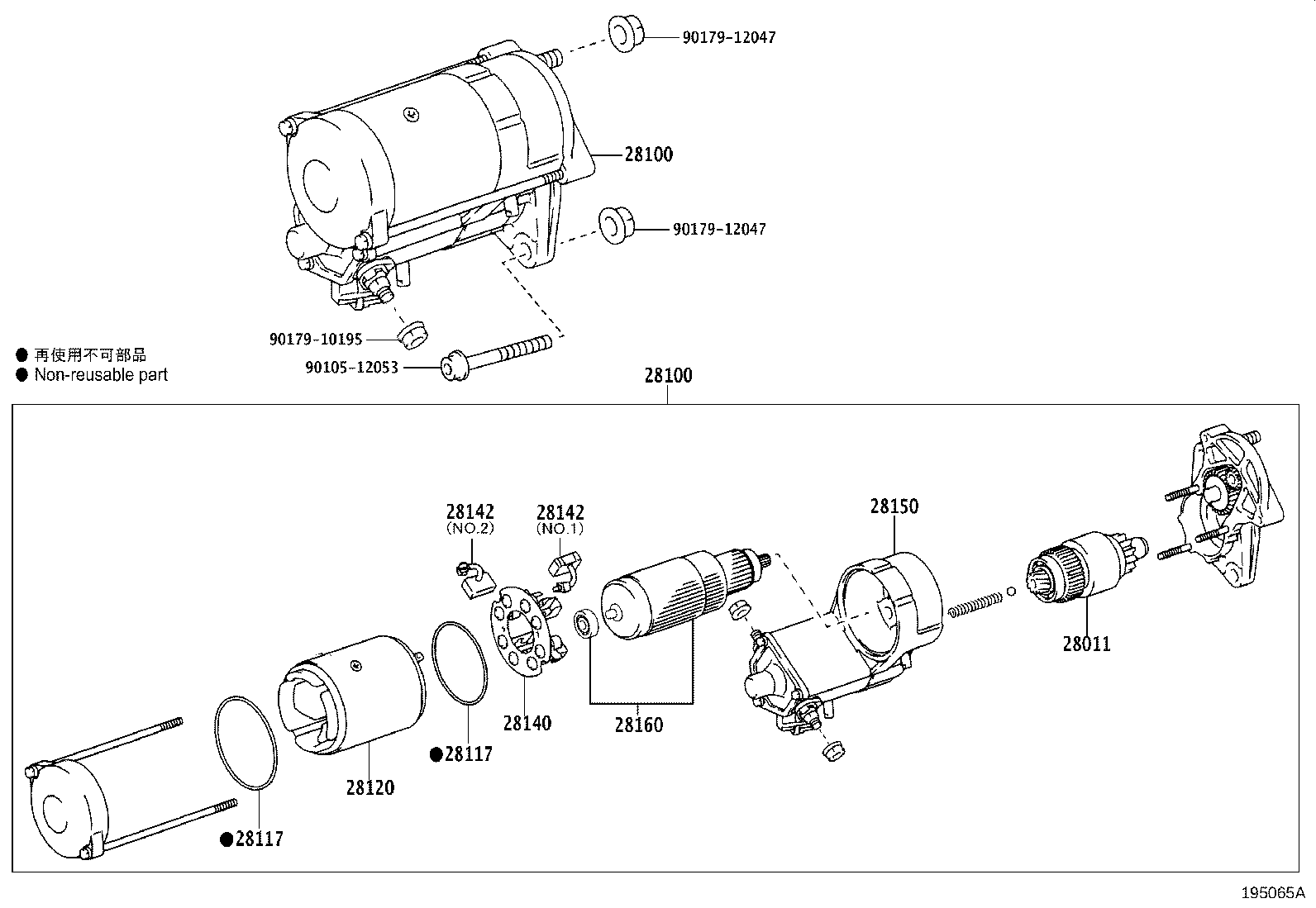

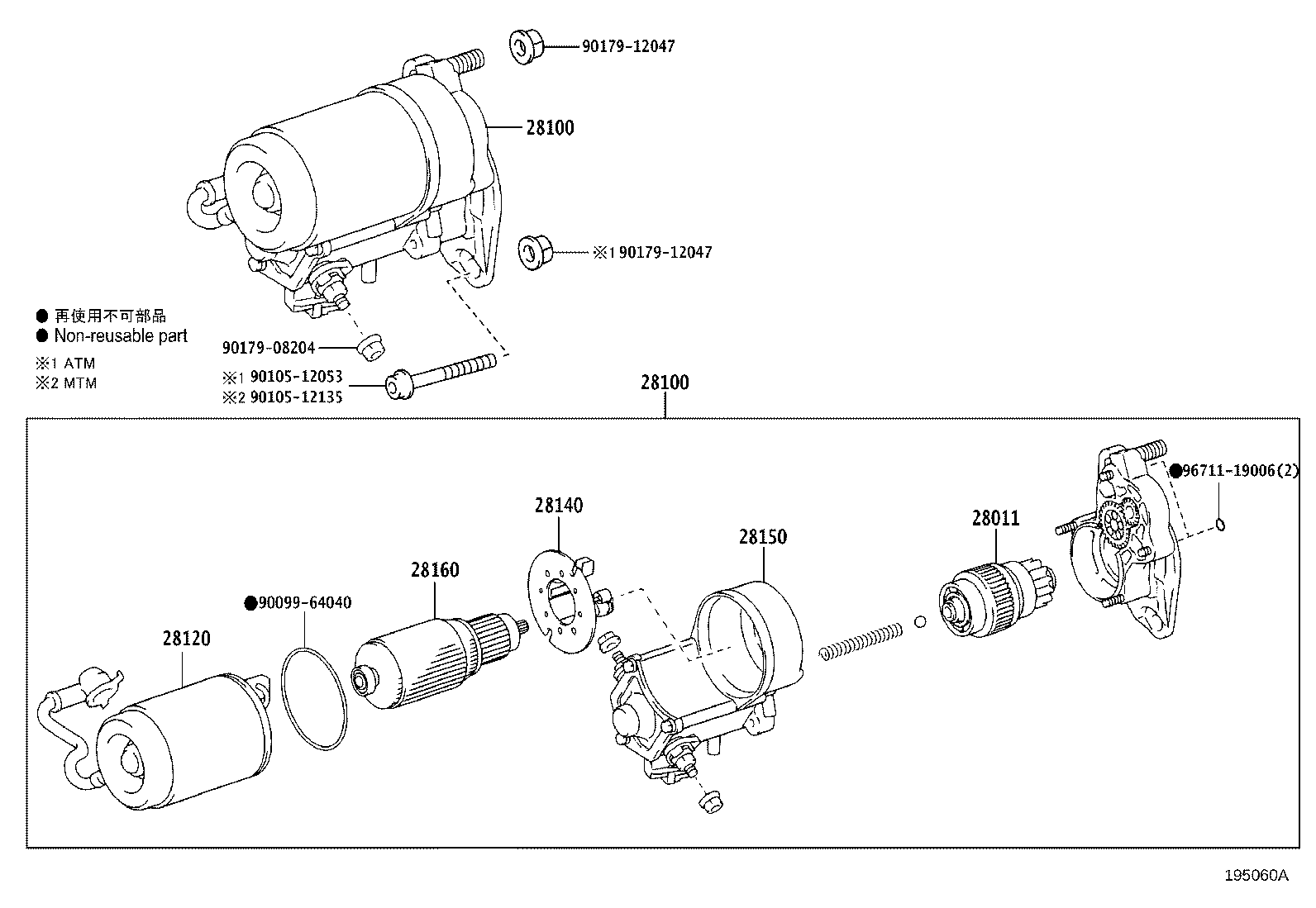

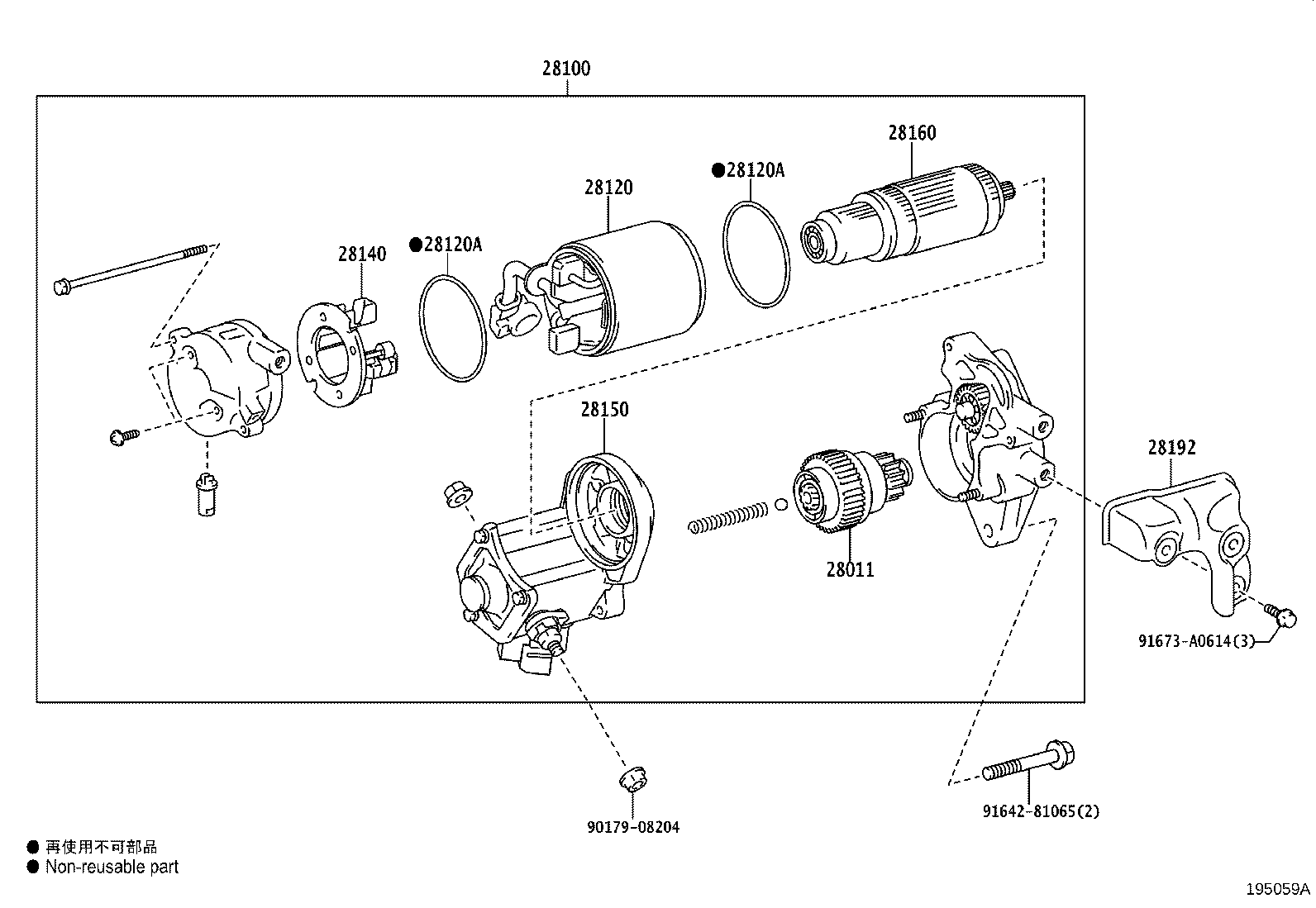

Figure 195061 195061 2017-08 → — Figure 195059A 195059A 2017-08 → — Figure 195060A 195060A 2017-08 → — Figure 195064 195064 2017-08 → — Figure 195065A 195065A 2017-08 → — Figure 195066A 195066A 2017-08 → — Figure 195063A 195063A 2017-08 → — Figure 195058A 195058A 2017-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28117 Rubber(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28192 Cover, Starter
28226B Starter Kit, Repair Service
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
