Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General
Supported model
Data version 2020-08

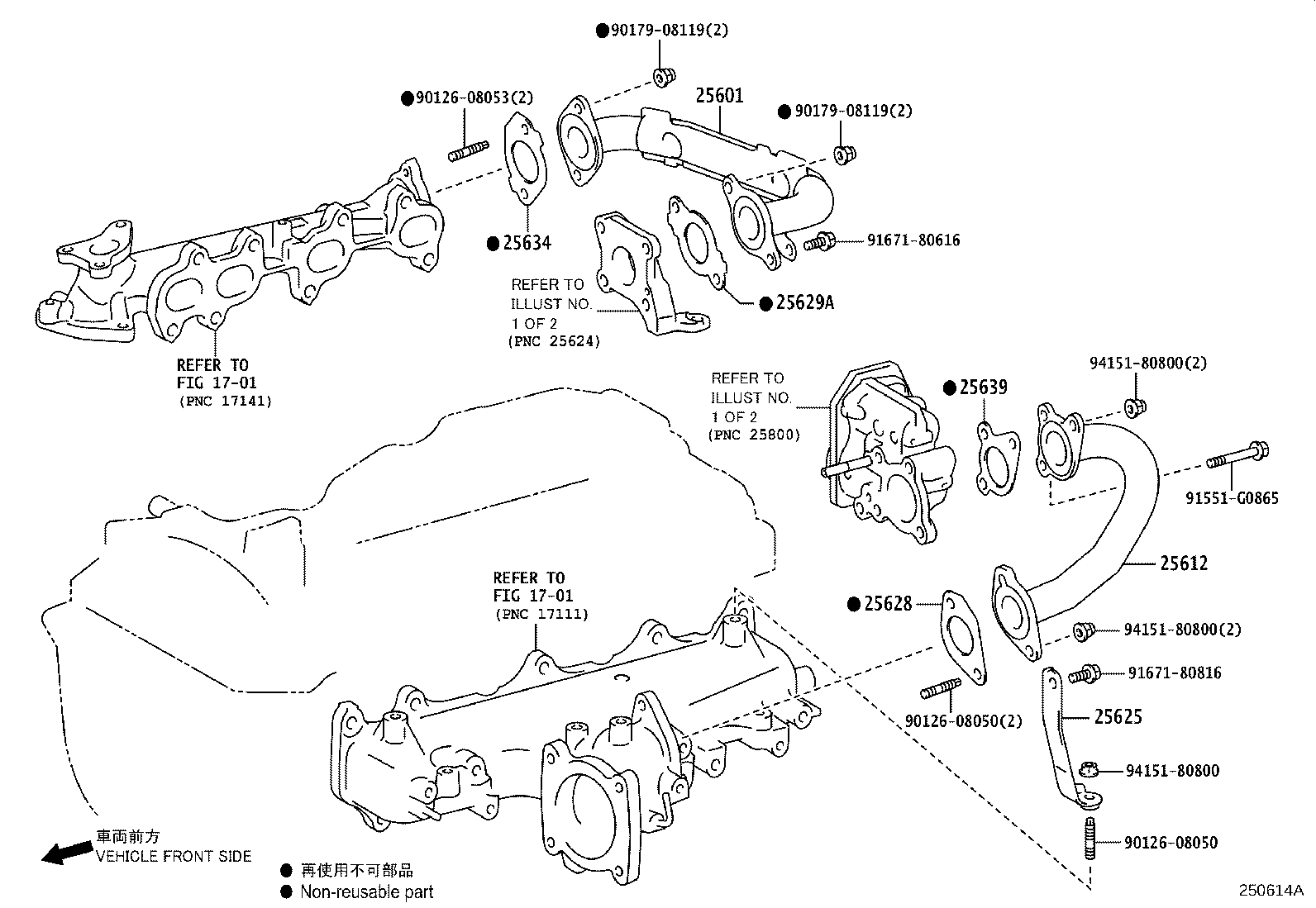

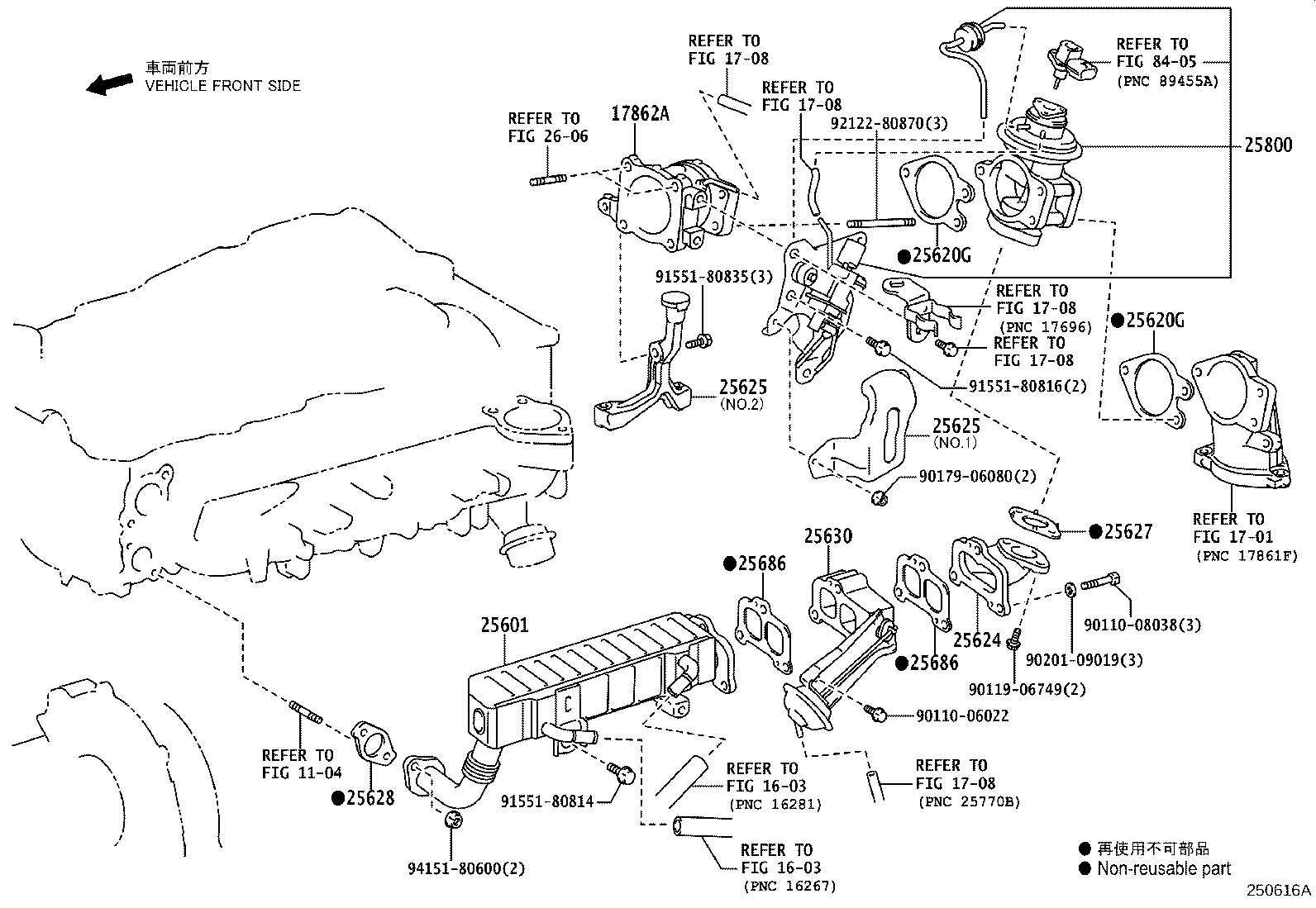

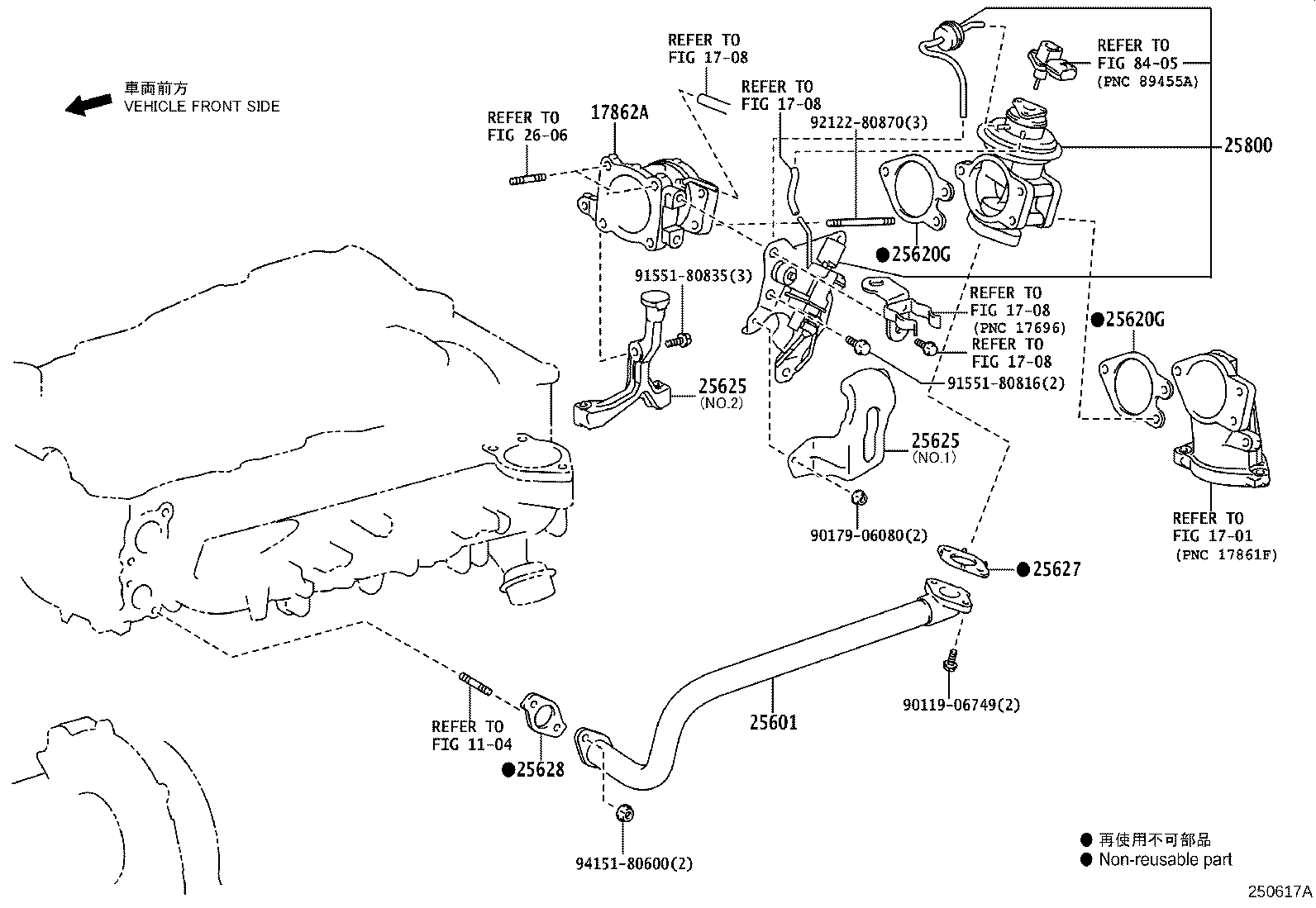

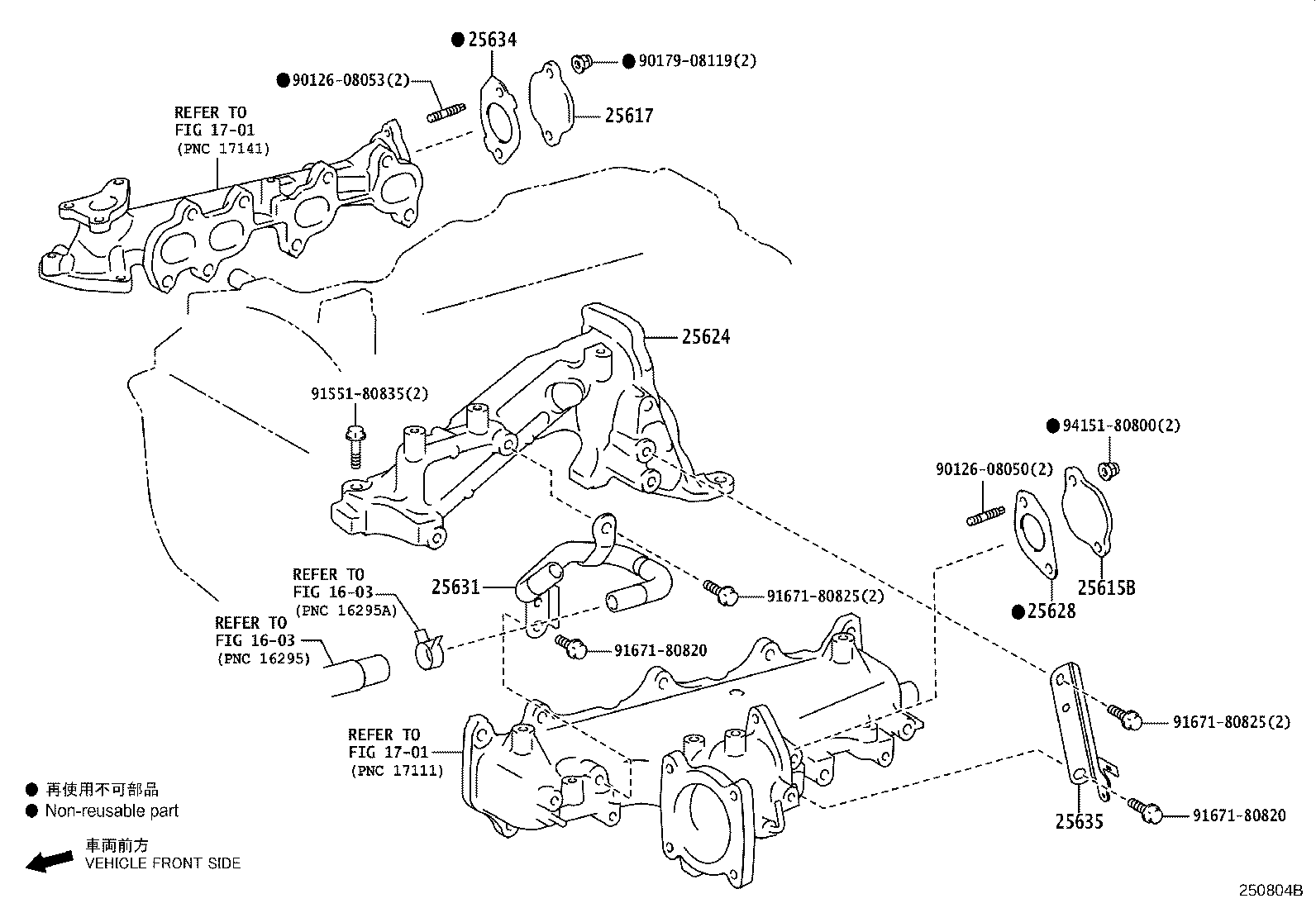

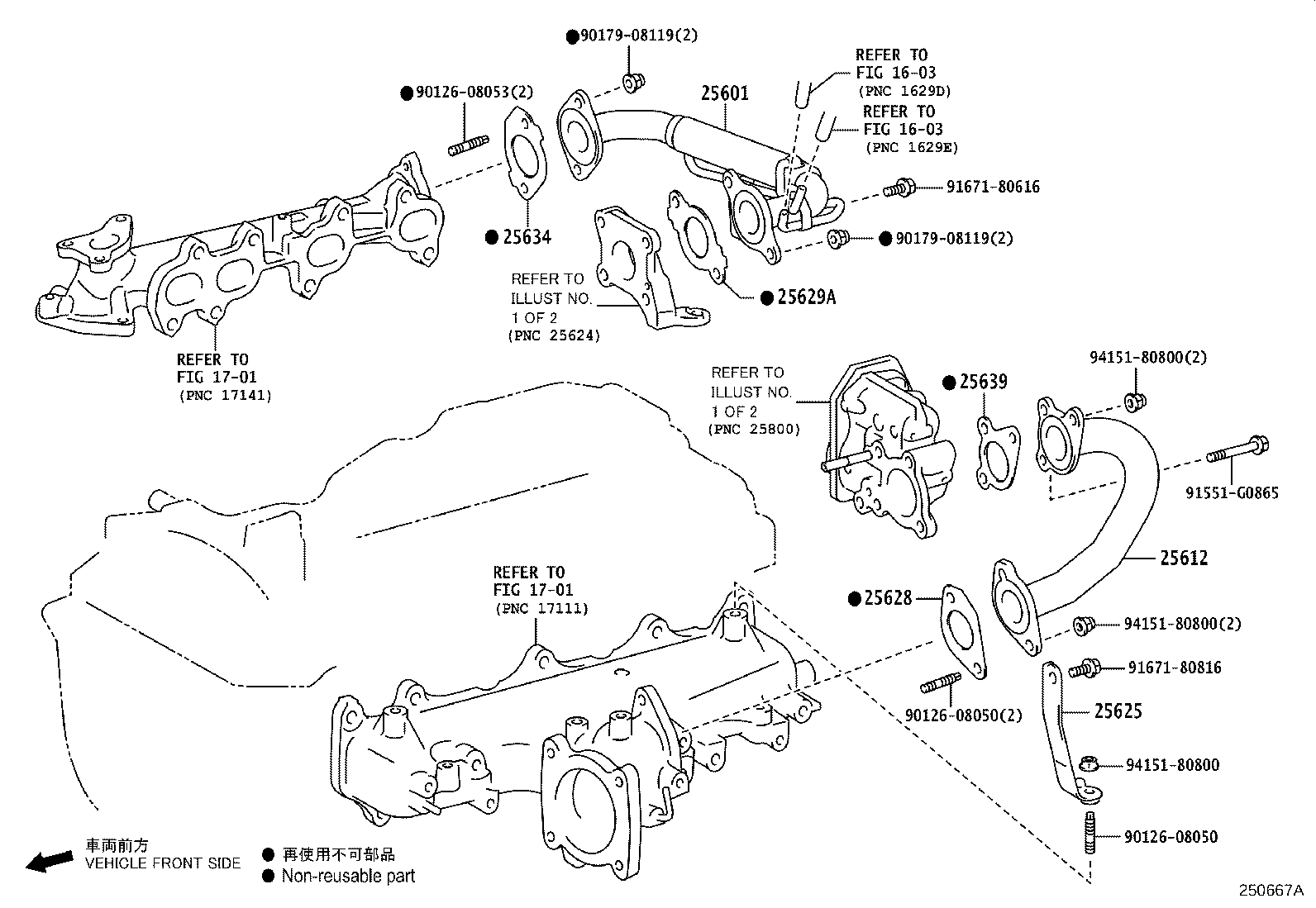

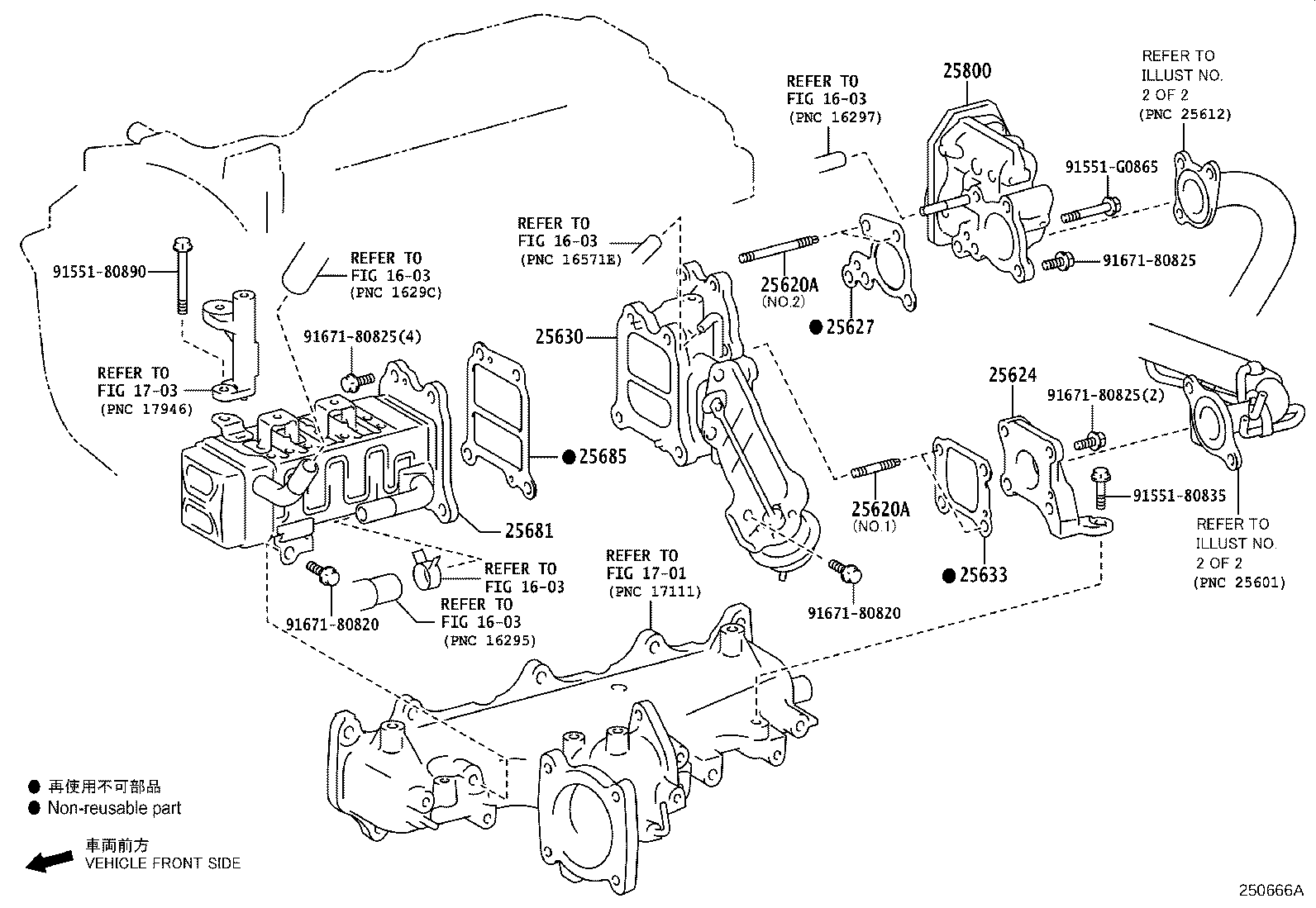

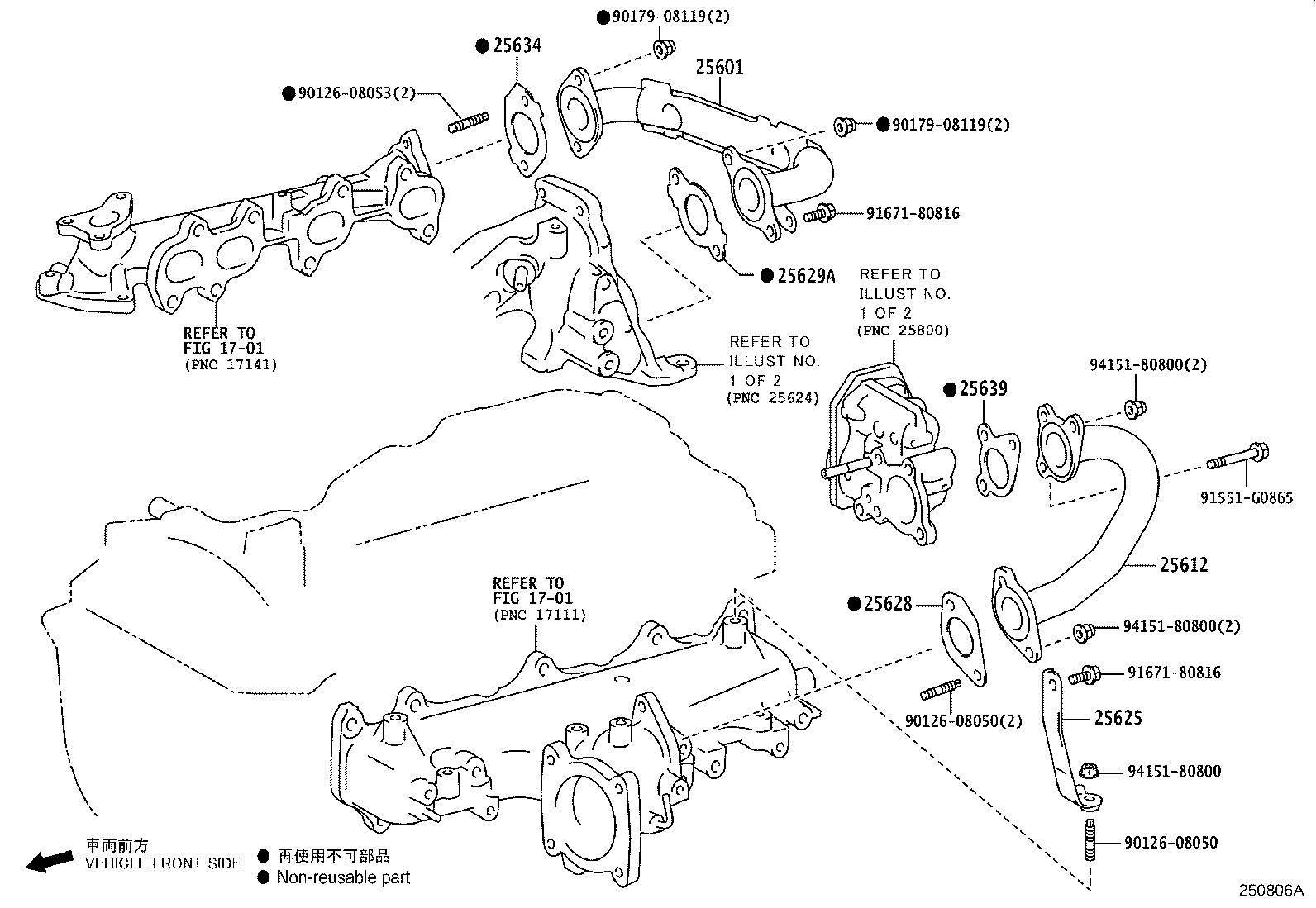

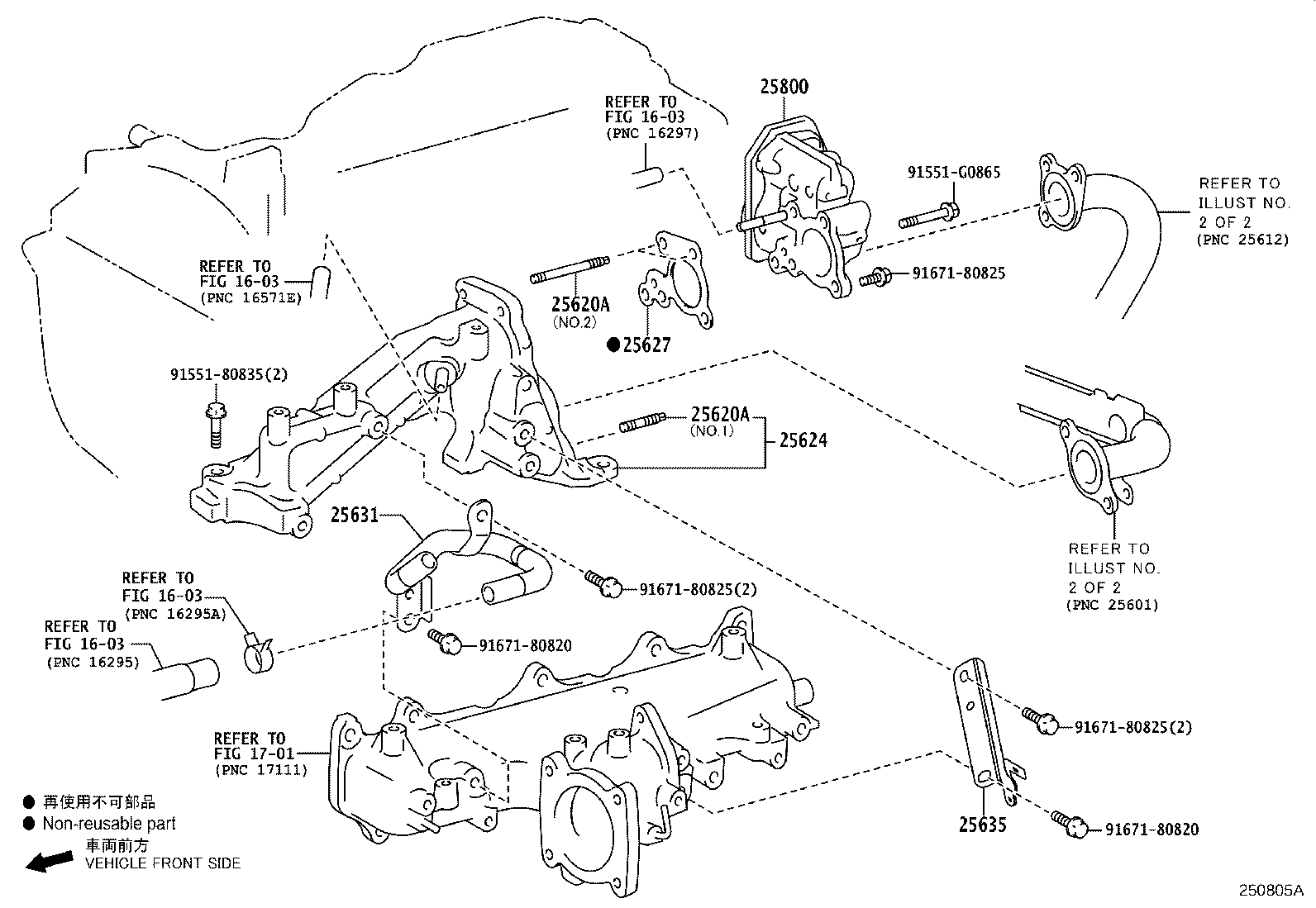

Exhaust Gas Recirculation System
22 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 17862A | Connector, Intake Air, NO.2 |
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25612 | Pipe, Egr, NO.2 |
| 25615B | Plate, Egr Hole Cover, NO.1 |
| 25617 | Plate, Egr Hole Cover |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25620G | Gasket, Diesel Throttle |
| 25624 | Adapter, Egr Valve |
| 25625 | Bracket, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25629A | Gasket, Egr Pipe, NO.2 |
| 25630 | Valve Assy, Egr, NO.2 |
| 25631 | Stay, Egr Pipe, NO.1 |
| 25633 | Gasket, Egr Valve |
| 25634 | Gasket, Egr Pipe |
| 25635 | Bracket, Egr Pipe, NO.1 |
| 25639 | Gasket, Egr Pipe, NO.3 |
| 25681 | Cooler, Egr, NO.1 |
| 25685 | Gasket, Egr Cooler, NO.1 |
| 25686 | Gasket, Egr Cooler, NO.2 |
| 25800 | Valve Assy, Electric Egr Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
