Venturi

4 part groups · 5 illustrations

Illustrations

260478 2017-08 → 2020-08

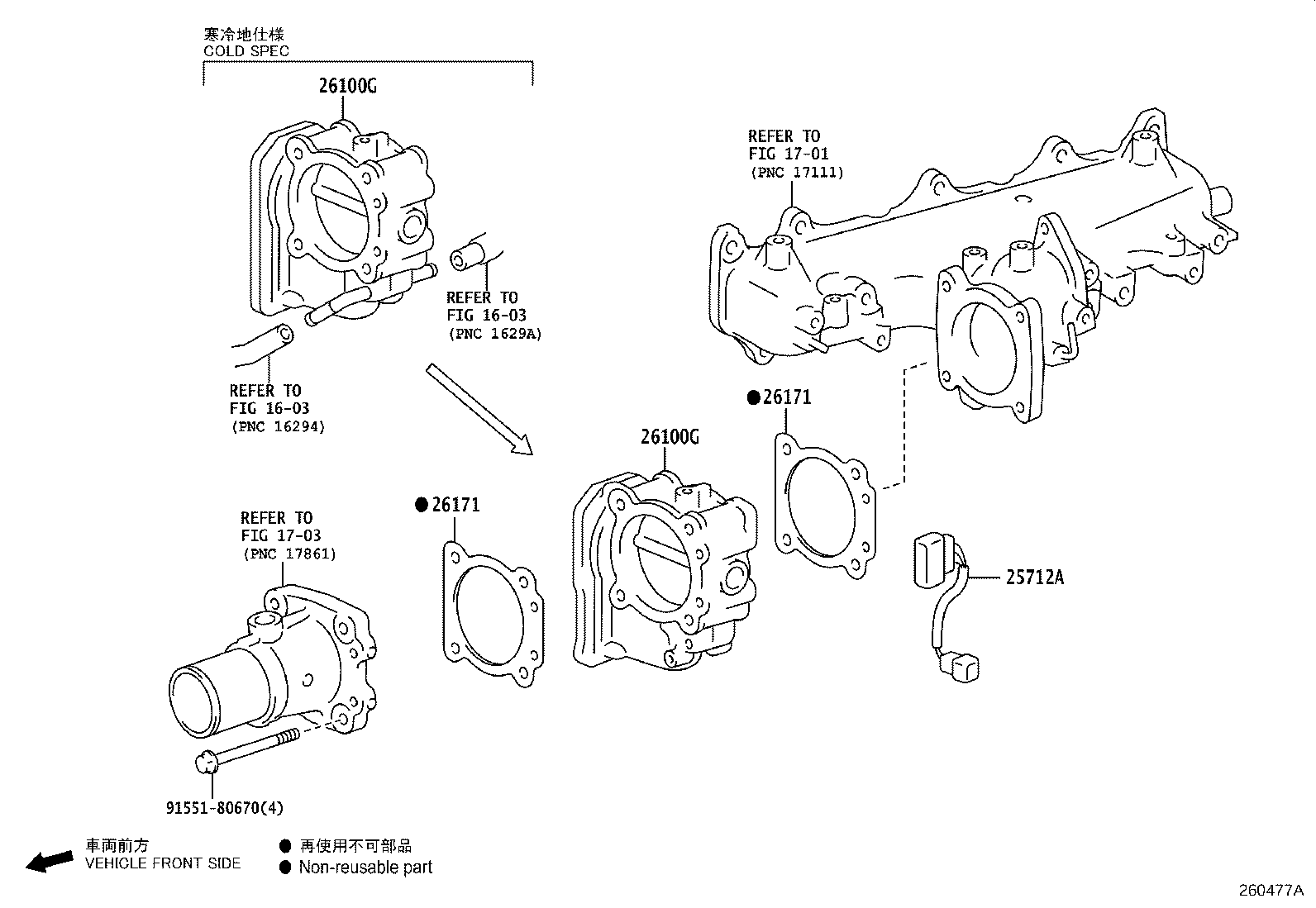

Figure 260477A

260477A 2020-08 → —

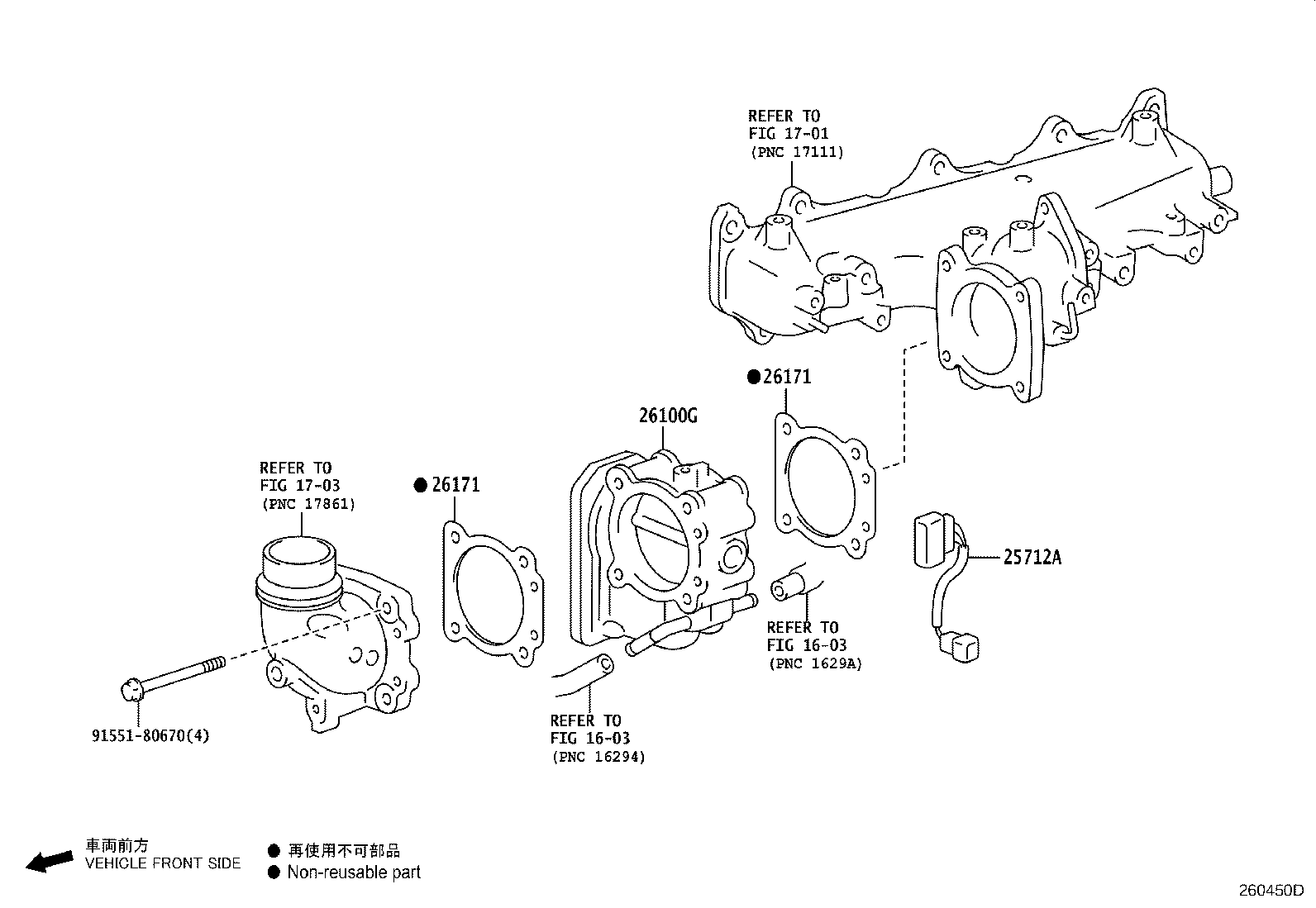

Figure 260450D

260450D 2020-08 → —

Figure 260440A

260440A 2017-08 → —

Figure 260442A

260442A 2017-08 → —

Part groups

PNC	Description
25712A	Wire, Emission Control Valve
26100	Venturi Assy
26100G	Body Assy, Diesel Throttle
26171	Gasket, Venturi

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
