Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General
Supported model
Data version 2020-08

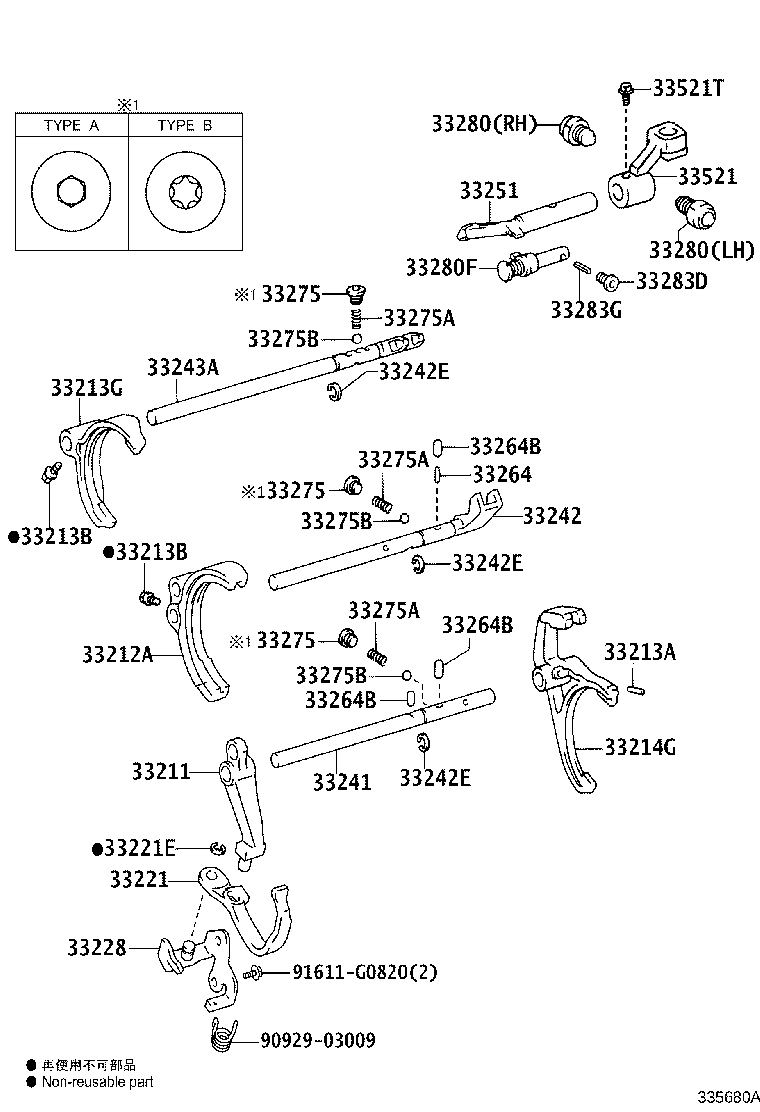

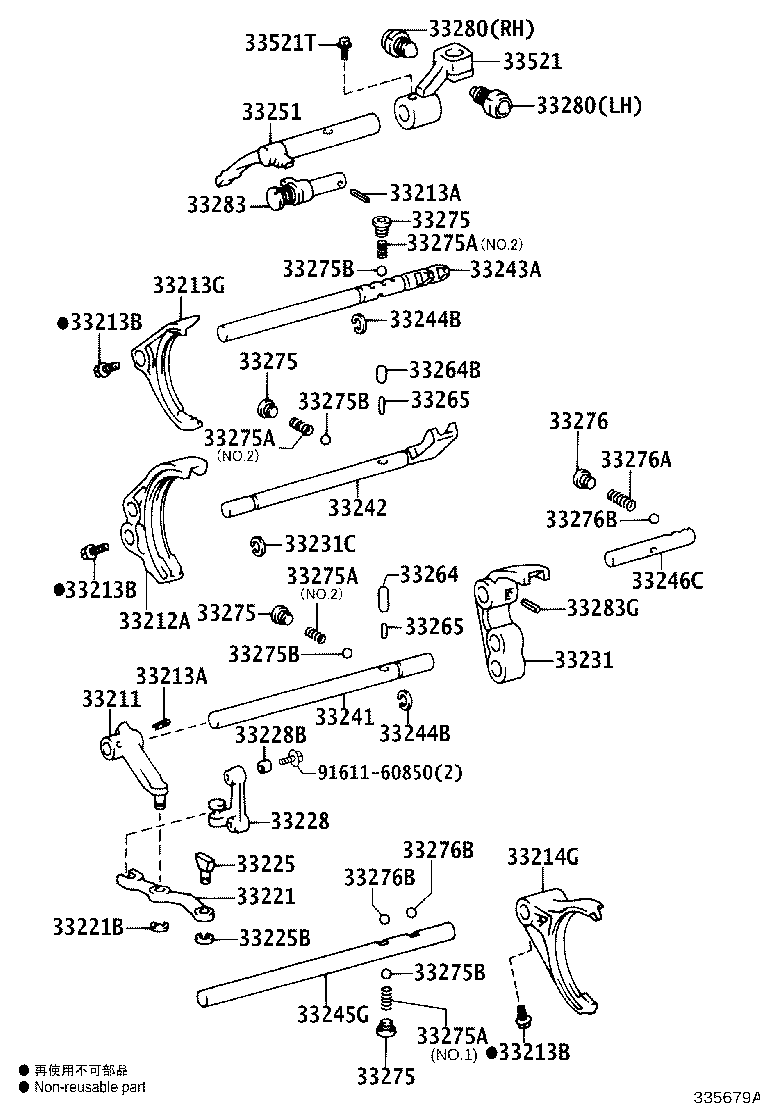

Gear Shift Fork & Lever Shaft (MTM)
58 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33205F | Spring, Compression(FOR SELECT RETURN) |
| 33211 | Fork, Reverse Shift |
| 33212A | Fork, Gear Shift, NO.1 |
| 33213A | Pin, Slotted Spring(FOR SHIFT FORK SET) |
| 33213B | Bolt(FOR SHIFT FORK SET) |
| 33213G | Fork, Gear Shift, NO.2 |
| 33214G | Fork, Gear Shift, NO.3 |
| 33215B | Fork, Gear Shift, NO.4 |
| 33221 | Arm, Reverse Shift |
| 33221B | Ring, E(FOR REVERSE SHIFT ARM) |
| 33221E | Ring(FOR REVERSE SHIFT ARM END SHAFT) |
| 33223 | Pivot, Shift Arm |
| 33225 | Shoe, Shift Arm |
| 33225B | Ring, E(FOR SHIFT ARM SHOE) |
| 33228 | Bracket, Reverse Shift Arm |
| 33228B | Pin, Ring(FOR REVERSE SHIFT ARM BRACKET) |
| 33229A | Arm, Release, NO.1 |
| 33231 | Head, Reverse Shift |
| 33231C | Ring(FOR REVERSE SHIFT HEAD) |
| 33232F | Head, Gear Shift, NO.1 |
| 33233A | Head, Gear Shift, NO.2 |
| 33241 | Shaft, Reverse Shift Fork |
| 33242 | Shaft, Gear Shift Fork, NO.1 |
| 33242D | Pin, Slotted Spring (FOR SHIFT FORK SHAFT) |
| 33242E | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33242G | Ring, E (FOR SHIFT FORK SHAFT) |
| 33243A | Shaft, Gear Shift Fork, NO.2 |
| 33244B | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33244D | Shaft, Gear Shift Fork, NO.3 |
| 33245G | Shaft, Gear Shift Fork, NO.4 |
| 33246C | Shaft, Gear Shift Fork, NO.5 |
| 33251 | Lever, Shift & Select |
| 33251C | Bolt, Set (FOR SHIFT & SELECT LEVER) |
| 33259 | Bracket, Shift Interlock |
| 33261C | Shaft, Shift & Select Lever |
| 33261F | Pin, Straight (FOR SHIFT & SELECT LEVER SHAFT) |
| 33264 | Pin, OR Ball, Shift Interlock, NO.1 |
| 33264B | Roller, NO.1 (FOR SHIFT INTERLOCK ) |
| 33265 | Pin, Shift Interlock, NO.2 |
| 33266B | Pin, Shift Interlock, NO.3 |
| 33275 | Seat, Shift Detent Ball Spring, NO.1 |
| 33275A | Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE) |
| 33275B | Ball, Shaft Detent |
| 33275C | Ball (FOR SHIFT DETENT) |
| 33275E | Spring, Compression (FOR SHIFT DETENT BALL) |
| 33275F | Plug (FOR SHIFT DETENT BALL) |
| 33276 | Seat, Shift Detent Ball Spring, NO.2 |
| 33276A | Spring, Compression, NO.2 (FOR SHIFT DETENT BALL) |
| 33276B | Ball, Shift Detent, NO.2 |
| 33280 | Pin Assy, Reverse Restrict |
| 33280F | Pin Assy, Reverse Restrict |
| 33283 | Pin, Reverse Restrict, NO.1 |
| 33283D | Plug (FOR REVERSE RESTRICT PIN) |
| 33283G | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33292A | Pin, Lock Ball |
| 33295C | Cam, Shift & Select |
| 33521 | Housing, Shift Lever |
| 33521T | Bolt (FOR SHIFT LEVER HOUSING) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
