Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

15 part groups · 5 illustrations

Illustrations

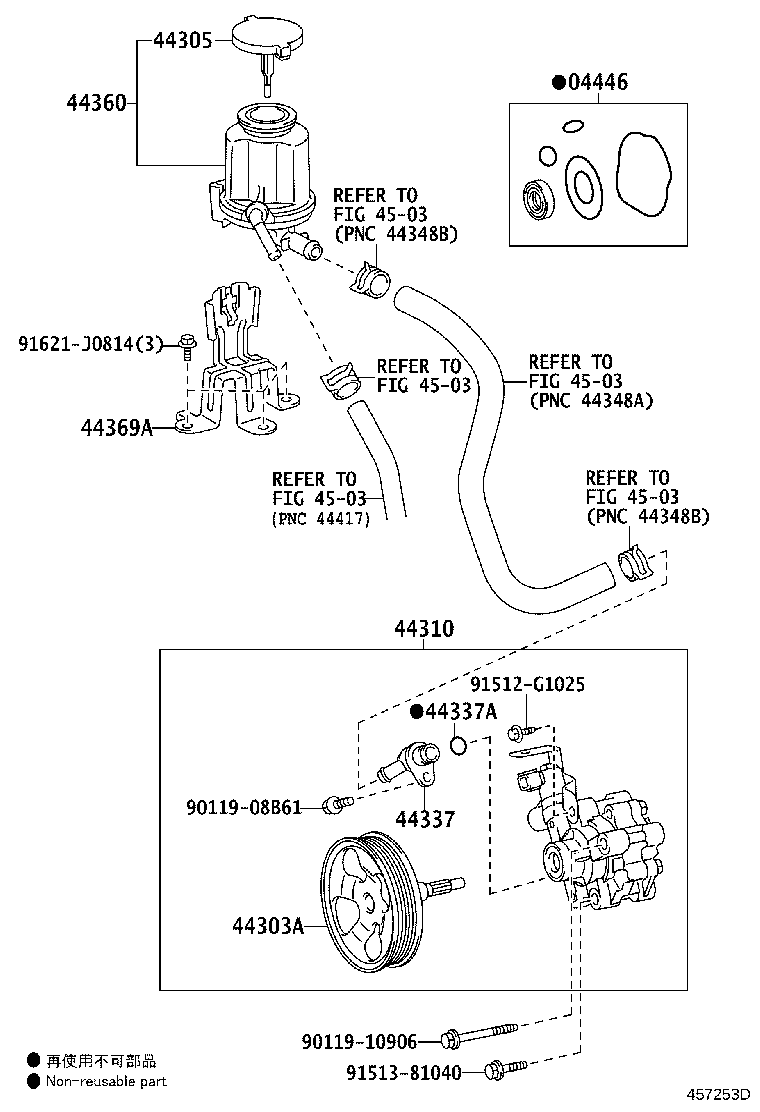

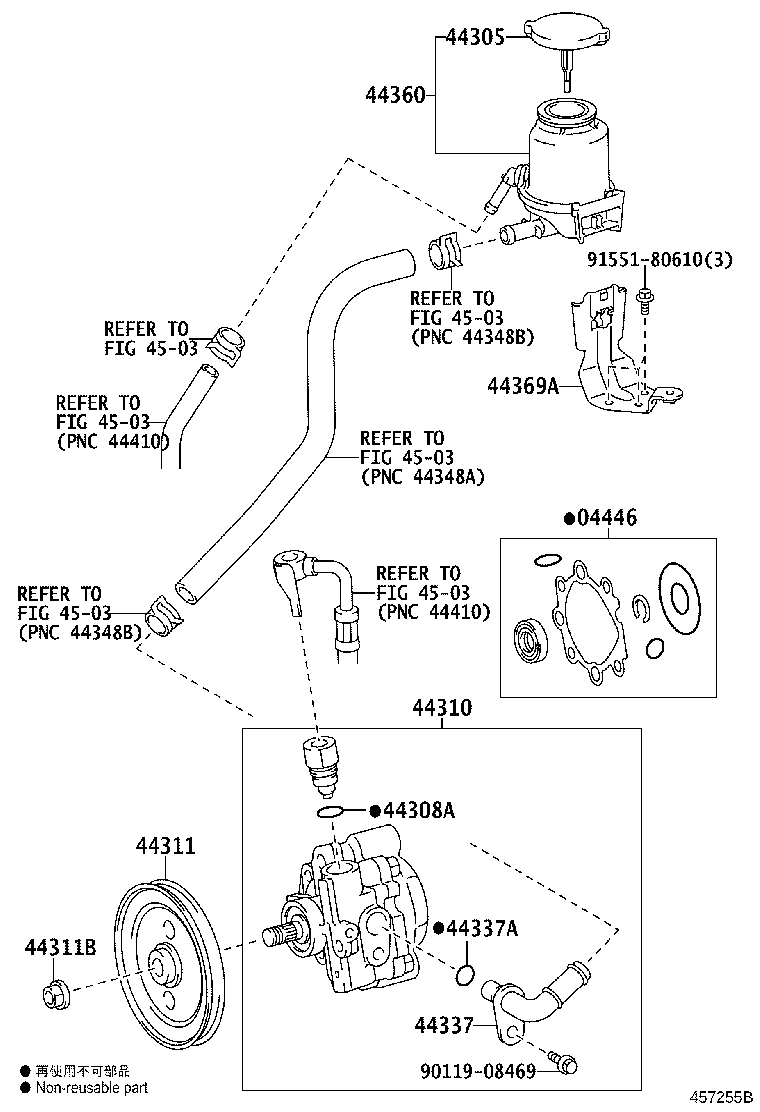

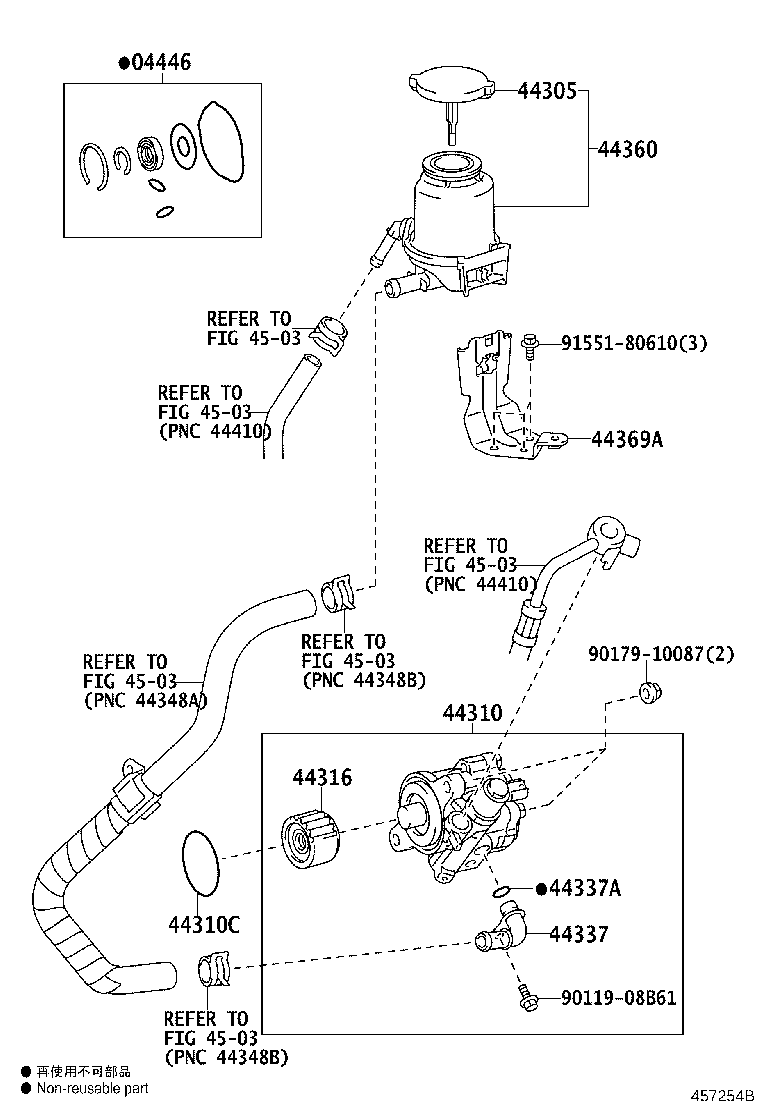

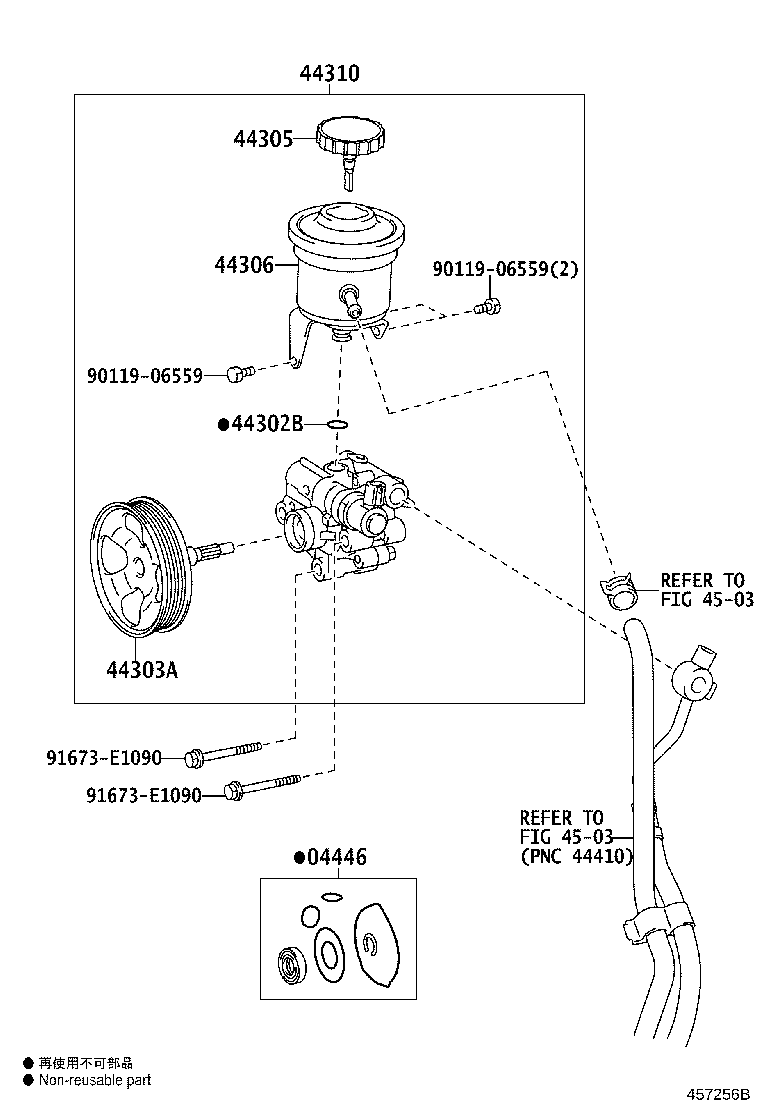

Figure 457257E 457257E 2017-08 → — Figure 457253D 457253D 2017-08 → — Figure 457254B 457254B 2017-08 → — Figure 457255B 457255B 2017-08 → — Figure 457256B 457256B 2017-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44302B Ring, O, NO.1(FOR VANE PUMP HOUSING)
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44306 Reservoir Sub-assy, Vane Pump Oil
44308A Ring, O(FOR PRESSURE PORT UNION)
44310 Pump Assy, Vane
44310C Ring, O(FOR VANE PUMP)
44311 Pulley, Vane Pump
44311B Nut(FOR VANE PUMP PULLEY)
44316 Gear, Vane Pump
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44369A Bracket, Oil Reservoir, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
