Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

13 part groups · 11 illustrations

Illustrations

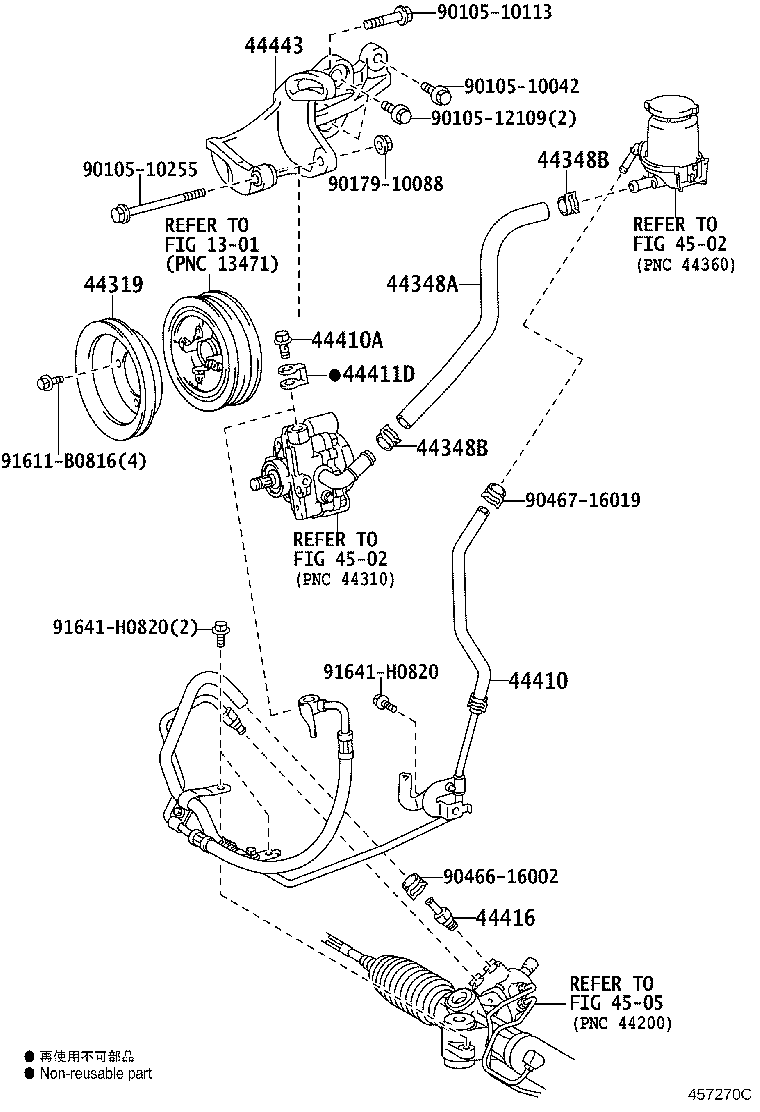

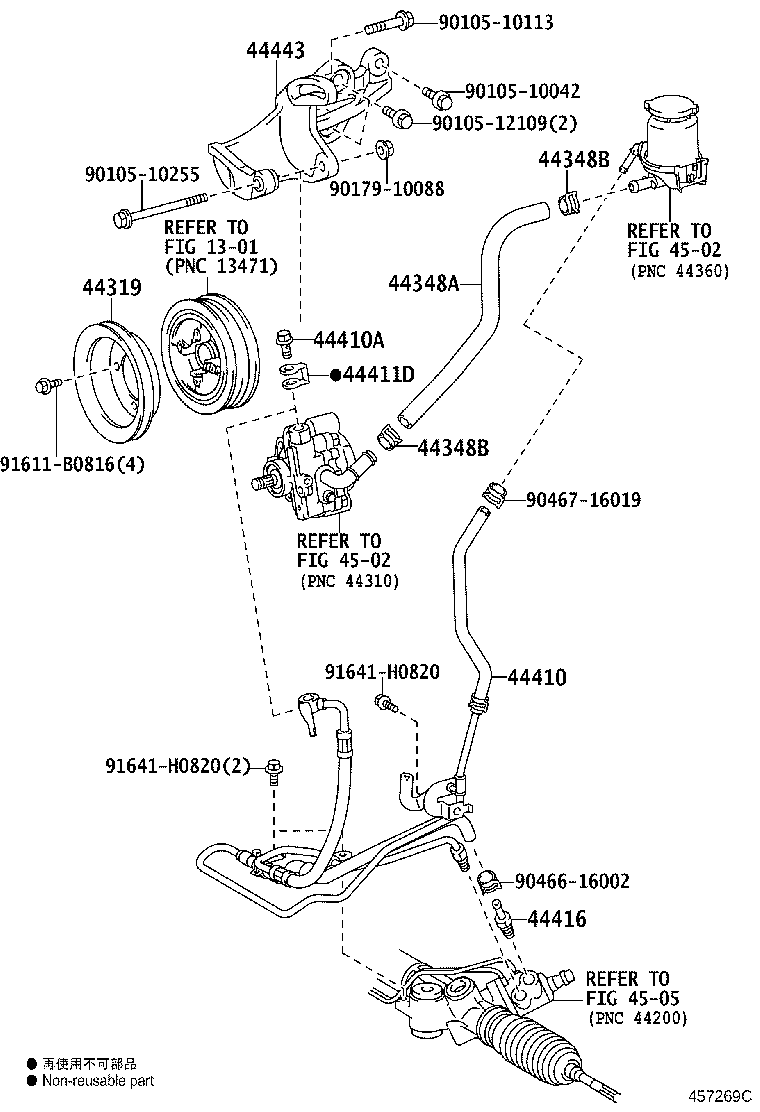

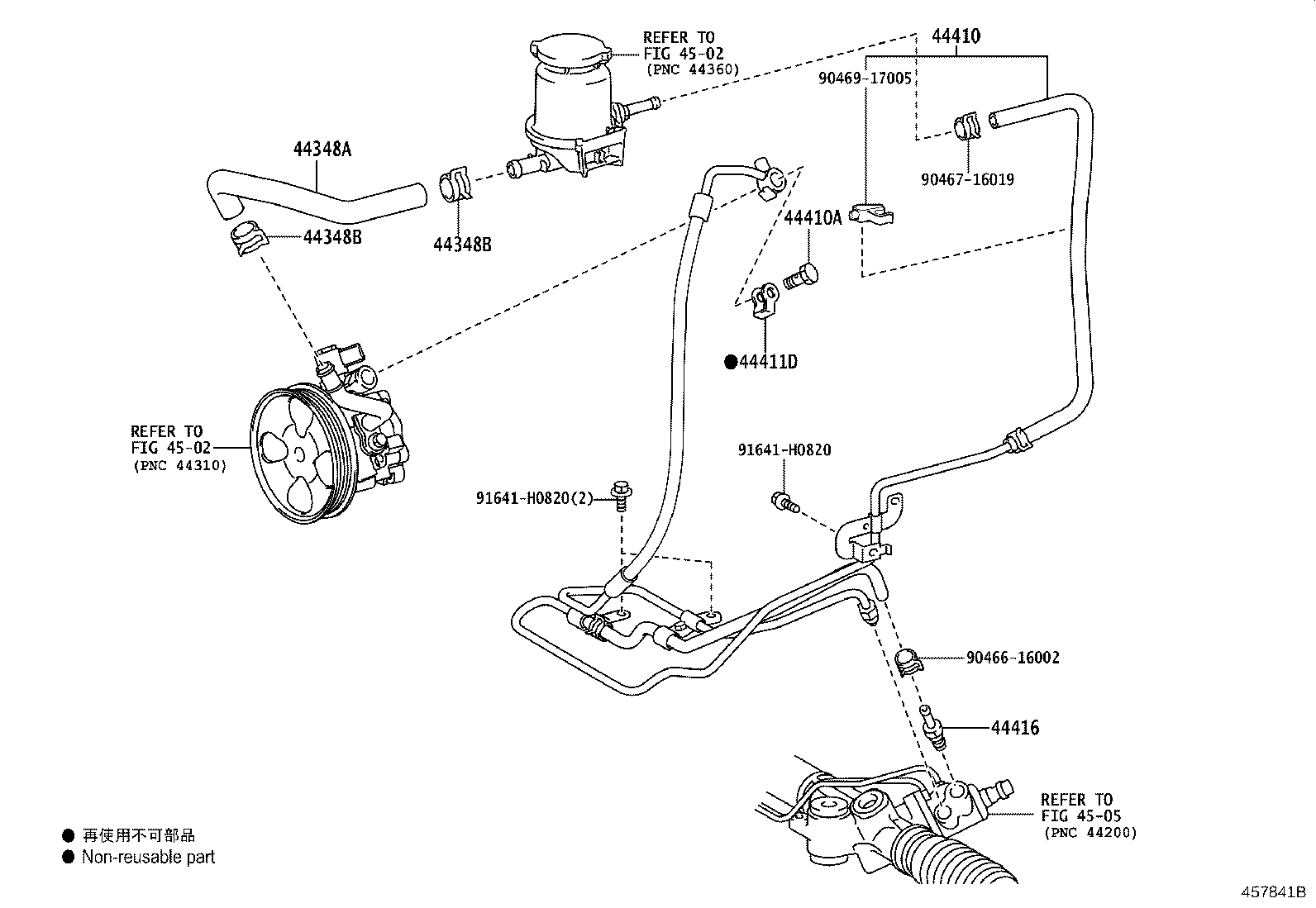

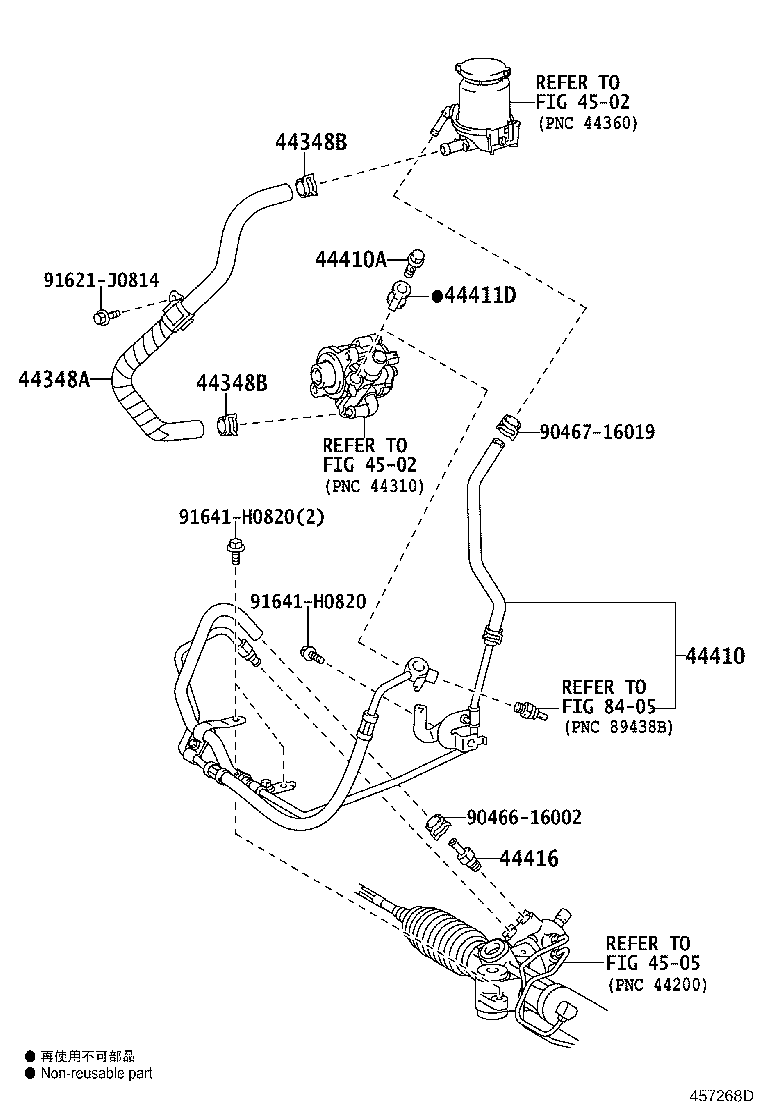

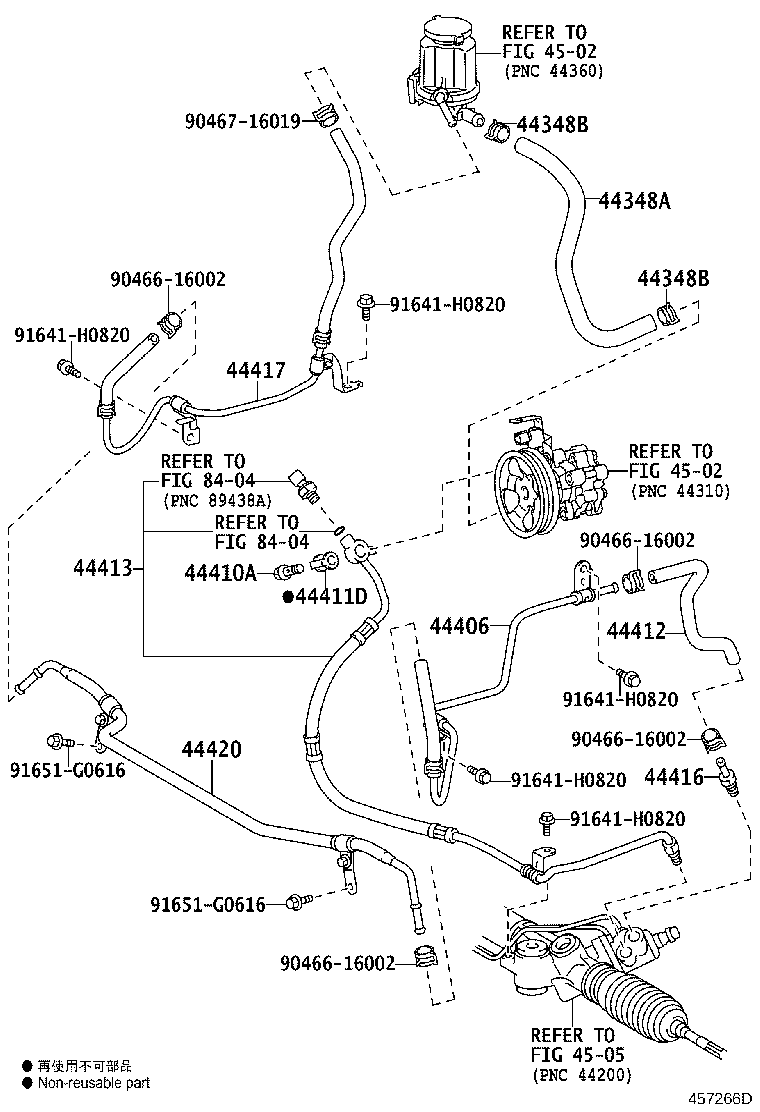

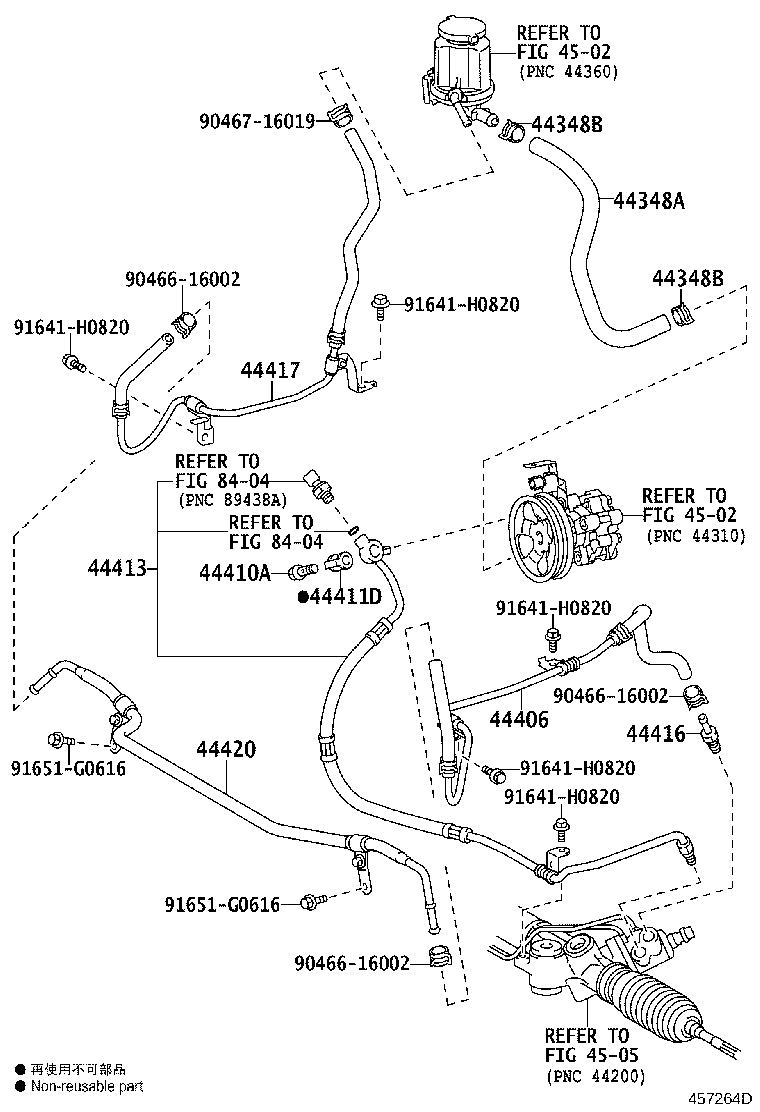

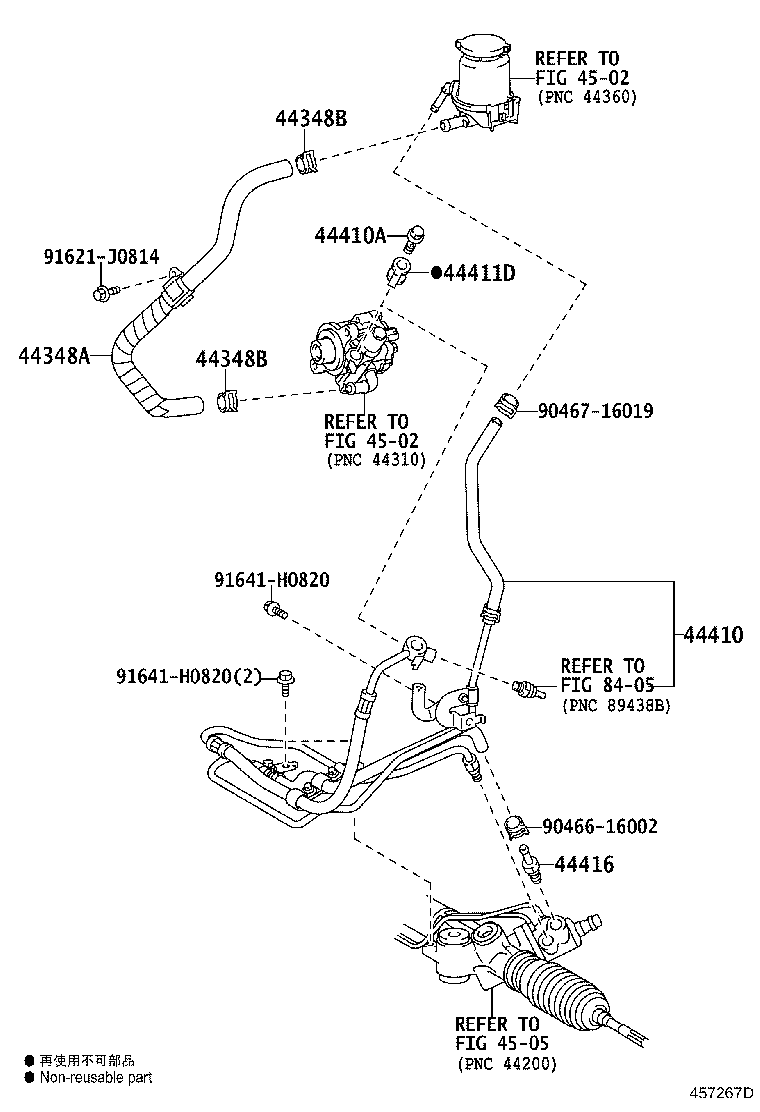

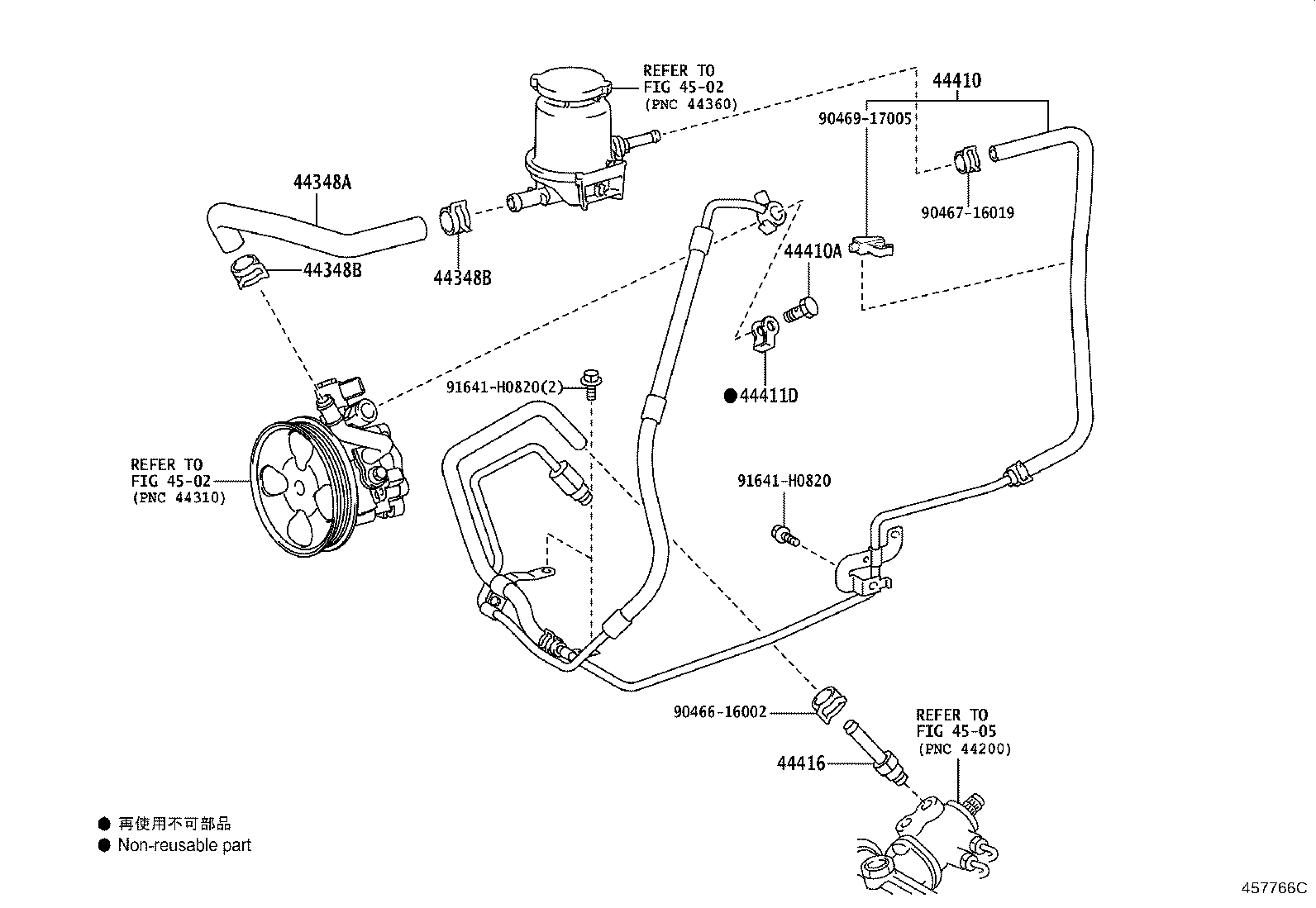

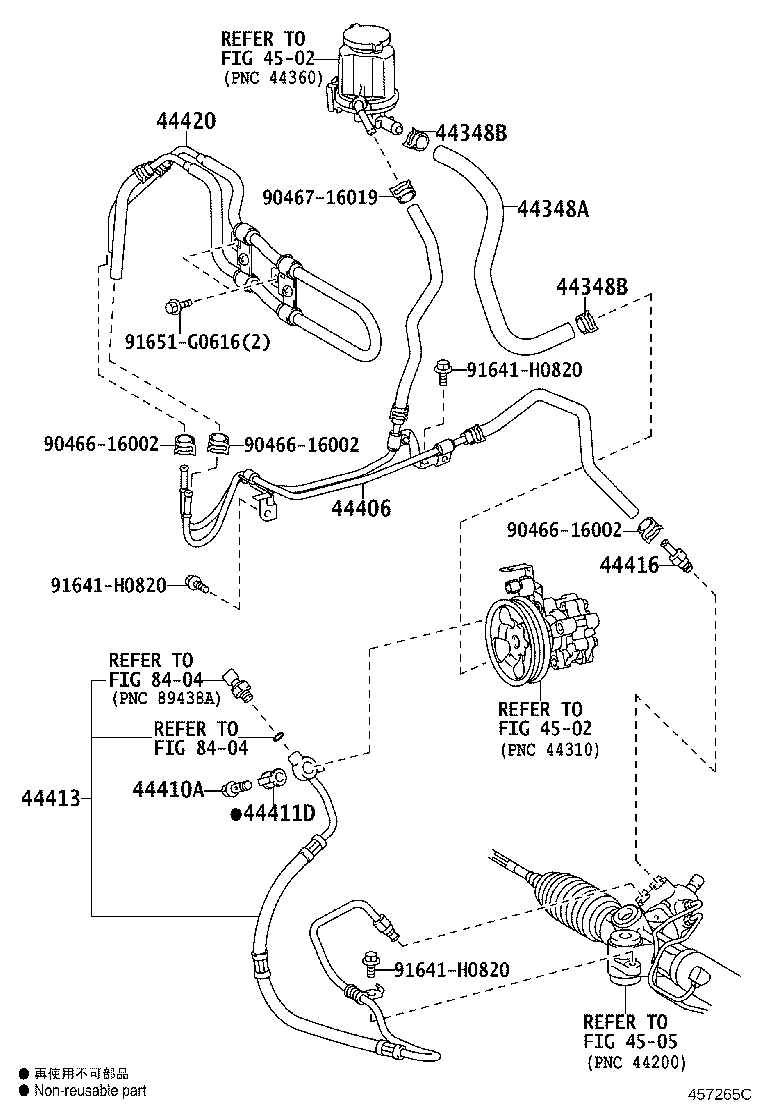

Figure 457263D 457263D 2017-08 → 2020-08 Figure 457264D 457264D 2017-08 → — Figure 457265C 457265C 2017-08 → — Figure 457266D 457266D 2017-08 → — Figure 457267D 457267D 2017-08 → — Figure 457268D 457268D 2017-08 → — Figure 457269C 457269C 2017-08 → — Figure 457270C 457270C 2017-08 → — Figure 457271D 457271D 2017-08 → — Figure 457841B 457841B 2020-08 → — Figure 457766C 457766C 2020-08 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44417 Tube, Return, NO.2
44420 Cooler Assy, Oil
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
