Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General
Supported model
Data version 2020-08

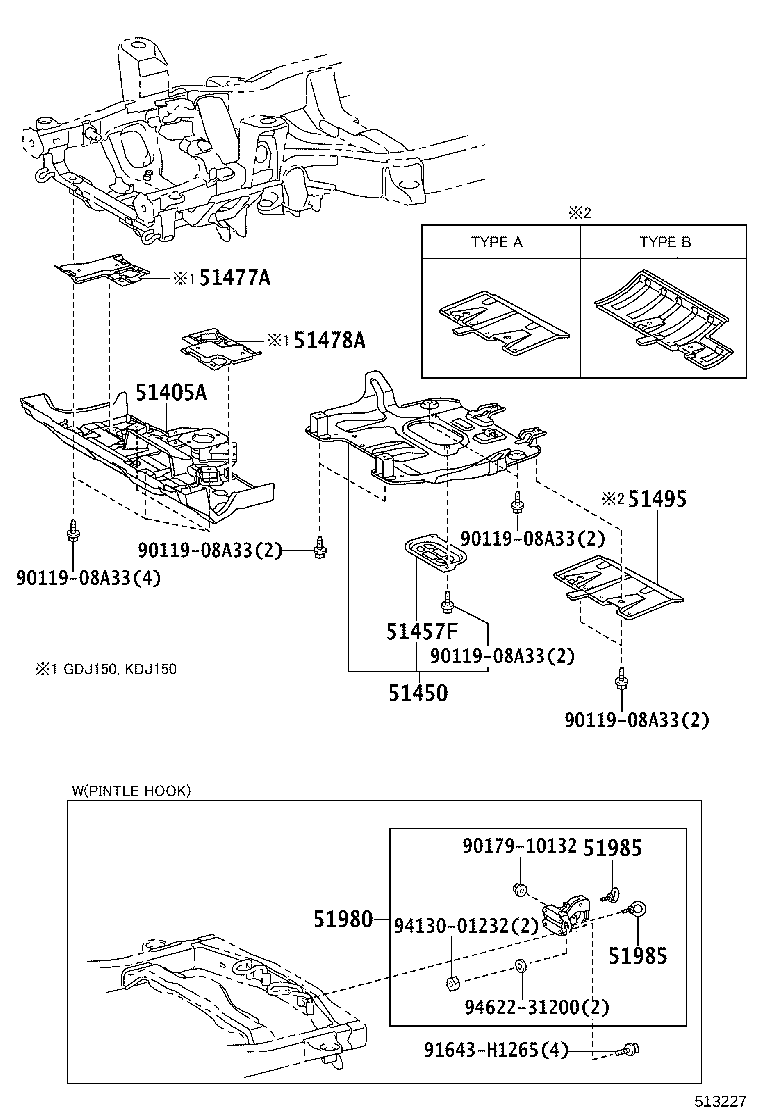

Suspension Crossmember & Under Cover
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51405A | Cover Sub-assy, Engine Under, NO.1 |
| 51450 | Cover Assy, Engine Under, Rear |
| 51457F | Seal, Engine Under Cover |
| 51475 | Silencer, Engine Under Cover, NO.5 |
| 51477A | Silencer, Engine Under Cover, RH |
| 51478A | Silencer, Engine Under Cover, LH |
| 51495 | Cover, Transmission Under |
| 51980 | Hook Assy, Pintle |
| 51985 | Hook, Eyelet Pintle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
