Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General
Supported model
Data version 2020-08
Front Bumper & Bumper Stay
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52025B | Extension Sub-assy, Front Bumper, NO.2 RH |
| 52026B | Extension Sub-assy, Front Bumper, NO.2 LH |
| 52102 | Bracket Sub-assy, Front Bumper, RH |
| 52103 | Bracket Sub-assy, Front Bumper, LH |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52119D | Screw, NO.1 |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126A | Bracket, Fog Lamp Mounting, LH |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52149 | Bracket, Front Bumper, Inner |
| 52161C | Piece, Front Bumper |

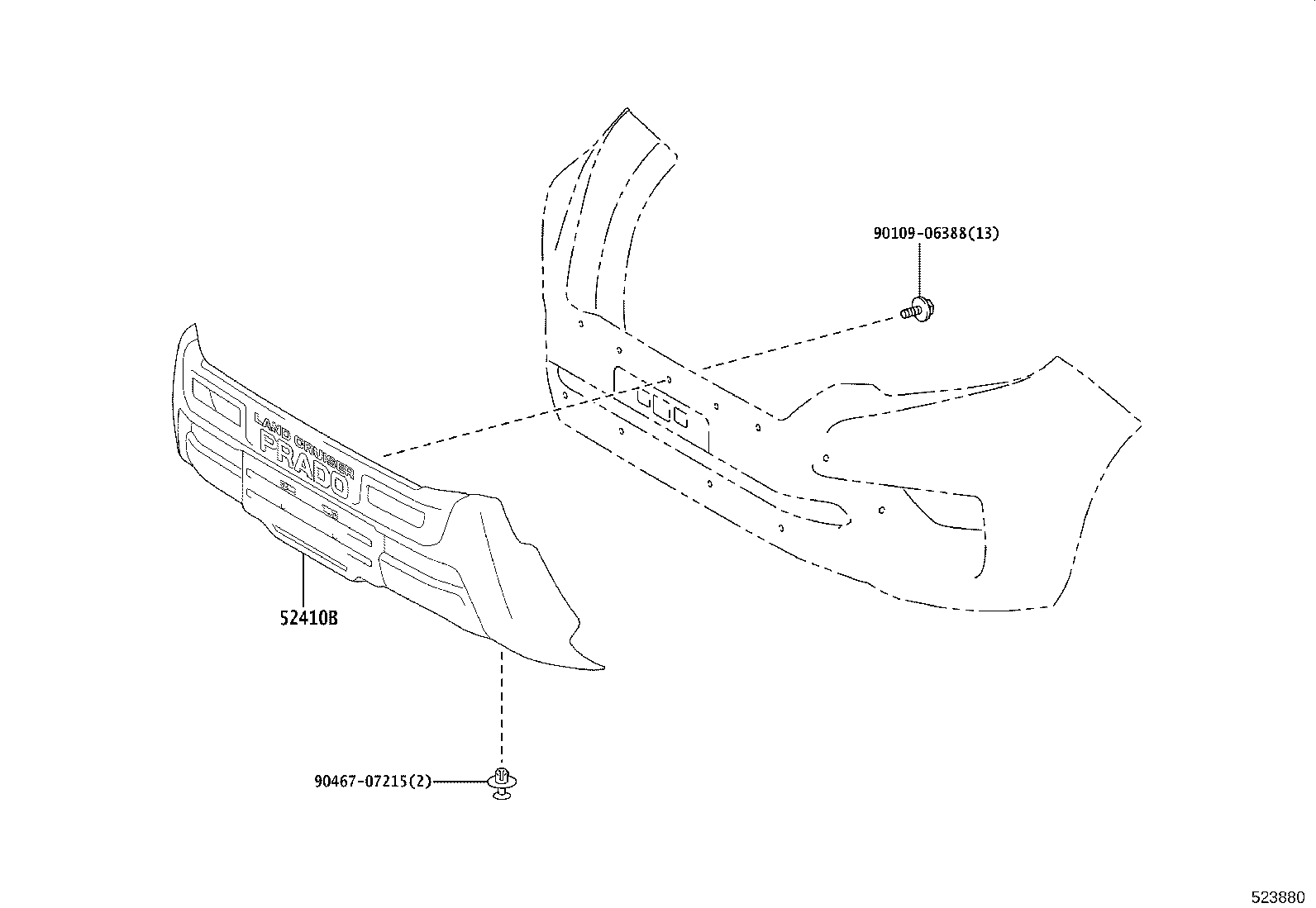

| 52410B | Guard Assy, Front Bumper |
| 52491A | Bolt, Bumper Pad |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52618 | Absorber, Front Bumper, Lower |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53879H | Retainer, Front Fender Liner |
| 75392 | Retainer, Outside Moulding |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
| 89C48E | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
