Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General

Supported model Data version 2020-08

Caution Plate

22 part groups · 4 illustrations

PNC	Description
11285F	Label, Coolant System Caution
11297C	Label, Engine Service Information, NO.2
11298B	Label, Emission Control Information
17792D	Label, Emission Control Device Information
28897A	Plate, Battery Caution
36369	Label, Transfer Information
41992	Label, Differential Notice
48969	Label, Jack UP Caution

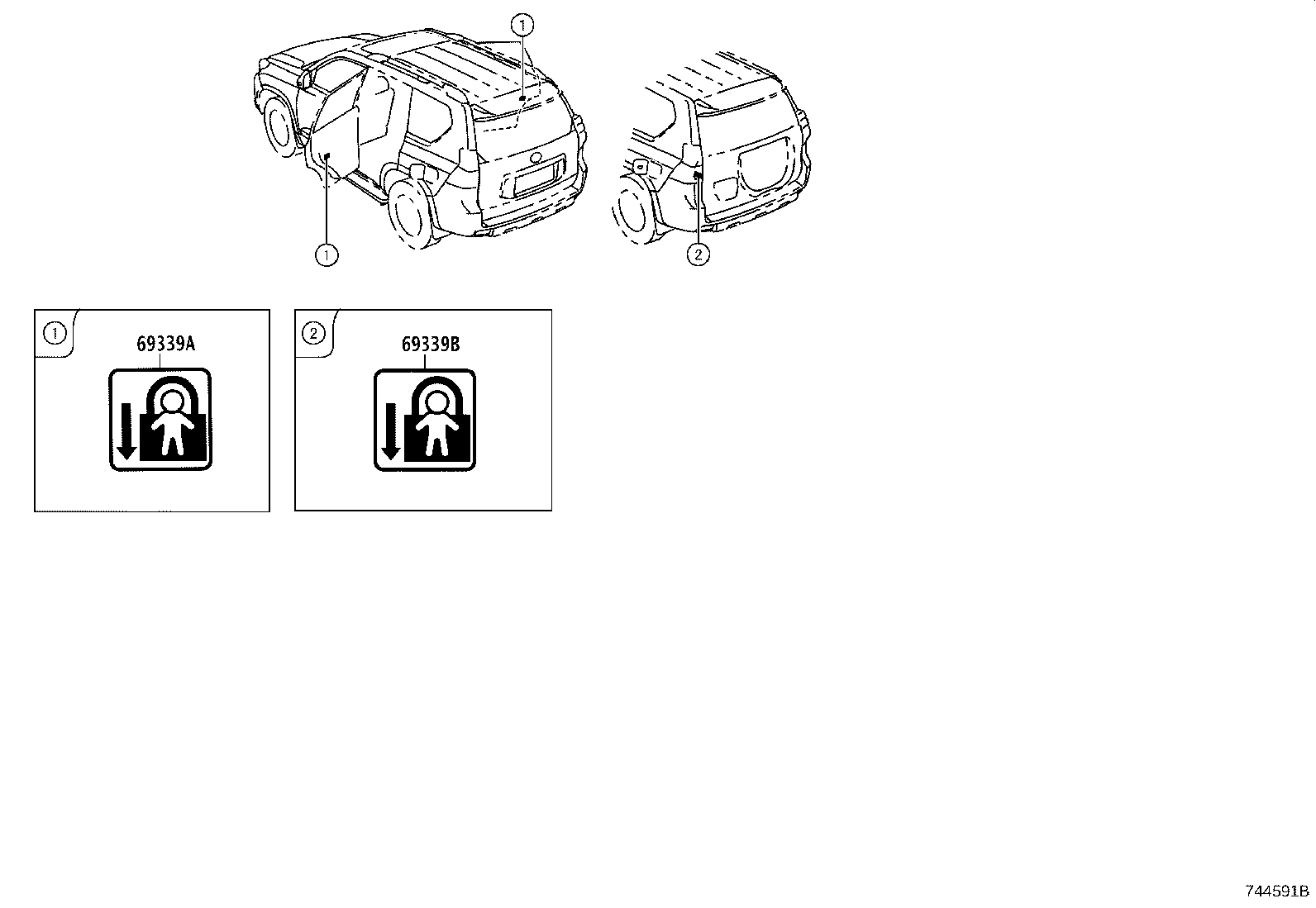

69339A	Plate, Child Protector Lock Caution
69339B	Plate, Child Protector Lock Caution
74511B	Plate, Name
74515C	Label, Theft Warning Information
74543C	Label, Rear Seat Information
74544E	Label, Rear NO.2 Seat Information
74552A	Label, Safety Caution
74559B	Label, Fuel Information
74567A	Plate, E.C.E Approved Number
74596D	Label, Passenger Airbag Caution, NO.2
74598C	Label, Passenger Airbag Caution
74751	Label, Tire Pressure Information
88723E	Label, Cooler Service Caution
88723H	Label, Cooler Service Caution

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
