Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

131 part groups · 22 illustrations

Illustrations

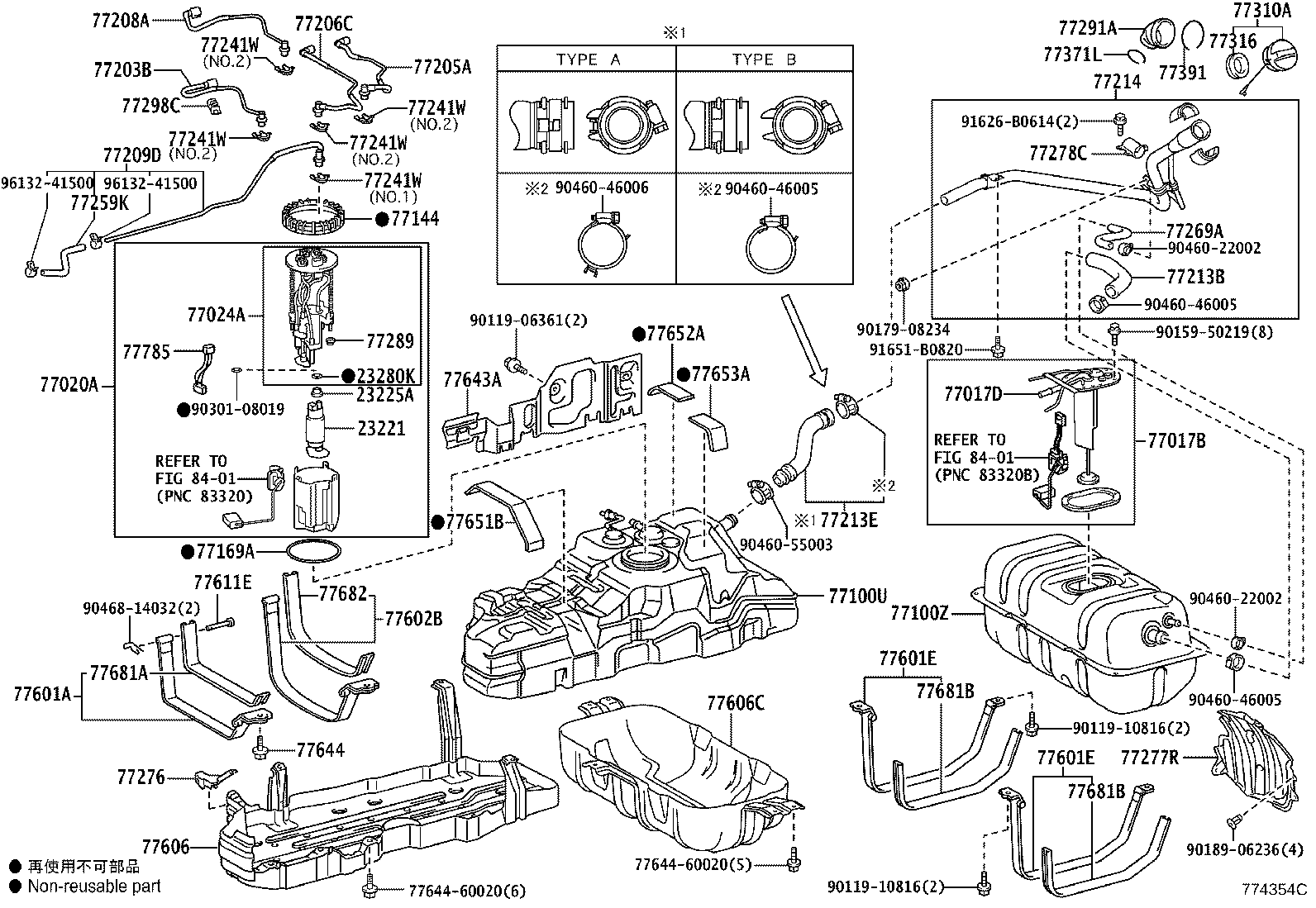

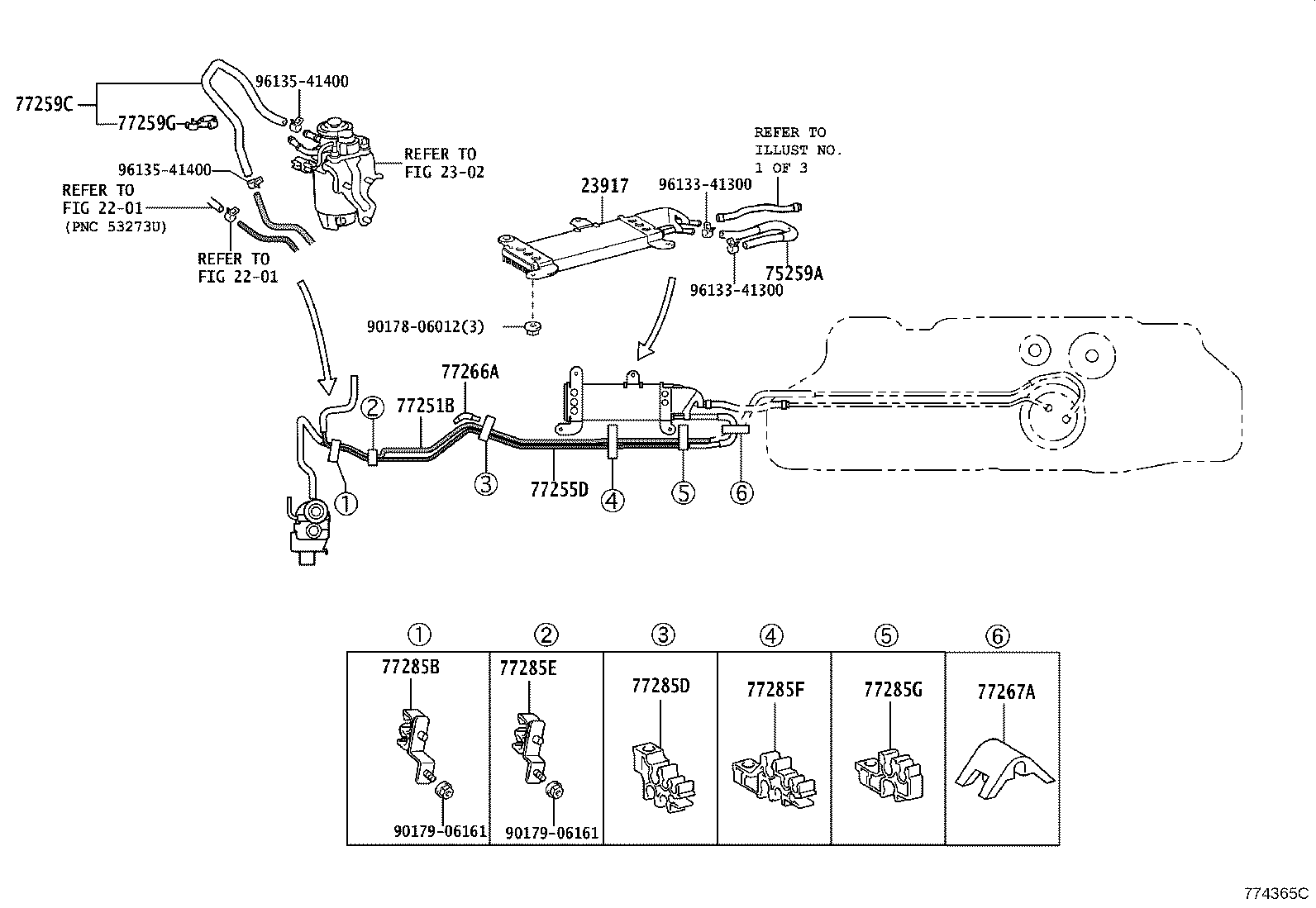

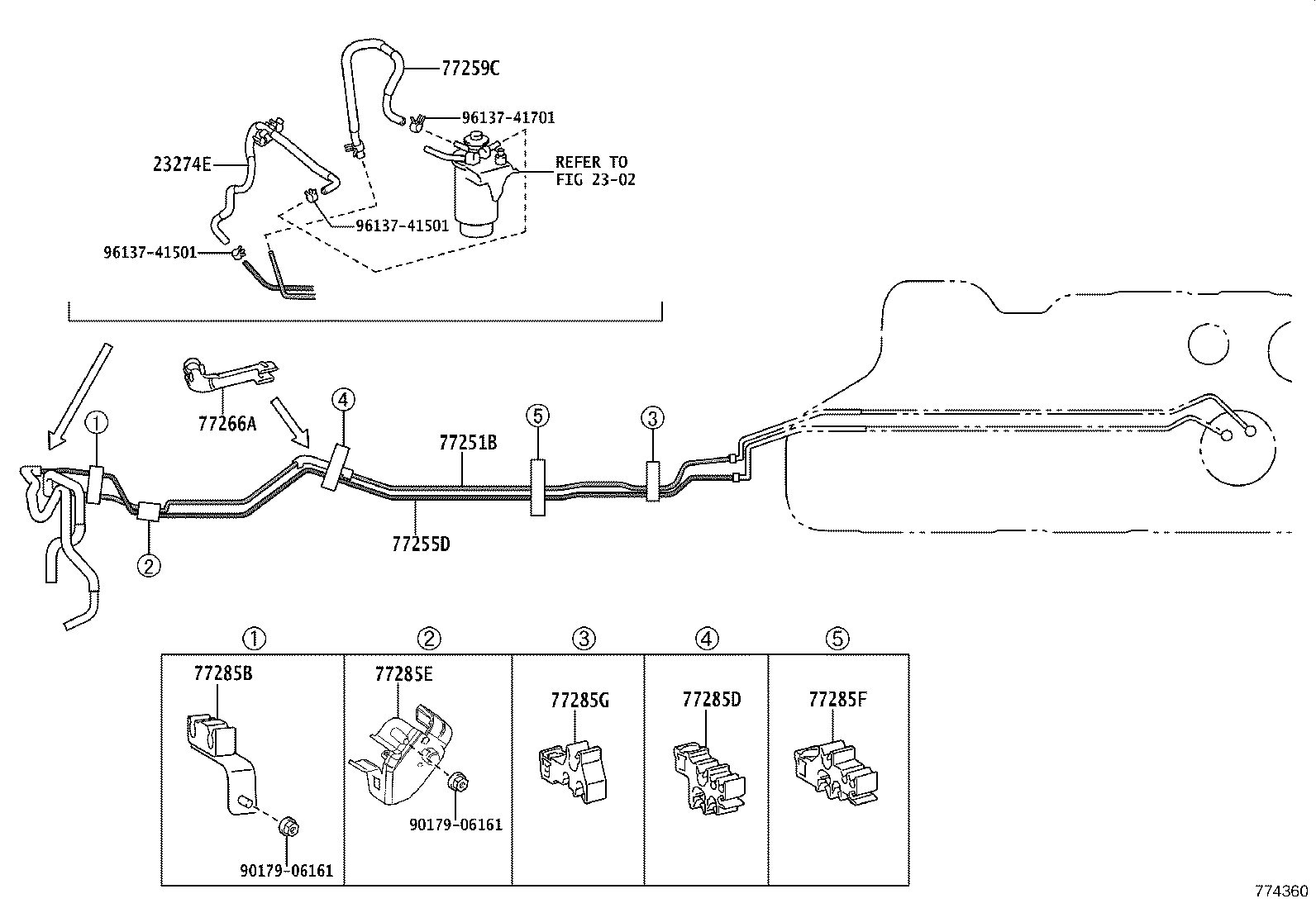

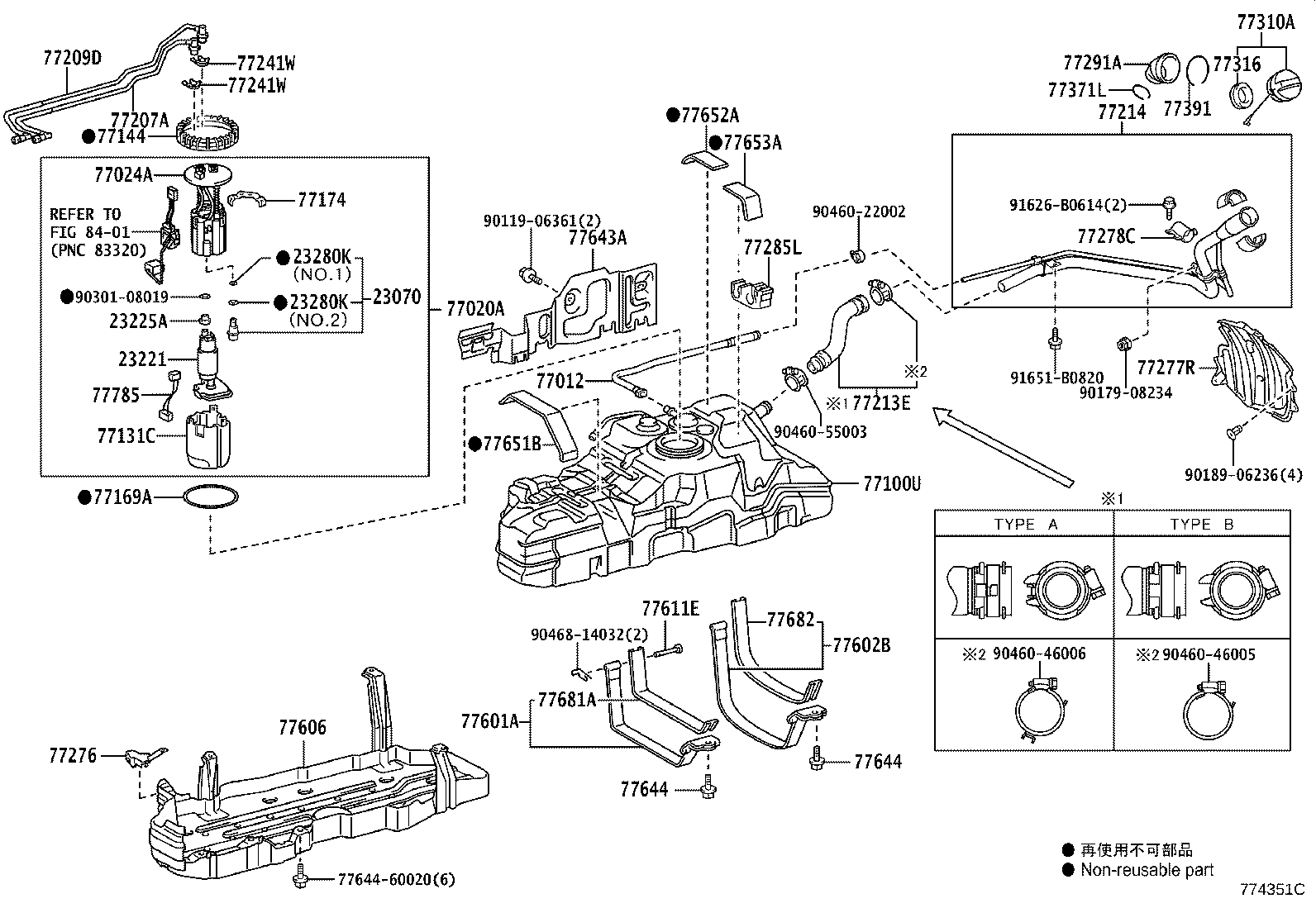

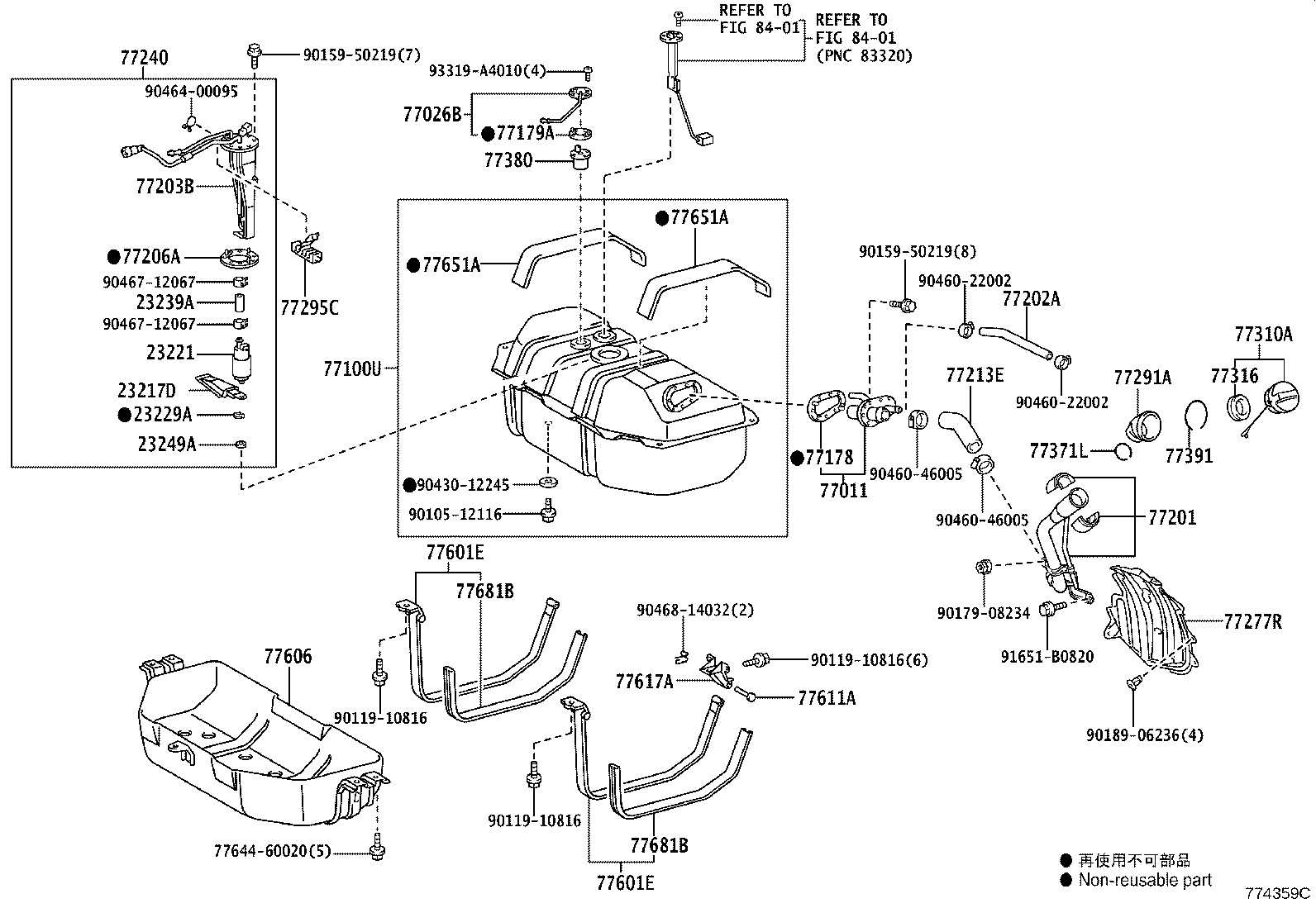

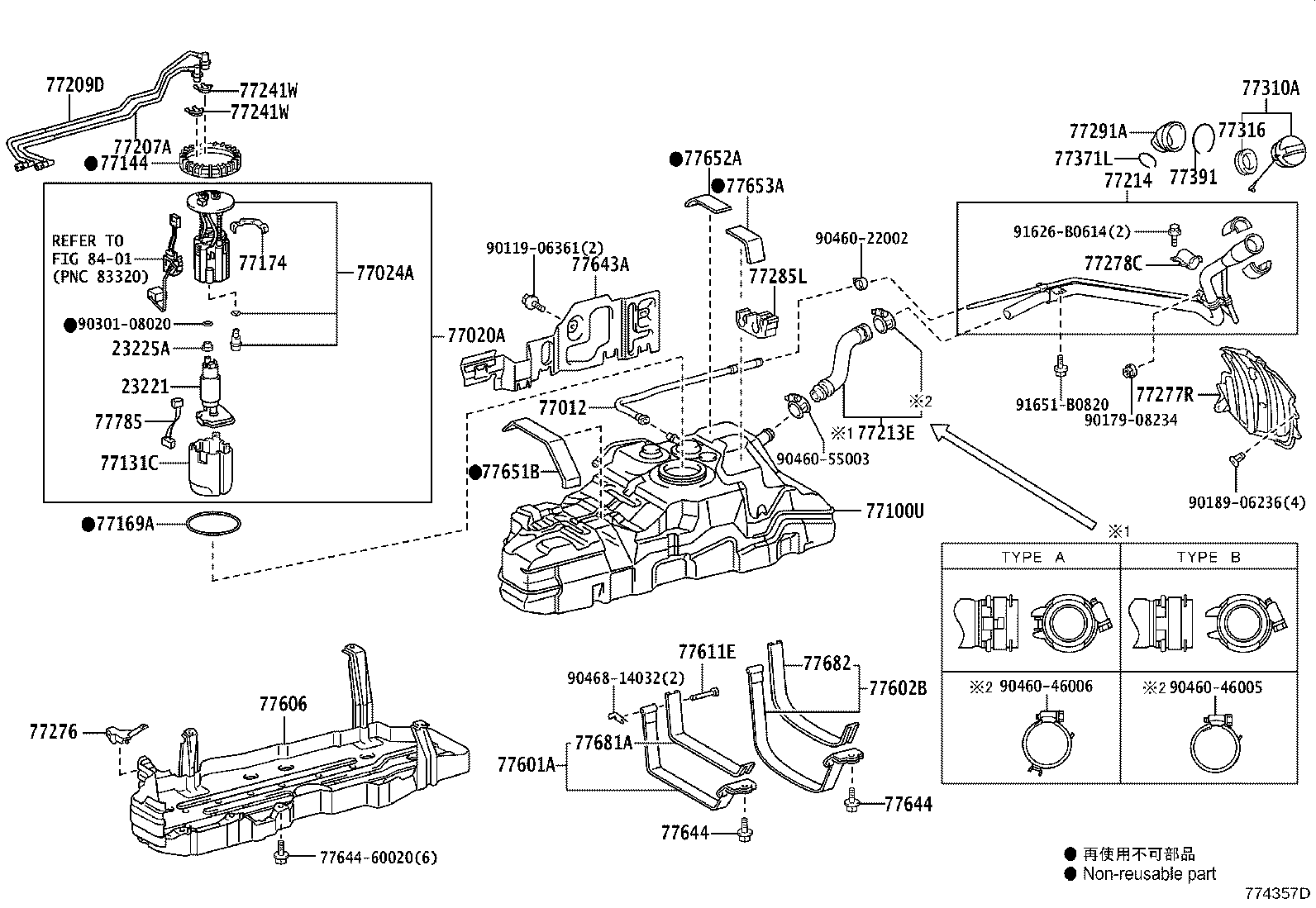

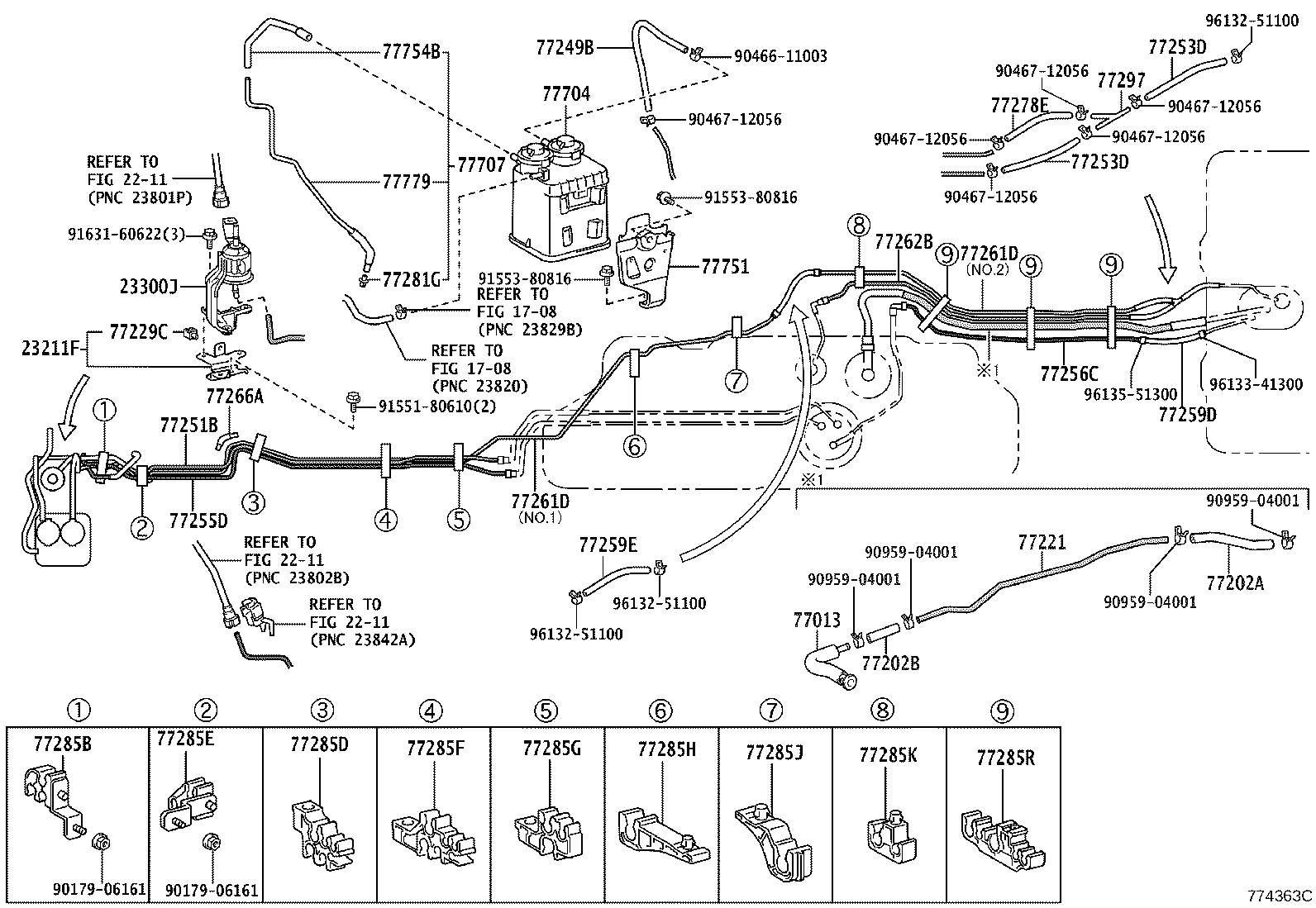

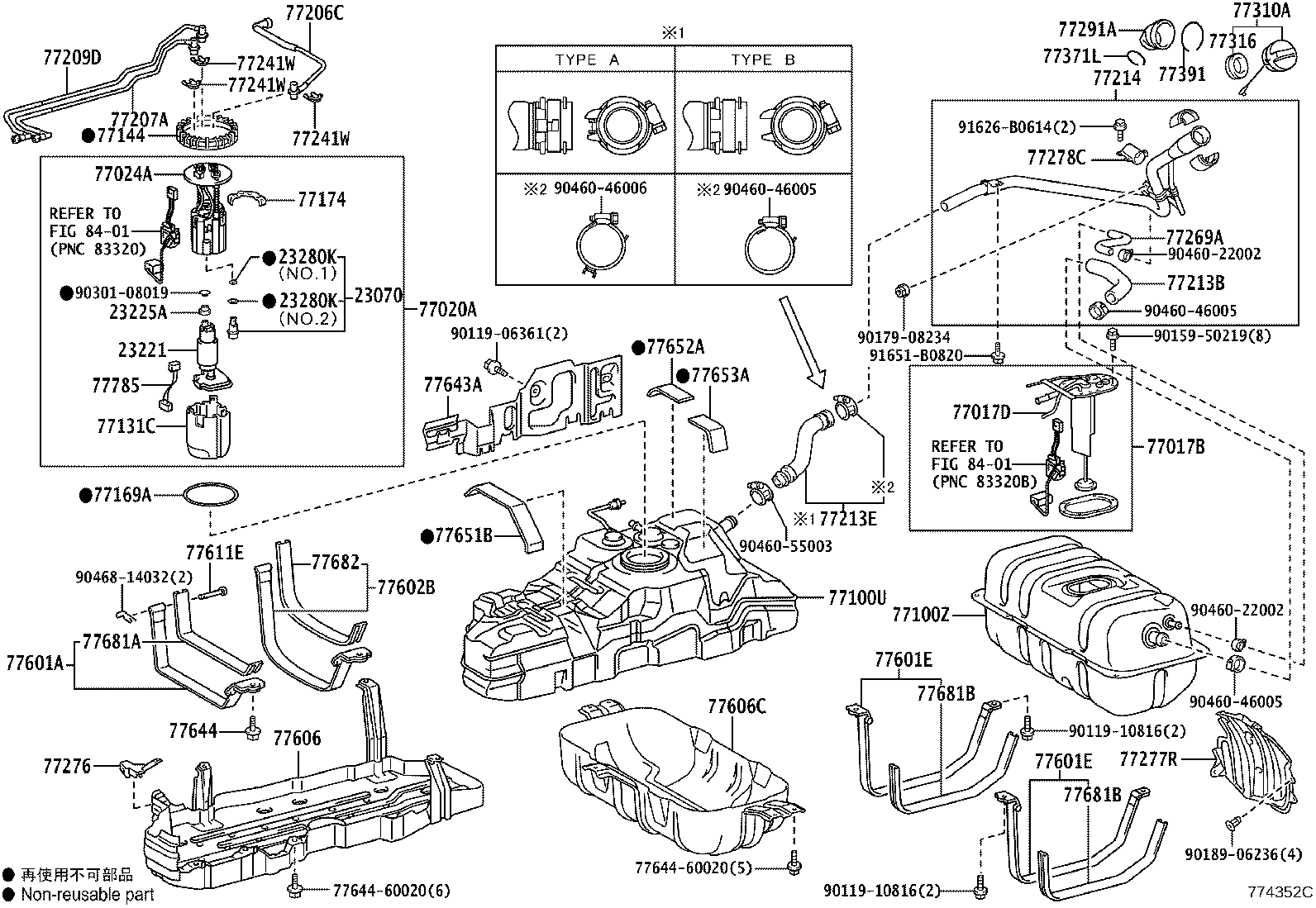

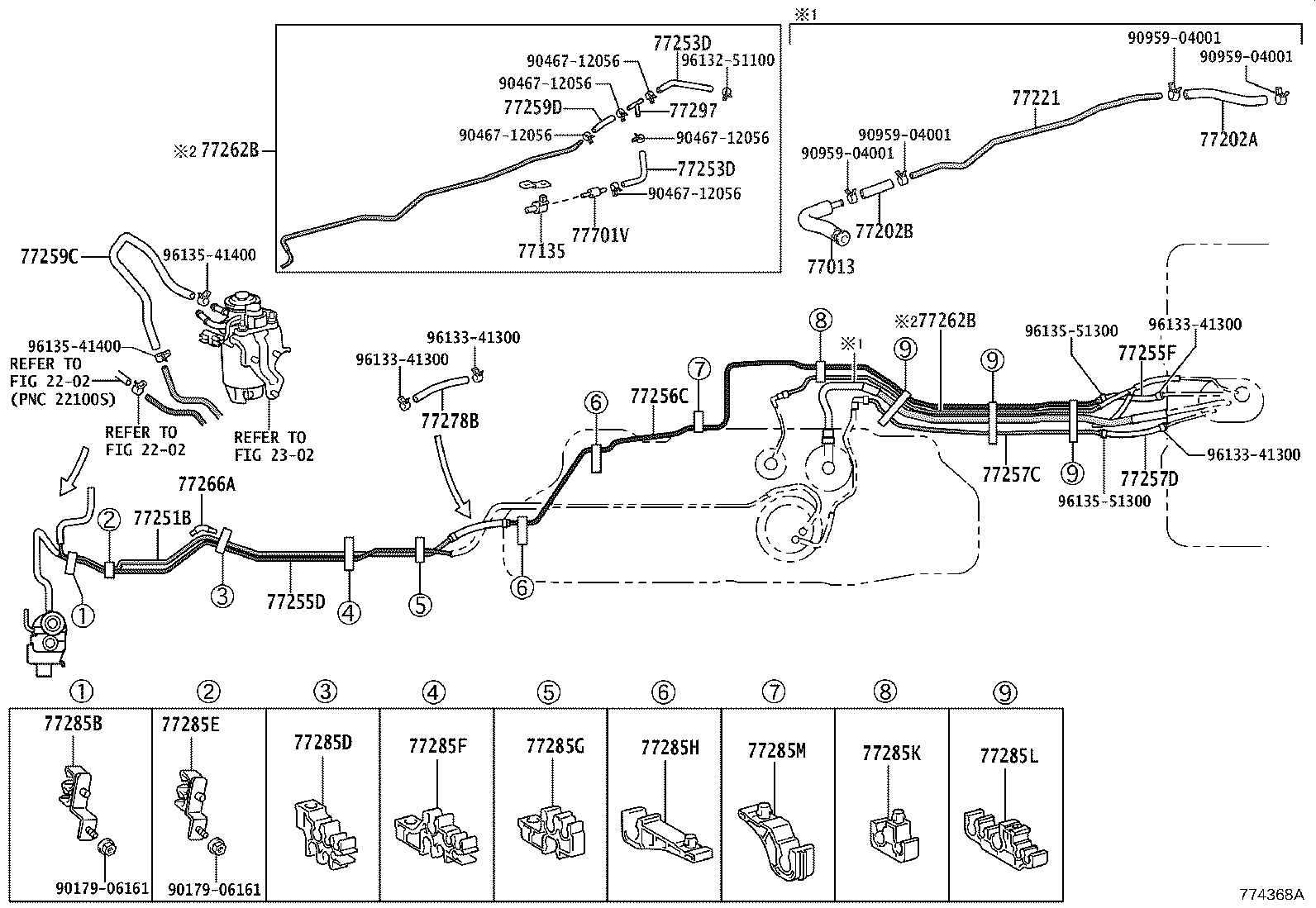

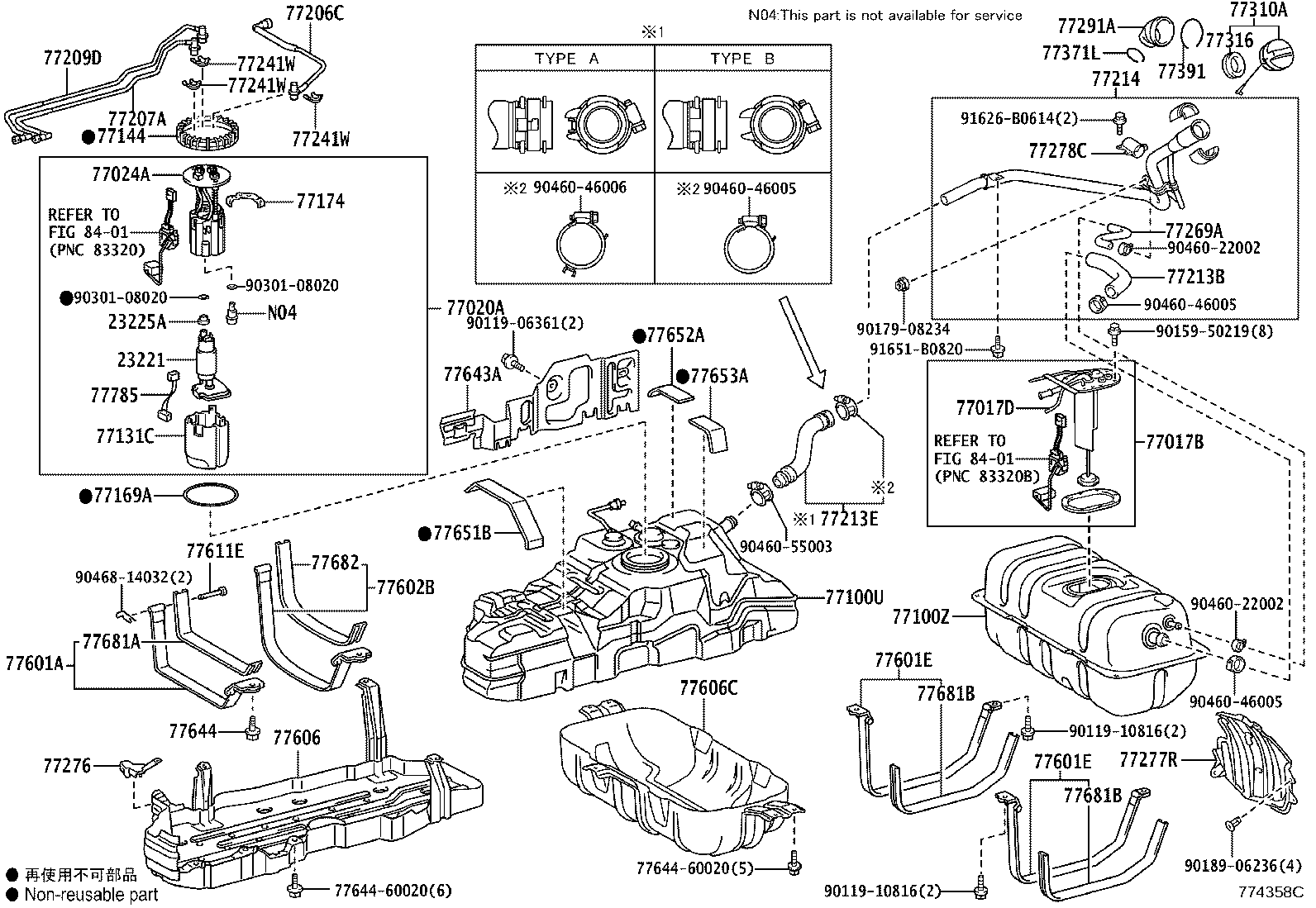

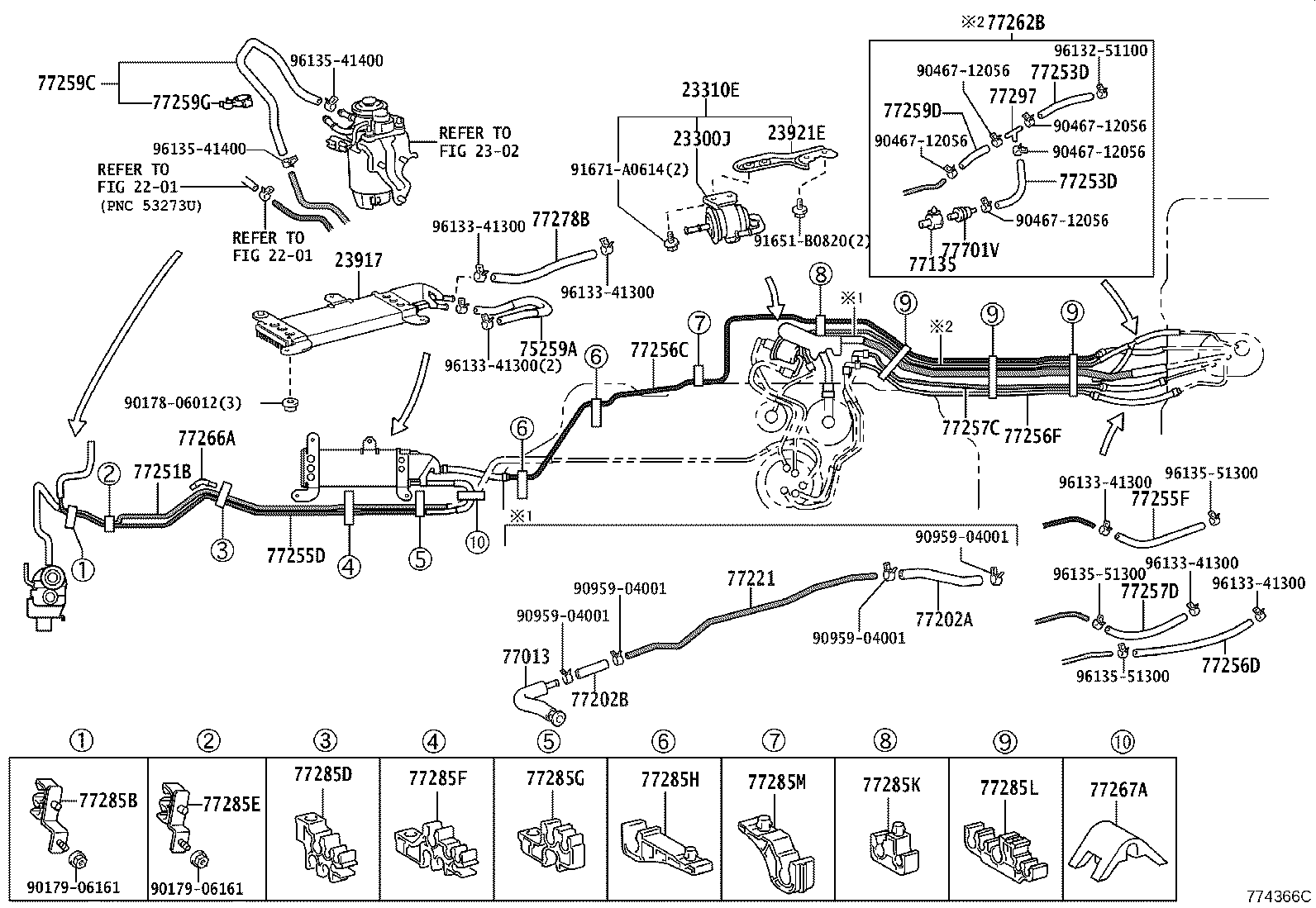

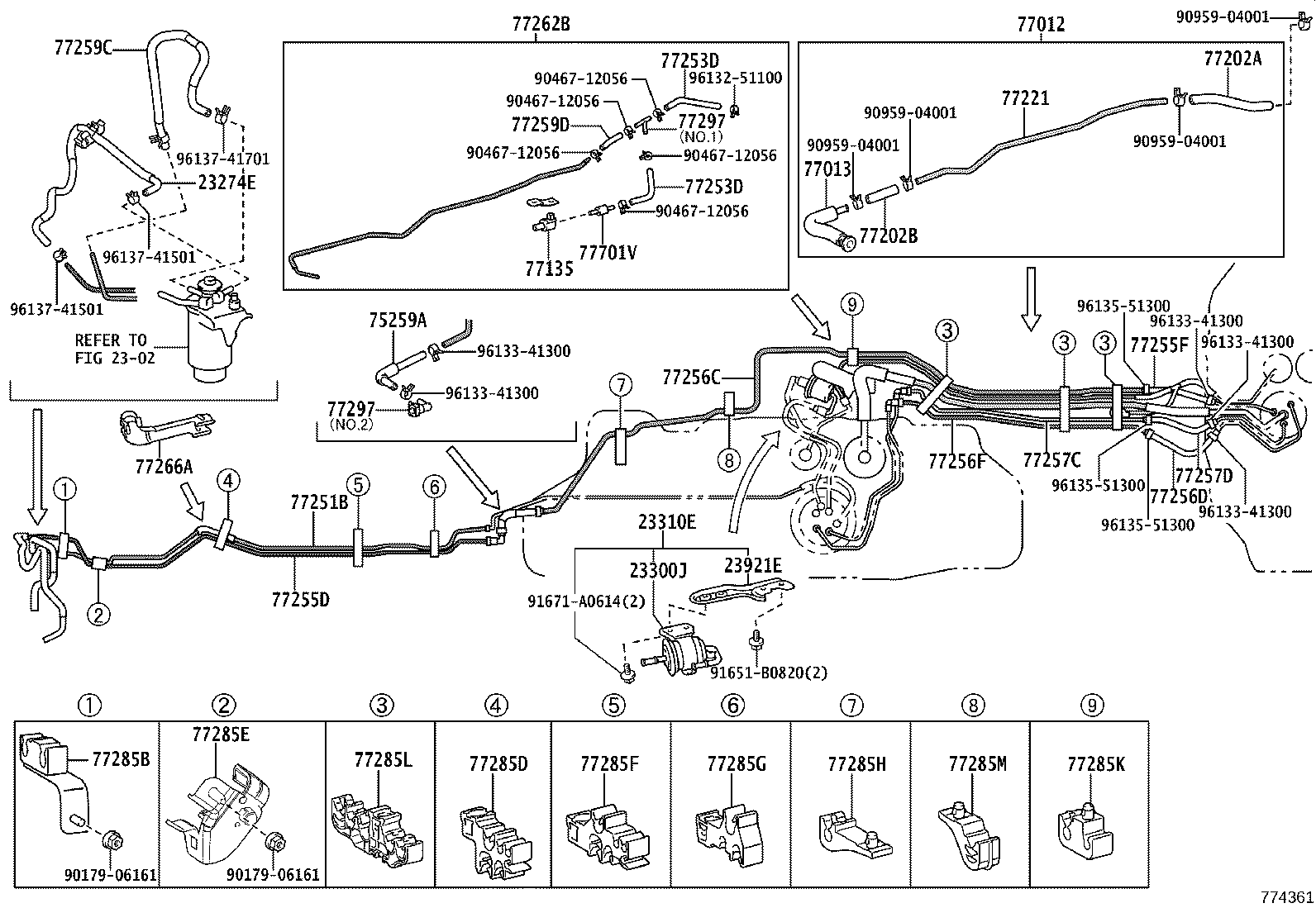

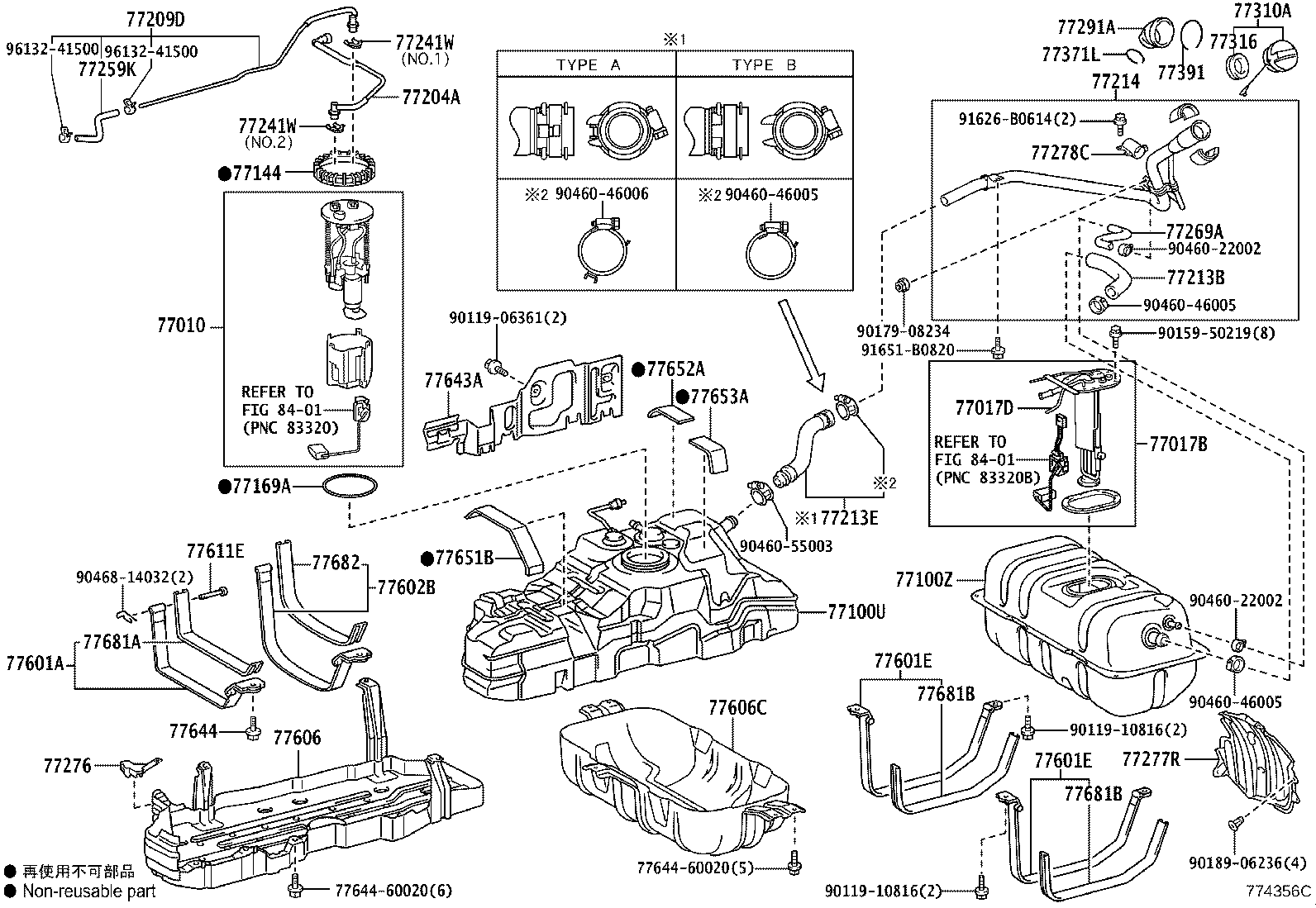

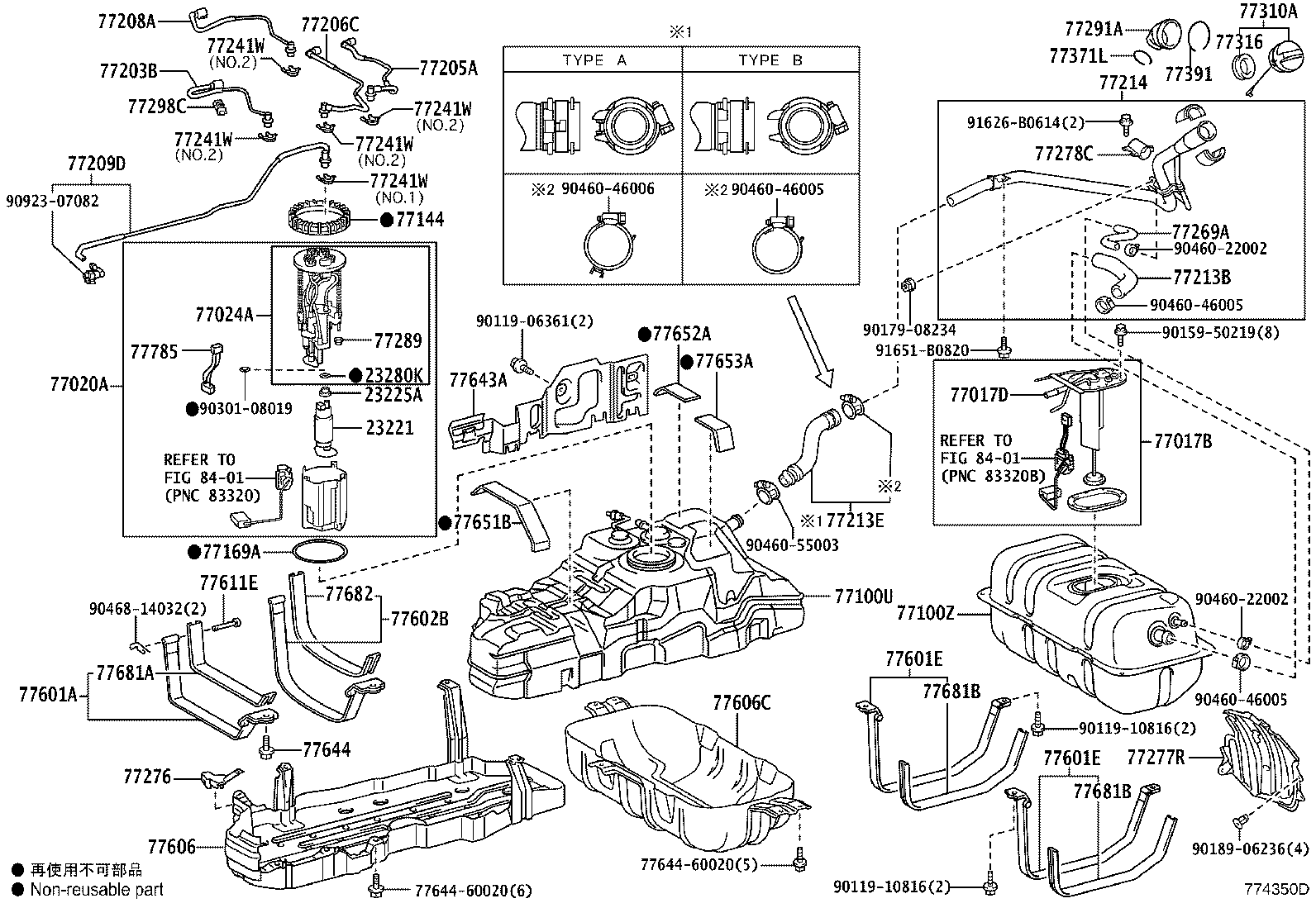

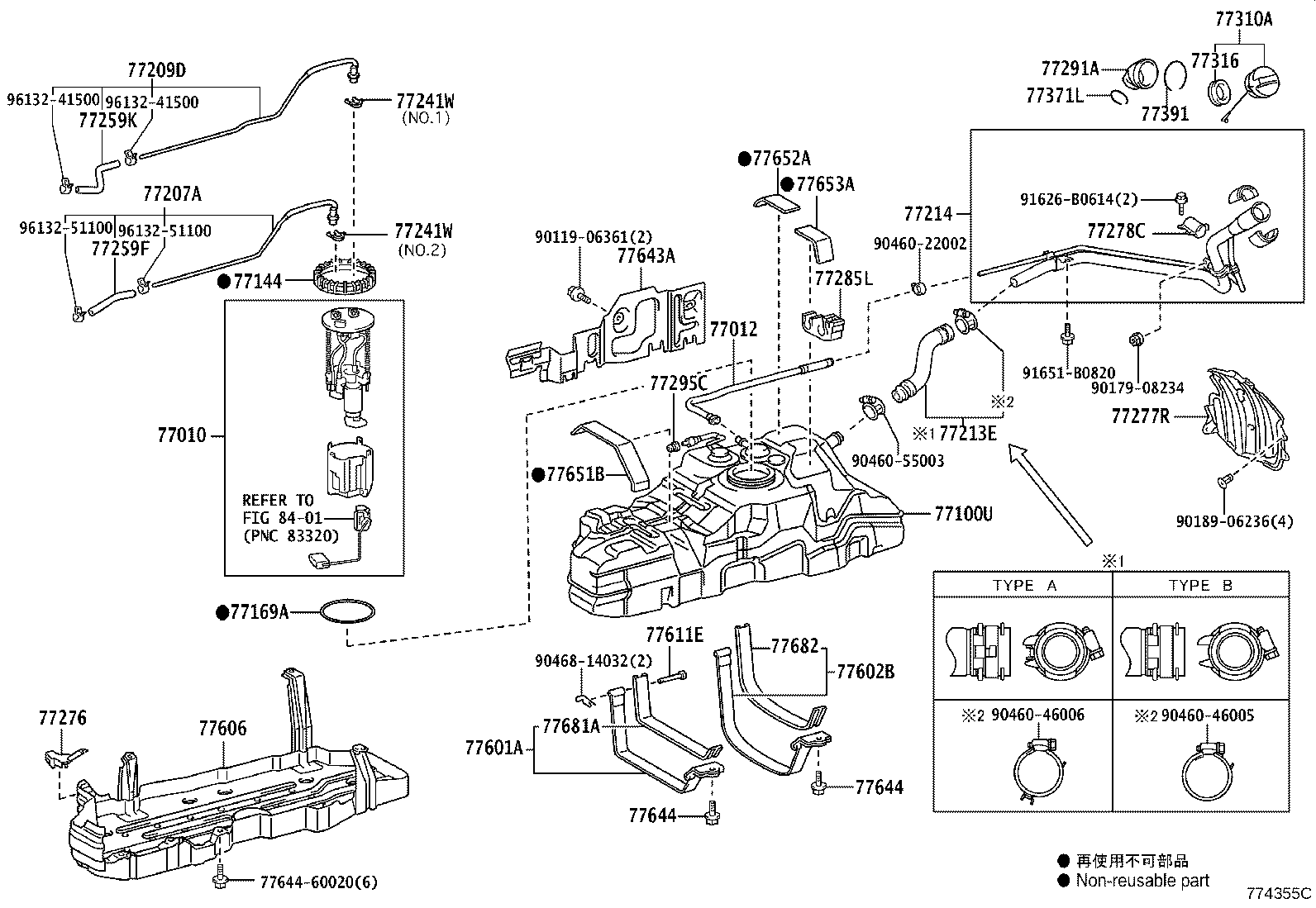

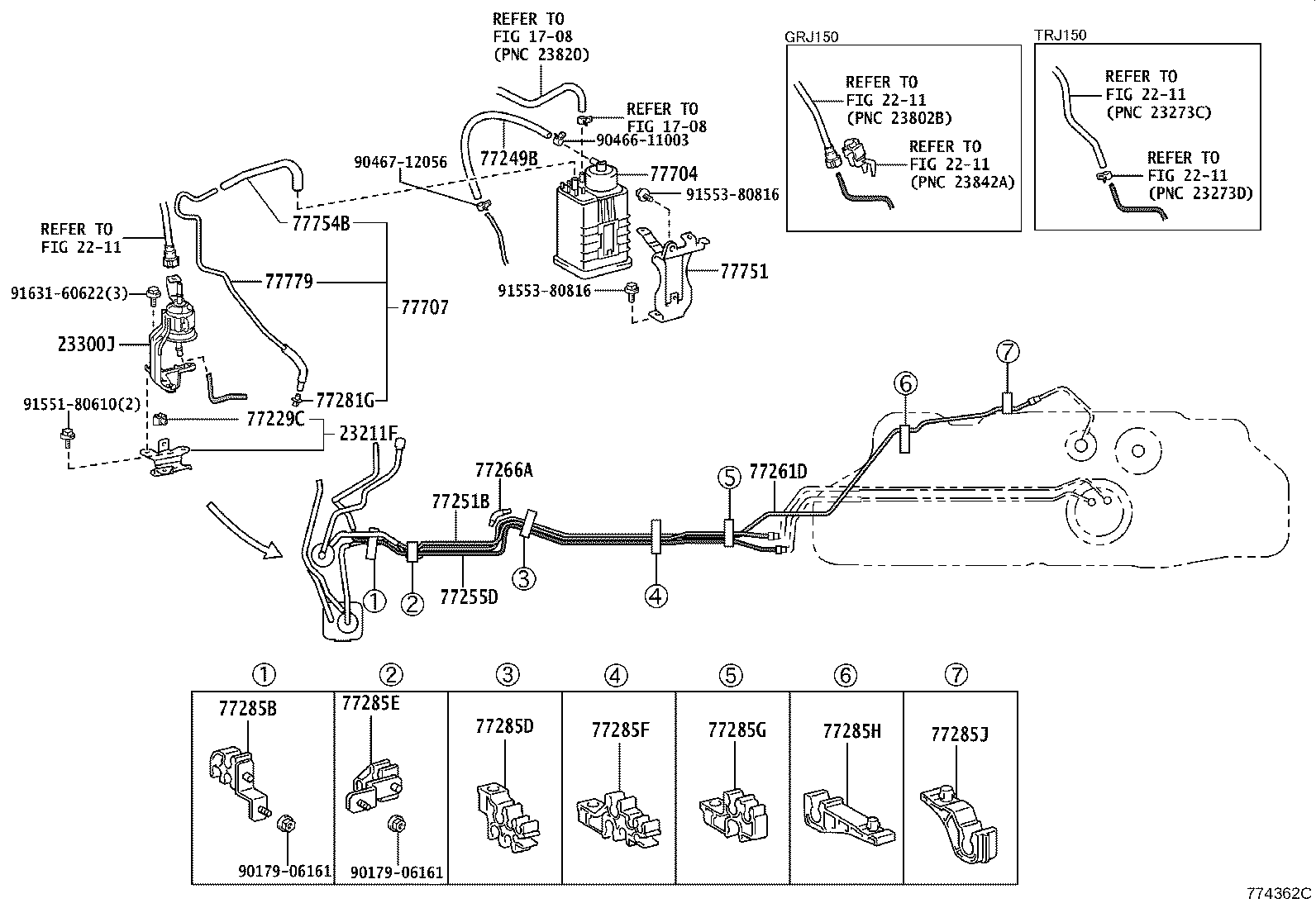

Figure 774349F 774349F 2017-08 → — Figure 774350D 774350D 2017-08 → — Figure 774351C 774351C 2017-08 → — Figure 774352C 774352C 2017-08 → — Figure 774353C 774353C 2017-08 → — Figure 774354C 774354C 2017-08 → — Figure 774355C 774355C 2017-08 → — Figure 774356C 774356C 2017-08 → — Figure 774357D 774357D 2017-08 → — Figure 774358C 774358C 2017-08 → — Figure 774359C 774359C 2017-08 → — Figure 774360 774360 2017-08 → — Figure 774361 774361 2017-08 → — Figure 774362C 774362C 2017-08 → — Figure 774363C 774363C 2017-08 → — Figure 774364C 774364C 2017-08 → — Figure 774365C 774365C 2017-08 → — Figure 774366C 774366C 2017-08 → — Figure 774367A 774367A 2017-08 → — Figure 774368A 774368A 2017-08 → — Figure 774369C 774369C 2017-08 → — Figure 774370 774370 2017-08 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23211F Bracket
23217D Filter, Fuel Pump
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23229A Clip(FOR FUEL PUMP FILTER)
23239A Hose
23249A Rubber, Cushion(FOR FUEL PUMP)
23274E Hose, Fuel, NO.3
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23300J Filter Assy, Fuel
23310E Filter Assy, Fuel Pump
23917 Cooler, Fuel
23921E Support, Fuel Filter
75259A Hose, Fuel
77010 Tube Assy, Fuel Tank Vent
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77012 Tube Sub-assy, Fuel Tank Breather
77013 Tube Sub-assy, Fuel Tank Breather, NO.2
77017B Tube Sub-assy, Fuel Tank Vent
77017D Tube Sub-assy, Fuel Tank Vent
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control

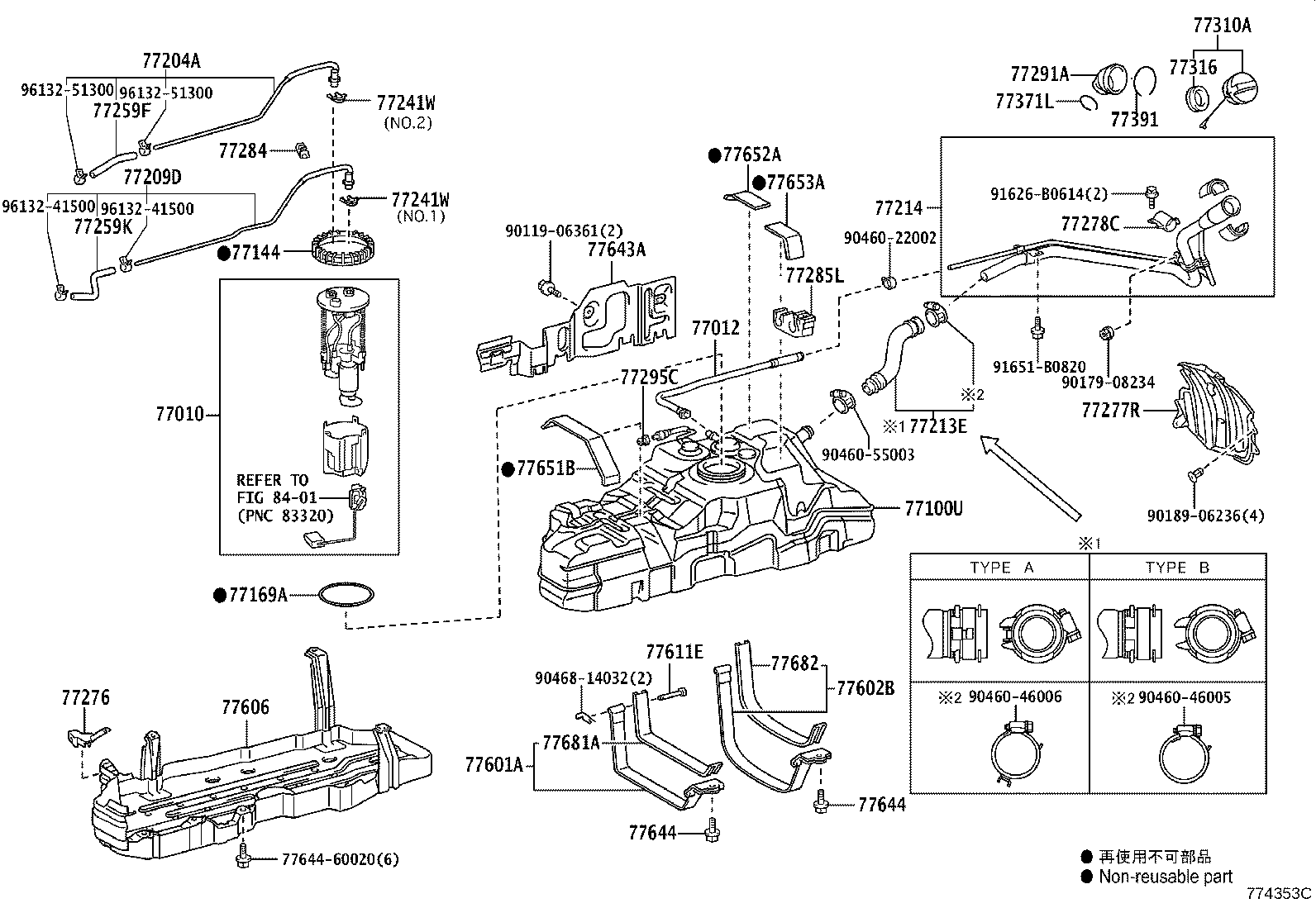

77100U Tank Sub-assy, Fuel
77100Z Tank Sub-assy, Fuel Sub
77131C Sub-tank, Fuel, NO.1
77135 Bracket, Check Valve
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77174 Support, Fuel Suction, NO.1
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77197A Clamp, Evaporation Vent Tube, NO.2
77201 Pipe Sub-assy, Fuel Tank Inlet
77202A Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77202B Hose, Fuel, NO.2 (FOR BREATHER TUBE)
77203B Tube Sub-assy, Fuel Suction
77204A Tube, Fuel Tank Return
77205A Tube Sub-assy, Fuel Main
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77206C Tube Sub-assy, Fuel Main, NO.2
77207A Tube Sub-assy, Fuel Return
77208A Tube Sub-assy, Fuel Main, NO.4
77209D Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77213E Hose, Fuel Tank TO Filler Pipe
77214 Pipe, Fuel Tank Filler
77221 Tube, Fuel Tank Breather, NO.1
77229C Clamp, Breather Tube
77240 Tube Assy, Fuel Suction
77241W Clip, Tube Joint
77249B Hose, Fuel

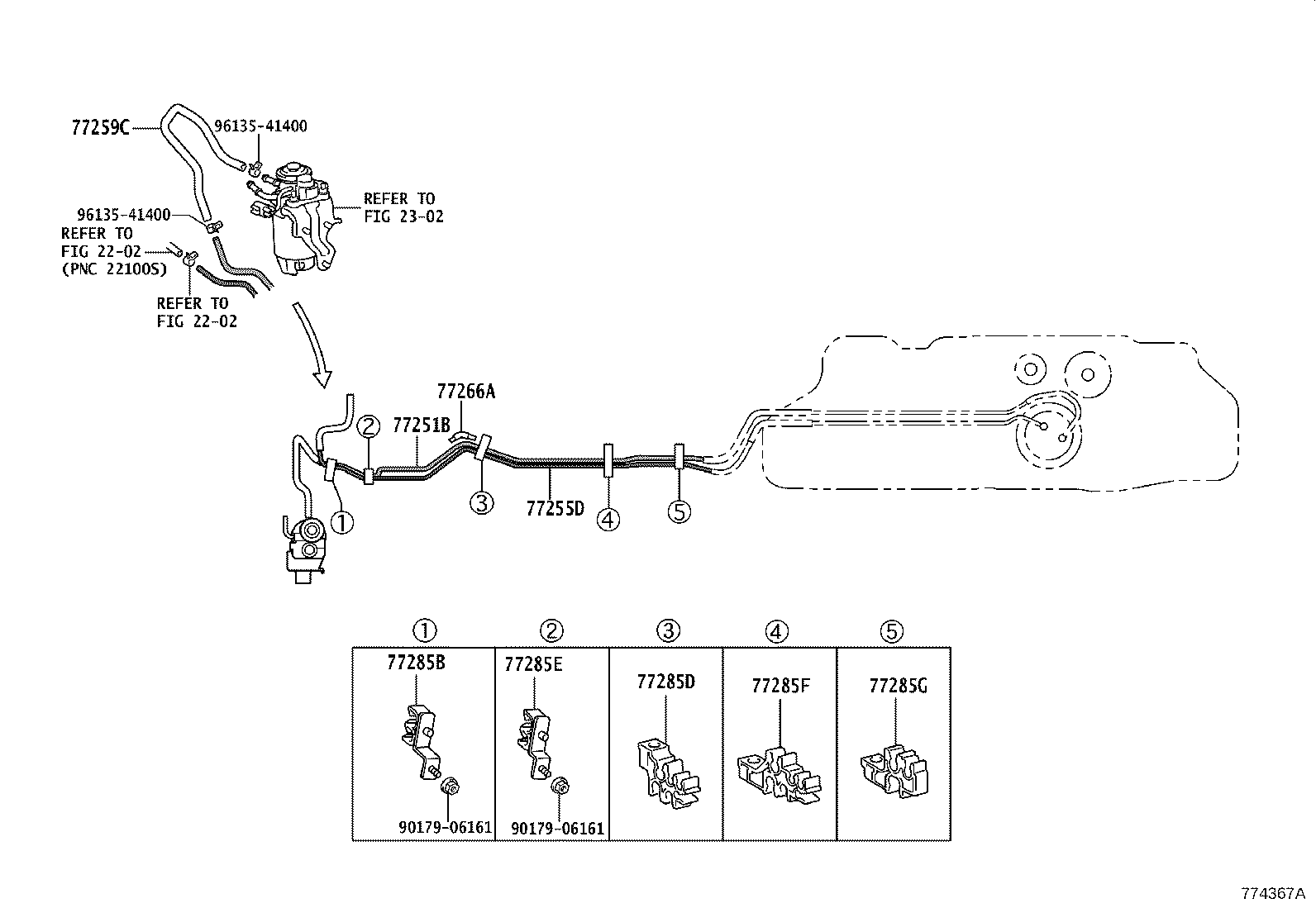

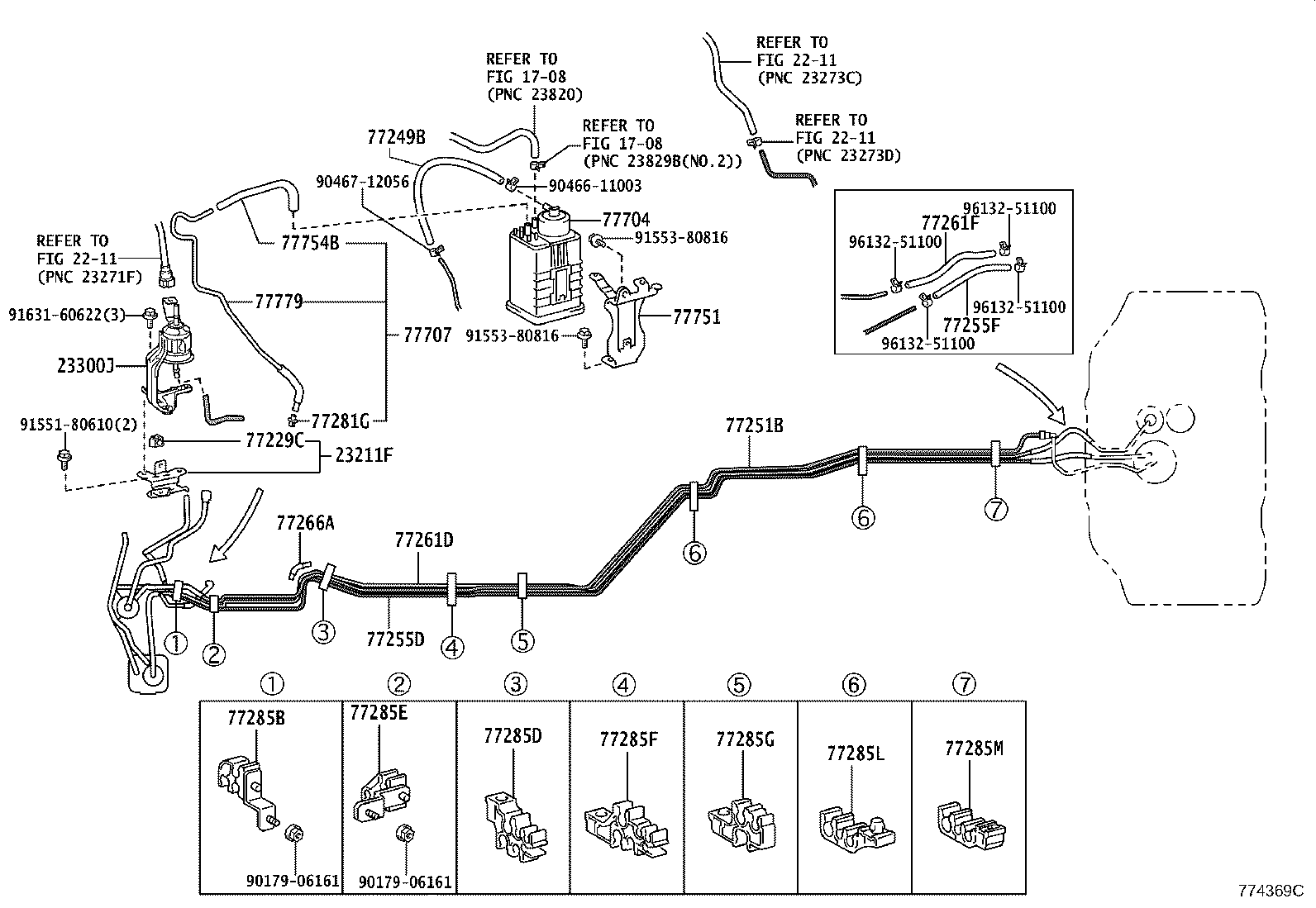

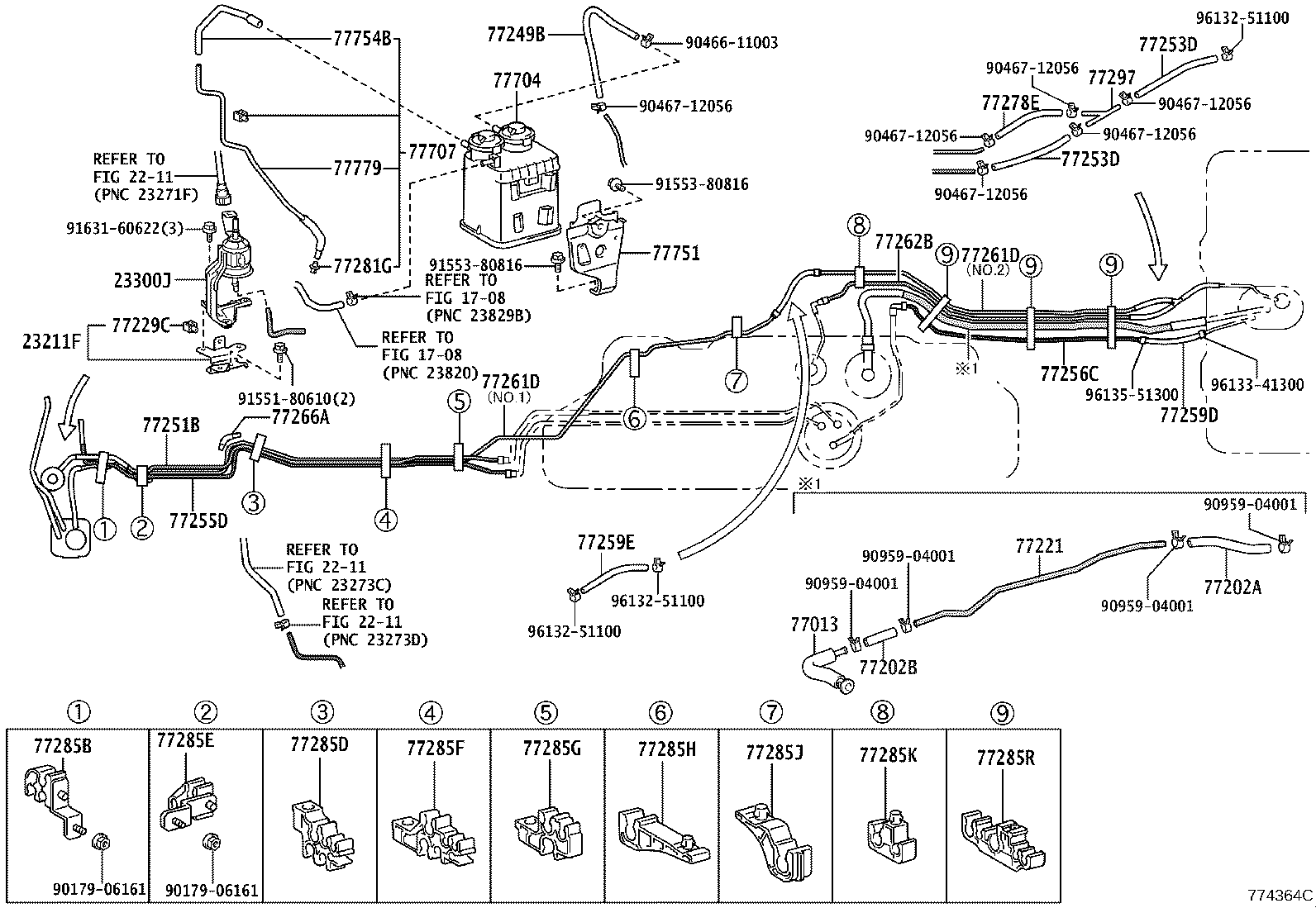

77251B Tube, Fuel Main
77253D Hose, Fuel
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77256C Tube, Fuel Return, NO.2
77256D Hose, Fuel, NO.1 (FOR FUEL RETURN NO.2 TUBE)
77256F Tube, Fuel Return, NO.2
77257C Tube, Fuel Return, NO.3
77257D Hose, Fuel, NO.1(FOR FUEL RETURN NO.3 TUBE)
77259C Hose, Fuel
77259D Hose, Fuel, NO.1
77259E Hose, Fuel
77259F Hose, Fuel
77259G Clip, Fuel Hose
77259K Hose, Fuel
77261D Tube, Fuel Tank TO Canister
77261F Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77262B Tube, Fuel Tank TO Canister, NO.2
77266A Protector, Fuel Tube, NO.1
77267A Protector, Fuel Tube, NO.2
77269A Hose, Fuel Tank Breather
77276 Protector, Fuel Hose
77277R Protector, Fuel Tank Filler Pipe
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77278C Protector, Fuel Tank Filler Pipe, NO.2
77278E Hose, Fuel
77281G Clamp, Fuel Hose
77284 Clamp, Fuel Tube
77285B Clamp, Fuel Tube W/Grommet, NO.1
77285D Clamp, Fuel Tube, NO.1
77285E Clamp, Fuel Tube W/Grommet, NO.1
77285F Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77285J Clamp, Fuel Tube, NO.1
77285K Clamp, Fuel Tube, NO.1
77285L Clamp, Fuel Tube, NO.1
77285M Clamp, Fuel Tube, NO.1
77285R Clamp, Fuel Tube, NO.1
77289 Holder, Fuel Tank Pipe Setting
77291A Shield, Fuel Tank Filler Pipe
77295C Grommet, Fuel Tube
77297 Connector, Fuel Tube
77298C Clamp, Fuel Tube, NO.4

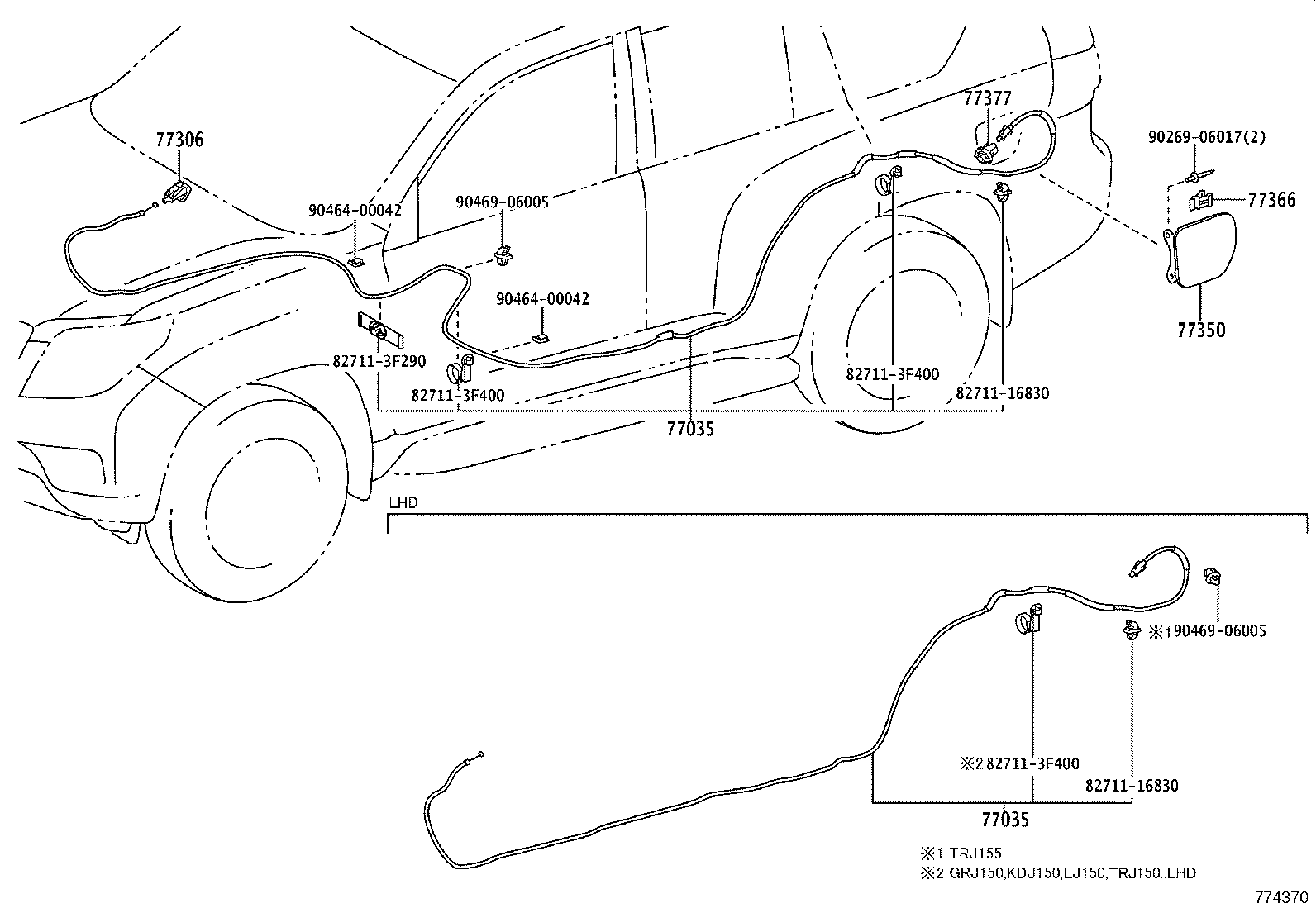

77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77371L Ring, Fuel Tank Filler Pipe Shield
77377 Retainer, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77391 Ring, Fuel Inlet Box
77601A Band Sub-assy, Fuel Tank, NO.1
77601E Band Sub-assy, Fuel Tank
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77606C Protector, Fuel Tank, NO.2
77611A Pin (FOR FUEL TANK BAND)
77611E Pin, Fuel Tank Band
77617A Union, Auxiliary Fuel Band
77643A Protector, Fuel Tank, NO.3
77644 Bolt, Fuel Tank
77651A Cushion, Fuel Tank, NO.1
77651B Cushion, Fuel Tank
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77681A Seat, Fuel Tank Band
77681B Seat, Fuel Tank Band
77682 Seat, Fuel Tank Band, LH
77701V Valve, Check (FOR SUB-FUEL TANK)
77704 Canister Sub-assy, Charcoal
77707 Tube Sub-assy, Charcoal Canister Outlet
77751 Bracket, Charcoal Canister Base
77754B Hose, Charcoal Canister Outlet
77779 Tube, Charcoal Canister Outlet
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
