Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General
Supported model
Data version 2020-08

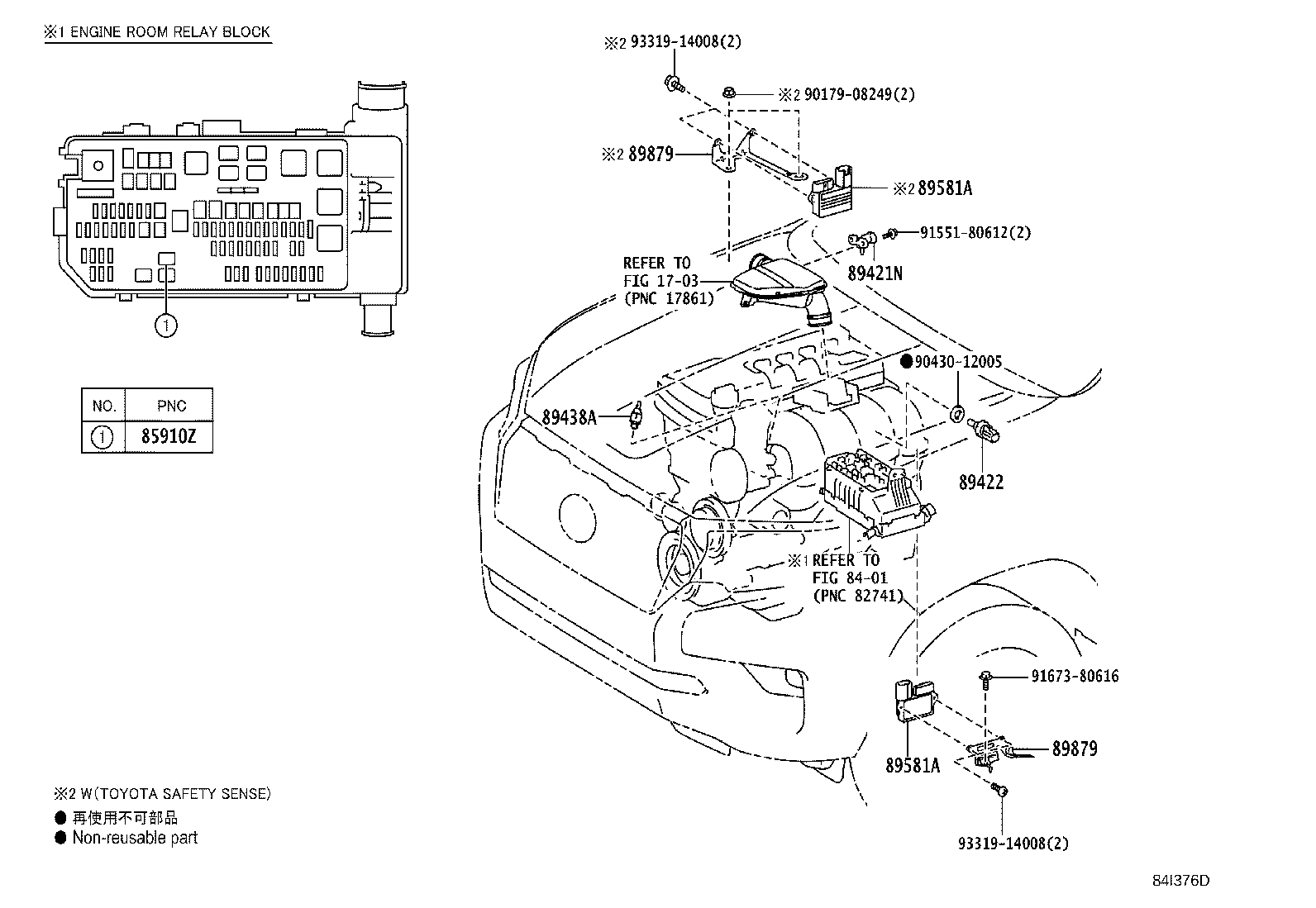

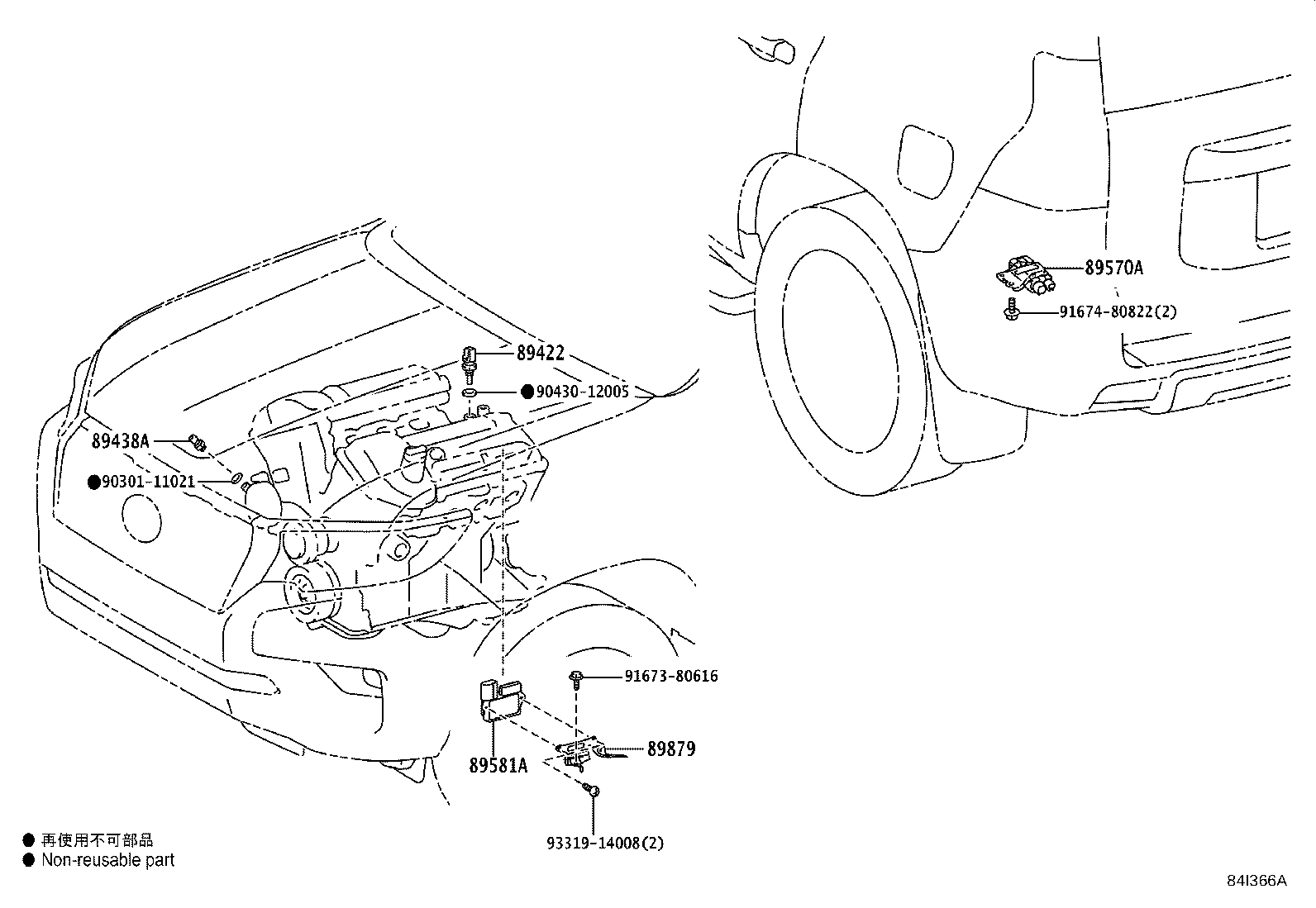

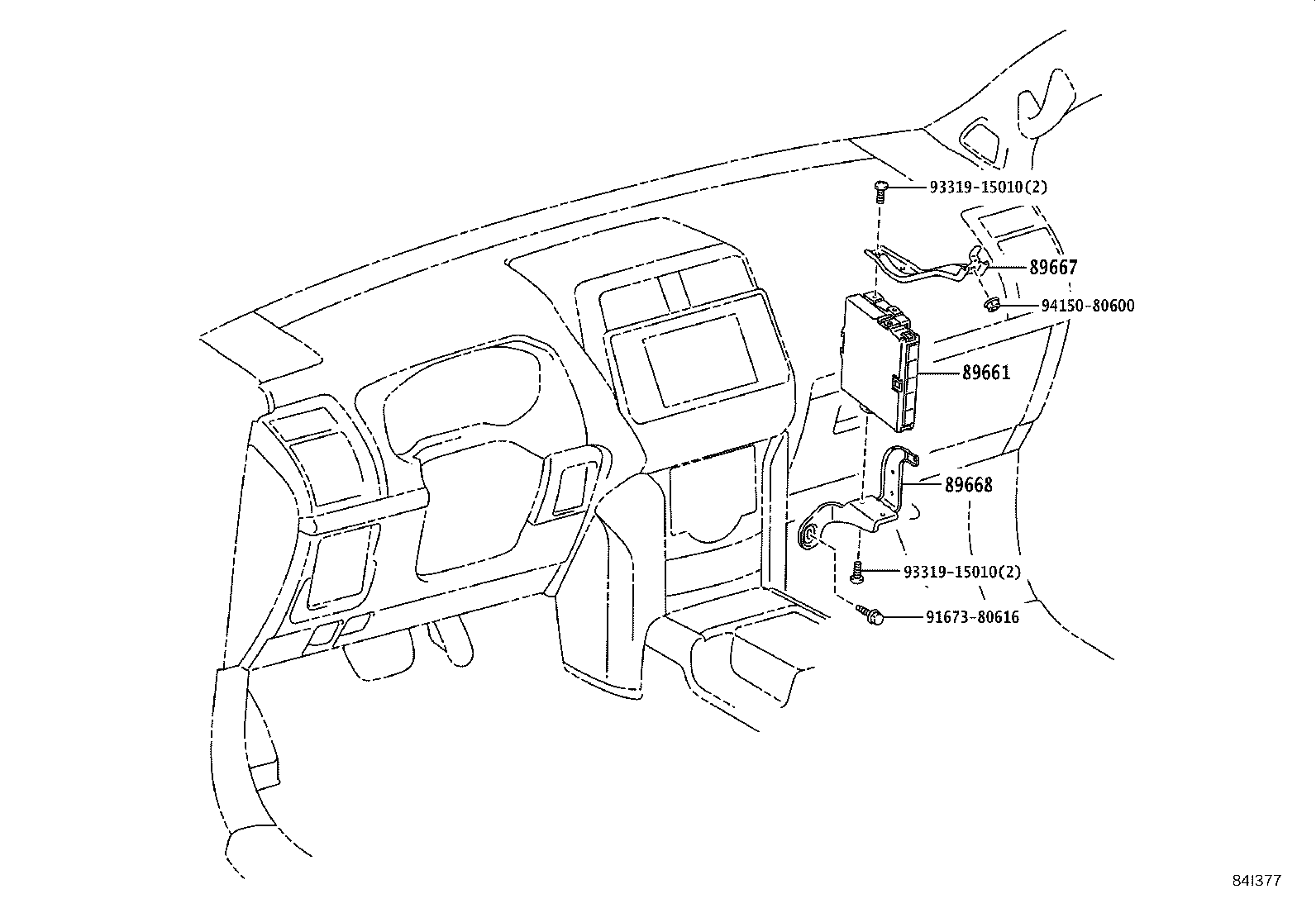

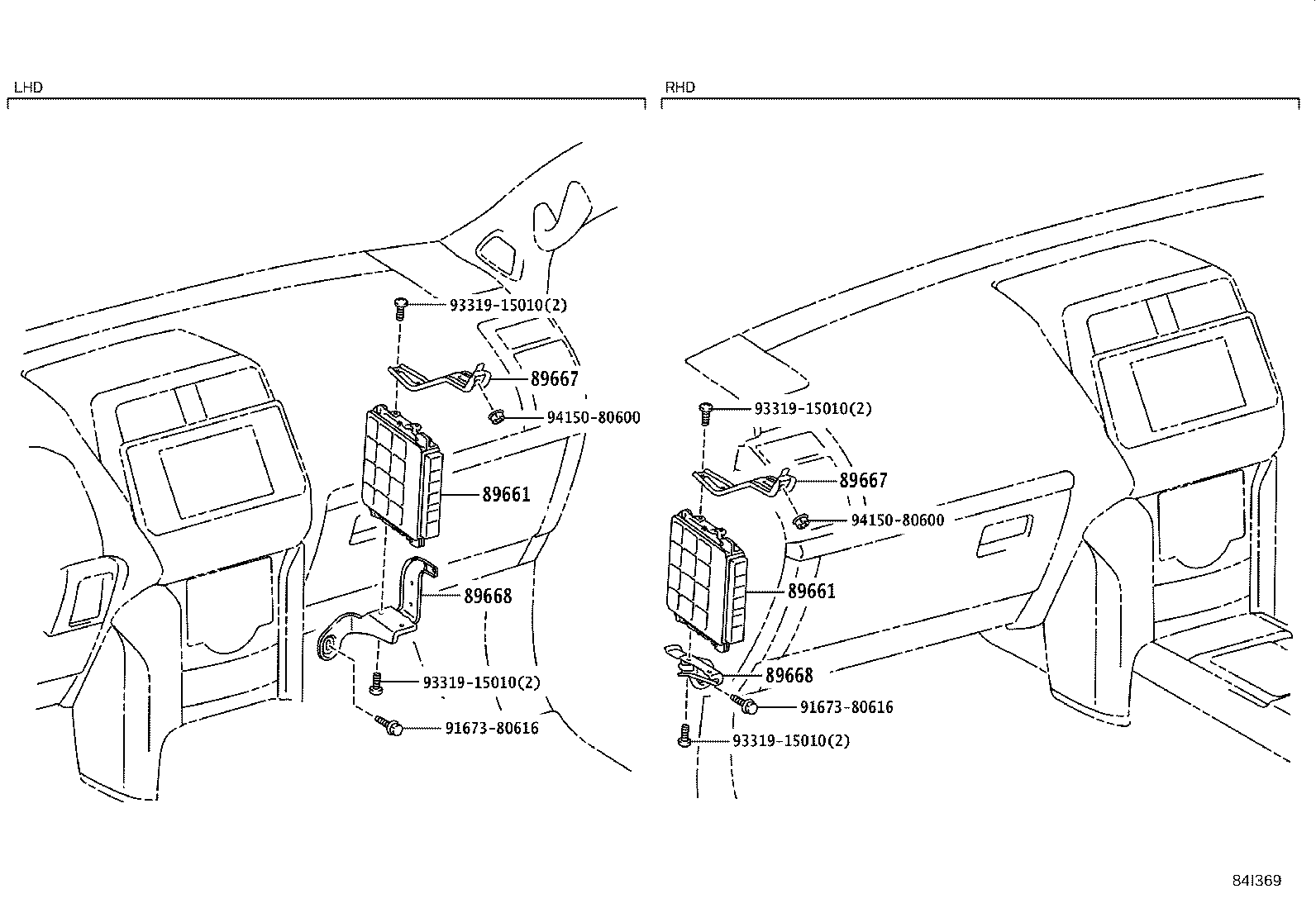

Electronic Fuel Injection System
10 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910Z | Relay, Injection (FOR EFI) |
| 89421N | Sensor, Air Pressure |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89438A | Switch, Power Steering Oil Pressure |
| 89570A | Computer Assy, Fuel Pump Control |
| 89581A | Driver, Air Injection Control |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89879 | Bracket, Injector Driver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
