Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

14 part groups · 2 illustrations

Illustrations

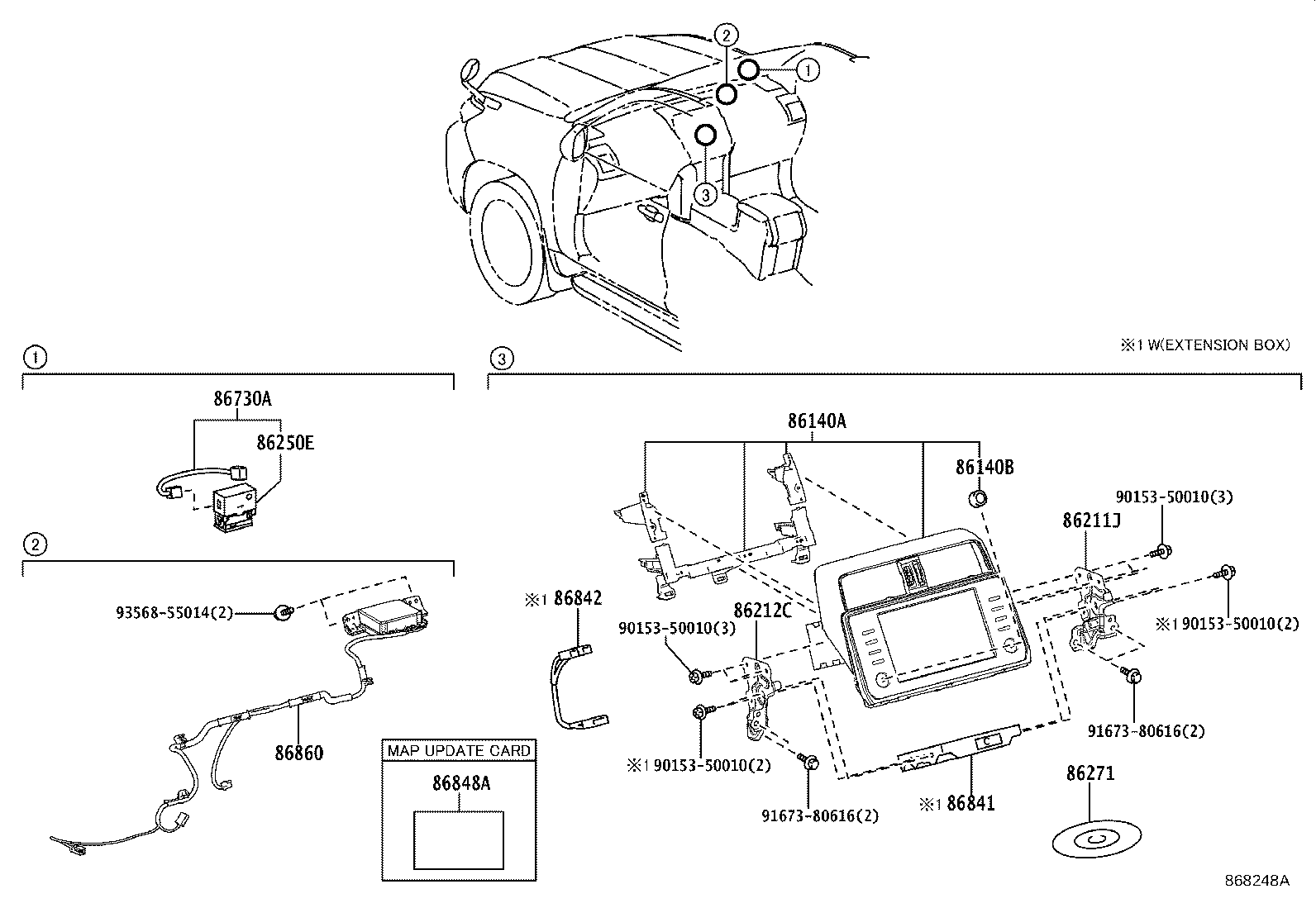

Figure 866948C 866948C 2017-08 → 2020-08 Figure 868248A 868248A 2020-08 → —

Part groups

PNCDescription
86120L Receiver Assy, Navigation
86120P Knob, Navigation Receiver Switch
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86705B Cord Sub-assy, Telephone Antenna
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
