Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

31 part groups · 17 illustrations

Illustrations

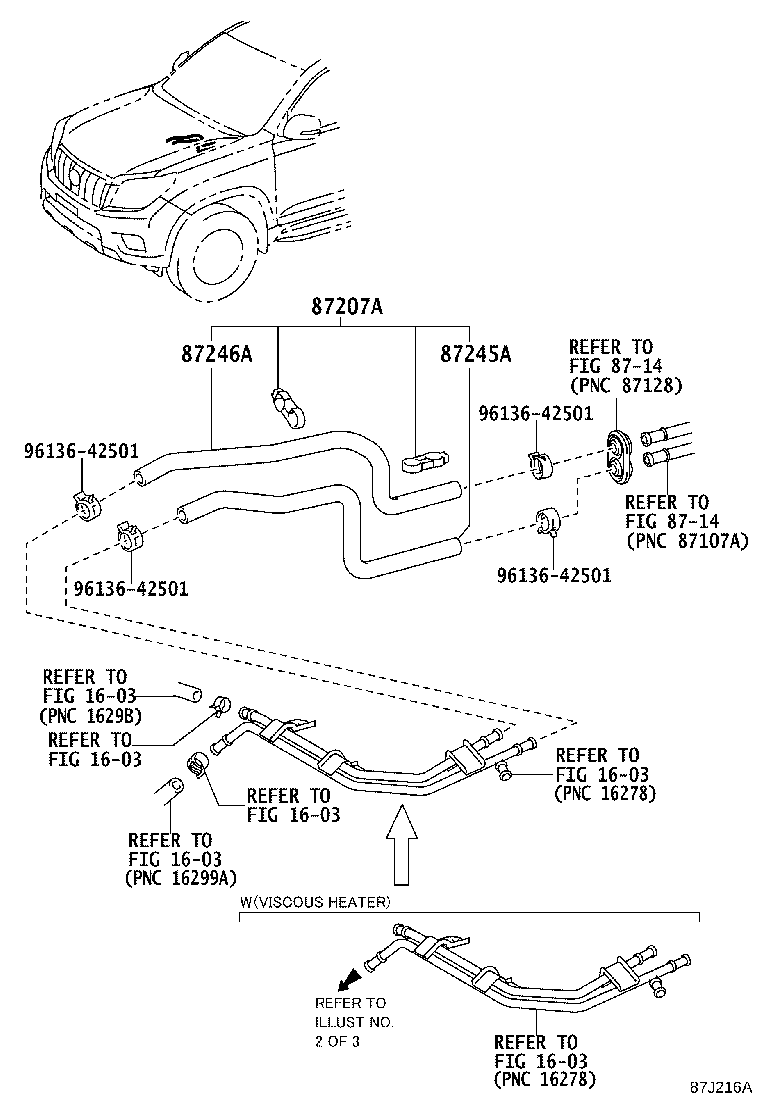

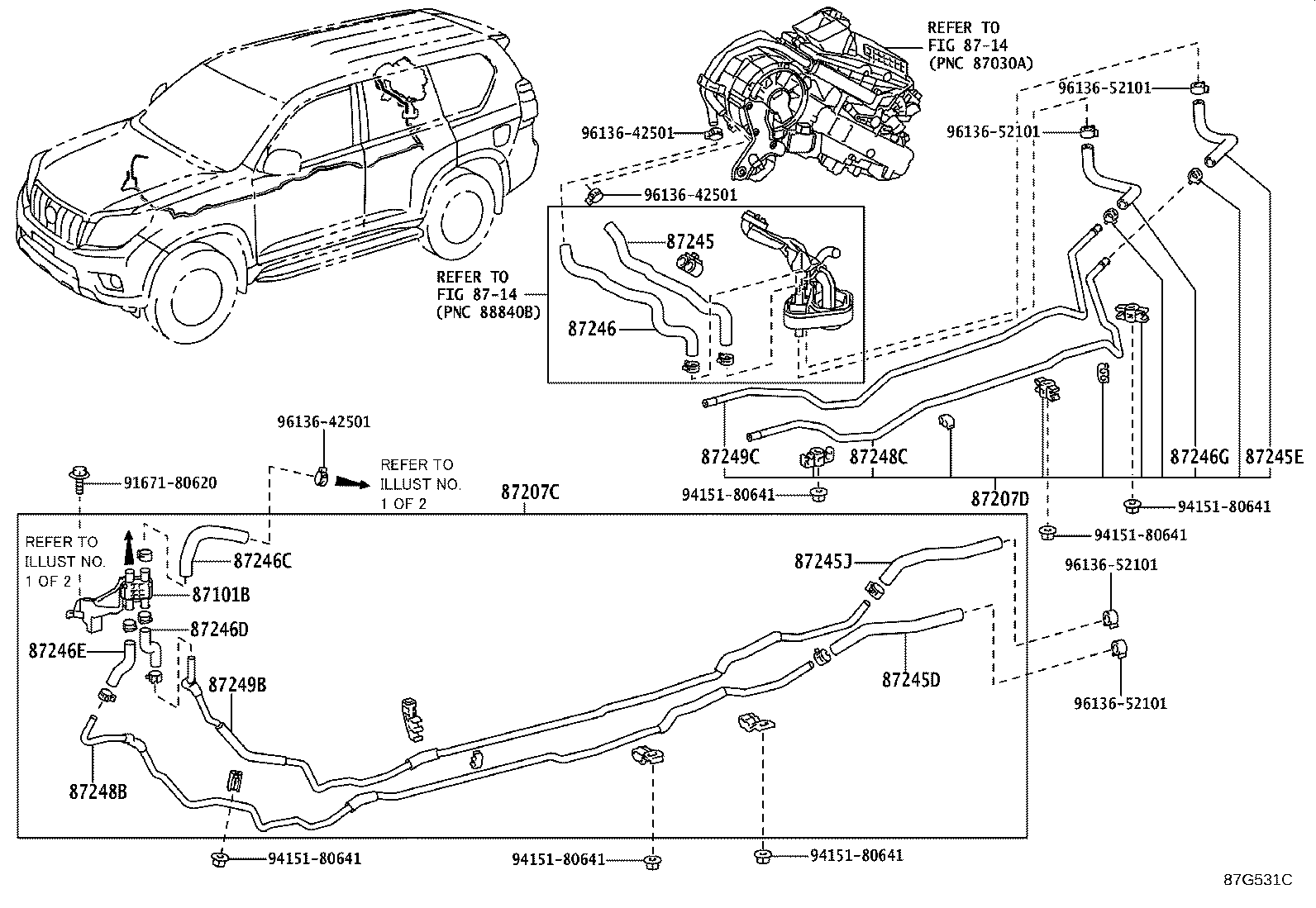

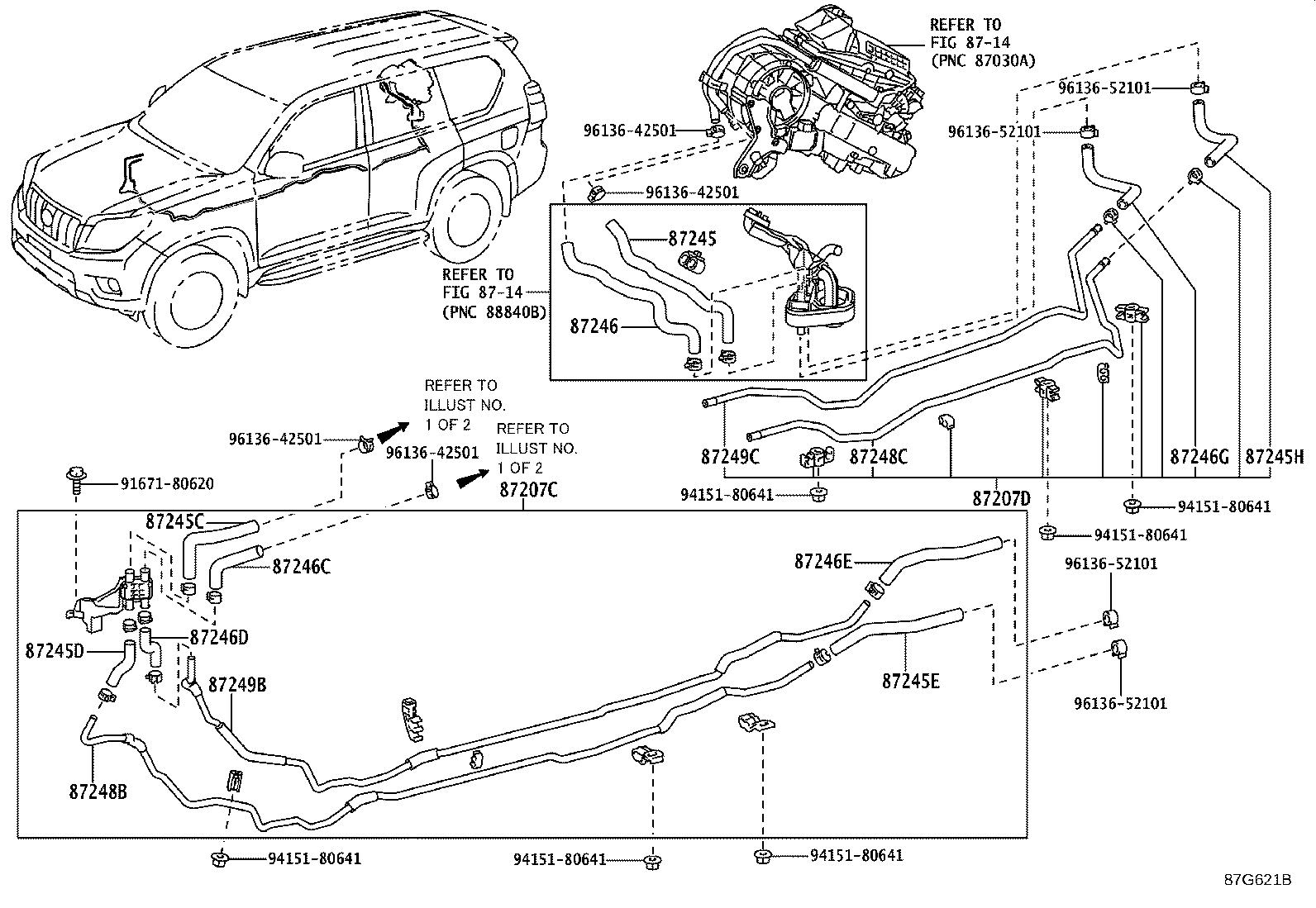

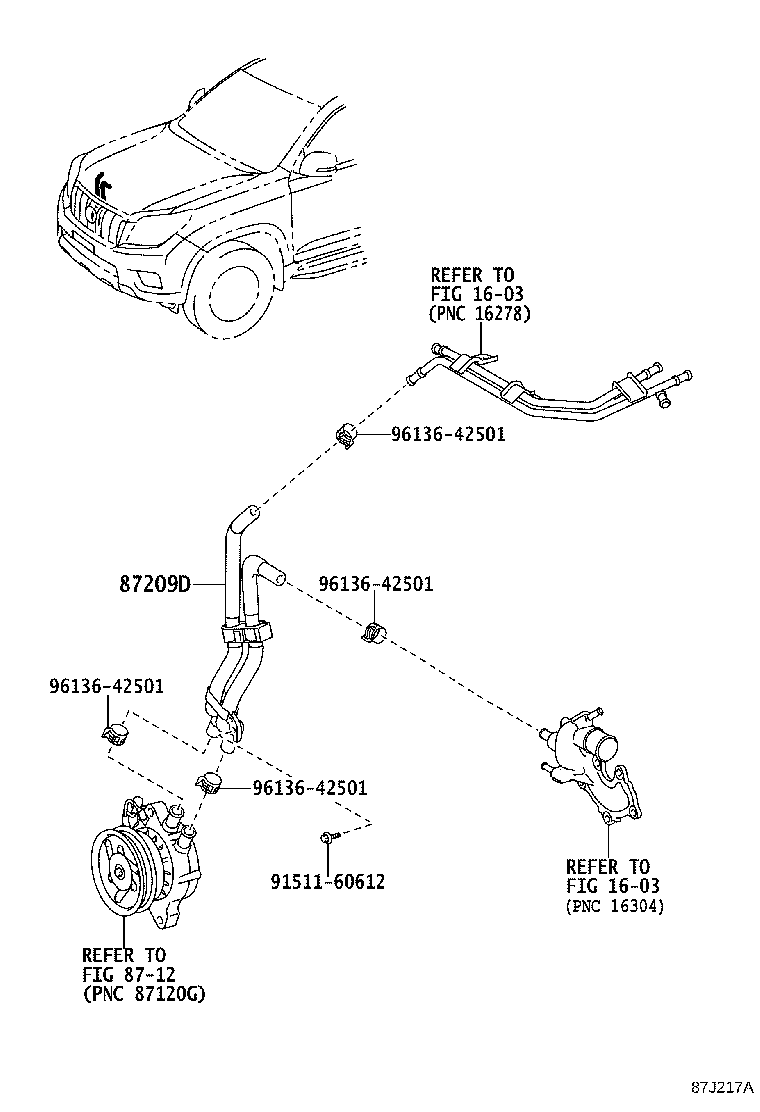

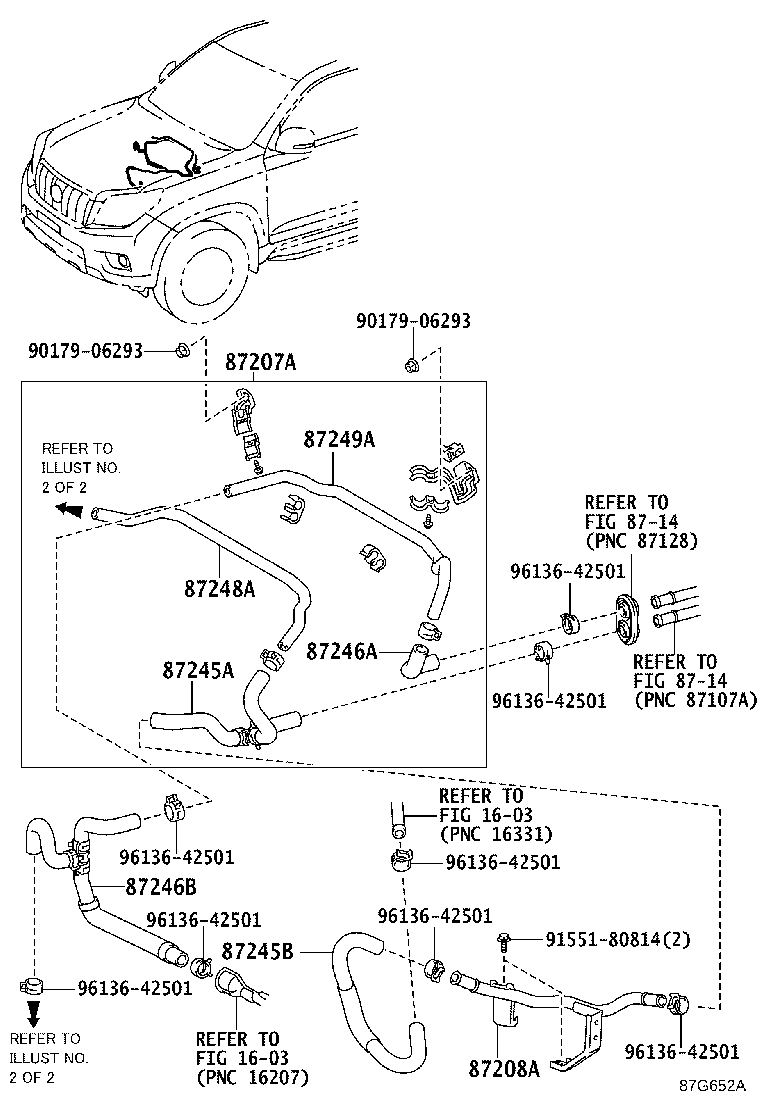

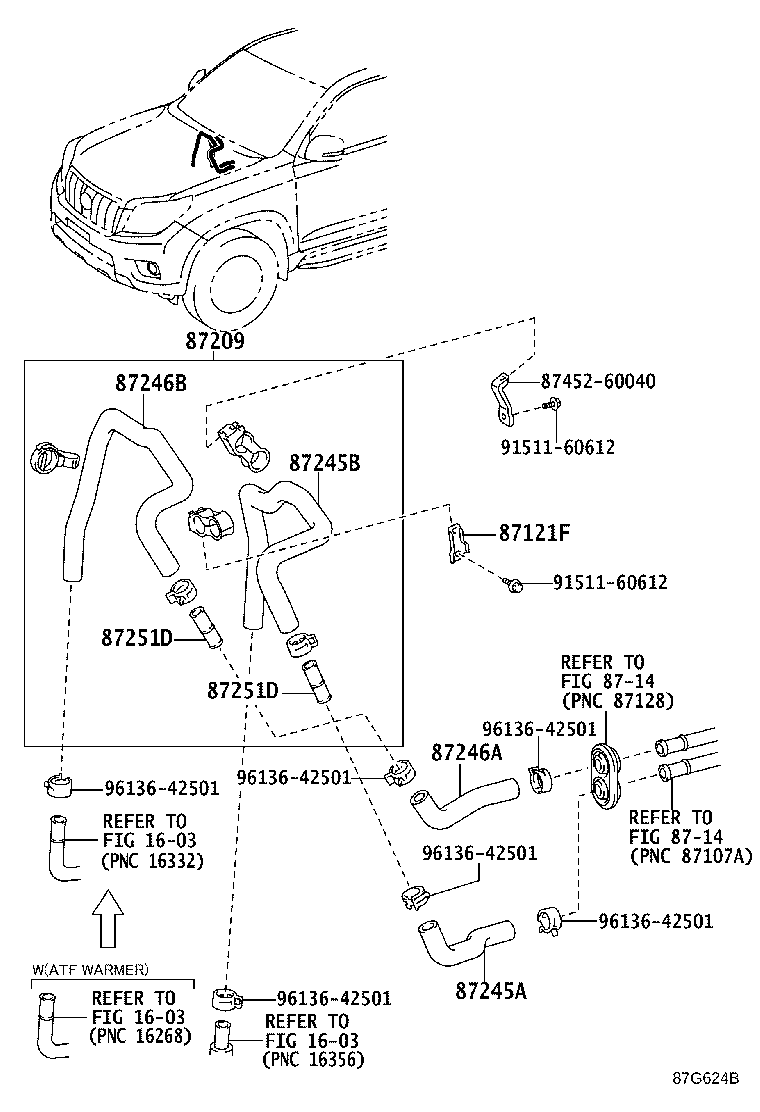

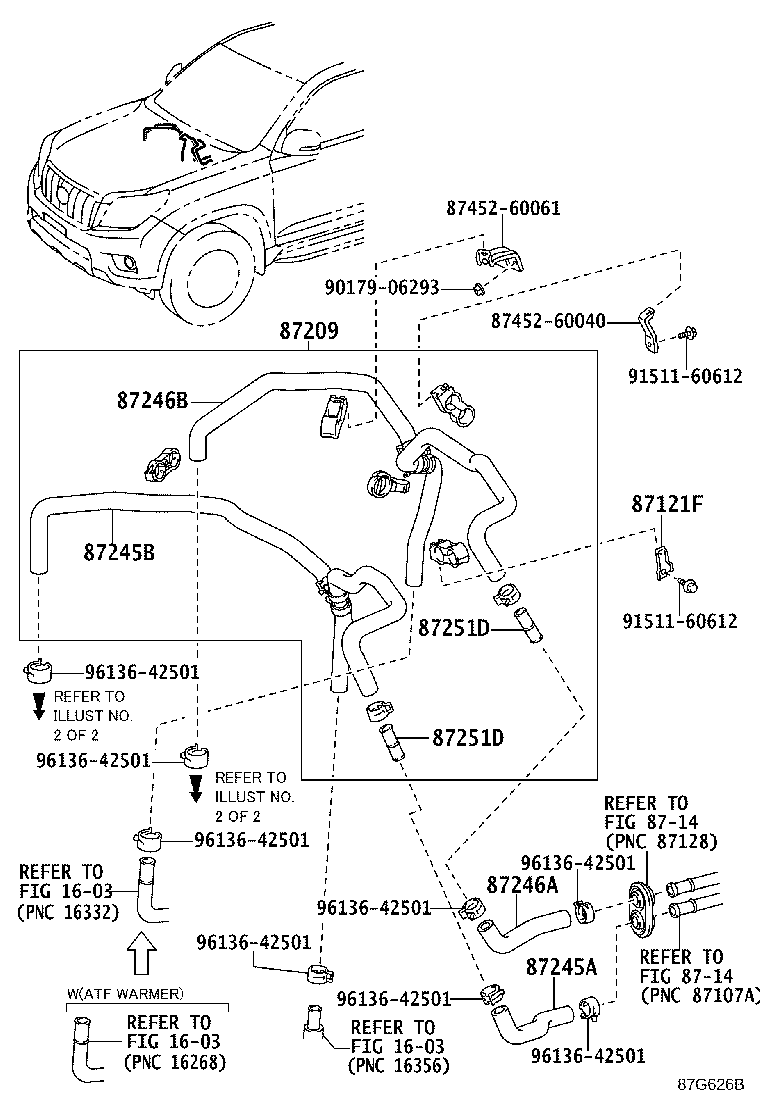

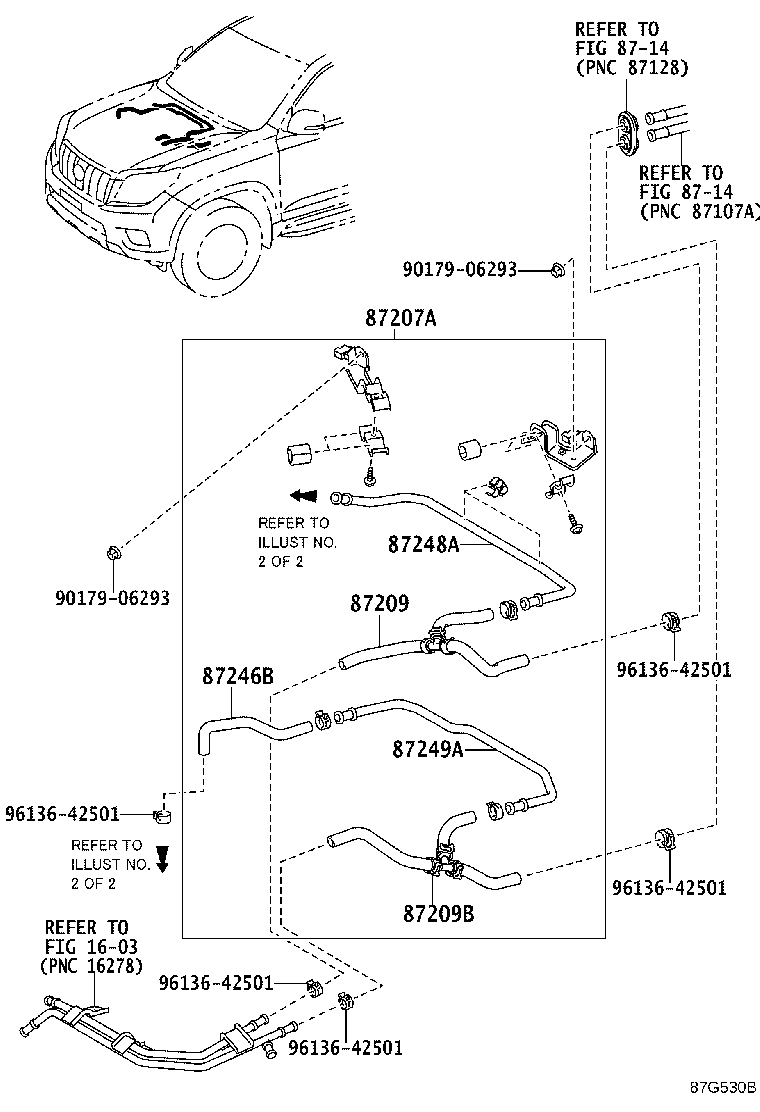

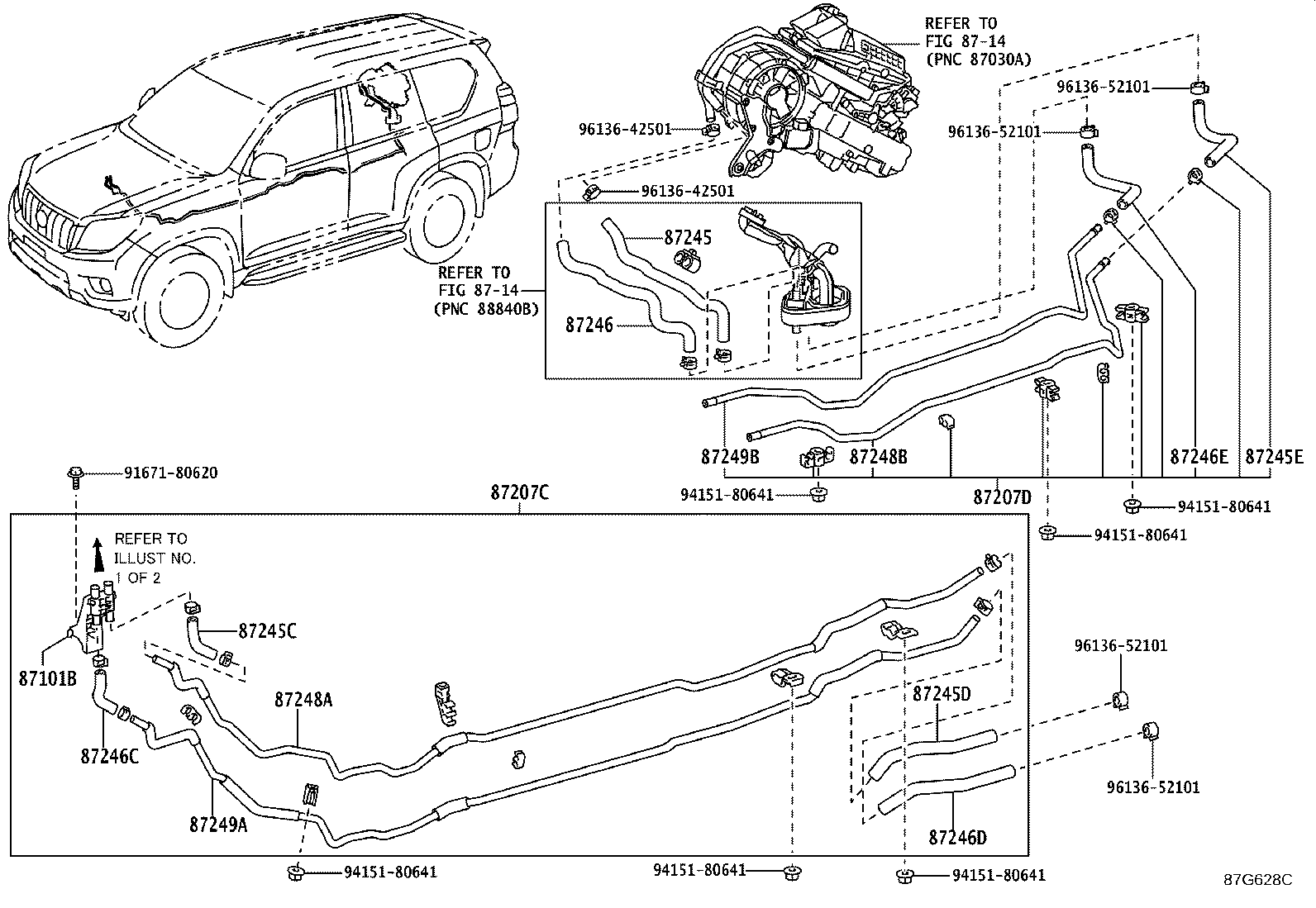

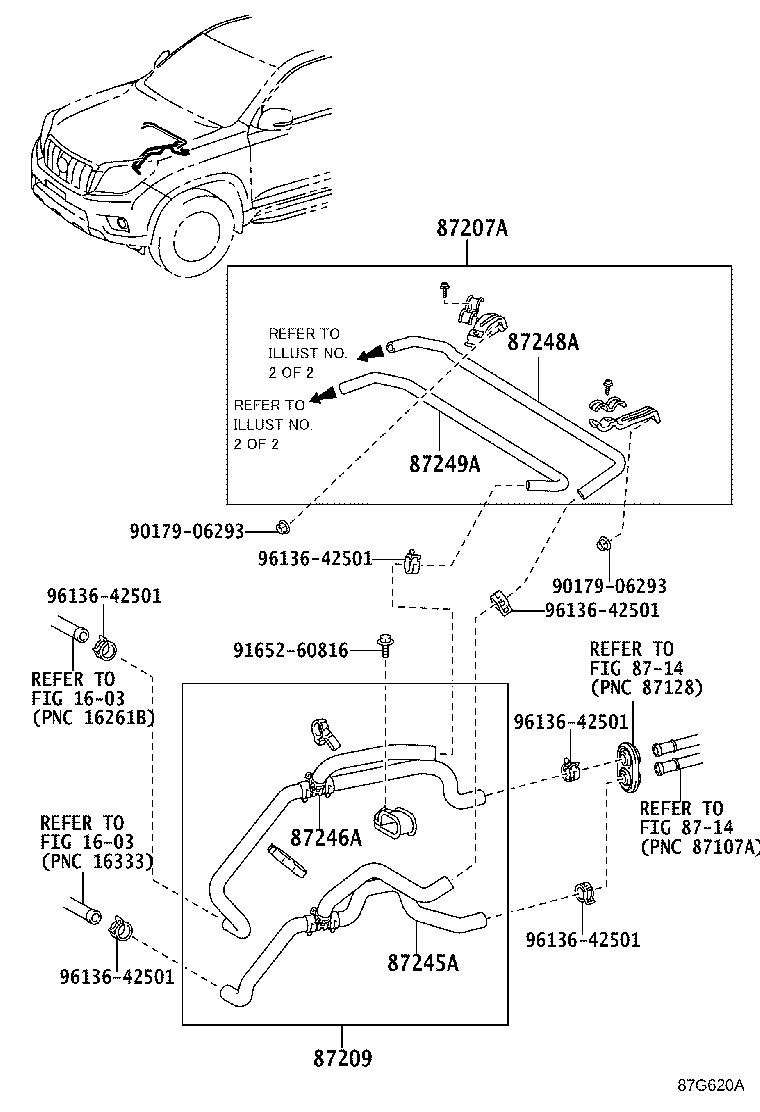

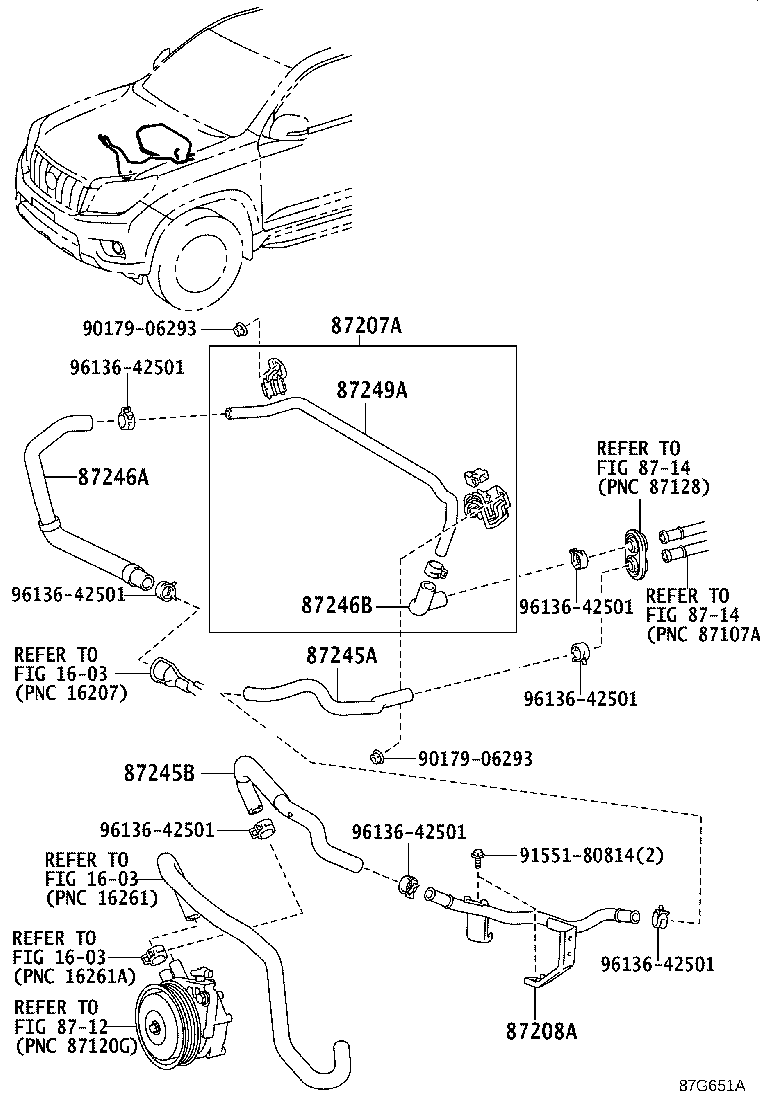

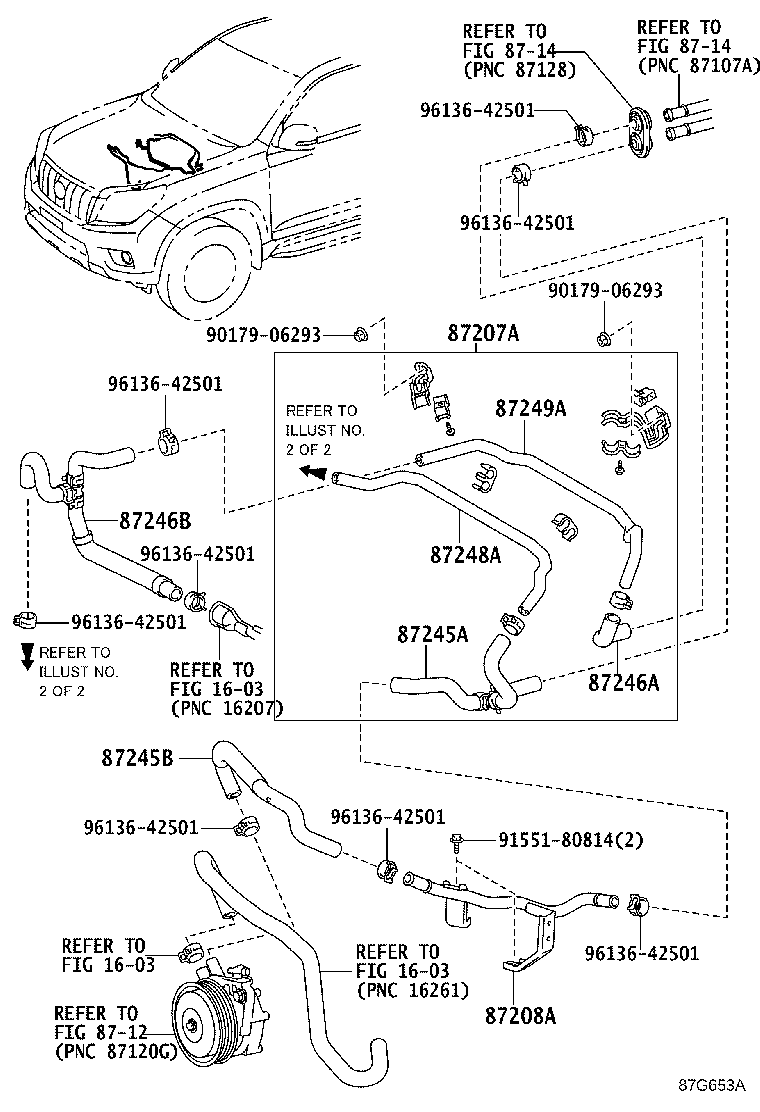

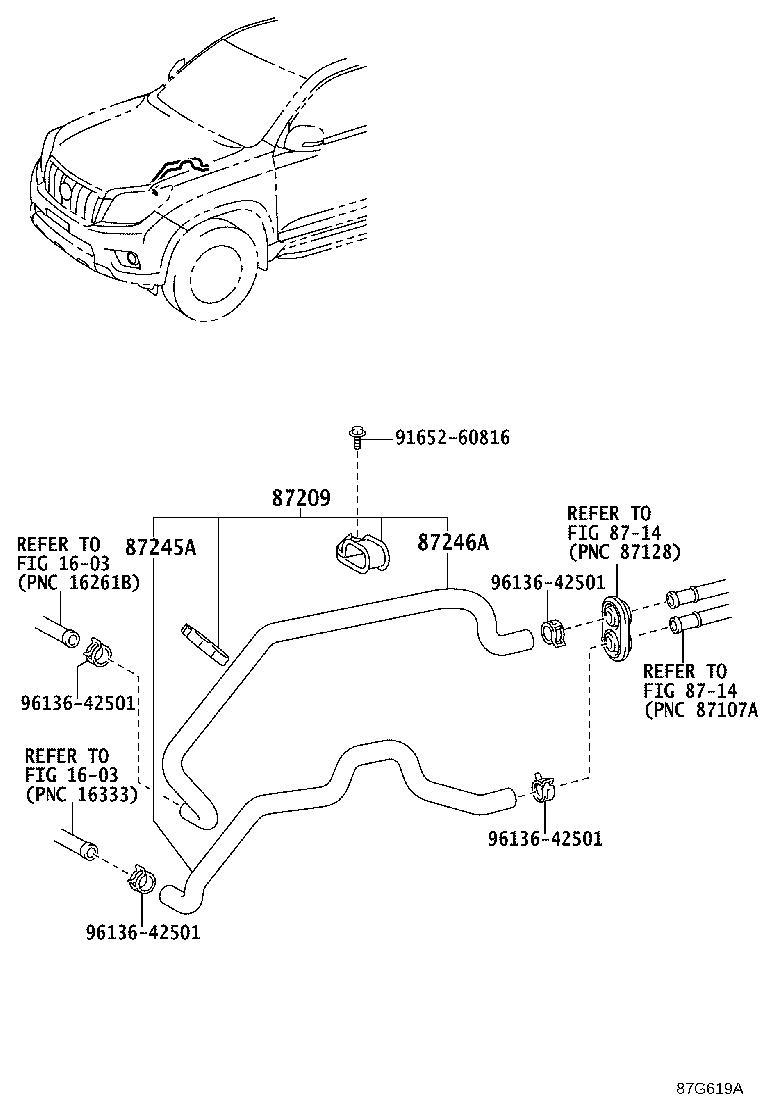

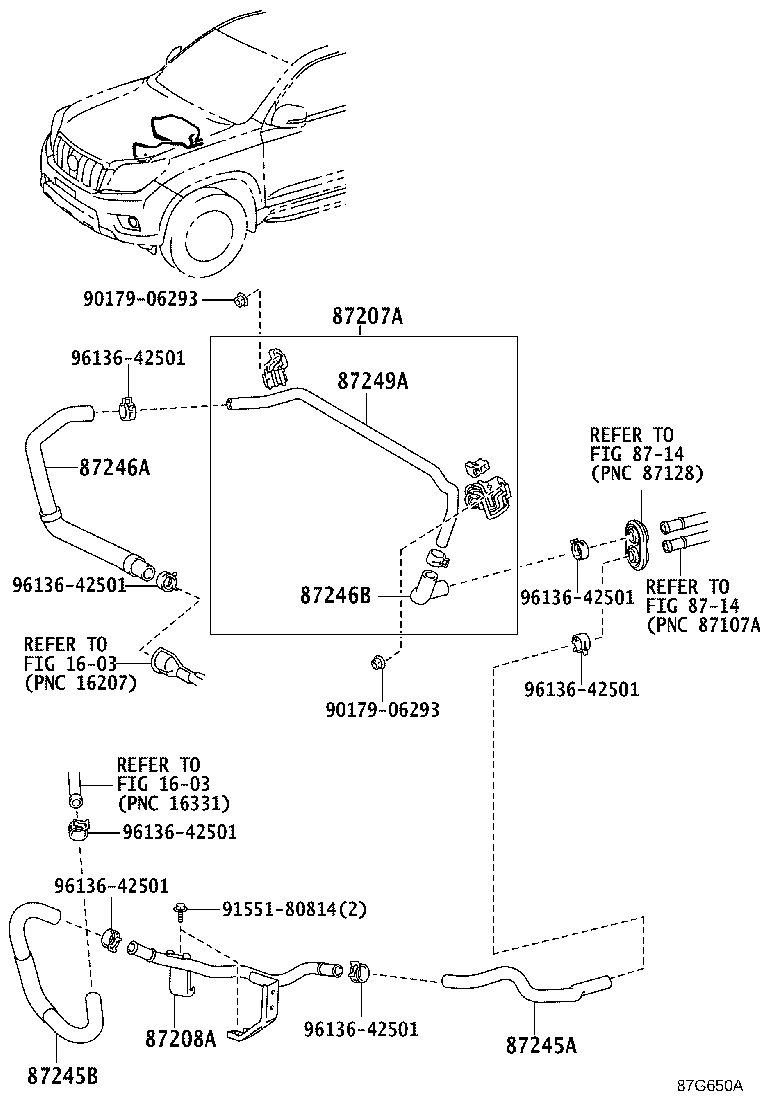

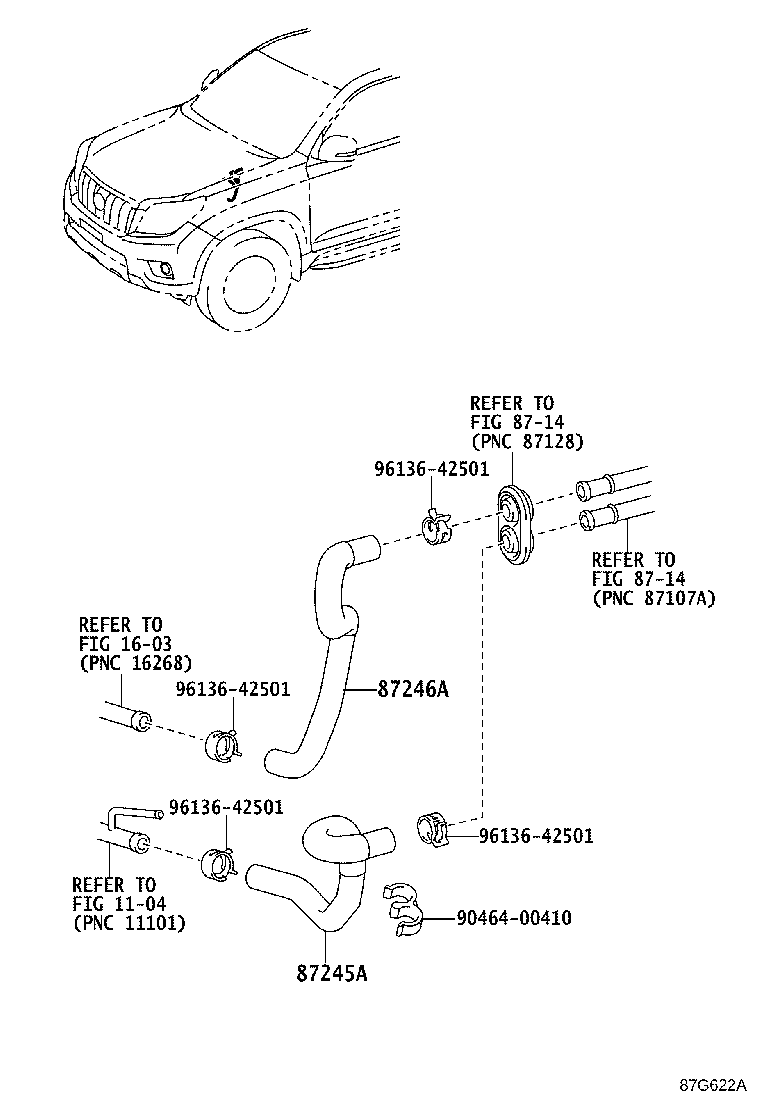

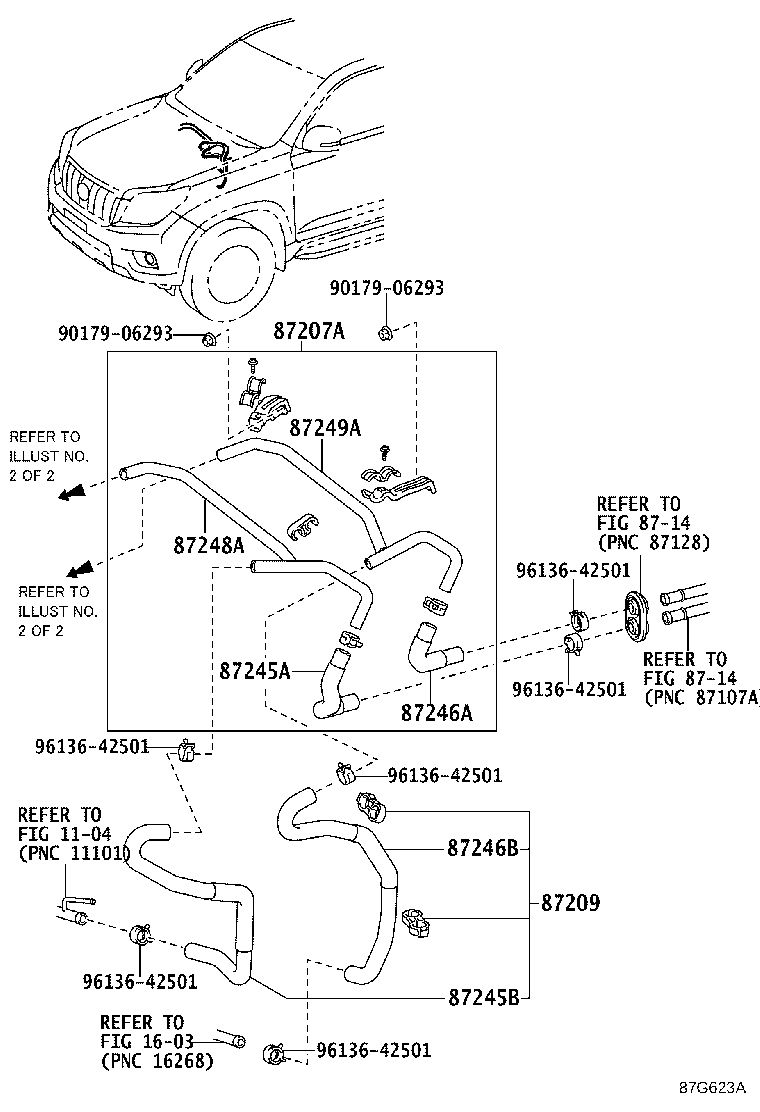

Figure 87G529B 87G529B 2017-08 → 2020-08 Figure 87J216A 87J216A 2020-08 → — Figure 87G530B 87G530B 2017-08 → — Figure 87G624B 87G624B 2017-08 → — Figure 87G626B 87G626B 2017-08 → — Figure 87G650A 87G650A 2017-08 → — Figure 87G651A 87G651A 2017-08 → — Figure 87G652A 87G652A 2017-08 → — Figure 87G653A 87G653A 2017-08 → — Figure 87G619A 87G619A 2017-08 → — Figure 87G620A 87G620A 2017-08 → — Figure 87G622A 87G622A 2017-08 → — Figure 87G623A 87G623A 2017-08 → — Figure 87G531C 87G531C 2017-08 → — Figure 87G628C 87G628C 2017-08 → — Figure 87G621B 87G621B 2017-08 → — Figure 87J217A 87J217A 2020-08 → —

Part groups

PNCDescription
87101B Bracket Sub-assy, Heater NO.2
87121F Bracket, Heater
87207A Pipe & Hose Sub-assy, Water A
87207C Pipe & Hose Sub-assy, Water C
87207D Pipe & Hose Sub-assy, Water D
87208A Pipe Sub-assy, Heater Water, A
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87209D Hose Sub-assy, Water, D
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245J Hose, Heater Water, Inlet J
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87251D Joint, Water, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
