Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ150,GRJ150,KDJ150,LJ150,TRJ15# · catalogue 781380 · General
Supported model
Data version 2020-08

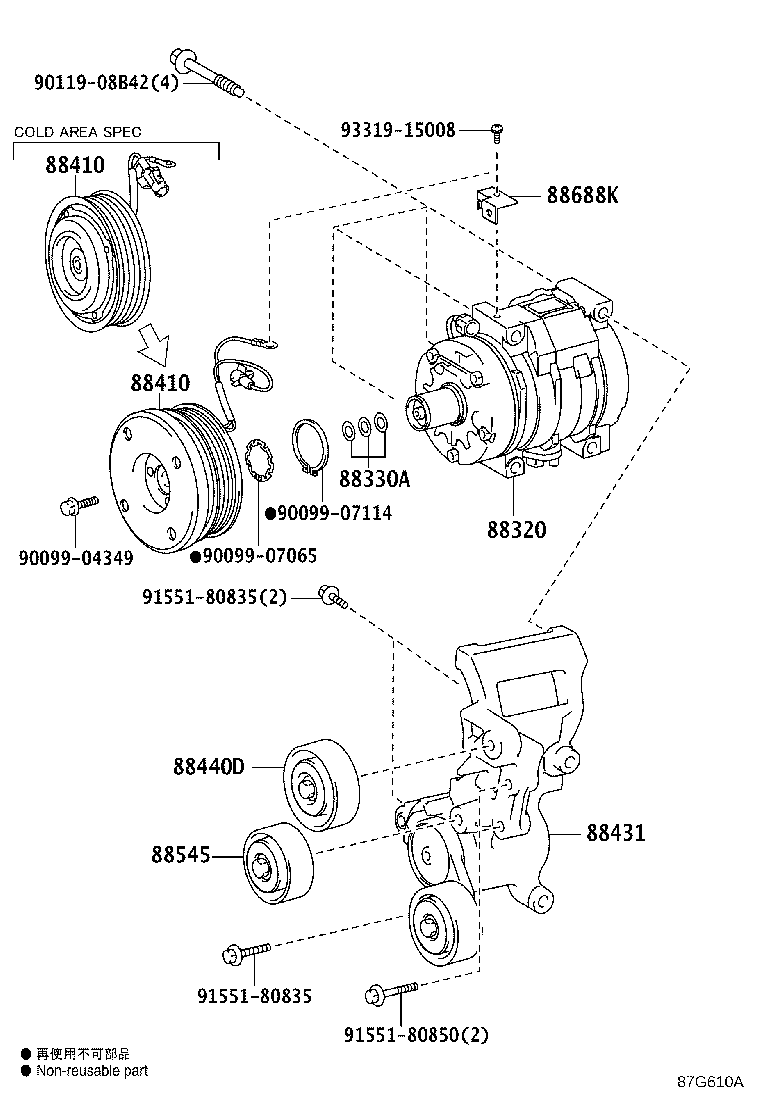

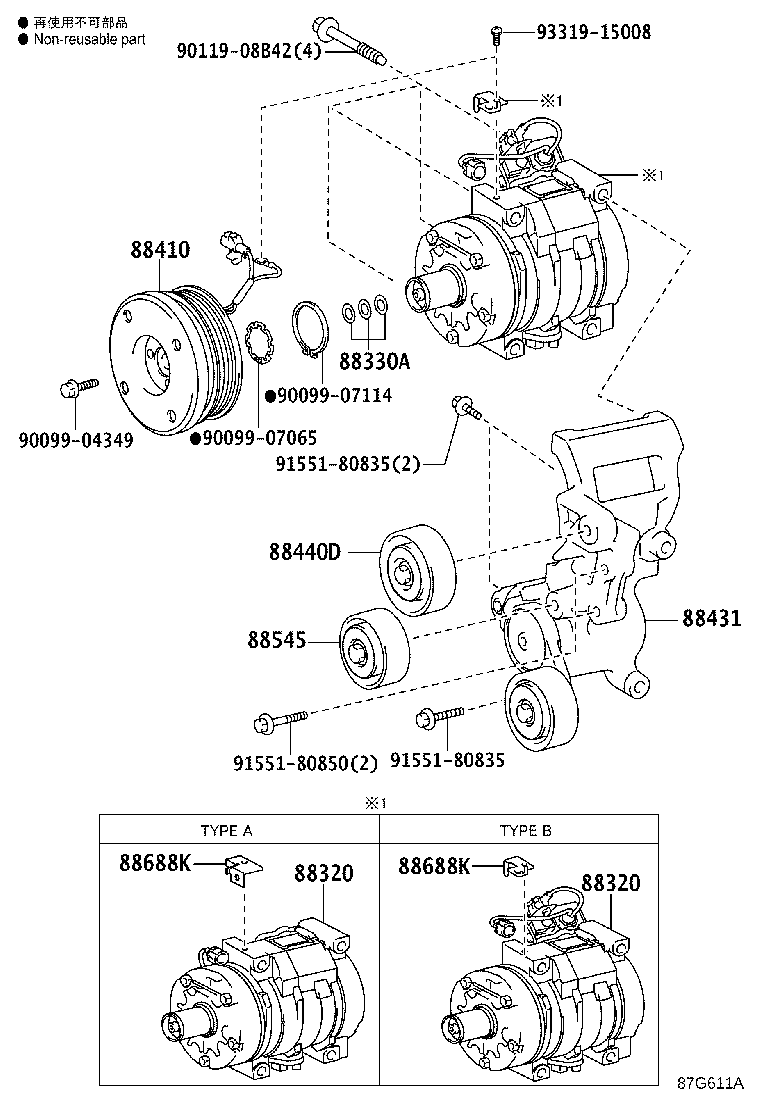

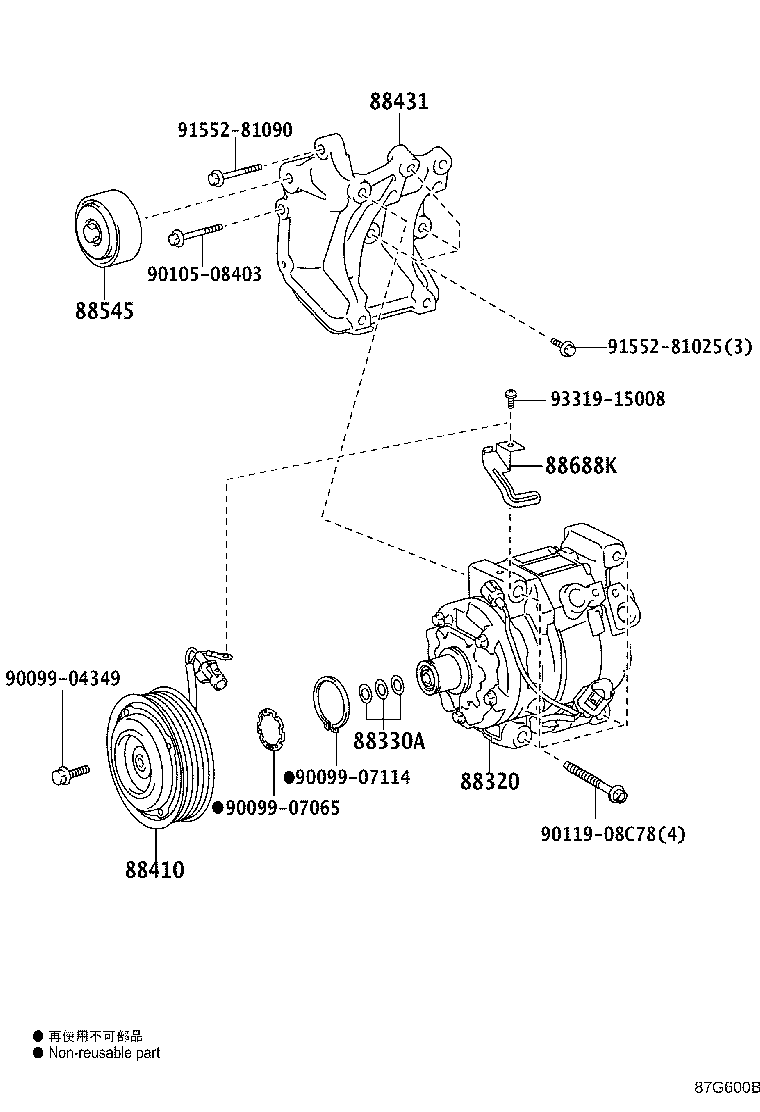

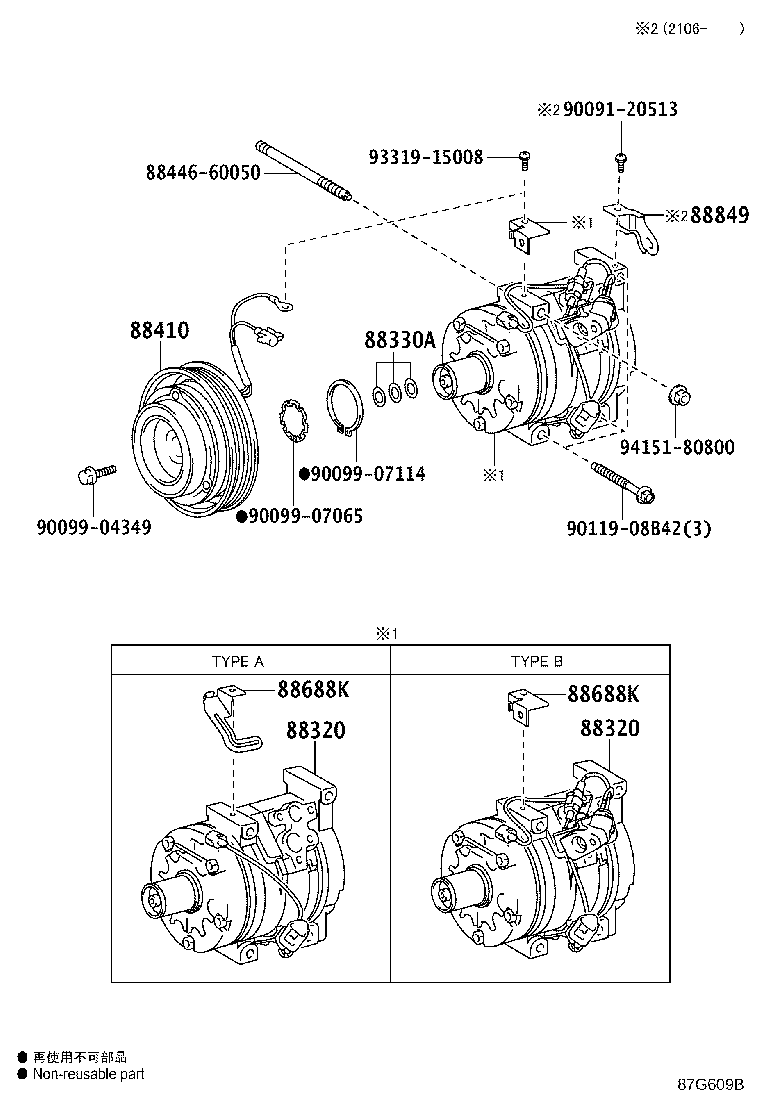

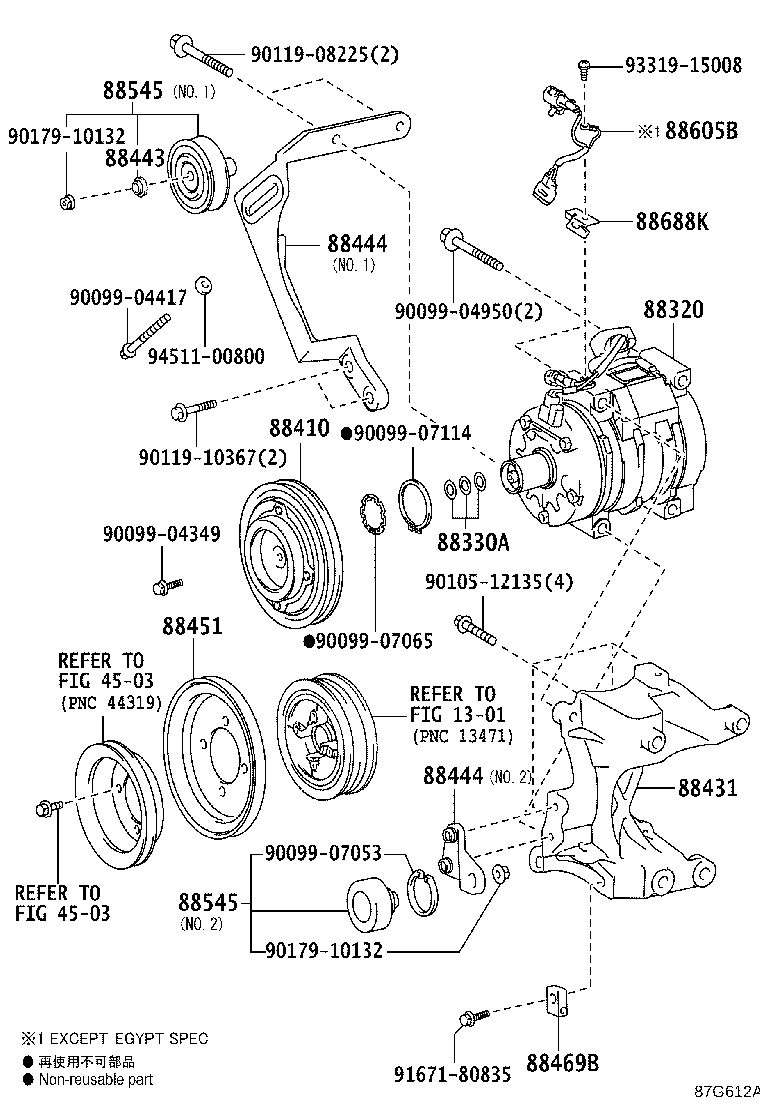

Heating & Air Conditioning - Compressor
13 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440D | Pulley Assy, Idle NO.2 |
| 88443 | Collar, Idle Pulley |
| 88444 | Bracket, Idle Pulley |
| 88451 | Pulley, Crankshaft |
| 88469B | Collar |
| 88545 | Pulley Assy, Idle |
| 88605B | Harness Sub-assy, Air Conditioner Wiring |
| 88688K | Bracket, Cooler Compressor |
| 88849 | Bracket, Cooler Compressor, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
