Toyota Lexus GX550/550H
2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · General
Supported model
Data version 2024-02
Battery & Battery Cable

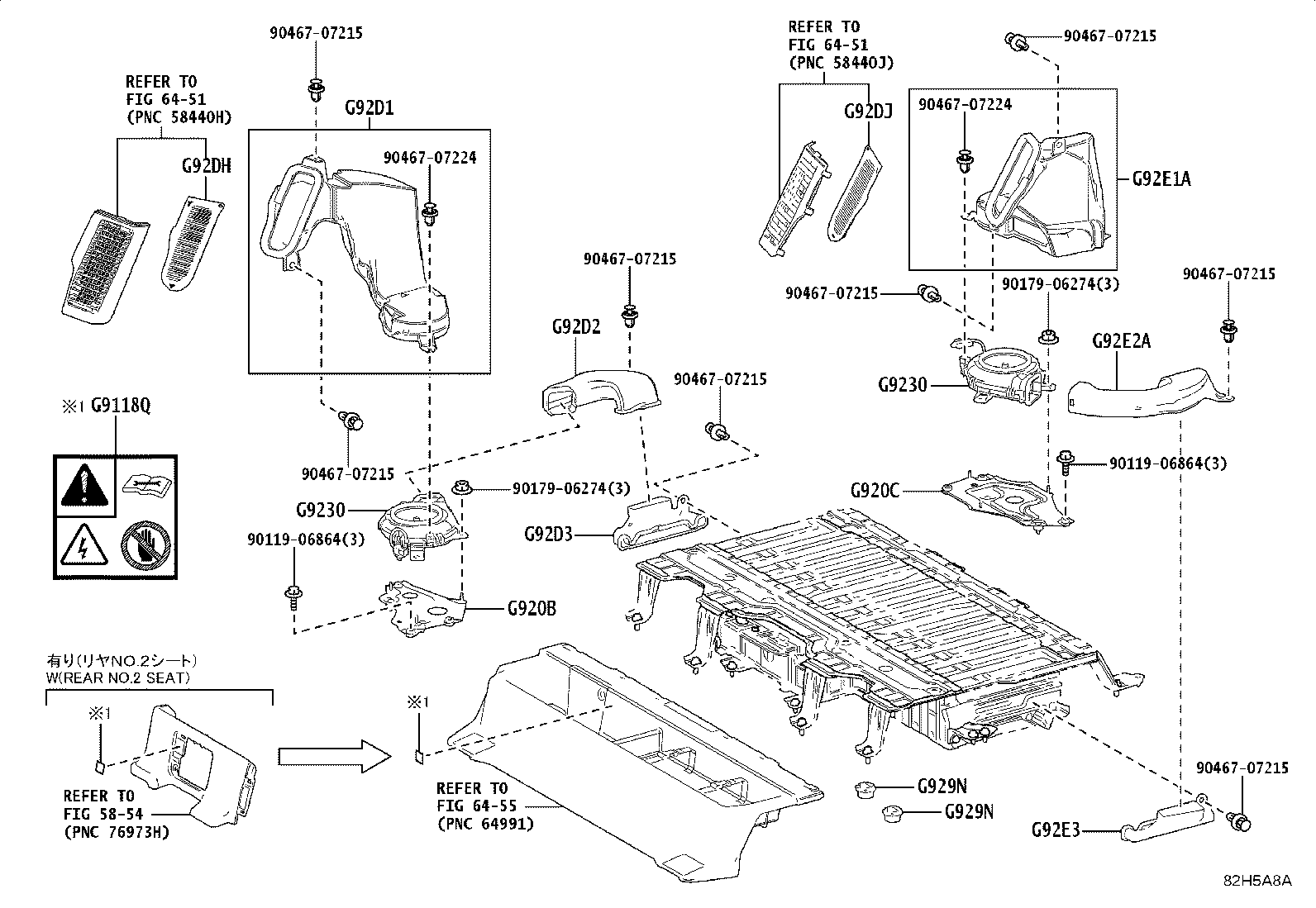

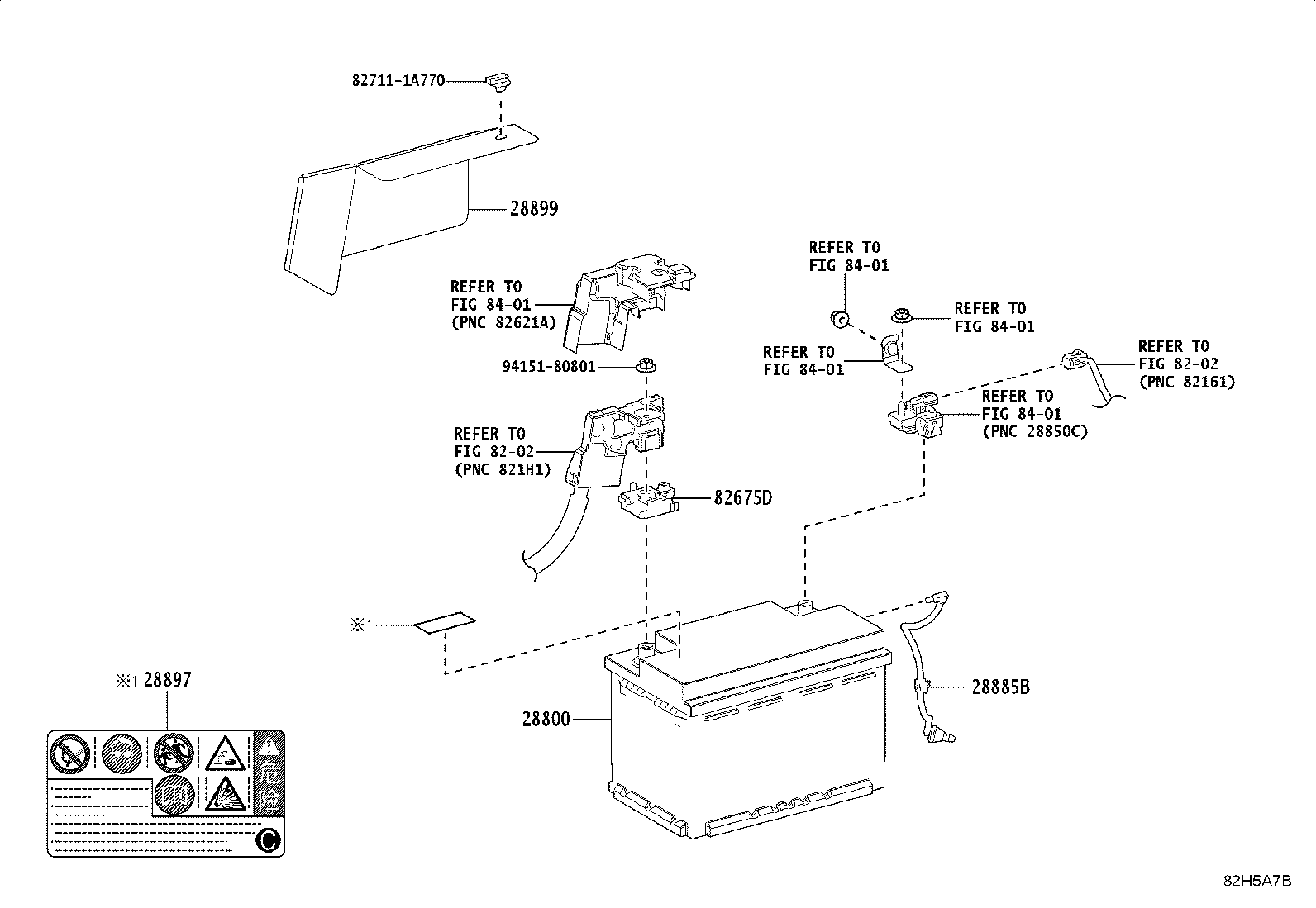

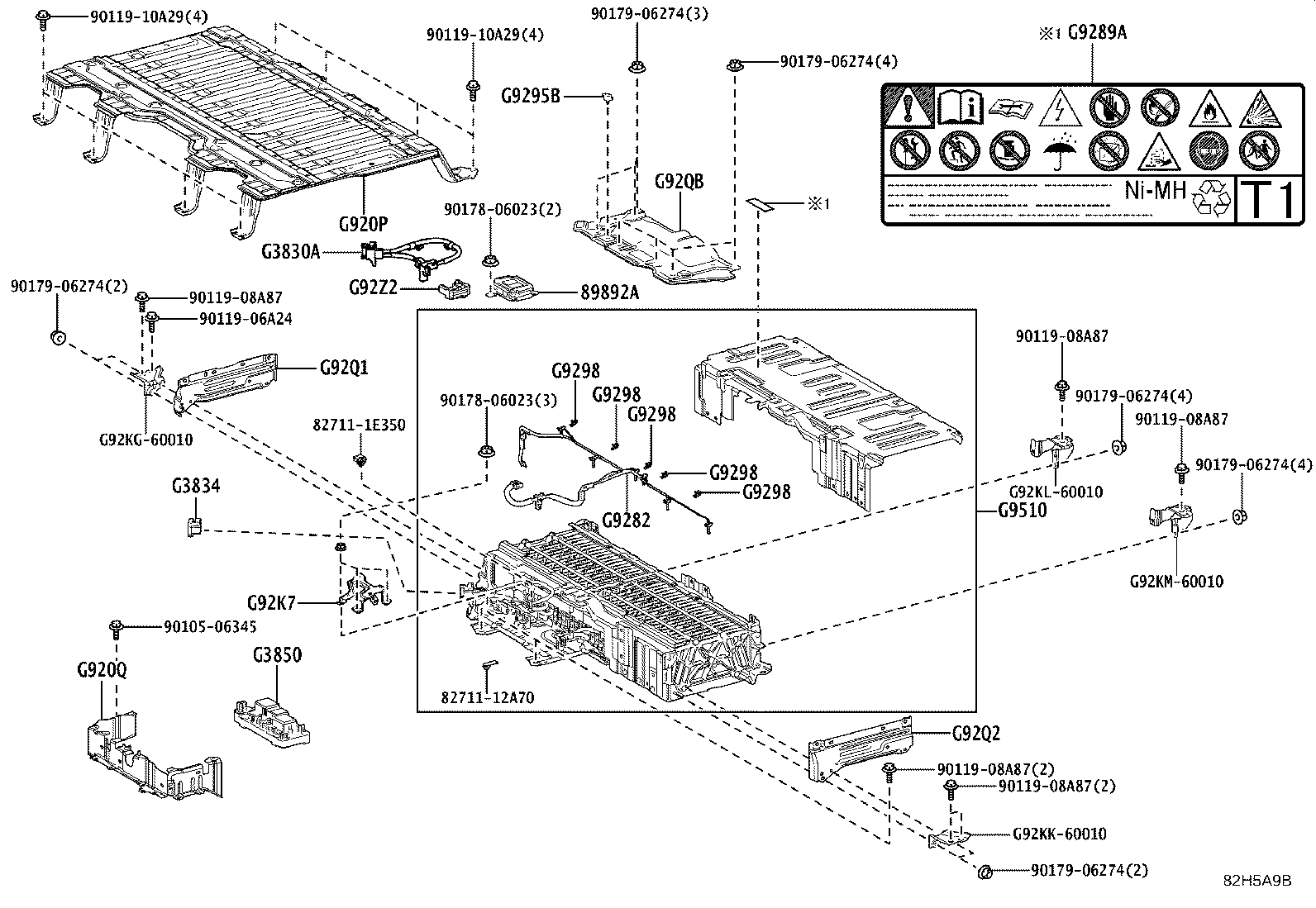

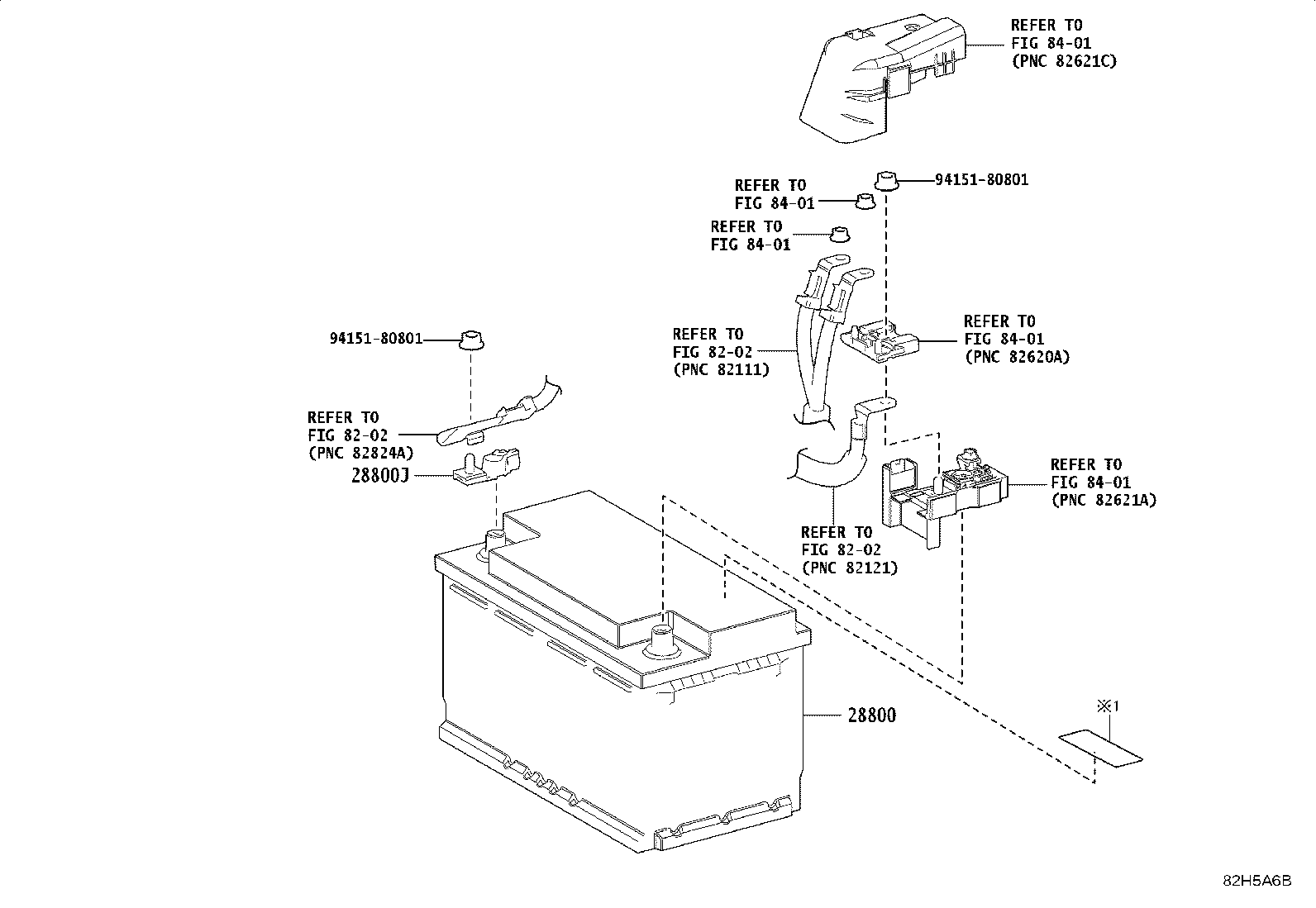

37 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800J | Terminal, Battery Negative |
| 28885B | Hose, Battery |
| 28897 | Plate, Battery Caution |
| 28899 | Insulator, Battery |
| 82675D | Terminal, Junction |
| 82821K | Cover, Connector |
| 89892A | Sensor, Battery Voltage |
| G3830A | Plug Assy, Electric Vehicle Battery |
| G3834 | Grip, Service Plug |
| G3850 | Box Assy, Traction Battery Device, NO.1 |
| G9118Q | Label, HV Unit Controller Caution, NO.1 |
| G920B | Bracket Sub-assy, HV Battery Carrier, NO.1 |
| G920C | Bracket Sub-assy, HV Battery Carrier, NO.2 |
| G920P | Panel Sub-assy, EV Battery |
| G920Q | Shield Sub-assy, Hybrid Battery, NO.1 |
| G9230 | Blower Assy, Battery Cooling |
| G9282 | Thermistor, Hybrid Battery |
| G9289A | Label, Battery Caution |
| G9295B | Striker, Battery Cover Lock |
| G9298 | Clamp, HV Battery |
| G929N | Plug, Battery Drain |
| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92D2 | Duct, Hybrid Battery Intake, NO.2 |
| G92D3 | Duct, Hybrid Battery Intake, NO.3 |
| G92DH | Filter, HV Battery Intake, NO.1 |
| G92DJ | Filter, HV Battery Intake, NO.2 |
| G92E1A | Duct, HV Battery Intake, NO.1 LH |
| G92E2A | Duct, HV Battery Intake, NO.2 LH |
| G92E3 | Duct, HV Battery Intake, NO.3 LH |
| G92K7 | Bracket, HV Battery Carrier, NO.5 |
| G92Q1 | Panel, HV Battery Shield, NO.1 |
| G92Q2 | Panel, HV Battery Shield, NO.2 |
| G92QB | Panel, HV Battery Shield, NO.9 |
| G92Z2 | Block, Hybrid Battery Terminal |
| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
