Toyota Lexus GX400/460

2009-11 → present · chassis GRJ158,URJ150 · catalogue 782310 · General

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

10 part groups · 2 illustrations

Illustrations

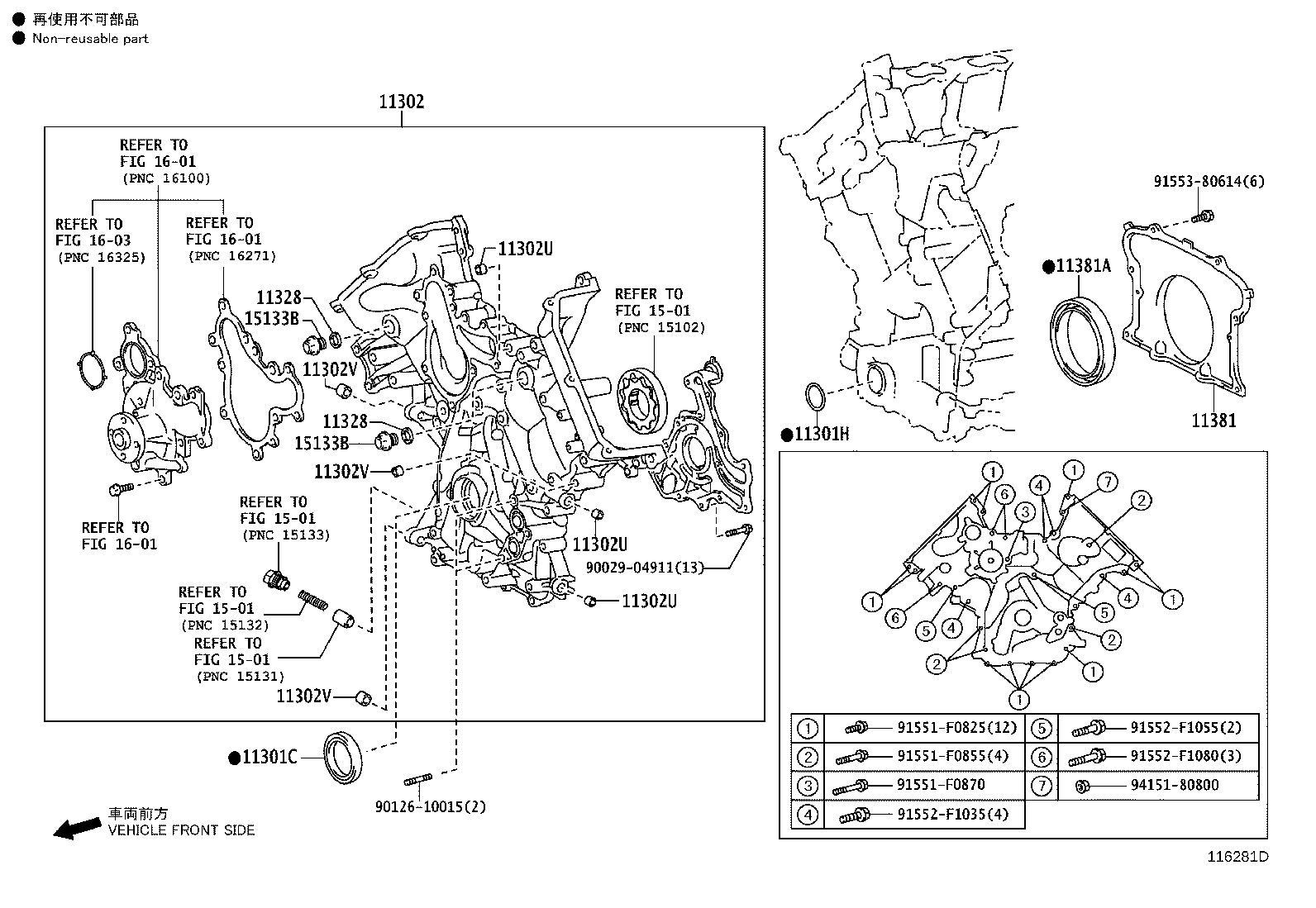

Figure 11C001B 11C001B 2012-06 → — Figure 116281D 116281D 2009-11 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301H Ring, O(FOR TIMING GEAR CASE, LOWER)
11302 Cover Sub-assy, Timing Chain OR Belt
11302U Pin, Ring
11302V Pin, Ring, NO.1
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
15133B Plug, Oil Pump Relief Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
