Toyota Lexus GX400/460

2009-11 → present · chassis GRJ158,URJ150 · catalogue 782310 · General

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

17 part groups · 2 illustrations

Illustrations

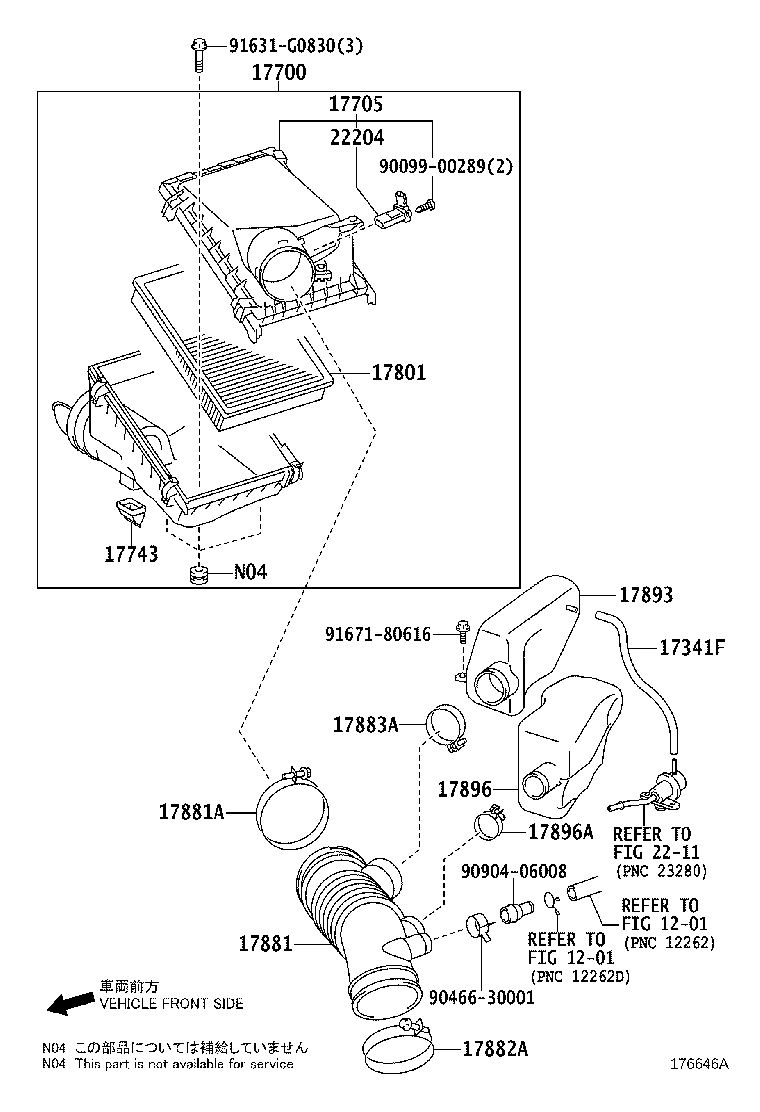

Figure 177742A 177742A 2012-06 → — Figure 176646A 176646A 2009-11 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17743 Valve, Dust Relief
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17893 Resonator, Intake Air
17893A Clamp, Hose
17894 Bracket, Resonator
17896 Resonator, Intake Air, NO.3
17896A Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.3)
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
