Toyota Lexus GX400/460

2009-11 → present · chassis GRJ158,URJ150 · catalogue 782310 · General

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

7 part groups · 2 illustrations

Illustrations

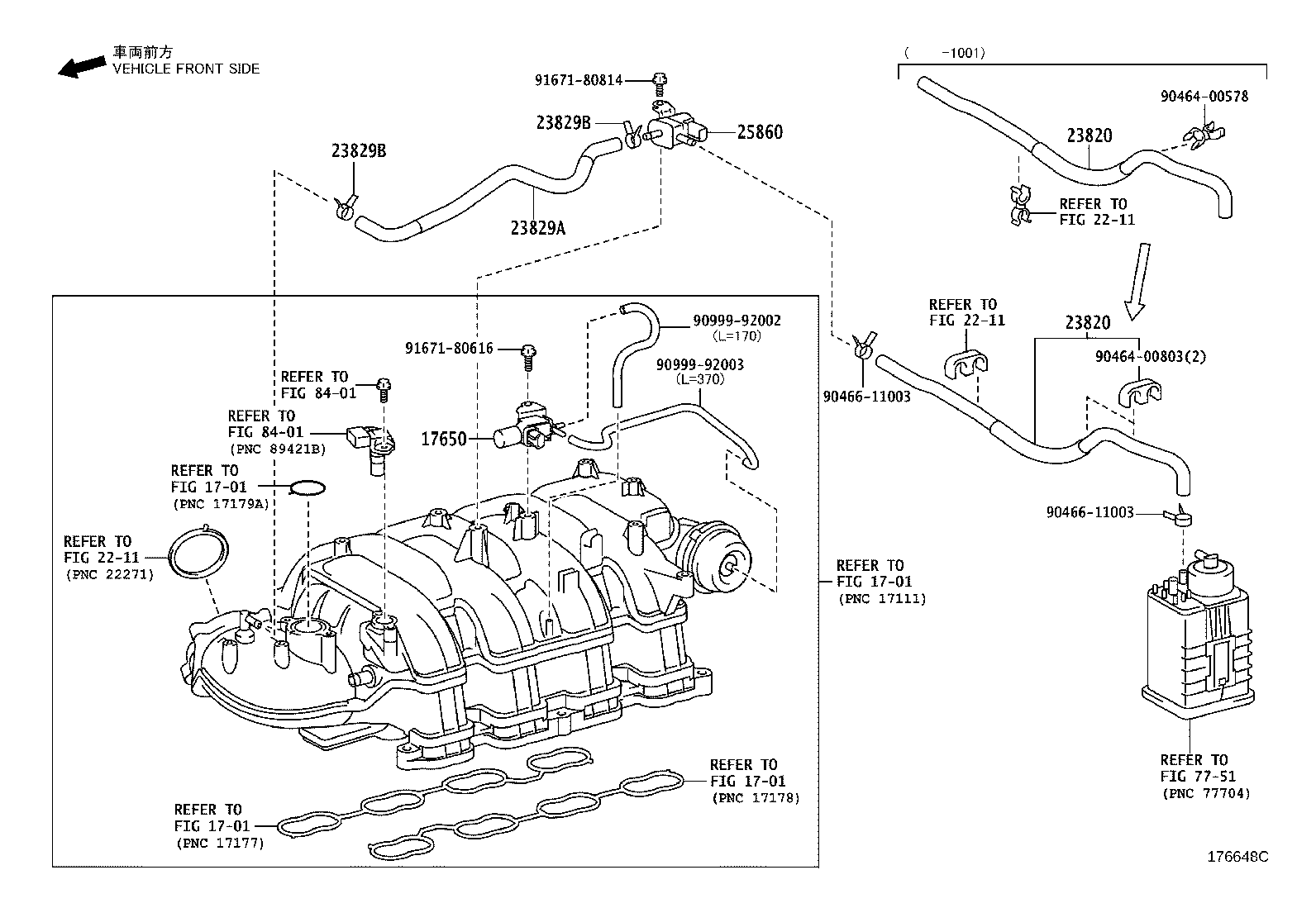

Figure 176775A 176775A 2012-06 → — Figure 176648C 176648C 2009-11 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
