Rear Combination Lamp

12 part groups · 6 illustrations

Illustrations

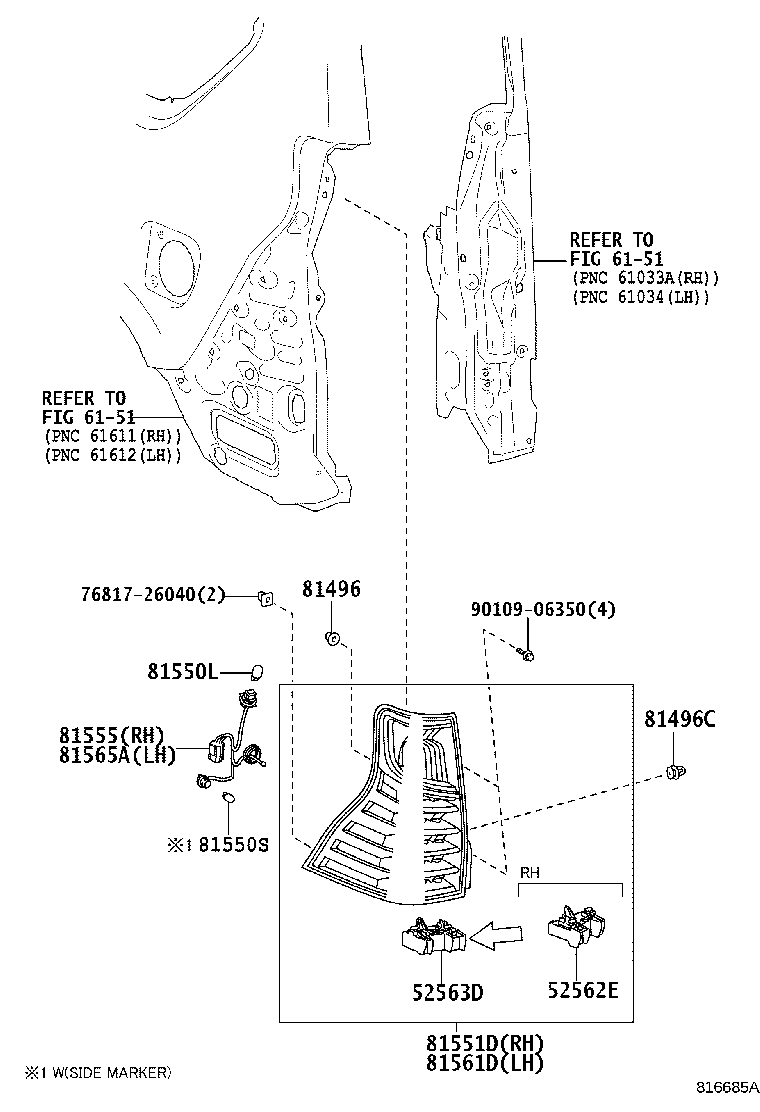

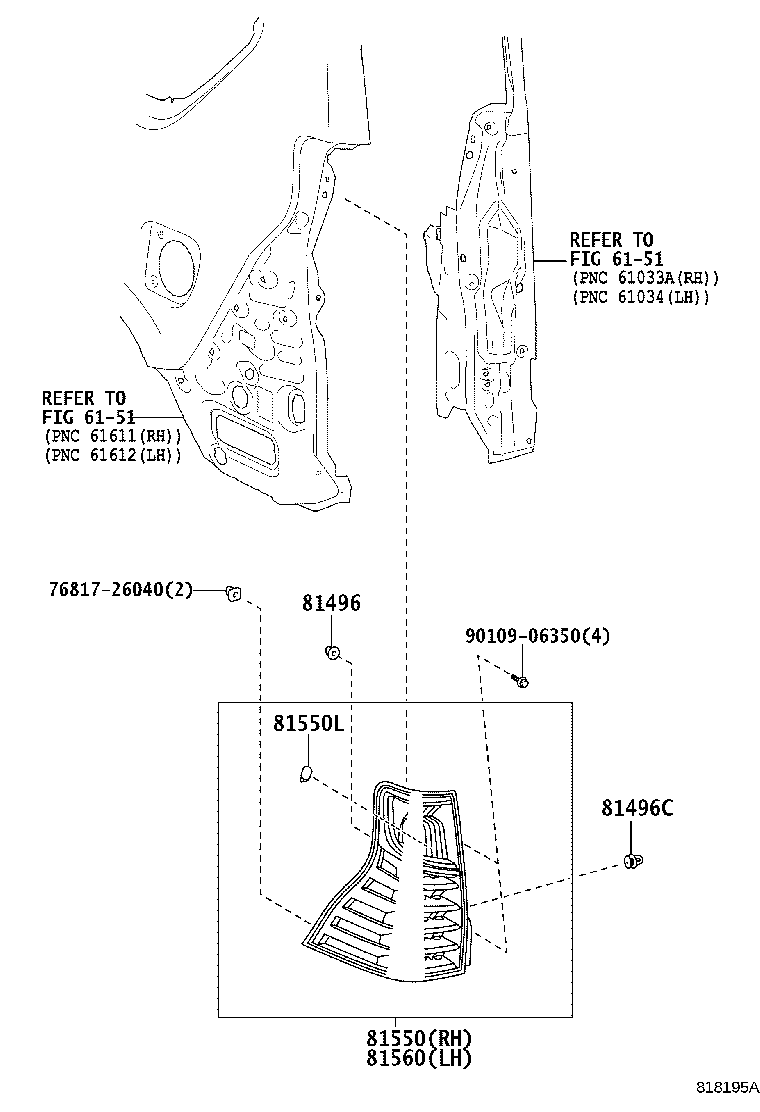

Figure 815276A 815276A 2009-11 → 2013-08 Figure 815276A 815276A 2010-12 → 2012-06 Figure 815276A 815276A 2012-06 → 2013-09 Figure 816685A 816685A 2013-08 → — Figure 816685A 816685A 2013-09 → — Figure 818195A 818195A 2016-08 → —

Part groups

PNCDescription
52562E Retainer, Rear Bumper, Upper RH
52563D Retainer, Rear Bumper, Upper LH
81496 Guide, Rear Combination Lamp
81496C Guide, Rear Combination Lamp, NO.2
81550 Lamp Assy, Rear Combination, RH
81550L Bulb, Rear Turn Signal Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565A Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
