Toyota Lexus GX400/460

2009-11 → present · chassis GRJ158,URJ150 · catalogue 782310 · General

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

3 part groups · 5 illustrations

Illustrations

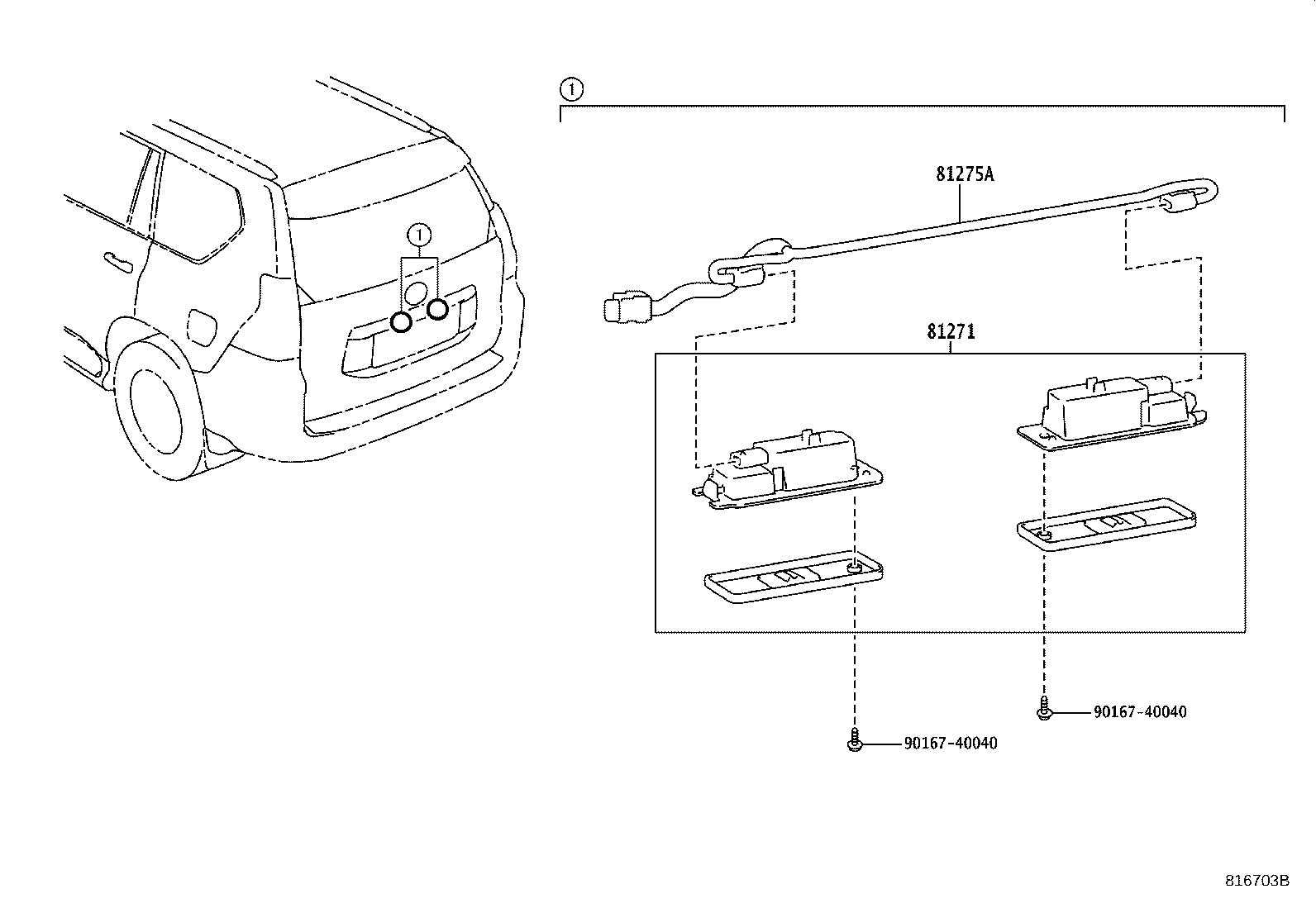

Figure 815255 815255 2009-11 → 2013-08 Figure 815255 815255 2010-12 → 2012-06 Figure 815255 815255 2012-06 → 2013-09 Figure 816703B 816703B 2013-08 → — Figure 816703B 816703B 2013-09 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81271 Lens, License Plate Lamp
81275A Cord, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
