Toyota Lexus GX400/460

2009-11 → present · chassis GRJ158,URJ150 · catalogue 782310 · General

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

24 part groups · 6 illustrations

Illustrations

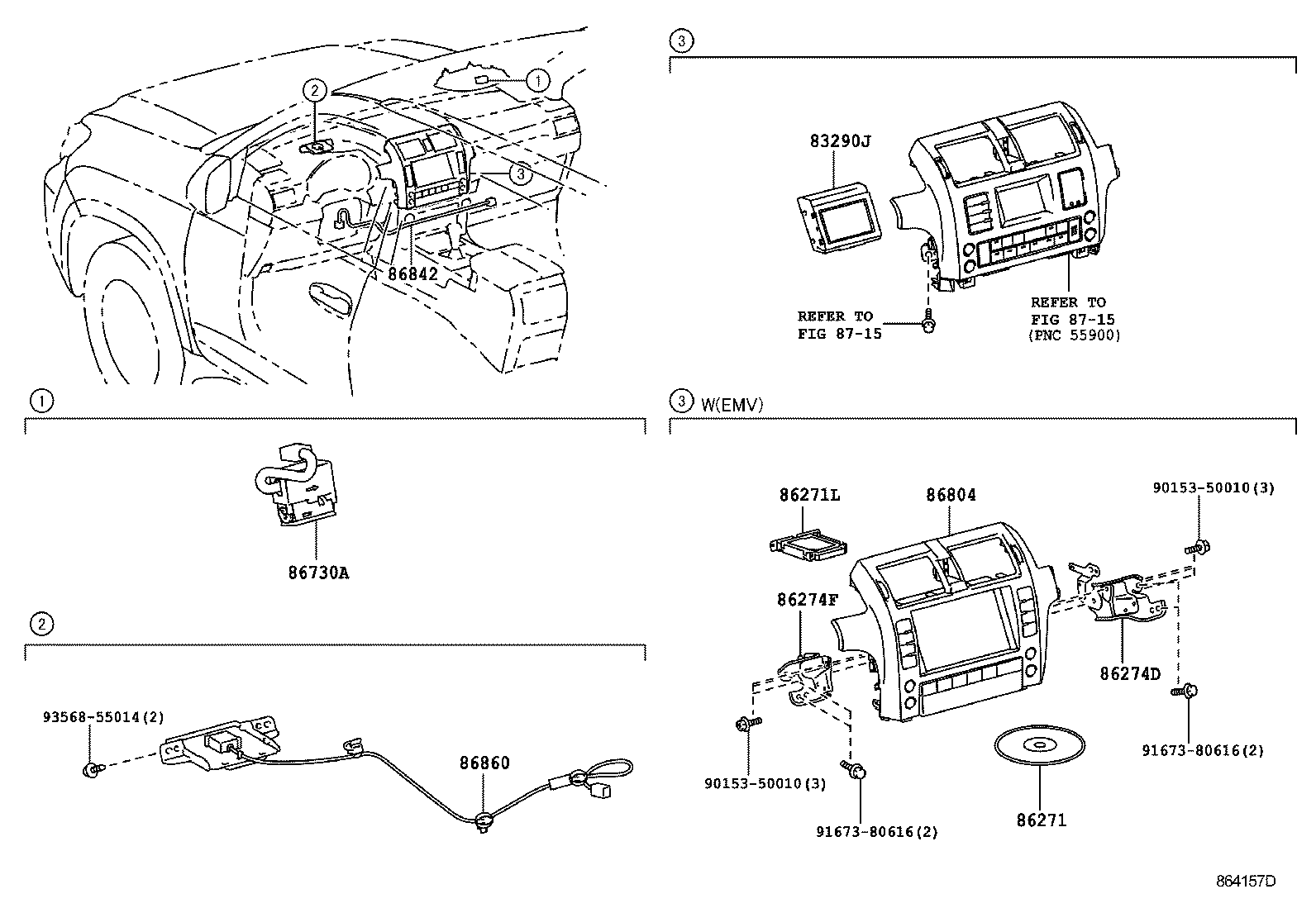

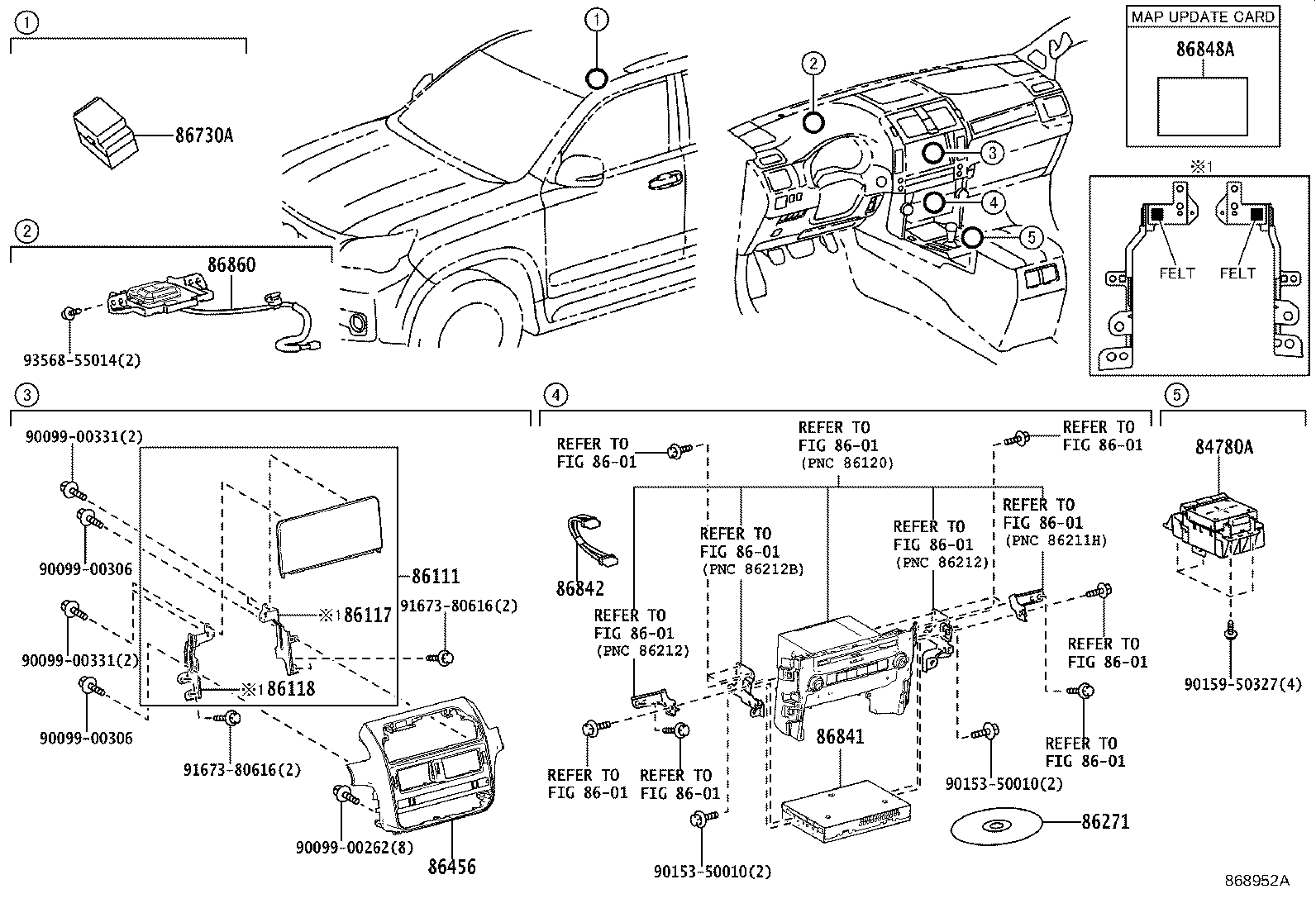

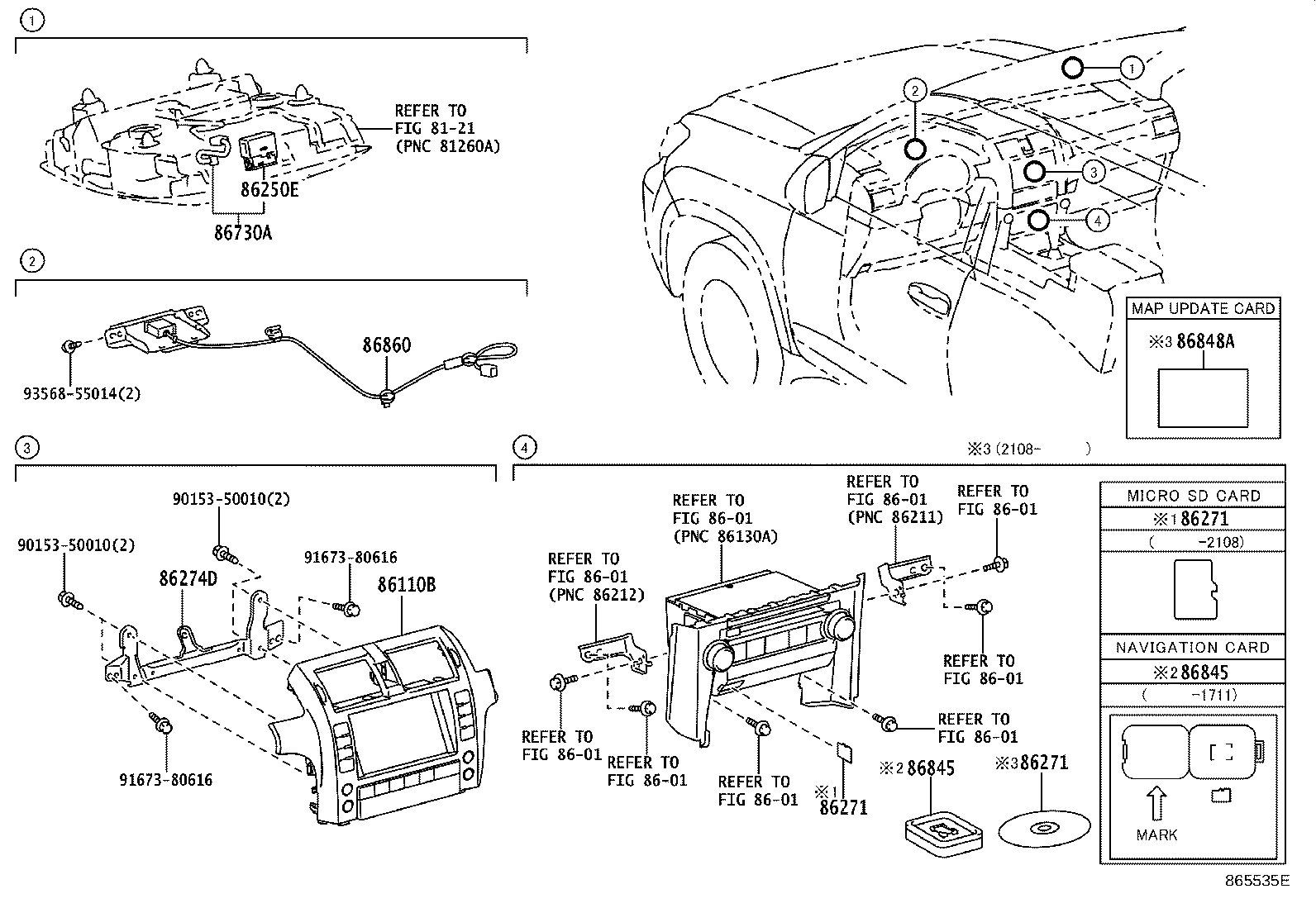

Figure 864142B 864142B 2009-11 → 2013-08 Figure 864157D 864157D 2010-02 → 2013-08 Figure 864157D 864157D 2012-06 → 2013-09 Figure 865535E 865535E 2013-08 → 2021-08 Figure 865535E 865535E 2013-09 → 2021-08 Figure 868952A 868952A 2021-08 → —

Part groups

PNCDescription
83290J Meter Assy, Accessory
84780A Controller Assy, Remote Operation
86110B Multi-display Assy
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86118 Bracket, Multi-display Controler, B
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86271L Hard Disc
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86274G Bracket, Disc Player, NO.3
86274K Bracket, Disc Player, NO.4
86276B Cover, Disc Player
86421 Board, Navigation Module
86431 Display, Display & Navigation Module
86456 Cover, Multi-media Module
86730A Microphone Assy, Telephone
86804 Cover Sub-assy, Navigation Computer
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86845 Card, Navigation
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
