Heating & Air Conditioning - Water Piping

23 part groups · 6 illustrations

Illustrations

Figure 87B251

87B251 2009-11 → —

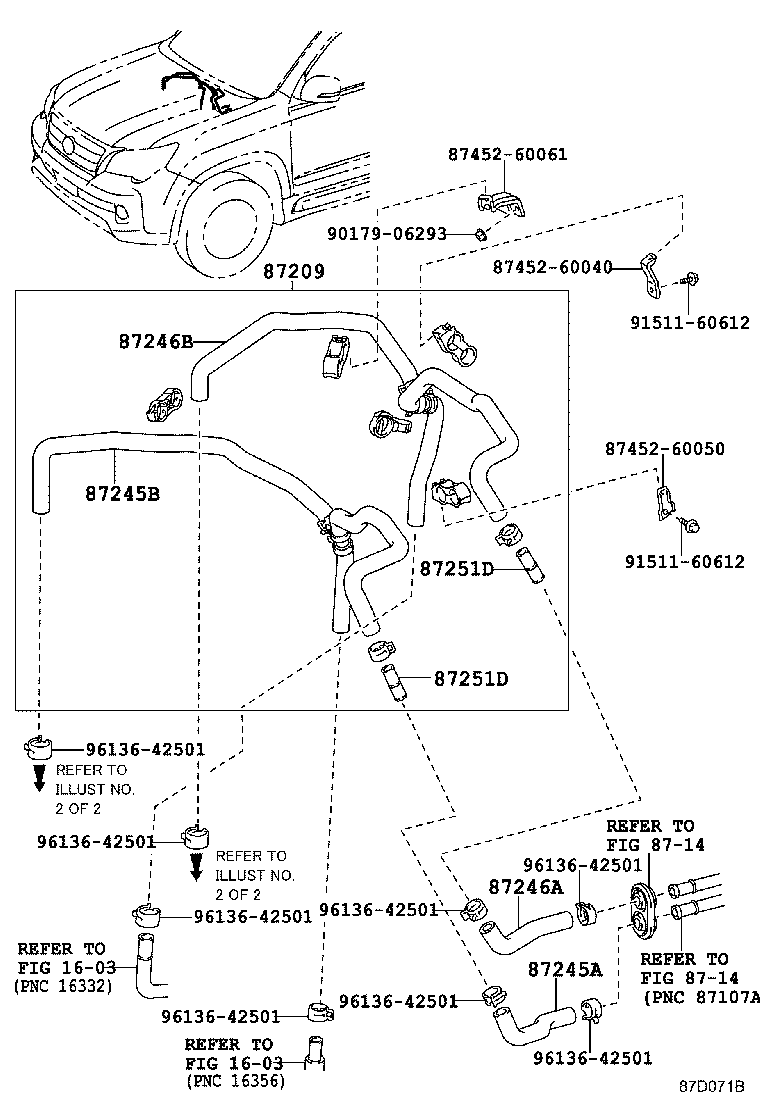

Figure 87D071B

87D071B 2012-06 → 2015-05

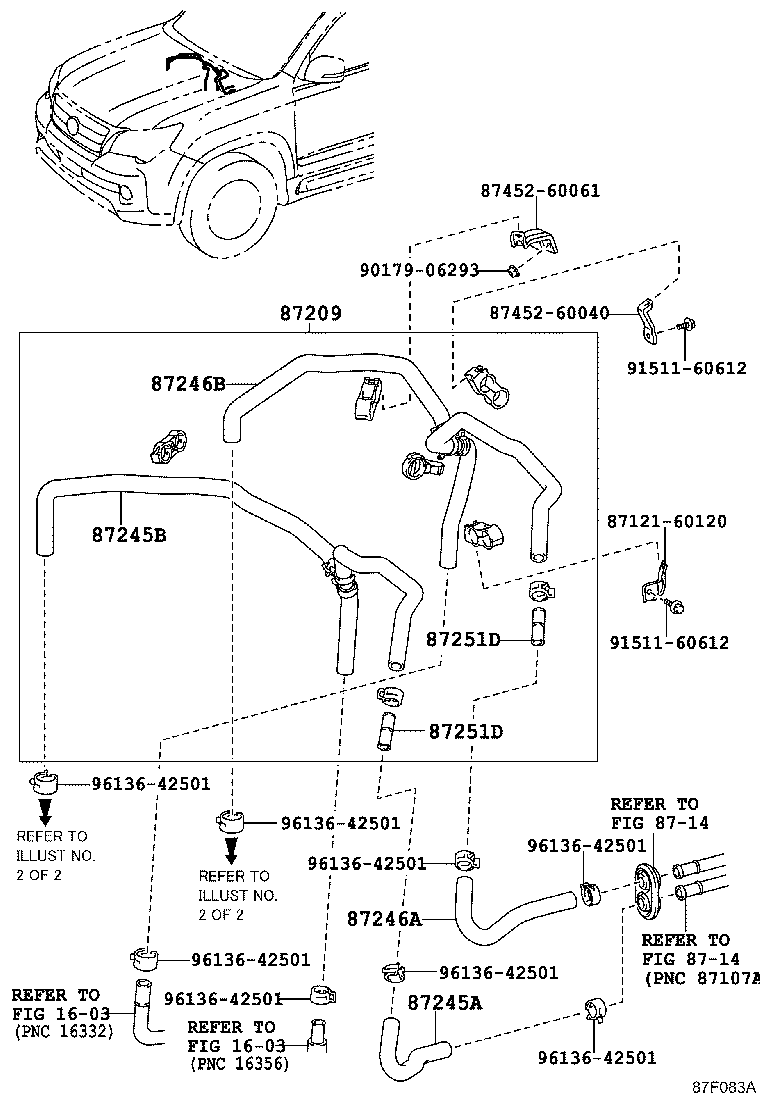

Figure 87F083A

87F083A 2015-05 → —

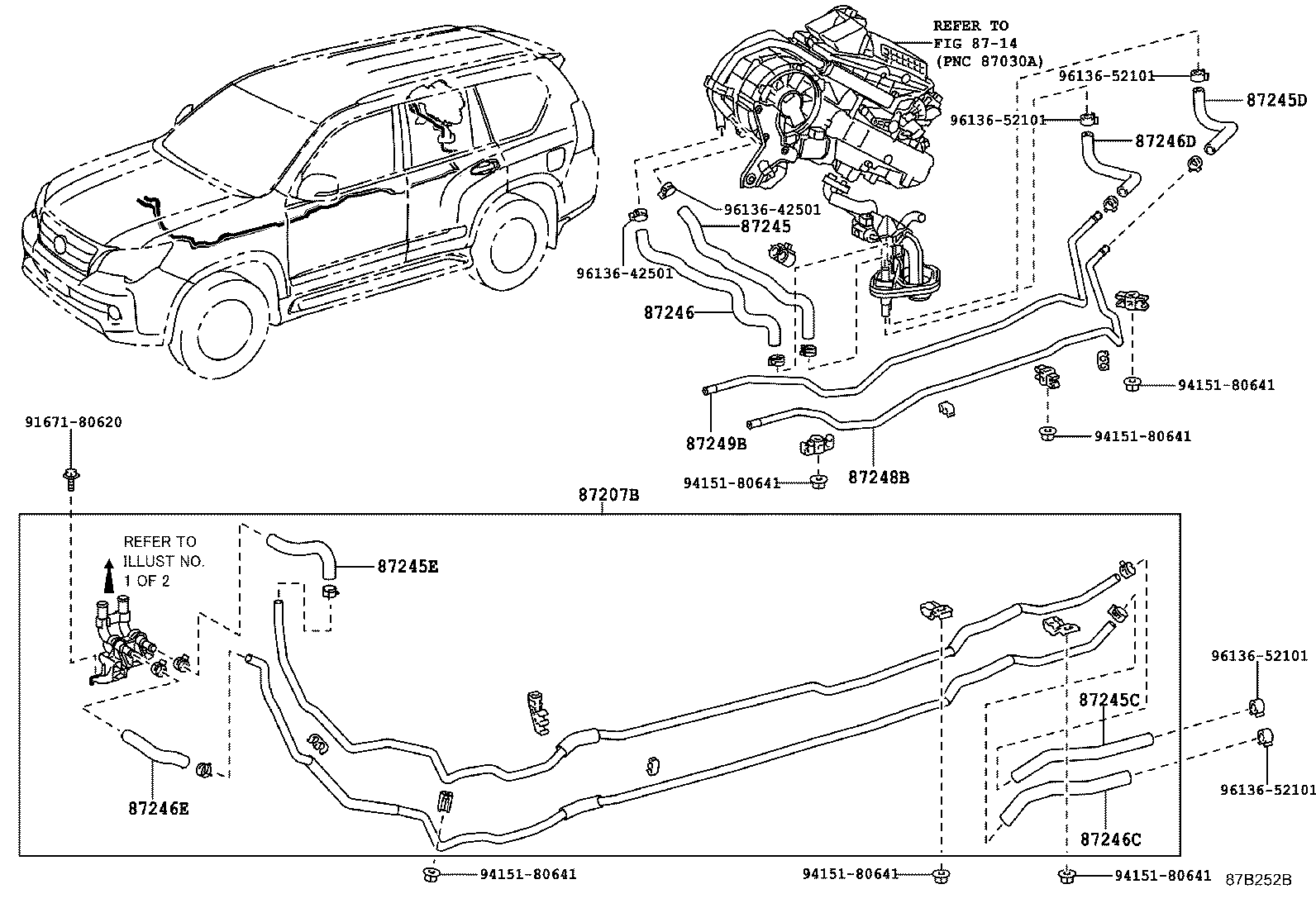

Figure 87B252B

87B252B 2009-11 → 2019-08

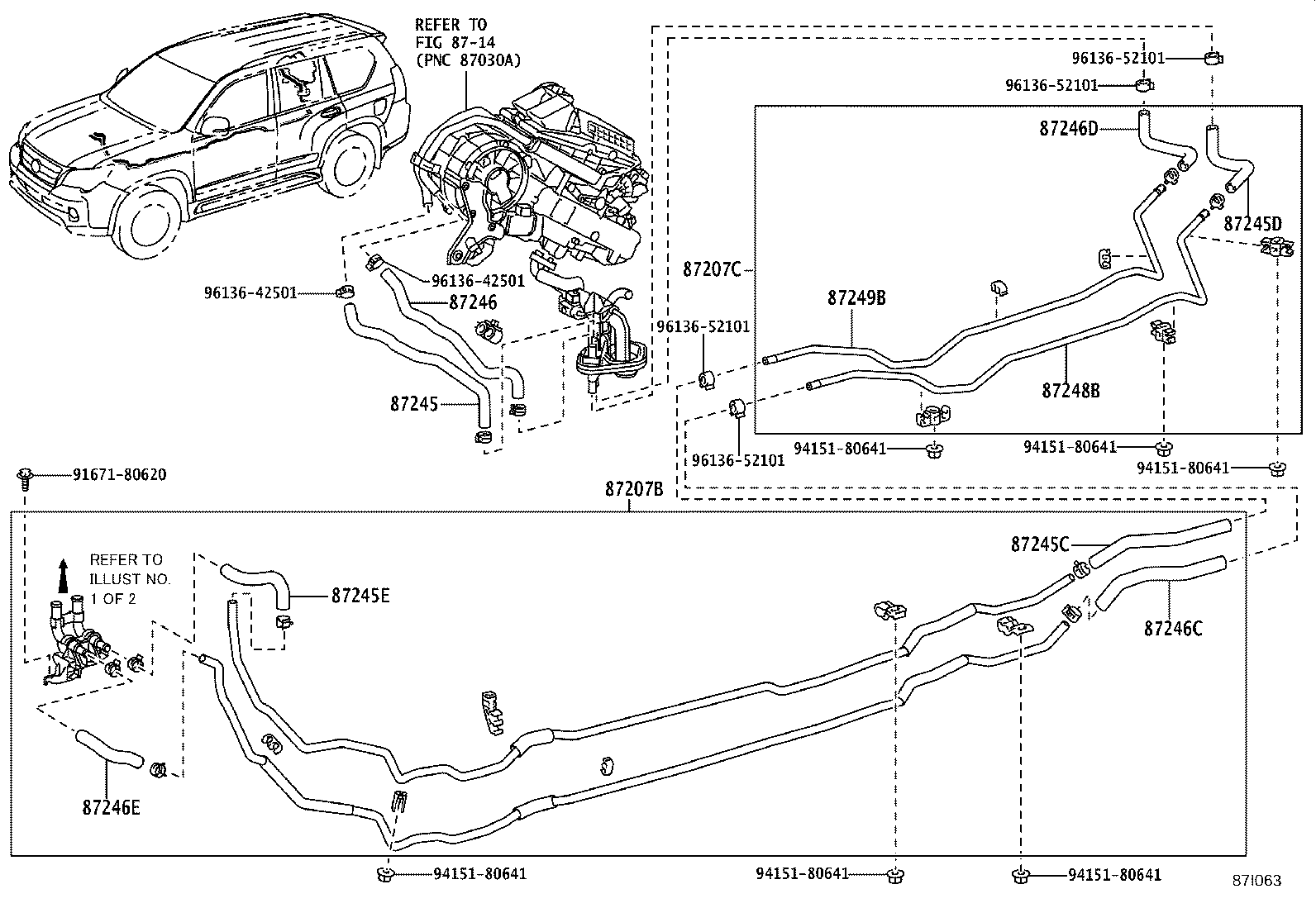

Figure 87I063

87I063 2019-08 → —

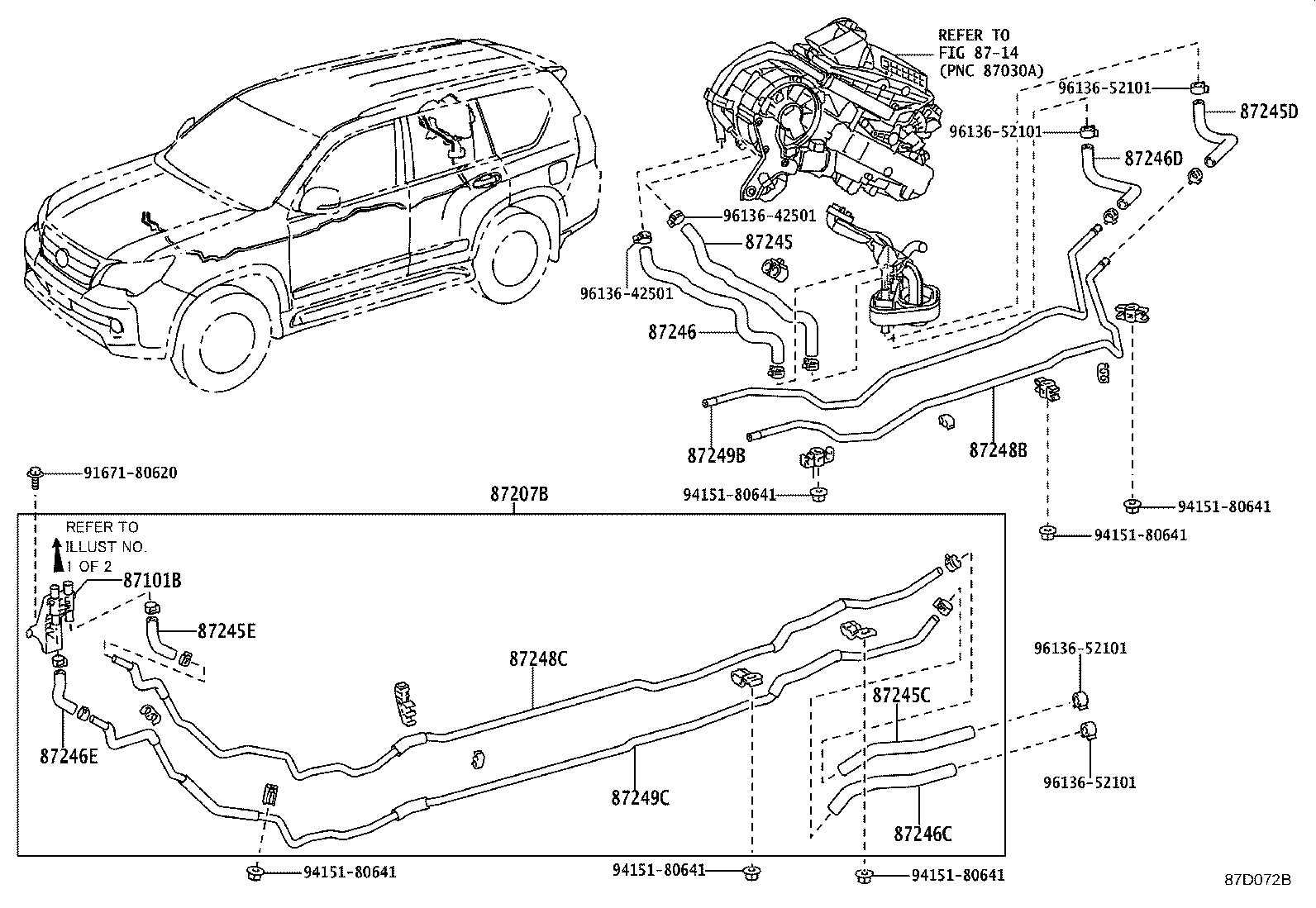

Figure 87D072B

87D072B 2012-06 → —

Part groups

PNC	Description
87101B	Bracket Sub-assy, Heater NO.2
87207A	Pipe & Hose Sub-assy, Water A
87207B	Pipe & Hose Sub-assy, Water B
87207C	Pipe & Hose Sub-assy, Water C
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87245D	Hose, Heater Water, Inlet D
87245E	Hose, Heater Water, Inlet E
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87246E	Hose, Heater Water, Outlet E
87248B	Pipe, Heater Water Inlet, B
87248C	Pipe, Heater Water Inlet, C
87249B	Pipe, Heater Water Outlet, B
87249C	Pipe, Heater Water Outlet, C
87251D	Joint, Water, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
