Heating & Air Conditioning - Compressor

4 part groups · 4 illustrations

Illustrations

Figure 87B253A

87B253A 2010-02 → —

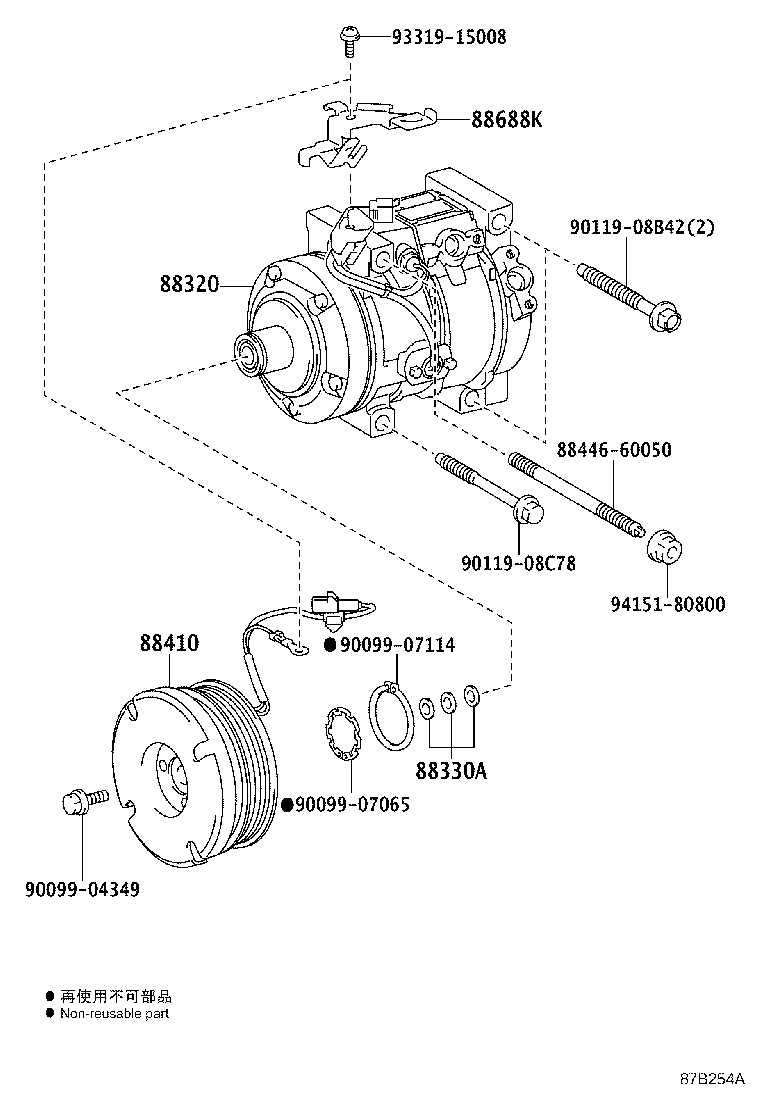

Figure 87B254A

87B254A 2009-11 → 2020-08

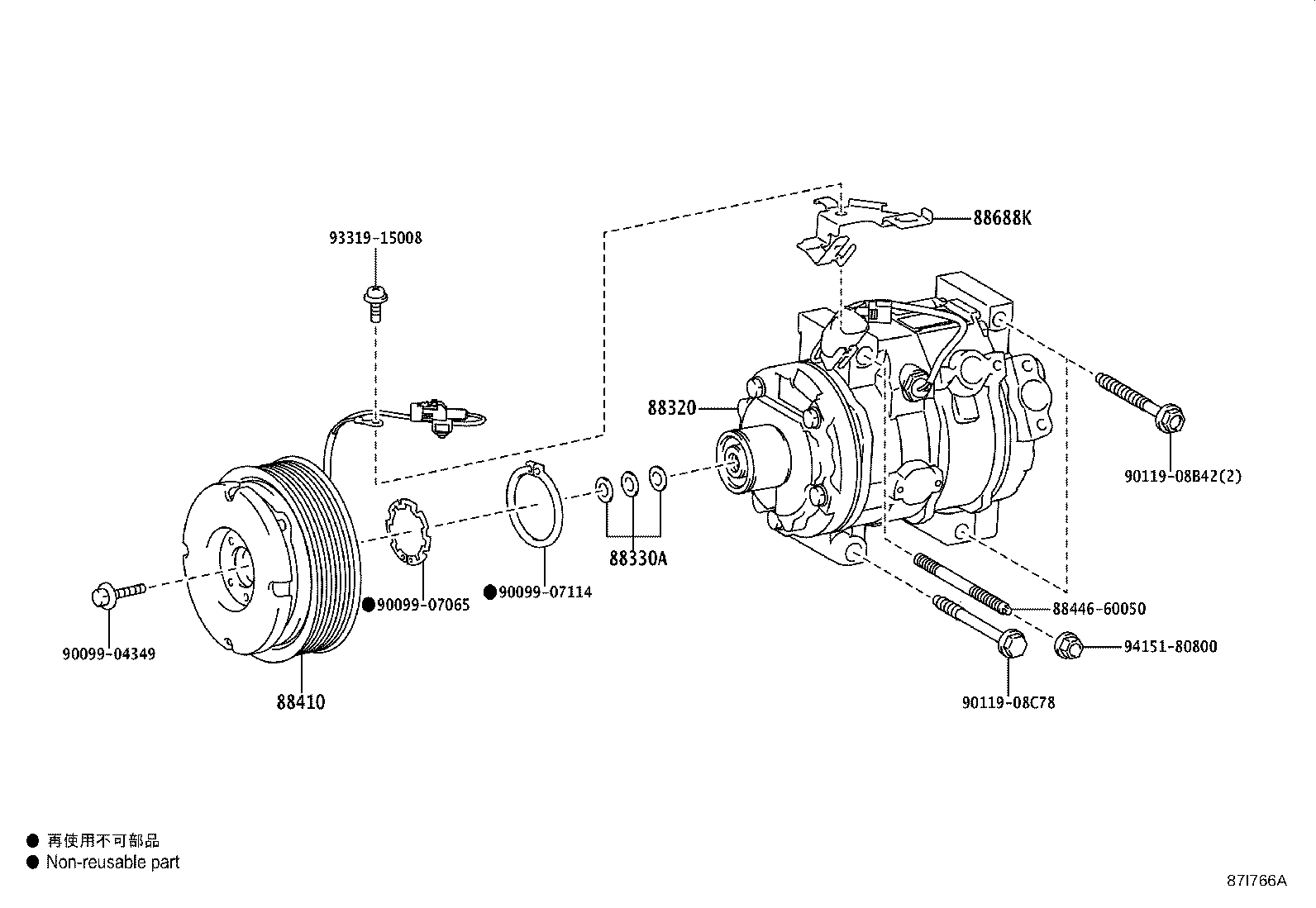

Figure 87I766A

87I766A 2020-08 → —

Figure 87D073A

87D073A 2012-06 → —

Part groups

PNC	Description
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet
88688K	Bracket, Cooler Compressor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
