Toyota Land Cruiser Prado
2024-07 → present · chassis TJH251 · catalogue 783310 · General
Supported model
Data version 2024-06

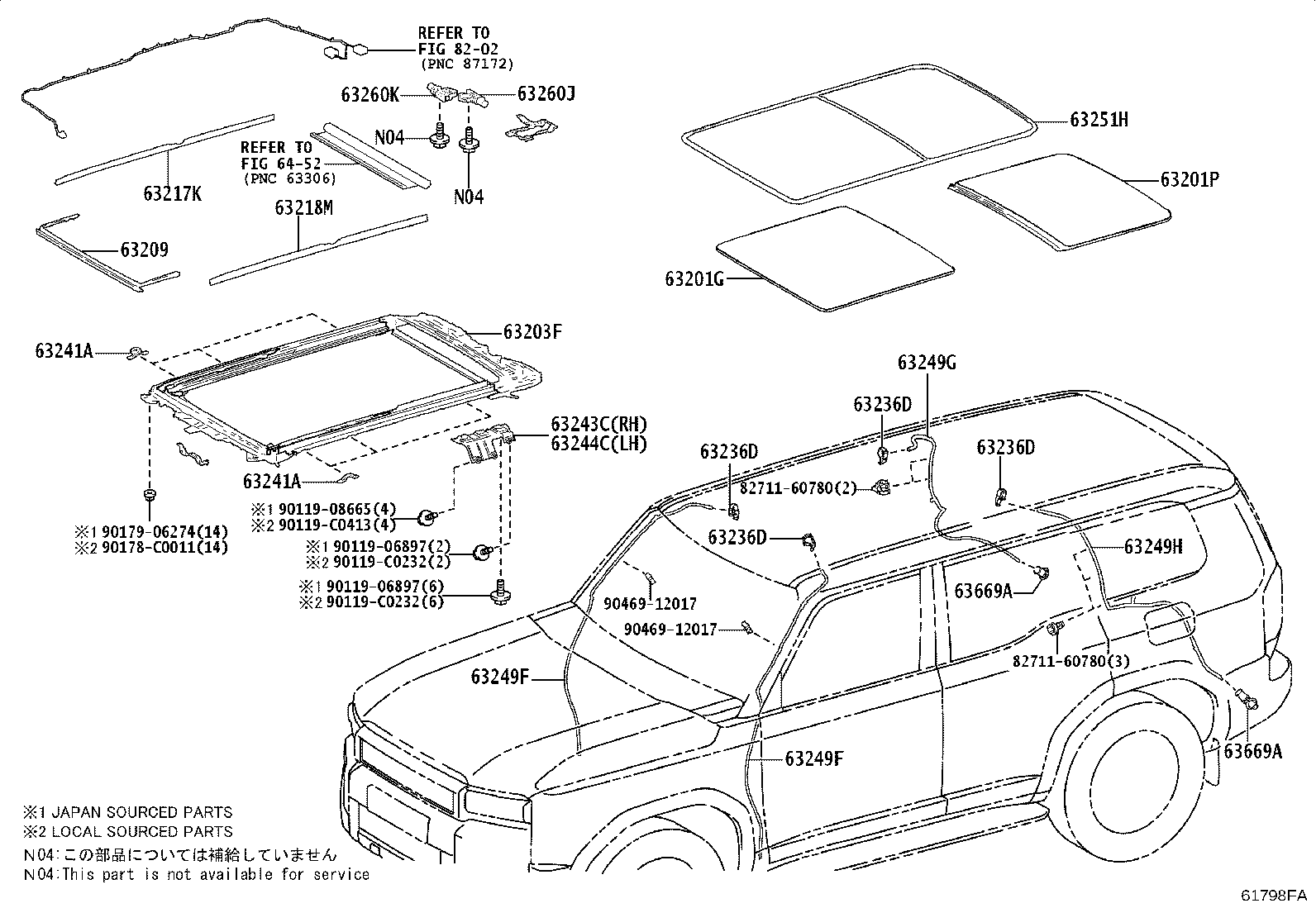

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-60180 note |
Glass Sub-assy, Sliding Roof
2024-07 → —
|
TJH251 L | — | |
| 63201P — Glass Sub-assy, Sliding Roof | ||||
| 63201-0G010 |
Glass Sub-assy, Sliding Roof
2024-07 → —
|
TJH251 A,L,R | — | |
| 63201-0G010 note |
Glass Sub-assy, Sliding Roof
2024-07 → —
|
TJH251 L | — | |
| 63201-60190 note |
Glass Sub-assy, Sliding Roof
2024-07 → —
|
TJH251 L | — | |
| 63203F — Housing Sub-assy, Sliding Roof | ||||
| 63203-0G050 |
Housing Sub-assy, Sliding Roof
2024-07 → —
|
TJH251 A,L,R | — | |
| 63203-60160 note |
Housing Sub-assy, Sliding Roof
2024-07 → —
|
TJH251 L | — | |
| 63209 — Panel Sub-assy, Roof Wind Deflector | ||||
| 63209-60090 note |
Panel Sub-assy, Roof Wind Deflector
2024-07 → —
|
TJH251 L | — | |
| 63217K — Garnish, Sliding Roof Side, RH | ||||
| 63217-0G020 |
Garnish, Sliding Roof Side, RH
2024-07 → —
|
TJH251 A,L,R | — | |
| 63217-0G020 note |
Garnish, Sliding Roof Side, RH
2024-07 → —
|
TJH251 L | — | |
| 63217-60070 note |
Garnish, Sliding Roof Side, RH
2024-07 → —
|
TJH251 L | — | |
| 63218M — Garnish, Sliding Roof Side, LH | ||||
| 63217-0G020 |
Garnish, Sliding Roof Side, LH
2024-07 → —
|
TJH251 A,L,R | — | |
| 63217-0G020 note |
Garnish, Sliding Roof Side, LH
2024-07 → —
|
TJH251 L | — | |
| 63218-60060 note |
Garnish, Sliding Roof Side, LH
2024-07 → —
|
TJH251 L | — | |
| 63236D — Clamp, Sliding Roof Drain Hose | ||||
| 63236-02060 |
Clamp, Sliding Roof Drain Hose
2024-07 → —
|
TJH251 A,L,R | — | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63241-60070 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2024-07 → —
|
TJH251 L | — | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-60050 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2024-07 → —
|
TJH251 L | — | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63244-60030 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2024-07 → —
|
TJH251 L | — | |
| 63249F — Hose, Sliding Roof Drain | ||||
| 63249-0G030 |
Hose, Sliding Roof Drain
2024-07 → —
|
TJH251 A,L,R | — | |
| 63249-0G040 note |
Hose, Sliding Roof Drain
2024-07 → —
|
TJH251 L | — | |
| 63249G — Hose, Sliding Roof Drain | ||||
| 63249-0G050 |
Hose, Sliding Roof Drain
2024-07 → —
|
TJH251 A,L,R | — | |
| 63249-0G070 note |
Hose, Sliding Roof Drain
2024-07 → —
|
TJH251 L | — | |
| 63249H — Hose, Sliding Roof Drain | ||||
| 63249-0G060 |
Hose, Sliding Roof Drain
2024-07 → —
|
TJH251 A,L,R | — | |
| 63249-0G080 note |
Hose, Sliding Roof Drain
2024-07 → —
|
TJH251 L | — | |
| 63251H — Weatherstrip, Sliding Roof | ||||
| 63251-60100 note |
Weatherstrip, Sliding Roof
2024-07 → —
|
TJH251 L | — | |
| 63260J — Gear Assy, Sliding Roof Drive | ||||
| 63260-60200 note |
Gear Assy, Sliding Roof Drive
2024-07 → —
|
TJH251 L | — | |
| 63260K — Gear Assy, Sliding Roof Drive | ||||
| 63260-60210 note |
Gear Assy, Sliding Roof Drive
2024-07 → —
|
TJH251 L | — | |
| 63669A — Grommet, Sliding Roof Drain | ||||
| 63669-0E020 |
Grommet, Sliding Roof Drain
2024-07 → —
|
TJH251 A,L,R | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
