Toyota Land Cruiser Prado

2024-07 → present · chassis TJH251 · catalogue 783310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

14 part groups · 3 illustrations

Illustrations

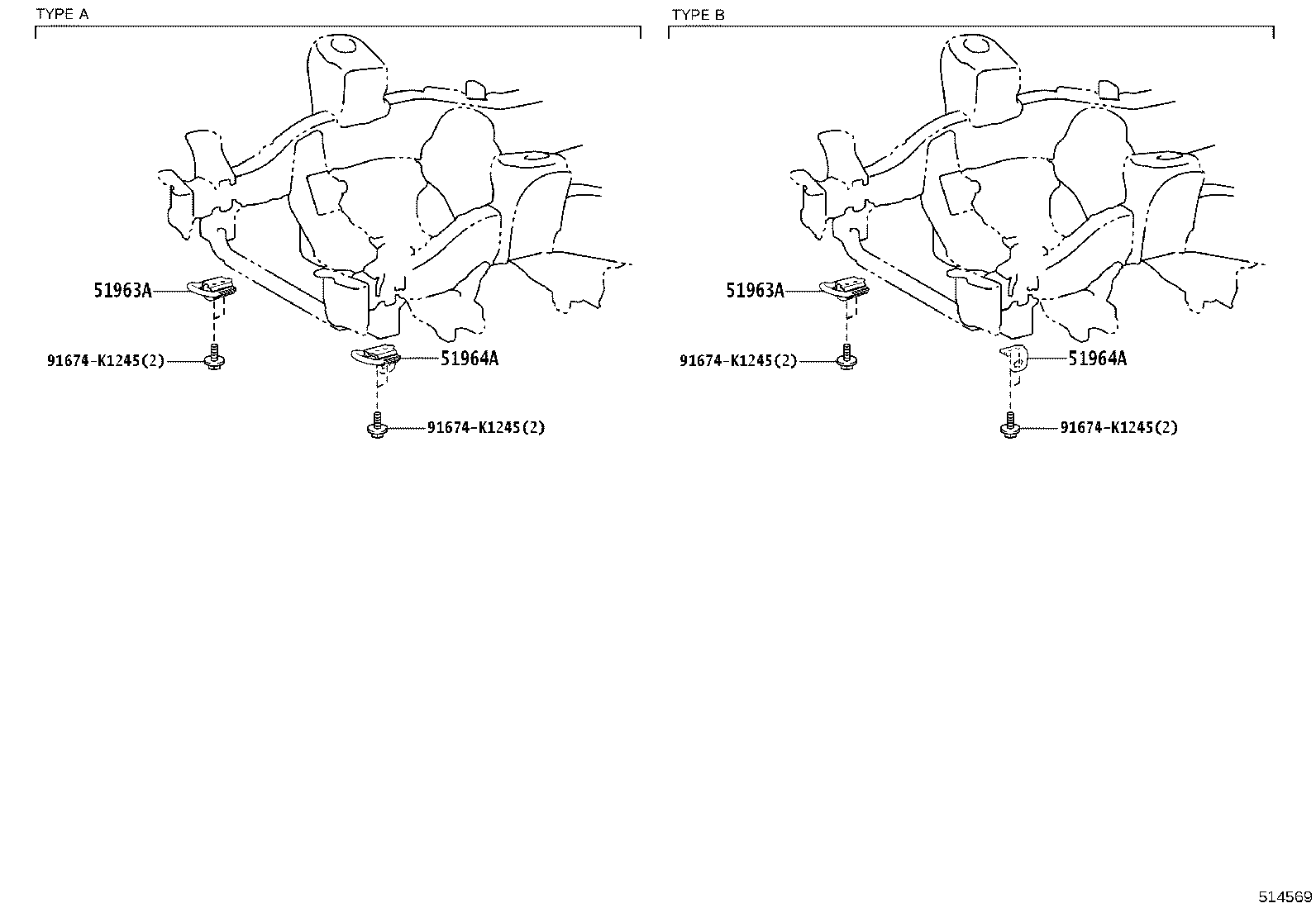

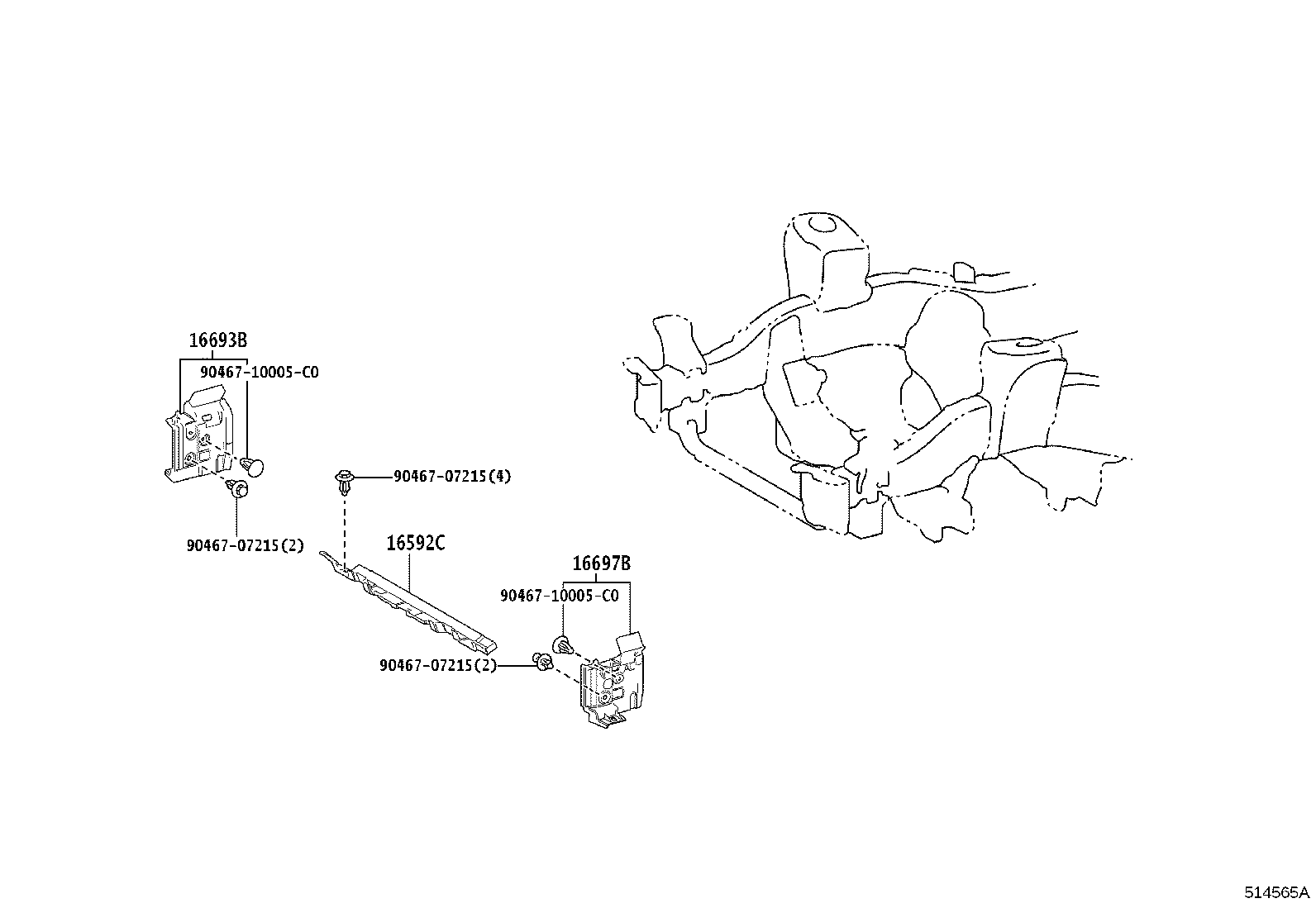

Figure 51456A 51456A 2024-07 → — Figure 514565A 514565A 2024-07 → — Figure 514569 514569 2024-07 → —

Part groups

PNCDescription
16592C Guide, Radiator Air, NO.3
16693B Plate, Radiator Side Air Guide, Rear RH
16697B Plate, Radiator Side Air Guide, Rear LH
48806C Brace Sub-assy, Front Stabilizar, Center
51100F Frame Sub-assy
5159C Insulator, Frame Crossmember Heat
51603A Bracket Sub-assy, Front Bound Stopper, RH
51604 Bracket Sub-assy, Front Bound Stopper, LH
5170B Reinforce Sub-assy, Cab Mounting Bracket, NO.1 RH
5170BA Reinforce Sub-assy, Cab Mounting Bracket, NO.2 RH
5170C Reinforce Sub-assy, Cab Mounting Bracket, NO.1 LH
5170CA Reinforce Sub-assy, Cab Mounting Bracket, NO.2 LH
51963A Hook, Transport, Front RH
51964A Hook, Transport, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
