Toyota Land Cruiser Prado

2024-07 → present · chassis TJH251 · catalogue 783310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

69 part groups · 8 illustrations

Illustrations

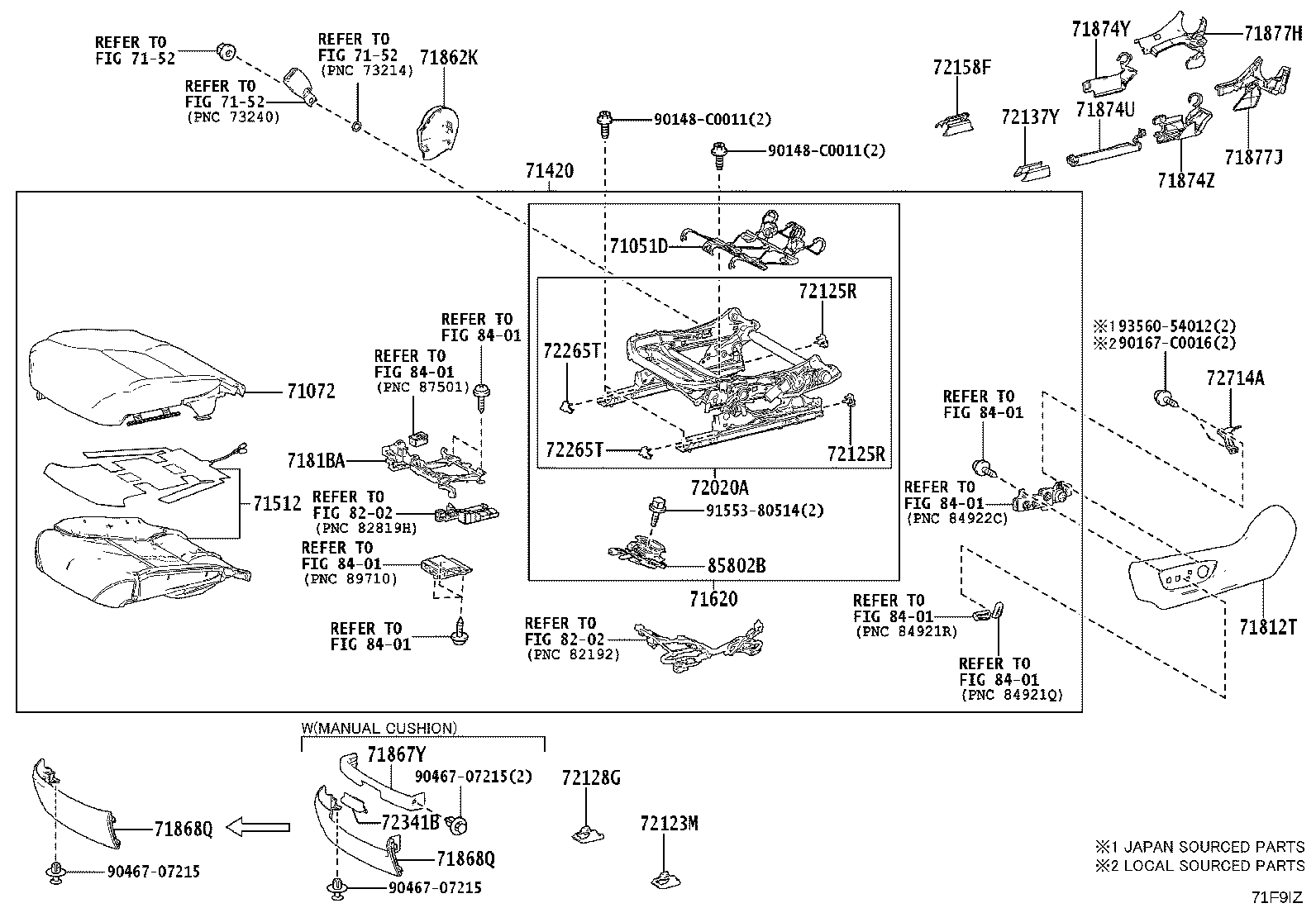

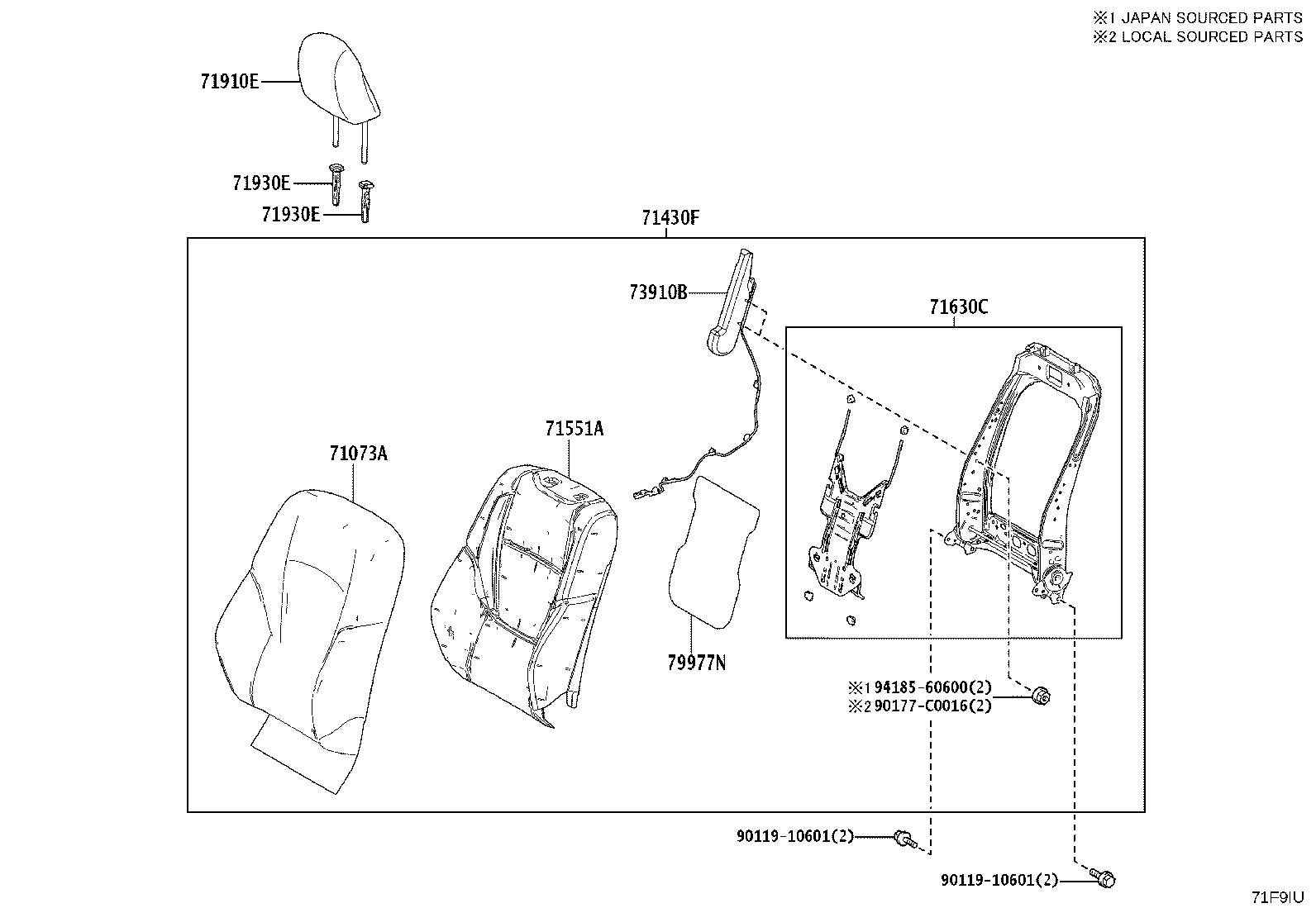

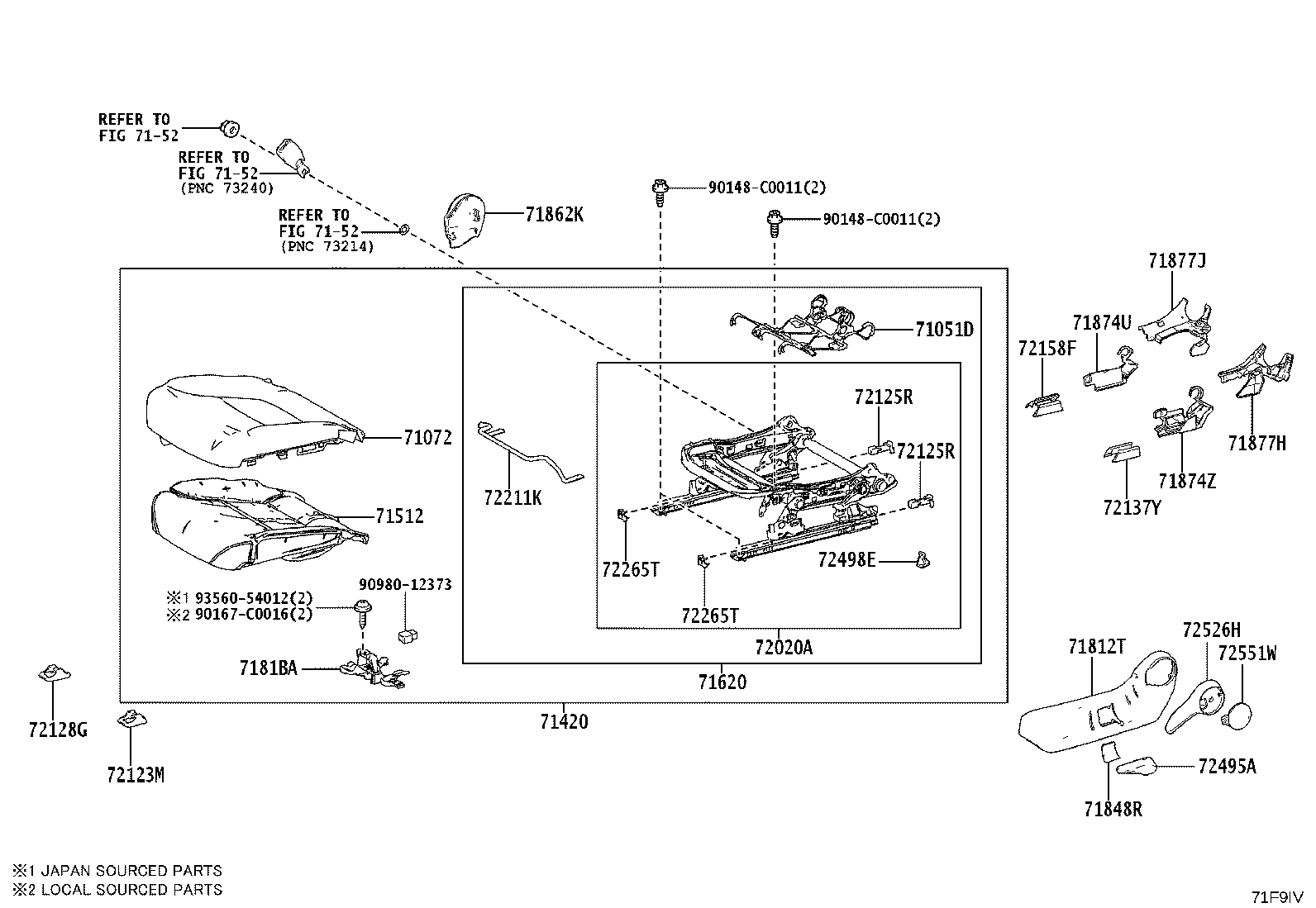

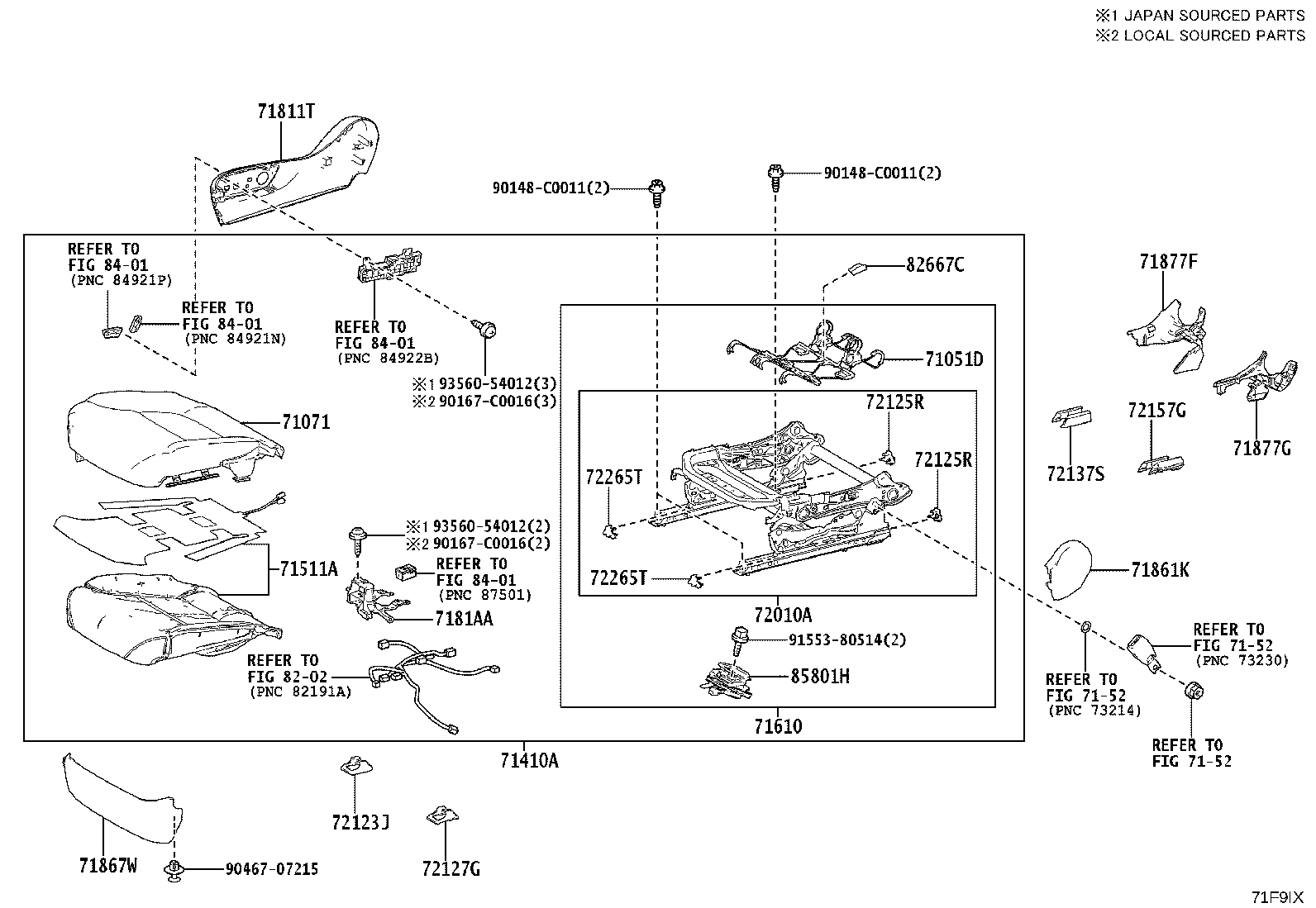

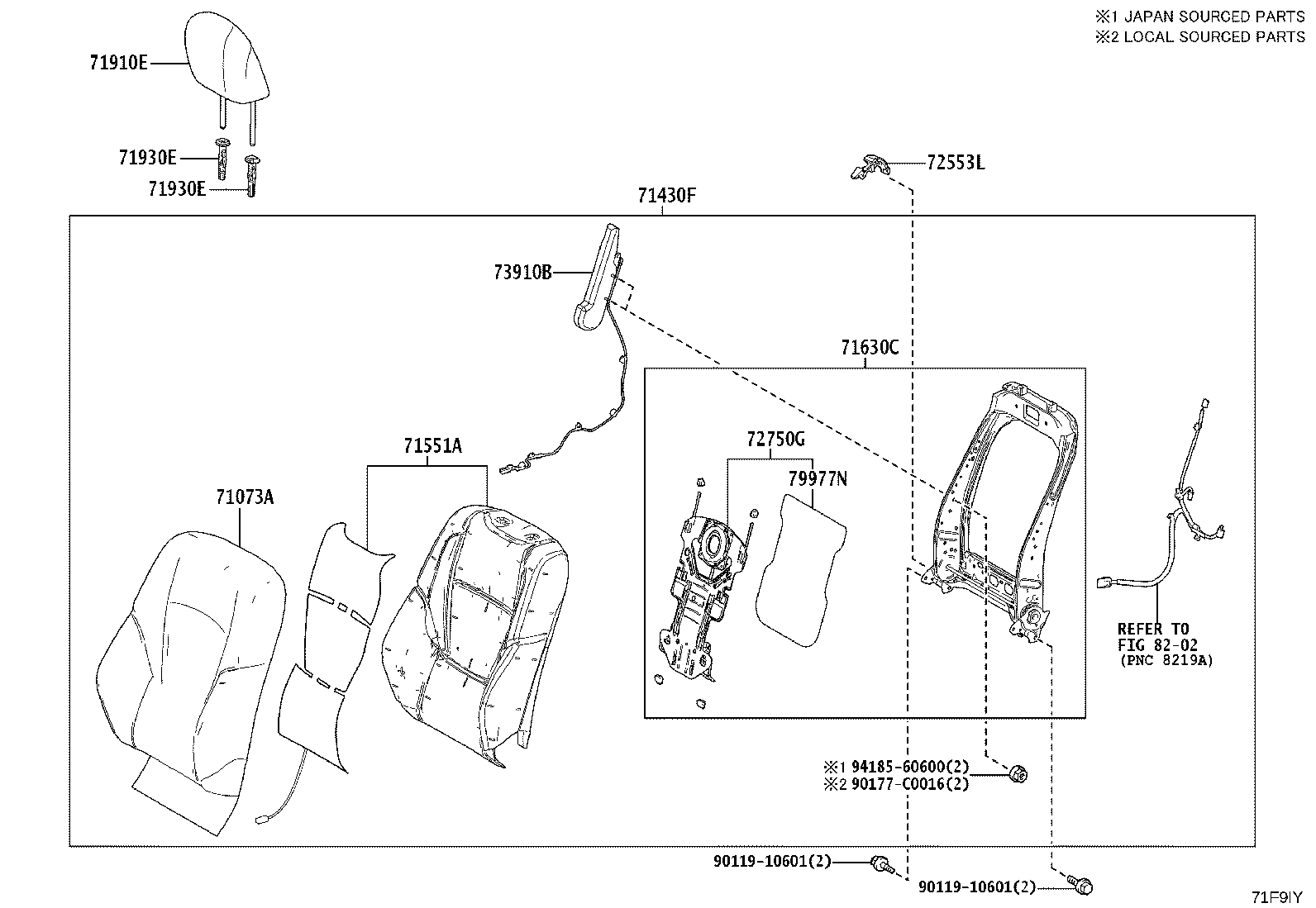

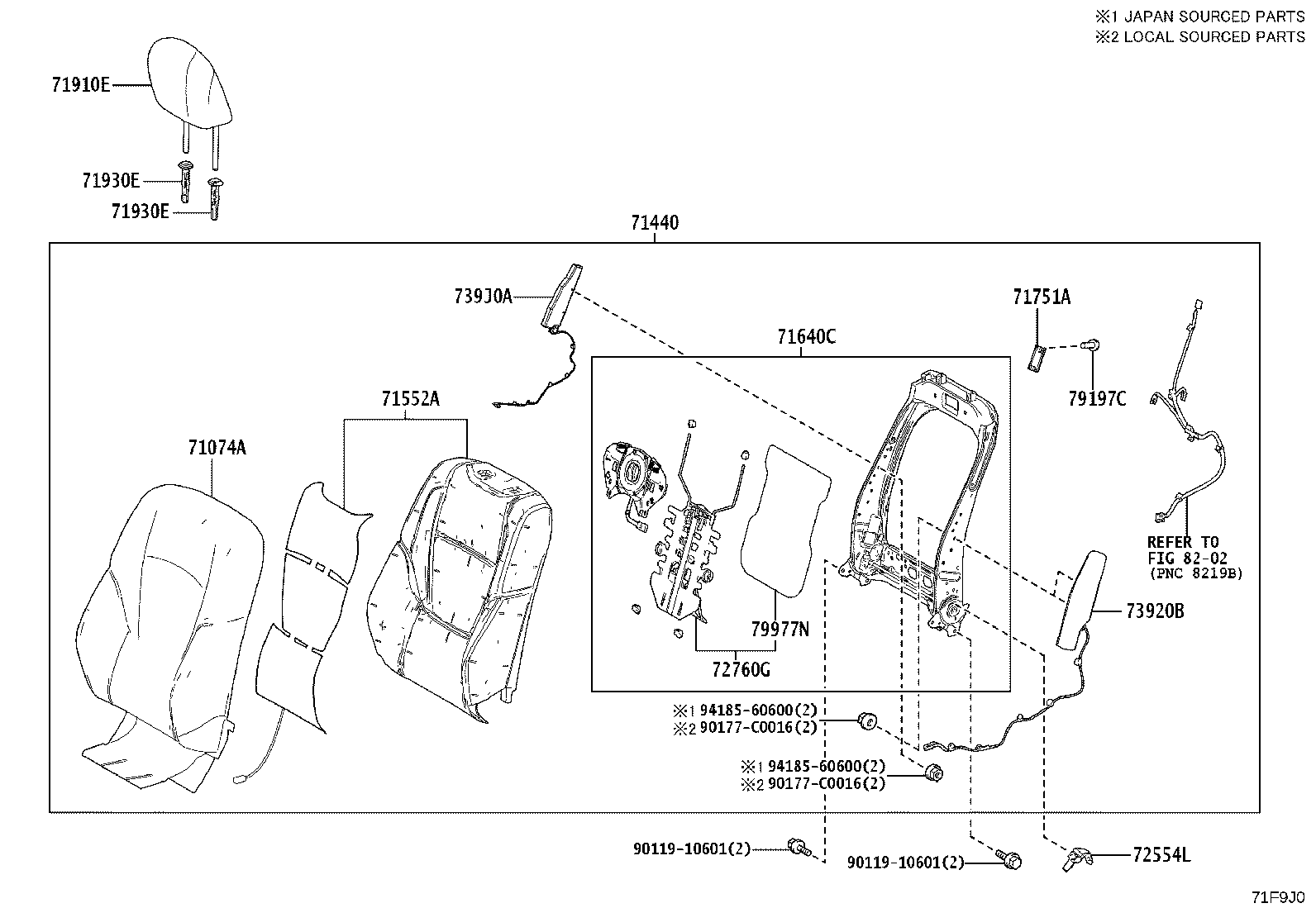

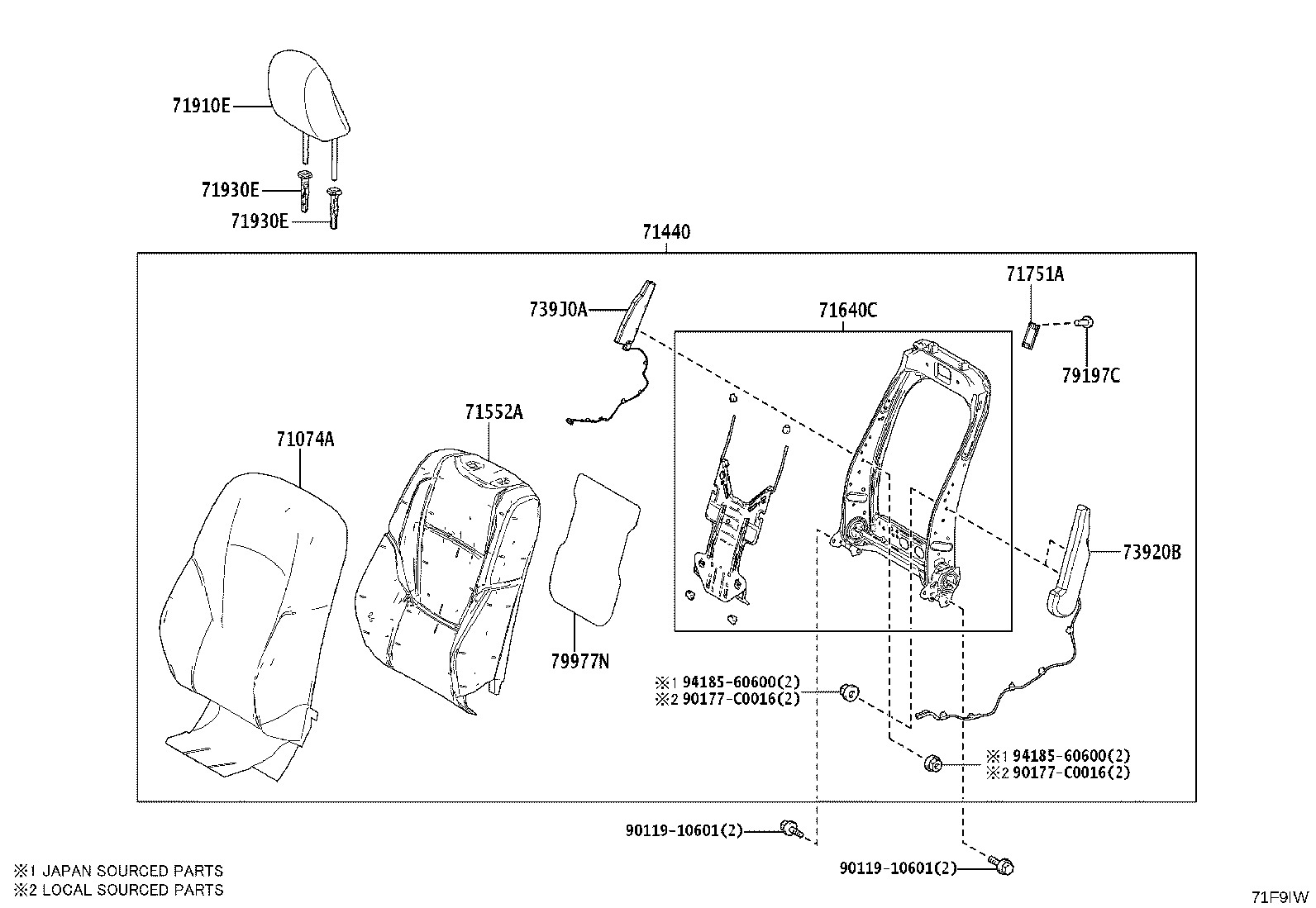

Figure 71F9IT 71F9IT 2024-07 → — Figure 71F9IU 71F9IU 2024-07 → — Figure 71F9IV 71F9IV 2024-07 → — Figure 71F9IW 71F9IW 2024-07 → — Figure 71F9IX 71F9IX 2024-07 → — Figure 71F9IY 71F9IY 2024-07 → — Figure 71F9IZ 71F9IZ 2024-07 → — Figure 71F9J0 71F9J0 2024-07 → —

Part groups

PNCDescription
71051D Spring Sub-assy, Front Seat Cushion
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71410A Cushion Assy, Front Seat, RH
71420 Cushion Assy, Front Seat, LH
71430F Back Assy, Front Seat, RH
71440 Back Assy, Front Seat, LH
71511A Pad, Front Seat Cushion, RH
71512 Pad, Front Seat Cushion, LH
71551A Pad, Front Seatback, RH
71552A Pad, Front Seatback, LH
71610 Spring Assy, Front Seat Cushion, RH
71620 Spring Assy, Front Seat Cushion, LH
71630C Spring Assy, Front Seatback, RH
71640C Spring Assy, Front Seatback, LH
71751A Hanger, Seat Cover
71811T Shield, Front Seat Cushion, RH
71812T Shield, Front Seat Cushion, LH
7181AA Holder, Front Seat Cushion Wire Harness, RH
7181BA Holder, Front Seat Cushion Wire Harness, LH
71848R Cap, Front Seat Adjuster Cover, LH NO.1
71861K Shield, Front Seat Cushion, Inner RH
71862K Shield, Front Seat Cushion, Inner LH
71867W Shield, Front Seat Cushion, Front RH
71867Y Shield, Front Seat Cushion, Inner NO.1 RH(FOR RH SEAT)
71868Q Shield, Front Seat Cushion, Inner NO.1 LH(FOR LH SEAT)
71874U Shield, Front Seat Cushion, Lower LH
71874Y Shield, Front Seat Cushion, Lower LH NO.2
71874Z Shield, Front Seat Cushion, Lower LH NO.3
71877F Cover, Reclining Adjuster Inside, RH(FOR RH SEAT)
71877G Cover, Reclining Adjuster Inside, LH(FOR RH SEAT)
71877H Cover, Reclining Adjuster Inside, RH(FOR LH SEAT)
71877J Cover, Reclining Adjuster Inside, LH(FOR LH SEAT)
71910E Headrest Assy, Front Seat, RH
71930E Support Assy, Front Seat Headrest, RH
72010A Adjuster Assy, Front Seat, RH
72020A Adjuster Assy, Front Seat, LH
72123J Cover, Seat Track Bracket, Outer Front RH
72123M Cover, Seat Track Bracket, Outer Front LH
72125R Cover, Seat Track, Upper Rear NO.1
72127G Cover, Seat Track Bracket, Inner Front RH
72128G Cover, Seat Track Bracket, Inner Front LH
72137S Cover, Seat Track Bracket, Outer Rear RH
72137Y Cover, Seat Track Bracket, Outer Rear LH
72157G Cover, Seat Track Bracket, Inner Rear RH
72158F Cover, Seat Track Bracket, Inner Rear LH
72211K Handle, Seat Track Adjusting
72265T Cover, Seat Track Upper Rail
72341B Arm, Reclining Adjuster
72495A Handle, Front Seat Vertical Adjuster, LH
72498E Cover, Vertical Adjuster Bracket
72525M Handle, Reclining Adjuster Release, RH
72526H Handle, Reclining Adjuster Release, LH
72551W Cover, Reclining Hinge
72553L Protector, Reclining Cover, RH
72554L Protector, Reclining Cover, LH
72714A Bracket, Seat Adjuster Shield Clamp, LH
72750G Adjuster Assy, Lumbar Support, RH
72760G Adjuster Assy, Lumbar Support, LH
73910B Airbag Assy, Front Seat, RH
73920B Airbag Assy, Front Seat, LH
739J0A Airbag Assy, Front Seat Center, LH
79197C Hook, Seatback Cover
79977N Felt, Seatback
82667C Holder, Connector
85801H Blower Sub-assy, Seat Cushion Climate, RH
85802B Blower Sub-assy, Seat Cushion Climate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
