Toyota Land Cruiser Prado

2024-07 → present · chassis TJH251 · catalogue 783310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

11 part groups · 2 illustrations

Illustrations

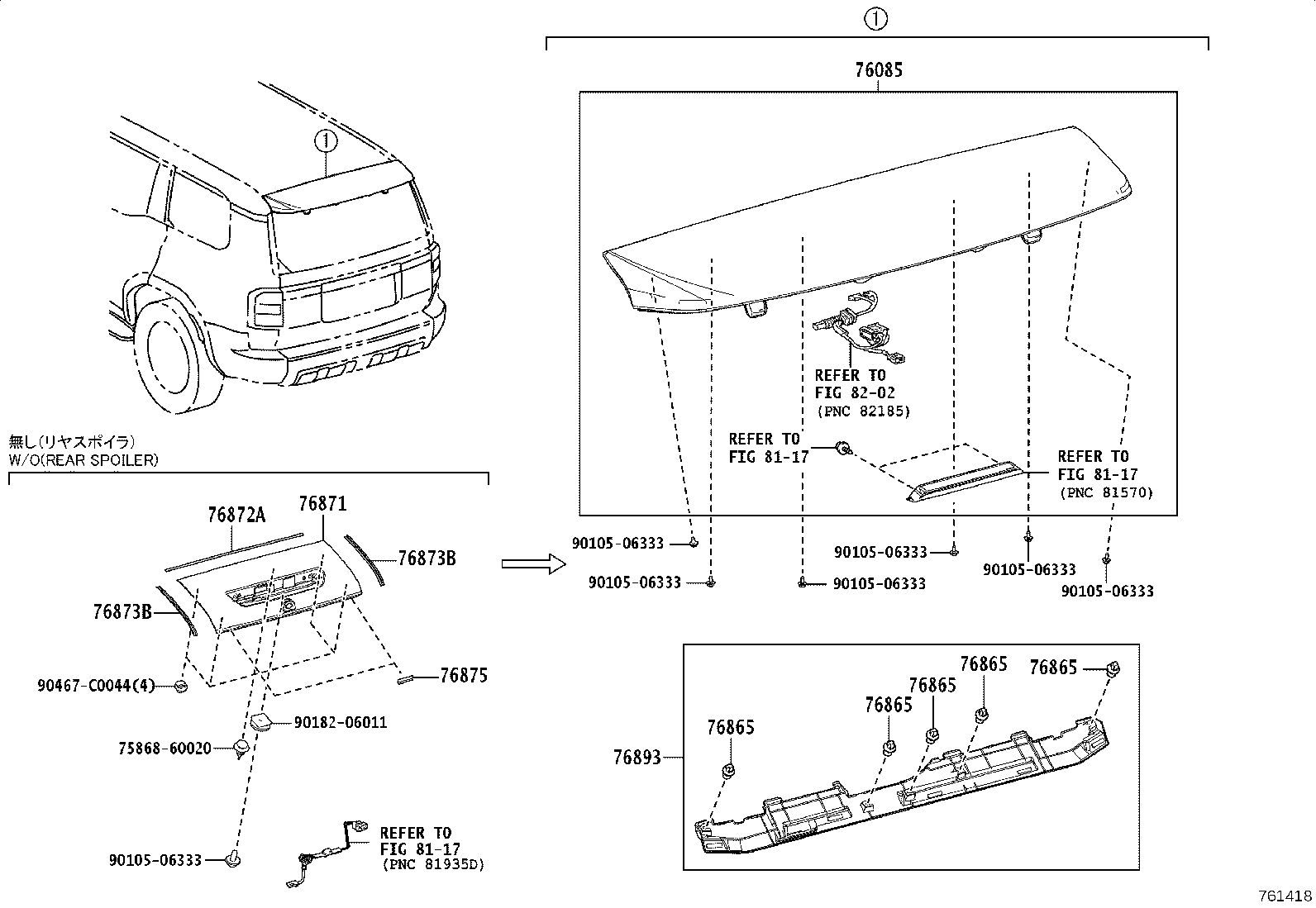

Figure 761417A 761417A 2024-07 → — Figure 761418 761418 2024-07 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76621D Mudguard, Front Fender, RH
76622D Mudguard, Front Fender, LH
76625G Mudguard, Quarter Panel, Rear RH
76626E Mudguard, Quarter Panel, Rear LH
76865 Retainer, Rear Spoiler, NO.1
76871 Spoiler, Rear
76872A Protector, Rear Spoiler, NO.1
76873B Protector, Rear Spoiler, NO.2
76875 Protector, Rear Spoiler, NO.4
76893 Cover, Rear Spoiler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
