Toyota Land Cruiser Prado

2024-07 → present · chassis TJH251 · catalogue 783310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

17 part groups · 2 illustrations

Illustrations

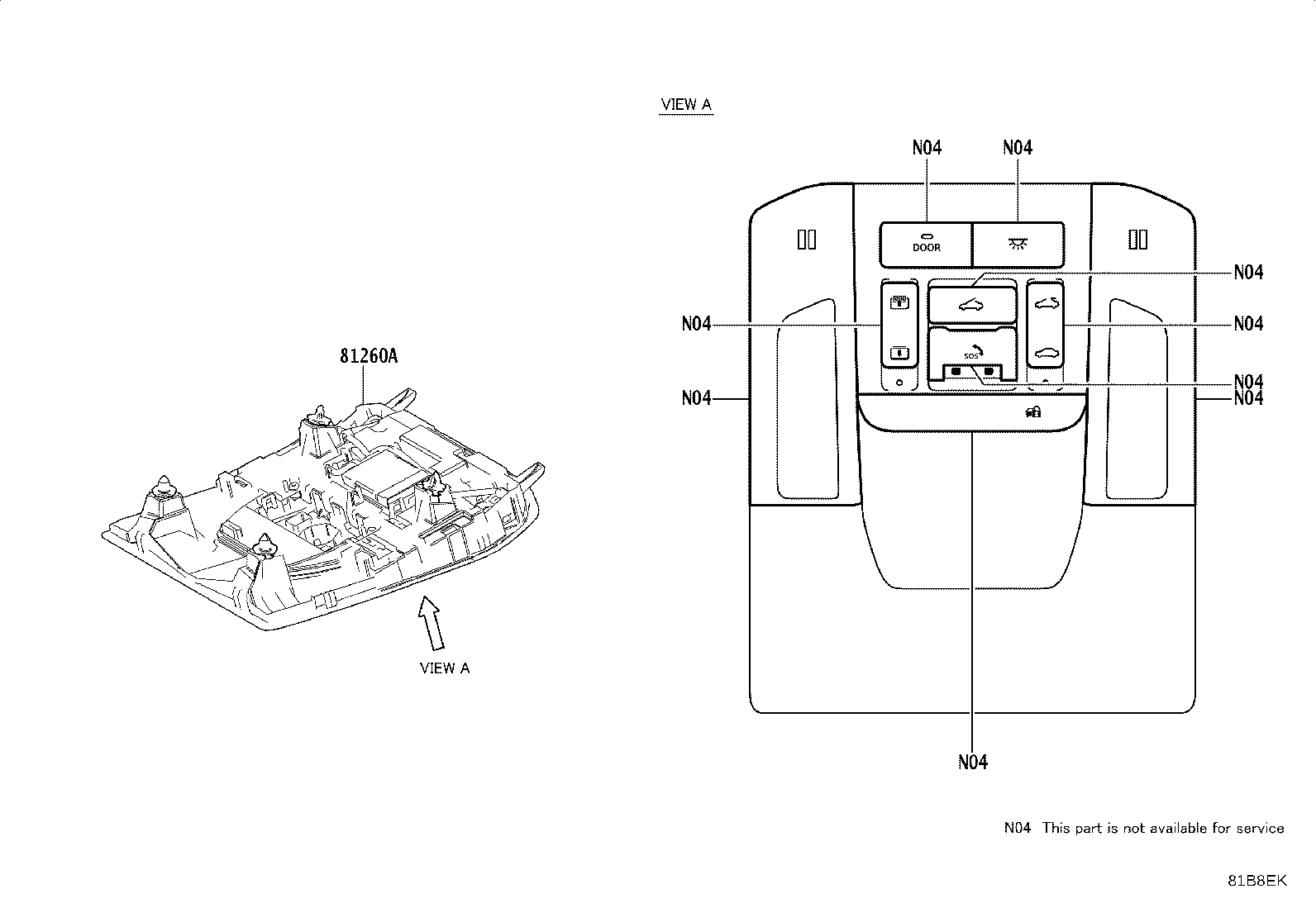

Figure 81B8EJC 81B8EJC 2024-07 → — Figure 81B8EK 81B8EK 2024-07 → —

Part groups

PNCDescription
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080J Lamp Assy, Interior Illumination, NO.1
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81080V Lamp Assy, Interior Illumination, NO.2
81080W Lamp Assy, Interior Illumination, NO.3
81230 Lamp Assy, Courtesy
81240 Lamp Assy, Room, NO.1
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81330A Lamp Assy, Luggage Compartment, NO.2
81340 Lamp Assy, Vanity
81380D Lamp Assy, Step
81380E Bulb (FOR STEP LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
