Toyota Land Cruiser Prado

2024-07 → present · chassis TJH251 · catalogue 783310 · General

Supported model Data version 2024-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

6 part groups · 2 illustrations

Illustrations

Figure 86A2D6

86A2D6 2024-07 → —

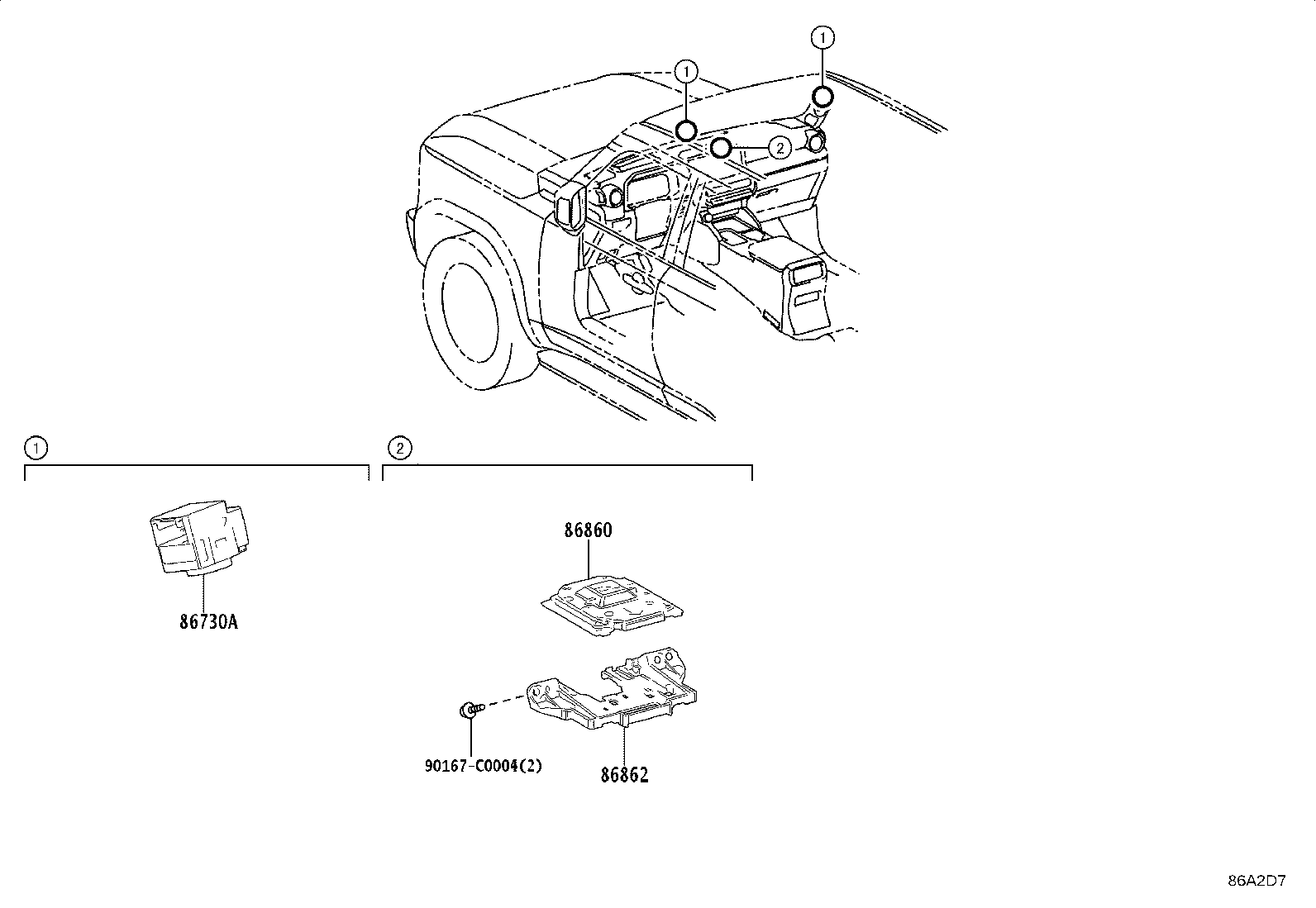

Figure 86A2D7

86A2D7 2024-07 → —

Part groups

PNC	Description
86140A	Receiver Assy, Radio & Display
86211J	Bracket, Radio Receiver, NO.1
86212C	Bracket, Radio Receiver, NO.2
86730A	Microphone Assy, Telephone
86860	Antenna Assy, Navigation
86862	Bracket, Navigation Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
