Toyota Land Cruiser Prado

2024-07 → present · chassis TJH251 · catalogue 783310 · General

Supported model Data version 2024-06

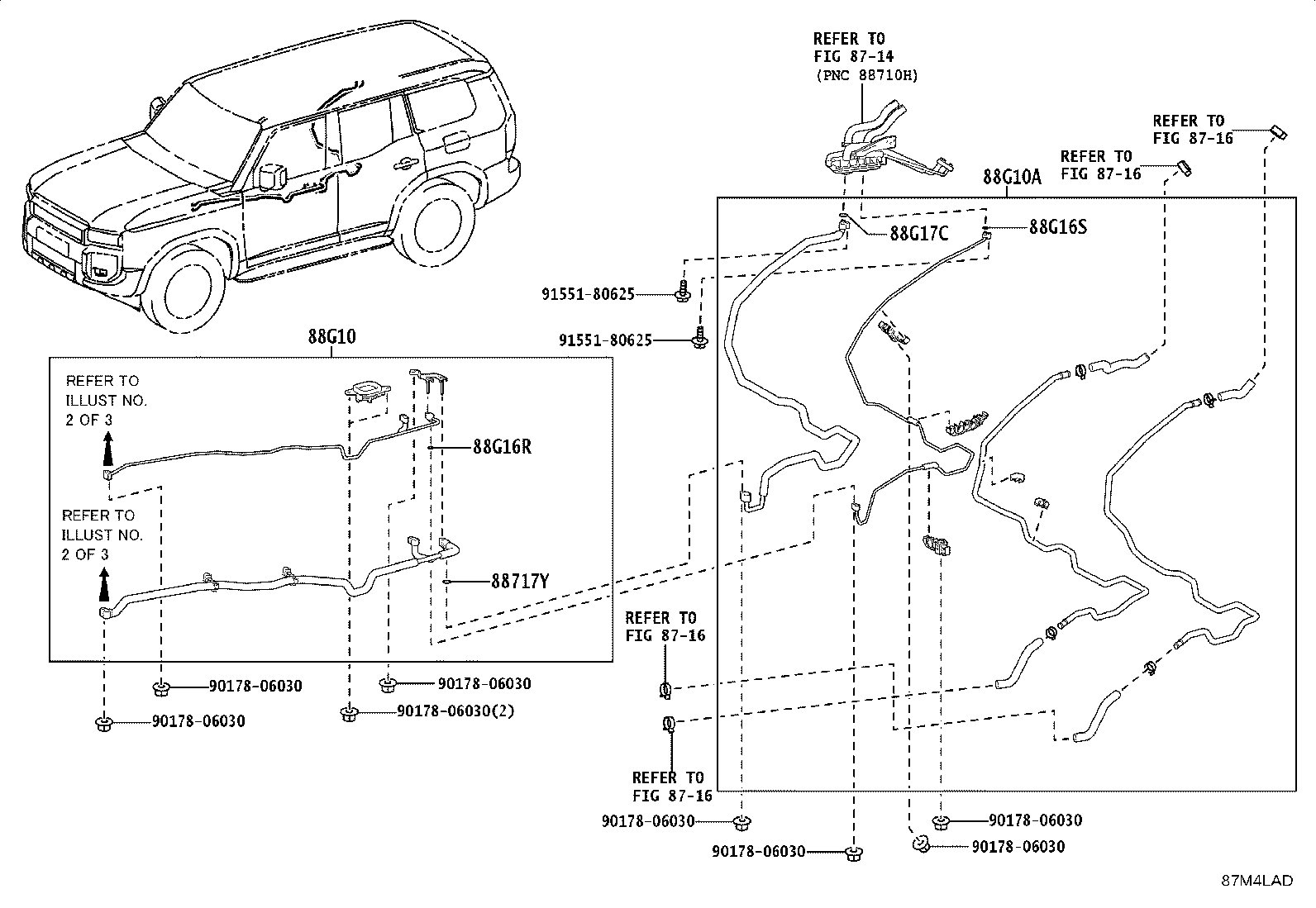

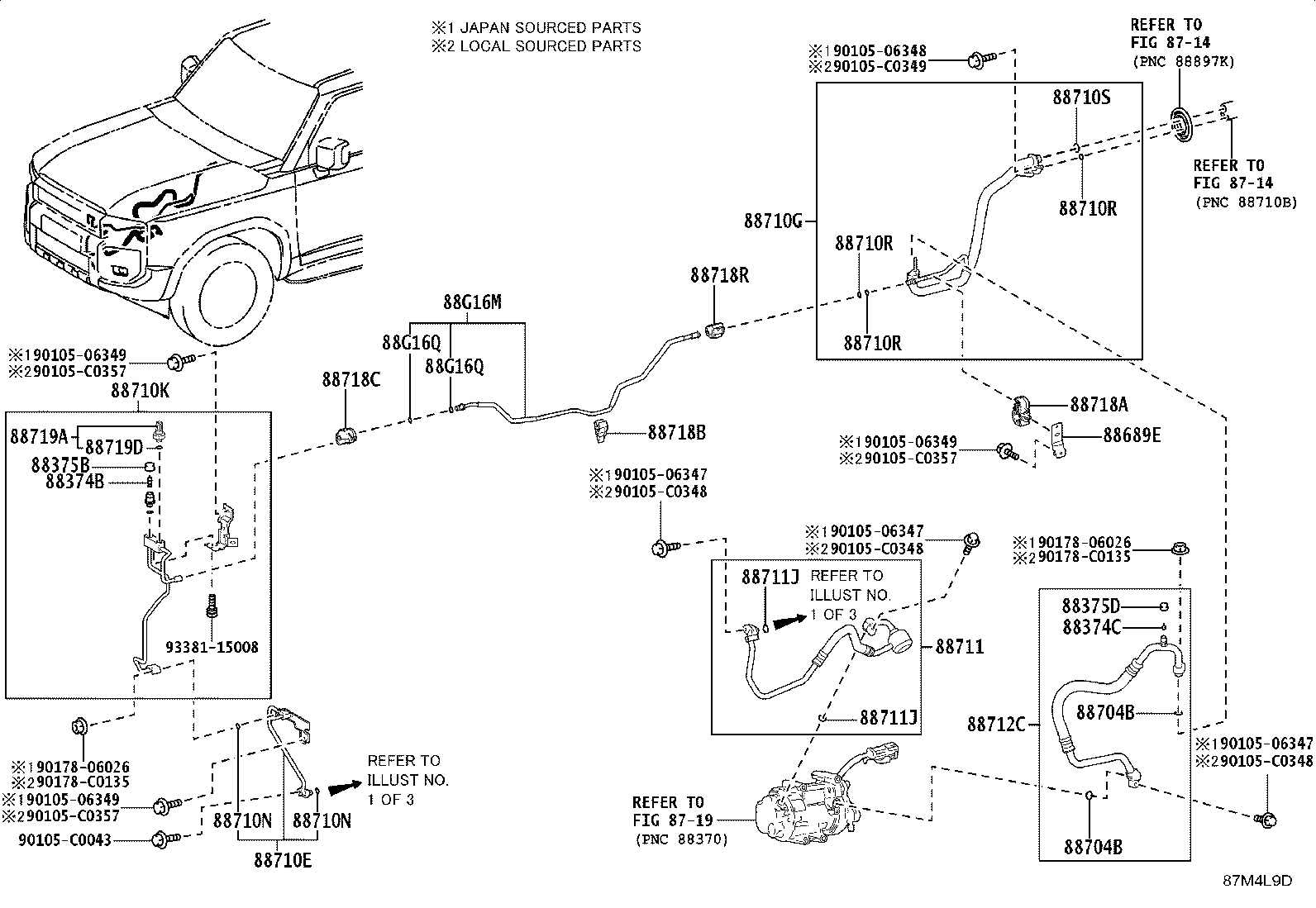

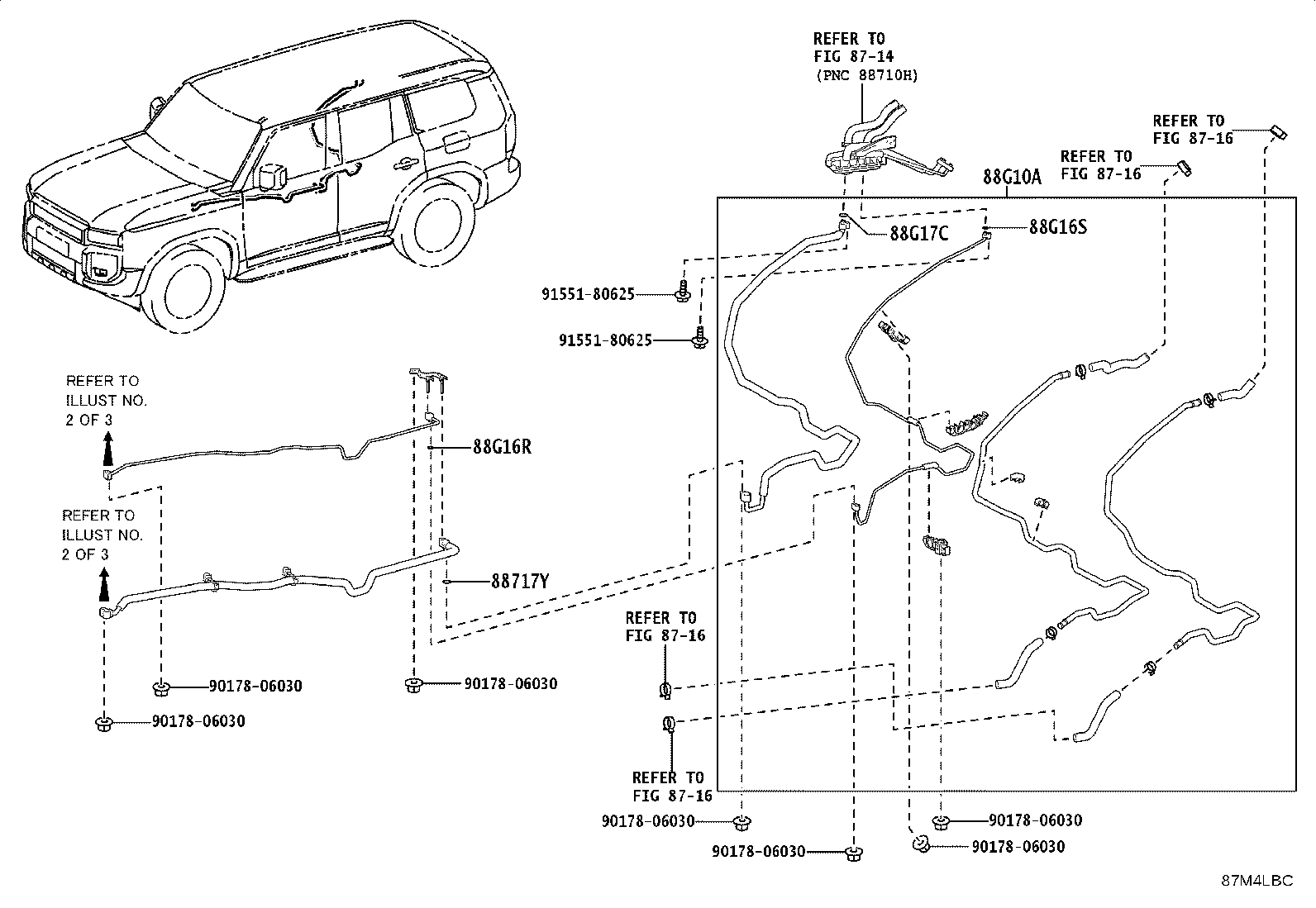

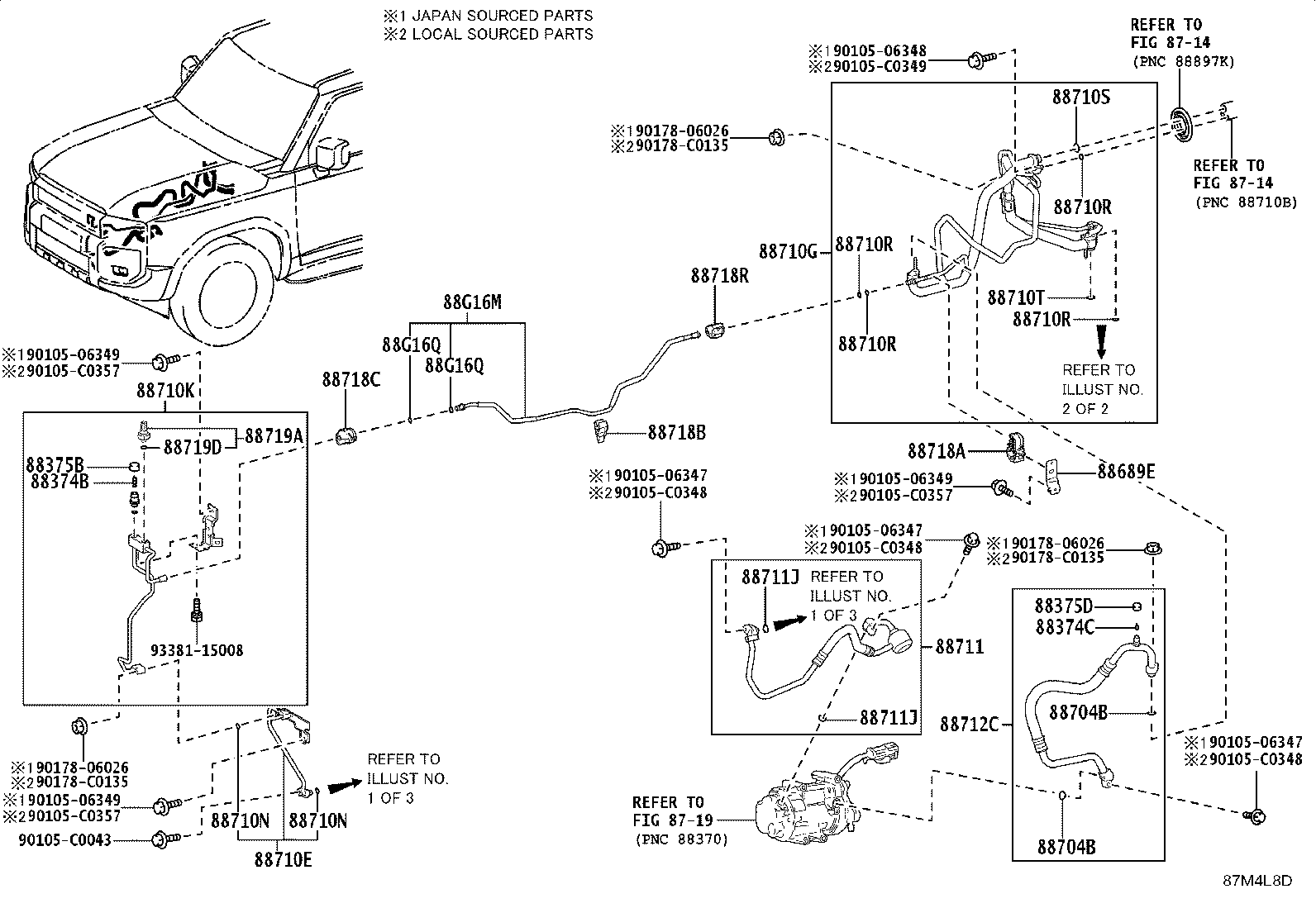

Heating & Air Conditioning - Cooler Piping

39 part groups · 5 illustrations

PNC	Description
88374C	Valve, Service, NO.2
88375B	Cap, Service Valve, NO.1
88375D	Cap, Service Valve, NO.2
88463	Bracket, Cooler Condenser, NO.1
88467H	Cushion, Condenser Bracket, NO.1
88474	Dryer, Cooler
884A0	Condenser Assy, Cooler
88689E	Bracket, Cooler, NO.1
88704B	Ring, O(FOR SUCTION HOSE)
88710E	Tube & Accessory Assy, Air Conditioner
88710G	Tube & Accessory Assy, Air Conditioner, NO.2
88710K	Tube & Accessory Assy, Air Conditioner, NO.3
88710N	Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710R	Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88710S	Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88710T	Ring, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711	Hose, Cooler Refrigerant Discharge, NO.1
88711J	Ring, O, NO.1(FOR DISCHARGE HOSE)
88712C	Hose, Suction
88717Y	Ring, O, NO.1(FOR SUCTION TUBE)
88718A	Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B	Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C	Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718R	Clamp, Piping
88719A	Sensor, Air Conditioner Pressure
88895G	Bush
88F88	Bracket, Condenser, NO.1
88F88A	Bracket, Condenser, NO.2
88F88B	Bracket, Condenser, NO.3
88F88C	Bracket, Condenser, NO.4
88G10	Tube & Accessory Assy, Air Conditioner, NO.4
88G10A	Tube & Accessory Assy, Air Conditioner, NO.5
88G16M	Tube, Liquid, NO.1
88G16Q	Ring, O, NO.1(FOR LIQUID TUBE)
88G16R	Ring, O, NO.2(FOR LIQUID TUBE)
88G16S	Ring, O, NO.3(FOR LIQUID TUBE)
88G17C	Ring, O, NO.2 (FOR SUCTION TUBE)
88H99A	Bush, Condenser Bracket, NO.1
88H99B	Bush, Condenser Bracket, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
