Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

7 part groups · 3 illustrations

Illustrations

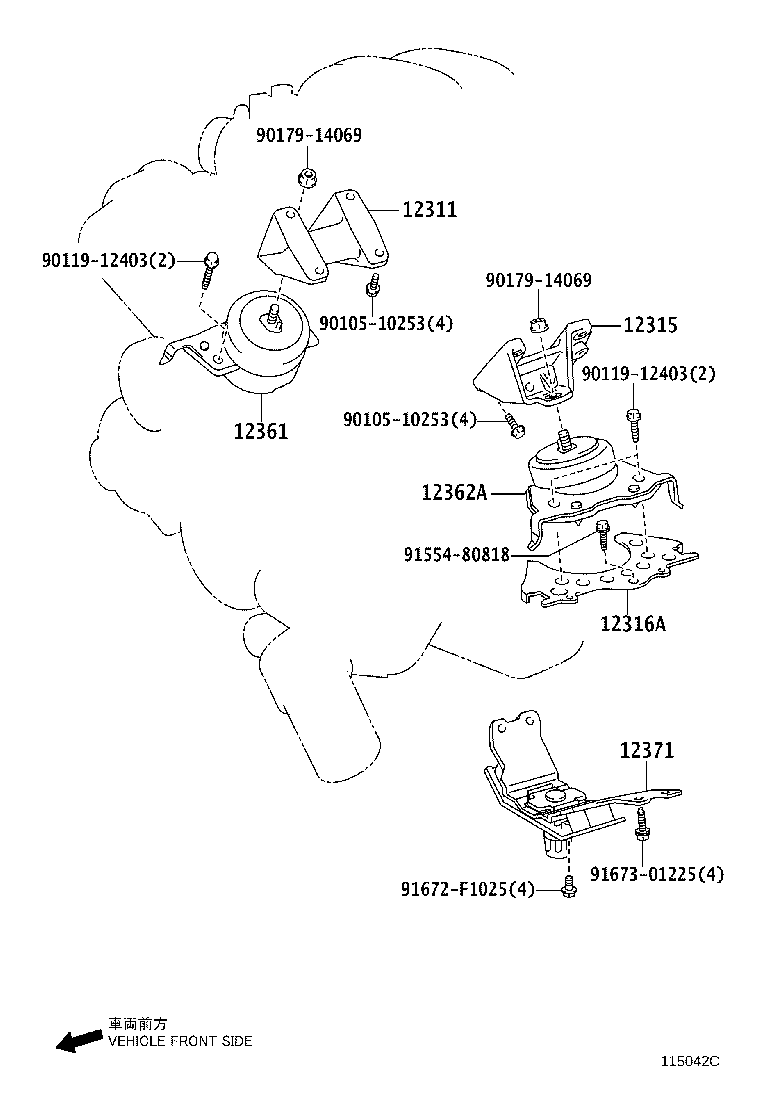

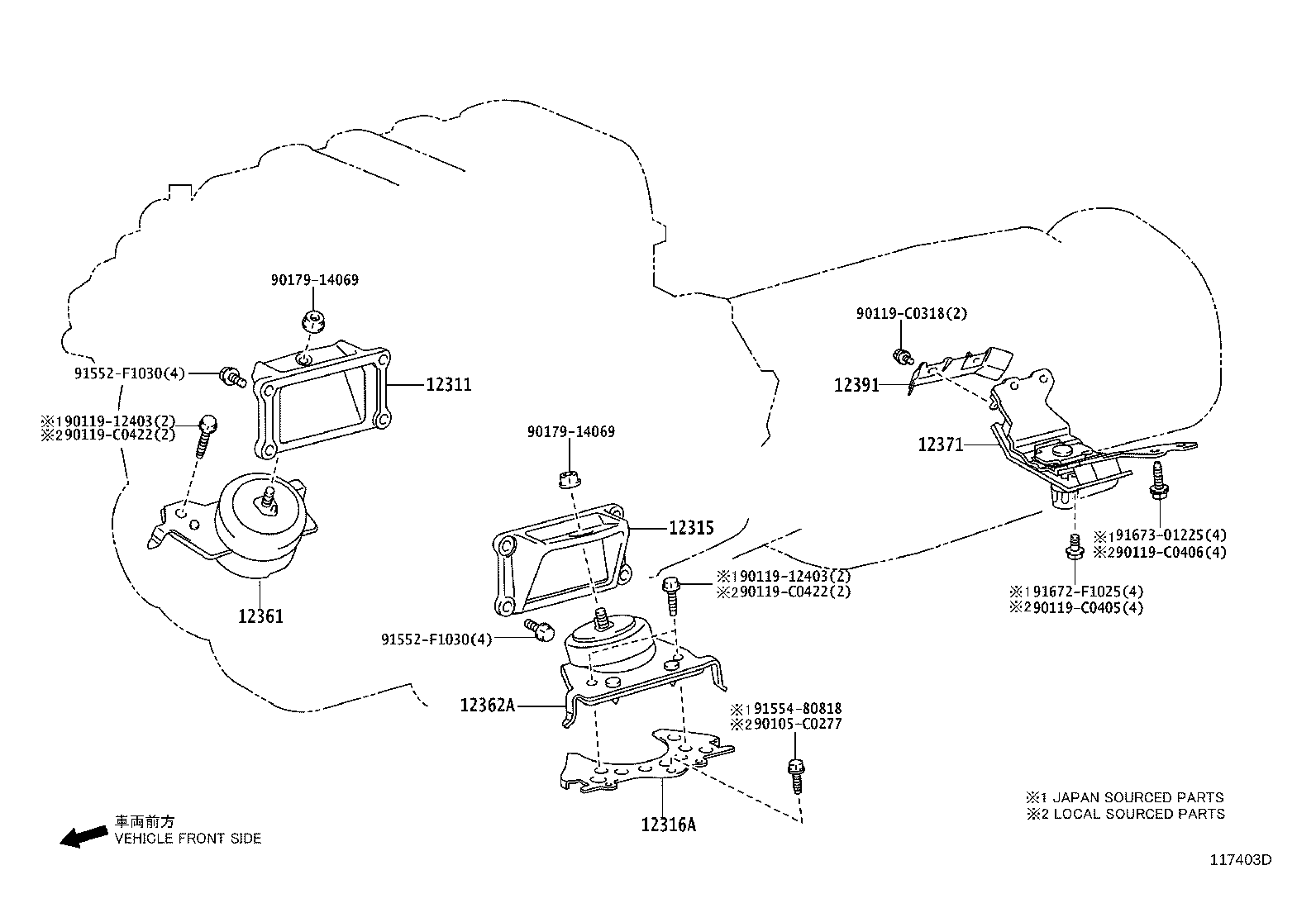

Figure 116255D 116255D 2007-12 → — Figure 115042C 115042C 2007-12 → 2012-02 Figure 117403D 117403D 2012-02 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12316A Bracket, Engine Mounting, FR NO.2 LH
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12371 Insulator, Engine Mounting, Rear NO.1
12391 Insulator, Engine Mounting Front, Heat, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
