Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

18 part groups · 4 illustrations

Illustrations

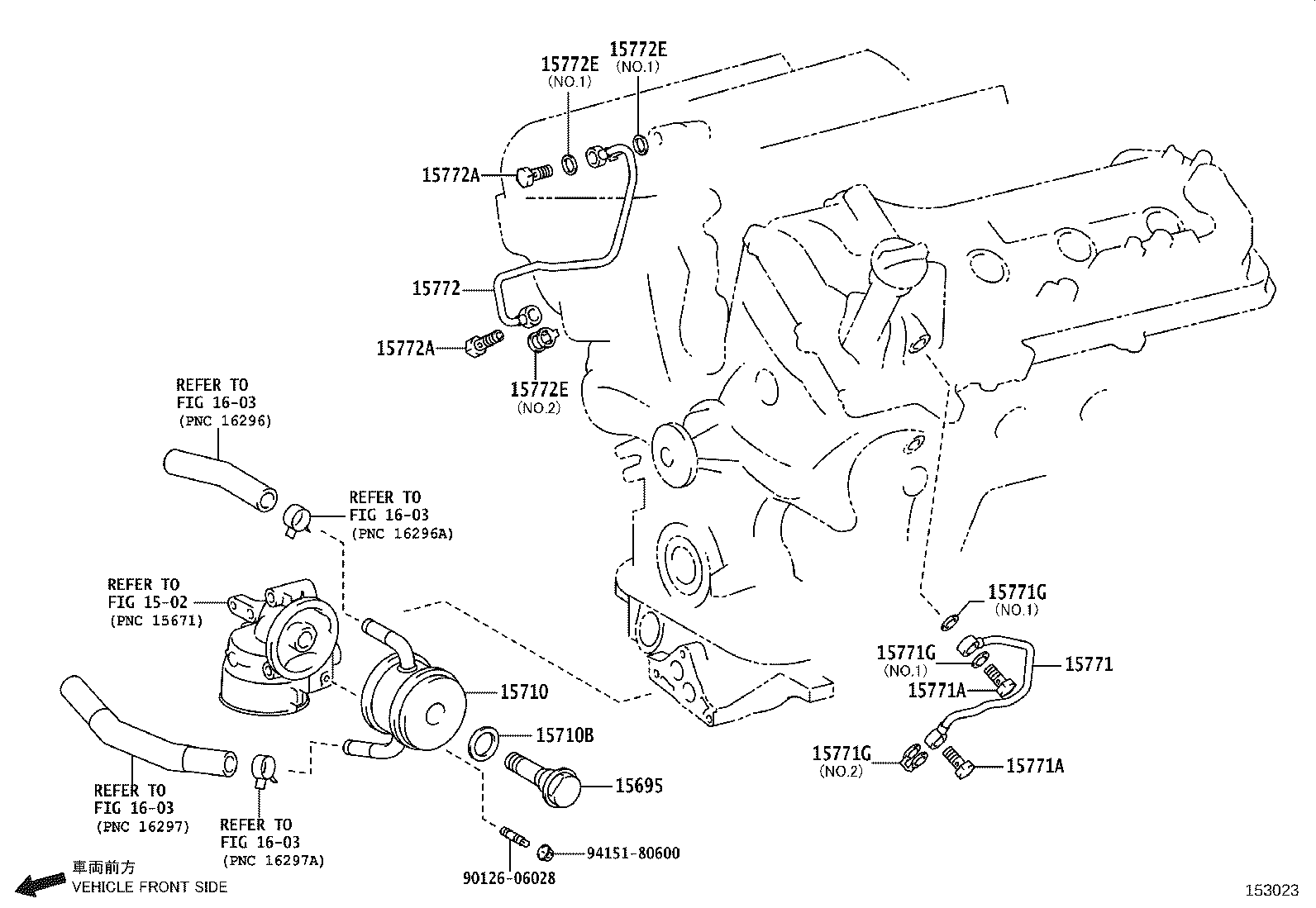

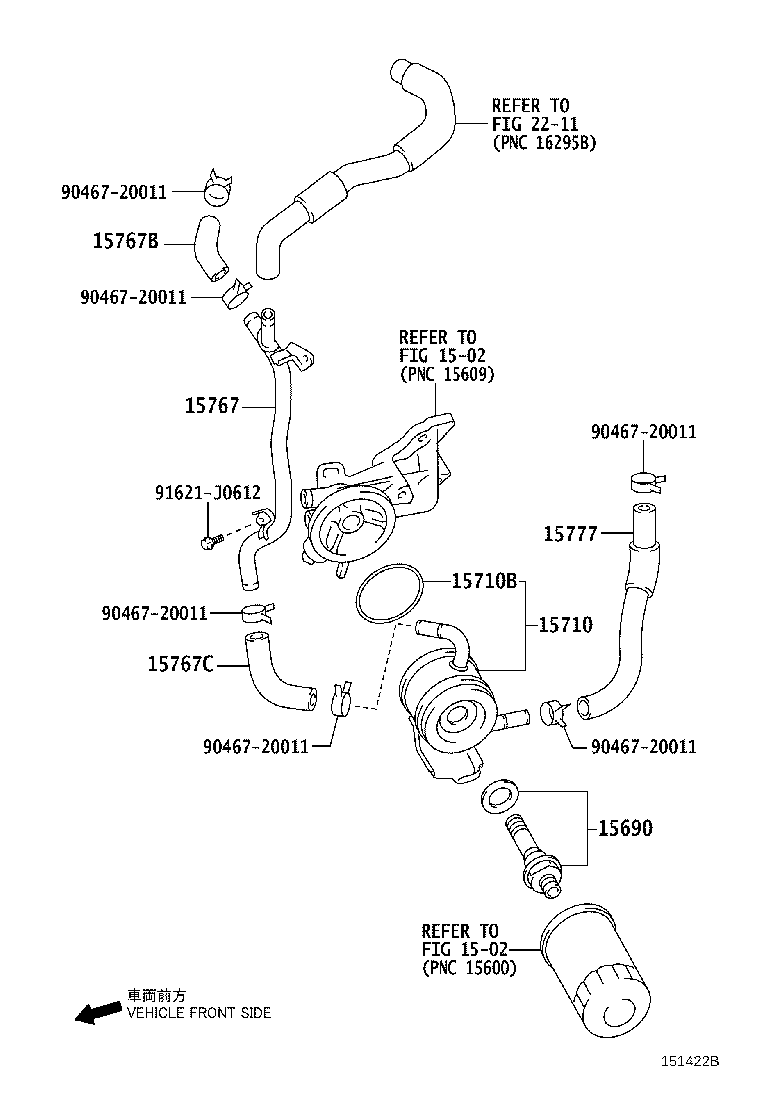

Figure 153024 153024 2007-12 → 2012-02 Figure 153023 153023 2012-02 → — Figure 151422B 151422B 2007-12 → 2012-02 Figure 151934A 151934A 2012-02 → —

Part groups

PNCDescription
15690 Valve Assy, Oil Cooler Relief
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15767 Pipe, Oil Cooler
15767B Hose, Water By-pass, NO.4
15767C Hose, Water By-pass, NO.5
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772A Union(FOR OIL PIPE)
15772E Gasket(FOR OIL PIPE)
15777 Hose, Oil Cooler
15778 Hose, Oil Cooler, NO.2
15781 Bracket, Oil Cooler, NO.1
15788 Spacer, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
