Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

29 part groups · 5 illustrations

Illustrations

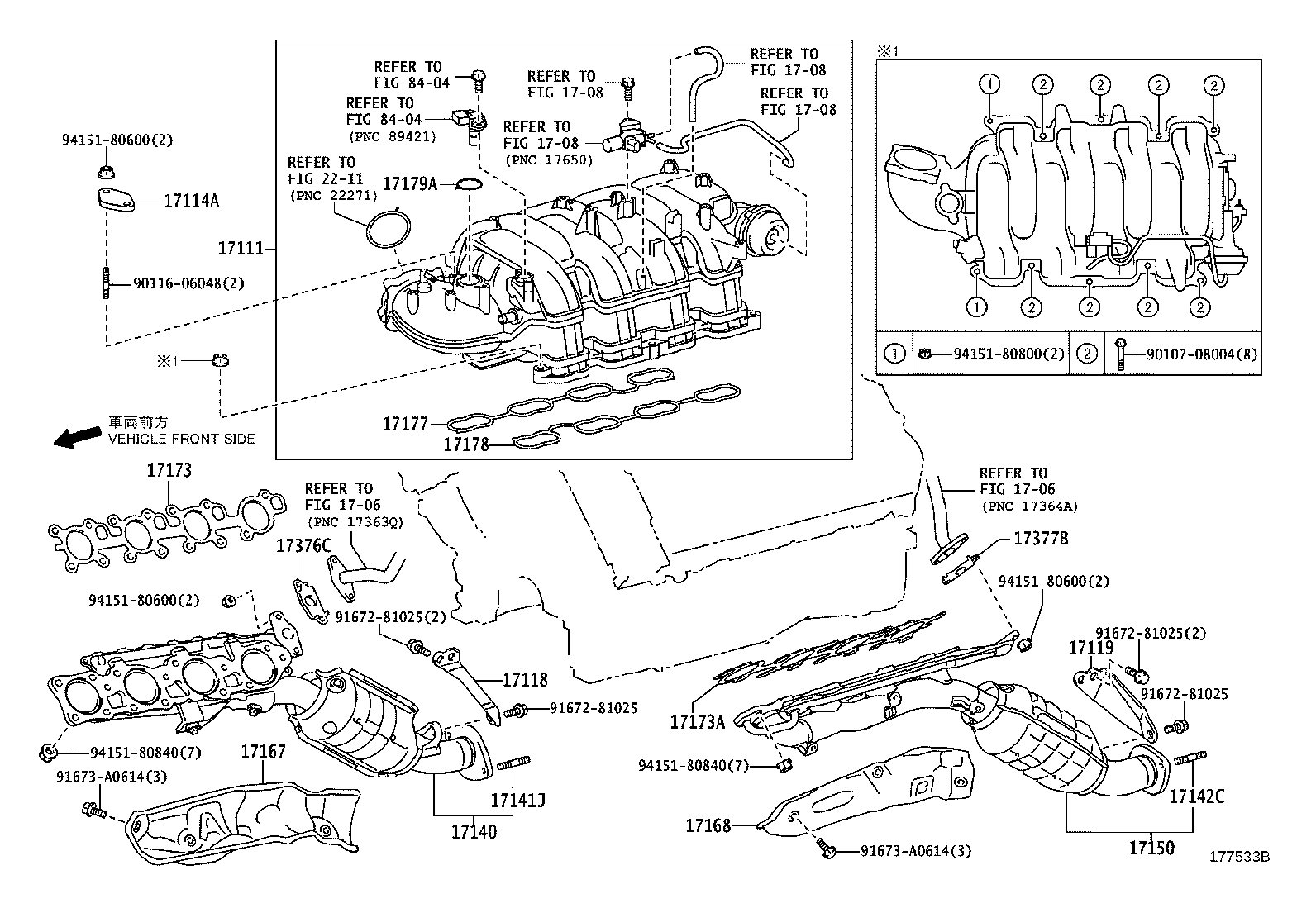

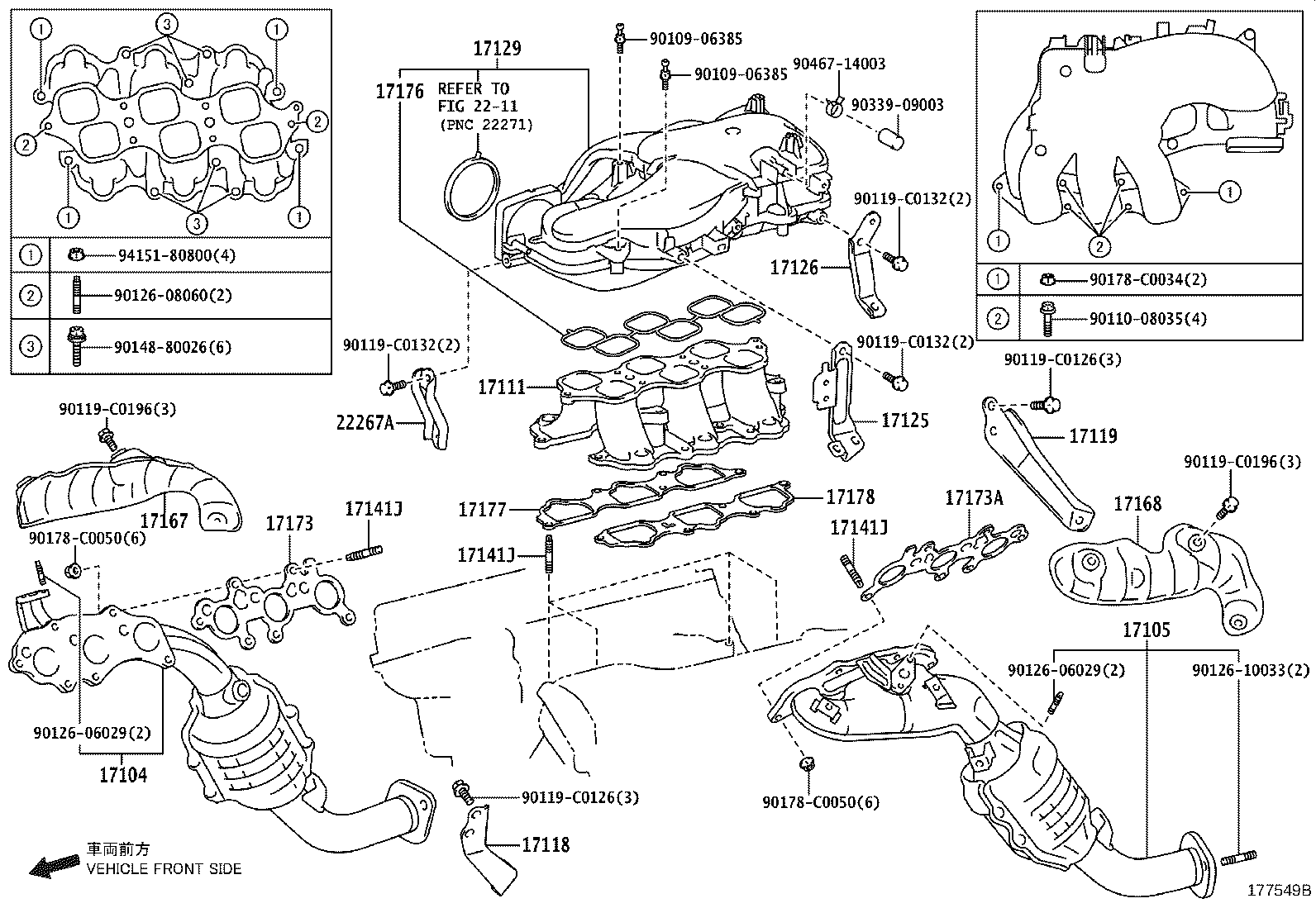

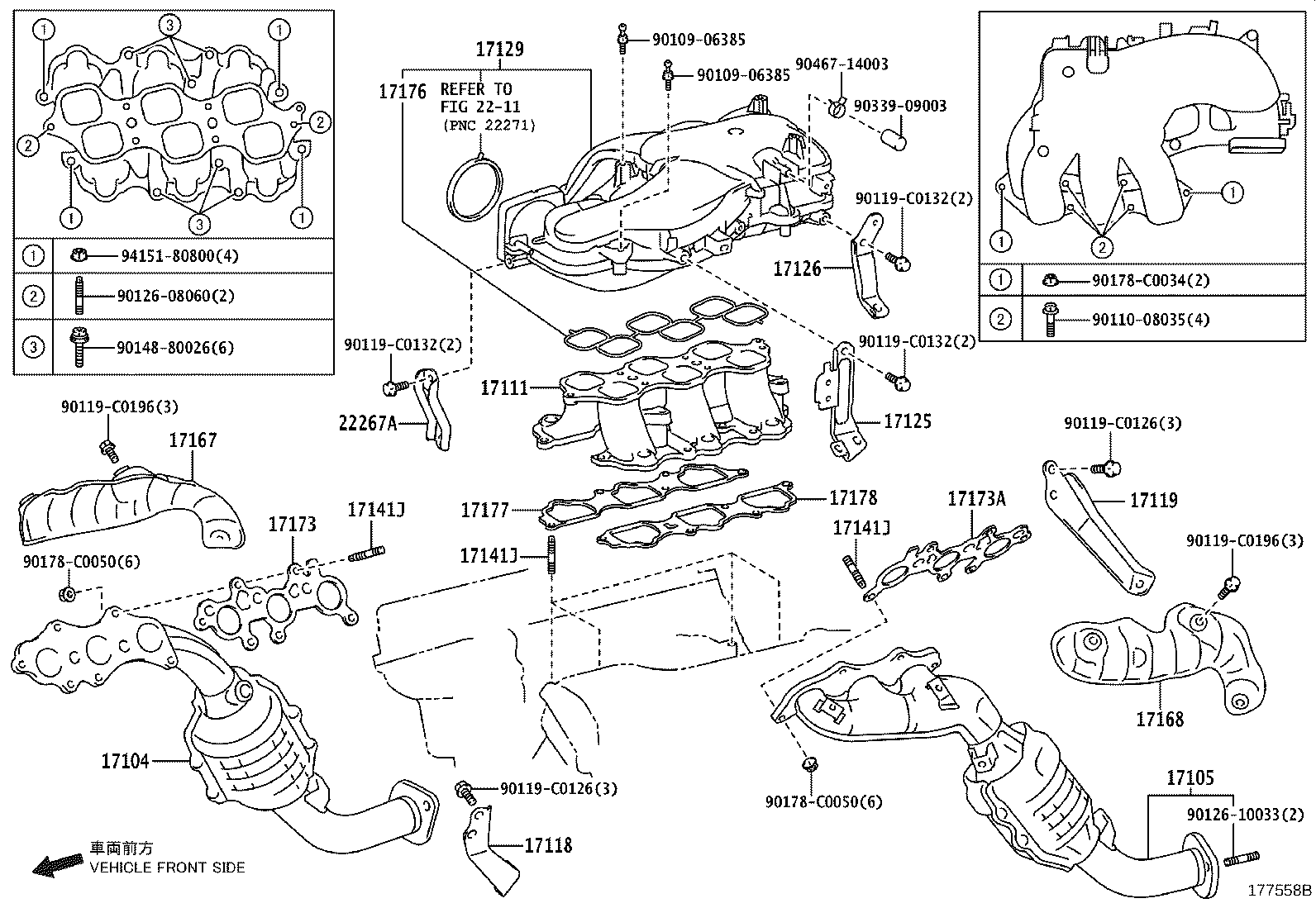

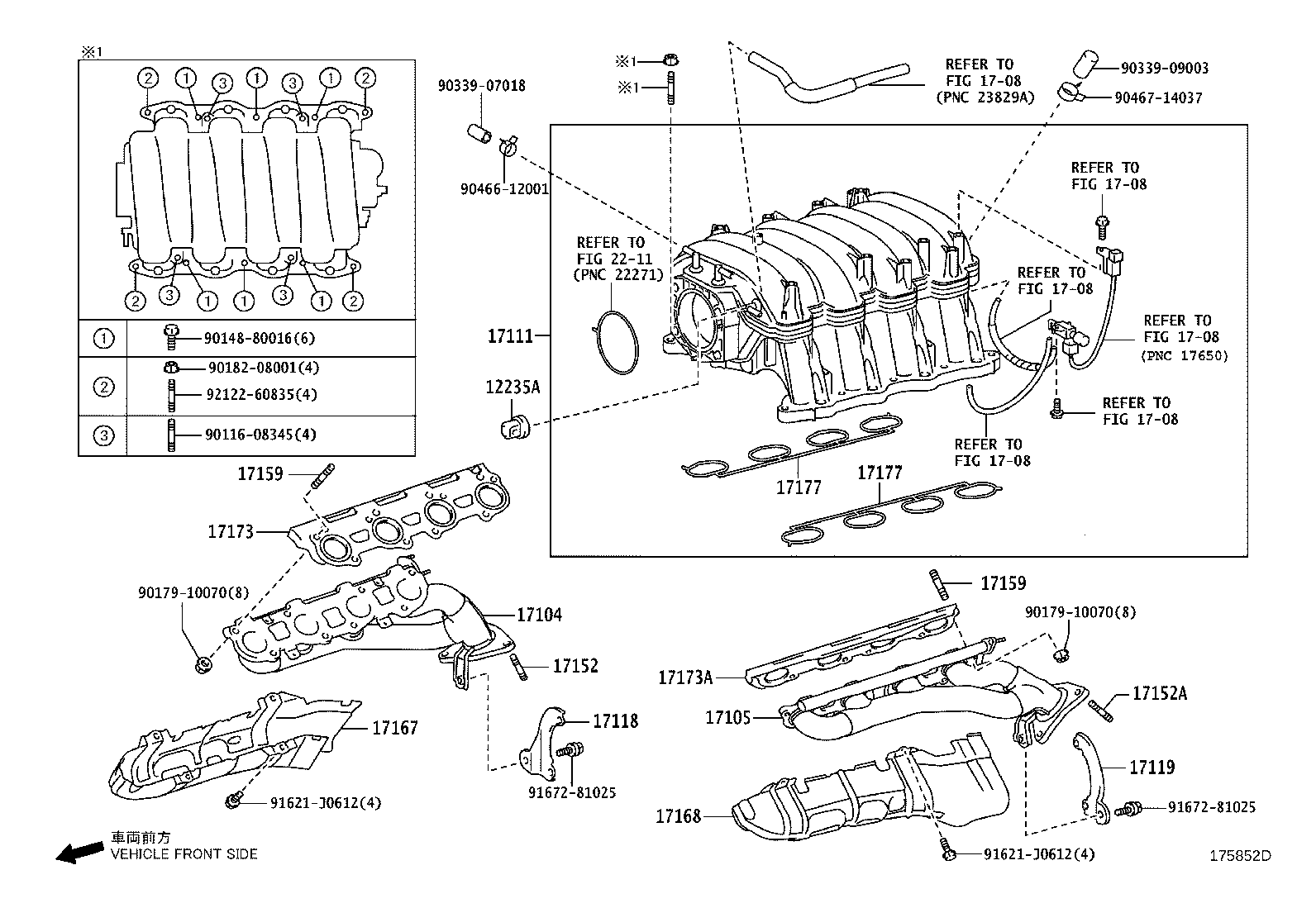

Figure 175739A 175739A 2007-12 → 2012-02 Figure 177558B 177558B 2012-02 → — Figure 177549B 177549B 2012-02 → — Figure 175852D 175852D 2007-12 → 2012-02 Figure 177533B 177533B 2012-02 → —

Part groups

PNCDescription
12216C Plate, Oil Baffle
12235A Cap, Ventilation
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17114A Flange, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17140 Manifold Assy, Exhaust, RH
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17142C Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
17150 Manifold Assy, Exhaust, LH
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17152A Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17179A Gasket, Intake Manifold, NO.2
17376C Gasket, Air Tube
17377B Gasket, Air Tube, NO.2
22267A Bracket, Throttle Body
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
