Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

18 part groups · 3 illustrations

Illustrations

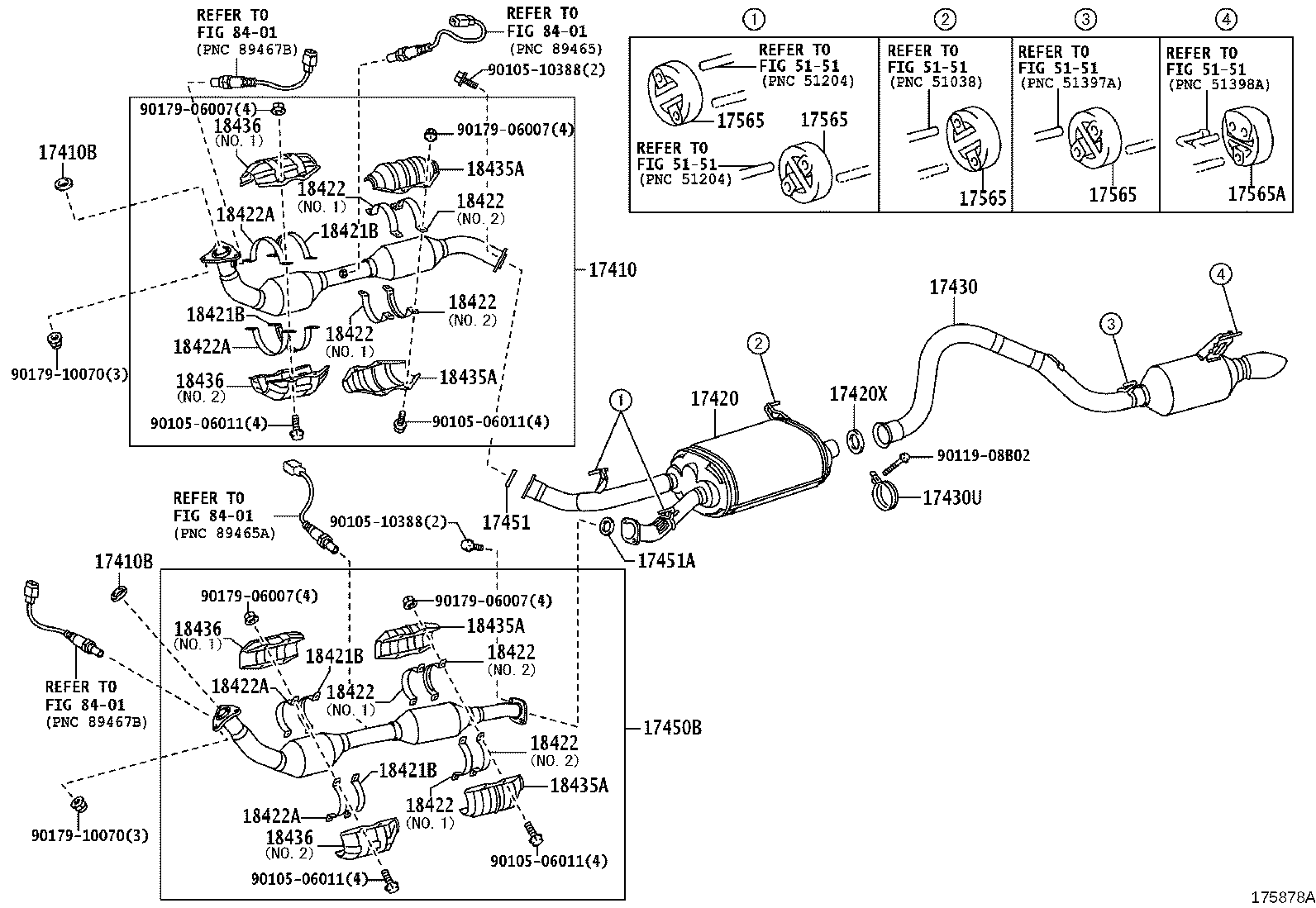

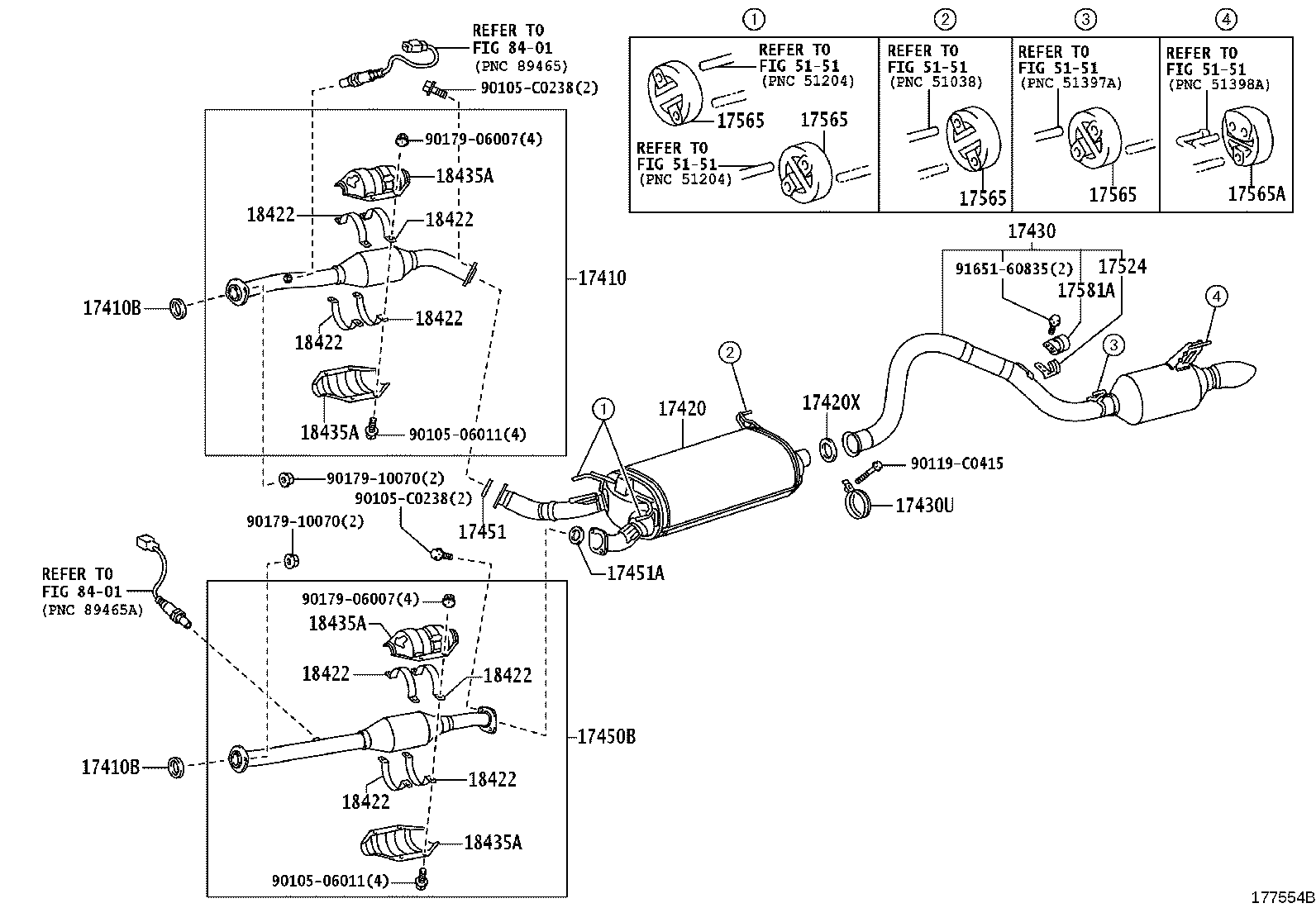

Figure 175877D 175877D 2007-12 → — Figure 175878A 175878A 2007-12 → — Figure 177554B 177554B 2012-02 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17524 Protector, Exhaust Pipe, Upper NO.4
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17581A Damper, Exhaust Pipe
18421B Stay, Converter Protector, NO.2
18422 Stay, Converter Protector, NO.2
18422A Stay, Converter Protector, NO.3
18435A Protector, Monolithic Converter
18436 Protector, Monolithic Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
