Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

18 part groups · 4 illustrations

Illustrations

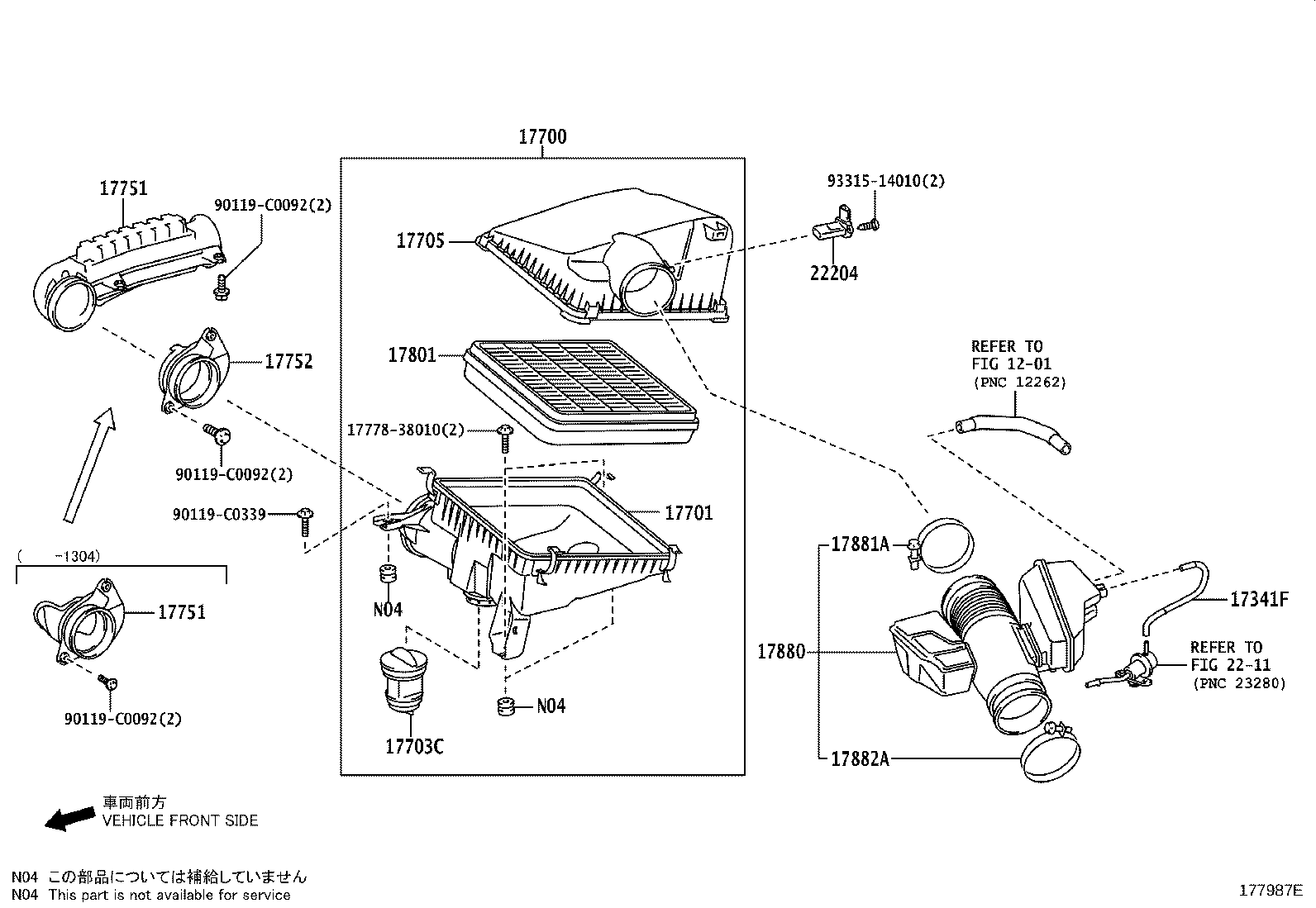

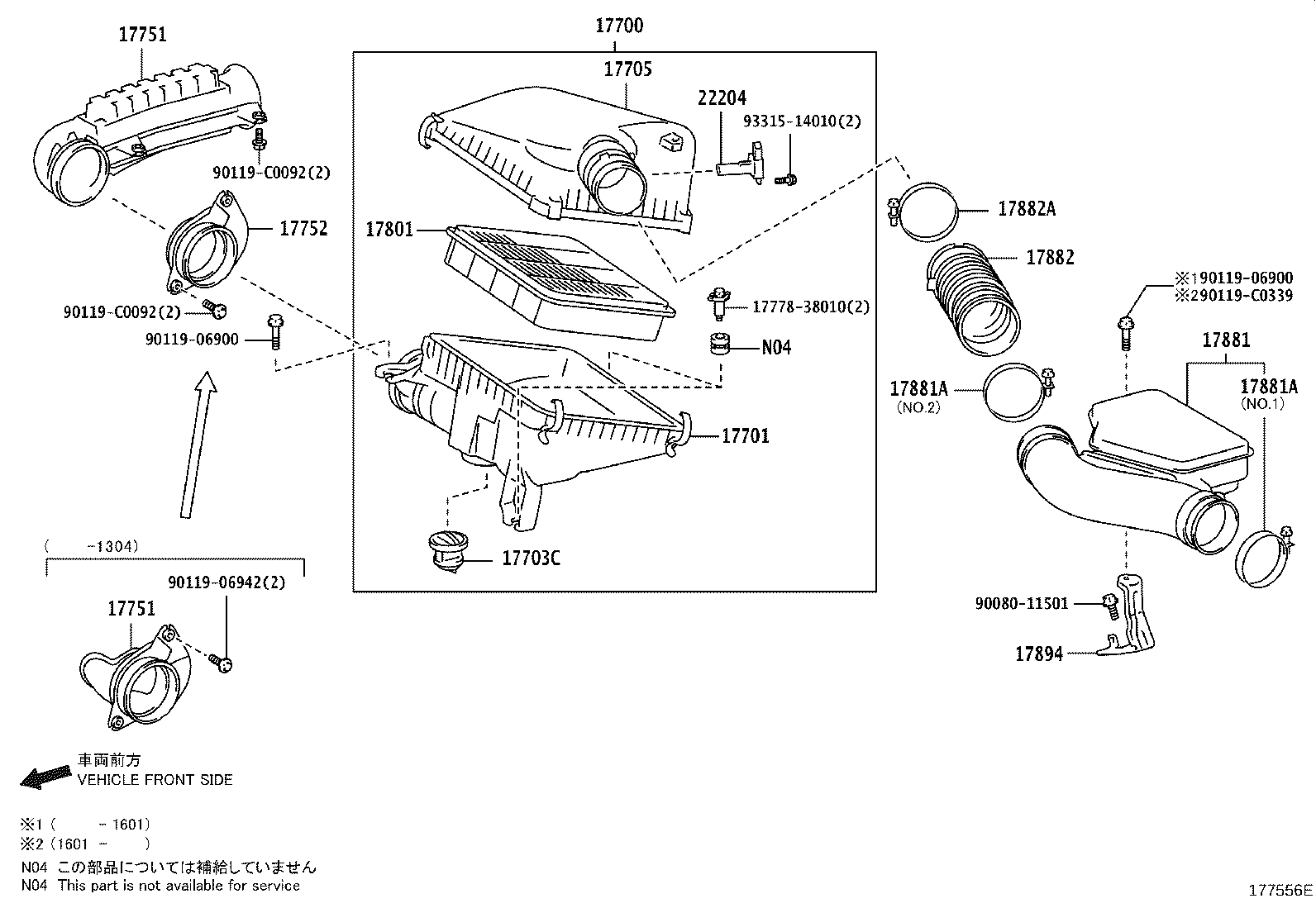

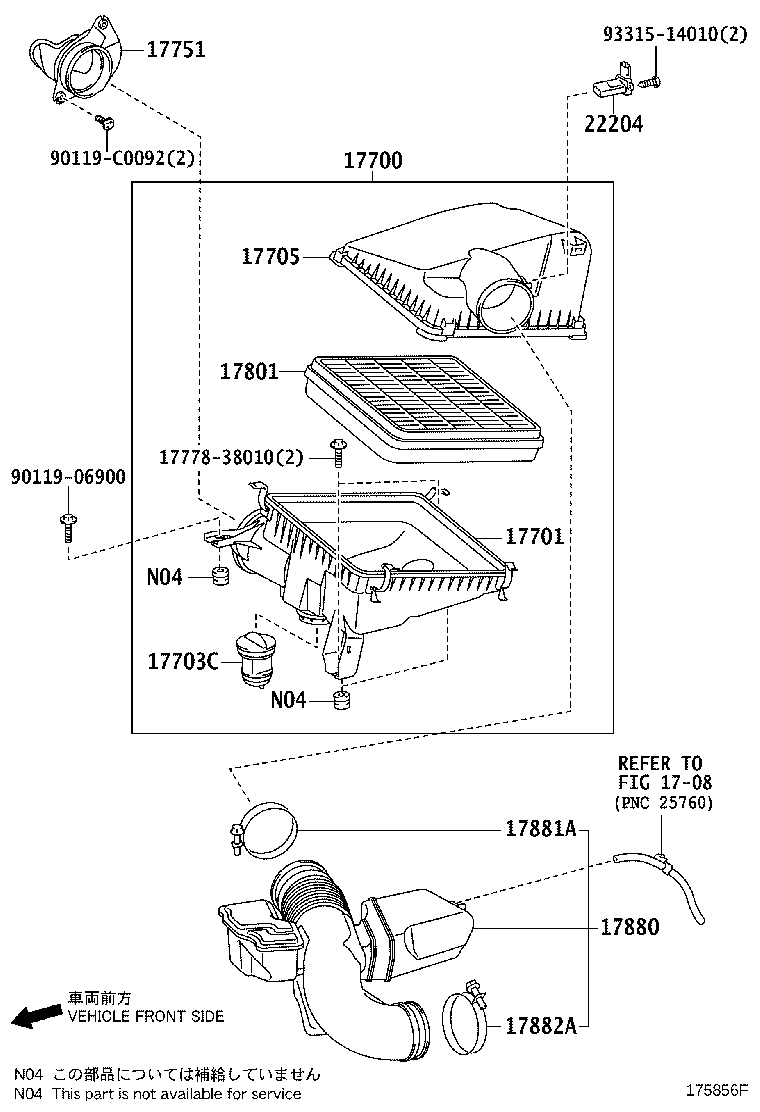

Figure 175743D 175743D 2007-12 → 2012-02 Figure 177556E 177556E 2012-02 → — Figure 175856F 175856F 2007-12 → 2012-02 Figure 177987E 177987E 2012-02 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17703C Cap Sub-assy, Dust
17705 Cap Sub-assy, Air Cleaner
17730 Precleaner Assy, Air W/Hose
17743 Valve, Dust Relief
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17894 Bracket, Resonator
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
