Toyota Land Cruiser(CHINA)
2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General
Discontinued model
Data version 2017-05

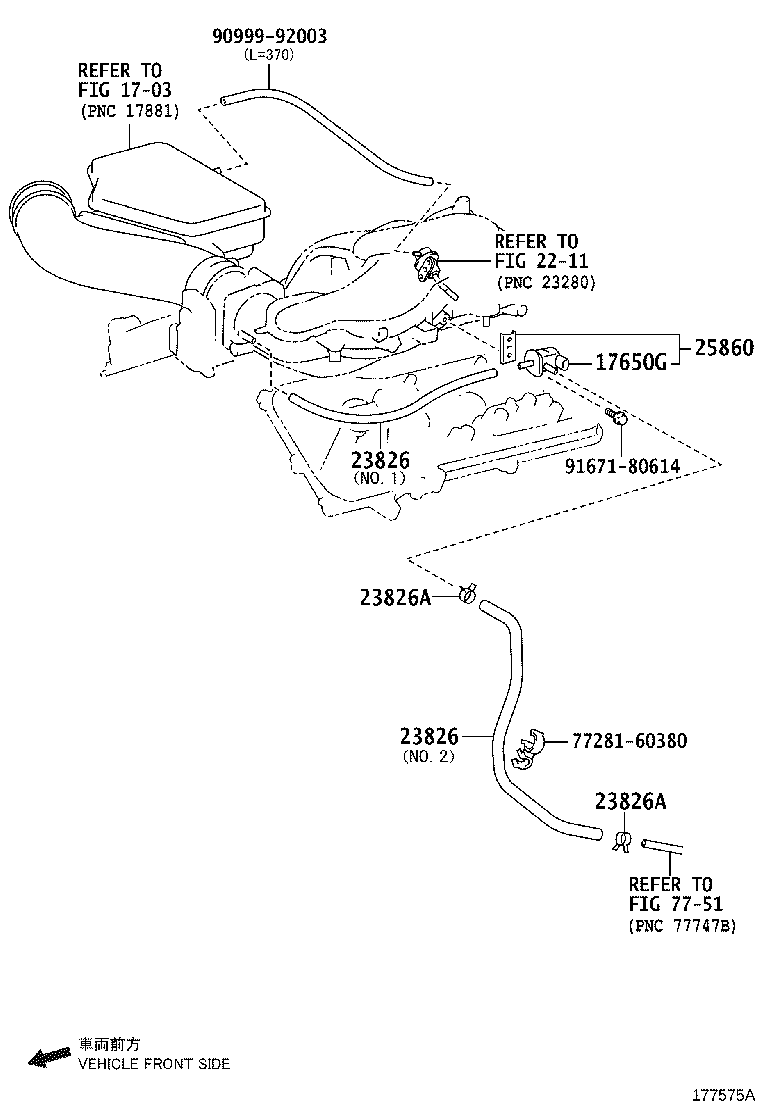

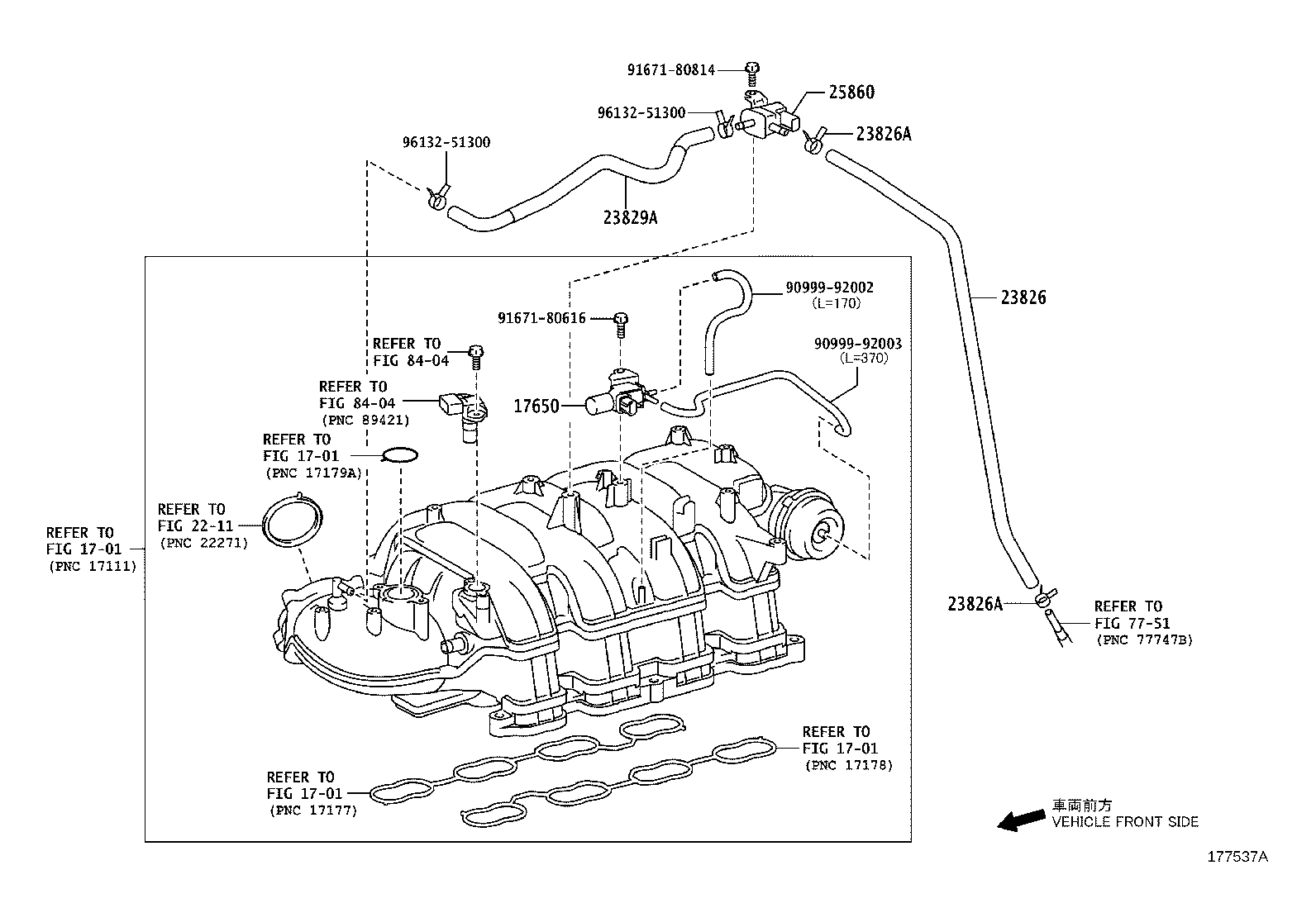

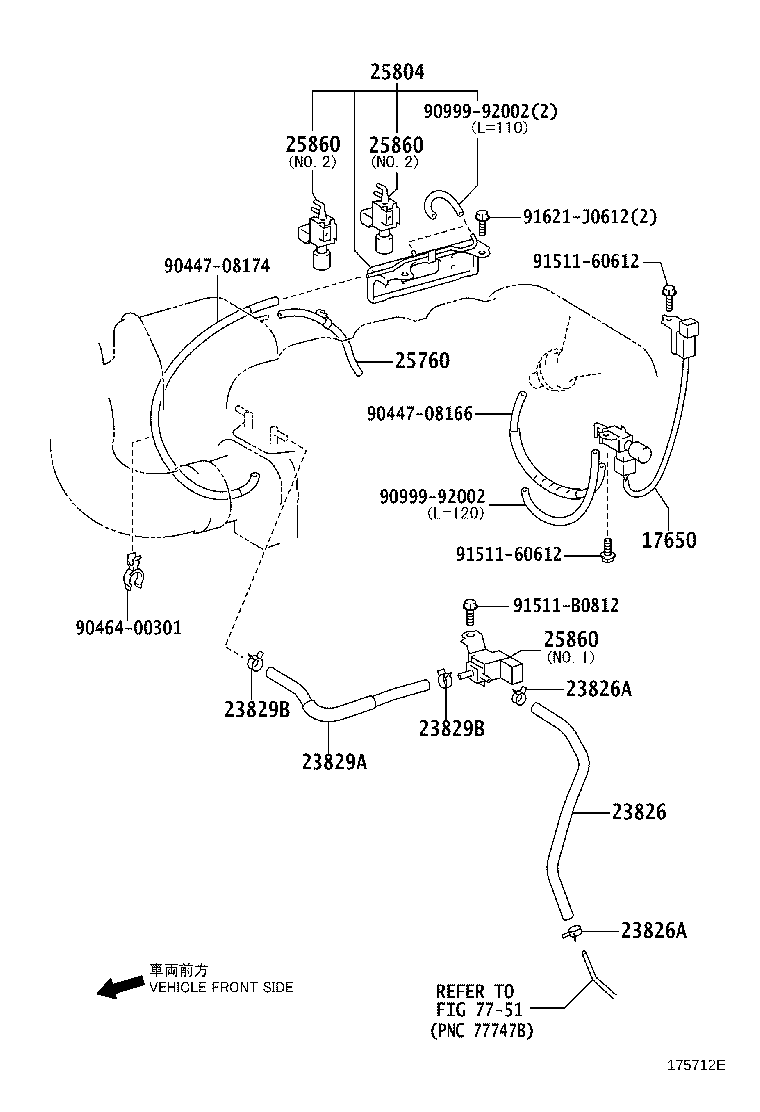

Vacuum Piping
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17650 | Valve Assy, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25804 | Valve Set, Vacuum Control |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
