Toyota Land Cruiser(CHINA)

2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General

Discontinued model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

10 part groups · 4 illustrations

Illustrations

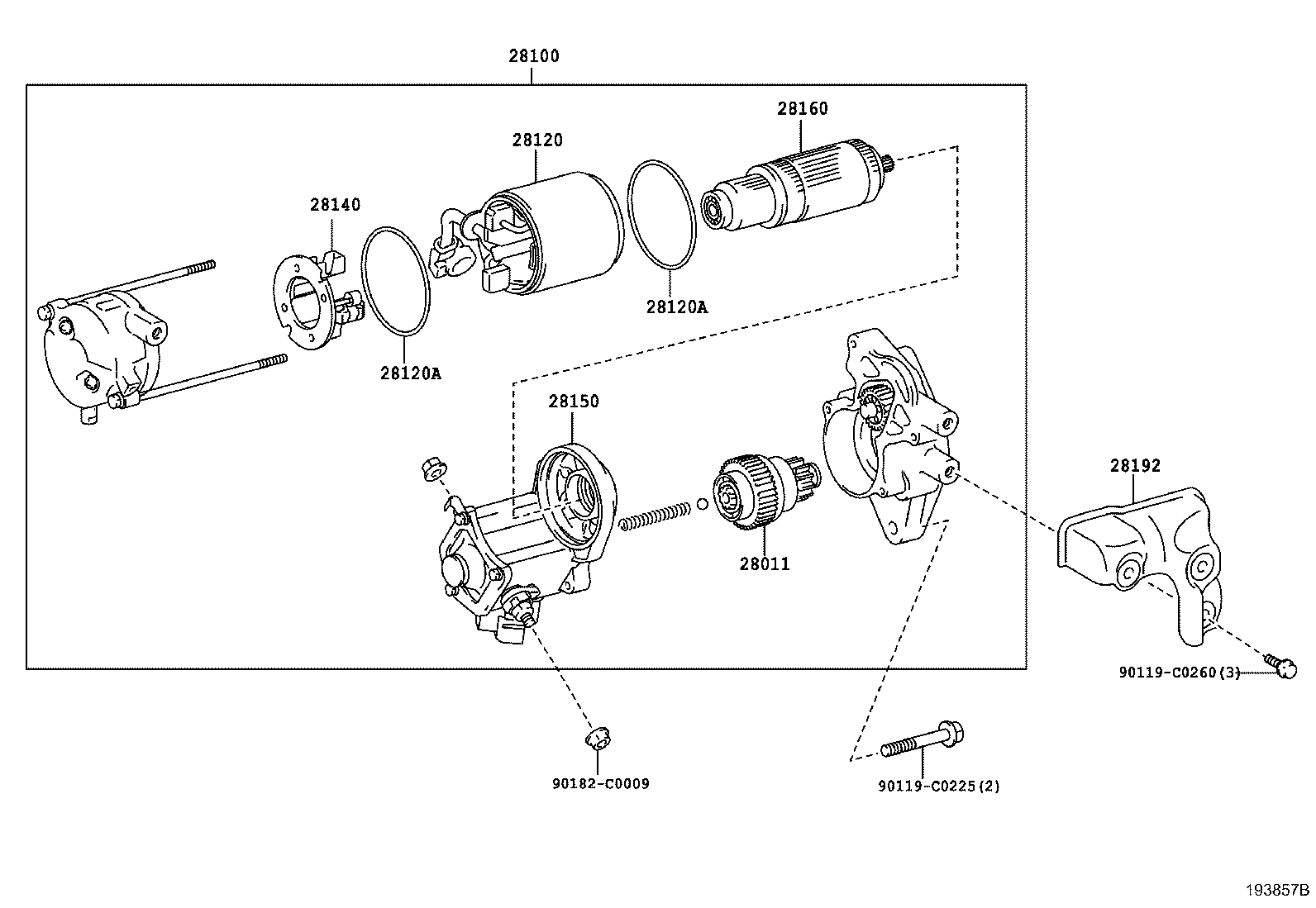

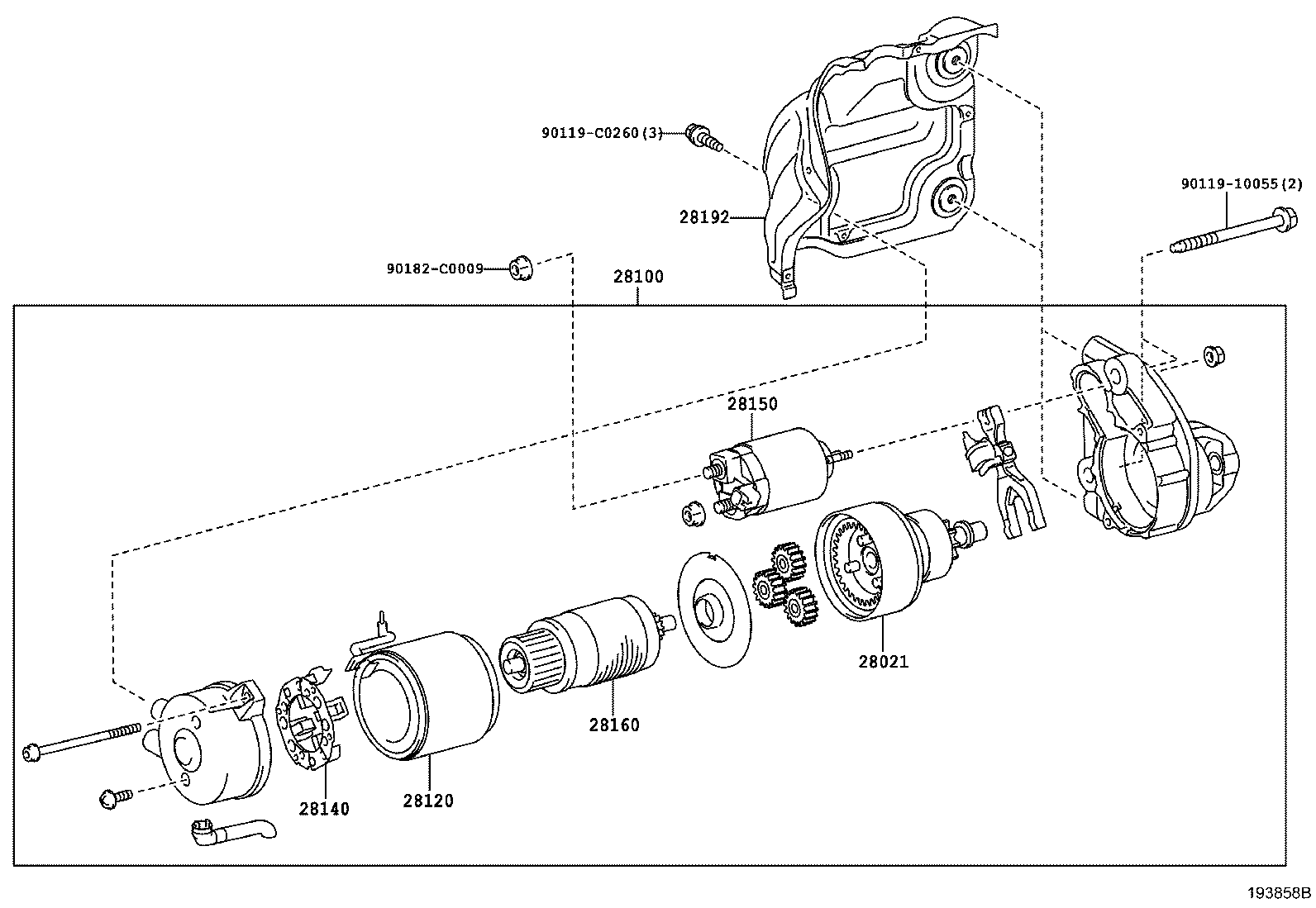

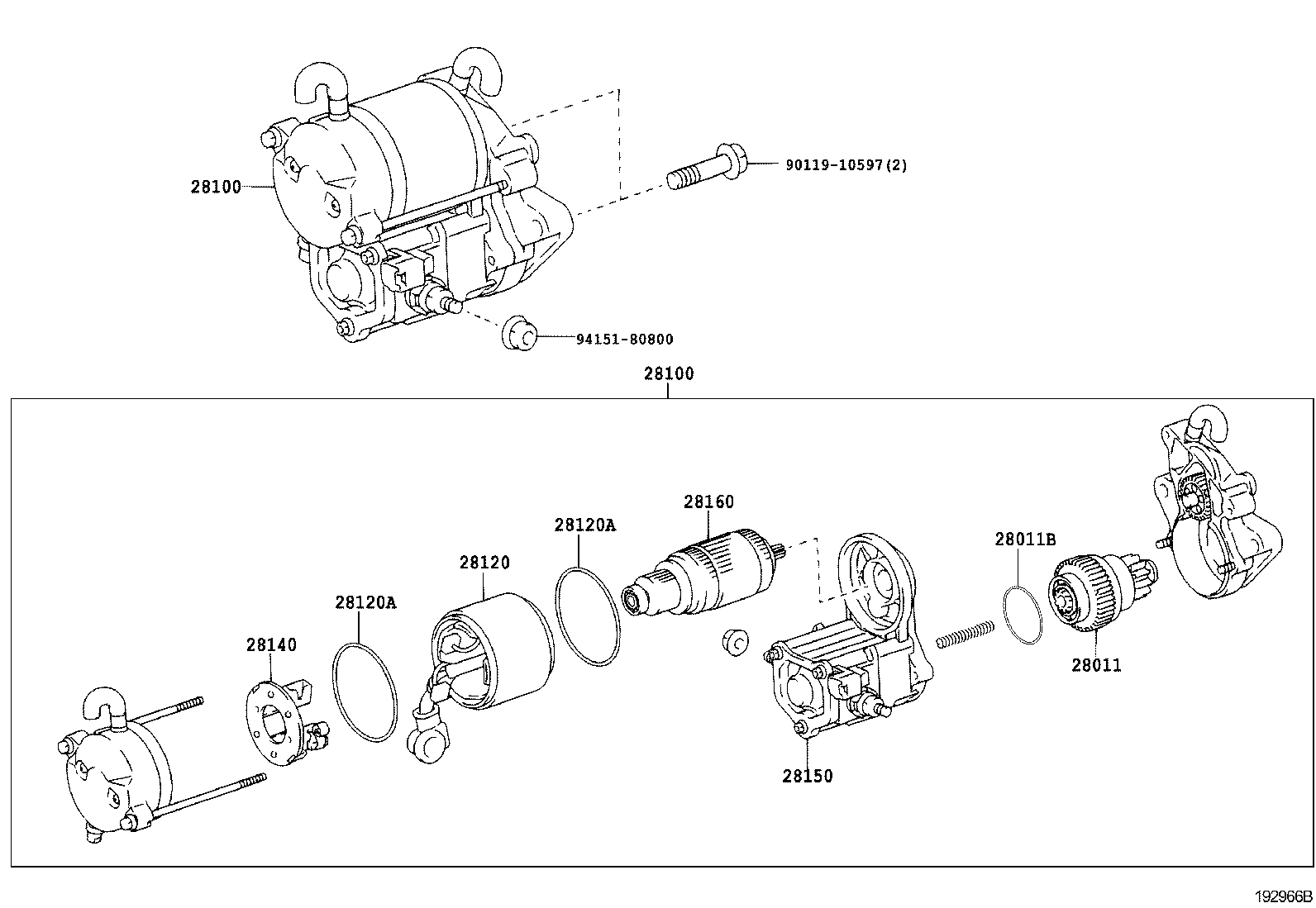

Figure 192965A 192965A 2007-12 → 2012-02 Figure 192966B 192966B 2007-12 → 2012-02 Figure 193857B 193857B 2012-02 → — Figure 193858B 193858B 2012-02 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28011B Ring, O(FOR STARTER CLUTCH)
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28192 Cover, Starter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
