Toyota Land Cruiser(CHINA)
2007-12 → 2016-12 · chassis GRJ200,URJ202,UZJ200 · catalogue 790310 · General
Discontinued model
Data version 2017-05

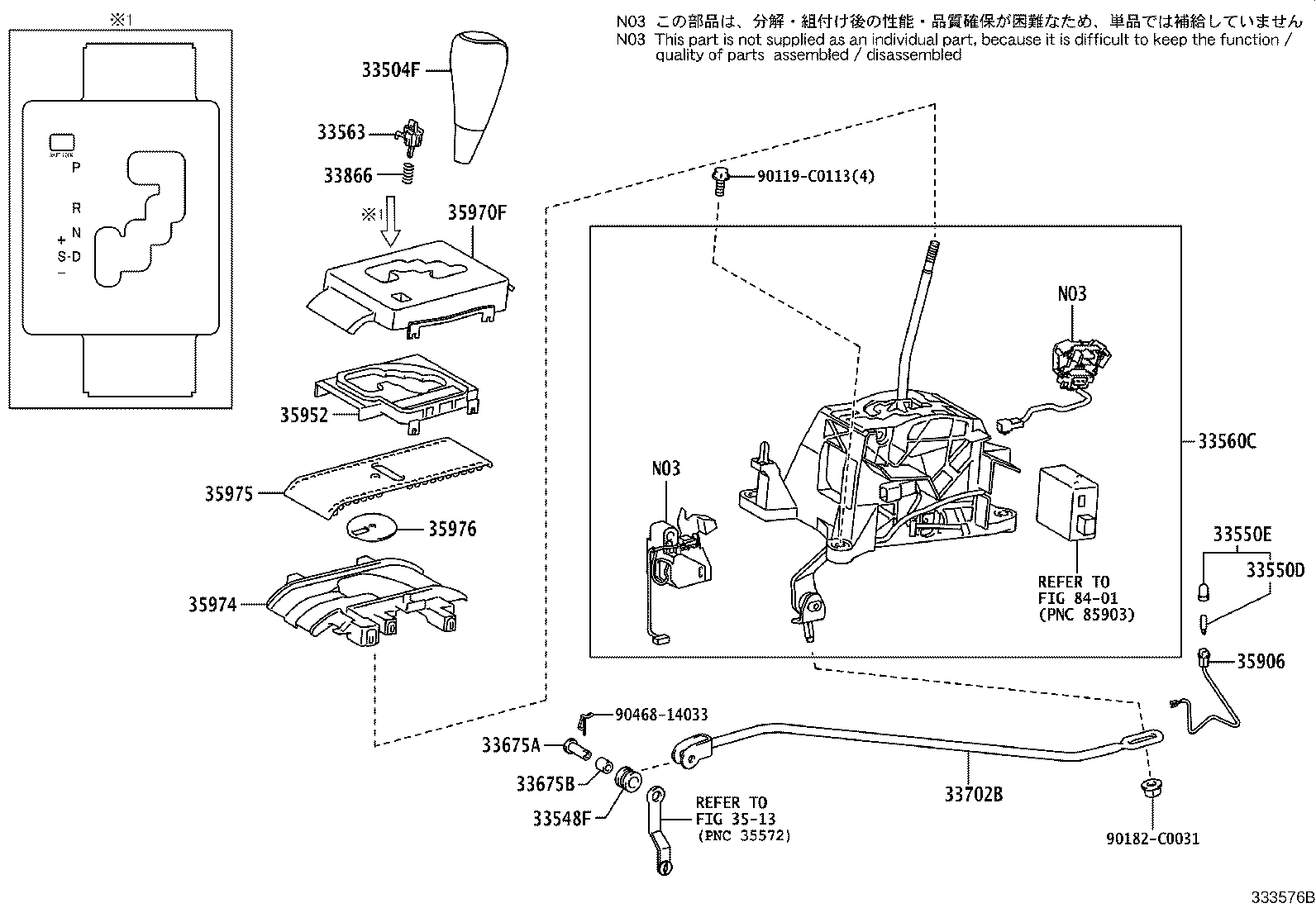

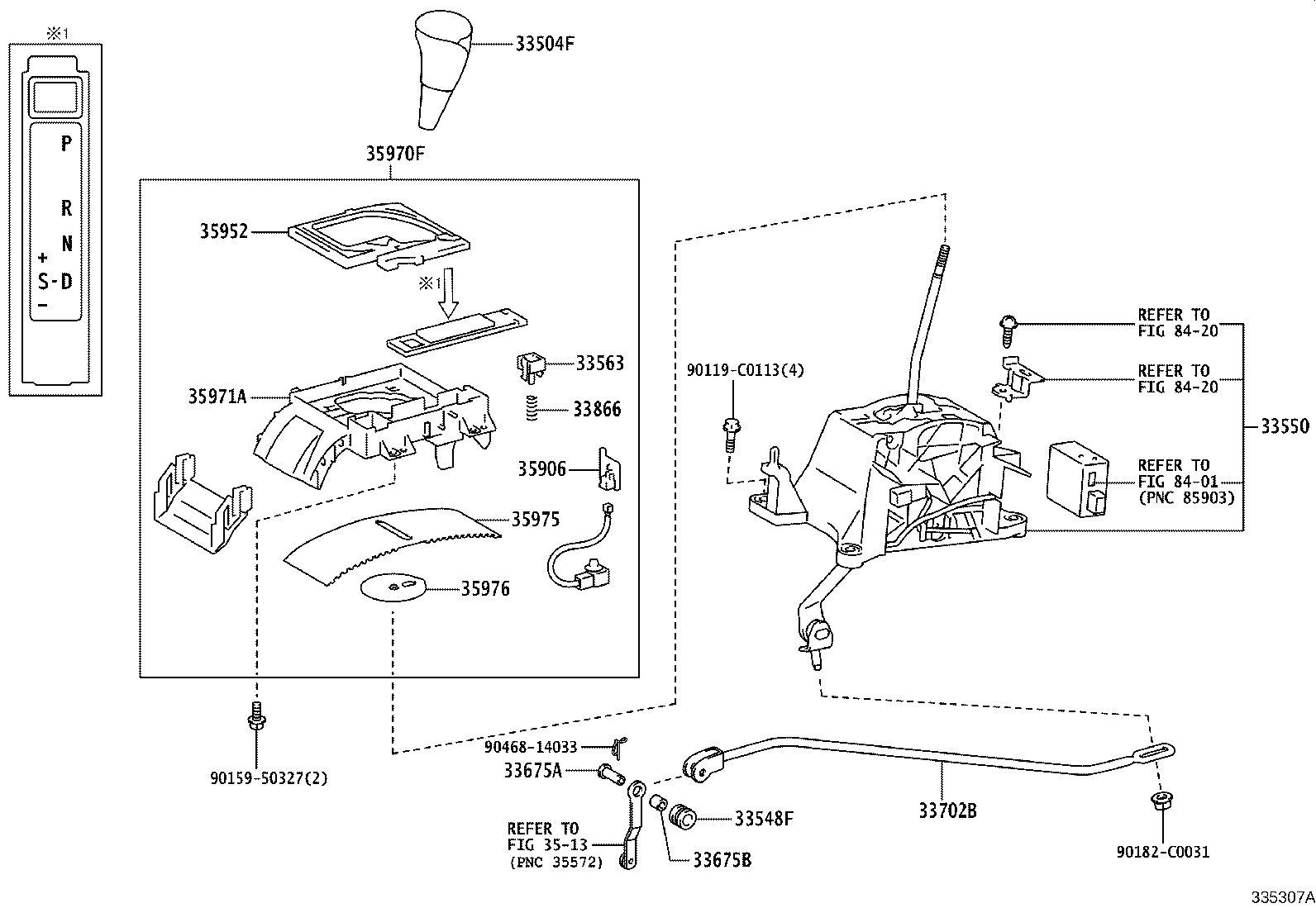

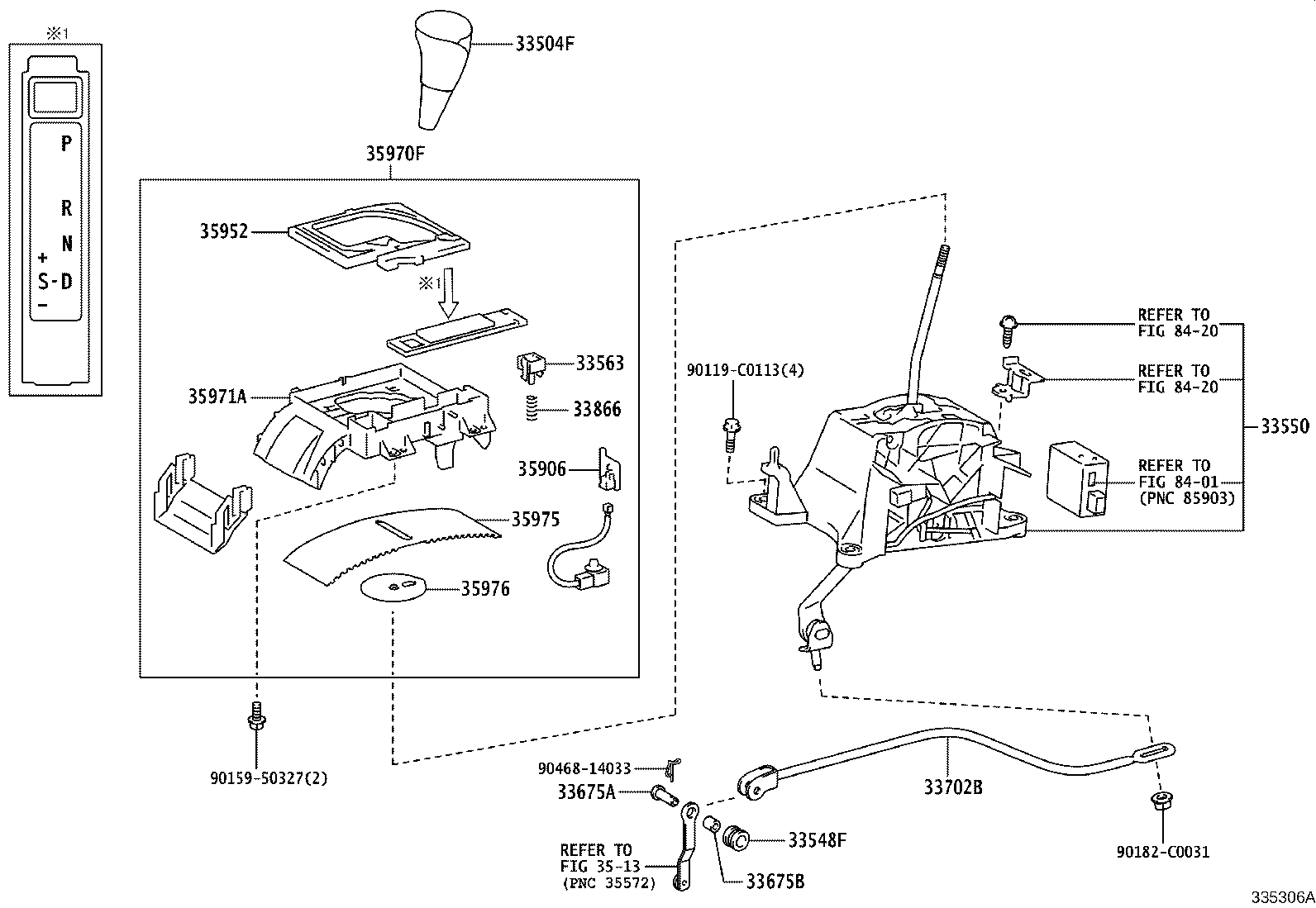

Shift Lever & Retainer
23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33505B | Seat Sub-assy, Shift Lever |
| 33506A | Bolt (FOR CONTROL SHIFT LEVER RETAINER) |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33548F | Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) |
| 33550 | Floor Shift Assy, Transmission |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33555 | Boot, Shift Lever |
| 33560C | Lever Assy, Shift, Lower |
| 33563 | Button, Shift Lock Release |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33675B | Bush (FOR TRANSMISSION CONTROL ROD) |
| 33702B | Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) |
| 33866 | Spring, Shift Lock Release |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35952 | Lens, Position Indicator |
| 35970F | Housing Assy, Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
